Tesco VCBD1611 User manual

1600W Bagged Vacuum Cleaner
USER GUIDE
VCBD1611

VCBD1611 Vacuum Cleaner User Guide
Page 2
IMPORTANT SAFETY INFORMATION
To reduce the risk of fire, electrical shock, or injury:
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
Read all the instructions carefully before using your
appliance and keep them for future reference. If you pass
the product on to a third party, include this manual.
Unplug the appliance from the mains supply when not in
use, removing or attaching filters, accessories, the dust cup
and before cleaning any part of the appliance.
When unplugging, hold the plug top, not the power cord.
Do not immerse the body of the cleaner or the electrical
cord or plug in water or liquids.
Never leave the cleaner unattended when it is connected to
the electricity supply.
Do not use outdoors in damp or wet weather
Do not use your appliance indoors in damp or wet
conditions.
Do not use attachments or accessories not recommended
by the manufacturer.
Close supervision is necessary when an appliance is used
near children. Children should not operate this appliance.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
This appliance is for household use. Do not use for any
purpose not expressly specified in this manual.
There are no user serviceable parts in this appliance.
Unauthorised dismantling or servicing will void the warranty.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard
Refer all servicing which involves the taking or putting on of
parts (other than those specifically referred to in this manual),
to a qualified repair person or approved service centre.
Do not use attachments or accessories which are not
recommended by the manufacturer. They may cause
malfunction or injury.
Do not use harsh abrasives, or caustic cleaners when
cleaning this appliance.
Store the appliance away from direct sunlight, with all
accessories detached and out of the reach of children.
Before using this appliance ensure that the voltage of your
electricity supply is the same as that indicated on the rating
plate of the appliance.
Class II construction double insulated. This product
must not be connected to earth.
Electrical Information
$
$
SPECIFICATIONS
Model:
Voltage:
Power:
Net Weight:
VCBD1611
220-240 V AC 50Hz
1400W( nom) 1600W (max)
3.8 Kg
86.64dBNoise level:
When operating your cleaner:
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
Do NOT
Do NOT
Do NOT
Do NOT
Do NOT
Do NOT
Do NOT
Do NOT
Do NOT
Use only on dry, indoor surfaces.
Do NOT
Do NOT
Do NOT
Keep all vents openings and attachments free of dust,
lint, hair and anything else that may reduce air flow.
before
NEVER
use the vacuum cleaner if it has been dropped,
damaged, left outdoors, or dropped into water.
pull or carry the cleaner by the cord, close a door
on the cord, or pull the cord around sharp edges or corners.
Use the handle to carry and move the cleaner.
run the appliance over the power cord.
handle the mains plug or cleaner with wet hands.
use the vacuum cleaner to pick up large objects
or objects that are likely to damage the vacuum cleaner.
attempt to vacuum long hair, string, pieces of
cloth, etc. when vacuuming carpets or floors. These may
clog the vacuum cleaner.
Keep hair, loose clothing, jewellery, fingers, feet and all
parts of your body away from openings and moving parts.
vacuum hot items; e.g. cigarettes, matches, ashes.
vacuum hard or metal objects, nails pins, etc.
pick up toxic, or flammable materials or use in
the presence of explosive or toxic dust, liquids or vapour.
put any objects into openings.
use with any filters blocked.
use without all the filters in place.
Before use check that the dust bag is empty and empty it
frequently during use.
Switch the cleaner off before plugging or unplugging the
vacuum cleaner into the mains supply.
Use extra care when vacuuming on stairs.
Keep the end of the hose and all attachments away from
your face and body.
If the appliance becomes clogged, switch off and unplug
the power cord clearing the obstruction.
leave the cleaner unattended while it is plugged
into the mains
$
$
!
IMPORTANT NOTICE - PLEASE READ BEFORE USING THIS PRODUCT!
THIS CLEANER WORKS BY SUCKING AIR AT HIGH PRESSURE THROUGH A POWERFUL MOTOR. FOR
EFFICIENT AND SAFE OPERATION IT IS ESSENTIAL THAT ALL THE AIRWAYS AND FILTERS ARE CLEANED
AT REGULAR INTERVALS AND THAT THE DUST IS EMPTIED THE DUST BAG IS FULL. DO NOT
USE THE CLEANER WHEN THE DUST BAG FULL INDICATOR IS ON.
FAILURE TO CLEAN THE FILTERS AND EMPTY THE DUST BAG IN GOOD TIME WILL RESTRICT THE
AIRFLOW AND RESULT IN POOR CLEANER PERFORMANCE.
DAMAGE CAUSED BY FAILURE TO AND TO
AS SPECIFIED IN THESE INSTRUCTIONS WILL NOT BE COVERED BY THE WARRANTY.
BEFORE
LONG TERM NEGLECT WILL BLOCK THE AIRFLOW AND MAY DAMAGE THE CLEANER BEYOND
REPAIR. REPLACE THE DUST BAG CLEAN THE FILTERS,
AND AIRWAYS
!

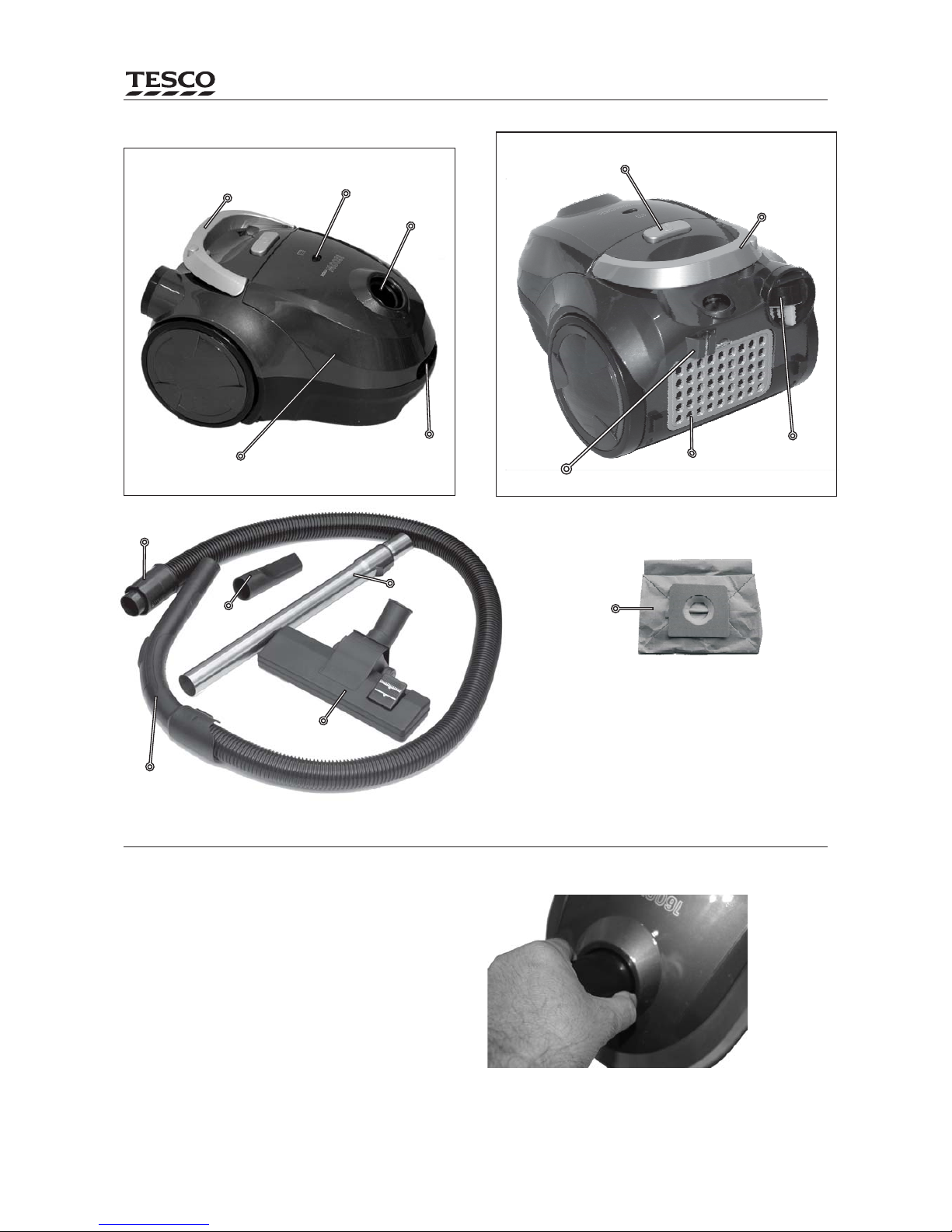

Your Vacuum Cleaner and its accessories
Page 3
Unpacking The Cleaner
Remove all packaging from the appliance and accessories.
Retain the packaging. If you dispose of it, do so according to
any recycling regulations.
Identify the cleaner components from the illustrations. If any
items are missing or damaged, contact your nearest Tesco store
for assistance. Please have your receipt ready when you call.
Hose Inlet
Carry Handle Bag Full Indicator
Attaching and Removing the Flexible Hose
To attach the hose:
To remove the hose:
Locate the hose collar in the hose inlet. Push the collar in and
turn slightly to lock the hose in place.
Press the two catches at the side of the collar. Hold the catches
in and remove the hose.
Assembling your Vacuum Cleaner
Front Cover Release
Front Cover
Flexible
Hose Handle
Hose
Collar
Floor
Brush
Crevice
Tool
Spare
Dust Bag
VCBD1611 Vacuum Cleaner User Guide
Mains ON/OFF Switch
Cord Rewind Switch
Cord Storage
Compartment
Air Outlet Filter Cover
Storage
Hook
Extension
Tube

Attaching the Accessories
Push the firmly onto
the end of the hose extension/s (or
directly onto the hose handle if you
are not using the extension tube).
Floor Brush
The will attach to the
hose in the same way as the floor
brush
Press the catch in, Holding the
catch in, adjust the tube in and out
as needed. Release the catch
Crevice Tool
Adjusting the Extension Tube
Page 4
VCBD1611 Vacuum Cleaner User Guide
Operating your Vacuum Cleaner
1:`To extend the power cord:
yellow
red
Never extend the cord beyond the
red mark or you may damage the
cord winding mechanism.
2: To rewind the cord:
Floor Brush
Bare Floors:
Carpets:
Crevice Tool
Gently pull the cord from the recess
located in the rear of the cleaner. The
cord has two marks.
The mark shows the maximum
safe length to which you can extend
the cord. If you can see the mark
the cord has been lengthened too
much.
Unplug the cord. The handle
incorporates the Cord Release. Press the handle down. Gently
guide the cord back by hand into the cleaner until it is fully
rewound. Do not let the cord return unaided or it may whip and
cause damage or injury.
Connect the hose and extensions to the appliance.
Open the airflow slider in the handle.
Extend the power cord to a usable length.
Plug the unit into the mains and switch on the power.
Press the Mains ON/OFF switch to switch the power ON.
(Press again to switch the power OFF)
Move the vacuum head back and forth over the surface. Use
even strokes.
Open and close the airflow slider to vary the suction power of
the cleaner.
The is adjustable for use on carpets or bare floors.
Press the lever showing the Brush Symbol. The
brush will appear .
Press the lever showing the Floor symbol to retract
the floor brush.
The is used to vacuum down the side of cushions,
and in recesses and folds in curtains etc.
The cleaner may be carried in a horizontal position with the
regular handle. It may also be carried vertically using the
handgrip recess in the base.
Using the Appliance
Using the Accessories
Carrying the Cleaner
When vacuuming:
Do not press- let the cleaner do the work.
Never attach or remove accessories when the vacuum cleaner is switched on.
1
2
1

Page 5
General Do's and Don'ts
VCBD1611 Vacuum Cleaner User Guide
When you have finished vacuuming:
$
$
$
Switch off and unplug the appliance.
Rewind the power cord.
Disconnect the accessories and store the cleaner in the
vertical position or place the cleaner normally with the
accessories in the parked position.
The Dust bag should be emptied at
regular intervals to prevent clogging,
with a loss of suction power and poor
cleaning. When the 'Dust Bag Full'
indicator goes red the dust bag must be
emptied to avoid damage to the cleaner
Lift the top cover release catch
and hinge the cover up
Carefully detach the bag from the cradle and discard it.
Place a new bag in the cradle making sure that the top fits
securely behind all the tabs. Close the lid.
Clean the two filters often. Failure to clean the filters regularly
will reduce the cleaner efficiency and may shorten its lifespan.
is at the rear of the cleaner. Press the
catch down, lift off the cover and then remove the filter.
is in a cage at the rear of the inside
compartment. This should be accessed with the bag removed.
Slide the filter cage out and then remove the filter.
Brush the inlet and outlet cavities out. This will help keep the
internal airways clean and maintain cleaner performance.
(See Storage)
Removing the Dust
Cleaning and Replacing the Filters
The Motor Outlet Filter
The Inlet Filter
Do NOT
Do NOT
Do NOT
Do NOT
attach or remove accessories when the vacuum
cleaner is switched on.
pull the cleaner around the room by the hose.
over extend the hose. Trying to reach beyond the
hose length could cause an accident.
Be especially careful on stairs.
pull or carry the cleaner by the cord, close a door on
the cord, or pull the cord around sharp edges or corners. Do
not over extend the cord. Switch the cleaner off and move it to a
closer power point. Use just enough cord to do the job.
Use the carry handle to lift or move the cleaner.
If you are moving the cleaner a long way or up a flight of stairs,
switch off, rewind the power cord and park the accessories.
Clearing a Blockage
NEVER
If you suspect a blockage:
If this does not remove the blockage:
operate the cleaner with damaged filters or with a filter
missing. Use approved filters and regularly clean and replace
them.
If the cleaner loses suction this may be due to clogged filters or
a blockage.
Set the cleaner upright, switch off and unplug immediately.
Empty the dust, check all the filters and clean them.
Check the extension tubes and accessories visually and
remove any blockage with a stick or broom handle.
DO NOT operate the cleaner if the suction is
impaired.
$
$

Warranty
This appliance is intended only for household use. It must be
properly installed and operated in accordance with these
instructions. Failure to do this will invalidate the warranty.
Your appliance is covered by a warranty for 12 months from
the date of purchase. If a fault develops during this period,
please return the unit to your nearest Tesco store together with
the original receipt as proof of purchase. This warranty in no
way affects your consumer rights
Waste electrical products should not be
disposed of with household waste.
e for details.
Produced after 13th August 2005. Waste
electrical products should not be disposed of with
household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for
recycling advice.
UK:
ROI:
Separate
disposal facilities exist, for your nearest facilities see
www.recycle-more.co.uk or in-stor
Page 6
When you have finished Vacuuming:
Switch the cleaner off and unplug from
the mains.
Empty the dust bag and clean the filters
Wipe the cleaner body with a damp
cloth and dry thoroughly. Do NOT
allow water or liquids to penetrate the
vacuum cleaner. This could be
dangerous.
Store the cleaner safely out of the reach
of children and pets.
The cleaner can be stored upright on its
base with the hose and accessories
disconnected and separately stored.
Alternatively, it may be stored in the
normal or upright position with the tube
and floor brush parked on the rear
hook as shown.
Wash both filters under running water. Allow to dry
fully. When they are thoroughly dry, replace the
filters using the illustrations on the previous page as
a guide.
NEVER replace a filter if it is wet.
Motor Filter
Tesco Stores Ltd,
Delamare Road, Cheshunt, Herts, EN8 9SL
VCBD1611 Vacuum Cleaner User Guide
Inlet Filter Motor Filter
AUTOMATIC SHUT-OFF SWITCH
There is a safety switch inside the cleaner to prevent the unit from being run with too high a vacuum rate. If the airways or filters get
clogged the pressure in the cleaner will be excessive and the safety switch will be turned on. The cleaner then will stop working to
protect the motor from overheating.
If this happens switch off and unplug the cleaner Allow the motor to cool down for twenty minutes and clean the airways
and filters thoroughly. Plug the cleaner in again and switch on: the cleaner should now operate normally.
immediately.
NOTE: Repeated and excessive use of the cleaner in a blocked or semi-blocked state may cause the motor to fail
permanently.
