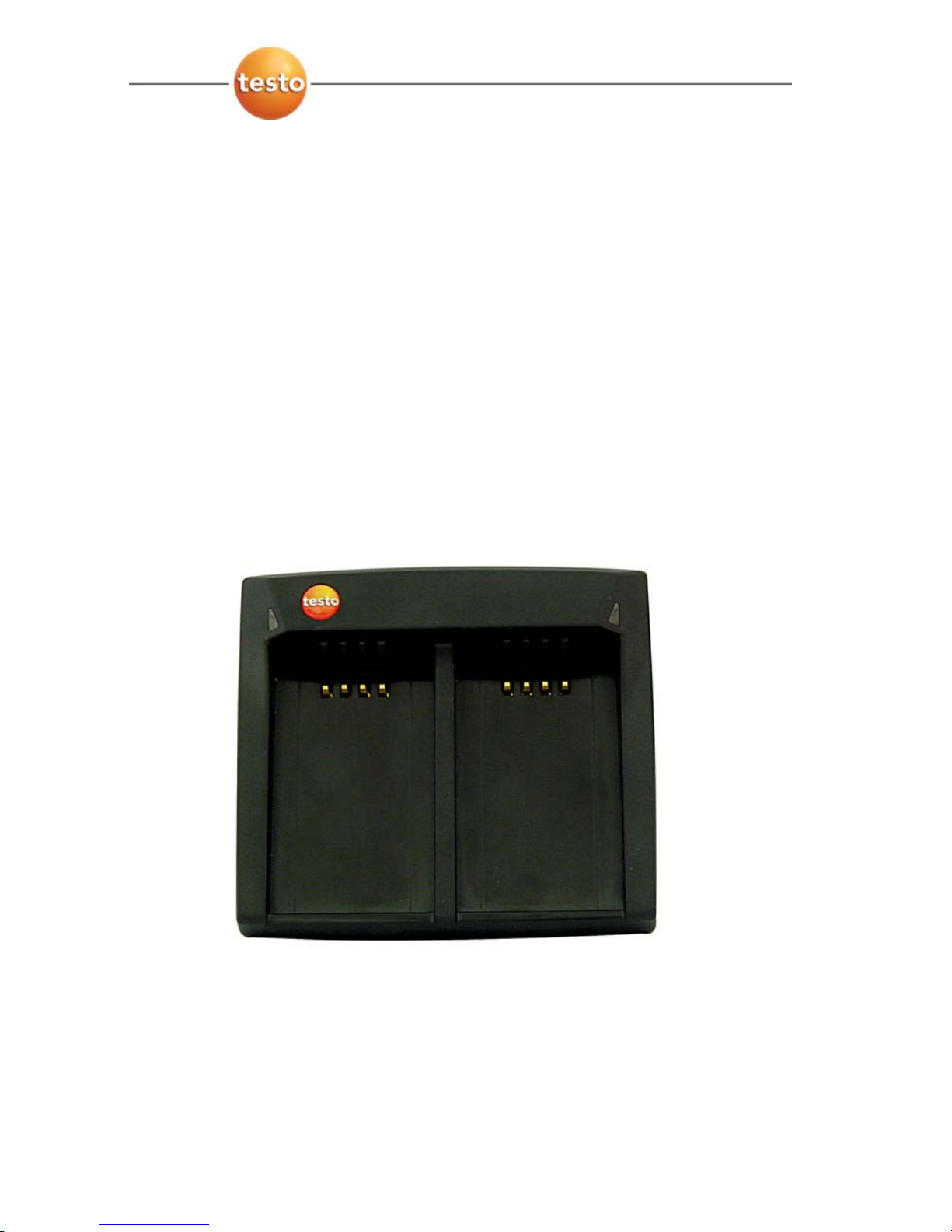

TESTO 0554 8851 User manual

0554 8851 · Quick charging station
for Testo rechargeable battery 0515 0116
Instruction manual

2

1 Safety and the environment
3
Pos: 1 /TD/Übersc hriften/2. Sic herheit und Umwelt @ 0\mod_11737 74719351_79.doc @ 292 @ 1
1Safety and the environment
Pos: 2 /TD/Übersc hriften/2.1 Zu diese mD okument @ 0\mod_117377525 2351_79.doc @ 346 @ 2
1.1. About this document
Pos: 3 /TD/Sic herheit und Umwelt/Zu diese m Dokument/Verwendung/V erwendung (Standar d) @ 0\mod_1173775068554_ 79.doc @ 337 @ 5
Use
> Please read this documentation through carefully and
familiarize yourself with the product before putting it to use. Pay
particular attention to the safety instructions and warning advice
in order to prevent injuries and damage to the products.
> Keep this document to hand so that you can refer to it when
necessary.
> Hand this documentation on to any subsequent users of the
product.
Pos: 4 /TD/Übersc hriften/2.2 Sic herheit gewährleisten @ 0\mod_ 1173780783960_79. doc @ 366 @ 2
1.2. Ensure safety
Pos: 5 /TD/Sic herheit und Umwelt/Sicher heit gewährleisten/ Gerät bei Beschädigun gen nicht in Betrieb nehmen @ 0\ mod_1186985945375 _79.doc @ 2252 @
> Do not operate the instrument if there are signs of damage at
the housing, mains unit or feed lines.
Pos: 6 /TD/Sic herheit und Umwelt/Si cherheit gewähr leisten/Produkt besti mmungsgemäß ver wenden @ 0\mod_117378126 1848_79.doc @ 386 @
> Only operate the product properly, for its intended purpose and
within the parameters specified in the technical data. Do not
use any force.
Pos: 7 /TD/Sic herheit und Umwelt/Sicher heit gewährleisten/ Nur in geschlossenen, tr ockenen Räumen betrei ben @ 0\mod_118698579782 8_79.doc @ 2243 @
> Only use the device in closed, dry rooms and protect it from rain
and moisture.
Pos: 8 /TD/Sic herheit und Umwelt/Sicher heit gewährleisten/ Nur beschriebene War tungsarbeiten durc hführen @ 0\mod_1175692705195 _79.doc @ 601 @
> Carry out only the maintenance and repair work on this
instrument that is described in the documentation. Follow the
prescribed steps exactly. Use only original spare parts from
Testo.
Pos: 9 /TD/Sic herheit und Umwelt/Si cherheit gewähr leisten/Nicht mit Lös ungsmitteln lag ern @ 0\mod_117569237517 9_79.doc @ 583 @
> Do not store the product together with solvents. Do not use any
desiccants.
Pos: 10 /TD/Übersc hriften/2.3 Umwel tsc hützen @ 0\mod_117378084 3645_79.doc @ 375 @ 2
1.3. Protecting the environment
Pos: 11.1 /TD/Sic herheit und Umwelt/U mwelt schützen/Akkus/ Batterien entsorgen @ 0\mod_1175693637 007_79.doc @ 619 @
> Dispose of faulty rechargeable batteries/spent batteries in
accordance with the valid legal specifications.
Pos: 11.2 /TD/Si cherheit und Umwe lt/Umwelt schützen/ Produkt entsorgen @ 0\mod_1173780 307072_79.doc @ 357 @
> At the end of its useful life, send the product to the separate
collection for electric and electronic devices (observe local
regulations) or return the product to Testo for disposal.

2 Specifications
4
Pos: 12 /TD/Übersc hriften/3. Leistu ngsbeschreibung @ 0\mod_1 173774791554_79.d oc @ 301 @ 1
2Specifications
Pos: 13 /TD/Übersc hriften/3.1 Verwendun g @ 0\mod_11762110164 37_79.doc @ 695 @ 2
2.1. Use
Pos: 14 /TD/Leis tungsbeschreibung/V erwendung/0554 8851 @ 8\mod_12917224124 43_79.doc @ 74773 @
The rechargeable battery charging station is used to charge Testo
rechargeable battery 0515 0116. Up to two rechargeable batteries
can be charged at the same time.
The mains unit 0554 8808 is required to use the charging station.
This is included in the delivery of the measuring instrument or is
available as a separate accessory from Testo customer service.
CAUTION
Danger of destruction!
> Do not use the charging station with automotive charging
adapters.
Pos: 15 /TD/Übersc hriften/3.2 Techni sche Daten @ 0\mod_11762110 88437_79.doc @ 704 @
2.1. Technical data
Pos: 16 /TD/Leis tungsbeschreibung/ Technische Daten/055 4 8851 @ 8\mod_129172265035 4_79.doc @ 74806 @
Characteristic Values
Charging troughs
/
for rech.
battery type 2 / 0515 0116
Supply 5 V DC/4 A
Charging current 1.8 to 1.9 A per rech. battery
Charge time 3 - 4 h
Ambient temperature 0 - 40 °C/32 - 104 °F
EU Directive 2004/108/EC
Warranty period 2 years,
warranty conditions: See web
page www.testo.com/warranty

4 Using the product
5
Pos: 17 /TD/Übersc hriften/4. Produkt beschreibung @ 0\mod_1 173774846679_79.doc @ 310 @ 1
3Product description

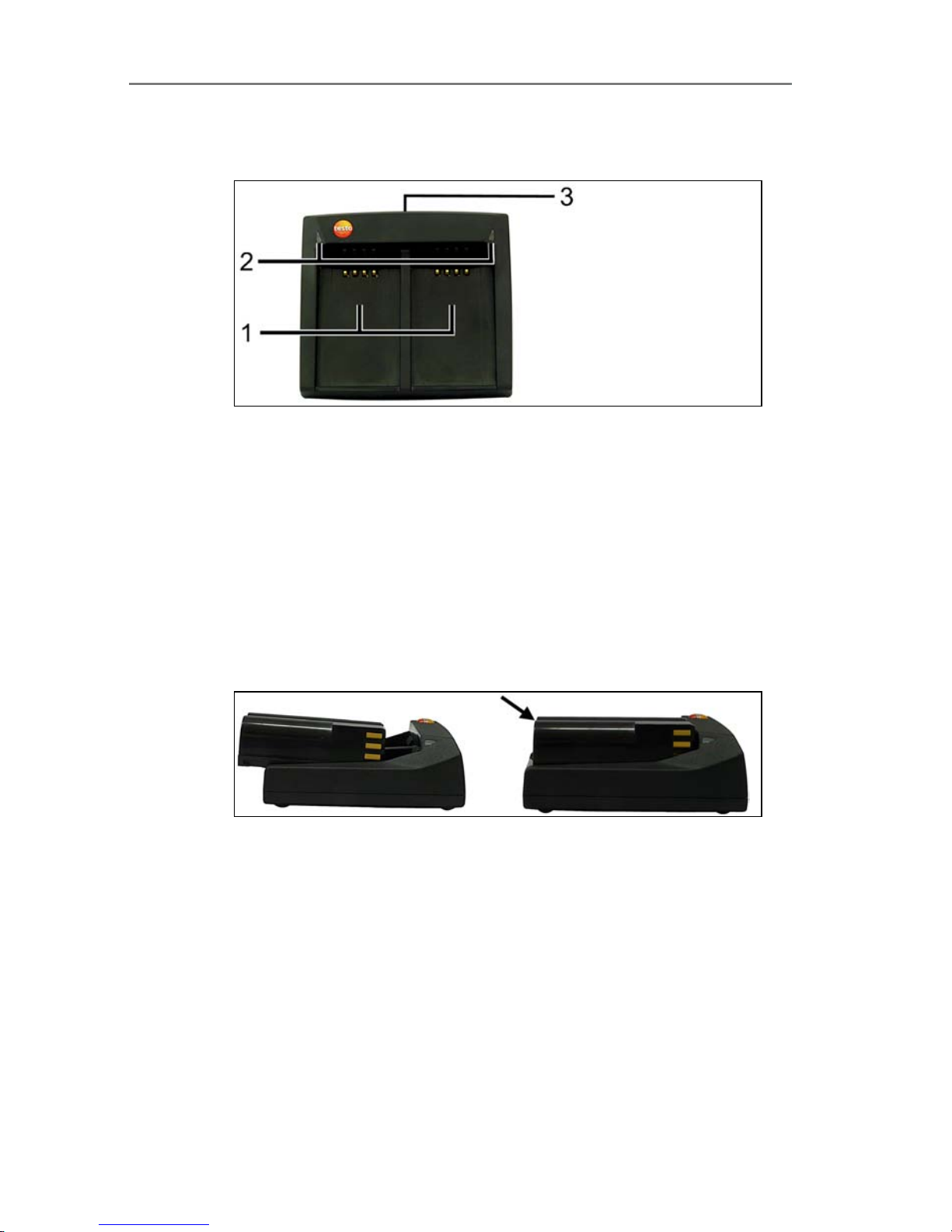

Pos: 18 /TD/Produk tbeschreibung/ Übersicht/0554 8851 @ 8\ mod_1291722908078_79. doc @ 74839 @
1Battery charging troughs
2Status LEDs
3Mains socket (on rear)
Pos: 19 /TD/Übersc hriften/6. Produkt verwenden @ 0\mod_ 1173774928554_79. doc @ 328 @ 1
4Using the product
Pos: 20 /TD/Produk t verwenden/0554 8851 @ 8\ mod_1291724155814_79. doc @ 74872 @
1. Connect the charging station to the mains unit 0554 8808.
2. Connect mains unit to the power supply, using included country-
specific adapter, if needed.
3. Place the rechargeable battery with the contacts downwards
into the charging trough and press lightly to click into place.
- The charging process is started.
- The charge level is displayed via the LEDs under the charging
slots:
• LED flashes green: Charging in process.
• LED lights up green: Battery charged, charging process
finished.
• LED lights up red/flashes red: Fault (e.g. overheating,
battery defective), battery cannot be charged. Please
contact Testo customer service.
4. Take the rechargeable battery out of the charging trough.

6 Tips and assistance
6
Pos: 21 /TD/Übersc hriften/7. Produkt i nstand halten @ 0\mod_117 3789831362_79.doc @ 397 @ 1
5Maintaining the product
Pos: 22 /TD/Produk t instand halten/0554 88 01 @ 0\mod_1186905546242_ 79.doc @ 2233 @
Always disconnect the mains plug before performing maintenance
and cleaning work.
> Ensure functionality: Keep contact pins free of contamination.
> Clean device: Rub down device with a dry cloth.
Pos: 23 /TD/Übersc hriften/8. Tipps und Hilfe @ 0\mod_117378 9887985_79.doc @ 406 @ 1
6Tips and assistance
Pos: 24 /TD/Übersc hriften/8.2 Zubehör und Ersatztei le@ 0\mod_117740205 8734_79.doc @ 1102 @ 2
6.1. Accessories and spare parts
Pos: 25 /TD/Tipps u nd Hilfe/Zubehör und Ersat zteile/0554 8851 @ 8\ mod_1291725542325_79. doc @ 74905 @
Description Article no.
Mains unit for testo thermal imagers and desktop
charging station 0554 8808
Additional battery 0554 8852
