TESTO Saveris 0560 1020 User manual

testo Saveris multifunction handle
0560 1020
Instruction manual

Contents
Contents
1About this document ...........................................................................3
2Safety and disposal..............................................................................3
3Product-specific approvals .................................................................3
4Support .................................................................................................3
5Scope of delivery..................................................................................4
6Use.........................................................................................................4
7testo Saveris multifunction handle instrument description.............5
7.1.1 Overview ................................................................................................5
7.1.2 Displays..................................................................................................5
7.2 Probe measuring tips (not included in the scope of delivery) .................6
7.3 testo Saveris penetration temperature probes .......................................7
7.4 testo Saveris cooking oil probe...............................................................8
7.5 testo Saveris surface temperature probe ...............................................9
7.6 testo Saveris air temperature probe.....................................................10
7.7testo Saveris TC adapter (type K)........................................................10
8Commissioning ..................................................................................11
8.1 Inserting / changing batteries ...............................................................11
8.2 Mounting the wall bracket.....................................................................12
8.3 Commissioning the testo Saveris multifunction handle ........................12
8.3.1 Switching on the testo Saveris multifunction handle.............................12
8.3.2 Switching off the testo Saveris multifunction handle.............................12
8.3.3 Auto-Off function ..................................................................................13
8.3.4 Auto-Hold function................................................................................13
8.3.5 Hold function ........................................................................................13
8.3.6 Vibration signal.....................................................................................13
9Operation ............................................................................................13
9.1 Fitting probe measuring tips onto the testo Saveris multifunction
handle ..................................................................................................14
9.2 Carrying out measurements.................................................................14
9.2.1 Measurements with the standard version of the multifunction handle..14
9.2.1.1 Measurements with Auto-Hold function enabled..................................14
9.2.1.2 Measurements with Auto-Hold function disabled .................................15
9.2.2 Measurements using the instrument variant with internal temperature
stabilization ..........................................................................................15
9.2.2.1 Measuring in real-time mode................................................................15
9.2.2.2 Measuring with temperature stabilization mode (TTS).........................16
9.2.3 Special information for measurement...................................................17
9.2.3.1 testo Saveris penetration temperature probes .....................................17

Contents
9.2.3.2 testo Saveris cooking oil probe............................................................ 18
9.2.3.3 testo Saveris surface temperature probe.............................................19
9.2.3.4 testo Saveris air temperature probe.....................................................19
9.2.3.5 testo Saveris TC adapter (type K)........................................................19
10 Maintenance and care ....................................................................... 20
10.1 Changing the battery ...........................................................................20
10.2 Cleaning the testo Saveris multifunction handle..................................20
10.3 Cleaning the probe measuring tips......................................................20
10.3.1 testo Saveris penetration temperature probes..................................... 21
10.3.2 testo Saveris cooking oil probe............................................................21
10.3.3 testo Saveris air temperature probe.....................................................21
10.3.4 testo Saveris TC adapter (type K)........................................................22
11 Questions and answers ....................................................................22
12 Technical data.................................................................................... 23

1 About this document
3
1 About this document
Please keep this documentation for future reference.
Please read this instruction manual through carefully and familiarize yourself
with the product before putting it to use.
Hand this instruction manual on to any subsequent users of the product.
Pay particular attention to the safety instructions and warning advice in order
to prevent injury and damage to the product.
Symbols and writing standards
Display
Explanation
Note: basic or further information.

Requirement
1
2
Action: several steps, the sequence must be followed.
>
Action: one step or optional step

Result of an action

List
2 Safety and disposal
Please refer to the separate document Testo information.
3 Product-specific approvals
For the current country approvals (Approval and Certification), please refer to
the document enclosed with the product testo Saveris multifunction handle
(order number 0971 2613).
4 Support
You can find up-to-date information on products, downloads and links to contact
addresses for support queries on the Testo website at: www.testo.com.

5Scope of delivery
4
5 Scope of delivery
1
testo Saveris
multifunction handle
2
Wall bracket for probe
measuring tips (with
multifunction handle)
3
4 x AA batteries
4
Screwdriver
6 Use
The testo Saveris multifunction handle is equipped with a display and transmits
the measurement data, which is generated with interchangeable probe
measuring tips, to a mobile device via an existing Bluetooth®connection. The
testo Saveris multifunction handle meets all the standard compliance
requirements that are relevant to food. The integrated display enables
measurement results to be displayed without the use of a mobile device. The
two-button principle allows easy and intuitive use.

7 testo Saveris multifunction handle instrument description
5
7 testo Saveris multifunction handle
instrument description
7.1.1 Overview
Element
Element
1
Connection for probe measuring
tips
2
Display
3
Send button
4
On/Off/Hold button
5
Battery compartment (on rear)
7.1.2 Displays
Display
Function/property
Battery capacity 100 %
Battery capacity 66 %
Battery capacity 33 %
Battery capacity < 10 %
Measurement data are sent via Bluetooth®
Auto (flashes)
Auto-Hold is enabled
Hold
Readings held (manually)
Auto-Hold
Readings held (automatically)
°C/°F
Temperature in °C or °F
- - - -
No probe measuring tip is connected
Cooking oil probe
> 200 °C (flashes)
Temperature measuring range exceeded
< 40 °C (flashes)
Temperature measuring range undershot
000
Instrument is ready to measure, sensor is not in
oil

7testo Saveris multifunction handle instrument description
6
Display
Function/property
- - -
Reading outside the measuring range
7.2 Probe measuring tips (not included in
the scope of delivery)
The testo Saveris multifunction handle and the attached probe measuring tips
together form a handy measuring instrument for fast temperature measurement
and cooking oil testing.
Please pay attention to the relevant warning notices when using the probe
measuring tips.
The testo Saveris probe measuring tips are only approved in
combination with the testo Saveris multifunction handle.
1
testo Saveris
penetration
temperature probe -
robust
2
testo Saveris
penetration
temperature probe -
fine
3
testo Saveris cooking
oil probe
4
testo Saveris surface
temperature probe
5
testo Saveris air
temperature probe

7 testo Saveris multifunction handle instrument description
7
6
testo Saveris TC
adapter (type K)

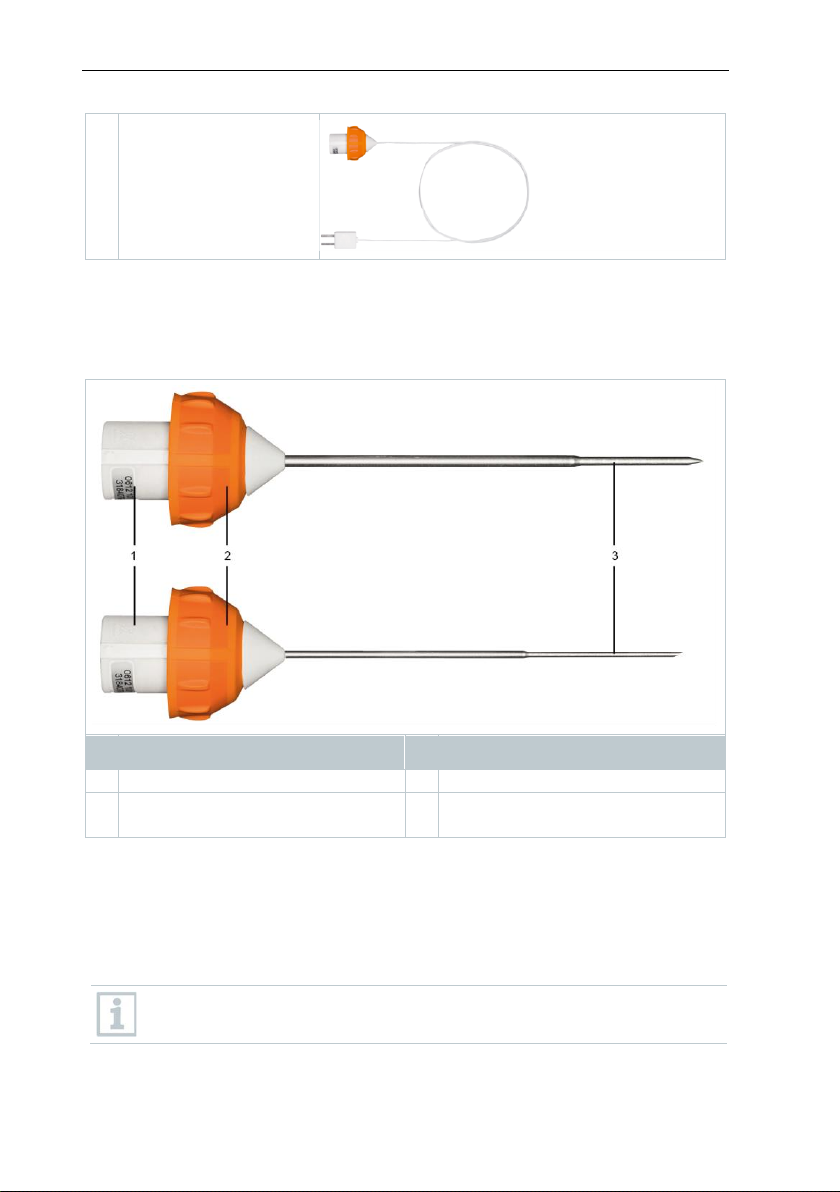

7.3 testo Saveris penetration temperature
probes
Overview
Element
Element
1
Connection plug
2
Union nut
3
Penetration temperature probe
with thermocouple (TC)
Use
The penetration temperature probe enables core temperature measurements to
be carried out in food. The probes are characterized by a very quick response
time.
Function test
For a simple function test (without calibration), we recommend that you
carry out a temperature measurement in ice-cold water (0 °C).

7testo Saveris multifunction handle instrument description
8
7.4 testo Saveris cooking oil probe
Overview
Element
Element
1
Connection plug
2
Union nut
3
Sensor
Use
With the testo Saveris cooking oil probe, the total polar materials (TPM value) is
determined as a percentage. The TPM value enables a statement to be made
on the ageing of the cooking oil due to the effects of heat.
The following measuring tasks can be performed with the cooking oil probe:
Displaying the temperature of the cooking oil: Indicator for correct setting of
the deep fat fryer, checking of integrated temperature displays.
Displaying TPM values: Indicator for the ageing of the cooking oil.
The temperature of the cooking oil being measured must be at least
40 °C. The maximum operating temperature of the probe measuring tip
is 190 °C, for brief periods 200 °C.
Please adhere to the country-specific TPM limit values.
Operation check
For a simple function test without adjustment (accuracy +/- 3% TPM), we
recommend you carry out the measurement for commissioning your new
instrument in unused cooking oil at 150 to 180 °C.
You are recommended to carry out the function test every time the deep fryer is
refilled with fresh oil.
1
Carry out measurement in unused cooking oil at 150 to 180 °C.
2
Note reading.
3
Repeat steps 1 and 2.

7 testo Saveris multifunction handle instrument description
9

The mean value of the readings represents your specific reference
value for subsequent instrument testing.
Your specific reference value: ________________________
The reference value must be determined again if the type of oil or oil
supplier changes.
Where there are implausible readings, we recommend calibration or
adjustment in testo reference oil (order number 0554 2650).

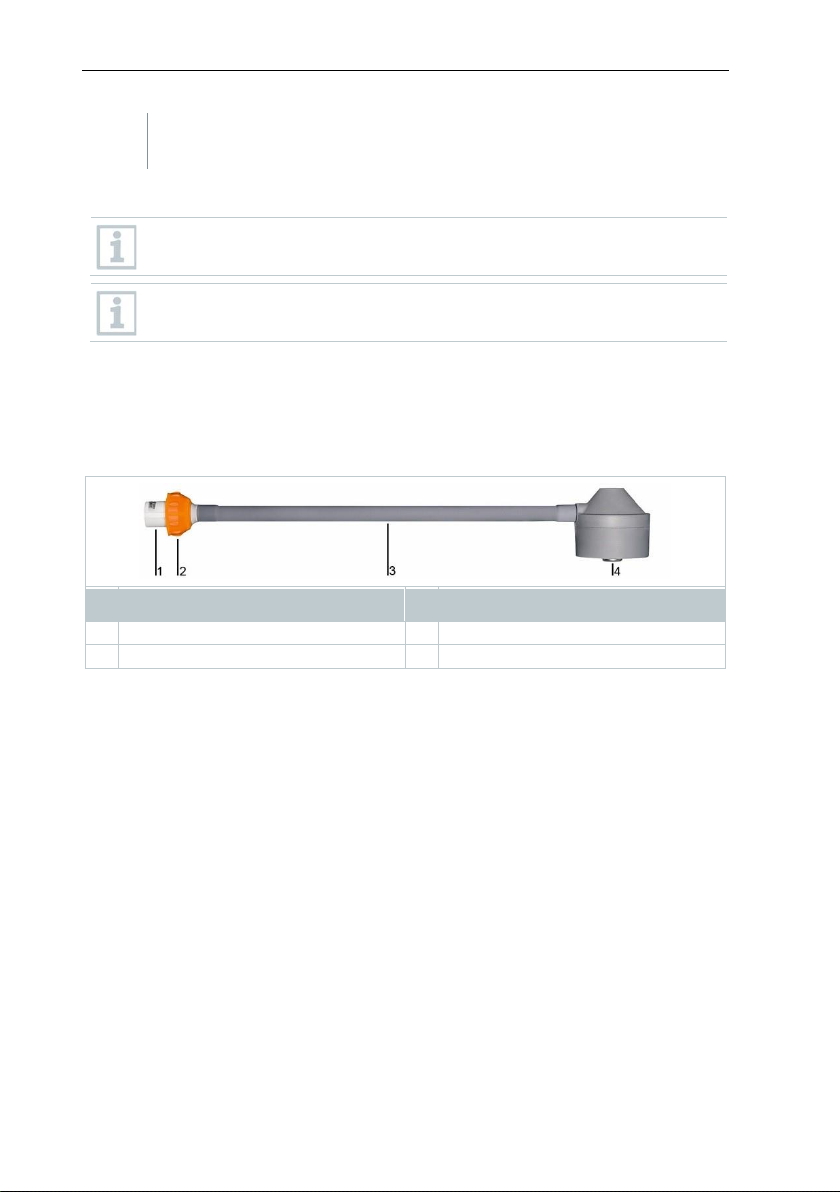

7.5 testo Saveris surface temperature
probe
Overview
Element
Element
1
Connection plug
2
Union nut
3
Flexible shaft
4
Surface temperature probe
Use
The surface temperature probe enables surface temperature measurements to
be carried out swiftly using contact measurement. The long and flexible shaft
allows easy adaptation to the measuring conditions on site and ensures fast and
safe measurement without any risk of burns.

7testo Saveris multifunction handle instrument description
10
7.6 testo Saveris air temperature probe
Overview
Element
Element
1
Connection plug
2
Union nut
3
Air temperature probe
Use
The air temperature probe allows air temperatures to be measured in
refrigerators and freezers. Readings can be generated even with the door
closed, thanks to the flexible, robust cable.
Operation check
For a simple function test (without calibration), we recommend that you
carry out a temperature measurement in ice-cold water (0 °C).
7.7 testo Saveris TC adapter (type K)
Overview

8 Commissioning
11
Element
Element
1
Connection plug
2
Union nut
3
TC connector
Use
The TC adapter enables instruments with TC interfaces to be validated. To do
this, you compare the value displayed on the equipment with the measured
value.
8 Commissioning
8.1 Inserting / changing batteries
1
Undo the screws on the battery
compartment using the screwdriver
supplied.
2
Open the battery compartment.
3
Insert the batteries (4 x type AA). Please check the polarity.
4
Close the battery compartment.
5
Carefully tighten the screws.
ATTENTION
Damage to equipment!
Incorrectly inserted batteries!
-Check the polarity when inserting the batteries.

8Commissioning
12
8.2 Mounting the wall bracket
The wall bracket ensures the probe measuring tip is kept securely in place with
or without the testo Saveris multifunction handle.
Please choose suitable mounting materials according to the required mounting
location (not included in the scope of delivery).
DANGER
Life-threatening danger!
Electric cables may get damaged.
-When fixing the wall bracket using screws, it must not be mounted directly
on electrical systems.
The drip tray for the cooking oil probe can easily be slotted into the eyelets on
the wall bracket which are intended for this purpose. This is supplied with the
testo Saveris cooking oil probe.
8.3 Commissioning the testo Saveris
multifunction handle
8.3.1 Switching on the testo Saveris
multifunction handle

The batteries are inserted into the testo Saveris multifunction handle,
are fully charged and have sufficient capacity.
1
Fit the probe measuring tip (see section 9.1).
2
Press the key to switch on the testo Saveris multifunction handle.

The testo Saveris multifunction handle is switched on.
8.3.2 Switching off the testo Saveris
multifunction handle

The testo Saveris multifunction handle is switched on and the
measurements have been carried out.
1
Press the button > 3 seconds.

The testo Saveris multifunction handle is switched off.

9 Operation
13
8.3.3 Auto-Off function
You can enable or disable the Auto-Off function via the paired mobile device.
When the Auto-Off function is enabled, the testo Saveris multifunction
handle automatically switches off when it has not been used for
10 minutes to save energy.
When the Auto-Off function is disabled, the instrument automatically
switches off when it has not been used for 2 hours.
8.3.4 Auto-Hold function
You can enable or disable the Auto-Hold function via the paired mobile device.
For instrument variants with an integrated temperature stabilization
mode (section 9.2.2), the Auto-Hold function cannot be configured.
When the Auto-Hold function is enabled, Auto and the current
measuring value flash on the display of the testo Saveris multifunction
handle. The measured values are automatically held by the instrument
after the acclimatization time. The generated measuring value and
Auto-Hold are shown on the display.
8.3.5 Hold function
Measured values can be held manually using this function.
8.3.6 Vibration signal
You can enable or disable the vibration signal via the paired mobile device.
If the vibration signal is enabled, the testo Saveris multifunction handle
emits a haptic vibration signal as soon as a reading is held via the Auto-
Hold function.
9 Operation
To carry out measurements, fit the appropriate probe measuring tip onto the
testo Saveris multifunction handle. The testo Saveris multifunction handle
detects the probe type which is attached. This ensures that appropriate
measurement results are generated for the measurement in each case (quality
control).

9Operation
14
9.1 Fitting probe measuring tips onto the
testo Saveris multifunction handle
The connection plug for the probe measuring tips has two different
guides.
For the negative temperature application, the contact surface of the
probe measuring tip’s connection plug must be cleaned before
mounting.
1
Make sure that the probe measuring
tip’s connection plug is placed into
the appropriate guide for the testo
Saveris multifunction handle. (Insert
with the label at the top.)
2
Screw the probe measuring tip securely onto the testo Saveris
multifunction handle using the union nut.

Measurements can now be carried out.
9.2 Carrying out measurements
To transmit readings, the testo Saveris multifunction handle must be
switched on and connected to a mobile device via Bluetooth®. The
symbol on the display lights up continuously.
9.2.1 Measurements with the standard version of
the multifunction handle
9.2.1.1 Measurements with Auto-Hold function enabled

The required probe measuring tip is fitted and the multifunction handle
is switched on.
1
Position the probe measuring tip in or on the medium being
measured.

A measuring value is automatically generated by the probe measuring
tip that is fitted. The current reading and Auto flash.
2
Wait until Auto-Hold appears on the display.

9 Operation
15

Readings are automatically held by the instrument.
3
If you want to switch back into the measuring mode, press the
button for a short time (< 1 s).
4
Press the button to send the measuring values to your mobile
device.
9.2.1.2 Measurements with Auto-Hold function disabled

The required probe measuring tip is fitted and the testo Saveris
multifunction handle is switched on.
1
Position the probe measuring tip in or on the medium being
measured.
2
Wait until the reading on the display of the testo Saveris multifunction
handle has stabilized.

The reading stops changing.
3
Press the button for a short time (< 1 s) to hold the reading.

Hold is shown on the display and reading is held.
4
Press the button to send the measuring values to your mobile
device.
5
If you want to switch back into the measuring mode, press the
button for a short time (< 1 s).

Hold function is disabled and current readings are displayed.
6
Press the button to send the measuring values to your mobile
device.
9.2.2 Measurements using the instrument variant
with internal temperature stabilization
9.2.2.1 Measuring in real-time mode

The required probe measuring tip is fitted and the multifunction handle
is switched on.

9Operation
16
>
Position the probe measuring tip in or on the medium being measured.

The current measurement value is shown.
Values measured in real-time mode cannot be transmitted and thus
cannot be saved. To do this, please switch to temperature stabilization
mode (TTS).
9.2.2.2 Measuring with temperature stabilization mode
(TTS)

The required probe measuring tip is fitted.

The multifunction handle is in real-time mode. The current
measurement value is shown.
1
Position the probe measuring tip in or on the medium being measured.
2
Press the key.
Exception: automatic start with penetration temperature probe and
temperature > 45 °C.

TTS mode is enabled.

The stabilized maximum value is determined.

The reading indicator flashes on the display

As soon as the reading is stable, it is automatically transmitted to the
mobile device. flashes briefly.

The multifunction handle goes back to real-time mode.
As soon as the penetration temperature probe measures a temperature
drop, a new measurement can be carried out in TTS mode (> 45 °C).
Depending on the application, the response time must be taken into
account, see Technical data for the individual probes.

9 Operation
17
9.2.3 Special information for measurement
WARNING
Risk of burns!
Hot instrument parts (probe shaft / measuring head)!
-Do not touch hot instrument parts (probe shaft / measuring head) with
your bare hands.
-Allow the probe measuring tip to cool sufficiently before cleaning.
-In the event of burns, immediately cool the relevant spot with cold water
and consult a doctor if necessary.
9.2.3.1 testo Saveris penetration temperature probes
Carefully place the penetration temperature probe in the medium and carry out
the measurement. This should involve a minimum penetration depth of 10 mm.
A hole must be pre-drilled for core temperature measurement in frozen food. In
order to avoid heat dissipation, the hole should be at least 2.5 cm deep and its
diameter should approximately correspond to that of the probe measuring tip.
You can then insert the probe measuring tip carefully into the item being
measured and carry out the measurement.
Penetration temperature probe - fine:
For core temperature measurements in liquid and semi-solid foods. The
penetration temperature probe has an extra-fine penetration tip for minimal
punctures.
Penetration temperature probe - robust:
For core temperature measurements in solid foods. The penetration
temperature probe can also be carefully placed between individual packaging
units to determine the temperature.
WARNING
Sharp tip!
Risk of injury!
-Handle the probe measuring tip carefully before and after measurement.
ATTENTION
Sensitive sensor technology!
-Handle with care, do not expose to any kind of impact.

9Operation
18
9.2.3.2 testo Saveris cooking oil probe
Please ensure the following points before determining the cooking oil quality:
Take the product being deep fried out of the oil and wait until there are no
more bubbles rising (approx. 5 minutes).
Temperature measuring range of the cooking oil: min. 40 °C, max. 200 °C.
Keep the sensor away from metallic parts (e.g. deep-frying basket, pan
walls), as these may affect the measurement result. The minimum distance
from metal parts is 1 cm on any side.
Cleaning of the sensor is recommended before every measurement or when
the deep fat fryer pan is changed.
Switch off induction deep fryers during the measurement or take a cooking
oil sample, as the electromagnetic field can lead to incorrect readings.
Plastic components must not come into contact with the cooking oil.
“Temperature skeining” in the oil may cause measurement errors. Move
probe measuring tip in the deep fryer.

Cooking oil probe is fitted onto the testo Saveris multifunction handle.
1
Immerse the sensor in hot oil. Pay attention to min/max marks!
2
Move the probe measuring tip in small circles.

Auto-Hold enabled: Auto and the reading flash on the display, if the
temperature is within the permitted measuring range (40 –200 °C).
The final value is held.
or

Auto-Hold disabled: Temperature display no longer changes, a stable
final value has been reached.
Water may lead to an increased reading. If you suspect a measurement
error due to the presence of water: repeat the measurement after 5
minutes (do not deep fry during this time, keep oil/fat at > 100 °C). If the
new reading is lower, if necessary measure again after 5 minutes until
the reading stabilizes.
