TESTO 0554 2222 User manual

Latest generation testo air velocity & IAQ probes with
cable handle
Instruction manual

Contents
Contents
1About this document............................................................................ 5
2Safety and disposal.............................................................................. 5
3System description .............................................................................. 6
4Description of the instrument ............................................................... 8
4.1 Cable handle for connecting testo 440 probe heads (0554 2222) .........8
4.2 Hot wire probe, including temperature and humidity sensor
(0635 1572) .........................................................................................9
4.3 Vane probe (Ø 16 mm), including temperature sensor (0635 9572).....10
4.4 High-precision vane probe (Ø 100 mm), including temperature
sensor (0635 9372) ...........................................................................12
4.5 Vane probe (Ø 100 mm), including temperature sensor (0635 9432)...13
4.6 High-precision temperature/humidity probe (0635 9772) ....................15
4.7 Temperature/humidity sensor (0635 9732)...........................................16
4.8 CO2probe, including temperature and humidity sensor (0632 1552) ..17
4.9 CO probe (0632 1272)..........................................................................18
5Commissioning .................................................................................. 19
6Maintenance ...................................................................................... 19
6.1 Maintaining the probes ........................................................................19
6.1.1 Cleaning the instrument.........................................................19
6.1.2 Calibration .............................................................................20
7Technical data ................................................................................... 20
8Accessories and spare parts .............................................................. 26

1 About this document
5
1About this document
The instruction manual is an integral part of the instrument.
Please read this instruction manual through carefully and familiarize yourself
with the product before putting it to use.
Pay particular attention to the safety instructions and warning advice in
order to prevent injury and damage to the product.
Keep this documentation to hand so that you can refer to it when
necessary.
Always use the complete original instruction manual.
Hand this instruction manual on to any subsequent users of the product.
2Safety and disposal
Security
Only use the product properly, for its intended purpose, and within the
parameters specified in the technical data. Do not apply any force.
Dangers may also arise from the systems being measured or the measuring
environment: always comply with the locally valid safety regulations when
carrying out measurements.
Do not carry out any contact measurements on uninsulated, live parts.
Do not store the product together with solvents. Do not use any desiccants.
Only carry out maintenance and repair work on this instrument which is
described in the documentation. Follow the prescribed steps exactly when
doing the work. Use only original spare parts from Testo.
Temperature information given on probes/sensors relates only to the
measuring range of the sensor technology. Do not expose handles and feed
lines to temperatures in excess of 50°C (122°F), unless they are expressly
authorized for use at higher temperatures.
Do not operate the instrument if there are signs of damage on the housing
or supply lines.
Dispose of faulty rechargeable batteries and spent batteries in accordance
with the valid legal specifications.

3System description
6
At the end of its useful life, deliver the product to the separate collection
point for electric and electronic devices (observe local regulations) or return
the product to Testo for disposal.
3System description
You have acquired a probe. This probe comprises a cable handle, a probe
head and, if applicable, additional probe-specific accessories.
The cable handle can be connected to all the system’s probe heads and
attachments. The graphic below shows what options the system offers.
You will find detailed information about how each of the probes works
along with the testo 440 measuring instrument in the corresponding
chapter of the instruction manual for the measuring instrument.
System overview

3 System description
7
Element Element
1 Cable handle for connecting
testo 440 probe heads
(order no. 0554 2222)
2 CO2probe head, including
humidity and temperature sensor
(order no. 0632 1550)
3 High-precision
temperature/humidity probe
head
(order no. 0636 9770)
4 Temperature/humidity probe
head (order no. 0636 9730)
5 CO probe head
(order no. 0615 1270)
6 Handle adapter for connecting
testo 440 flow probes (order no.
0554 2160)
7 100 mm vane probe head (order
no. 0635 9430)
8 High-precision 100 mm vane
probe head, including
temperature sensor
(order no. 0635 9370)
9 Extendable telescope for
testo 440 flow probes, including
90° angle) (order no. 0554 0960)
10 Hot wire probe head, including
temperature and humidity sensor
(order no. 0635 1570)
11 16 mm vane probe head,
including temperature sensor
(order no. 0635 9570)

4Description of the instrument
8
4Description of the instrument
4.1 Cable handle for connecting testo 440
probe heads (0554 2222)
Application
The handle is used to connect probe heads to the testo 440 measuring
instrument.
Pay attention to the information on the measuring process in the
detailed instruction manual for the measuring instrument. You will find
this at: www.testo.com.
Structure
1 Insert port for probe heads and
adapter
2 Quick-release connector for
probe heads and adapter
3 Button 4 Cable

4 Description of the instrument
9
4.2 Hot wire probe, including temperature
and humidity sensor (0635 1572)
Use
In conjunction with the testo 440, the hot wire probe is suitable for flow and
humidity measurements in ventilation ducts.
Structure
1 Probe head 2 Probe head connection
3 Telescope 4 Handle adapter
5 Quick-release connector for
probe heads and adapter
6 Button
7 Cable handle 8 Cable
CAUTION
Damage to sensor possible!
- Do not touch sensor!
- Put the protective sleeve on after the measurement.
Low flow velocities may result in greater measurement uncertainties
during temperature and humidity measurement. The probe should be
switched on outside a duct under the following conditions:
Ambient temperature: 20°C
Flow: approx. 0 m/s.
Connect hot wire probe to the handle
1 Turn quick-release connector,
viewed from the handle end, through
90° anticlockwise until it locks in
place.
2 Insert handle adapter into the handle
(pay attention to coding).
3 Turn quick-release connector back
through 90° until it locks in place.

4Description of the instrument
10
4 Insert telescope into the handle
adapter (pay attention to the guide
groove and guide pin).
5 Push telescope in slightly and turn to
lock in place.
6 Push probe head onto the telescope
(pay attention to the guide groove
and guide pin).
7 Push probe head in slightly and turn
to lock in place.

The hot wire probe is ready to use.
4.3 Vane probe (Ø 16 mm), including
temperature sensor (0635 9572)
Application
In conjunction with the testo 440, the vane probe (Ø 16 mm) is suitable for flow
measurements in ventilation ducts.
Structure
1 Probe head 2 Probe head connection
3 Telescope 4 Handle adapter
5 Quick-release connector for
probe heads and adapter
6 Button
7 Cable handle 8 Cable
CAUTION
Damage to sensor possible!
- Do not touch sensor!
- Put the protective sleeve on after the measurement.

4 Description of the instrument
11
The testovent bracket included in the package is intended for the
testovent 417 measurement funnel.
Connect the vane probe (Ø 16 mm) to the handle
1 Turn quick-release connector,
viewed from the handle end, through
90° anticlockwise until it locks in
place.
2 Insert handle adapter into the handle
(pay attention to coding).
3 Turn quick-release connector back
through 90° until it locks in place.
4 Insert telescope into the handle
adapter (pay attention to the guide
groove and guide pin).
5 Push telescope in slightly and turn to
lock in place.
6 Push probe head onto the telescope
(pay attention to the guide groove
and guide pin).
7 Push probe head in slightly and turn
to lock in place.

The vane probe (Ø 16 mm) is ready to use.

4Description of the instrument
12
4.4 High-precision vane probe (Ø 100 mm),
including temperature sensor (0635
9372)
Application
In conjunction with the testo 440, the high-precision vane probe (Ø 100 mm) is
used for flow measurement, e.g. at ventilation outlets.
Structure
1 Probe head 2 Handle adapter
3 Quick-release connector for
probe heads and adapter
4 Button
5 Cable handle 6 Cable
CAUTION
Damage to sensor possible!
- Do not touch sensor!
The testovent bracket included in the package is intended for the
testovent 417 measurement funnel.
Connect high-precision vane probe (Ø 100 mm) to the handle
1 Turn quick-release connector, viewed
from the handle end, through 90°
anticlockwise until it locks in place.
2 Insert handle adapter into the handle
(pay attention to coding).
3 Turn quick-release connector back
through 90° until it locks in place.

4 Description of the instrument
13
4 Insert probe head into the handle
adapter (pay attention to the guide
groove and guide pin).
5 Push probe head in slightly and turn
to lock in place.

The high-precision vane probe is ready to use.
If necessary, the telescope (order no. 0554 0960) and the 90° angle
(order no. 0554 0991) can be connected, e.g. for measurements at
ceiling outlets.
4.5 Vane probe (Ø 100 mm), including
temperature sensor (0635 9432)
Application
In conjunction with the testo 440, the vane probe (Ø 100 mm) is used for flow
measurement, e.g. at ventilation outlets.
Structure
1 Probe head 2 Handle adapter
3 Quick-release connector for
probe heads and adapter
4 Button
5 Cable handle 6 Cable
CAUTION
Damage to sensor possible!
- Do not touch sensor!

4Description of the instrument
14

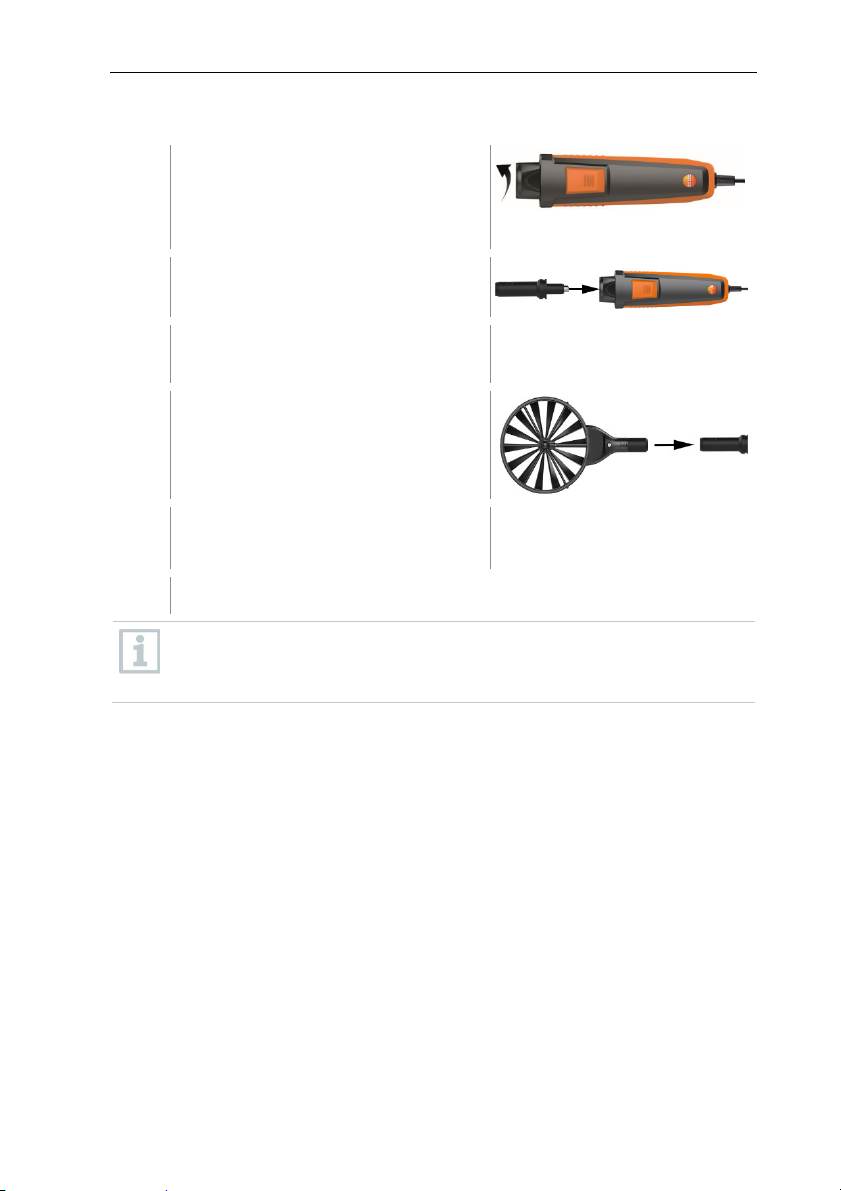

Connect vane probe (Ø 100 mm) to the handle
1 Turn quick-release connector,
viewed from the handle end, through
90° anticlockwise until it locks in
place.
2 Insert handle adapter into the handle
(pay attention to coding).
3 Turn quick-release connector back
through 90° until it locks in place.
4 Insert probe head into the handle
adapter (pay attention to the guide
groove and guide pin).
5 Push probe head in slightly and turn
to lock in place.

The vane probe is ready to use.
If necessary, the telescope (order no. 0554 0960) and the 90° angle
(order no. 0554 0991) can be connected, e.g. for measurements at
ceiling outlets.

4 Description of the instrument
15
4.6 High-precision temperature/humidity
probe (0635 9772)
Application
In conjunction with the testo 440, the high-precision temperature/humidity
probe is used to measure humidity and temperature.
Structure
1 Probe head 2 Quick-release connector for
probe heads and adapter
3 Button 4 Cable handle
5 Cable
CAUTION
Damage to sensor possible!
- Do not touch sensor!
Connect high-precision temperature/humidity probe to the handle
1 Turn quick-release connector,
viewed from the handle end, through
90° anticlockwise until it locks in
place.
2 Insert probe head into the handle
(pay attention to coding).
3 Turn quick-release connector back
through 90° until it locks in place.

The high-precision temperature/humidity probe is ready to use.

4Description of the instrument
16
4.7 Temperature/humidity sensor (0635
9732)
Application
In conjunction with the testo 440, the temperature/humidity probe is used to
measure humidity and temperature.
Structure
1 Probe head 2 Quick-release connector for
probe heads and adapter
3 Button 4 Cable handle
5 Cable
CAUTION
Damage to sensor possible!
- Do not touch sensor!
Connect temperature/humidity probe to the handle
1 Turn quick-release connector,
viewed from the handle end, through
90° anticlockwise until it locks in
place.
2 Insert probe head into the handle
(pay attention to coding).
3 Turn quick-release connector back
through 90° until it locks in place.

The temperature/humidity probe is ready to use.

4 Description of the instrument
17
4.8 CO2probe, including temperature and
humidity sensor (0632 1552)
Application
In conjunction with the testo 440, the CO2probe is used to determine CO2and
to measure humidity and temperature.
Structure
1 Probe head 2 Quick-release connector for
probe heads and adapter
3 Button 4 Cable handle
5 Cable
CAUTION
The probe contains sensitive visual components. Please handle the probe
with care.
Strong vibrations alter the factory calibration. Checking of readings in fresh
air 350 to 450 ppm CO2 (urban air up to 700 ppm CO2).
Avoid dew on the probe, otherwise long-term stability will be impaired. If
there is dew on the probe, this can lead to higher CO2 readings.
If the ambient temperature changes (change of measuring location, e.g.
indoors to outdoors or vice versa), the probe requires an acclimatization
phase of a few minutes.
After the instrument is switched on, there is a sensor warm-up phase of
approx. 30 s.
The CO2 concentration in the sensor requires approx. 60 s to acclimatize to
the environment. Gently waving the probe reduces the acclimatization time.
Keep the probe as far away from your body as possible. This avoids any
influences due to the CO2 content of the air you breathe.

4Description of the instrument
18
Connect CO2probe to the handle
1 Turn quick-release connector,
viewed from the handle end, through
90° anticlockwise until it locks in
place.
2 Insert probe head into the handle
(pay attention to coding).
3 Turn quick-release connector back
through 90° until it locks in place.

The CO2probe is ready to use.
4.9 CO probe (0632 1272)
Application
In conjunction with the testo 440, the CO probe is used to determine the CO
concentration in the environment.
Structure
Element Element
1 Probe head 2 Quick-release connector for
probe heads and adapter
3 Button 4 Cable handle
5 Cable
DANGER
Risk of death!
Carbon monoxide is a colourless, odourless and tasteless gas. High
concentrations can cause death.
- Do not use the CO probe as a monitoring instrument for personal safety.

5 Commissioning
19
Connect CO probe to the handle
1 Turn quick-release connector,
viewed from the handle end, through
90° anticlockwise until it locks in
place.
2 Insert probe head into the handle
(pay attention to coding).
3 Turn quick-release connector back
through 90° until it locks in place.

The CO probe is ready to use.
5Commissioning
Displaying readings

Sensor is connected to the measuring instrument.

Readings are displayed.
6Maintenance
6.1 Maintaining the probes
6.1.1 Cleaning the instrument
Do not use any aggressive cleaning agents or solvents; instead use
mild household cleaning agents or soapy water.
Always keep the connections clean and free from grease and other
deposits.
Clean the instrument and the connections with a damp cloth and dry them off.

7Technical data
20
6.1.2 Calibration
The probes are supplied with a factory calibration protocol as standard.
Recalibration of the probes once every 12 months is recommended in
many applications.
This can be carried out by Testo Industrial Services (TIS) or other
certified service providers with the aid of easy-to-use service software.
Please contact Testo for further information.
7Technical data
Adjustment conditions for flow probes:
Adjustment in free jet Ø 350 mm, reference pressure 1013 hPa,
based on testo reference Laser Doppler Anemometer (LDA).
Note for flow probes:
Low flow velocities may result in greater measurement uncertainties
during humidity and temperature measurement!
Note for humidity probes:
Please do not use the humidity probes in condensing atmospheres.
For continuous use in high-humidity ranges
> 80% RH at ≤ 30°C for > 12 h
> 60% RH at > 30°C for > 12 h
please get in touch with Testo Service or contact us via the Testo
website.
Cable handle for connecting testo 440 probe heads (0554 2222)
Feature Value
Storage temperature -20 to +60°C
Operating temperature -5 to +50°C
Dimensions 165 mm x 50 mm x 40 mm
Hot wire probe, including temperature and humidity sensor (0635 1572)
Feature Value
