TEX ALL IN 1 Sleeve Board Pro User manual
Cleaning All in 1
3
WARNING!
Main Board, Sleeve Board, Leveler Pro & XL
& Sleeve Support are all acrylic and can
crack if not cared for properly.
The All In 1 Hooper is made of very durable but yet sensitive Acrylic.
WARNING!!!! Acrylic is a plastic substance and can shatter if hit hard
enough or if a chemical solvent is sprayed on the surface it will cause
spider cracking. If this happens this will void your manufacture’s warranty.
DO NOT USE: any products with Methanol, Isopropyl, Acetone, MEK, or
Alcohol based products. DO NOT USE WINDEX
Proper cleaning solution that won’t harm Acrylic is
A clean lint-free cloth, such as a diaper, with mild soap solution, a warm
water rinse and air dry will work great for most cleaning applications,
including fingerprints. We recommend Craftics 20/20 Plastic Cleaner
Visit ---> www.craftics.com
WARNING!
Leveler Arm
www.Allin1Hooper.com
Patented
XL
A
B
C
D
E
F
G
5
5
5
5
5
5
Center
Location
Center
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
9
10
11
12
13
Backing Mounts
D5

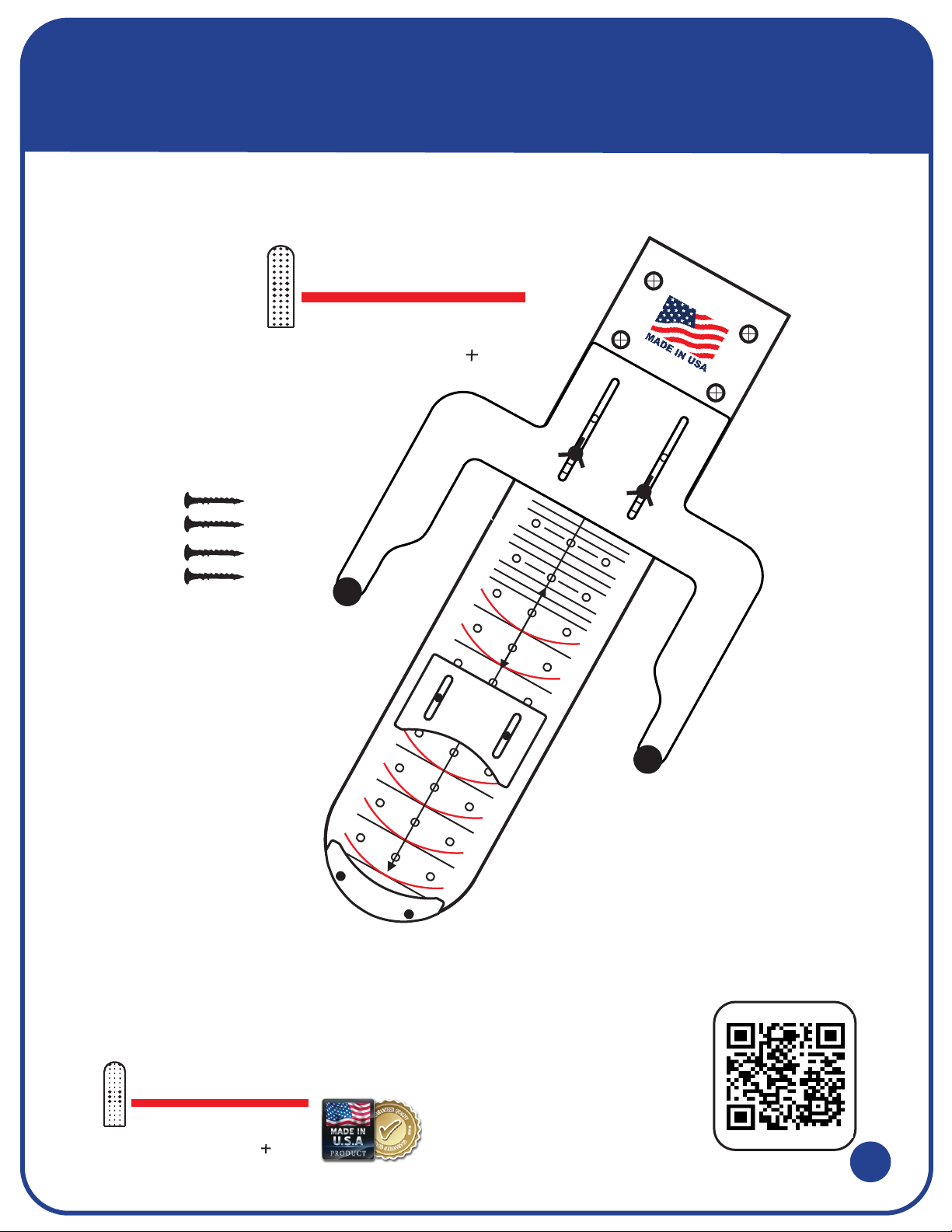

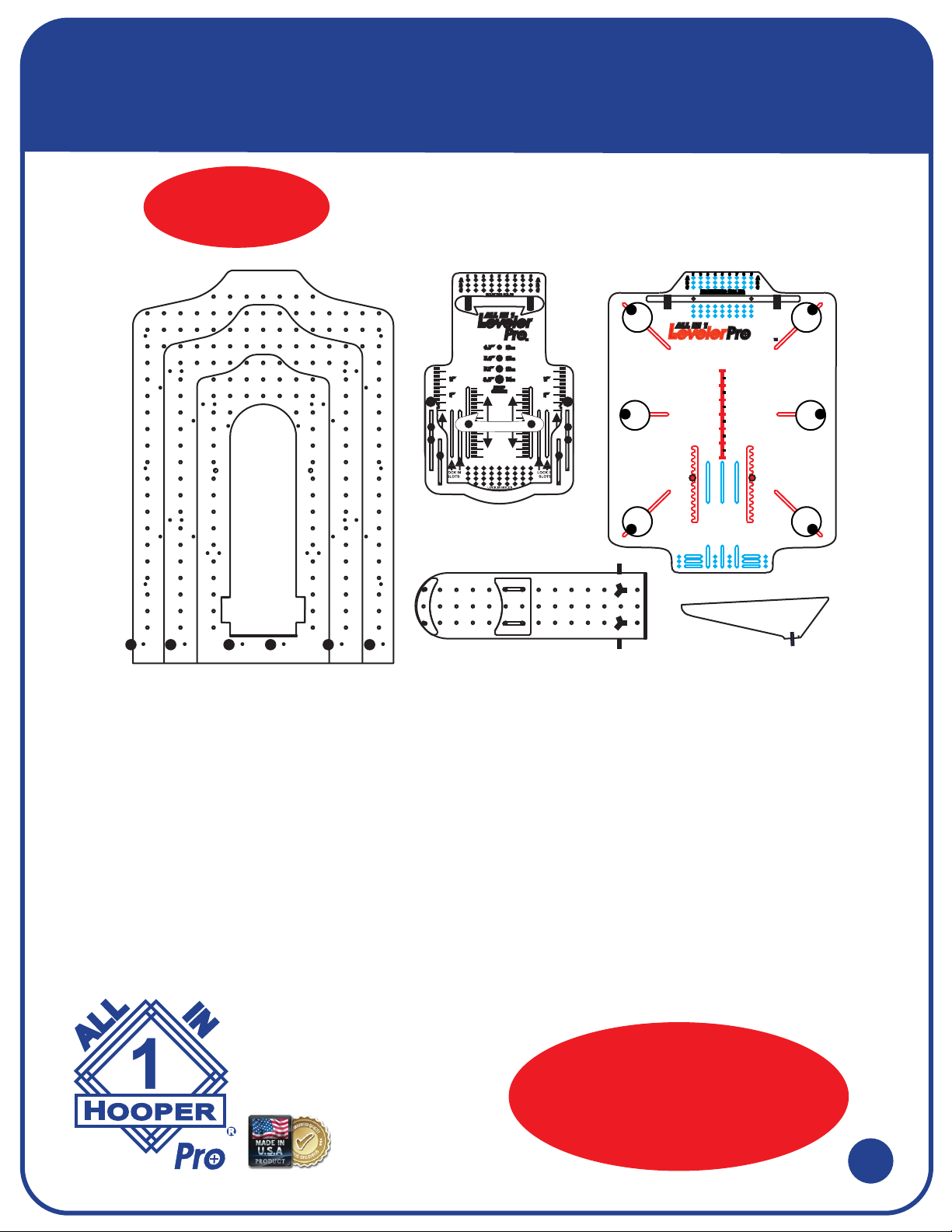

Package Content
4
Please contact us if items are missing.
Scan for Help
TM
Pro
S eeve
Board
A
B
C
D
E
F
G
H
11
22
33
44
55
66
77
88
TM
Pro
S eeve
Board

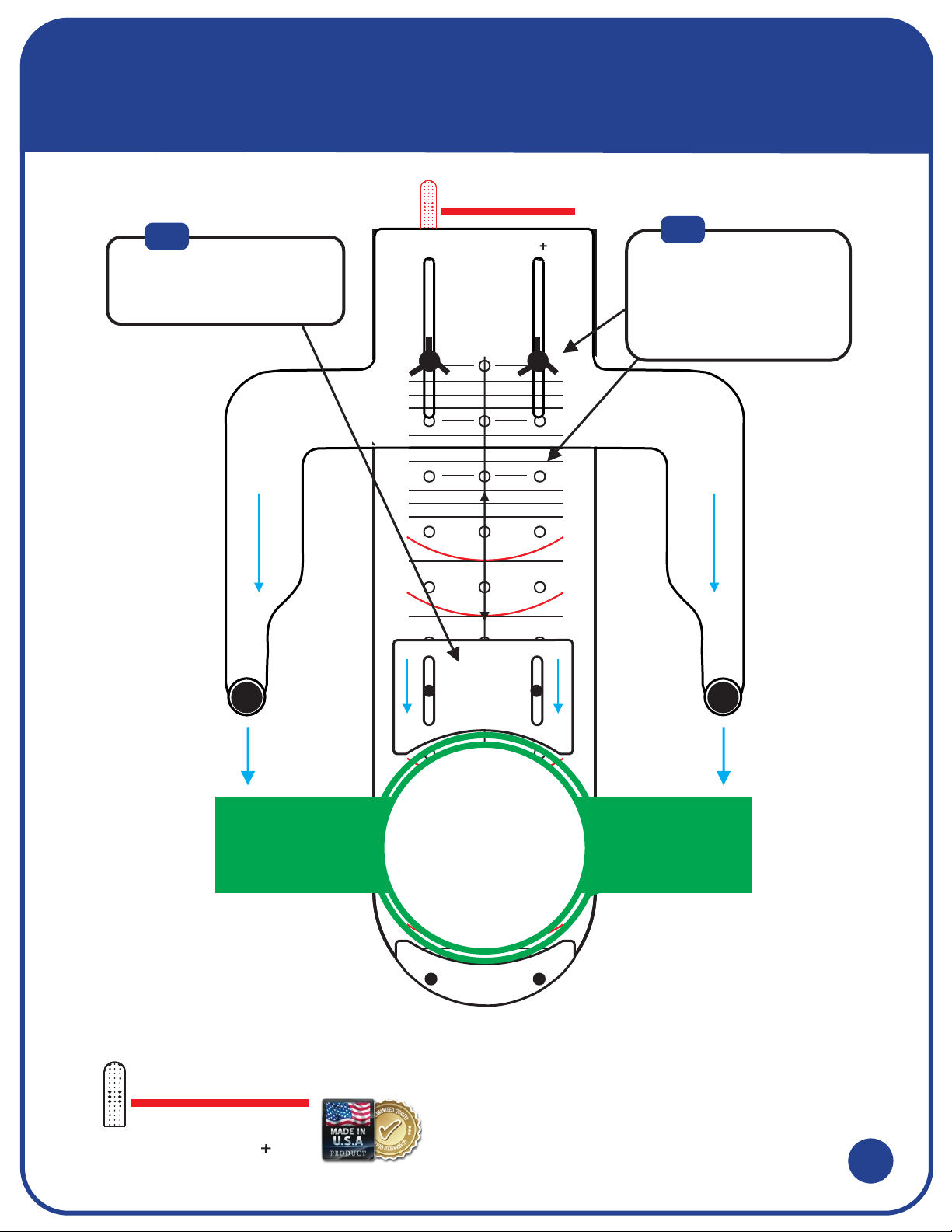

ALL IN 1
Securing SB Pro
5
TM
Pro
S eeve
Board
ALL IN 1
A
B
C
D
E
F
G
H
11
22
33
44
55
66
77
88

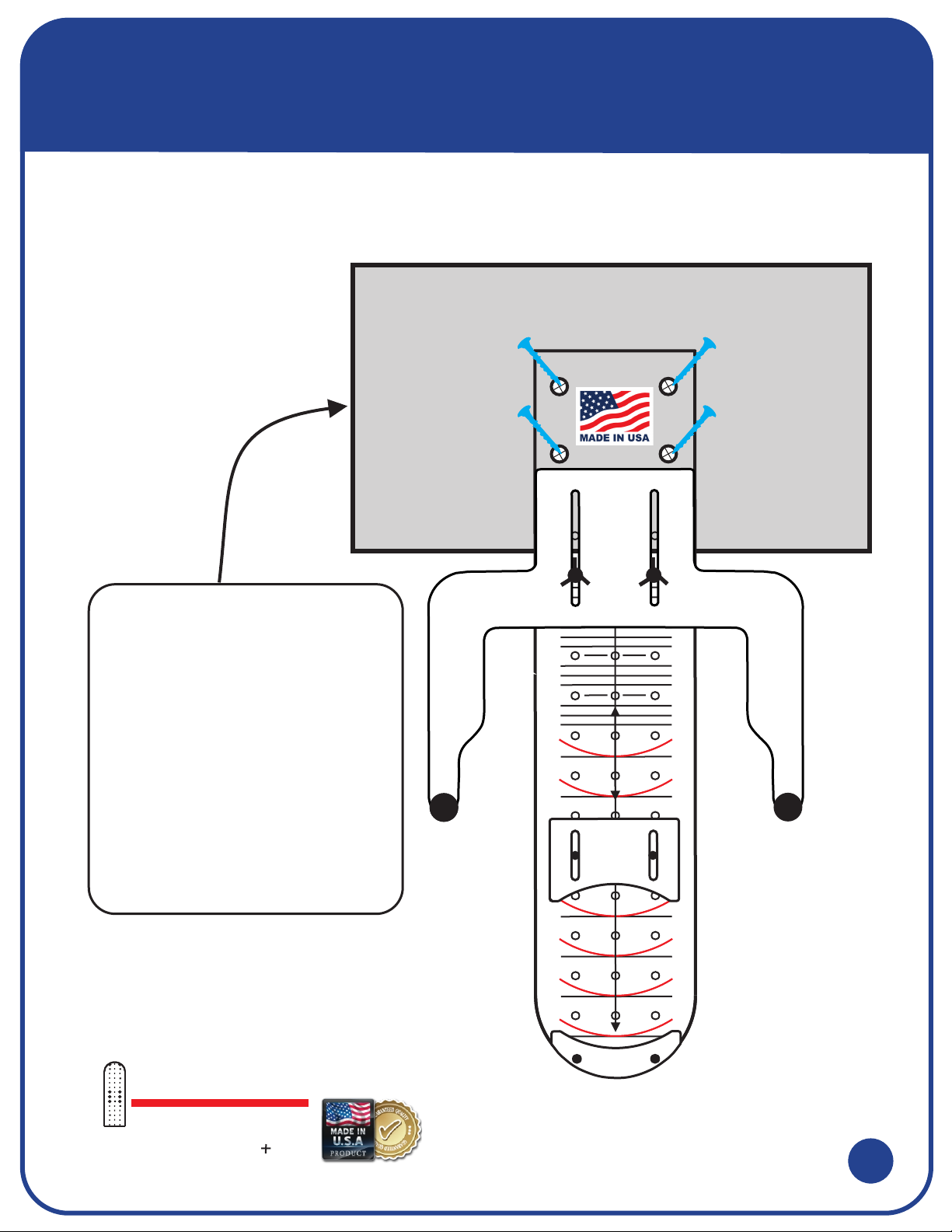

Work Surface / Table
The Sleeve Board Pro
should be securely
fastened to a sturdy
work surface / table.
On the back of the
device are four holes.
Enclosed are four wood
screws to fasten
the device to the work
surface / table.
Tubular
Hoop Arm
Ball Rest - Helps
Keep Hoop Arms
Straight When
Pushing in
Hoop
Leveler
Arm
Helps Keep
The Tubular
Hoop Arm
Straight
Garment
Location
Letter Marks
A - H
After Moving
The Leveler
Arm, Tighten
The Thumb
Screws To Lock
It In Place
Ruler Line #’s
Helps Keep The
Leveler Arm
Equal On Both
Sides
A
B
C
D
E
F
G
H
1 1
2 2
33
4 4
5 5
6 6
7 7
8 8
Top &
Bottom
Brackets
Hold Hoop
Ring in
Place
6

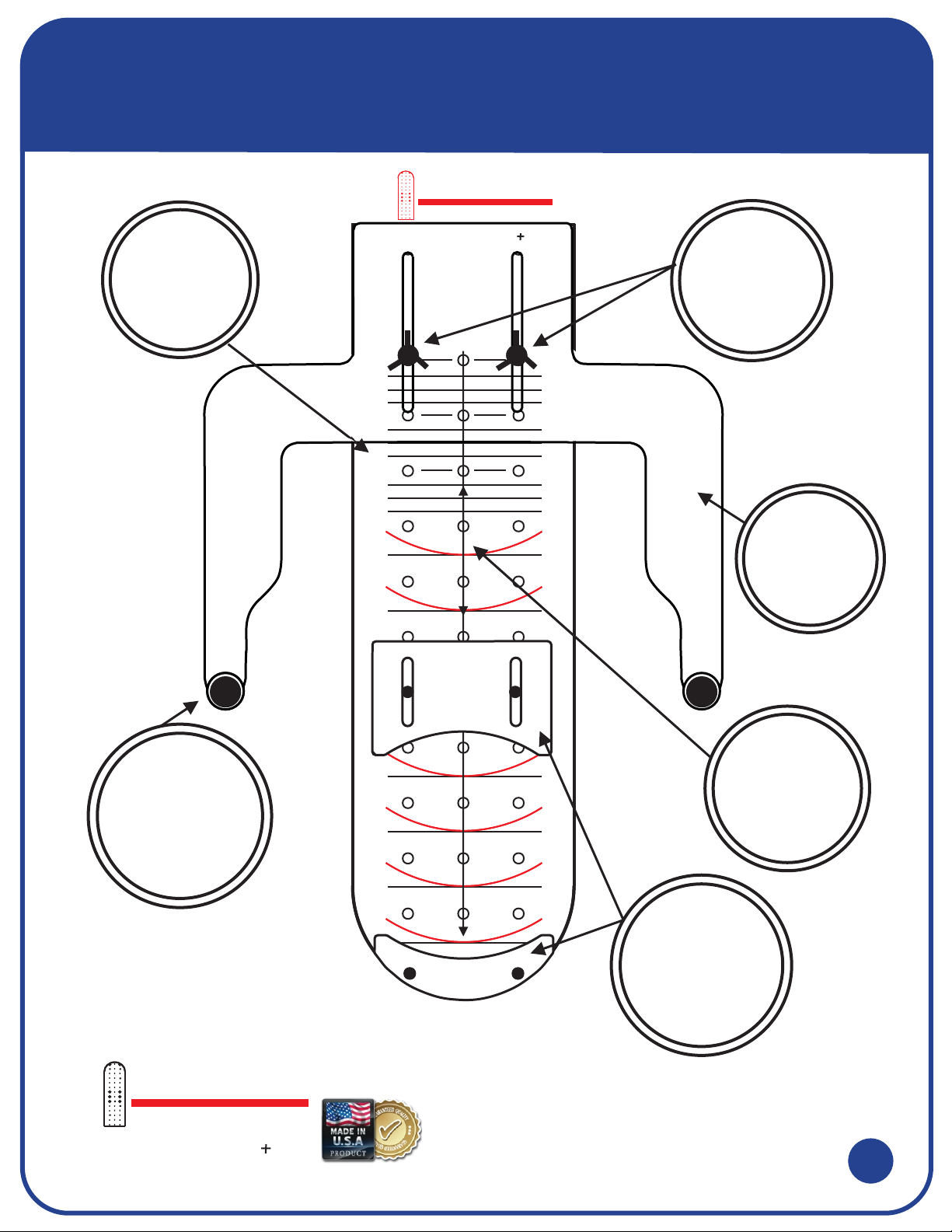

Sleeve Board Pro Parts Guide
TM
Pro
S eeve
Board
TM
Pro
S eeve
Board
ALL IN 1
15
Sleeve Board Pro Hoops
A
B
C
D
E
F
G
H
1 1
2 2
33
4 4
5 5
6 6
7 7
8 8
12CM
15CM
4.7”
5.9”
When using square
hoops you need
to turn over back
bracket to allow hoop
to rest on a flat edge
You do not need to use
the Leveler Arm with
square hoops either.
9CM
3.5”
TM
Pro
S eeve
Board
Round
15cm
12cm
9cm
7
TM
Pro
S eeve
Board
ALL IN 1
A
B
C
D
E
F
G
H
1 1
2 2
33
4 4
5 5
6 6
7 7
8 8
8
Using Sleeve Board Pro
TM
Pro
S eeve
Board
TUBULAR ARM TUBULAR ARM
INSERT BOTH HOOP RING
AND OUTER HOOP TOGETHER IN
BETWEEN FRONT & BACK
BRACKETS AND TIGHTEN
BACK BRACKET SCREWS
Step 1
LOOSEN BOTH BLACK
THUMB SCREW AND PULL
THE LEVELER ARM FORWARD
RESTING BLACK BALL ON HOOP
ARM TIGHTEN THUMB SCREWS
MAKING SURE IT IS LEVEL
TO THE RULER MARKING BELOW
LEVELER ARM ON BOARD
Step 2
Leveler Arm Leveler Arm
TM
Pro
S eeve
Board
ALL IN 1
A
B
C
D
E
F
G
H
5
6 6
7 7
8 8
9
Using Sleeve Board Pro
TM
Pro
S eeve
Board
REMOVE TOP HOOP
LEAVING HOOP RING ON
SLEEVE BOARD
YOU ARE NOW READY
TO HOOP A GARMENT
REMOVE TOP
HOOP LEAVING
HOOP RING
Step 3
WARNING!
TM
Pro
S eeve
Board
ALL IN 1
10
SBPro Job Placement Card
THREE EASY STEPS TO REPEATING YOUR ORDERS
Customer Name_________________ Job Design Name _______
Type of Garment ____________________________________
Embroidery Location _______________________
Remarks/Comments____________________________________
Job Steps # __________________________________________
JOE HOOPER JH 1
CAP - SNAP BACK
BACK OF CAP
A
B
C
D
E
F
G
H
1 1
2 2
33
4 4
5 5
6 6
7 7
8 8
SMALL LETTERING ON BACK OF CAP
CIRCLE HOOP SIZE
Step 1
SAMPLE
12EL4= 12CM HOOP =E LOCATION = L LINE =4 RULER LINE
3.5” = 9cm
4.7 =12cm
5.9” =15cm
LOCATION MARKS
Step 2
LOCATION LETTER___
LINE____ ARCH____
RULER LINE NUMBER
Step 3
E
X
RULER LINE
NUMBER____
4
TM
Pro
S eeve
Board
TM
Pro
S eeve
Board
ALL IN 1
11
SBPro Job Placement Card
THREE EASY STEPS TO REPEATING YOUR ORDERS
Customer Name_________________ Job Design Name _______
Type of Garment ____________________________________
Embroidery Location _______________________
Remarks/Comments____________________________________
Job Steps # __________________________________________
CIRCLE HOOP SIZE
Step 1
3.5” = 9cm
4.7 =12cm
5.9” =15cm
LOCATION MARKS
Step 2
LOCATION LETTER___
LINE____ ARCH____
RULER LINE NUMBER
Step 3
RULER LINE
NUMBER____
PRINT THIS PAGE
A
B
C
D
E
F
G
H
1 1
2 2
33
4 4
5 5
6 6
7 7
8 8
TM
Pro
S eeve
Board
TM
Pro
S eeve
Board
ALL IN 1
