The World Models Manufacturing SPITFIRE - 60 User manual

0.60-0.75 cubic inch displacement 2-stroke (glow)
0.70 cubic inch displacement 4 stroke (glow)-0.81 -
Requires:6-channel radio w/ 6 standard servos
and 1 low profile retract servo
Wing Span
Wing Area
Flying Weight
Fuselage Length
63.0 in / 1600 mm
704 sq in / 45.5 sq dm
53.5 in /1350 mm
7.5 lb / 3300 g
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember,safety is the most important thing. Always keep this instruction manual
at hand for quick reference.
Specifications are subject to change without notice.
INSTRUCTION MANUAL
SPITFIRE-60
Specifications
The World Models
Manufacturing Co., LTD.
www.theworldm od els .com
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
FACTORY PRE-FABRICATED
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.1

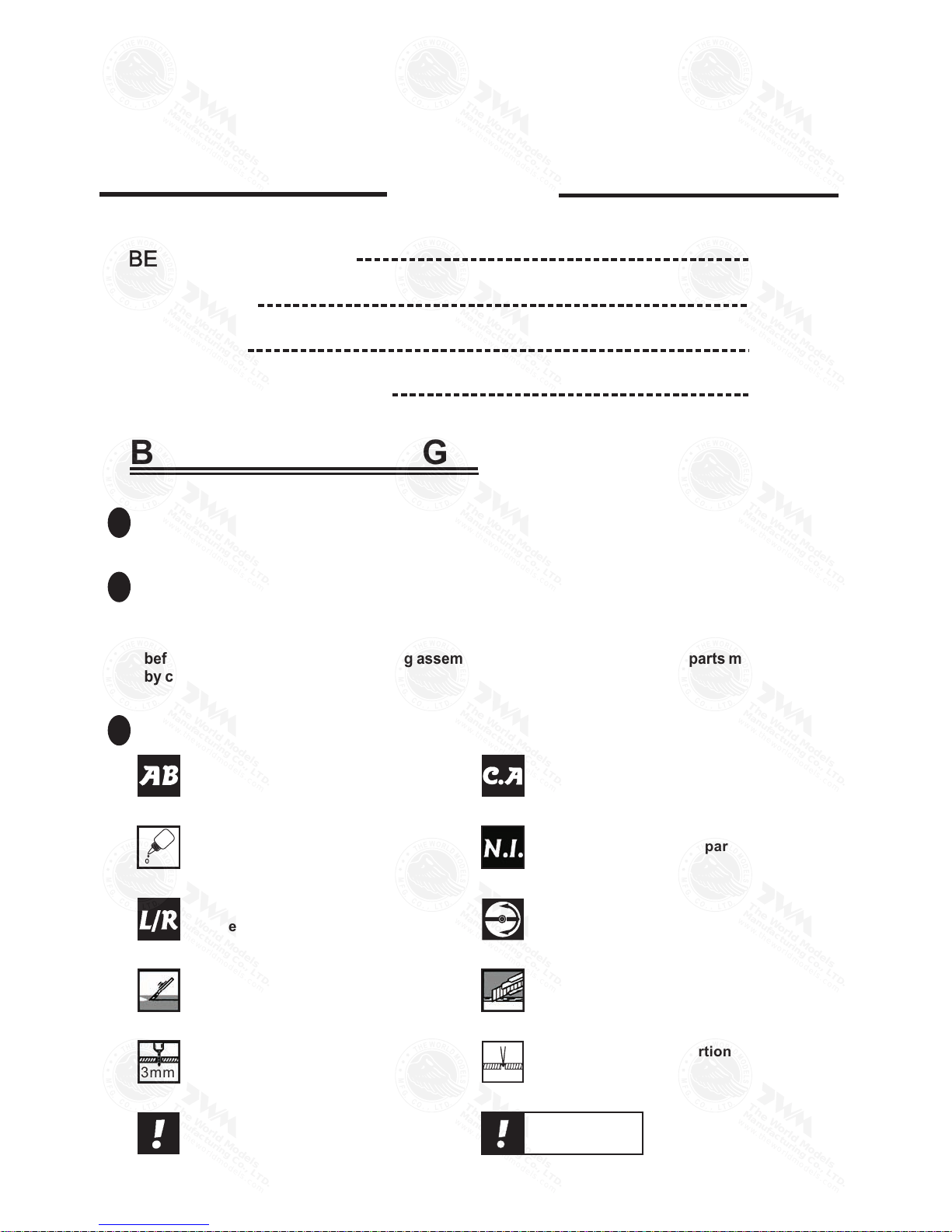

INDEX
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P. 1
P. 2
P. 3 -P.12
P. 12
BEFORE YOU BEGIN
Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT
and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you
find to be defective after the gluing process may be difficult to remove for warranty replacement.
The manufacturer will replace any defective parts, but will not extend to the parts that are good
before gluing to defective parts during assembly. Warranty will not cover any parts modified
by customer.
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual comprise of the following : -
1
2
3
SPITFIRE-60
Do not overlook this symbol!
Cut off shaded portion.
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Apply epoxy glue.
Pierce the shaded portion
covering film.
Must be purchased separately!
Peel off shaded portion
covering film.
Pay close attention here!
Drill holes with the specified
diameter (here: 3mm).
3mm
Warning!
Apply thread locker
Assemble left and right
sides the same way.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Parts List
P.2
COVERING:--
TOUGHLON STL203 LIGHT GRAY
TOUGHLON STL 340 OLIVE DRAB
TOUGHLON STL351 DARK BLUE
TOUGHLON STL100 WHITE
1. MAIN WING -- 1 pair
2. PLYWOOD 2x58x84mm (For Aileron Servo) -- 1 pair
BALSA 8x18x21mm (For Aileron Servo Stand) -- 4 pcs
STRAPER -- 2 pcs
TRI-HORN M3x14mm (S) -- 2 sets
FUEL TUBE Ø6x5mm -- 4 pcs
CLEVIS -- 2 pcs
PUSHROD Ø1.8x85mm w/ Threads (For Aileron) -- 2 pcs
SCREW PWA2x8mm -- 8 pcs
SCREW PB2x20mm -- 6 pcs
3. WING TUBE Ø16x404mm -- 1 pc.
Y-TYPE PUSHROD Ø1.8x110mm (For Flap) -- 1 pc.
STRAPER -- 1 pc.
CLEVIS -- 2 pc.
RING Ø2.5mm -- 2 pcs
FUEL TUBE Ø6x5mm -- 3 pcs

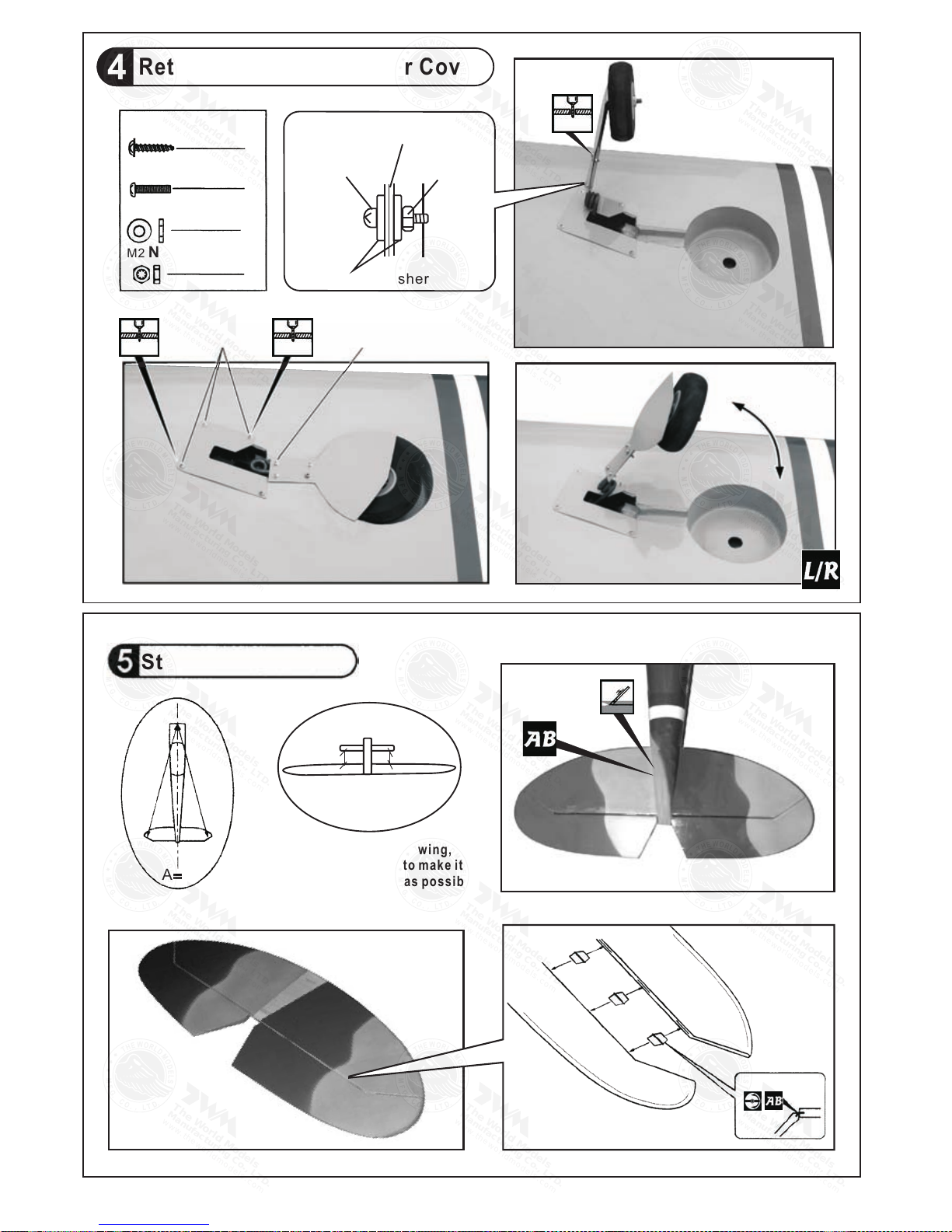

4. RETRACTABLE LANDING GEAR -- 1 pair
MAIN LANDING GEAR COVER -- 1 pair
RETRACTABLE LANDING GEAR COVER -- 1 pair
1mm PVC PLATE -- 2 pcs
SCREW PWA2.3x8mm -- 8 pcs
SCREW PM2x6mm -- 8 pcs
WASHER d2xD5mm -- 16 pcs
M2 NUT -- 8 pcs
MAIN WHEEL Ø76mm -- 2 pcs
COLLAR 4.6mm w/ set screw -- 2 sets
5. STABILIZER & ELEVATOR -- 1 set
FUSELAGE -- 1 pc.

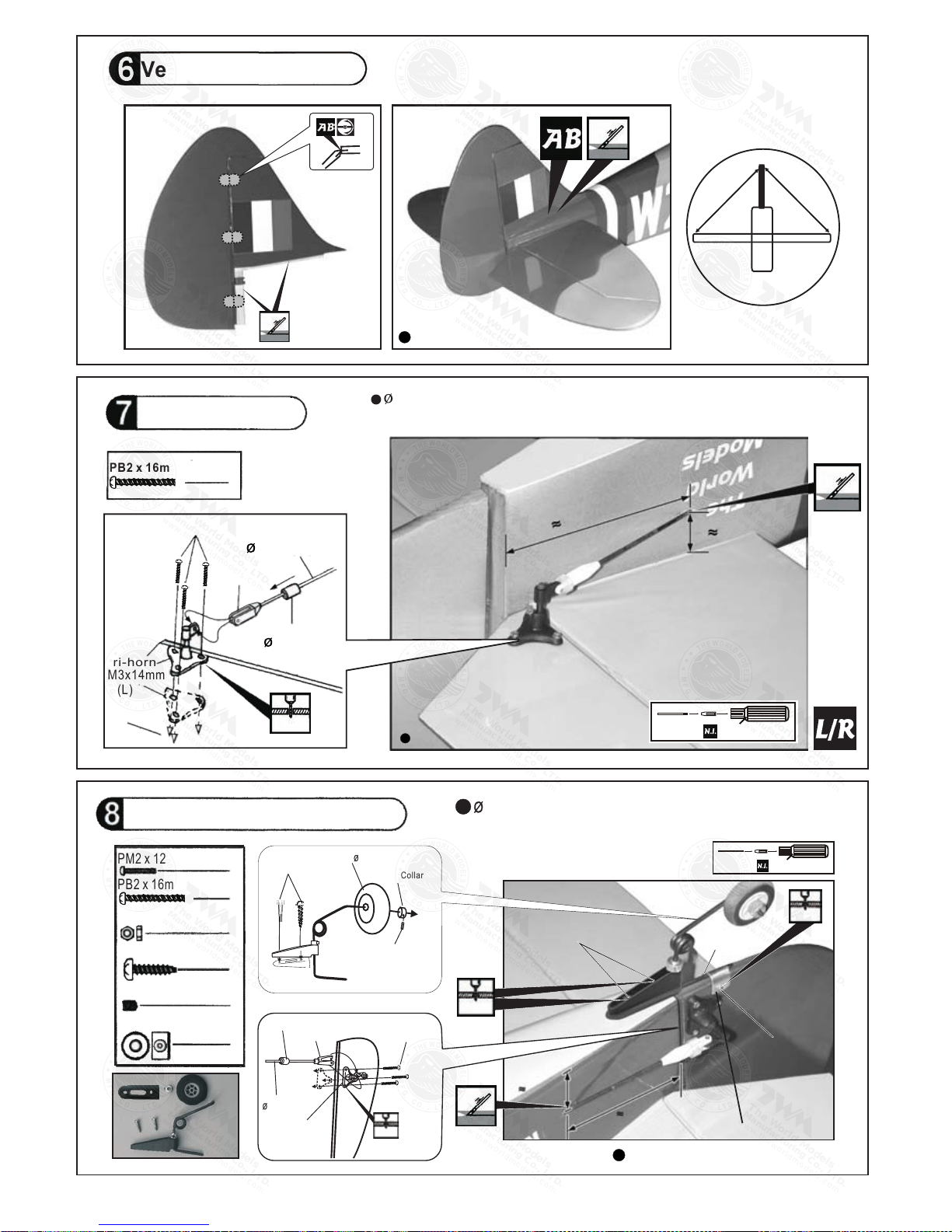

6. VERTICAL FIN & RUDDER -- 1 set
7. PUSHROD Ø1.8x645mm w/ Threads (For Elevator) -- 2 pcs
TRI-HORN M3x14mm (L) -- 2 sets
CLEVIS -- 2 pcs
FUEL TUBE Ø6x5mm -- 2 pcs
SCREW PB2x16mm -- 6 pcs
8. PUSHROD Ø1.8x725mm w/ Threads (For Rudder) -- 1 pc.
TAIL LANDING GEAR -- 1 set
TAIL WHEEL Ø25mm -- 1 pc.
TRI-HORN M3x14mm (L) -- 1 set
CLEVIS -- 1 pc.
FUEL TUBE Ø6x5mm -- 1 pc.
SCREW PM2x12mm -- 1 pc.
SCREW PA3x14mm -- 2 pcs
SCREW PB2x16mm -- 3 pcs
AL. REINFORCEMENT PLATE -- 1 pc.
M2 NUT -- 1 pc.
COLLAR Ø2.1mm w/ set screw -- 1 set
9. FUEL TANK 380cc -- 1 set
PLYWOOD 2.7x37x99mm (For Fuel Tank Position Fixing ) -- 1 pc.
10. ENGINE MOUNT PL5111070 -- 1 set
SOCKET HEAD SCREW M4x25mm -- 4 pcs
WASHER d4xD12mm -- 4 pcs
11. SOCKET HEAD SCREW M3.5x30mm -- 4 pcs
WASHER d3.5xD8mm -- 8 pcs
M3.5 NUT -- 8 pcs
THROTTLE PUSHWIRE Ø1.2x290mm -- 1 pc.
Plastic tube d2xD3x120mm -- 1 pc.
12. COWLING --1 pc.

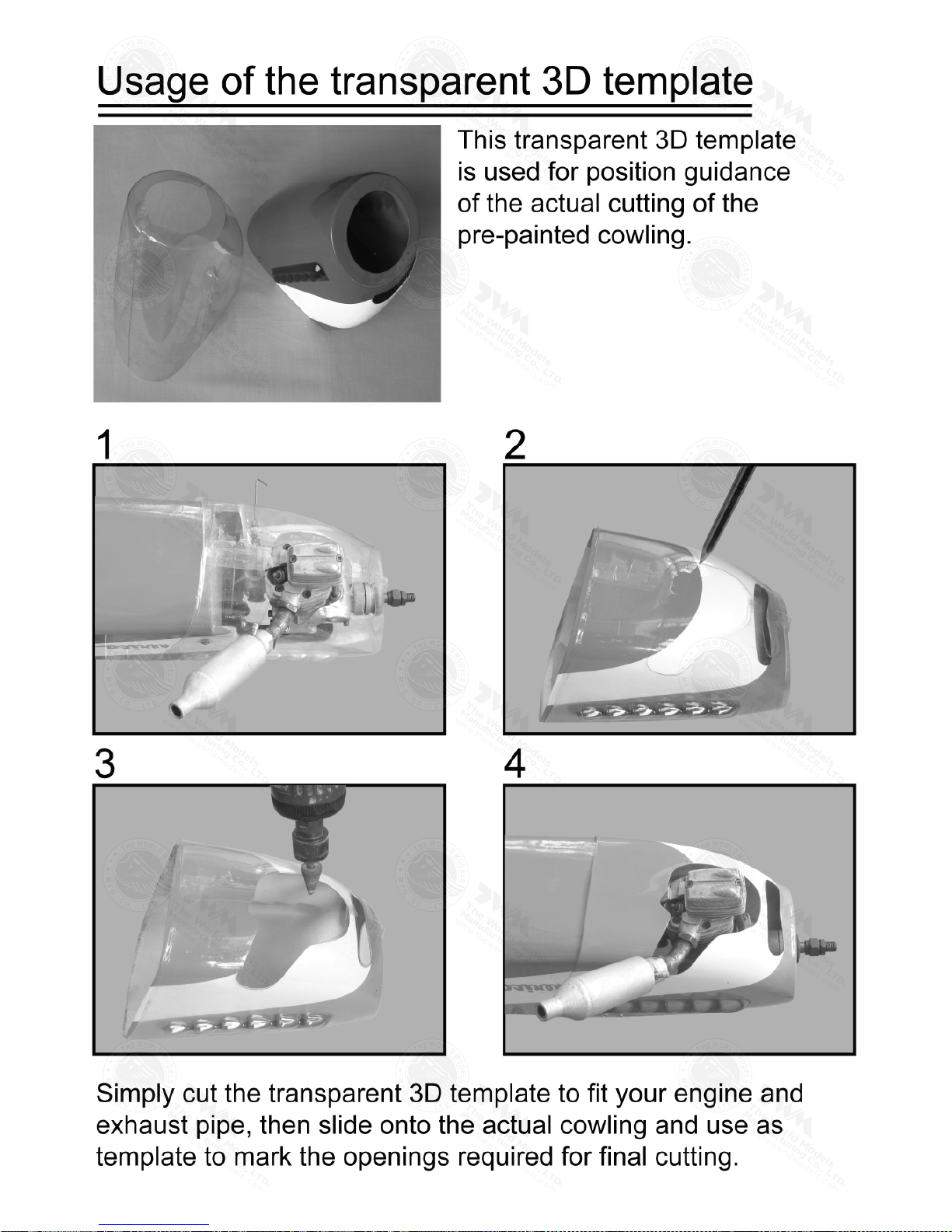

TRANSPARENT 3D TEMPLATE -- 1 pc.
SCREW PWA2.6x12mm -- 4 pcs
SILICON GROMMET d1.5x6.5mm (For Cowling) -- 4 pcs
SPINNER Ø89mm (w/ alu. back plate) -- 1 set
13. LINKAGE CONNECTOR Ø2.1mm -- 3 sets
14. PUSHROD CONNECTOR 4x9x20mm -- 1 set
PUSHROD Ø1.8x85mm (For Elevator) -- 1 pc.
BALSA 5x5x37mm (For Throttle Servo Stand) -- 2 pcs
STRAPER -- 2 pcs
FUEL TUBE Ø6x5mm -- 2 pcs
SPONGE 60x70x90mm -- 1 pc.
15. WING PROTECTION 16.2x80x103mm -- 1 pc.
SOCKET HEAD SCREW M4x40mm -- 2 pcs
WASHER d4xD15mm -- 2 pcs
16. CANOPY -- 1 pc.
SCREW PWA2.3x8mm -- 4 pcs
SILICON GROMMET d1.5xD6.5mm (For Canopy) -- 4 pcs
DOUBLE-SIDED TAPE 800mm -- 1 pc.
PILOT (PC13057A3) -- 1 pc.
17. DECALS -- 1 set
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

TWM P l821001 0
CLEVIS WRENCH
Fuel Tube
Ø6x5mm
PB 2 x 20mm
Tri-horn
M3 x 14mm(L) 2mm
PWA2 x 8mm Screw
PB2 x 20mm Screw
8
6
Pushrod 1.8 x 85mm PWA 2 x 8mm

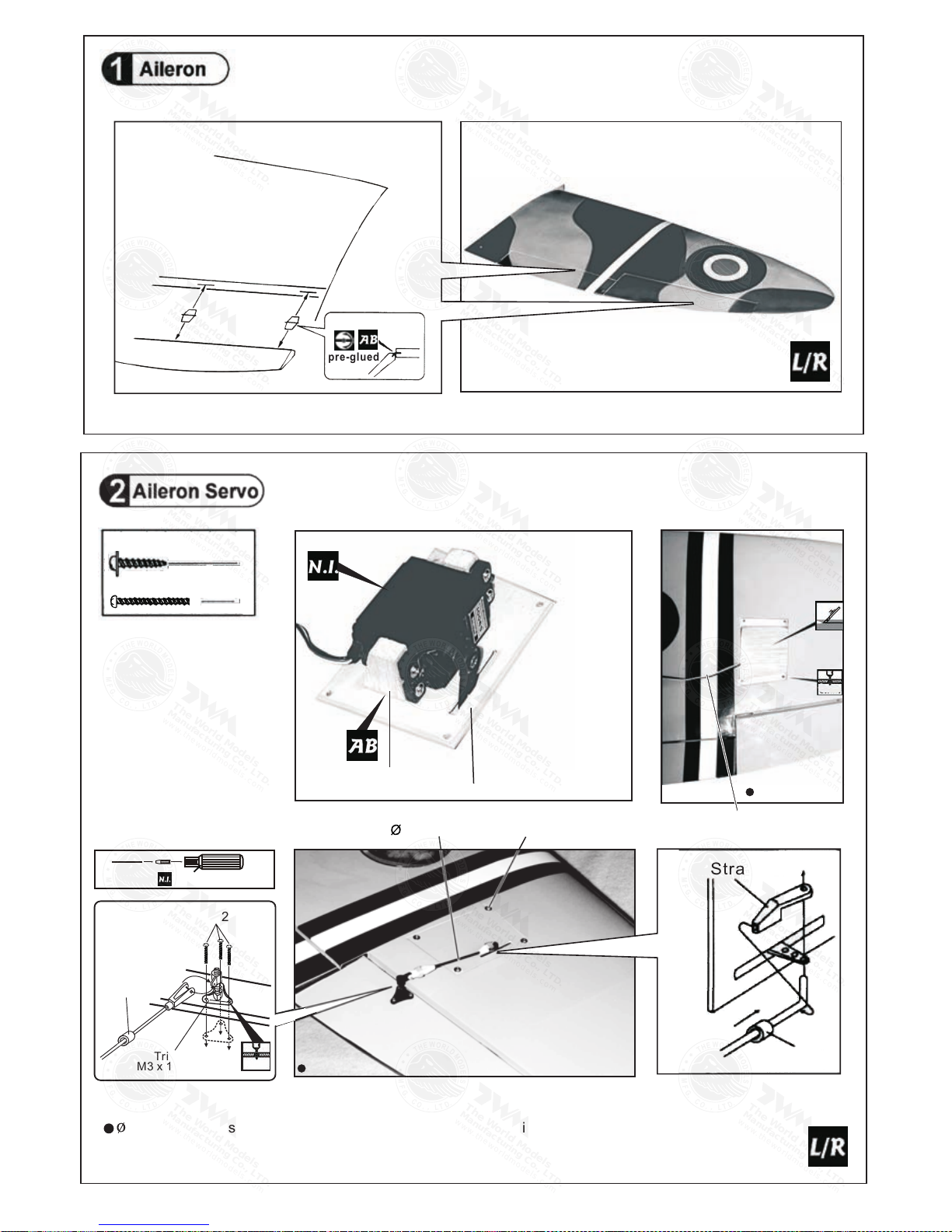

P.3
pre-glued
1mm pilot holes for World Models control horn are pre-drilled. Please look for pin-hole marks at
under side of control surfaces.
Straper
Fuel
Tube
Lead to Aileron Servo
Balsa 8 x 18 x 21mm
Plywood 2 x 58 x 84 mm
Bottom View
Bottom View
1mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

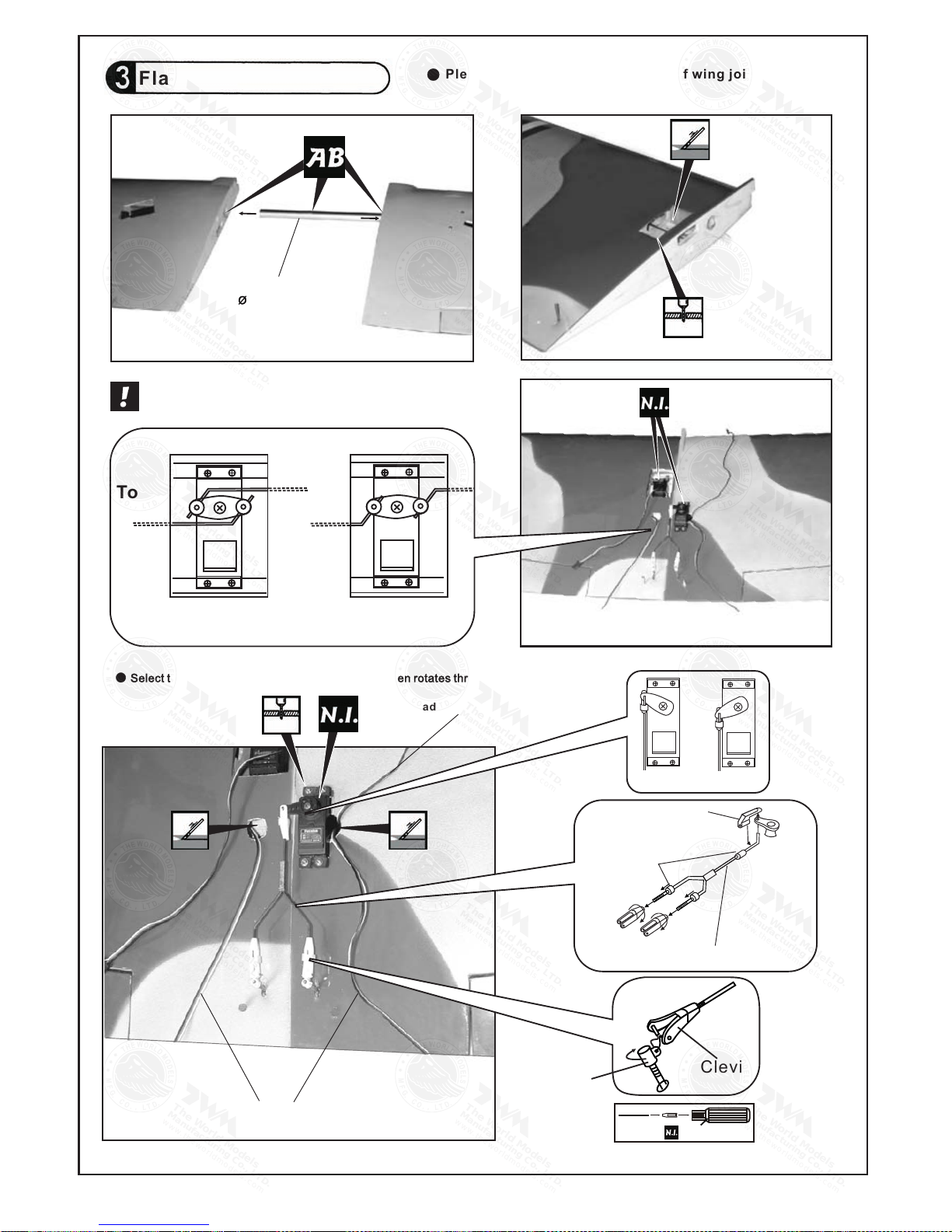

Flap and Retract Servos
Wing Tube
16 x 404mm
Lead to retract servo
P.4
Lead to Flap Servo
1mm
0
Select the servo horn that will give 26mm travel when rotates through 180 .
Wheels up Position Wheels down Position
To
L-side
To
R-side
Flaps up Flaps Down
Clevis
Fuel Tube
Æ6 x 5mm
Straper
Y-Type Pushrod Æ1.8 x 110mm
1mm
Lead to Aileron Servo
Please apply glue to all surfaces of wing joiner
Please refer to attched sheet for linkage connector
installation
TWM P l821001 0
CLEVIS WRENCH
Ring
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.5
PWA 2.3 x 8mm Screw
PM 2 x 6mm Screw
d2xD5mm Washer
M2 Nut
Stabilizer / Elevator
8
8
16
8
AA
A A'
A'
2mm
PWA 2.3 x 8mm
PM 2 x 6mm
1mm 1mm
Pre-glued
d2 x 5mm Washer
PM 2 x 6mm M2 Nut
Temporary install the main wing, adjust
leveling of the stabilizer to make it as
parallel to the main wing as possible.
(Stabilizer)
(Main Wing)
B B'
B=B'
RETRACTABLE
LANDING GEAR COVER
Retractable Landing Gear Cover
4
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.6
Vertical Fin / Rudder
Elevator Pushrod
PB2 x 16mm
6
Screw
106mm
1mm pilot holes for World Models control horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
PB2 x 16mm
Pushrod
1.8 x 645mm
Clevis
Fuel Tube
6 x 5mm
Tri-horn
M3x14mm
(L)
2mm
Bottom View
26mm
100mm
Rudder Pushrod / Tail Gear
1
1
1
2
1
3
PM2 x 12mm Screw
PA3 x 14mm Screw
2.1mm Collar
3mm Set screw
M2 Nut
Bottom View
PB2 x 16mm Screw
M3x3mm Set Screw
PA3x14mm
2.1mm Collar
Wheel 25mm
Fuel Tube
Pushrod
1.8x725mm
Tri-horn
M3x14mm (L)
PB2x16mm
Clevis
2mm
2.5mm
70mm
23mm
2mm
PM 2 x 12mmPM 2 x 12mm
M2 Nut
1mm pilot holes for World Models tri-horn are
pre-drilled. Please look for pin-hole marks at
side of control surfaces.
PA 3 x 14mm
C C'
C=C'
preglued
Completed
Al Reinforcement Plate
TWM P l821001 0
CLEVIS WRENCH
TW M Pl82 100 10
CLEVIS WRENCH
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Plywood 2.7 x 37 x 99mm
Bottom View
Engine Mount
d4 x D12mm
Washer
M4 x 25mm
Engine Mount
PL5111070
Blind nuts are off-centered
to keep the spinner at the
fuselage axis.
P.7
Bottom View
Install Plywood 2.7 x 37 x 99mm
(For fixing)fuel tank position
Fuel Tank
380cc
d4xD12mm Washer
4
4
M4x25mm Socket Head Screw
Inverted Mount
Fuel Tank
380cc
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Engine
M 3.5 x 30mm Socket Head Screw
M3.5 x 30mm
d3.5xD8mm Washer
d1.5xD6.5mm Silicon Grommet
d3.5xD8mm Washer
M3.5 Nut
M3.5 Nut
IIIustration is for inverted mounting.
You can mount the engine upright
or sideways simply by rotation the
engine mount. Thrust angles will
not be affected.
PWA2.6 x 12mm Screw
PWA2.6 x 12mm
Silicon Grommet
d1.5xD6.5mm
4
4
First insert the grommet to the cowling then apply screw.
P.8
8
8
4
Spinner 89mm
M 3.5 x 30mm
d3.5xD8mm Washer
Plastic Tube
d2xD3x120mm
Throttle Pushwire
1.2 x 290mm
M3.5 Nut
Installed Engine position
138mm
5.43 in
Please refer to the attached sheet
for usage of the transparent 3D
template.
1.5mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.9
Servo Set
M3 x 3mm Set Screw
2mm Washer
2mm Nut
Linkage Connector
Retract Rod,
Throttle Rod.
2mm
2mm
2mm
Retract Servo,
Throttle Servo.
Please refer to attached sheet for linkage connector installation.
Servos
Install and arrange the servo as shown in the diagram.
Balsa 5 x 5 x 37mm
Balsa 5 x 5 x 37mm
Plywood
2.7 x 37 x 99mm
Throttle Servo
Pushrod
1.8 x 725mm
Rudder Servo
3
Bottom View
Straper
Elevator
Servo
Pushrod
1.8 x 645mm
Bottom View
KM2x8mm
M2 Nut
Elevator Pushrod
Ø1.8x85mm
Elevator Servo
Front
Front
M3 x 3mm Set Screw
3
3
6
Fuel Tube
6 x 5mm
Sponge
Pushrod Connector
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Main Wing
d4 x D15mm Washer
M4X40mm Socket Head Screw
M4x40mm
Balsa 16.2 80 x 103 mm x
Canopy
PWA 2.3 x 8mm Screw
Place canopy on fuselage
and drill pilot holes.
First insert the grommet to the canopy then apply screw
P.10
d1.5xD6.5mm Silicon Grommet
4
4
2
2
Pilot
Apply double-sided tape PWA 2.3 x 8mm
Silicon Grommet
d1.5xD6.5mm
d4 x D15mm
Washer
1mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

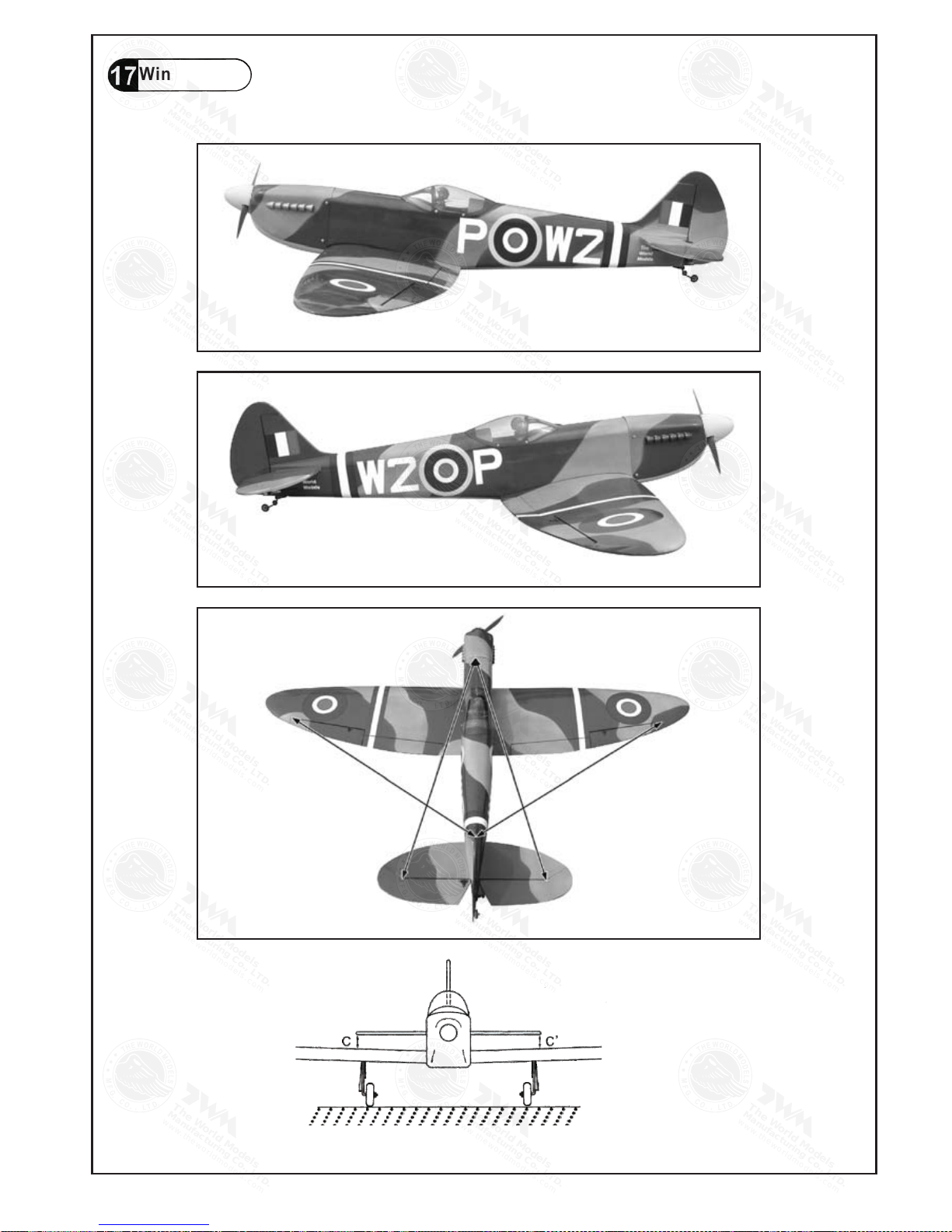

A A' B B' C C'
= ==
Adjust the wing and fuselage configuration as shown in the diagrams.
P.11
Wing Setting
A A'
B B'
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Control Throws
Ailerons (away from fuselage)
Flaps (near fuselage)
Adjust the control throws as shown in the
diagram. These throws are good for general
flying. You can adjust according to your
personal preference.
The ideal C.G. Position is 102mm (4 in) behind
the leading edge measured at where the wing
meets the fuselage. In order to obtain the C.G.
specified, add weight to the fuselage or move
the battery position . Check the C.G. before
flying.
Measure C.G. with the wheels in retracted position.
C.G.
Warning!
First time flyer should never fly by himself / herself. Assistance from experienced flyer is
absolutely necessary.
Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly
pre-adjusted aircraft.
SPITFIRE is specially designed to be powered by 0.60 2 stroke or 0.70
4 stroke glow engine,using a more powerful engine does not mean better performance. In fact,
over powered engine may cause severe damage and injuries.
-60 -0.75 -0.81
Make sure the air field is spacious,never fly the plane too close to people and never get
too close to a running propeller.
If you find wrinkles on the covering as a result of weather changes,you can use hot iron
to remove the wrinkles. Please begin with lower temperature setting and gradually raise
the temperature until the wrinkles are gone. Too hot an iron may damage the covering.
Check and re-tighten up all factory assembled screws, use thread locker if necessary.
Important Satety Precautions
P.12
# When Flaps are lowered, nose of model will rise. The nose-up varies with the speed at which
the models is flying when you lower the flaps and the extent to which they are lowered. Check
effect of flaps at higher altitude to avoid surprises during landing. You may apply down trim
of the elevator to compensate for the nose-up effect when lowering the flaps. Taking off with
flaps lowered is not recommended, as the increased drag may require a longer runway and
more engine power for the model.
Elevator
Rudder
15mm
15mm
24mm
40mm
40mm
20mm
20mm
102mm
4 in.
C.G.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

LINKAGE CONNECTOR
HW7111050 & HW7111060
After fastening the round nut, make sure that
the linkage connector can rotate freely.
Drill 2mm hole at servo horn.
Insert linkage connector
into servo horn.
Make sure shoulder of
screw is cleared from
servo horn.
Add washer to reduce
play if necessary.
Shoulder
Tighten up the round nut
against the shoulder. Apply
CA or permanent thread
locker.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Product Registration Form (US Customers)
We would like to share with you any relevant information regarding your model, including
product news and free upgrade parts when applicable. Please fill in the following and send to
1.Name:
2.Address:
3.Phone #: e-mail:
4.Model:
Wing QC# Fuselage QC#
(QC numbers are stamped on wing and fuselage)
5.Date of Purchase:
6.Store Name:
Please call AirBorne Models at 925 371 0922 for any assistance in filling this form.
Thank you very much for purchasing our product.
Air orne Models, 2403 Research Drive, Livermore, CA 94550 USAB .
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

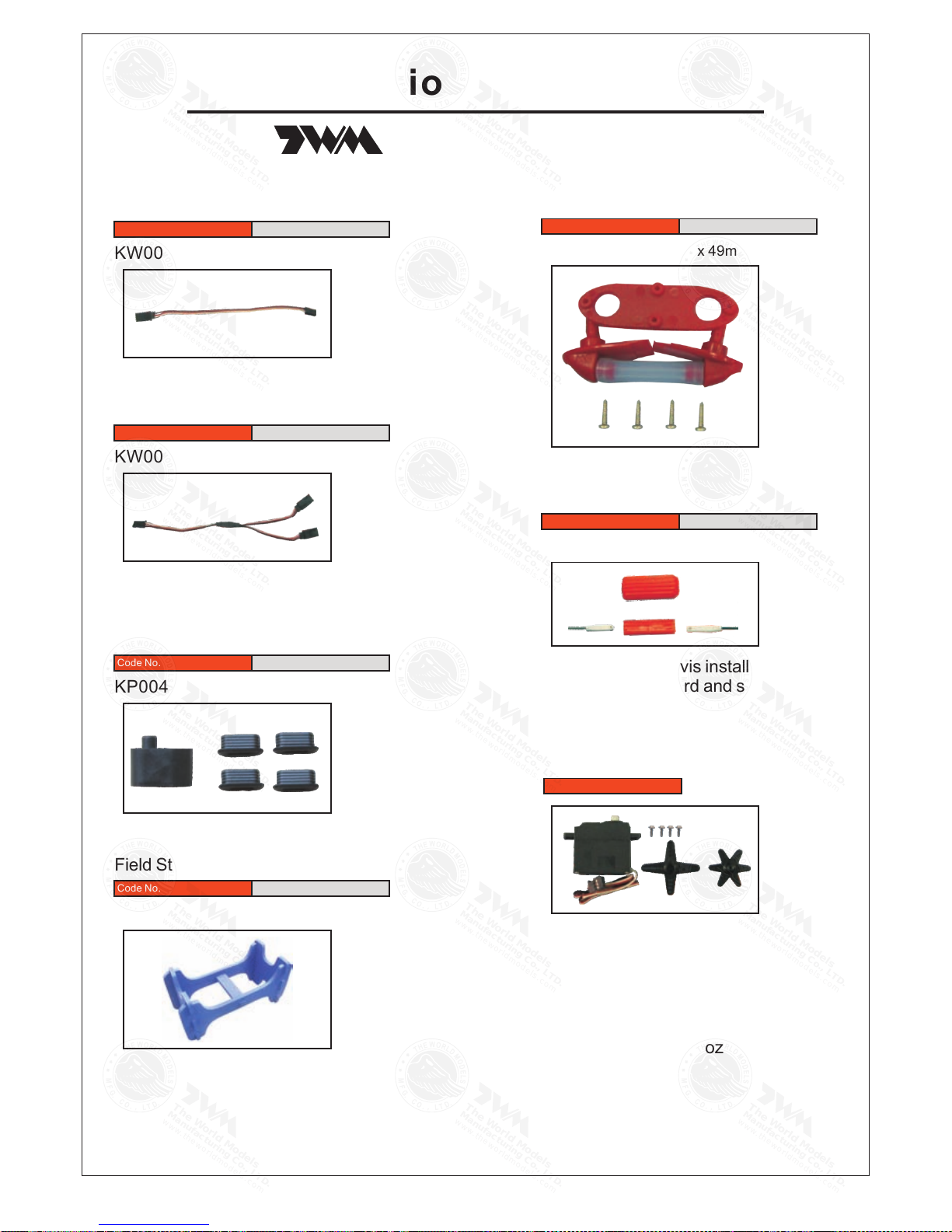

Optional Parts
( ACCESSORIES)
180mm Extension For Park Flyer
KW0011800 180mm 1 set
Code No. Size Package
Fuel Filler
PL8110030 15 x 22 x 49mm 1 x 1 pc
Code No. Size Package
Charge Receptacles
KP0041300
Code No. Size Package
Field Stand
MS9111430 600 x 240 x 310mm 1 pc
Code No. Size Package
180mm Y-Cord For Park Flyer
KW0021800 180mm 1 pc
Code No. Size Package
For park flyers of small electric models
Clevis Wrench
PL8210010 1 set
Code No. Size Package
Small Clevis Large Clevis
Special tool for clevis installation.
Suitable for standard and small
(EP) clevis.
Standard Servo
Code No SV4031
0.14 sec / 60° @6.0V
Torque : 3.2kg.cm / 44.8 oz - in @4.8V
4.1kg.cm / 57.4 oz - in @6.0V
Size : 40.6 x 20 x 37mm /
1.60 x 0.79 x 1.46 in
Weight : 39.4 g / 1.39 oz
Speed : 0.17 sec / 60° @4.8V
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

A127PO21370906
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
