The World Models Manufacturing GROOVY 3D 50 User manual

E
A
D
R
-
Y
T -
T
S
O
O
-
F
M
L
L
Y
A
Wing Span
Wing Area
Flying Weight
Fuselage Length
54.5 in / 1390 mm
648 sq in / 41.8 sq dm
5.7 lbs / 2600 g
53.5 in / 1360 mm
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
0.50-0.70 cu. in. displacement 4-stroke
Requires : 4 channels radio w/ 5 standard servos-
* Specifications are subject to change without notice.*
Specifications
INSTRUCTION MANUAL
D
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P. 1
INDEX
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P. 1
P. 2
P. 3 - 10
P. 10
BEFORE YOU BEGIN
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual comprise of the following : -
Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT
and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you
find to be defective after the gluing process may be difficult to remove for warranty replacement. The
manufacturer will replace any defective parts, but will be difficult to extend to the g parts that are
ood
good before gluing to defective parts during assembly.
Warranty will not cover any parts modified
.
by customer
1
D
2
3
Do not overlook this symbol!
Cut off shaded portion.
Peel off shaded portion
covering film.
Pay close attention here!
Pierce the shaded portion
covering film.
Must be purchased separately!
Drill holes with the specified
diameter (here: 3mm).
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Assemble left and right
sides the same way.
Apply epoxy glue.
Apply thread locker
3mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

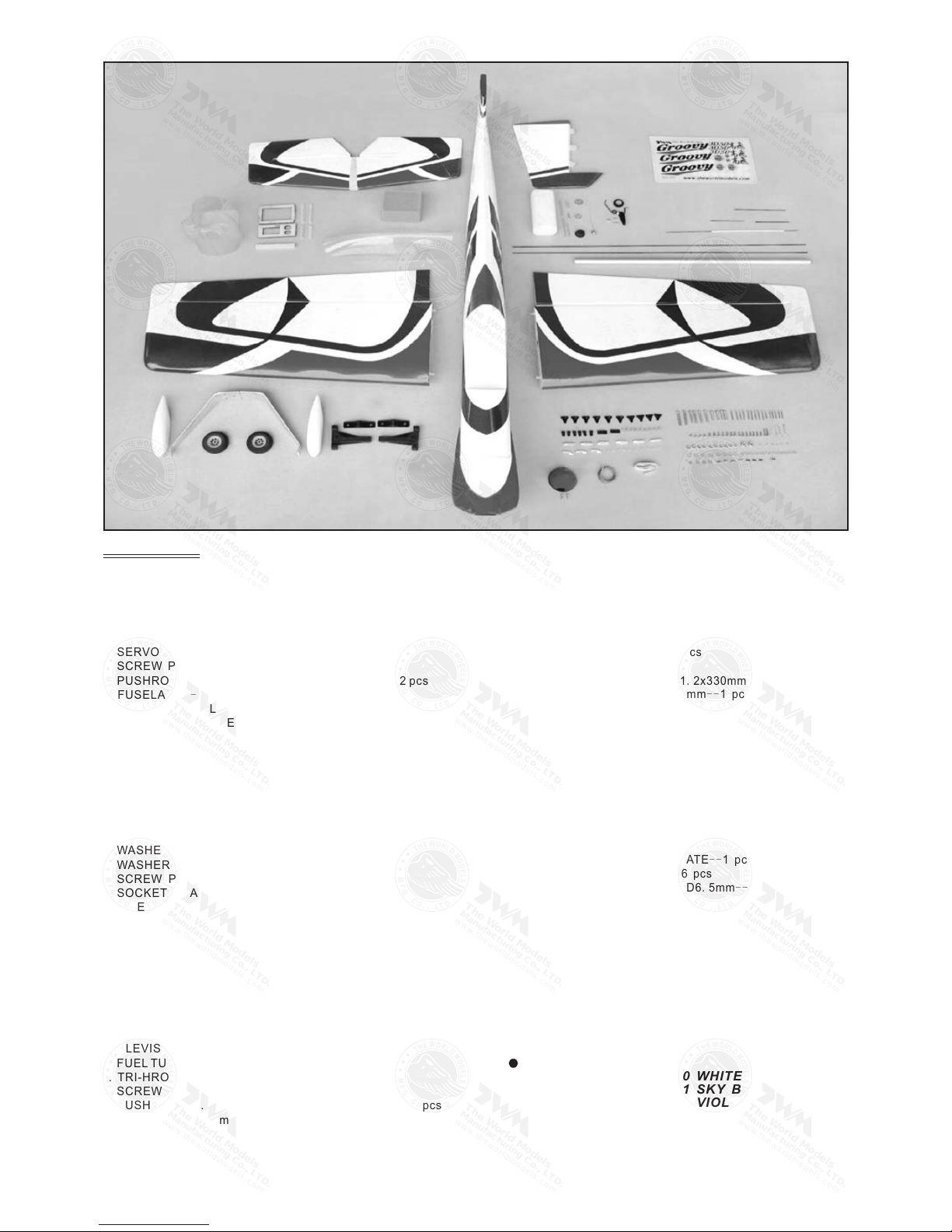

Parts List
P. 2
COVERING:
TOUGHLON STL100 WHITE
TOUGHLON STL251 SKY BLUE
TOUGHLON STL360 VIOLET
TOUGHLON STL361 PURPLE
TOUGHLON STL511 PEARL FERRARI RED
TOUGHLON STL550 PEARL BLUE
TOUGHLON STL561 PEARL PURPLE
1. M N WING--1 pair
2. CLEVIS--2 pcs
STRAPER--2 pcs
FUEL TUBE Ø6x5mm--4 pcs
TRI-HORN M3x14mm(s)--2 sets
SCREW PM2x25mm--6 pcs
SERVO MOUNTING PANEL--1 pair
SCREW PWA2x8mm--8 pcs
PUSHROD Ø1.8x80mm w/ Threads(For Aileron)--2 pcs
3. FUSELAGE--1 pc.
STABILIZER & ELEVATOR--1 set
4. VERTICAL & RUDDER--1 set
5. TAIL LANDING GEAR--1 set
TAIL WHEEL Ø25mm--1 pc.
COLLAR Ø2.1mm w/ set screw--1 set
SCREW PA3x12mm--2 pcs
6. MAIN LANDING GEAR--1 pair
SCREW PM4x35mm--2 pcs
M4 NUT--2 pcs
WASHER d4xD9mm--4 pcs
WASHER d3xD7mm--4 pcs
WASHER d2.5xD8mm--6 pcs
SCREW PA2.6x6mm--4 pcs
SOCKET HEAD SCREW M2.5x12mm--6 pcs
WHEEL PANTS--1 pair
MAIN WHEEL Ø55mm--2 pcs
COLLAR Ø4.1mm w/ set screw--4 sets
ALUMINUM PLATE 1mm--1 pair
7. TRI-HRON M3x14mm(S)--2 sets
SCREW PM2x25mm--3 pcs
RIGGING COUPLER Ø1.8x27mm w/ Theads(For Rudder)--2 pcs
WIRE Ø1x880mm(For Rudder)--2 pcs
M2 NUT--3 pcs
COPPER TUBE d2.5xD3.2x8mm(For Rudder)--2 pcs
CLEVIS --2 pcs
FUEL TUBE Ø6x5mm--2 pcs
8. TRI-HRON M3x14mm(S)--2 sets
SCREW PM2x20mm--6 pcs
PUSHROD Ø1.8x720mm w/ Theads(For Elevator)--2 pcs
FUEL TUBE Ø6x5mm--2 pcs
CLEVIS--2 pcs
AI
WASHER d4xD9mm--4 pcs
10. FUEL TANK 320cc--1 set
BALSA 8x8x91.5mm(For Fuel Tank Position Fixing)--1 pc.
PLYWOOD 4x41x92.8mm(For Throttle Servo)- - 1 pc.
BALSA 6x6x41mm(For Throttle Servo Stand)- - 2 pcs
11. SCREW PM3.5x30mm--4 pcs
WASHER d3.5xD8mm--8 pcs
M3.5 NUT--8 pcs
THROTTLE PUSHWIRE Ø1.2x330mm- - 1 pc.
PLASTIC TUBE d2xD3x185mm--1 pc.
12. LINKAGE CONNECTOR Ø2.1mm w/set screw--1 set
13. RIGGING Z BEND Ø1.8x27mm(For Rudder)--2 pcs
PLYWOOD 4x61x90mm(For Elevator Servo)--1 pc.
BALSA 6x6x61mm(For Elevator Servo Stand)--2 pcs
COPPER TUBE d2.5xD3.2x8mm(For Rudder)--2 pcs
PUSHROD CONNECTOR--1 set
SPONGE 60x70x92mm--1 pc.
PUSHROD Ø1.8x130mm(For Elevator)--1 pc.
STRAPER- - 1 pc.
FUEL TUBE Ø6x5mm--1 pc.
14. COWLING --1 pc.
TRANSPARENT 3D TEMPLATE--1 pc.
SCREW PWA2.6x12mm--6 pcs
SILICON GROMMET d1.5xD6.5mm- - 6 pcs
SPINNER Ø57mm--1 set
15. WING TUBE Ø16x570mm--1 pc.
SCREW PA3x18mm- - 1 pc.
SCREW PM3x18mm--1 pc.
WASHER d3xD7mm--2 pcs
16. CANOPY--1 pc.
SCREW PWA2.3x8mm--4 pcs
SILICON GROMMET d1.5xD6.5mm- - 4 pcs
DOUBLE-SIDED TAPE- - 1 pc.
17. DECALS--1 set
9.ENGINE MOUNT PL5111050--1 set
SOCKET HEAD SCREW M4x25mm--4 pcs
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

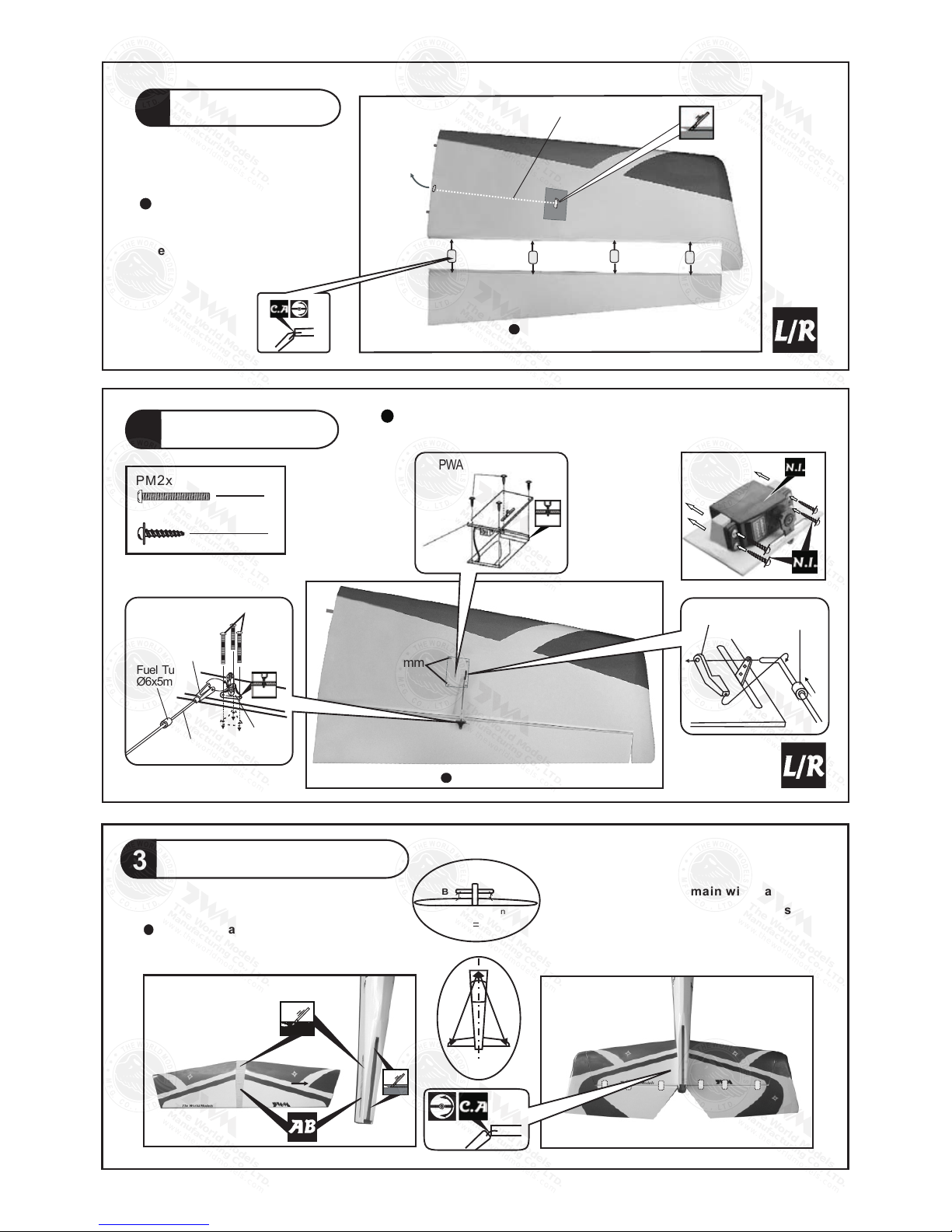

Aileron Servo
2
PM2x25mm Screw
6
Aileron Servo Lead
Main Wing
1
Bottom View
A p p l y i n s t a n t t y p e C A
g l u e t o b o t h s i d e s o f
e a c h h i n g e .
Stabilizer / Elevator
3
Apply i nstant type CA glue to both
sides o f e ach hinge.
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
P. 3
AA'
A=A'
Temporary install the main wing, adjust
leveling of the stabilizer to make it as
parallel to the main wing as possible.
8
PWA2 x 8mm Screw
Bottom View
PWA2 x 8mm
Fuel Tube
Ø6x5mm
Straper
Fuel Tube
Ø6x5mm
PM2x25mm
Tri-horn
M3x14mm
Clevis
2mm
Pushrod
Ø1.8x80mm
PWA 2 x 8mm
1 m m
(Stabilizer)
(Main Wing)
BB'
BB'
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Aileron Servo
2
PM2x25mm Screw
6
Aileron Servo Lead
Main Wing
1
Bottom View
A p p l y i n s t a n t t y p e C A
g l u e t o b o t h s i d e s o f
e a c h h i n g e .
Stabilizer / Elevator
3
Apply i nstant type CA glue to both
sides o f e ach hinge.
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
P. 3
AA'
A=A'
Temporary install the main wing, adjust
leveling of the stabilizer to make it as
parallel to the main wing as possible.
8
PWA2 x 8mm Screw
Bottom View
PWA2 x 8mm
Fuel Tube
Ø6x5mm
Straper
Fuel Tube
Ø6x5mm
PM2x25mm
Tri-horn
M3x14mm
Clevis
2mm
Pushrod
Ø1.8x80mm
PWA 2 x 8mm
1 m m
(Stabilizer)
(Main Wing)
BB'
BB'
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

5Tail Landing Gear
2.1mm Collar
1
PA3 x 12mm Screw
2

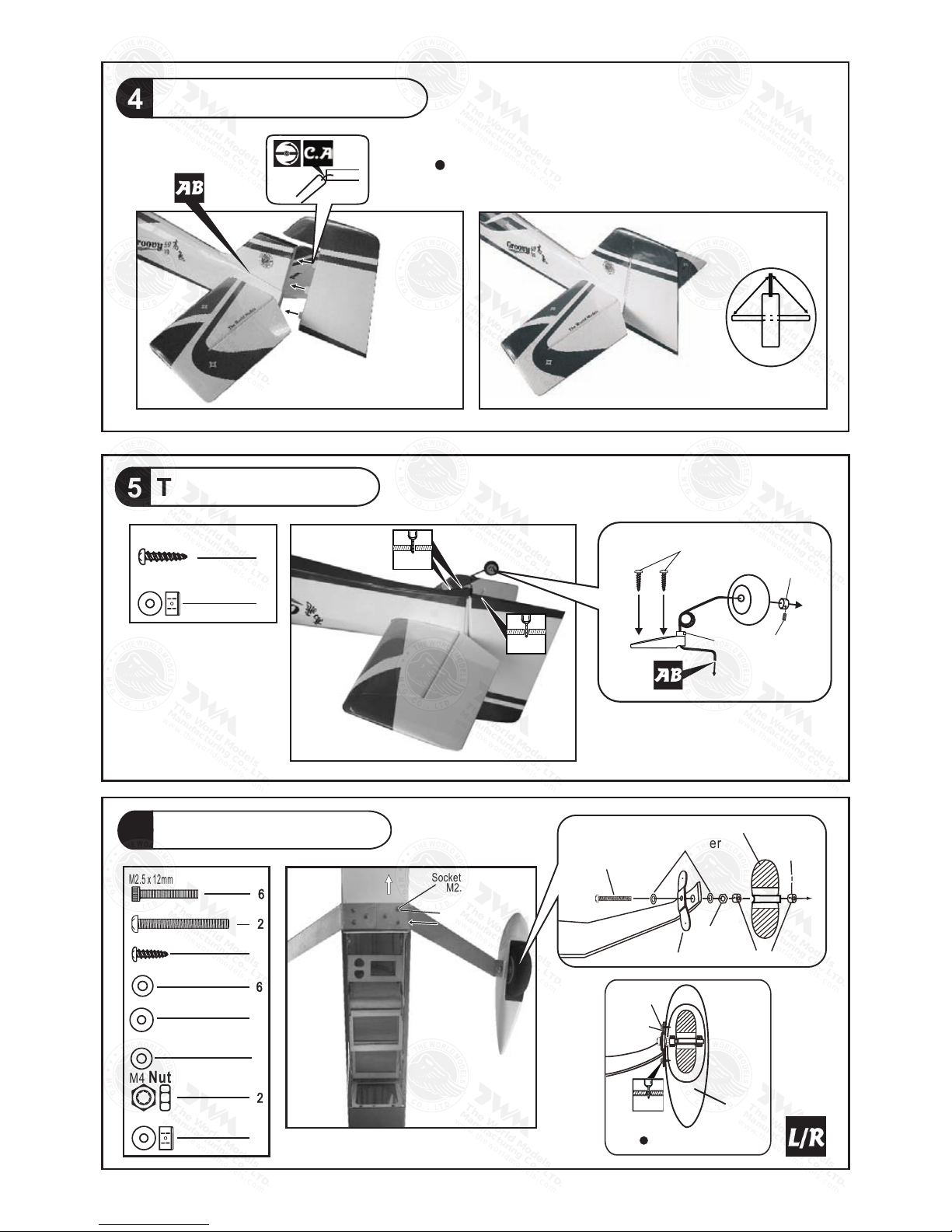

Vertical Fin & Rudder
4
A = A'
A A'
Apply instant type CA glue to both s ides of each hinge.
3 x 3mm Set Screw
PA3 x 12mm
2.1mm Collar
P. 4
Main Landing Gear
6
Socket Head Screw
M2.5 x12mm
Washer
d2.5x D8mm
d4 x D9mm Washer
M2.5 x 12mm Socket Head Screw
PA2.6 x6mm Screw
M4 Nut
4.1mm Collar
d2.5 x D8mm Washer
PM4 x 35mm Screw
4
d3xD7mm Washer
4
Front
4
PM4x35mm
4.1mm Collar
M4 Nut
3x3mm
Set Screw
Ø55mm Washer
Plate 1mm
d4xD9mm Washer
1.5mm
2.5mm
4
Completed
PA2.6x6mm
d3xD7mm
Wheel Pant
1mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.5

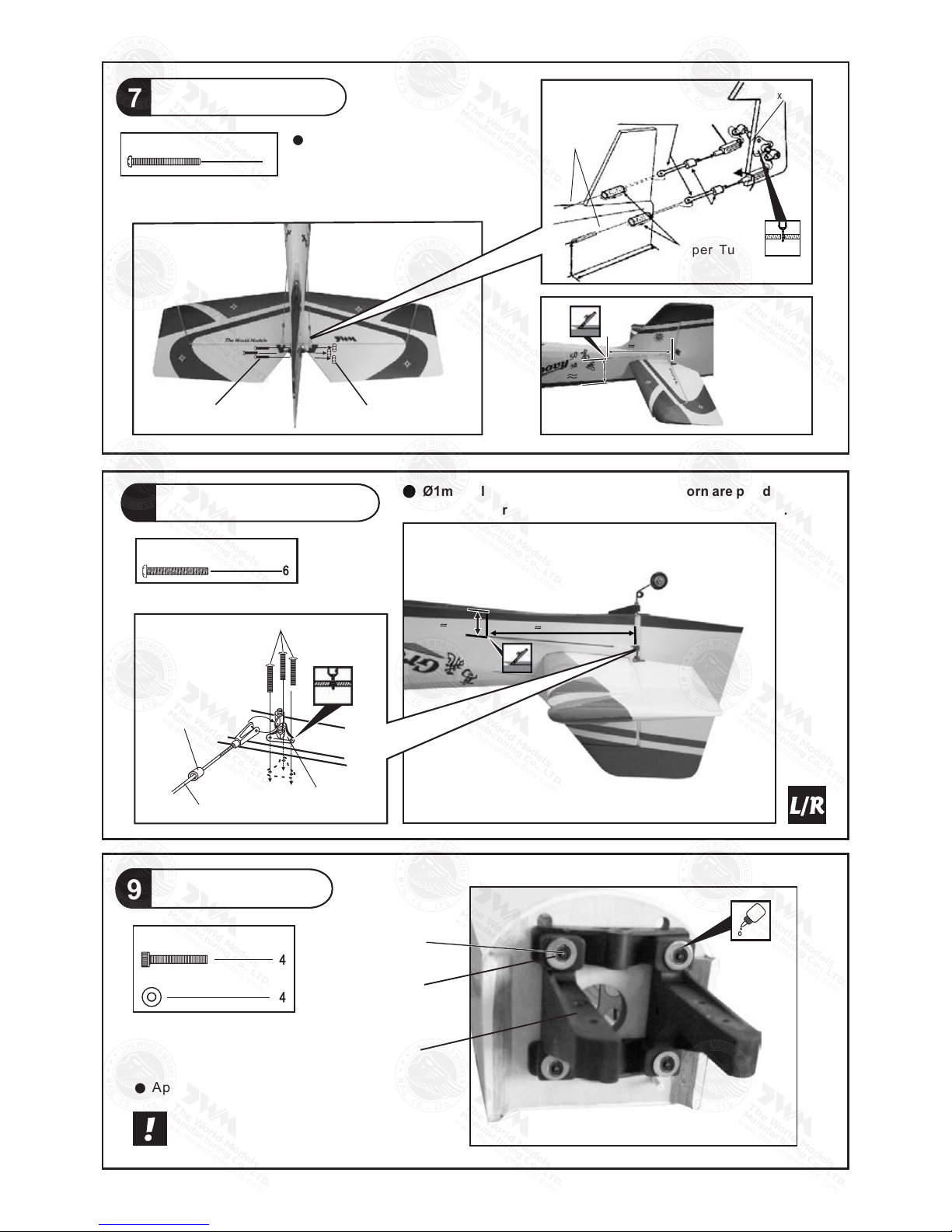

Rudder Pullwire
7
8Elevator Pushrod
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
PM 2 x 20mm Screw
Elevator Pushrod
Ø1.8x 720mm
Fuel Tube
Ø6x5mm
PM 2 x 20mm
Tri-horn
M3 x14mm
2mm
9Engine Mount
Socket Head Screw
M 4x25mm
d4xD9mm Washer
Engine Mount
PL5111-050
Apply thread locked screws.
d4xD9mm Washer
M4x25mm Socket Head Screw
Blind nuts are off-centered to keep
the spinner at the fuselage axis.
PM2x25mm
M2 Nut
Ø1mm pilot holes for World
Models tri-horn are pre-drilled.
Please look for pin-hole marks at
under side of control surfaces.
Ø1.8x27mm
Rigging Coupler
Wire
Ø1.8x880mm
≈187mm
≈84mm
Clevis
PM2x25mm Screw
3
Tri-horn
M3 x14mm
140mm
34mm
187mm
84mm
Copper Tube
Fuel Tube
Ø6x5mm
2mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.6
Fuel Tank
10 Fuel Tank 10
Fuel Tank
320cc
Engine
11
d2xD3x185mm
Plastic Tube
Throttle Pushwire
Ø1.2x330mm
M3.5 Nut
d3.5 x D8mm
Washer
PM3.5 x 30mm
8
PM 3.5x30mm Screw
M3.5 Nut
d3.5xD8mm Washer
8
4
115mm
4.5 in
d3.5 x D8mm
Washer
Install Balsa 8 x 8 x 91.5mm
(For Fuel Tank Position Fixing)
Fuel Tank
320cc
Bottom View
Front
Plywood
4x41x92.8mm
Balsa
6x6x41mm
Installed Engine Position
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

PM3x18mm
d3 x D7mm
Washer
≈231mm
P.8
PA3x18mm
d3 x D7mm Washer
2.5mm
Left Right
Main Wing
15
d3 x D7mm Washer
PM3x18mm Screw
1
2
PA3x18mm Screw
1
Step 1. Insert the aluminum wing tube with the pre-drilled hole end into the right wing. Align
the lines marked at the wing root and wing tube, then apply the PM3 x 18mm machine screw
through the pre-drilled hole on top of the wing. ( please confirm the alignment of the hole by
putting a 2.5mm diameter rod through the pre-drilled wing hole before applying the screw )
The hole on the wing tube is pre-threaded, do not over tighten the PM3 screw, the set up is for
future removal of the wing.
Step 3. Make sure the wings are resting against the fuselage tightly. Locate the pre-drilled 2.5mm
hole at top o f left wing, and drill along w ith 2.5mm d r i l l bit until it passes t hrough the w i n g t u b e .
A p p l y t h e PA 3 x 1 8 m m s e l f - t a p p i n g s c r e w .
Note : It is recommended that the wing tube stays with the left wing. Removal of the wings could be achieved
by removing the right wing machine screw, the right wing then the left wing with wing tube. If removal of wing
tube from left wing is also required, it is recommended that instead of applying self-tapping screw in step 3,
you pre-tap with M3 thread cutter and apply M3 machine screw.
Top View
Lead to Aileron Servo
Step 2.Install the right wing to the fuselage by inserting the wing tube(now attached
to the right wing) through the fuselage,then install the left wing.
Wing Tube
Ø16X570mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

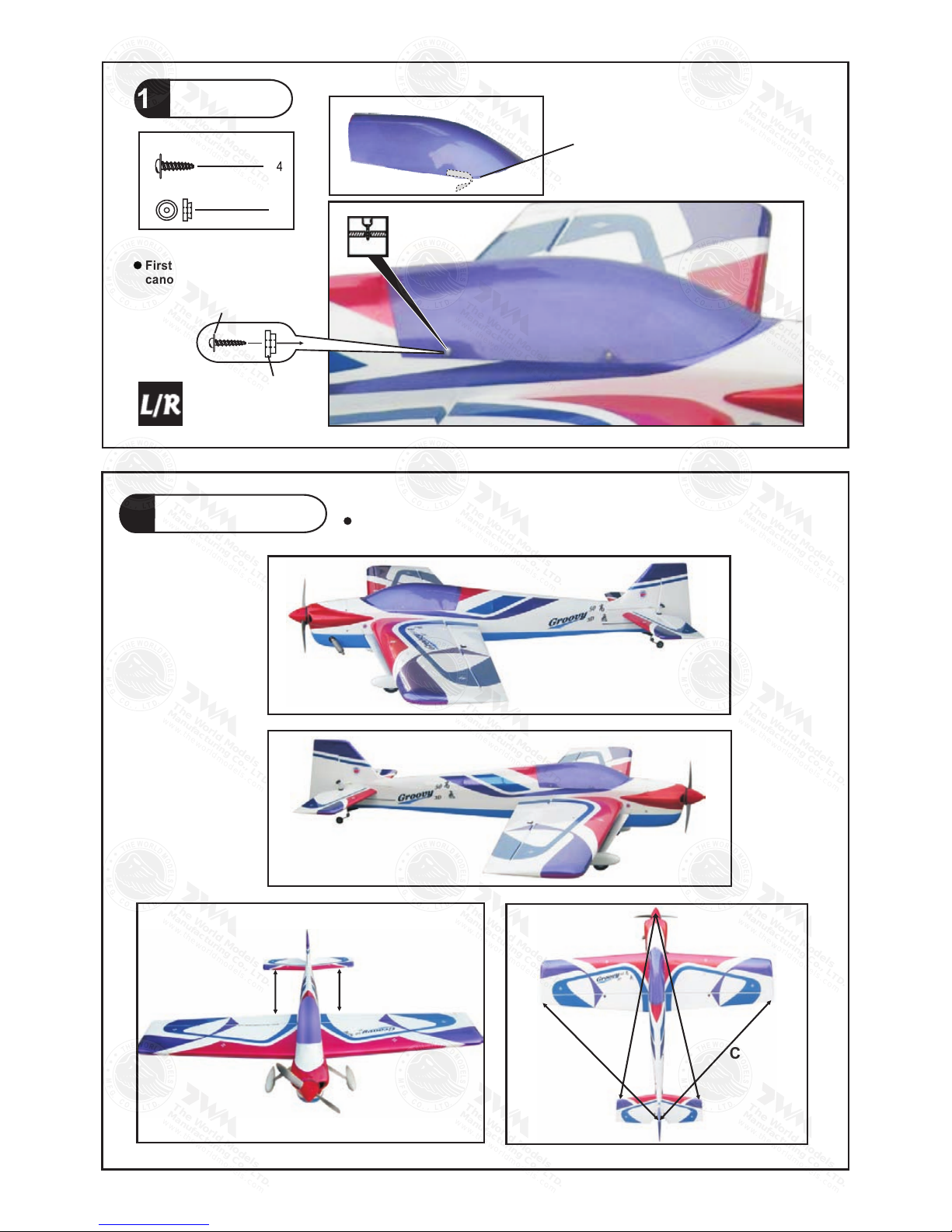

BB '
C C '
A A'
P.9
Wing Setting
17
A = A '
B = B '
C = C '
Canopy
16
PWA2.3 x 8mm Screw
PWA2.3 x 8mm
d1.5 x D6.5 mm
Silicon Grommet
1mm
First insert the grommet to the
canopy then apply screw.
Adjust the wing and fuselage configuration as shown in the diagrams.
4
d1.5 x D6.5 mm
Silicon Grommet
Apply double-sided tape
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.10
Control Throws
Adjust the control throws as shown in the diagram.
These throws are good for general flying. You can
adjust according to your personal preference.
C.G.
Elevator
Rudder
18
19
Ailerons
35mm
50mm
50mm
35mm
35mm
Important Safety Precautions
A2080805
35mm
# First time flyer should never fly by himself / herself. Assistance from experienced flyer is
absolutely necessary.
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly
pre-adjusted aircraft.
# is specially designed to be powered by 4c 0.50-0.70 engine, using a more
powerful engine does not mean better performance . In fact , ove r powered engine may
cause severe damage and injuries.
# Make sure the air field is spacious, never fly the plane too close to people and never get
too close to a running propeller.
# If you find wrinkles on the covering as a result of weather changes, you can use hot iron
to remove the wrinkles. Please begin with lower temperature setting and gradually raise
the temperature until the wrinkles are gone. Too hot an iron may damage the covering.
Don’t use hot iron near the seams or edges, hot iron will melt the glue and shrink the
covering at the same time, causing the seams to pull away.
# Check and re-tighten up all factory assembled screws, use thread locker if necessary.
The ideal C.G. position is 120mm (4.72 in.) behind
the leading edge measured at where the wing
meets the fuselage. In order to obtain the C.G.
specified, add weight to the fuselage or move
the battery position. Check the C.G. before
flying.
4.72 in.
120 mm
D
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

LINKAGE CONNECTOR
HW7111050 & HW7111060
After fastening the round nut, make sure that
the linkage connector can rotate freely.
Drill 2mm hole at servo horn.
Insert linkage connector
into servo horn.
Make sure shoulder of
screw is cleared from
servo horn.
Add washer to reduce
play if necessary.
Shoulder
Tighten up the round nut
against the shoulder. Apply
CA or permanent thread
locker.
Product Registration Form (US Customers)
We would like to share with you any relevant information regarding your model, including
product news and free upgrade parts when applicable. Please fill in the following and send to
AirBorne Models, 4749-K,Bennett Drive, Livermore, CA 94551 USA.
1. Name:
2. Address:
3. Phone #: E-mail:
4. Model:
Wing QC# Fuselage QC#
(QC numbers are stamped on wing and fuselage)
5. Date of Purchase:
6. Store Name:
Please call AirBorne Models at 925 371 0922 for any assistance in filling this form.
Thank you very much for purchasing our product.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Optional Parts
180mm Extension
KW0011800 180mm 1 set
Code No. Size Package
Fuel Filler
PL8110030 15 x 22 x 49mm 1 x 1 pc
Code No. Size Package
Charge Receptacles
KP0041300
Code No. Size Package
Field Stand
MS9111430 600 x 240 x 310mm 1 pc
Code No. Size Package
180mm Y-Cord
KW0021800 180mm 1 pc
Code No. Size Package
Clevis Wrench
PL8210010 1 set
Code No. Size Package
Small Clevis Large Clevis
Special tool for clevis installation.
Suitable for standard and small
(EP) clevis.
Standard Servo
Code No SV4031
0.14 sec / 60° @6.0V
Torque : 3.2kg.cm / 44.8 oz - in @4.8V
4.1kg.cm / 57.4 oz - in @6.0V
Size : 40.6 x 20 x 37mm /
1.60 x 0.79 x 1.46 in
Weight : 39.4 g / 1.39 oz
Speed : 0.17 sec / 60° @4.8V
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

12
34
Usage of the transparent 3D template
This transparent 3D template
is used for position guidance
of the actual cutting of the
pre-painted cowling.
Simply cut the transparent 3D template to fit your engine and
exhaust pipe, then slide onto the actual cowling and use as
template to mark the openings required for final cutting.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

A2080805
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
