The World Models Manufacturing SPOT-ON 120 AEROBATICS User manual

Aerobatics
120
夺标
INSTRUCTION MANUAL
Wing Span
Wing Area
Flying Weight
Fuselage Length
68 in / 1730 mm
852 sq in / 55 sq dm
70 in / 1780 mm
8.8 lbs / 3980 g
Specifications
1.10-1.40 cu. in. displacement 4-stroke
Requires : 4-channel radio w/ 5 standard servos
Warning !This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
* Specifications are subject to change without notice.*
E
A
D
R
-
Y
T -
T
S
O
O
-
F
M
L
L
Y
A
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Aerobatics
120
夺标
P.1
Apply thread locker
Apply epoxy glue.
Pierce the shaded portion
covering film.
Apply instant glue
(C.A.glue, super glue.)
Ensure smooth non-bindin g
movement while assembling.
Do not overlook this symbol !
P. 3 -11
Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT
and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you
find to be defective after the gluing process may be difficult to remove for warranty replacement. The
manufacturer will replace any defective parts, but will not extend to the parts that are good before
gluing to defective parts during assembly. Warranty will not cover any parts modified by customer.
INDE X
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P. 1
P. 2
P.11
BEFORE YOU BEGIN
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual comprise of the following : -
1
2
3
Assemble left and right
sides the same way.
Peel off shaded portion
covering film.
Drill holes with the specified
diameter (here: 3mm) .
Pay close attention here!
Cut off shaded portion.
Must be purchased separatel y !
Warning!
3mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Parts List
COVERING:-
TOUGHLON STL331 CUB YELLOW
TOUGHLON STL313 PINK
TOUGHLON STL251 SKY BLUE
TOUGHLON STL351 DARK BLUE
TOUGHLON STL311 FERRARI RED
TOUGHLON STL100 WHITE
TOUGHLON STL423 CHECKER (ORANGE / WHITE)
TOUGHLON STL434 CHECKER (ORANGE / WHITE)
P.2
1. MAIN WING -- 1 pair
2. SCREW PM2x25mm -- 6 pcs
PUSHROD Ø1.8x110mm w/ Threads (For Aileron) -- 2 pcs
CLEVIS (L) -- 2 pcs
STRAPER (L) -- 2 pcs
FUEL TUBE Ø6x5mm -- 4 pcs
TRI-HORN M3x14mm (L) -- 2 sets
PWA2x8mm -- 4 pcs
PLASTIC PLATE 0.5x36x81mm -- 2 pcs
3. STABILIZER & ELEVATOR -- 1 set
SCREW PA3x12mm -- 2 pcs
STABILIZER TUBE Ø9.5x299mm -- 1 pc.
WASHER d3xD7mm -- 2 pcs
STABILIZER WIRE Ø3x130mm -- 1 pc.
FUSELAGE -- 1 pc.
4. VERTICAL FIN & RUDDER -- 1 set
5. TAIL LANDING GEAR Ø2.5mm -- 1 set
SCREW PA3x12mm -- 2 pcs
COLLAR Ø2.6mm w/ Set Screw -- 1 set
TAIL WHEEL Ø30mm -- 1 pc.

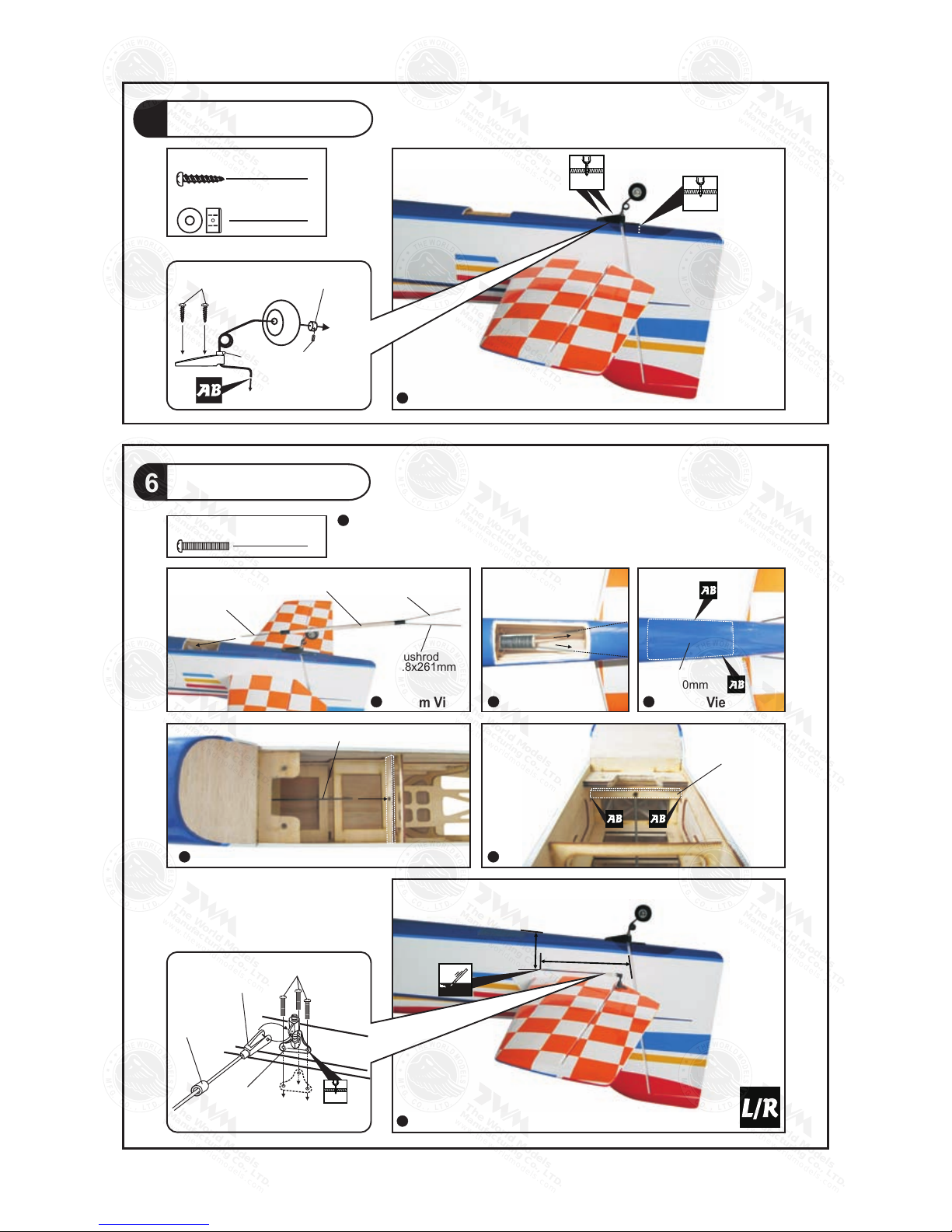

6. PUSHROD Ø1.8x261mm w/ Threads (For Elevator) -- 1 pc.
PUSHROD Ø1.8x271mm w/ Threads (For Elevator) -- 1 pc.
PUSHROD Ø1.8x210mm (For Elevator) -- 1 pc.
BALSA ROD Ø15x500mm -- 1 pc.
SCREW PM2x20mm -- 6 pcs
CLEVIS (L) -- 2 pcs
FUEL TUBE Ø6x5mm -- 2 pcs
TRI-HORN M3x14mm (L) -- 2 sets
PLYWOOD 3x10x97.8mm -- 1 pc.
BALSA 2x53x90mm -- 1 pc.
7. RIGGING COUPLER Ø1.8x27mm w/ Threads (For Rudder) -- 2 pcs
WIRE Ø1x1070mm (For Rudder) -- 2 pcs
COPPER TUBE d2.5x3.2x8mm(For Rudder) -- 2 pcs
SCREW PM2x25mm -- 3 pcs
M2 NUT -- 3 pcs
CLEVIS (L) -- 2 pcs
FUEL TUBE Ø6x5mm -- 2 pcs
TRI-HORN M3x14mm (w/ o-Base For Rudder) (L) -- 2 sets
8. MAIN LANDING GEAR -- 1 pair
COLLAR Ø4.1mm w/ Set Screw -- 2 sets
SOCKET HEAD SCREW M3x15mm -- 4 pcs
WASHER d3xD7mm -- 8 pcs
SCREW PM4x37mm -- 2 pcs
M4 NUT -- 2 pcs
WASHER d4xD9mm -- 4 pcs
PLASTIC WHEEL Ø4.1mm -- 2 pcs
SCREW PA2.6x6mm -- 4 pcs
MAIN WHEEL Ø56mm -- 2 pcs
WHEEL PANTS -- 1 pair
ALUMINUM PLATE 1mm -- 1 pair
9. ENGINE MOUNT PL59111080 -- 1 set
SOCKET HEAD SCREW M4x30mm -- 4 pcs
WASHER d4xD9mm -- 4 pcs
10. LINKAGE CONNECTOR Ø2.1mm --1 set
11. THROTTLE PUSHWIRE Ø1.2x580mm -- 1 pc.
PLASTIC TUBE d2xD3x420mm -- 1 pc.
ALUMINUM PLATE 2x78.2x99.2mm (For Engine Mount) -- 1 pc.
ALUMINUM PLATE d4xD10x2mm -- 4 pcs
ANTI-VIBRATION MOUNT 4C-120 -- 1 set
INCLUDE: SOCKET HEAD SCREW M4x45mm -- 4 pcs
SOCKET HEAD SCREW M4x12mm -- 4 pcs
SCREW KM3x15mm -- 8 pcs
WASHER d4xD12mm -- 8 pcs
WASHER d4xD9mm -- 4 pcs
SPRING WASHER -- 4 pcs
M4 NYLON INSERT LOCK NUT -- 8 pcs
12. RIGGING Z BEND Ø1.8x27mm (For Rudder) -- 2 pcs
COPPER TUBE d2.5x3.2x8mm (For Rudder) -- 2 pcs
FUEL TUBE Ø6x5mm -- 1 pc.
STRAPER (L) -- 1 pc.
SPONGE 60x70x105mm (For Radio Equipment) -- 1 pc.
FUEL TANK 45OCC -- 1 set
CABLE TIE 270mm -- 2 pcs
BALSA 5x5x42mm -- 1 pc.
BALSA 5x5x56mm -- 1 pc.
PLYWOOD 3x42.5x64mm -- 1 pc.

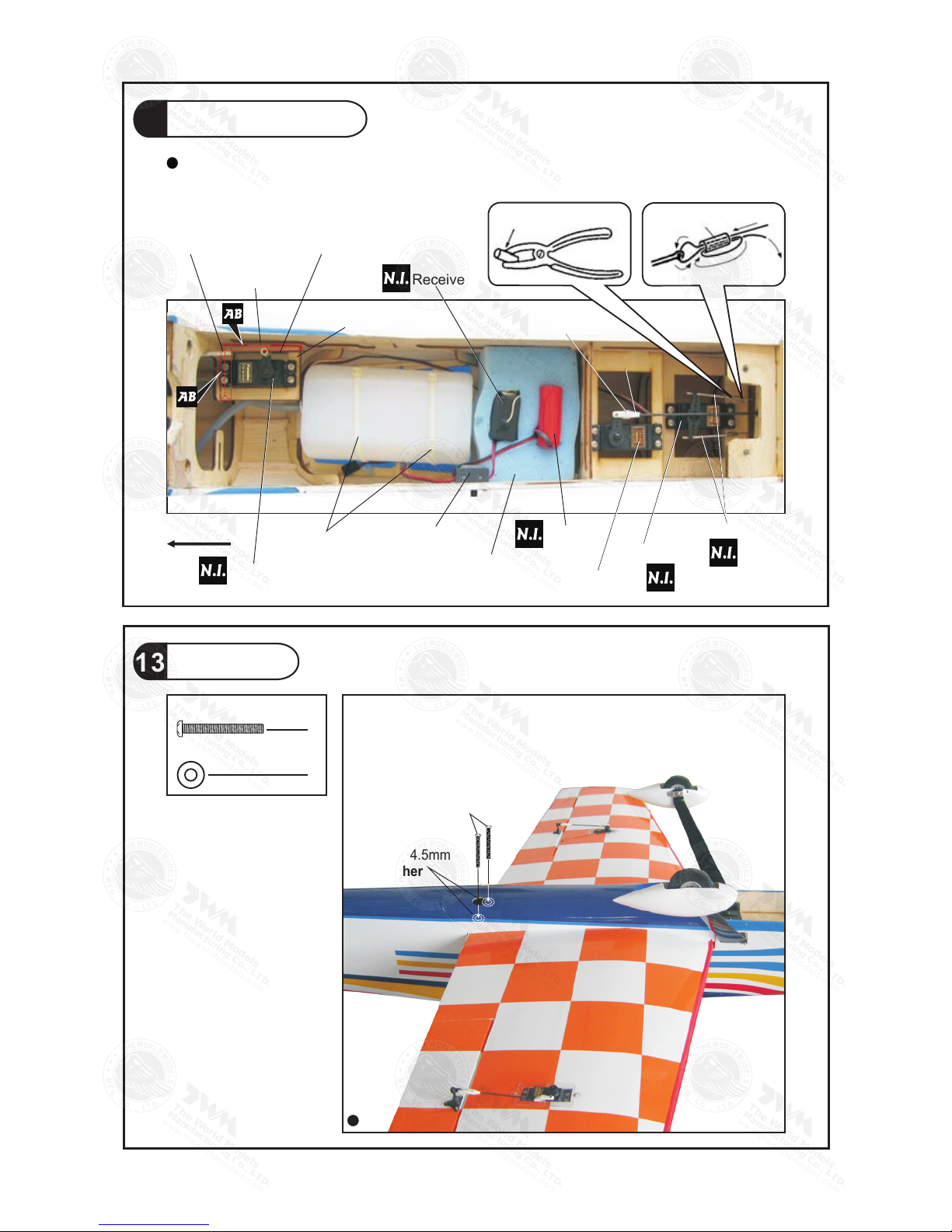

13. SCREW PM4x35mm -- 2 pcs
WASHER d4.2xD14.5mm -- 2 pcs

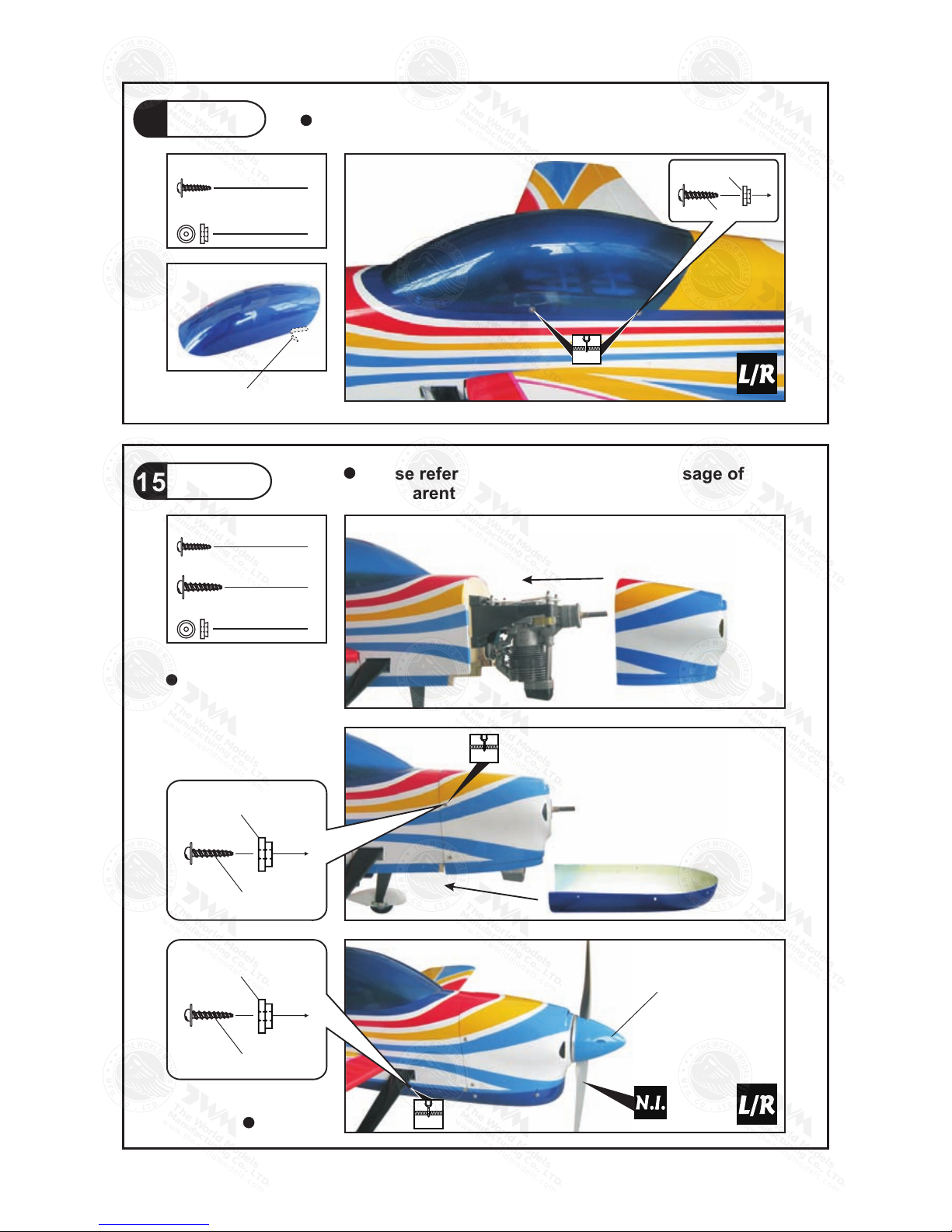

14. CANOPY -- 1 pc.
SCREW PWA2.3x8mm -- 4 pcs
SILICON GROMMET d1.5xD6.5mm -- 4 pcs
DOUBLE-SIDED TAPE--1 pc.
15. COWLING -- 1 pc.
UNDER COWLING -- 1 pc.

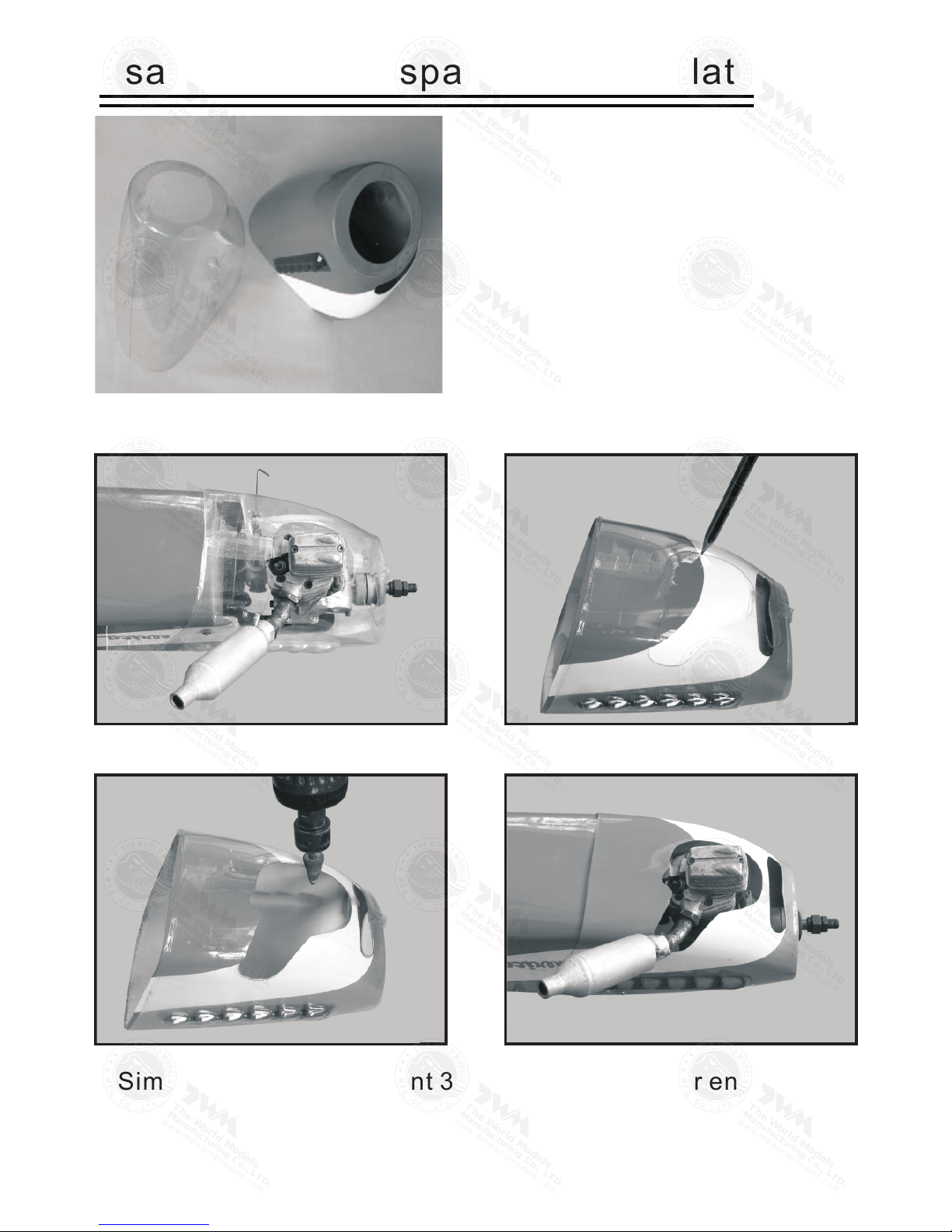

TRANSPARENT 3D TEMPLATE -- 1 pc.
SCREW PWA2.6x12mm -- 4 pcs
SCREW PWA2.6x8mm -- 6 pcs
SILICON GROMMET d1.5xD6.5mm -- 10 pcs
SPINNER (w.alu.back plate) Ø76mm -- 1 set
16. DECALS : A250RDEC -- 1 set
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

1Main Wing Apply instant type CA glue to both sides of each hinge.
Bottom View
P 2x mm ScrewM 25
6
2Aileron Servo
Completed
Aileron Servo Lead
Bottom View
Straper
Fuel Tube
Ø6x5mm
P 2x mmM 25
Clevis
Fuel Tube
Ø6x5mm
4
P 2x mm ScrewWA 8
P 2x mmWA 8
Ø1mm pilot holes for World Models Tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control
surfaces.
P.3
Tri-Horn
M3x14mm(L)
2mm
Pushrod
Ø1.8x110mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

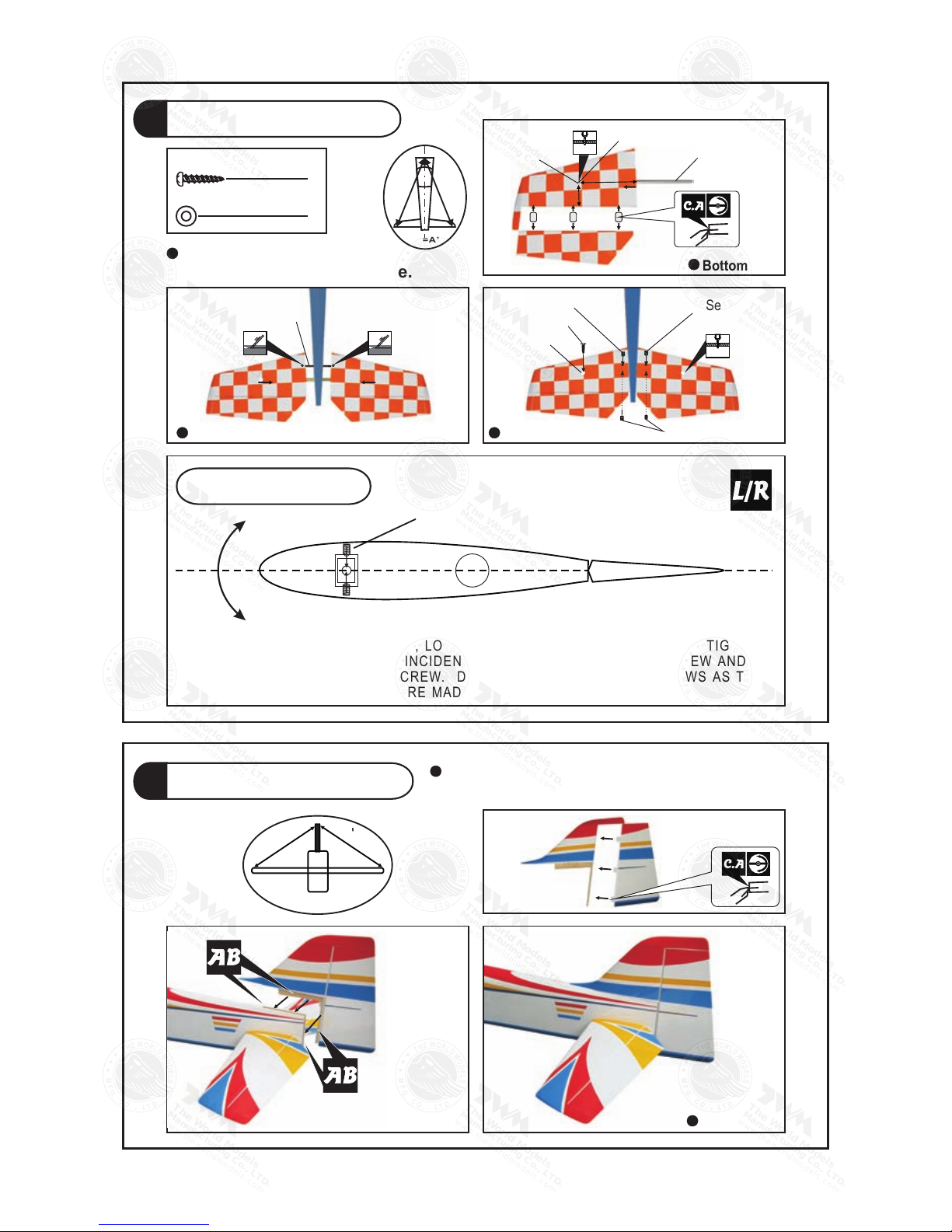

AA’
A=A’
TO INCREASE INCIDENCE ANGLE, LOOSE BOTTOM SET SCREW AND THEN TIGHTEN
TOP SET SCREW. TO REDUCE INCIDENCE ANGLE, LOOSE TOP SET SCREW AND
THEN TIGHTEN BOTTOM SET SCREW. DON'T OVER TIGHTEN SET SCREWS AS THE
INCIDENCE ANGLE ADJUSTER ARE MADE OF PLASTICS.
TOP
BOTTOM
P.4
3Stabilizer & Elevator
P x mm ScrewA3 12
2
2
d3 D7x mm Washer
≈64mm
d3 D7
Washer
x mm P x mmA3 12
≈124mm
2mmStabilizer Tube
Bottom View
Bottom View
Stabilizer Setting
Bottom View
Apply instant type CA glue
to both sides of each hinge.
Ø3x130mm
M3x6mm Set Screw
M3x6mm Set Screw
P x mmA3 12
2mm
d3 D7
Washer
x mm
M3x6mm Set Screw
M3x6mm Set Screw
4Vertical Fin & Rudder Apply instant type CA glue to both sides of
each hinge.
B=B'
BB
Completed
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.5
5Tail Landing Gear
P x mm ScrewA3 12
2
1
2.6mm Collar
6Elevator Pushrod
2mm
1.5mm
Bottom View
P x mmA3 12 2.6mm Collar
3x3mm Set Screw
Ø1mm pilot holes for World Models Tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control
surfaces.
PM2x 0mm Screw2
6
Bottom View
1
4
2 3
5
≈64mm ≈164mm
PM2x mm20
Tri-Horn
M3x14mm(L)
2mm
Fuel Tube
Ø6x5mm
Clevis
Bottom View
Pushrod
Ø1.8x210mm
Pushrod
Ø1.8x261mm
Pushrod
Ø1.8x271mm
Balsa Rod
Ø15x500mm
Balsa
2x53x90mm
Bottom View Bottom View Bottom View
Plywood
3x10x97.8mm
Bottom View
Elevator Pushrod
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.6
8Main Landing Gear
PM4x37mm Screw 2
2
M4 Nut
2
8
4
2
PA2.6x6mm Screw
d3xD7mm Washer
d4xD9mm Washer
4.1mm Collar
M3x15mm Socket Head Screw
4
d4xD9mm Washer 3mm Set
Screw
Wheel
Ø56mm
4.1mm Collar
Plate 1mm
M4 Nut
PA2.6x6mm
d3xD7mm
Washer
2mm
Bottom View Completed
M3x15mm
Socket Head Screw
d3xD7mm
Washer
9Engine Mount
4
d4xD9mm Washer
M4x30mm Socket Head Screw
4
!
Blind nuts are off-centered to keep
the spinner at the fuselage axis.
Apply thread locker to screws.
Engine Mount PL59111080
M4x30mm
Socket Head Screw
d4xD9mm
Washer
7Rudder Pullwire
PM2x 5mm Screw2
3
3
M2 Nut
≈60mm ≈60mm
≈122mm ≈122mm
Ø1mm pilot holes for World Models Tri-horn are
pre-drilled. Please look for pin-hole marks at under
side of control surfaces.
PM4x37mm
Plastic Wheel Ø4.1mm
PM2x 5mm2
M2 Nut
Wire
Press down the center
1/3 portion
Copper Tube
Wheel Pants
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.7
10 Servo Set
1
1
3x3mm Set Screw
Linkage Connector
M2 Nut
2mm Washer
1
2
Please refer to the attached sheet for linkage connector installation.
Throttle Pushwire
3mm
Throttle Servo.
2mm
2mm
Washer
M2 Nut
2mm
Washer
11 Engine
8
8
d4xD12mm Washer
M4x45mm Socket Head Screw
4
M4 Nylon Insert Lock Nut
ANTI-VIBRATION MOUNT INSTALLATION
M4 Nylon Insert Lock Nut
d4xD12mm Washer
M4x45mm Socket Head Screw
Installed Engine Position
150 mm
5.9 in.
Throttle Pushwire Ø1.2x580mm
Plastic Tube
d2xD3x420mm
Completed
M4 Nylon Insert Lock Nut
Aluminum Plate
d4xD10x2mm Aluminum Plate
2x78.2x99.2mm
d4xD9mm Washer
M4x45mm
M4x12mm
d4xD12mm
Washer
Spring Washer
Make sure the
rounded edges
are facing the
shock absorbing
SILICON PAD.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.8
13 Main Wing
PM4x35mm Screw
d4.2xD14.5mm Washer
2
2
PM4x35mm
d4.2xD14.5mm
Washer
Bottom View
12 Radio Equipment
Install and arrange the servo as shown in the diagram.
Press down the center
1/3 portion
Front
Sponge
60x70x105
Copper Tube
Throttle Servo
Throttle Pushwire
Fuel Tube
Ø6x5mm
Straper
Straper
Elevator Servo
RIGGING Z BEND
Rudder Servo
Battery
Receiver
450cc
Fuel Tank
Cable Tie 270mm Switch Harness
Balsa
5x5x56mm
Balsa
5x5x42mm
Plywood
3x42.6x64mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.9
14 Canopy
d1.5xD6.5mm Silicon Grommet
4
15 Cowling
4
d1.5xD6.5mm Silicon Grommet
10
PWA2.6x12mm Screw
Apply Double-Sided Tape
Completed
First insert the grommet to the canopy then apply screw.
First insert the
grommet to the
cowling then
apply screw.
1mm
PWA2.3x8mm
d1.5xD6.5mm
Silicon Grommet
1mm
1mm
d1.5xD6.5mm
Silicon Grommet
Spinner
Ø76mm
Please refer to the attached sheet for usage of the
transparent 3D template.
6
PWA2.6x8mm Screw
4
PWA2.3x8mm Screw
PWA2.6x12mm
d1.5xD6.5mm
Silicon Grommet
PWA2.6x8mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

A = A ' B = B ' C = C '
Adjust the wing and fuselage configuration as shown in the diagrams.
B B '
CC '
A A'
P.10
16 Wing Setting
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Adjust the control throws as shown in the diagram.
These throws are good for general flying. You can
adjust according to your personal preference.
Important Safety Precautions
A250R0805
Ae rob ati cs
120
夺标
P.11
Elevator
Rudder
Ailerons
13mm
13mm
35mm
35mm
18mm
18mm
18 C.G.
9
17 Control Throws
Warning!
# First time flyer should never fly by himself / herself. Assistance from experienced
flyer is absolutely necessary.
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly
pre-adjusted aircraft.
# is specially designed to be powered by 4C 1.20-0.40 engine, using
a more powerful engine does not mean better performance. In fact, over powered
engine may cause severe damage and injuries.
# Make sure the air field is spacious, never fly the plane too close to people and never
get too close to a running propeller.
# If you find wrinkles on the covering as a result of weather changes, you can use hot
iron to remove the wrinkles. Please begin with lower temperature setting and
gradually raise the temperature until the wrinkles are gone. Too hot an iron may
damage the covering. Don't use hot iron near the seams or edges, hot iron will
melt the glue and shrink the covering at the same time, causing the seams to pull away.
# Check and re-tighten up all factory assembled screws, use thread locker if necessary.
The ideal C.G. position is 130mm (5.18 in.) behind
the leading edge measured at where the wing
meets the fuselage. In order to obtain the C.G.
specified, add weight to the fuselage or move
the battery position. Check the C.G. before
flying.
C.G.
130mm
5.18 in
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

LINKAGE CONNECTOR
HW7111050 & HW7111060
Drill 2mm hole at servo horn.
Insert linkage connector
into servo horn.
Make sure shoulder of
screw is cleared from
servo horn.
Add washer to reduce
play if necessary.
Shoulder
Tighten up the round nut
against the shoulder. Apply
CA or permanent thread
locker.
After fastening the round nut, make sure that
the linkage connector can rotate freely.
Product Registration Form (US Customers)
We would like to share with you any relevant information regarding your model, including
product news and free upgrade parts when applicable. Please fill in the following and send to
1.Name:
2.Address:
3.Phone #: e-mail:
4.Model:
Wing QC# Fuselage QC#
(QC numbers are stamped on wing and fuselage)
5.Date of Purchase:
6.Store Name:
Please call AirBorne Models at 925 371 0922 for any assistance in filling this form.
Thank you very much for purchasing our product.
Air orne Models, 4749-K,Bennett Drive, Livermore, CA 94551 USAB .
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

12
34
Usage of the transparent 3D template
This transparent 3D template
is used for position guidance
of the actual cutting of the
pre-painted cowling.
Simply cut the transparent 3D template to fit your engine and
exhaust pipe, then slide onto the actual cowling and use as
template to mark the openings required for final cutting.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

A250R0805
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
