The World Models Manufacturing SUPER SPORTS 30 User manual

Warning !This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
0.32 cu. in. displacement 2-stroke
Radio Requires : 4-channel radio w/ 4 standard servos
* Specifications are subject to change without notice.*
Wing Span
Wing Area
Flying Weight
Fuselage Length
53 in / 1350 mm
518 sq in / 33.4 sq dm
4.0 lbs / 1800 g
44 in / 1110 mm
Specifications
INSTRUCTION MANUAL
E
A
D
R
-
Y
T -
T
S
O
O
-
F
M
L
L
Y
A
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Apply thread locker
Apply epoxy glue.
Pierce the shaded portion
covering film.
Apply instant glue
(C.A.glue, super glue.)
Ensure smooth non-bindin g
movement while assembling.
Do not overlook this symbol !
P. 3 -10
Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT
and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you
find to be defective after the gluing process may be difficult to remove for warranty replacement. The
manufacturer will replace any defective parts, but will not extend to the parts that are good before
gluing to defective parts during assembly. Warranty will not cover any parts modified by customer.
INDEX
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P. 1
P. 2
P.10
BEFORE YOU BEGIN
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual comprise of the following : -
1
2
3
Assemble left and right
sides the same way.
Peel off shaded portion
covering film.
Drill holes with the specified
diameter (here: 3mm) .
Pay close attention here!
Cut off shaded portion.
Must be purchased separatel y !
P. 1
Warning!
3mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P. 2
COVERING:
LIGHTEX SGX100 WHITE
LIGHTEX SGX251 SKY BLUE
LIGHTEX SGX312 BRIGHT RED
LIGHTEX SGX351 DARK BLUE
Parts List
1. MAIN WING -- 1 pair
2. RING Ø2.3mm -- 2 pcs
3. WING JOINER 6x23x80mm -- 1 pc.
4. PLYWOOD 3x40x81mm (Wing Protection) -- 1 pc.
5. PLYWOOD 3x8x21mm (For Aileron Servo) -- 1 pc.
6. STRAPER -- 2 pcs
CLEVIS -- 2 pcs
FUEL TUBE Ø6x5mm -- 4 pcs
PUSHROD Ø1.8x105mm w/ Threads (For Aileron) -- 2 pcs
7. MAIN LANDING GEAR -- 1 pair
SCREW PA3x12mm -- 8 pcs
MOUNTING PLATE 12x20mm -- 4 pcs
8. MAIN WHEEL Ø58mm -- 2 pcs
COLLAR Ø3.6mm w/ set screw-- 4 sets
9. FUESLAGE -- 1 pc.
SCREW PM3x22mm -- 1 pc.
SCREW PM3x25mm -- 1 pc.
WASHER d3xD12mm -- 2 pcs
STABILIZER & ELEVATOR -- 1 set
10. VERTICAL FIN & RUDDER -- 1 set
11. FUEL TANK 260cc -- 1 set
BALSA 6x6x73mm (For Fuel Tank Position Fixing) -- 1 pc.
12. ENGINE MOUNT PL5111030 -- 1 set
SOCKET HEAD SCREW M3x25mm -- 4 pcs
WASHER d3xD7mm -- 4 pcs
13. FRONT LANDING GEAR -- 1 set
FRONT WHEEL Ø58mm -- 1 pc.
COLLAR Ø3.6mm w/ set screw -- 4 sets
STEERING ARM -- 1 set
14. SCREW PM2x8mm -- 4 pcs
WASHER d2xD5mm -- 4 pcs
M2 NUT -- 4 pcs
SCREW PM3x25mm -- 4 pcs
WASHER d3xD7mm -- 8 pcs
M3 NUT -- 8 pcs
ALUMINUM PLATE 1mm -- 1 pc.
SPINNER Ø57mm -- 1 set
THROTTLE PUSHROD Ø1.2x370mm -- 1 pc.
PLASTIC TUBE d2xD3x220mm -- 1 pc.
15. LINKAGE CONNECTOR Ø2.1mm -- 2 sets
16. FUEL TUBE Ø6x5mm -- 2 pcs
STRAPER -- 2 pcs
SPONGE 10x80x200mm -- 2 pcs
BALSA 5x5x70mm (For Fuselage Servos Stand) -- 2 pcs
PLYWOOD 3x76.7x100mm (For Fuselage Servos) -- 1 pc.
FRONT WHEEL PUSHWIRE Ø1.6x320mm --- 1 pc.
17. SCREW PM2x12mm -- 3 pcs
CLEVIS -- 1 pc.
FUEL TUBE Ø6x5mm -- 1 pc.
TRI-HORN M3x22mm (S) -- 1 set
PUSHROD Ø1.8x645mm w/ Threads (For Rudder) -- 1 pc.
18. SCREW PM2x14mm --3 pcs
CLEVIS -- 1 pc.
FUEL TUBE Ø6x5mm -- 1 pc.
TRI-HORN M3x22mm (S) -- 1 set
PUSHROD Ø1.8x690mm w/ Threads (For Elevator) -- 1 pc.
19. CANOPY-- 1 pc.
SCREW PWA2.3x8mm -- 6 pcs
SILICON GROMMET d1.5xD6.5mm -- 6 pcs
DOUBLE-SIDED TAPE -- 1 pc.
PILOT (PC001050A/ B) -- 1 pc.
20. SCREW PM3x25mm -- 2 pcs
WASHER d3xD12mm -- 2 pcs
21. DECALS -- 1 set
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P. 3

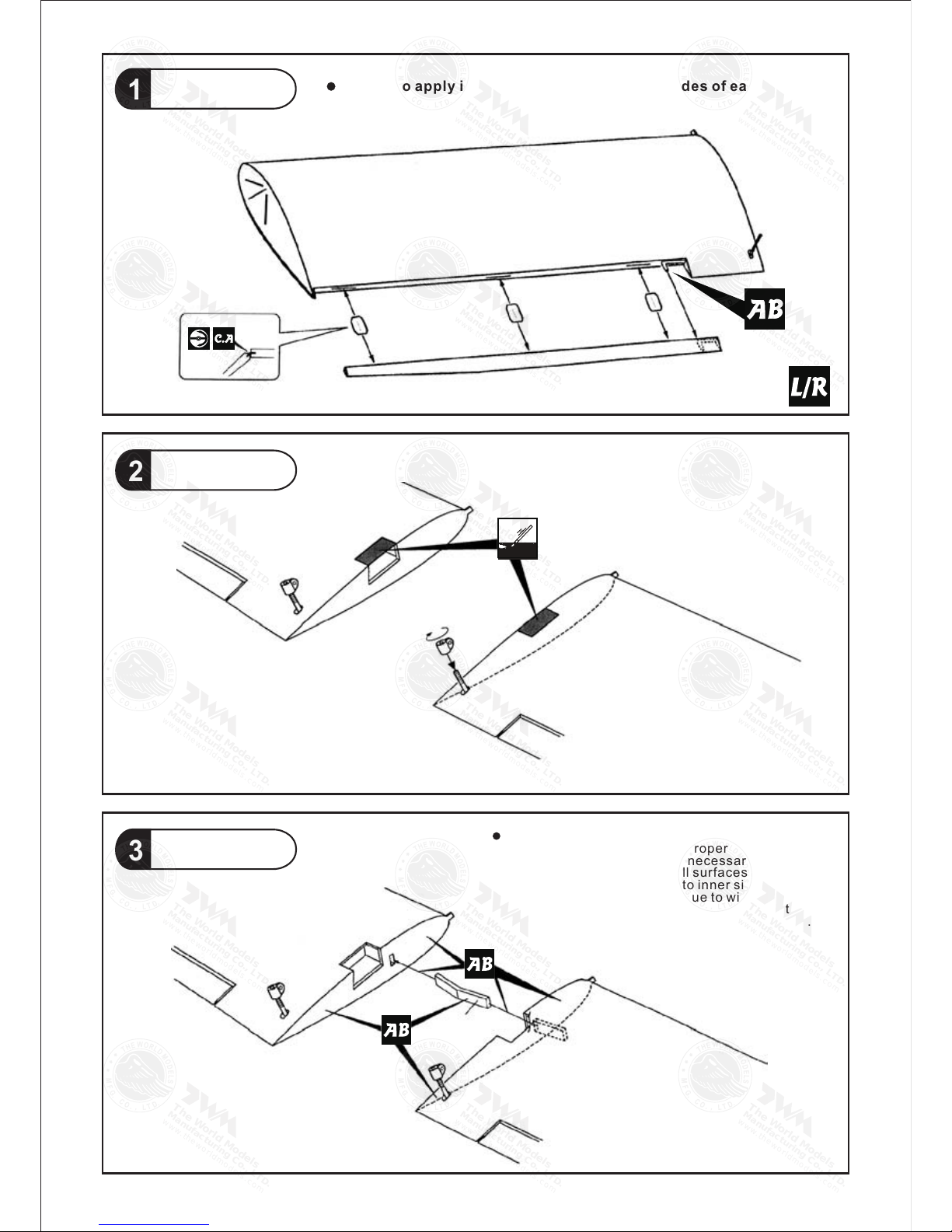

Please dry fit wing joiner into left and right wing
to make sure they fit with the proper dihedral
angle, mark the wing joiner if necessary. Apply
epoxy glue to both sides of all surfaces in contact.
Use a stick to apply the glue to inner side of wing
joiner sleeve, and apply the glue to wing joiner
before putting them together. Wing joiner not glued
properly will lead to wing failure and plane crash.
1Main Wing
2Main Wing
3Main Wing
Be sure to apply instant type CA glue to both sides of each hinge.
Wing Joiner
6x23x80mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P. 4
4Main Wing
5Aileron Servo
6Aileron Servo
Plywood 3x40x81mm
Straper
Fuel Tube
Ø6x5mm
38mm
38mm 38mm
Plywood 3x8x21mm
1.5mm
1.5mm
1.5mm
Clevis
Ring
Rudder Pushrod
Ø1.8x105mm
Bottom View
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P. 5
PM3x22mm Screw
PM3x25mm Screw
d3xD12mm Washer
Stabilizer & Elevator
9
PA3x12mm Screw
7Main Landing Gear
8
PA3x12mm
Plate
3mm Set Screw
3.6mm Collar
8Main Wheels
3.6mm Collar
1
1
2
PM3x22mm PM3x25mm
d3xD12mm
Be sure to apply instant type CA glue
to both sides of each hinge.
2mm
Bottom View
Bottom View
Bottom View
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Install Balsa 6x6x73mm
(For Fuel Tank Position Fixing)
Fuel Tank
260cc
UP
260cc
Fuel Tank
11
Bottom View
d3xD7mm Washer
4
4
M3x25mm Socket Head Screw
Engine Mount
12
Vertical Fin & Rudder
10
Be sure to apply instant type CA glue to both sides
of each hinge.
C=C'
CC'
M3x25mm
d3xD7mm Washer
Engine Mount
PL5111030
P. 6
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P. 7
Engine
14
95mm
3.74in.
Spinner
Ø57mm
Installed Engine Position
d3xD7mm
Washer
d3xD7mm
Washer M3 Nut
Throttle Pushwire
Plastic tube
PM3x25mm
PM2x8mm Screw
Front Landing Gear
13
3 . 6 m m C o l l a r
4
3mm Set Screw
3.6mm Collar 3mm Set Screw
Completed
Wheel Ø58mm
3mm Set Screw
Front View
3 X 3mm Set Screw
2mm Nut
Linkage Connector
2
2
2
4
2mm Washer
Please refer to the attached sheet for linkage connector installation.
Servo Set
15
Throttle Pushwire
3mm
Throttle Servo.
2mm
2mm
M2 Nut
Bottom View
3.6mm Collar
3.6mm Collar
3.6mm Collar
3.2mm
2mm
Aluminum Plate 1mm
PM2x8mm
d2xD5mm Washer
Spinner
Ø57mm
M2 NUT
Completed
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Install Sponge for inserting Battery and Receiver.
Radio Equipment
16
Battery
Receiver
Fuel Tank
260cc
Sponge
Elevator Servo
Rudder Servo
Front Wheel Pushrod
Rudder Pushrod
Elevator Pushrod
Throttle Servo
Throttle Pushwire
Front
Balsa 5x5x70mm
Plywood 3x76.7x100mm
Bottom View
Straper
Fuel Tube
Ø6x5mm
Rudder Pushrod
17
PM2x1 mm Screw2
3
Elevator Pushrod
18
PM2x1 mm Screw4
3
P. 8
PM2x14mm
Tri-Horn
M3x22mm(s)
Rudder Pushrod
Ø1.8x690mm
2mm
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
Ø1mm pilot holes for World Models horn are
pre-drilled. Please look for pin-hole marks at
under side of control surfaces.
Rudder Pushrod
Ø1.8x645mm
PM2x12mm
Tri-Horn
M3x22mm(s)
2mm
160mm 30mm
160mm
30mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P. 9
Canopy
19
Wing Setting
21
PWA2.3x8mm Screw
d1.5xD6.5mm Silicon Grommet
Apply doublesided tape
PWA2.3x8mm
d .5xD6 mm
Silicon Grommet
1 .5
Pilot
Main Wing
20
PM3x25mm Screw
d3xD12mm Washer
PM3x25mm
d3xD12mm
Washer
Bottom View
Adjust the wing and fuselage configuration as shown in
the diagrams.
A A'
A=A'
B
C C'
B'
B=B'
C=C'
1.5mm
1.5mm
6
6
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

12mm
12mm
20mm
20mm
8mm
8mm
Important Safety Precautions
A166PO16580906 P. 1 0
# First time flyer should never fly by himself / herself. Assistance from experienced
flyer is absolutely necessary.
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly
pre-adjusted aircraft.
# is specially designed to be powered by 2C engine, using a more
powerful engine does not mean better performance. In fact, over powered engine
may cause severe damage and injuries.
# Make sure the air field is spacious, never fly the plane too close to people and never
get too close to a running propeller.
# If you find wrinkles on the covering as a result of weather changes, you can use hot
iron to remove the wrinkles. Please begin with lower temperature setting and
gradually raise the temperature until the wrinkles are gone. Too hot an iron may
damage the covering. Don't use hot iron near the seams or edges, hot iron will
melt the glue and shrink the covering at the same time, causing the seams to pull away.
# Check and re-tighten up all factory assembled screws, use thread locker if necessary.
0.32
Elevator
Rudder
Ailerons
Adjust the control throws as shown in the
diagram. These throws are good for general
flying. You can adjust according to your
personal preference.
The ideal C.G. position is 73mm (2.9 in.)
behind the leading edge measured at
where the wing meets the fuselage. In
order to obtain the C.G. specified, add
weight to the fuselage or move the battery
position. Check the C.G. before flying.
23
73 mm
2.9 in.
Warning!
C.G.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

LINKAGE CONNECTOR
HW7111050 & HW7111060

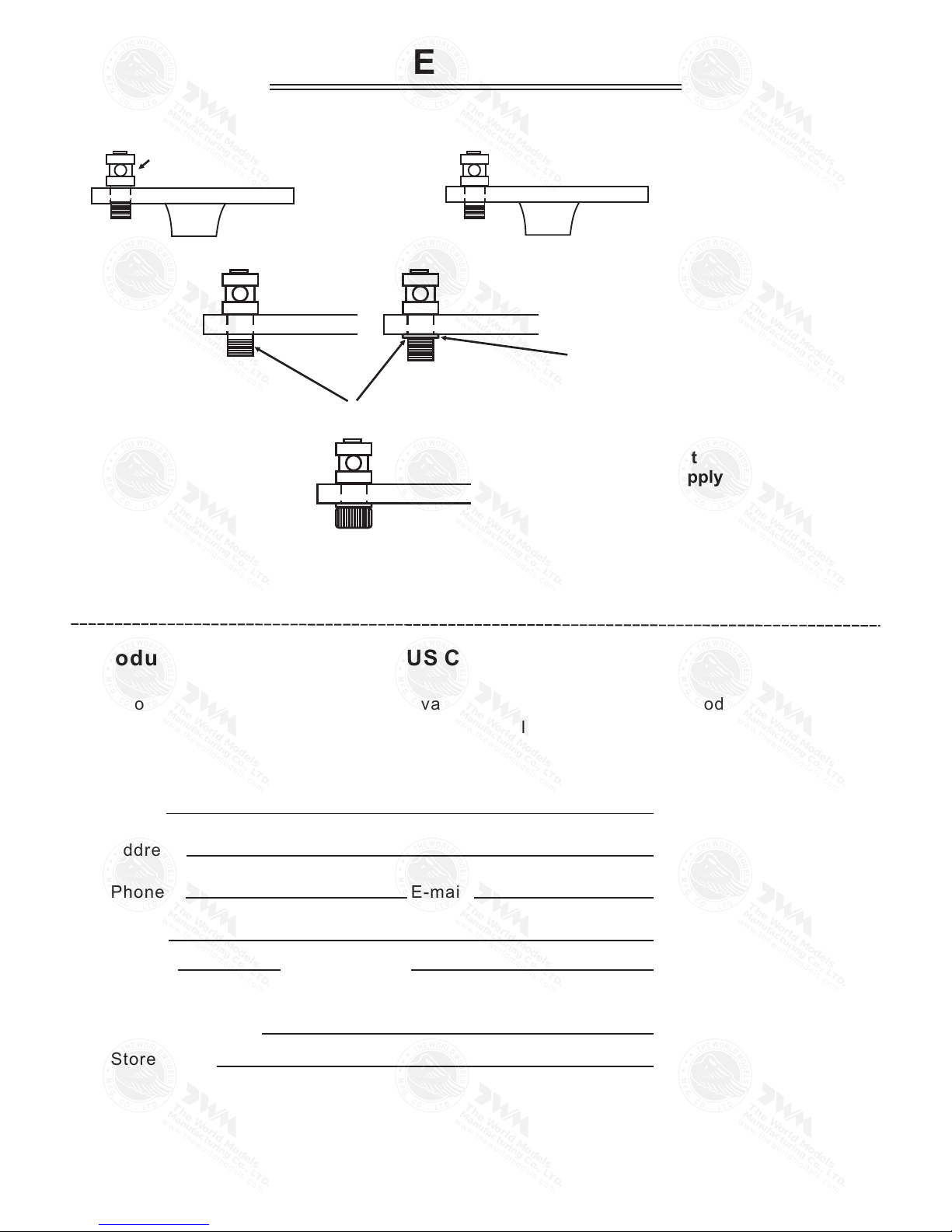

After fastening the round nut, make sure that
the linkage connector can rotate freely.
Drill 2mm hole at servo horn.
Insert linkage connector
into servo horn.
Make sure shoulder of
screw is cleared from
servo horn.
Add washer to reduce
play if necessary.
Shoulder
Tighten up the round nut
against the shoulder. Apply
CA or permanent thread
locker.
Product Registration Form (US Customers)
We would like to share with you any relevant information regarding your model, including
product news and free upgrade parts when applicable. Please fill in the following and send to
AirBorne Models, 4749-K,Bennett Drive, Livermore, CA 94551 USA.
1. Name:
2. Address:
3. Phone #: E-mail:
4. Model:
Wing QC# Fuselage QC#
(QC numbers are stamped on wing and fuselage)
5. Date of Purchase:
6. Store Name:
Please call AirBorne Models at 925 371 0922 for any assistance in filling this form.
Thank you very much for purchasing our product.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
