The World Models Manufacturing LA FLYER-40 User manual

Wing Span
Wing Area
Flying Weight
Fuselage Length
64 in / 1630 mm
657 sq in / 42.4 sq dm
5.1 lb / 2300 g
50 in / 1270 mm
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual
at hand for quick reference.
Requires : 4- channel 4 servos radio w/ standard
* Specifications are subject to change without notice.*
INSTRUCTION MANUAL
O. S . M A X - 46 L A Engine
Specifications
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
E
A
D
R
-
Y
T -
T
S
O
O
-
F
M
L
L
Y
A
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P. 1
P. 3 - 12
Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT
and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you
find to be defective after the gluing process may be difficult to remove for warranty replacement. The
manufacturer will replace any defective parts but will extend to the parts that are good before
, not
gluing to defective parts during assembly.
Warranty will not cover any parts modified by customer.
INDE X
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
P. 1
P. 2
P. 12
BEFORE YOU BEGIN
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual comprise of the following : -
1
2
3
SAFETY PRECAUTIONS
3mm
Do not overlook this symbol!
Cut off shaded portion.
Peel off shaded portion
covering film.
Pay close attention here!
Pierce the shaded portion
covering film.
Must be purchased separately!
Drill holes with the specified
diameter (here: 3mm).
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Assemble left and right
sides the same way.
Apply epoxy glue.
Apply thread locker
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.2
1. MAIN WING -- 1 pair
2. WING JOINER 8x25x200mm -- 1 pc.
3. PLYWOOD 3x10x20mm -- 2 pcs
RING Ø2.3mm -- 2 pcs
4. PUSHROD Ø1.8x100mm w/ Threads(For Aileron) -- 2 pcs
FUEL TUBE Ø6x5mm -- 4 pcs
STRAPER-- 2 pcs
CLEVIS-- 2 pcs
5. STABILZER & ELEVATOR -- 1 set
FUSELAGE -- 1 pc.
SCREW PM3x16mm -- 2 pcs
WASHER d3xD7mm -- 2 pcs
6. VETICAL FIN & RUDDER -- 1 set
7. ENGINE MOUNT PL511030 -- 1 set
SOCKET HEAD SCREW M3x20mm -- 4 pcs
WASHER d3xD7mm -- 4 pcs
8. FUEL TANK 320cc -- 1 set
BALSA 8x8x77mm (For Fuel Tank Position Fixing ) -- 1 pc.
9. MAIN LANDING GEAR -- 1 set
SCREW PA3x12mm -- 4 pcs
COLLAR Ø4.1mm w/ set screw -- 4 sets
MAIN WHEEL Ø62mm -- 2 pcs
MOUNTING PLATE PL4114020 10x20mm -- 2 pcs
10. TAIL LANDING GEAR -- 1 set
SCREW PA3x12mm -- 2 pcs
COLLAR Ø2.1mm w/ set screw -- 1 set
TAIL WHEEL Ø25mm -- 1 pc.
ALUMINUM PLATE 0.3mm -- 1 pc.
SCREW PM2x12mm -- 1 pc.
M2 NUT -- 1 pc.
11. SCREW PB2x12mm -- 2 pcs
FUEL TUBE Ø6x5mm -- 1 pc.
CLEVIS -- 1 pc.
HORN -- 1 set
PUSHROD Ø1.8x720mm w/ Threads(For Elevator) -- 1 pc.
12. SCREW PB2x12mm -- 2 pcs
FUEL TUBE Ø6x5mm -- 1 pc.
CLEVIS -- 1 pc.
HORN -- 1 set
PUSHROD Ø1.8x720mm w/ Threads(For Rudder) -- 1 pc.
13. SCREW PM3x25mm -- 4 pcs
WASHER d3xD7mm -- 8 pcs
M3 NUT -- 8 pcs
14. LINKAGE CONNECTOR Ø2.1mm -- 1 set
15. SPONGE 60x70x80mm -- 1 pc.
FUEL TUBE Ø6x5mm -- 2 pcs
STRAPER -- 2 pcs
THROTTLE PUSH WIRE Ø1.2x400mm -- 1 pc.
w/ Plastic Tube d2xD3x190mm -- 1 pc.
16. CANOPY -- 1 pc.
PVC PLATE 1x14.3x78mm (Wing Protection) -- 1 pc.
SCREW PM4x35mm -- 2 pcs
WASHER d4xD15mm -- 2 pcs
17. COWLING -- 1 pc.
TRANSPARENT 3D TEMPLATE -- 1 pc.
SPINNER Ø57mm -- 1 set
SCREW PWA2.6x12mm -- 4 pcs
SILICON GROMMET d1.5xD6.5mm -- 4 pcs
18. DECALS: A234DEC – 1 set
Parts List
COVERING:--
BLACK COLOR SCHEME:
TOUGHLON STL 100 WHITE
TOUGHLON STL 201 BLACK
TOUGHLON STL 311 FERRARI RED
TOUGHLON STL 402 CHECKER(BLACK/WHITE)
TOUGHLON STL 412 CHECKER(FERRARI/WHITE)
ORANGE COLOR SCHEME:
TOUGHLON STL 100 WHITE
TOUGHLON STL 311 FERRARI RED
TOUGHLON STL 320 ORANGE
TOUGHLON STL 412 CHECKER(FERRARI/WHITE)
TOUGHLON STL 422 CHECKER(ORANGE/WHITE)
GREEN COLOR SCHEME:
TOUGHLON STL 100 WHITE
TOUGHLON STL 240 GREEN
TOUGHLON STL 311 FERRARI RED
TOUGHLON STL 412 CHECKER(FERRARI/WHITE)
TOUGHLON STL 442 CHECKER(GREEN/WHITE)
BLUE COLOR SCHEME:
TOUGHLON STL 100 WHITE
TOUGHLON STL 311 FERRARI RED
TOUGHLON STL 250 BLUE
TOUGHLON STL 412 CHECKER(FERRARI/WHITE)
TOUGHLON STL 452 CHECKER(BLUE/WHITE)
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Main Wing
1
P.3
Make sure to glue securely.
If not properly glued, a failure
in fight may occur.
Main Wing
2
completed
Aileron Servo
3
Wing Joiner
8x25x200mm
1mm
Ring
Plywood
1.5mm
3x10x20mm
Bottom View
Pre-glued
1.5mm
Please dry fit wing joiner into left and right wing to make sure they fit with the proper
dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to both sides of
all surfaces in contact. Use a stick to apply the glue to inner side of wing joiner sleeve,
and apply the glue to wing joiner before putting them together. Wing joiner not glued
properly will lead to wing failure and plane crash.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.4
Stabilizer & Elevator
5
2
2
PM3x16mm Screw
d3xD7mm Washer
PM3x16mm
Washer
d3xD7mm
Completed
Temporary install the main wing, adjust
leveling of the stabilizer to make it as
parallel to the main wing as possible.
(Stabilizer)
(Main Wing)
BB'
B=B'
A=A
A
A
Aileron Servo
4
Fuel Tube
6 x 5mm
Pushrod 1.8x100mm
Straper
Fuel Tube
6x5mm
Ring
Clevis
Bottom View
Use thread locker when tightening
screw. Don't use excessive force
as you are dealing with balsa.
Bottom View
Pre-glued
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.5
Fuel Tank
8
Fuel Tank
Install Balsa 8 x 8 x 77
(For Fuel Tank Position Fixing)
Top View
Install Balsa 8 x 8 x 77
(For Fuel Tank Position Fixing)
Fuel Tank 320cc
Engine Mount PL5111-030
M3 x 20mm
Blind nuts are off-centered to keep
the spinner at the fuselage axis.
Apply thread locker to screws.
Engine Mount
7
Washer
d3xD7mm
4
4
d3xD7mm Washer
Vertical Fin / Rudder
6
P r e - g l u e d
C=
CC'
C'
Completed
M3x20mm
Socket Head Screw
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.6
Tail Landing Gear
10
BottomView
Main Landing Gear
PA3 x12mm
Mounting Plate
Peel off shaded Portion
covering film
2mm
Bottom View
M3x3mm Set Screw
4.1mm Collar 4.1mm Collar
PA3x12mm Screw
2.1mm Collar
2
1
PM2x12mm Screw
M 2 N u t
1
1
PA3x12mm
Completed
PA3x12mm 2.1mm Collar
M3 Set Screw
9
PA3 x 12mm Screw
4
4.1mm Collar
4
PM2x12mm
Aluminum Plate
M2 Nut
2mm
2mm
2mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Pushrod
Ø1.8x720mm
180mm
64mm
P.7
Elevator Pushrod
11
2
PB2 x 12mm Screw 1mm pilot holes for World Models tri-horn are pre-drilled.
Ø
Please look for pin-hole marks at under side of control surfaces.
Rudder Pushrod
12
2
PB2 x 12mm Screw 1mm pilot holes for World Models tri-horn are pre-drilled.
Ø
Please look for pin-hole marks at under side of control surfaces.
Pushrod
Ø1.8x720mm
15mm
100mm
Bottom View
Pushrod
Ø1.8x720mm
PB2x12mm
Clevis
Fuel Tube
Ø6x5mm Horn
2mm
Horn
Pushrod
Ø1.8x720mm
Fuel Tube
6x5mm
Ø
Clevis
2mm
PB2x12mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.8
3x3mm Set Screw
2mm Nut
Linkage Connector
1
1
1
2
2mm Washer
LINKAGE CONNECTOR
Servo Set
14

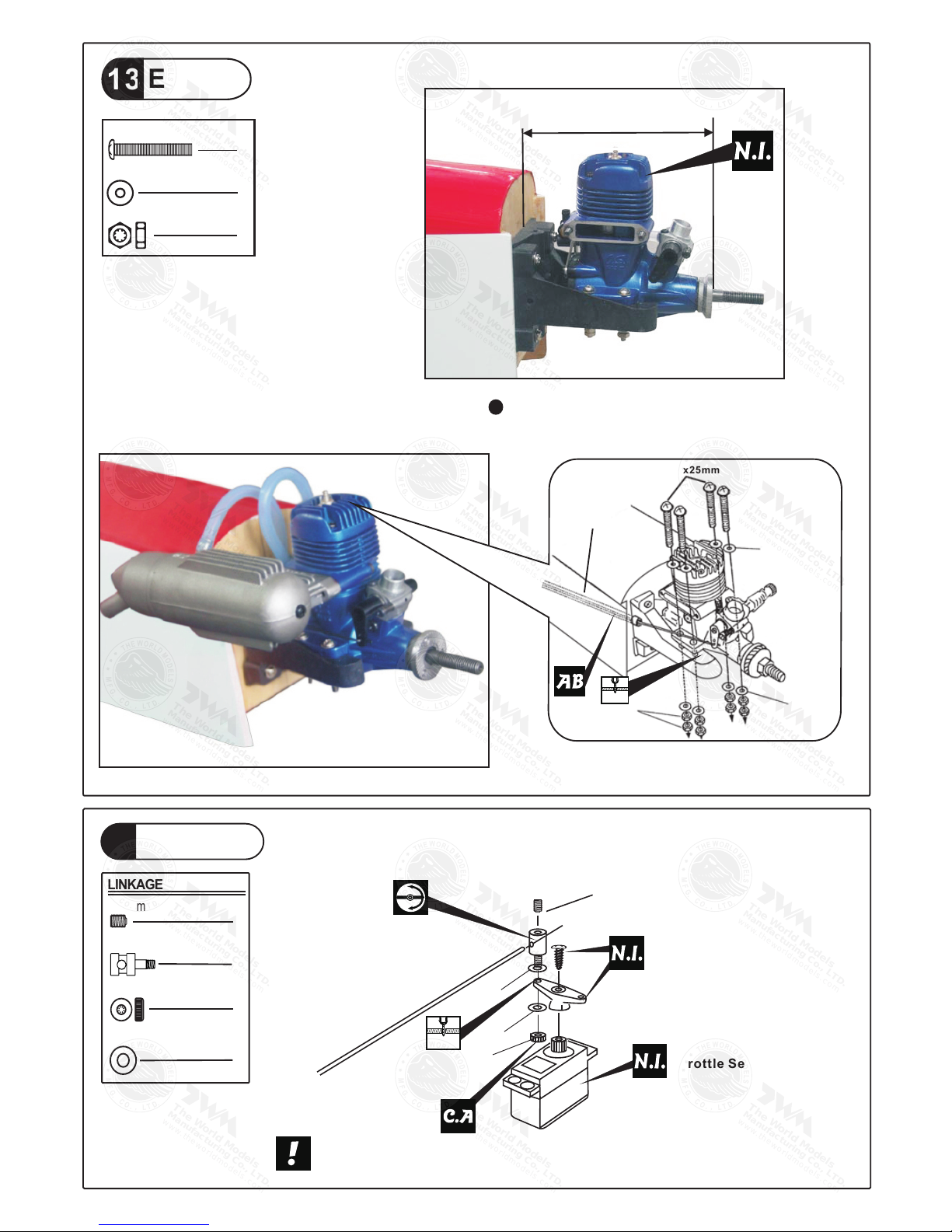

Engine
13
PM3x25mm Screw
d3xD7mm Washer
M3 Nut
4
8
8
Installed Engine Position
PM3x25mm
Throttle Pushwire
w/plastic tube
3mm Washer
M3 Nut
3mm
Washer
3.2mm
100mm
3.93 in
3.2mm
Throttle pushwire
3mm
Included with the radio Set.
Throttle Servo.
2mm
M2 Nut
Please refer to attached sheet for linkage connector installation.
2mm
2mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

16 Main Wing & Canopy
2
2
PM4x35mm Screw
d4xD15mm Washer
Washer
d4xD15mm
PM4x35mm
Wing Protection
1x14.3x78mm
Install and arrange the servo as shown in the diagram.
Servos
15
Elevator Pushrod
straper
Sponge
Throttle Pushwire
Ø1.2x400mm
Rudder Pushrod
Fuel Tube
Ø6x5mm
18
17
Cowling
4
4
PWA2.6x12mm Screw
d1.5xD6.5mm Silicon Grommet
PWA2.6 X 12mm
Silicon Grommet
d1.5xD6.5mm
Spinner Ø57mm
1mm
P.9
Front
First insert the grommet to the cowling then apply screw.
1mm
Please refer to the attached sheet for usage of the
transparent 3D template.
Elevator Servo
Rudder ServoThrottle Servo
Battery
Switch Harness
Receiver
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.10

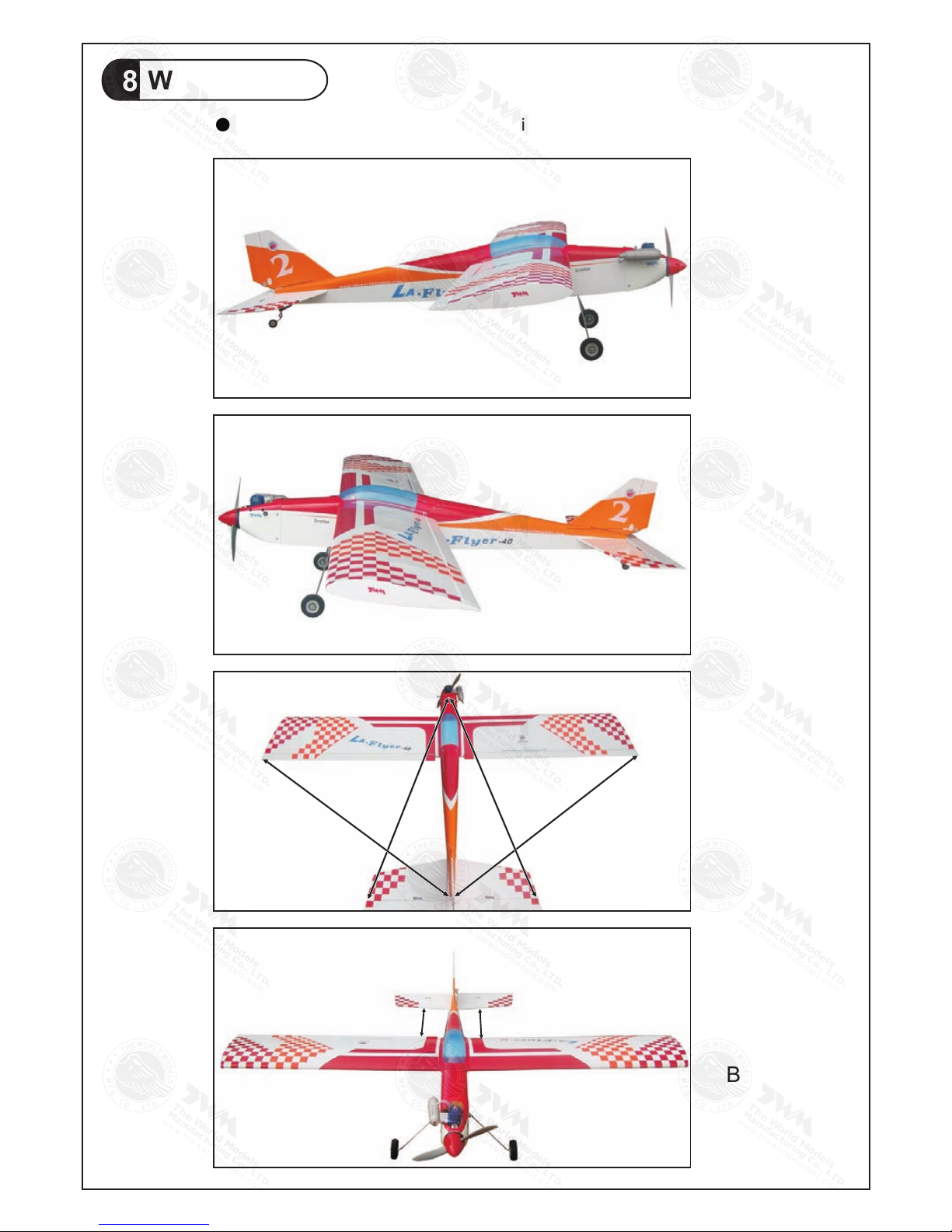

Adjust the wing and fuselage configuration as shown
in the diagrams.
C = C'
A = A'
B = B'
Wing Setting
18
C'C
A
B B'
A'
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

#First time flyer should never fly by himself / herself. Assistance from experienced flyer is
absolutely necessary.
#Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly
pre-adjusted aircraft.
# is specially designed to be powered by O. S. MAX-46LA
engine, using a more powerful engine does not mean better performance. In fact, over
powered engine may cause severe damage and injuries.
#Make sure the air field is spacious, never fly the plane too close to people and never get
too close to a running propeller.
#If you find wrinkles on the covering as a result of weather changes, you can use hot iron
to remove the wrinkles. Please begin with lower temperature setting and gradually raise
the temperature until the wrinkles are gone. Too hot an iron may damage the covering.
Don't use hot iron near the seams or edges, hot iron will melt the glue and shrink
the covering at the same time, causing the seams to pull away.
#Check and re-tighten up all factory assembled screws, use thread locker if necessary.
A234PO18760810
Control Throws
19
Elevator
Rudder
Aileron
Important Safety Precautions
C.G.
20
C.G.
81mm
3.19in
6 mm
6 mm

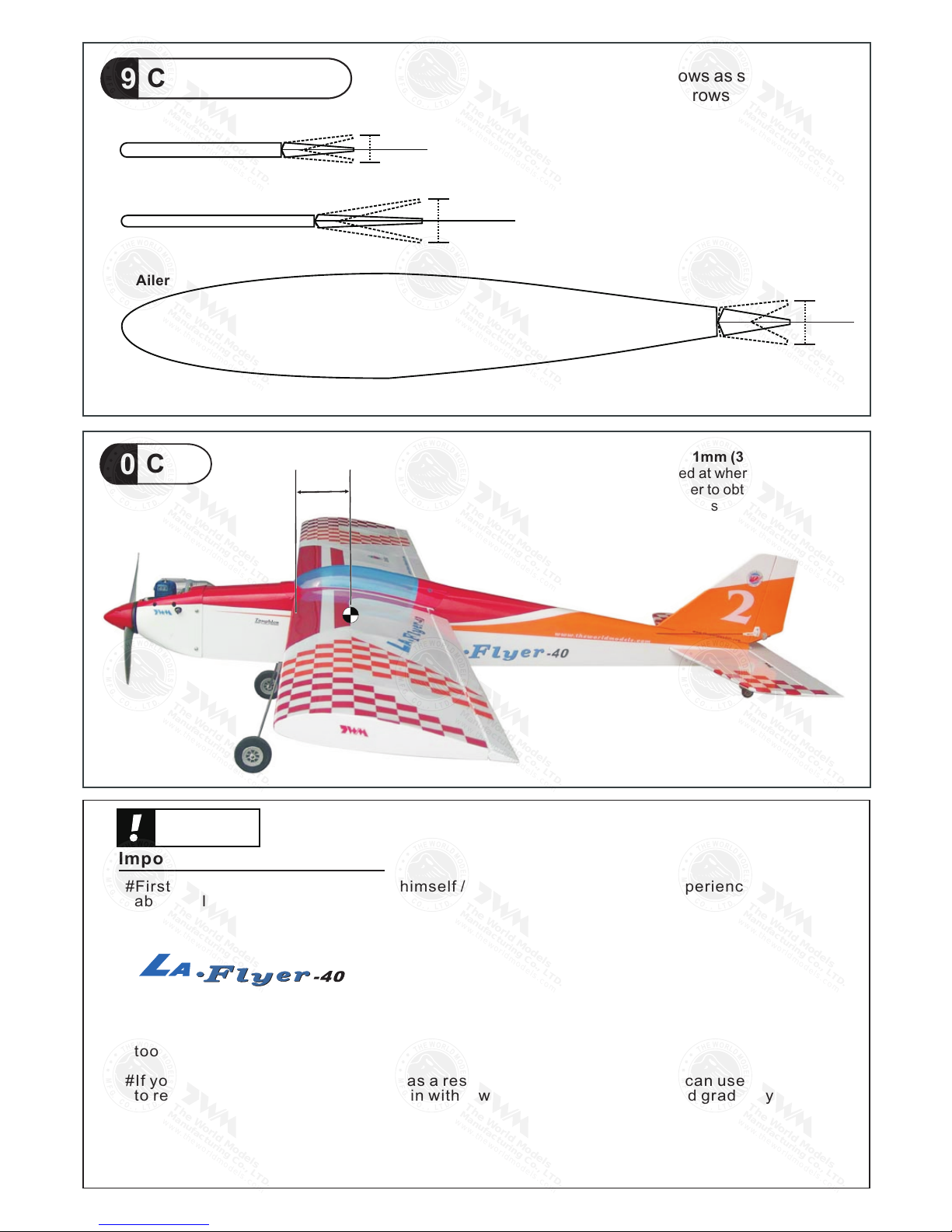

Adjust the control throws as shown in
the diagram. These throws are good for
general flying. You can adjust according
to your personal preference.
The ideal C.G. position is 81mm (3.19 in) behind
the leading edge measured at where the wing
meets the fuselage. In order to obtain the C.G.
specified, add weight to the fuselage or move the
battery position. Check the C.G. before flying.
15 mm
15 mm
20 mm
20 mm
Warning!
P.11
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

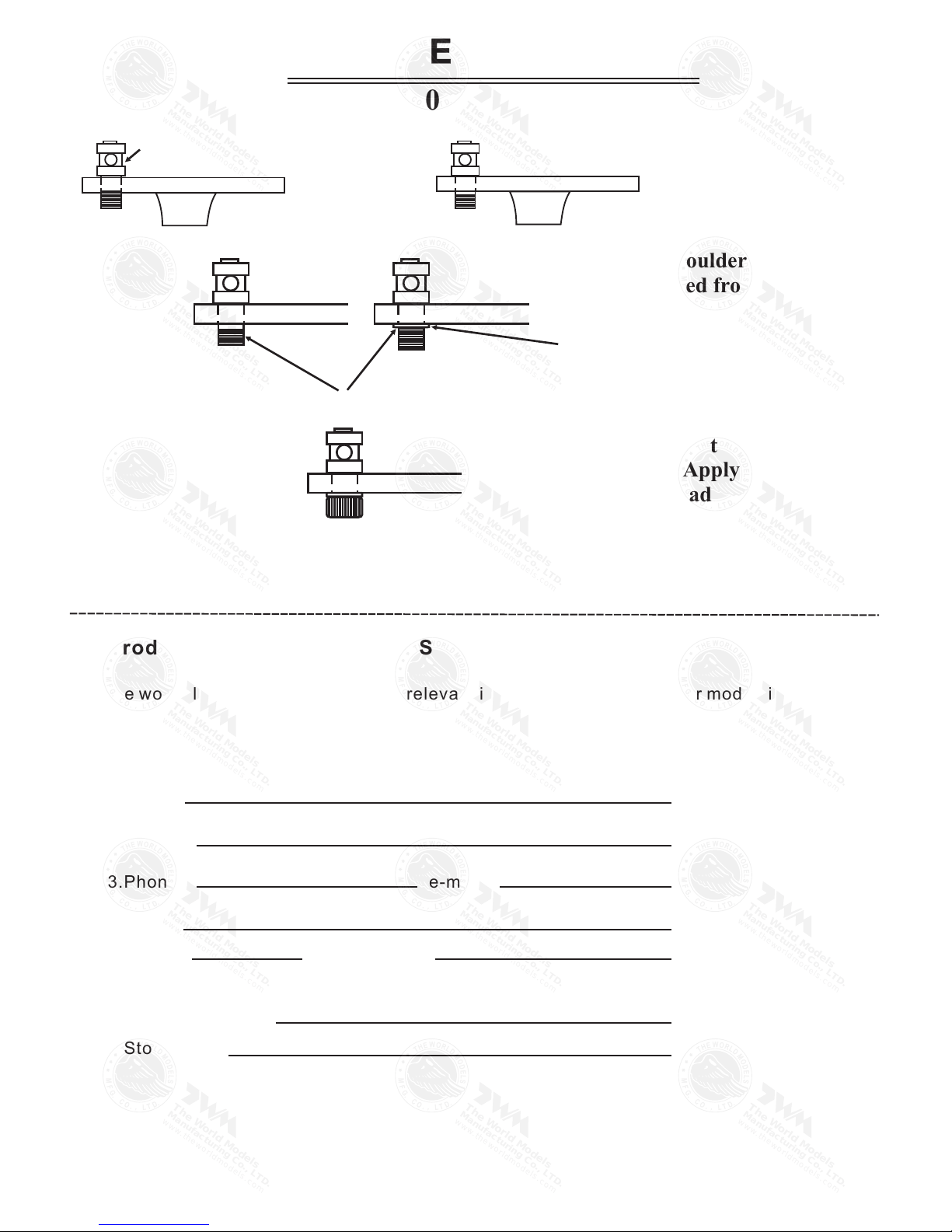

LINKAGE CONNECTOR
HW7111050 & HW7111060
Drill 2mm hole at servo horn.
Insert linkage connector
into servo horn.
Make sure shoulder of
screw is cleared from
servo horn.
Add washer to reduce
play if necessary.
Shoulder
Tighten up the round nut
against the shoulder. Apply
CA or permanent thread
locker.
After fastening the round nut, make sure that
the linkage connector can rotate freely.
Product Registration Form (US Customers)
We would like to share with you any relevant information regarding your model, including
product news and free upgrade parts when applicable. Please fill in the following and send to
1.Name:
2.Address:
3.Phone #: e-mail:
4.Model:
Wing QC# Fuselage QC#
(QC numbers are stamped on wing and fuselage)
5.Date of Purchase:
6.Store Name:
Please call AirBorne Models at 925 371 0922 for any assistance in filling this form.
Thank you very much for purchasing our product.
Air orne Models, 4749-K,Bennett Drive, Livermore, CA 94551 USAB .
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

12
34
Usage of the transparent 3D template
This transparent 3D template
is used for position guidance
of the actual cutting of the
pre-painted cowling.
Simply cut the transparent 3D template to fit your engine and
exhaust pipe, then slide onto the actual cowling and use as
template to mark the openings required for final cutting.
P. 1 2
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

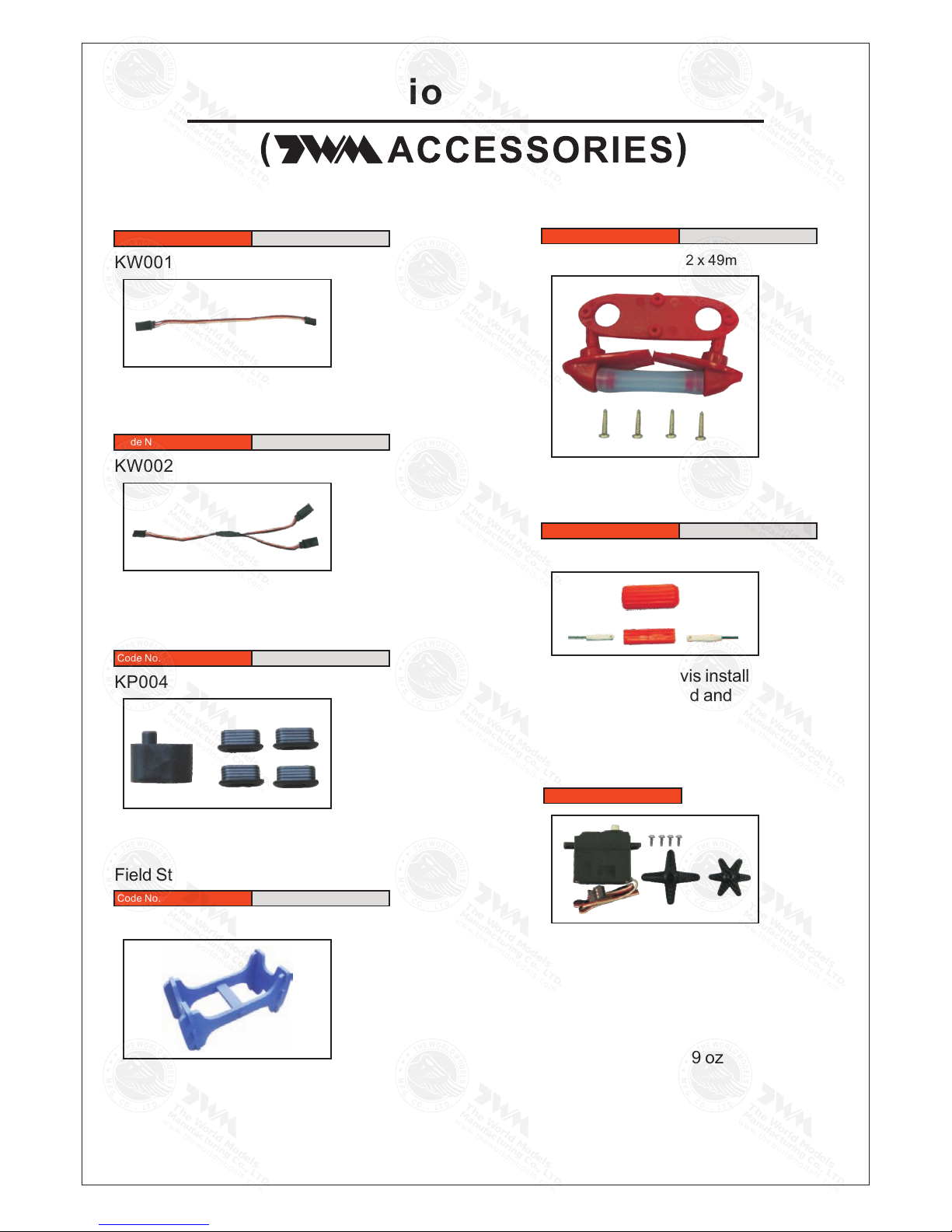

Optional Parts
180mm Extension
KW0011800 180mm 1 set
Code No. Size Package
Fuel Filler
PL8110030 15 x 22 x 49mm 1 x 1 pc
Code No. Size Package
Charge Receptacles
KP0041300
Code No. Size Package
Field Stand
MS9111430 600 x 240 x 310mm 1 pc
Code No. Size Package
180mm Y-Cord
KW0021800 180mm 1 pc
Code No. Size Package
Clevis Wrench
PL8210010 1 set
Code No. Size Package
Small Clevis Large Clevis
Special tool for clevis installation.
Suitable for standard and small
(EP) clevis.
Standard Servo
Code No SV4031
0.14 sec / 60° @6.0V
Torque : 3.2kg.cm / 44.8 oz - in @4.8V
4.1kg.cm / 57.4 oz - in @6.0V
Size : 40.6 x 20 x 37mm /
1.60 x 0.79 x 1.46 in
Weight : 39.4 g / 1.39 oz
Speed : 0.17 sec / 60° @4.8V
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

A234PO18760810
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
