THE WORLD MODELS The Big Wings User manual

FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF)SERIES
MADE IN CHINA
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
INSTRUCTION MANUAL
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
Wing Span
Wing Area
Flying Weight(Glider)
(EP Glider)
Fuselage Length
120 in / 3035 mm
2800 sq in / 180.6 sq dm
10 Ib / 4600 g
15.5 Ib / 7100 g
42.5 in / 1075 mm
Specications
*Specications are subject to change without notice.*
Requires : (Glider) 2-channel radio with Elevon mixing, 2 high
torque standard size servos.
(EP Glider) 3-channel radio with Elevon mixing, 2 high
torque standard size servos, EP package (6x225W outrunner
motor, mounting brackets, propellers and electric wires),
6x25A ESC, 3x4000 mAh 11.1V Li-Po battery and charger.
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

INDEX
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P.1
P.2
P.3-P.12
P.13
BEFORE YOU BEGIN
1Read throuht the manual before you begin, so you will have an overall idea of what to do.
Check all parts. If you nd any defective or missing parts contact your local dealer. Please
DRY FIT and check for defects for all parts that will require CA or Epoxy for nal assembly.
Any parts you nd to be defective after the gluing process may be difcult to remove for
warranty replacement. The manufacturer will replace any defective parts, but will not extend
to the parts that are good before gluing to defective parts during assembly. Warranty will
not cover any parts modied by customer.
2
3Symbols used throughout this instruction manual comprise of the following :-
3mm
Pay close attention here!
Peel off shaded portion
covering lm.
Assemble left and right
sides the same way.
Apply epoxy glue.
Apply thread locker
Do not overlook this symbol !
Pierce the shaded portion
covering lm.
Cut off shaded portion.
Apply instant glue
(C.A.glue, super glue.)
Must be purchased separately !
Ensure smooth non-binding
movement while assembling.
Drill holes with the specied
diameter (here: 3mm).
P.1
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

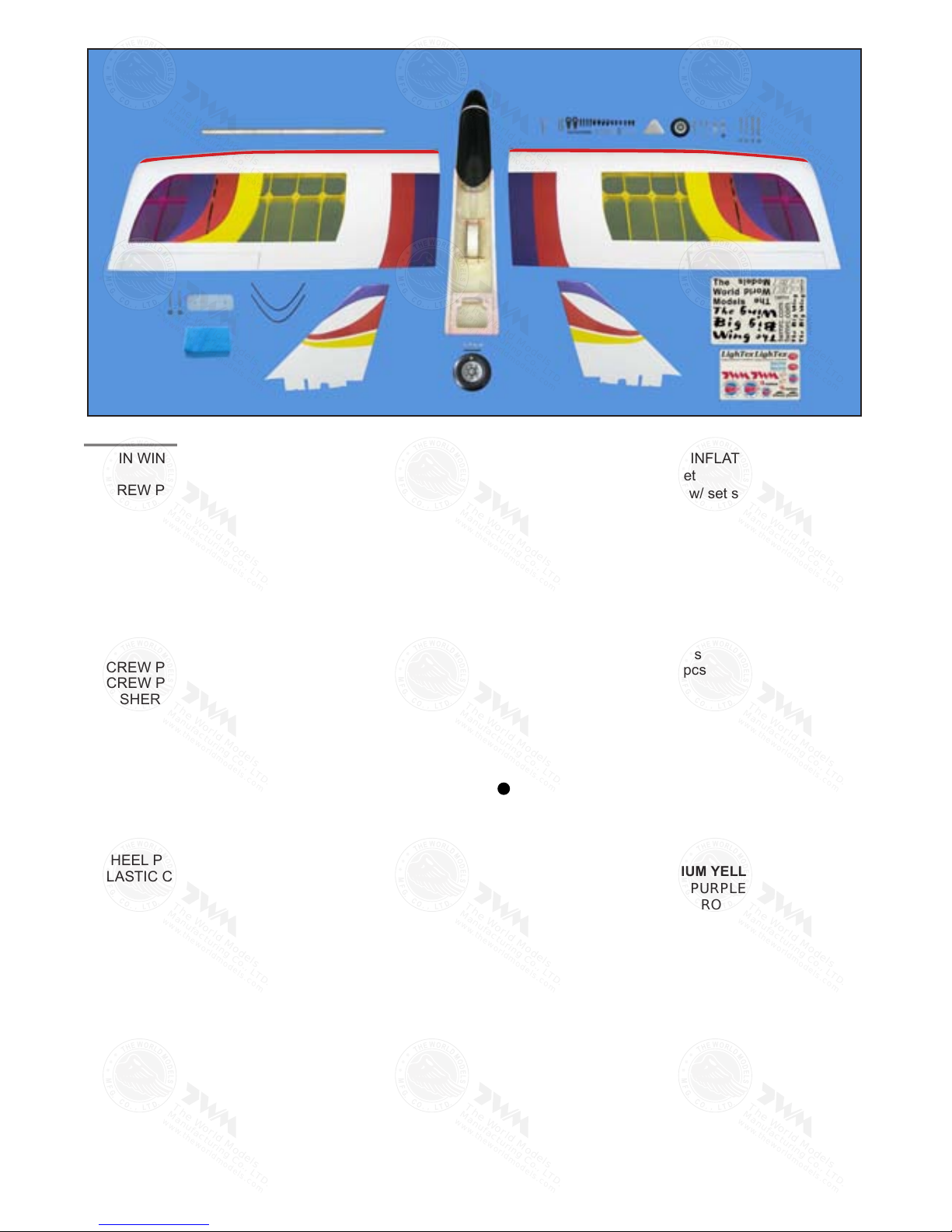

Parts List
P.2
COVERING:
LIGHTEX STL 000 TRANSPARENT
LIGHTEX STL 030 TRANSPARENT YELLOW
LIGHTEX STL 060 TRANSPARENT PURPLE
LIGHTEX STL 100 WHITE
LIGHTEX STL 330 CADMIUM YELLOW
LIGHTEX STL 561 PEARL PURPLE
LIGHTEX STL 580 PEARL BRONZE
LIGHTEX STL 413 CHECKER (FERRARI RED/ WHITE)
LIGHTEX SGX 311 FERRARI RED
1. MAIN WING -- 1 pair
2. SCREW PM4x50mm -- 2 pcs
SCREW PWA2x8mm -- 8 pcs
M4 NYLON INSERT LOCK NUT -- 2 pcs
PUSHROD Ø2.3x93mm w/ Threads (For Aileron) -- 2 pcs
HEAVY DUTY HORN BRACKET PL4112400 -- 2 sets
HEAVY DUTY SERVOS HORN PL4120300 -- 2 sets
SWIVEL CLEVIS HORN FAIRING PL4610010 -- 2 sets
HEAVY DUTY CLEVIS PL4112200-- 4 pcs
3. WING TUBE Ø32x900mm -- 1 pc.
4. SCREW PM3x35mm -- 2 pcs
SCREW PM3x40mm -- 2 pcs
WASHER d3xD12 -- 4 pcs
5. FRONT LANDING GEAR -- 1 pc.
FUSELAGE -- 1 pc.
SCREW PM2.5x12mm -- 2 pcs
SCREW PM3x22mm -- 1 pc.
M2.5 NUT -- 2 pcs
M3 NYLON INSERT LOCK NUT -- 1 pc.
WASHER d2.5xD8mm -- 2 pcs
WASHER d3xD7mm -- 2 pcs
WHEEL PL3114030 Ø30mm -- 1 pc.
PLASTIC COLLAR d3xD6.5mm -- 1 pc.
6. LARGE SCALE TREADED INFLATABLE WHEELS
PL3115140 Ø140mm -- 1 set
WHEEL COLLAR Ø5.1mm w/ set screw -- 2 sets
PLASTIC COLLAR d5.1xD9mm -- 1 pc.
COPPER TUBE d5.3xD6.4x14mm -- 1 pc.
WIRE Ø5x75mm -- 1 pc.
7. WIRE Ø2mm -- 2 pcs
8. SPONGE 60x70x122mm -- 1 pc.
9. PVC PLATE 118x40x1mm (Wing Protection) -- 1 pc.
SCREW PM4x40mm -- 2 pcs
WASHER d4xD12mm -- 2 pcs
10.COCKPIT -- 1 pc.
CLIP PIN HW4201325 -- 1 pc.
11. DECALS: E268XMDEC -- 2 pcs
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

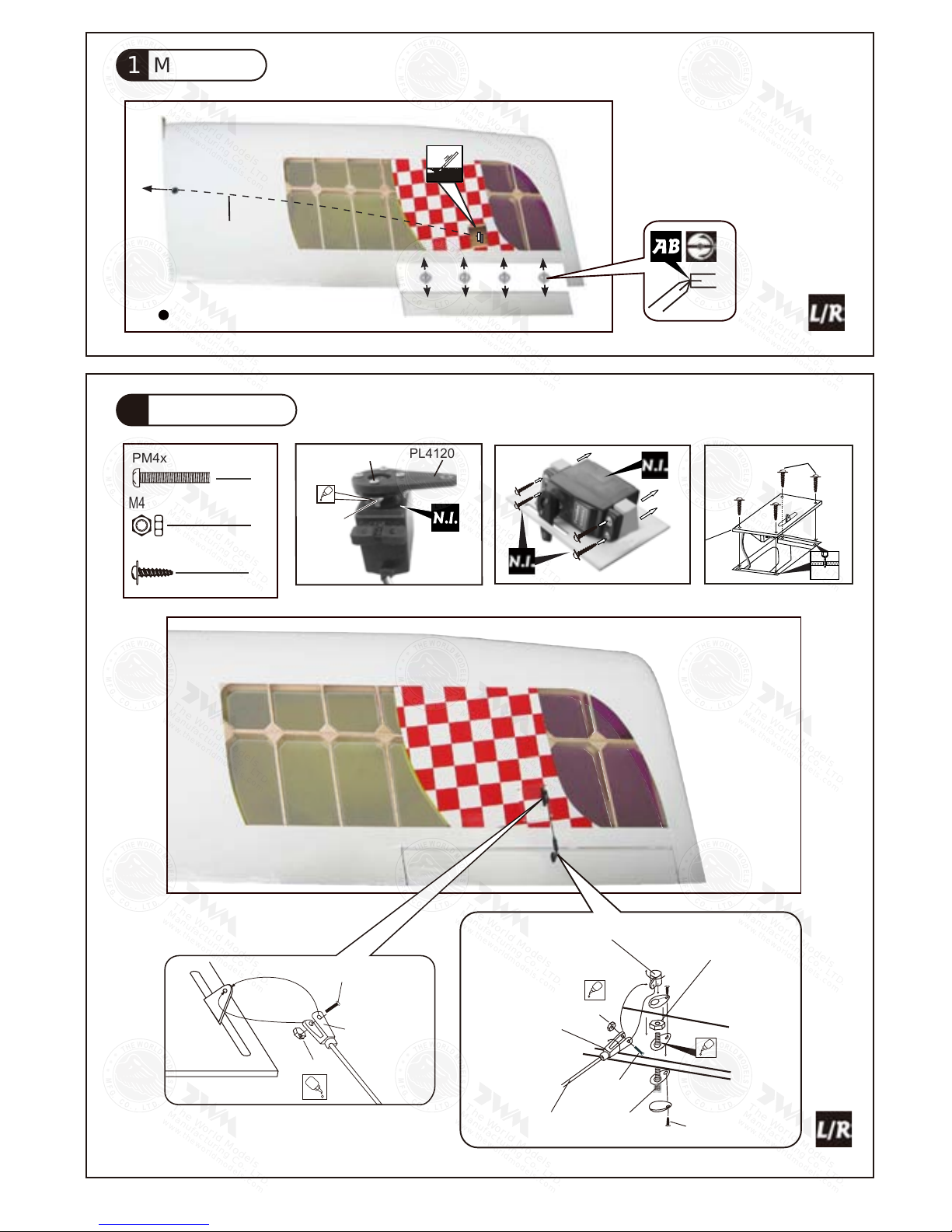

1Main Wing
2Aileron Servo
2
PM4x50mm
Screw
Bottom View
Bottom View
P.3
Aileron Servo Lead
PWA2x8mm
Screw
8
M2 Nut
PM2x12mm PL4120300
Heavy Duty Horn Bracket
M4 Nylon Insert Lock Nut
Heavy Duty Clevis
M2 Nut
PM2x8mm
PM4x50mm
Pushrod
Ø2.3x93mm PA1.7x8mm
PM2x8mm
Heavy Duty
Clevis
M2 Nut
2
M4 Nylon Insert Lock Nut
PWA2x8mm
1.5mm
Pre-glued
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

3Main Wing
Wing Tube Ø32x900mm
4Vertical Fin
2
PM3x35mm
Screw
2
PM3x40mm
Screw
4
d3xD12mm Washer
PM3x40mm PM3x35mm
d3xD12mm
d3xD12mm
P.4
Completed
Completed
5
PM2.5x12mm Screw
M2.5 Nut
Bottom View
2
2
2
d2.5xD8mm
Washer
PM3x22mm Screw 1
M3 Nylin Insert Lock Nut
1
2
d3xD7mm
Washer
d3xD6.5
Plastic Collar
1
PM2.5x12mm
PM3x22mm
Washer
d3xD7mm
Washer
d2.5xD8mm
Plastic Collar
d3xD6.5mm
Wheel Ø30mm
M3 Nylon Insert
Lock Nut
M2.5 Nut
5.1 Collar
5.1 Collar
3mm set screw
Plastic Collar
d5.1xD9mm
Copper Tube
d5.3xD6.4x14mm
3mm set screw
Wire
Ø5x75mm
Large Scale Treaded
Inflatable Wheels Ø140mm
Top View
Front Wheel
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

6
Bottom View
5.1mm Wheel Collar
2
P.5
Radio Equipment
8
Install and arrange the equipment as shown in the diagram.
Battery
Receiver Switch Harness
Sponge 70x122x60mm
Ballast Weight
Front
7
Completed
This step is for Glider. Please follow step 8A & 8B & 8C &
8D & 8E if your model is electric powered.
Bottom View
Main Wing Wire
Main Wheel
PM2.5x12mm
PM3x22mm
Washer
d3xD7mm
Washer
d2.5xD8mm
Plastic Collar
d3xD6.5mm
Wheel Ø30mm
M3 Nylon Insert
Lock Nut
M2.5 Nut
5.1 Collar
5.1 Collar
3mm set screw
Plastic Collar
d5.1xD9mm
Copper Tube
d5.3xD6.4x14mm
3mm set screw
Wire
Ø5x75mm
Large Scale Treaded
Inflatable Wheels Ø140mm
1
d5.3xD6.4x14mm
Copper Tube
d5.1xD9mm Plastic Collar
1
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Motor Mounting Bracket
2mm--6 pcs
Battery Tie 250 mm--3 pcs
Electric Wire AWG16 18m --1 pc.
Folding Pusher Propeller Blade
PL6315020 10x6mm --3 sets
Folding Propeller Blade
PL6314020 10x6mm --3 sets
EP Spinner PL2FW0450
Ø45mm（white）--6 sets
Radial Mount Adaptor Set
HW2340200--6 sets
Outrunner 28/32 Deluxe
KM02832R1--6 pcs
Motor Cover(Left)--3 pcs
Motor Cover(Right)--3 pcs
Template 842.7x117x3mm-1 pc.
Outrunner 28/32 Deluxe Screw
PM3x6mm--24 pcs
Propeller Screw
PM2x12mm--12 pcs
Motor Mounting Bracket-A
Screw PM3x18mm--12 pcs
Motor Mounting Bracket-B
Screw PM3x25mm--12 pcs
Motor Cover Screw
PWA2.3x8mm--30 pcs
Motor Washer
d3xD7mm--24 pcs
Motor Mounting Bracket Washer
d3xD7mm--24 pcs
Motor Mounting Bracket Washer
d3xD12mm--24 pcs
Motor Mounting Bracket
M3 Nylon Insert Lock Nut--24 pcs
To complete The Big Wings (electric powered), you need to purchase
The World Models E268XMEPTS
If you want to use electric power, please follw step 8A& 8B & 8C & 8D & 8E.
P.6
8AE268XMEPTS
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Washer
d3xD12mm
PM3x18mm
PM3x25mm
Washer
d3xD7mm
M3 Nylon Insert Lock Nut
Completed
3mm
Template 842.7x117x3mm
P.7

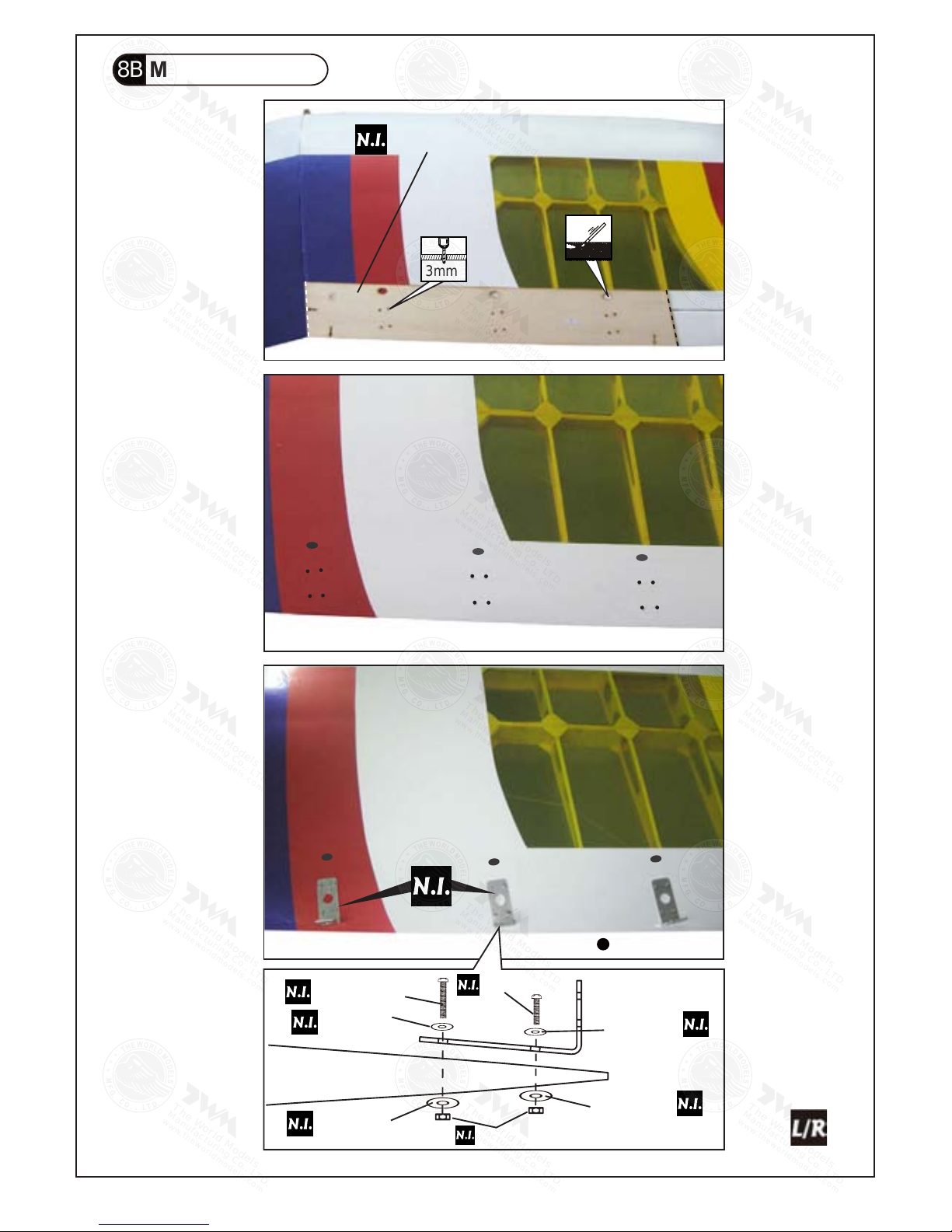

Motor Mounting
8B
Washer
d3xD12mm
Washer
d3xD7mm
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Electrical Wire
8C
PWA2.3x8mm PWA2.3x8mm
1.5mm
Electric
PM3x6mm
Screw
Washer
d3xD7mm
Completed
Spinner
Ø45
P.8
Completed
PM2x8mm
PL6314020
PL6314020
PL6315020 PL6314020 PL6315020
PL6315020
Battery
Receiver
Battery Battery
ESC
ESC
ESC
ESC
ESC
ESC
Throttle
Don't over-tighten the PM2 screws, let the propeller
blades align themselves when spinning.
PM2x12mm
PM2x12mm
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Radio Equipment
8D
Sponge 70x122x60mm
Battery Tie 250mm
Receiver
Front
25A Brushless ESC
25A Brushless ESC
P.9
Install and arrange the equipment as shown in the diagram.
1.It is recommended to use one battery to supply outer/ middle/ inner pairs of Motors. With
this power supply arrangement, any battery problem will affect pairs of Motor, not a single
one which may result in uneven thrust and turning of the model.
2.To avoid any electronic interference amongst ESCs, it is recommended not to use BECs
from the ESCs to supply power to the receiver. Use separate receiver battery for the
receiver and servos. Most ESCs have the middle red wire BEC power supply to receiver,
remove the middle red wire from the plug before plugging to receiver will work. Please
refer to manual of the ESC for details.
3.With proper mixing function of your radio, you maybe able to mix the speed control of the
outer pair motors with rudder channel to achieve turning of the model.
8E Connection Diagram
Ballast Weight
Battery
Receiver Battery
Battery
Receiver
Battery Battery
ESC
ESC
ESC
ESC
ESC
ESC
Throttle
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

PM4x40mm
d3xD12mm
PVC Plate
118x40x1mm
9Main Wing
2
PM4x40mm
Screw
d3xD12mm
Washer
2
Cockpit10
If you want to use electric powered. Please cut openings for improving cooling of Motor and battery.
20mm
20mm
33mm
28mm
40mm
30mm
20mm
Cockpit Clip Pin
HW4201325
Cockpit
Fuselage Tail
P.10
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.11
Wing Setting
11
Adjust the wing and fuselage conguration as shown in the diagrams.
B
A=A' B=B'
B'
AA'
Control Throws
12
Adjust the control throws as shown in the diagram.
These throws are good for general ying. You can
adjust according to your personal preference.
Aileron/ Elevator
15mm
15mm
Please note that the mixing function of your radio will add up the control throws of
aileron and elevator input. A control throw of 15mm for the aileron or elevator alone
will give you up to 30mm throw if you input aileron and elevator throw at the same time.
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.12

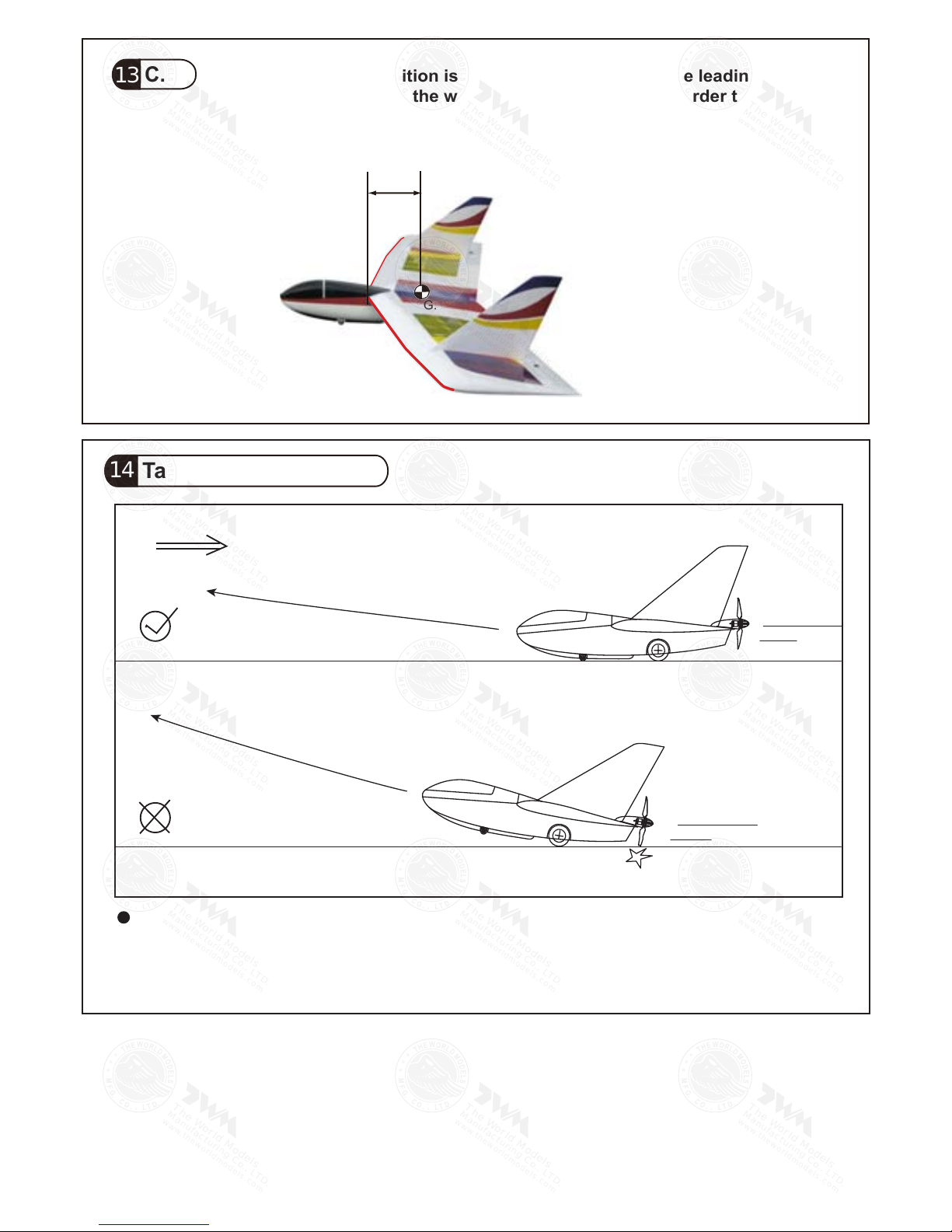

C.G.
13
The ideal C.G. position is 240mm (9.45 in.) behind the leading edge
measured at where the wing meets the fuselage. In order to obtain
the C.G. specied, add weight to the fuselage or move the battery
position. Check the C.G. before ying.
240mm
9.45in
C.G.
Take Off From Ground
14
PL6314020
PL6314020
PL6315020 PL6314020 PL6315020
PL6315020
Battery
Receiver
Battery Battery
ESC
ESC
ESC
ESC
ESC
ESC
Throttle
When taking off from ground, point the model towards the head wind. Apply power and let
the model pick up ground speed. With enough speed, apply elevator gently and the model
will be airborne. Don't pull up too much for a steep climb, as the propeller may hit the
ground and get damaged.
Wind Direction
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Warning!
Important Safety Precautions
# First time yer should never y by himself / herself. Assistance from experienced yer is
absolutely necessary.
# Pre-ight adjustment must be done before ying, it is very dangerous to y a badly
pre-adjusted aircraft.
# (EP Glider) is specially designed to be powered by 6x225W Outrunner
Motor System.
# Make sure the air eld is spacious, never y the plane too close to people and never get
too close to a running propeller. Extreme caution should be exercised when working with
electric powered models. Make sure the propeller is cleared of all objects, especially your
hands before connecting the battery to the model. Make sure you understand the operation
of the ESC (Electronic Speed Control) by studying the ESC manual. Once you plug in the
battery for electric powered model, always treat the propeller as a rotating one, as accidental
movement of the throttle stick will spin the propeller and could cause injuries.
# If you nd wrinkles on the covering as a result of weather changes, you can use hot iron
to remove the wrinkles. Please begin with lower temperature setting and gradually raise
the temperature until the wrinkles are gone. Too hot an iron may damage the covering.
Don't use hot iron near the seams or edges, hot iron will melt the glue and shrink the,
covering at the same time, causing the seams to pull away.
# Check and re-tighten up all factory assembled screws, use thread locker if necessary.
Product Registration Form (US Customers)
We would like to share with you any relevant information regarding your model, including
product news and free upgrade parts when applicable. Please fill in the following and send to
AirBorne Models,2403 Research Drive, Livermore, CA 94550 USA.
1.Name:
2.Address:
3.Phone #: e-mail:
4.Model:
Wing QC# Fuselage QC#
(QC numbers are stamped on wing and fuselage)
5.Date of Purchase:
6.Store Name:
Please call AirBorne Models at 925 371 0922 for any assistance in filling this form.
Thank you very much for purchasing our product.
P.13
E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

E268XMPO17220807
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
