Thermo Scientific 1267 Series User manual

Reverse Osmosis System
Series 1267
Operating Manual and Parts List LT1267X1 Rev. 1
_________________________________________________________________________________
Part of Thermo Fisher Scientific

Thermo Scientific
MANUAL NUMBER LT1267X1 (7007157)
1 26652/SI-10424 10/8/10 Max pressure updated on pg 3-1 ccs
0 -- 8/5/10 Transfer to Marietta (was LT1267X1 7/3/08) ccs
REV ECR/ECN DATE DESCRIPTION By
Preface
Reverse Osmosis System i
Models covered in this manual
Model Volume Voltage
D12671 (7157) 6 liter/hour 100-240V

Thermo Scientificii Reverse Osmosis System
Preface
Important Read this instruction manual. Failure to read, understand and follow the instructions in this manual
may result in damage to the unit, injury to operating personnel, and poor equipment performance. s
Caution All internal adjustments and maintenance must be performed by qualified service personnel. s
Material in this manual is for information purposes only. The contents and the product it describes are subject to
change without notice. Thermo Fisher Scientific makes no representations or warranties with respect to this
manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising out of or related to
the use of this manual.
©2010 Thermo Fisher Scientific. All rights reserved.

Thermo Scientific Reverse Osmosis System iii
Preface
Important operating and/or maintenance instructions. Read the accompanying text carefully.
Potential electrical hazards. Only qualified persons should perform procedures associated with this
symbol.
Equipment being maintained or serviced must be turned off and locked off to prevent possible injury.
Hot surface(s) present which may cause burns to unprotected skin, or to materials which may be
damaged by elevated temperatures.
Marking of electrical and electronic equipment, which applies to electrical and electronic equipment
falling under the Directive 2002/96/EC (WEEE) and the equipment that has been put on the market
after 13 August 2005.
This product is required to comply with the European Union’s Waste Electrical & Electronic
Equipment (WEEE) Directive 2002/96/EC. It is marked with the WEEE symbol. Thermo Fisher
Scientific has contracted with one or more recycling/disposal companies in each EU Member State
European Country, and this product should be disposed of or recycled through them. Further
information on Thermo’s compliance with this directive, the recyclers in your country and
information on Thermo products will be available at www.thermofisher.com.
4Always use the proper protective equipment (clothing, gloves, goggles, etc.)
4Always dissipate extreme cold or heat and wear protective clothing.
4Always follow good hygiene practices.
4Each individual is responsible for his or her own safety.

Thermo Scientificiv Reverse Osmosis System
Preface
Do You Need Information or Assistance on
Thermo Scientific Products?
If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:
1-740-373-4763 Direct
1-800-438-4851 Toll Free, U.S. and Canada
1-877-213-8051 FAX
http://www.thermoscientific.com Internet Worldwide Web Home Page
Service E-Mail Address
Thermo Fisher Scientific
401 Millcreek Road, Box 649
Marietta, OH 45750
Our staff can provide information on pricing and give you quotations. We can
take your order and provide delivery information on major equipment items or make
arrangements to have your local sales representative contact you. Our products are listed on the
Internet and we can be contacted through our Internet home page.
Our staff can supply technical information about proper setup, operation or
troubleshooting of your equipment. We can fill your needs for spare or replacement parts or
provide you with on-site service. We can also provide you with a quotation on our Extended
Warranty for your Thermo Scientific products.
Whatever Thermo Scientific products you need or use, we will be happy to discuss your
applications. If you are experiencing technical problems, working together, we will help you
locate the problem and, chances are, correct it yourself...over the telephone without a service
call.
When more extensive service is necessary, we will assist you with direct factory trained
technicians or a qualified service organization for on-the-spot repair. If your service need is
covered by the warranty, we will arrange for the unit to be repaired at our expense and to your
satisfaction.
Regardless of your needs, our professional telephone technicians are available to assist you
Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by
telephone or fax. If you wish to write, our mailing address is:
International customers, please contact your local Thermo Scientific distributor.
Sales Support
Service Support
[e-mail]

Reverse Osmosis System vThermo Scientific
Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Unpacking and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Choosing a Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Tubing Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Tubing Adapter Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Tubing Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Quick Disconnect Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Bench Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Cartridge / Membrane Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
MPS Cartridge Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Prefilter Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Membrane Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8
Carbon Filter Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8
Water Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
Reject Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10
Feed Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10
Product Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Electrical/Reservoir Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
Install Control Panel in Remote Location . . . . . . . . . . . . . . . . . . . . .5-3
Initial Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Initial Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6

vi Reverse Osmosis System Thermo Scientific
Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Flushing the Membrane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Resetting the Membrane Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2
Resetting the Carbon Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2
Manual 4 Minute Flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2
Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3
Pressure Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3
Main Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Membrane Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2
MPS Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-3
Prefilter Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-3
Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-4
Carbon Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-4
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-1
Consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-1
General Maintenance Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-1
Safety Stock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-2
Optional Accessory Ordering Information . . . . . . . . . . . . . . . . . . . .10-2
Ordering Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-2
Flow Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-1
Operating Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-2
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-3
Table of Contents
Section 8
Section 7
Section 9
Section 10
Section 11

Reverse Osmosis System 1-1Thermo Scientific
Section 1 Safety Information
Your Thermo Scientific Reverse Osmosis (RO) System has been designed
with function, reliability, and safety in mind. It is the user’s responsibility
to install it in conformance with local electrical codes. This manual
contains important operating and safety information. The user must
carefully read and understand the contents of this manual prior to the use
of this equipment. For safe operation, pay attention to Notes, Cautions,
and Warnings throughout the manual.
Water purification technology employs one or more of the following:
chemicals, electrical devices, mercury vapor lamps, steam and heated
vessels. Care should be taken when installing, operating or servicing
Thermo Scientific products. The specific safety notes pertinient to this
product are listed below.
Warnings
To avoid electrical shock, always:
1. Use a properly grounded electrical outlet of correct voltage and current
handling capacity.
2. Do not mount your Thermo Scientific Reverse Osmosis System
directly over equipment that requires electrical service. Routine
maintenance of this unit may involve water spillage and subsequent
electrical shock hazard, if improperly located.
3. Replace fuses with those of the same type and rating of fuse.
4. Disconnect from the power supply prior to maintenance and servicing.

1-2 Reverse Osmosis System Thermo Scientific
Section 1
Safety Information
To avoid personal injury:
1. Do not use in the presence of flammable or combustible materials;
fire or explosion may result. This device contains components which
may ignite such materials.
2. This device is to be used with potable water feeds only.
3. Refer servicing to qualified personnel.
4. Discard the RO membrane product water for at least two hours
during initial operation. The membrane contains a preservative
solution to prevent microbiological growth.
5. If the equipment is used in a manner not specified by the
manufacturer, protection provided by the equipment may be
impaired.

Reverse Osmosis System 2-1Thermo Scientific
Section 2 Introduction
Congratulations on your purchase of a Thermo Scientific RO System. This
unit is designed to provide reverse osmosis water for your lab or ultrapure
water system. It uses a thin film composite membrane combined with
three stages of pretreatment to produce reverse osmosis water.
Careful attention to the following instructions will assure that the system
operates properly and produces water to specifications. Also, be sure to fill
out and return the enclosed warranty registration card. We would like to
receive the information requested, and it will help us assure you of proper
warranty coverage.
Each unit requires a separate storage reservoir for automatic operation.
Please make sure you have an adequate storage reservoir before installing
your RO system.
Note Do not use this product for anything other than its intended usage. s
Figure 2-1. Reverse Osmosis System

Reverse Osmosis System 3-1Thermo Scientific
Section 3 Specifications
Dimensions - Wall and Bench mounted models
Width . . . . . . . . . . . . . . . . . . . . . . .34.3 cm (13.5”)
Depth . . . . . . . . . . . . . . . . . . . . . . .42.8 cm (16.9”)
Height . . . . . . . . . . . . . . . . . . . . . . .49.5 cm (19.5”)
Clearance Requirements
Sides . . . . . . . .22.9 cm (9”) minimum for servicing.
Above . . . . 7.6 cm (3”) minimum for removal of the top cover.
Front . . . . 12.1 cm (4.75”) minimum for opening the front door.
Cartridge and membrane replacement is easily accomplished upon opening
the front and side doors.
Feed Water Requirements1
Typ es 1. . . . . . . . . . . . . . . . . . . . . . . . .Tap (Potable)
Turbidity . . . . . . . . . . . . . . . .1.0 N.T.U. maximum.
Pressure Range . . . . . . 2 bar (30 psig) to 3.79 bar (54.9 psig) maximum
Temperature Range . . . . . . . . . . . .1-35°C (34-95°F)
Inlet Flow Requirements . . . . . . . . . . . . . . . . .40 lph
pH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-10
TDS . . . . . . . . . . . . . . .800 (Max. ppm as CaCO3)
Silt Density Index . . . . . . . . . . . . . . . . . . . . . . .<5%
Free Chlorine . . . . . . . . . . . . . . . . . . . . . . . .<3 ppm
Langlier Saturation Index . . . . . . . . . . . . . . . . . . .<1
Iron (Total as Fe) . . . . . . . . . . . . . . . . . . . .<0.5 ppm
Silica . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<30 ppm
Product Water
Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D12671
Flow Rate2. . . . . . . . . . . . . . .6 lph, ±15% (1.6 gph)
Recovery2. . . . . . . . . . . . . . . . . . . . . . . . . . . .10-20%

3-2 Reverse Osmosis System Thermo Scientific
Section 3
Specifications
Membrane Performance 2
Rejection
Inorganic (minimum) . . . . . . . . . . . . . . . . . . .>90%
Inorganic (typical) . . . . . . . . . . . . . . . . . . . . . .>95%
Particles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>99%
Bacteria . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>99%
Dissolved Organics (>100 MW) . . . . . . . . . . .>99%
1Feed water suitability must be determined by a water analysis.
2500 ppm NaCl feedwater solution @ 25°C (77°F), @ 2 bar (30 psig), 10%
recovery. Flow rate and recovery will decrease with lower water temperature and
pressure. We recommend the use of a hot water mixing valve before the RO
system for water cooler than 15°C (59°F).
Electrical Requirements
The Thermo Scientific RO is equipped with a power cord to be plugged
into an electrical outlet of the appropriate voltage.
Voltage and Frequency (Nominal)
Model D12671 . . .100-240 VAC, 50/60 Hz, 1 phase
Environmental Conditions
Operating: 4°C - 49°C; 20% to 80% RH, non-condensing.
Installation Category II (over-voltage) in accordance with IEC 664.
Pollution Degree 2 in accordance with IEC 664.
Altitude limit: 3,500 meters.
Storage: -25°C to 65°C; 10% to 85% relative humidity (RH).

Reverse Osmosis System 3-3Thermo Scientific
Section 3
Specifications
Declaration of Conformity
We hereby declare under our sole responsibility that this product conforms
with the technical requirements of the following standards:
EMC:
EN 61000-3-2 Limits for Harmonic Current Emissions
EN 61000-3-3 Limits for Voltage Fluctuations and Flicker
EN 61326-1 Electrical Equipment for Measurement, Control and
Laboratory Use ; Part 1: General Requirements
Safety:
EN61010-1 Safety Requirements for Electrical Equipment for
Measurement, Control, and Laboratory use; Part I: General
Requirements
per the provisions of the Low Voltage Directive 2006/95/EC and the
Electromagnetic Compatibility Directive 2004/108/EC.
Copies of the Declaration of Conformity are available upon request.

Reverse Osmosis System 4-1Thermo Scientific
Section 4 Unpacking and Installation
1. Remove the unit from its shipping container. Remove all contents
carefully. Ensure the following parts are removed from the packaging
materials before discarding.
1) Membrane(s) (FL1265X1)
2) Prefilter (D502113)
3) Carbon Filter (D502115)
4) MPS cartridge (D502114)
5) Wall bracket (BC1190X12)
6) Parts bag with feed, product, and reject water tubes included with
fittings.
a. Feed water assembly - TU1119X7
b. Product tube - TU550X5
c. Reject tube - TU1190X12
d. Elbow fittings - 03033 (3/8” tubing x 1/4” NPTM)
- PMX80 (3/8” tubing x 3/8” NPTM)
7) Power cords
2. Put the Thermo Scientific RO system on a bench.

4-2 Reverse Osmosis System Thermo Scientific
Section 4
Unpacking and Installation
Choosing a Site The RO system features an optional remotable control panel display which
allows the system to be mounted almost anywhere within the laboratory
using accessory kit AY1265X1. Your RO system must be located within six
feet of an electrical outlet appropriate for your unit, within ten feet of your
feed water supply and within six feet of an atmospherically vented drain. If
you are using the accessory 30 Liter Storage Reservoir (part number
D12681), the reservoir must not be mounted farther than ten feet away
from the RO system.
Use the wall bracket for wall mounted systems as a template to drill
mounting holes. (The RO system does not include screws and fasteners for
mounting.) Allow a minimum of 22.9 cm (9”) clearance on all sides of the
unit for servicing, 7.6 cm (3”) on top for top cover removal and 12.1 cm
(4.75” ) in front for opening the door.
Caution Wall composition, condition and construction, as well as fastener
type, must be considered when mounting this unit. The mounting surface
and fasteners selected must be capable of supporting a minimum of 68 kg
(150 lbs.) Inadequate support and/or fasteners may result in damage to
mounting surface and/or equipment. If you are unsure of mounting surface
composition, condition and construction or correct fasteners, consult your
building maintenance group or contractor. s
Warning Do not locate the Thermo Scientific RO system directly over
equipment that requires electrical service. Routine maintenance of this unit
may involve water spillage and subsequent electrical shock hazard if
improperly located.
Do not use in the presence of flammable or combustible materials; fire or
explosion may result. The device contains components which may ignite
such materials. s
Note It is important that the storage reservoir outlet to any ultrapure
system such as the Nanopure, be at the same level or higher than the inlet
of the Ultrapure system. s
The Thermo Scientific RO utilizes two different types of fittings. Please
refer to the installation sections when necessary.

Reverse Osmosis System 4-3Thermo Scientific
Section 4
Unpacking and Installation
These instructions will be needed when making connections at the inlet
water supply, atmospheric drain and at a storage reservoir.
1. Completely disassemble the fitting. Refer to Figure 2 to familiarize
yourself with the names of the component parts.
2. Make sure the tubing is cut off reasonably square and that no plastic
burrs or ridges are present.
3. Place the grab ring and backup ring in the hex nut in the order and
orientation shown in Figure 4-1. Thread the nut into the adapter. DO
NOT use the o-ring at this time.
4. Push the tubing through the nut until it bottoms out on the adapter.
5. Remove the adapter nut and tubing. Place the o-ring over the tubing.
Be careful not to push the backup ring or grab ring further back on the
tubing when installing the o-ring.
6. Install the hex nut on the adapter and hand-tighten.
The following instructions will apply to push to connect type fittings when
you need to install the membranes and to attach a piece of tubing to your
RO system during installation, unless otherwise noted in the installation
instructions.
To make tubing connections:
1. Make sure the tubing is cut off reasonably square and that no plastic
burrs or ridges are present.

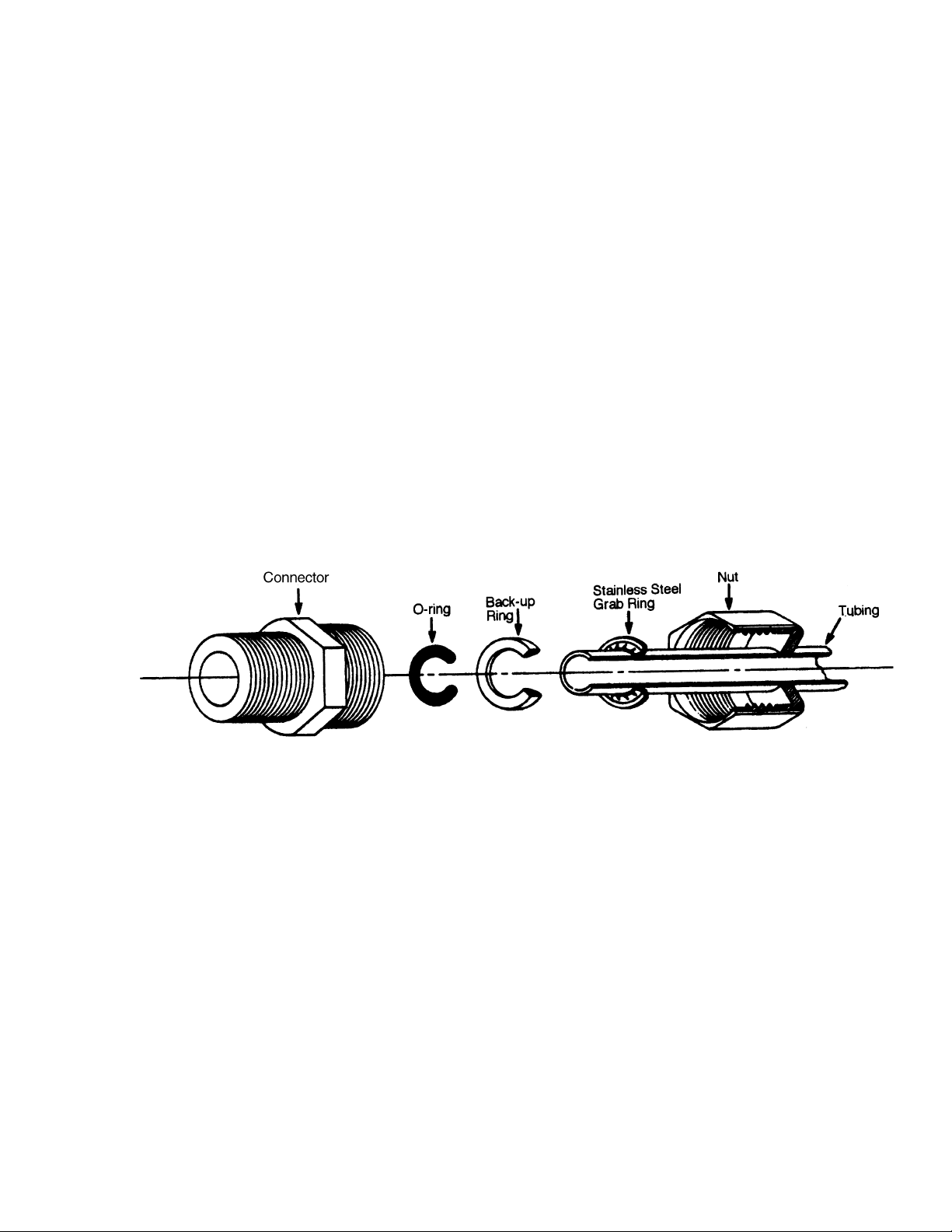

Tubing Adapter
Installation
Figure 4-1. Tubing Adapter
Tubing Installation

2. *Mark the length of insertion from end of tube.
3. Wet the tube end with water and insert tube straight into fitting until
it bottoms out on interior shoulder and insertion mark is no longer
visible.
1. Using the tool provided, push the collet toward the body and pull on
the tubing to release the tube.
Note Figure 3 & 4 will be used at the membrane, as well as connections at
product water outlet (to storage) and reject water (atmospheric drain). s
4-4 Reverse Osmosis System Thermo Scientific
Section 4
Unpacking and Installation
Tubing Installation
(continued) Tube size Insertion length
1/4 O.D. 1.75 cm (11/16”)
3/8 O.D. 1.9 cm (3/4”)
Tubing Removal
COLLET
TUBING
TYPICAL
FITTING
11/16"
Insertion
Length
*
Figure 4-2. Tubing Installation
TUBE REMOVAL TOOL
TUBING
COLLET
TYPICAL FITTING
PLACE REMOVAL TOOL UP AGAINST
COLLET AND PUSH FORWARD WHILE
SIMULTANEOUSLY PULLING THE TUBE
BACK
PULL TUBING
Figure 4-3. Tubing Removal

These fittings are found on the prefilter, carbon and MPS cartridge, as well
as the water inlet. See Figure 4-4.
To insert the cartridges or inlet tubing:
1. Press on the metal thumbpad on the unit to ensure the fitting is open.
2. Insert male adapter into fitting until you hear a click. Gently pull on
the cartridge or tubing to ensure it is secure.
3. To remove cartridges or tubing, press the metal thumbpad to release
fitting and pull adapter out.
1. Place RO system on a bench top that is accessible to water,
atmospheric drain and electricity, and is convenient to your work area,
noting clearance requirements.
Install the RO system on a wall in a convenient location that is accessible
to water, atmospheric drain and electricity.
Caution Wall composition, condition and construction, as well as fastener
type, must be considered when mounting this unit. The mounting surface
and fasteners selected must be capable of supporting a minimum of 68 kg
(150 lbs.) Inadequate support and/or fasteners may result in damage to
mounting surface and/or equipment. If you are unsure of mounting
surface composition, condition and construction or correct fasteners,
consult your building maintenance group or contractor. s
Reverse Osmosis System 4-5Thermo Scientific
Section 4
Unpacking and Installation
Bench Mounting
Quick Disconnect
Fittings
CONNECTOR
TO RELEASE CONNECTOR.
PUSH DOWN ON RETAINER
RETAINER
Figure 4-4. Quick Disconnect
Wall Mounting
