Thermo Scientific 2210AM User manual

thermoscientific
Thermo Scientific Orion
2210AM Ammonia Analyzer
UM-271914-001 • Revision C • December 2017

Contents
General Information ................................................ 1
Safety Precautions.............................................. 1
Symbols Used in this Manual ............................. 1
Specifications ..................................................... 2
Introduction............................................................. 4
Unpacking the Instrument .................................. 4
General Product Description .............................. 5
Analysis Reaction Principle ................................ 7
Installation Environmental Considerations ............. 9
Mounting the Instrument .................................... 9
Plumbing Connections ..................................... 10
Installing the Reagents ..................................... 11
Connecting Power to the Analyzer ................... 11
Startup and Operation .......................................... 16
Executing a Manual Calibration........................ 16
In Auto-Calibration Mode ................................. 17
Placing the Analyzer into Service ..................... 17
Validating a Calibration Standard ..................... 17
Running an Analysis (Analyze Once) ................ 17
Instrument Operation Modes............................ 17
Sample Analysis and Validation........................ 18
Calibration ........................................................ 18
Cleaning............................................................ 18
Post Wash ........................................................ 18
Priming.............................................................. 18

Analyzer Hardware Configuration and
Calibration............................................................. 19
Optics Calibration ............................................. 19
Optics Calibration Steps................................... 19
Reaction Cell Temperature Calibration............. 19
Pumps Calibration ............................................ 20
Pumps Calibration Method............................... 20
Analog Outputs Calibration .............................. 20
Calibration of the Instrument for Measurement
Analysis................................................................. 21
Theory of Calibration ........................................ 21
Methods of Calibration ..................................... 21
Single Point Calibration .................................... 21
Base Line Calibration........................................ 21
Theory of Measurement.................................... 22
Mode of Measurement ..................................... 22
Auto Restart Mode ........................................... 22
Manual Restart Mode ....................................... 22
Measurement Cycle.......................................... 23
Menu Overview..................................................... 26
Setup Menu ...................................................... 26
Measurement Menu.......................................... 27
View Data and Alarms Menu ............................ 27
Service Menu.................................................... 27
System Administration Menu............................ 28
Hardware Setup Menu...................................... 28
Prime Fluidics Menu and New Reagents
Blank................................................................. 28
Diagnostics Menu............................................. 29
Default and Lost or Forgotten Passwords........ 29
User Interface Tree ........................................... 30

Terms Definition.................................................... 33
Maintenance Schedule ......................................... 40
Changing Reagents .......................................... 40
Cleaning the Reaction Cell ............................... 41
Cleaning the Sample Flow Chamber ................ 42
Stand-By Mode and Extended Shutdown........ 42
Standby and On-Demand Modes......................... 47
Overview........................................................... 47
Factory Setup Recommendations
When Operating In “ON-DEMAND” Mode ....... 48
Customer Services ............................................... 49
Notice of Compliance ....................................... 49
Warranty Information ........................................ 49
Warranty Shipments/ Returns/Adjustments ..... 49
Consumables.................................................... 50
Assistance ........................................................ 50
Addendum ............................................................ 51
Analyzer Alarms, Faults and status .................. 51
2210AM Analyzer Interface to a Sample
Conditioner ....................................................... 52
2210AM Analyzer ONLY ................................... 54
2210AM Measurement ranges ......................... 54
Sample Analysis Data storage.......................... 55

Orion 2210AM Ammonia Analyzer General Information | 1
General Information
Safety Precautions
The Thermo Scientific™ Orion™ 2210AM Ammonia Analyzer
has been designed with careful attention to safety. It complies
with formal safety design rules established by international
regulatory agencies. Observe all safety warnings marked on
the instrument.
These warnings identify areas of potential hazard, which could
result in personal injury, or loss of life.
To ensure that the protection provided by this equipment is
not impaired, do not use or install this equipment in any
manner other than that which is specified in this manual.
Do not use this product for any purpose other than
described in this manual.
Disconnect power before servicing and prior to making any
terminal connections within the analyzer enclosure.
Do not operate with the electronics enclosure door open.
Symbols Used in this
Manual
WARNING
WARNING: This symbol alerts the user
about possible hazards that can cause
serious damage to the instrument, and/or
personal injury.
CAUTION
CAUTION: This symbol alerts the user
about possible faults from incorrect
operation, which if ignored, could result in
damage of the instrument.
HOT: This symbol indicates that the
marked area can be hot and should not
be touched without care.
EARTH (Ground): This symbol, when
noted on the product, identifies the
location of the connection for Protective
Earth (ground).
NOTE: Indicates important information that
requires special attention.

2 | General Information Orion 2210AM Ammonia Analyzer
Specifications
If sample composition does not meet above
requirements a sampling conditioning panel is
required.
The presence of organic nitrogen compounds may
interfere with the measurement of Ammonia.
Measurement Performance
Measuring Range
0.01 to 2 mg/L ammonia as N
0.05 to10 mg/L
0.5 to 50 mg/L
50 to 500 mg/L
Accuracy
±5% or 0.01 mg/L (as N) for 0.01 to
50 mg/L whichever is greater
±10% (as N) for 50-500 mg/L for
5°C to 40°C
Measurement
cycle time
Less than 20 minutes per analysis
for ranges up to 500 mg/L
Repeatability
Less than ±3% of reading or
±0.05 mg/L, whichever is greater
from 0-500 mg/L
Limit of
Detection 0.01 mg/L
Reagent
Consumption
1 pack of reagents every 45 days
with 2 hour cycle time up to
10 mg/L using the LR reagent kit.
For ranges above 10 mg/L1 pack of
reagents every 45 days with
2 hour cycle time using the HR
reagent kit.
Method Salicylate colorimetric method
Sample Requirements
Sample Flow 50 to 1000 mL/min
Sample Pressure 5 psig max
Sample Supply Continuous
Sample
Temperature
Range
5°C to 40°C (41°F to 104°F)
Sample
Inlet/Outlet
Connections
1/4 inch OD flexible tubing –
Polypropylene or similar material
Drain Tubing 3/8 inch OD flexible tubing –
Polypropylene or similar material
Sample Streams One
Sample Requirements for Analyzer Inlet
Inlet Water
Quality - TDS TDS less than 170 mg/L
Inlet Water
Quality - TSS TSS less than 30 mg/L
Inlet Water
Quality - pH pH within the limits of 4 to 10
Inlet Water
Quality High color sample consult factory
Environmental
Ambient
Operating
Tempe r ature
5°C to 45°C (41°F to 113°F)
Maximum
Humidity” 90% at 40°C (104°F)
Construction
Enclosure Integrity NEMA12 (Electronics cabinet),
NEMA4X (Fluidics cabinet)
Enclosure
Dimensions
27.5"x 16"x 6.4"
(698 mm x 406 mm x 162 mm)
Shipping Weight 18 kg (40 lbs)
Electrical Data and Control
Power
Requirements 100-240 V AC, 110 W, 50/60 Hz
Current Loops
Two 0/4-20 mA – Direct or Reverse
Acting (Isolated). Maximum 900
ohm load.

Orion 2210AM Ammonia Analyzer General Information | 3
Relays Four SPDT, 2 A @250 V –
Programmable
Digital Comms RS232 ASCII protocol for data
reporting
Certifications
Safety CE: EN/IEC61010-1, cTUVus
EMC CE: EN61326-1
FCC Class A
Warranty
Warranty 1 Year
Electrical Data and Control

4 | Introduction Orion 2210AM Ammonia Analyzer
Introduction
The Thermo Scientific Orion 2200 series analyzers are
compact wet-chemistry analysis systems, designed for the
continuous on-line analysis of water in several applications
across many industries.
The Orion 2210AM Ammonia Analyzer uses the colorimetric
detection method that relies on specific reagents that are
added to the sample to produce a reacted color compound.
The intensity of the color determines the concentration in
reference to a known reacted standard. The colored
compound absorbs energy at a specific wavelength in
accordance with the Beer-Lambert Law.
The instrument uses Light Emitting Diodes (LEDs) that emit
light at a narrow bandwidth selected for the specific
application.
Unpacking the Instrument
Remove the analyzer from its shipping carton and inspect it
for damage.
If damage is evident or if the shipment is incomplete, please
contact the Customer Service Department. Do not destroy
the shipping container during unpacking so that you can save
it for possible future use.
Startup Procedure
This section describes the necessary steps to begin using the
Orion 2210AM Ammonia Analyzer. Refer to
Installation Environmental Considerations for instructions on
mounting the analyzer, making the plumbing connections,
and connecting electrical power. More details can be found in
Specifications Section for Sample Requirements for Analyzer
Inlet.
Once the analyzer is securely mounted in a fixed location,
wired to electrical power, wired to communications,
(if necessary) and plumbed to process water, perform the
following instrument startup procedure:
1. Power on instrument.

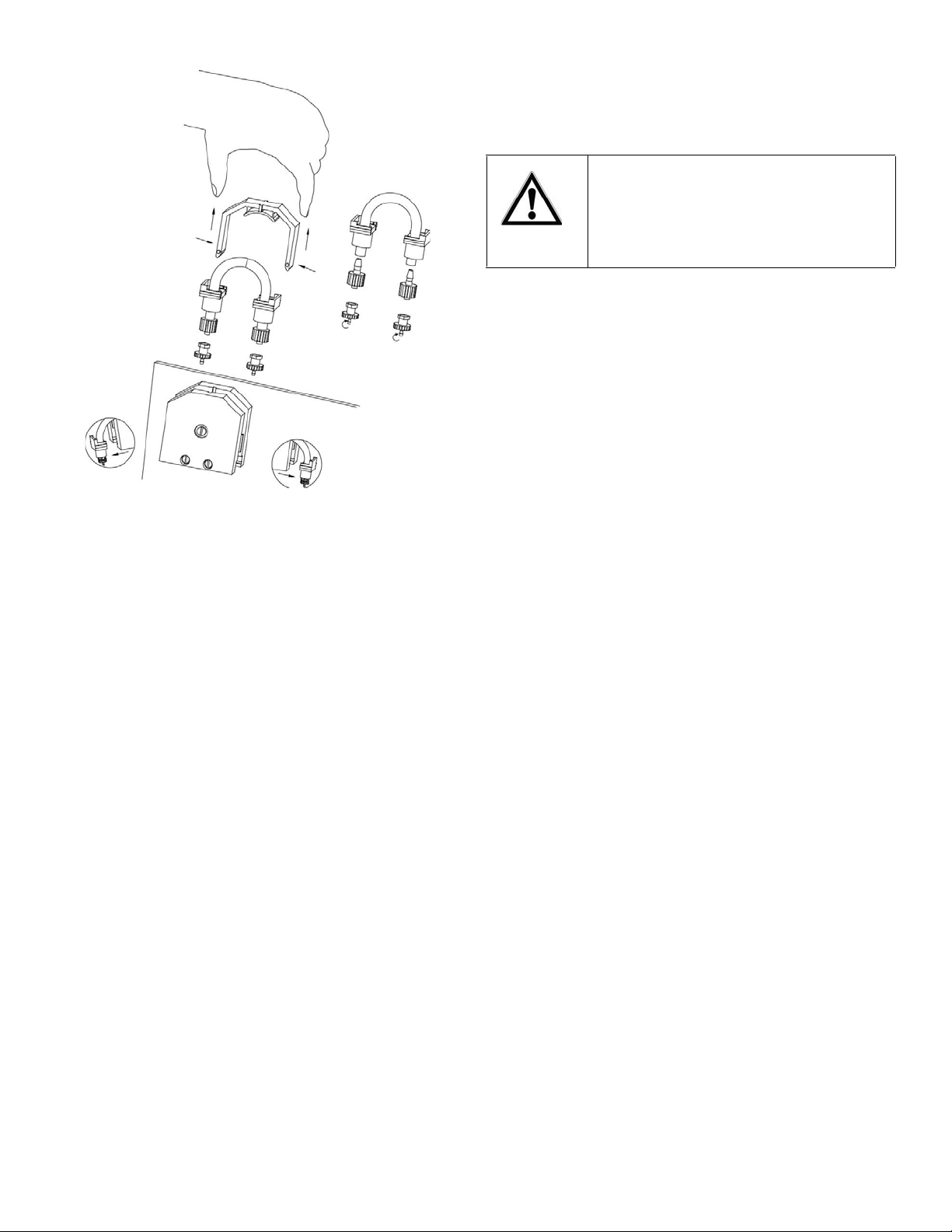

2. To allow longer life time of unit, the pump-head tubing are
not fully engaged when the unit is shipped. Refer to
Plumbing Connections Section.
a. Reset tubes in pumps heads.
Note: This step must be repeated for all four pump
heads.
i. Remove tape.
ii. Slide tube retainer into place along keyway.
iii. Install tubing cover by squeezing both sides,
and sliding into grooves.

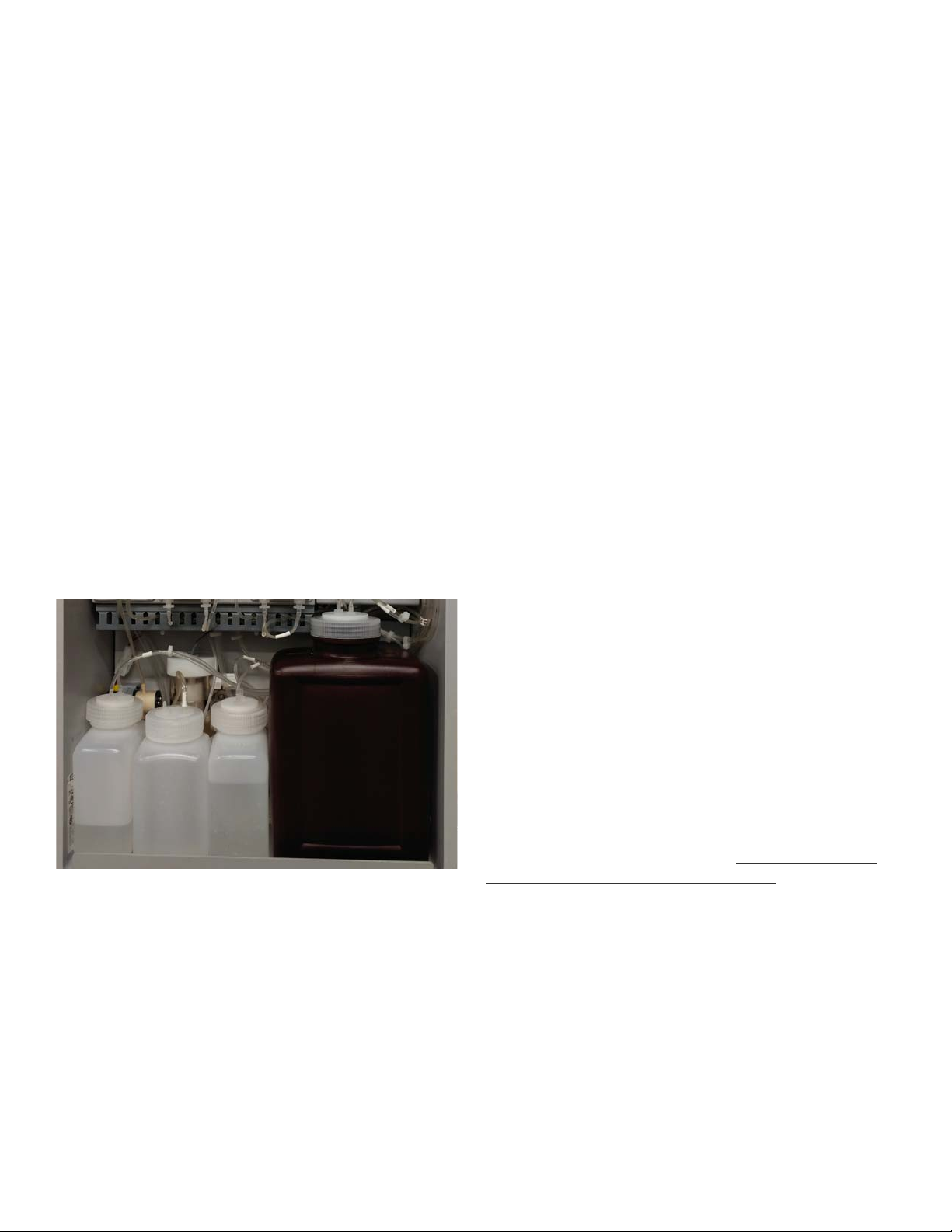

3. Install reagents. Very carefully match reagent numbers
in their proper order. Refer to Installing the Reagents
Section.
NOTE:
The analyzer may be shipped with
a translucent protective cover on the
LCD. Carefully peel off this translucent
layer and discard it.
WARNING
DO NOT APPLY ELECTRICAL POWER
TO VISIBLY DAMAGED COMPONENTS,
AS INJURY OR FURTHER EQUIPMENT
DAMAGEMAY OCCUR.
NOTES:
It is recommended to wear latex gloves
whenever handling or changing reagents.
Turn the reagent cap clockwise while
holding bottle vertical and level.
Inspect the tubes to be sure none have
been pinched.

Orion 2210AM Ammonia Analyzer Introduction | 5
4. Prime the tubing. (See “Installing Peristaltic Pump Head
Tubing” section for more details).
a. Press Menu.
b. Select Services.
c. Select Prime Fluidics.
d. Select Prime All.
Note: This procedure will run automatically and
take approximately 10 minutes per cycle.
5. Refer Startup and Operation Section for more details.
Once the above four steps have been completed,
(4. a, b, c, d) press Stop, Select Run. Allow the unit to
operate overnight or for at least 12 hours, to become
stabilized in the local environment.
6. For additional information on Orion 2210AM Ammonia
Process Analyzer Operation, refer Startup and Operation.
Additional details can be found in the following sections:
Instrument Operation
Analyzer Hardware Configuration and Calibration
Calibration of the Instrument for Measurement Analysis
Menu Overview
Terms Definition
Maintenance Schedule
Figure 1. Reagent bottle numbers in proper order.
General Product
Description
This user manual provides the information necessary to obtain
the maximum benefits from the Orion 2210AM Ammonia
Analyzer. All operating instructions, functional descriptions,
illustrations, and other relevant information are contained in
this manual. Descriptions of the system hardware and
user-interface software (the control panel) are included, as an
overview of the analytical techniques employed in the
analyzer. Step-by-step instructions guide you through all
operating procedures and field programming.
The analyzer is designed for easy operation. Each analyzer in
this family runs in a fully automated mode for routine,
day-to-day water analysis.
The need for operator interaction is minimal. Accordingly,
the information required by the routine operator of this
analyzer is modest, and that information is provided in
Startup and Operation section, of this manual.
Important standard analyzer capabilities include:
Sampling the process stream automatically.
Calculating concentration of your sample and reporting it in
units of concentration.
Recalibrating automatically at preprogrammed intervals to
compensate for any changes in captured sample volume,
pump flow rates and reagent composition.
The analyzer brings colorimetric laboratory precision to the
real world of unattended process analyzing. It is designed for
long life under continuous, rigorous use.
The Orion 2200 series analyzers are designed for
accommodating several applications. Each application
requires a specific configuration in hardware and software that
is set at the factory. The product as supplied will have
a configuration sheet detailing the setup and the detailed tests
and validation that were conducted at the factory. This
analyzer model is intended to use for water applications
which include surface and waste water analysis,
suspended solids must be less than 60 microns.

6 | Introduction Orion 2210AM Ammonia Analyzer
User Interface
General Description
The user-interface consists of a keypad and a graphical LCD
display. The keypad is located to the right of the display. The
F1 to F4 function keys (soft-keys) take on different meanings
depending on the menu selection. The column on the left of
the soft-keys labels the keys with their appropriate functions.
The RUN key starts the analysis and the STOP key stops the
current functioning of the instrument. The + and - keys allow
for navigation between pages. The ENTER key confirms
selections made in the menus. Additional navigation is
provided by the soft-keys (in appropriate menus), for
left / right or up / down cursor movement.
The graphical LCD display shows the date, analysis label,
time, navigational menus, information and help to the user,
current user, instrument-working mode, current status of the
instrument and the soft-key labels.
The MENU key is used to access the menus.
Display Fields
1. DATE FIELD shows the current date.
2. CURSOR indicates current selection.
3. APPLICATION NAME FIELD shows instrument name tag.
4. TIME FIELD shows present time.
5. DISPLAY FIELD shows menus / measurements.
6. INFO field shows information / instructions to navigate.
7. USER field shows current user name.
8. MODE field shows whether the instrument is working in
Auto, Manual or Run mode.
9. STATUS field shows current working status of the
instrument.
10. FUNCTIONAL KEYS ASSIGNMENT FIELD shows the
functions allotted to the functional keys.
11. FUNCTION KEYS select functions.
12. OPERATIONAL KEYS are meant for operation of the
instrument.
Symbols used
Menus Display
A “+” before a menu item denotes that the item has multiple
options.
The Up / Down Arrow keys scroll up or down through options
and ENTER is used to view details of the options.
Pressing the MENU key displays the instrument’s Main Menu.
System parameters can be configured from the Main Menu.
Measurement Mode Display
In measurement mode, the instrument displays current and
previous readings, units, date and time. The measurement
results can be displayed as large size fonts or normal size
fonts. F1 key will toggle between large and normal fonts.
AMMONIA
Escape (Cancel/
Back) Cursor
Logged out
(Locked)
Logged in
Scroll Up Scroll Down
Print Delete
Scroll Left Scroll right
Accept Reject
NOTE:
The analyzer may be shipped with a
translucent protective cover on the LCD.
Carefully peel off this translucent layer
and discard it.
NOTE:
In AUTO mode, the user can navigate
between different menus even though the
instrument is performing a measurement
or a calibration.

Orion 2210AM Ammonia Analyzer Introduction | 7
Figure 2. Orion 2210AM Ammonia Analyzer NH3layout.
Analysis Reaction Principle
The colorimetric method is based on the reaction of reagents
with the sample to produce a color. This color is measured
and compared to a standard color, which proportionally
defines its concentration.
The color compound, which is the reacted mixture of the
sample with the reagents, absorbs energy at a specific
wavelength in accordance to Beer-Lambert Law.
Fluids Storage
Store all reagents and standards in a dark place at room
temperature.
Calibration Standard
The calibration standard and corresponding part number,
required for this application is determined in the following
table based on the concentration range of interest. Each
calibration cycle consumes approximately 25 mL. Each bottle
contains enough standard solution for approximately
20 calibrations.
Reagents Required
Reagent Kit: 2210REC contains both reagents. Two kits exist
2210RECLR (low range) and 2210RECHR (High range).
The analyzer requires two reagents, one cleaner and one
standard solution. All bottles are housed in the fluidics
enclosure compartment.
For proper operation: Ensure that the reagents are correctly
installed, the analyzer tubing is correctly routed in the pumps
and that the analyzer drain tube is connected to an
atmospheric drain. All of the reagents and standard vent
tubes need to exhaust to the outside of the enclosure, to
minimize the trapping of any vapors inside the enclosure.
DANGER
Handling chemical samples, standards,
and reagents can be dangerous.
Review the necessary Material Safety
Data Sheets and become familiar with
all safety procedures before handling
any chemicals.
CAUTION
REAGENT BOTTLES MUST BE KEPT
TIGHTLY CLOSED.
Observe all health and safety procedures
for handling chemicals. Wash any spillage
with Distilled water.
Allow enclosure to vent any trapped
fumes before servicing.
Air purge of enclosure is recommended.
EMPTY ALL REAGENTS BEFORE
SHUTTING UNIT DOWN.
CLNR
Range
selected
Standard
Conc.
Cat. No.
0-2 1 mg/L 2210AM001
0-10 5 mg/L 2210AM005
0-50 25 mg/L 2210AM025
50-500 250 mg/L 2210AM250

8 | Introduction Orion 2210AM Ammonia Analyzer
1. Connect sample to the analyzer and ensure that it is
flowing through the sample chamber by observing the
flow from the sample return line.
2. Turn the power ON to the instrument. After the booting
sequence (this may take several minutes), press STOP
and then MENU key.
3. Select SERVICES MENU option and then
PRIME FLUIDICS ➔AUTO PRIME ➔ENTER.
The instrument will go through a priming sequence of all the
available solution to the analyzer. Follow the startup
procedure described in Startup and Operation Section. You
may repeat the AUTO PRIME sequence as necessary to
purge out any trapped bubbles in the lines.
Reagent Consumption
The ammonia method requires two reagents (for extending
the range). The reagent usage depends on the frequency of
analysis and the range selected.
Based on 1 analyses per 2 hours, the reagents should last
approximately 45 days.

Orion 2210AM Ammonia Analyzer Installation Environmental Considerations | 9
Installation Environmental
Considerations
The instrument is designed for general-duty, indoor
installations. The electronics enclosure environmental rating is
NEMA 12 and the Fluidics enclosure is a NEMA 4X fiberglass
with a clear door window.
The Orion 2210AM Ammonia Analyzer should be installed in a
well-ventilated location, with ambient temperature between
5°C and 45°C (41°F to 113°F); and relative humidity not to
exceed 90% at 40°C. The area must be free from dust,
corrosive gases, vibration and shocks; sheltered from direct
sunlight, and shielded from dripping water. Power should be
instrument grade with over voltage protection, and a provision
for disconnecting power.
Mounting the Instrument
The instrument case is designed for wall or panel mounting.
Use four #10 screws or equivalent for proper support.
Refer to Figure 3 and Figure 4 for dimensions (in mm and
inches).
Make sure that the wall that you choose can support the
weight of the instrument (approximately 20 kg or 44 lbs.)
(See Figure 3).
Locate the instrument as close to the sampling point as
practical to ensure complete purging of the sample line
during each cycle.
Allow approximately 50 cm (20 in.) of clearance at the left
side for door swing. Also allow enough clearance on the
right side for wiring conduit.
Locate the analyzer height such that the display is at
eye-level height for an operator, allowing also for
appropriate sample and drain connections.
Figure 3. Mounting dimensions

10 | Installation Environmental Considerations Orion 2210AM Ammonia Analyzer
Figure 4. Typical external plumbing connections
Plumbing Connections
Sample inlet, sample return and drain connections are made
on the bottom side of the instrument. The sample inlet and
sample return fittings on the bottom of analyzer require ¼" OD
(6 mm OD) flexible tubing. The drain fitting at the bottom of
the analyzer requires ⅜" OD (9.6 mm OD) flexible tubing. The
air purge inlets require ¼" OD tubing. The air purge supply
must be filtered externally and free of oil and any other
particulates.
Figure 5. Internal tubing and tube routing
interconnections
Installing Peristaltic Pump Head
Tubing
Press the STOP key.
Disengage the U shape pressure plate of the pump head
assembly by pressing with two fingers and gently move
upside as shown in Figure 6.
Replace the old tube by sliding off the barbed fitting. If
necessary, clean the pump rollers.
Lubricate the tubing with a pea-sized quantity of silicone oil.
Fit the new tube and replace in the pressure plate. Note that
the pressure plate sides must click properly in the pump head
assembly and align on both sides.
Repeat above steps for all pumps.
You can test the pump under Diagnostics menu for proper
operation:
MENU ➔SERVICES ➔DIAGNOSTICS ➔PUMPS &
STIRRER
NOTES:
1. It is recommended that you install an
external sample shut off valve to allow
control while accessing or service to the
sample chamber.
2. Air purging of upper and lower
enclosures is recommended.
3. Each analyzer MUST have its own drain
tube vented to atmosphere.
4. The installation of a power circuit
breaker is highly recommended.
DANGER
The ⅜" (9.6 mm) DRAIN MUST BE
VENTED TO ATMOSPHERE. The
sample drain contains analysis wastes,
which include both sample and
chemical reagents. Please check with
local authorities concerning proper
disposal of waste from this product.
CLNR
NOTES:
The enclosure drain produces no waste
under normal use. However, in the event
of spills or leaks, some waste may be
produced.
The analyzer is shipped with all of the
internal tubing attached. Before
starting up the instrument, verify that the
tubing lines are secured.

Orion 2210AM Ammonia Analyzer Installation Environmental Considerations | 11
Figure 6. Installing peristaltic pump head tubing -
(Single channel)
Installing the Reagents
The analyzer reagents startup kit contains all the necessary
reagents for the specific application. The reagents and
calibration standards are supplied in ready-to-use bottles that
can be replaced directly onto the cap assemblies.
Follow the markings to install each solution into the respective
feed line in the analyzer.
Connecting Power to the
Analyzer
Only trained technical personnel should perform installation,
electrical wiring and maintenance of this product. Proper
handling is required to avoid ESD (ElectroStatic Discharge), as
the internal electronic components on the circuit boards can
be damaged by static electricity. It is recommended that
before touching any electronic components, (such as printed
circuit cards and the components on them) you should
discharge static electricity from your body. This can be
accomplished by touching an earth-grounded metal surface
such as the chassis of an instrument, metal conduit, or pipe.
The analyzer is equipped with a three terminal power
connector strip located in the electronics enclosure as shown
in Figure 8.
IT IS HIGHLY RECOMMENDED THAT PROVISIONS FOR AN
EXTERNAL CUSTOMER-SUPPLIED POWER SWITCH OR
BREAKER BOX (WITH COMPLETE CB SPECIFICATION),
CLEARLY MARKED FOR THE ANALYZER AND WITHIN
REACH OF THE USER, BE PROVIDED TO ALLOW
REMOVING POWER DURING SERVICE.
The analyzer has been designed to be hard-wired with
provisions for the AC power lines to be routed in conduit
pipes connecting to the ¾" FNPT hubs located on the left side
of the electronics enclosure. (See Figure 7).
When using line cords, use only certified power cords of
3 core, min 0.75 mm2 / 18 AWG, min. temperature of 75°C,
H05VV-F.
The power safety ground must be provided for proper
operation.
BEFORE MAKING ANY CONNECTIONS:
Make sure that the wires are not powered before
connecting to the instrument.
Disconnect any power previously connected to the relays.
Connect the Phase Hot or L (line), Earth and Neutral to the
terminal block. Note the location of the fuse.
Insert the wire into the terminal connector and make sure to
tighten the screw.
Route signal connections to the back hub, and power
connections separately to the front hub.
CAUTION
Operational safety and general precaution

12 | Installation Environmental Considerations Orion 2210AM Ammonia Analyzer
All connections must conform to local safety standards.

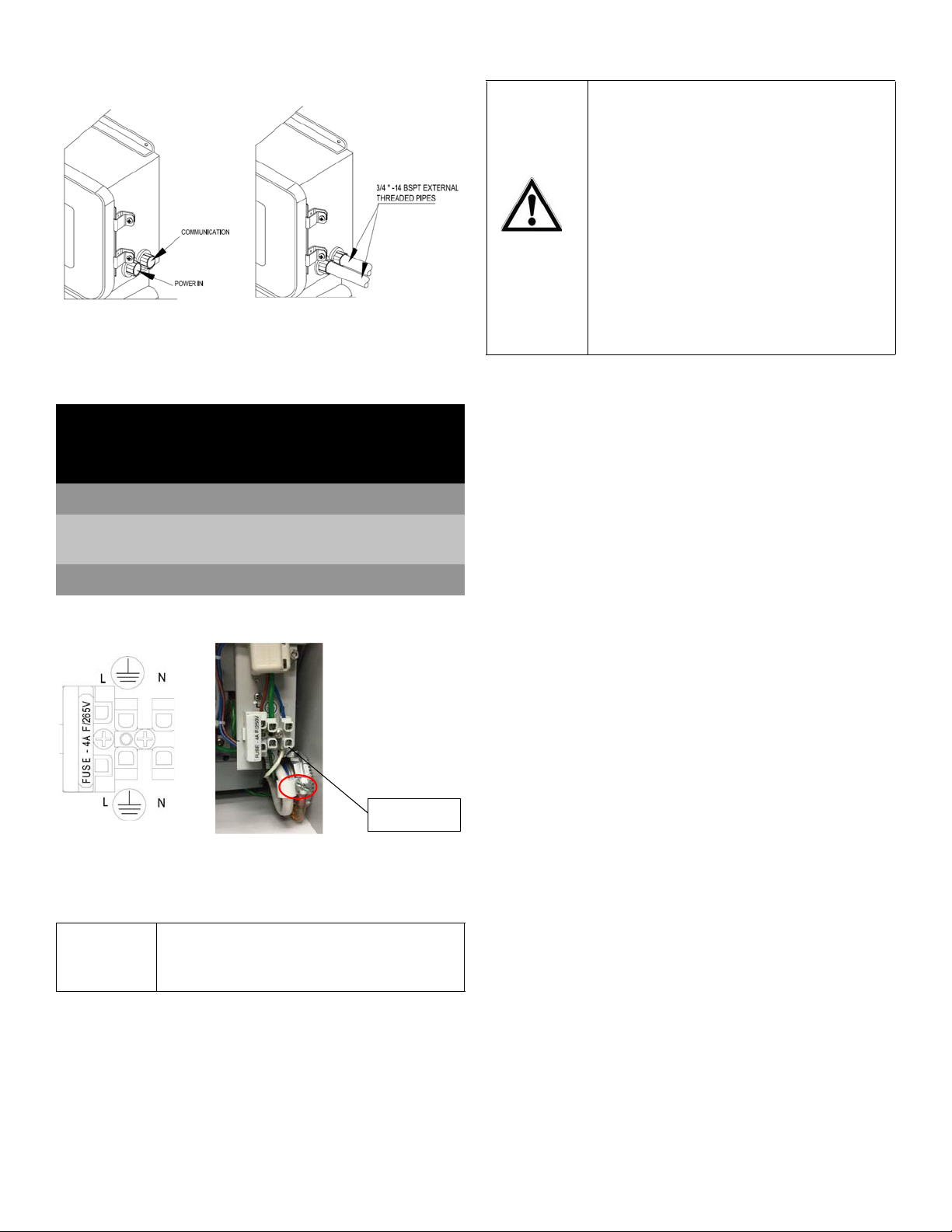

Figure 7. Electrical wiring ports
Figure 8. AC power connections
Analog Outputs Connections
The analyzer is equipped with two isolated analog outputs.
The analog outputs can be programmed to be any one of the
following: 0-20 mA or 4-20 mA or reverse acting i.e. 20–0 mA
or 20–4 mA. The range is also programmable and can be
scaled according to application needs.
The outputs have a common isolation from the main system
and can drive up to a 900 Ohms load.
Please refer to Figure 9, and Table 1, for signal terminal
connection detail.
Alarm Connections
The analyzer has five level sensor inputs that accept a dry
contact closure signal to indicate the state of the level
sensors. Input 5 is typically assigned for sample. The analyzer
is equipped with four relays that have voltage-free contacts.
Two contacts: Normally Open (NO) and Normally Closed (NC)
with a Common (C). The relay contacts are rated for use at a
maximum of 240 V and 2 A.
The terminal connectors accept wire gauge up to 14 AWG.
The terminal strip is located at the bottom of the electronics
cabinet (see Figure 9).
Table 1. AC power terminal wire connections.
Analyzer
Te r m i n a l
Destination
North
America Wire
Color
European
Wire Color
HOT or L ( Line) black brown
Protective Earth
Ground (PG) green green with yellow tracer
Neutral (n) white blue
NOTE:
When using a UL/CSA approved power
cord, loop cord through clip retainer as
shown in Figure 8 for proper strain relief.
AC POWER
CONNECTIONS
CAUTION
The analyzer is intended for use only
with single-phase power. The analyzer
is not equipped with a power switch,
therefore a circuit breaking device such
as a circuit breaker should conform to
local safety standards and must be fitted
before the final installation. The circuit
breaker must be in close proximity to the
analyzer and within reach of the user, and
must be marked clearly as the
disconnection device for the analyzer.
ALL CONDUCTORS NEED TO HAVE
MINIMUM INSULATION RATING OF
75°C.

Orion 2210AM Ammonia Analyzer Installation Environmental Considerations | 13
Table 2 shows the connector order and terminal designation.
Make sure no power is supplied to the instrument.
Strip the insulation on each wire back ¼".
Insert the wire ends through the uppermost opening below
the terminal screw and make sure that the stripped wire
ends are in the terminal, tighten the connector screws.

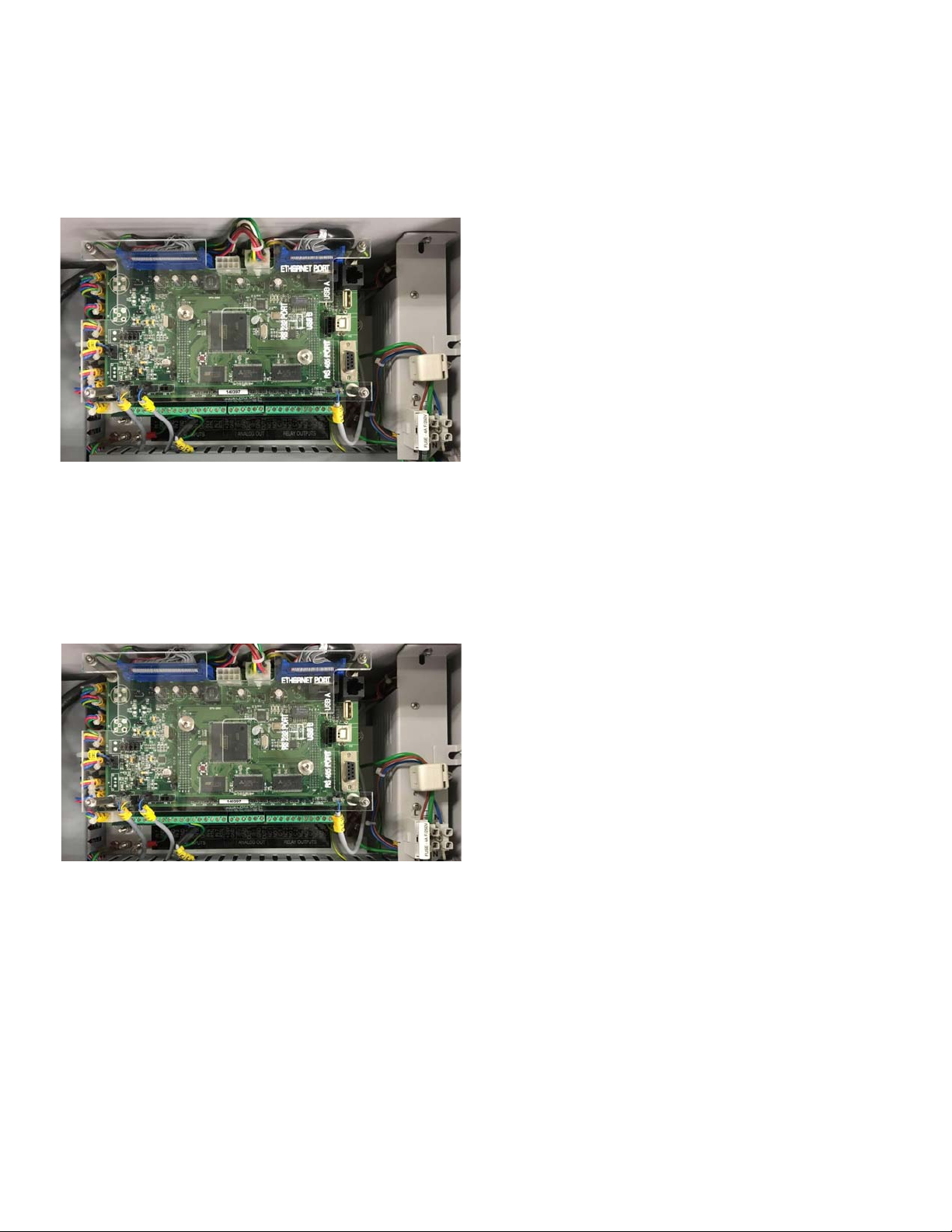

Figure 9. Terminal strips for analog and relay outputs
RELAY contacts are rated at: 250 V, 2 A AC 500 W
(non-inductive load).
All inputs (except IN 6 & 7) must be connected to
POTENTIAL FREE contacts.
Figure 10. Communication ports

14 | Installation Environmental Considerations Orion 2210AM Ammonia Analyzer
Table 2. Main terminal strip pin assignments.
Te r m i n a l
Number Designation Function
1IN1 Digital input 1 Live (Level sensor 1 live)
2 GND Digital input 1 ground (Level sensor 1 ground)
3IN2 Digital input 2 live (Level sensor 2 live)
4 GND Digital input 2 ground (Level sensor 2 ground)
5IN3 Digital input 3 live (Level sensor 3 live)
6 GND Digital input 3 ground (Level sensor 3 ground)
7IN4 Digital input 4 live (Level sensor 4 live)
8 GND Digital input 4 ground (Level sensor 4 ground)
9IN5 Digital input 5 live (Level sensor 5 live)
10 GND Digital input 5 ground (Level sensor 5 ground)
11 IN6 Digital input 6 live (External 1 control)
12 RTN Digital input 6 return (External 1 control return)
13 IN7 Digital input 7 live (External 2 control)
14 RTN Digital input 7 return (External 2 control return)
15 +24 V 24 V DC live (limited to 20 mA source)
16 GND 24 V DC ground
17 Earth Ground System earth ground
18 GND Analog output 1 ground
19 OUT1 Analog output 1 (900 Ohms Max)
20 Earth Ground System earth ground
21 GND Analog output 2 ground
22 OUT2 Analog output 2 (900 Ohms max)
23 NC1 Normally closed contact relay 1
24 NO1 Normally open contact relay 1
25 C1 Common contact relay 1
26 NC2 Normally closed contact relay 2
27 NO2 Normally open contact relay 2
28 C2 Common contact relay 2
29 NC3 Normally closed contact relay 3
30 NO3 Normally open contact relay 3
31 C3 Common contact relay 3
32 NC4 Normally closed contact relay 4
33 NO4 Normally open contact relay 4
34 C4 Common contact relay 4

Orion 2210AM Ammonia Analyzer Installation Environmental Considerations | 15

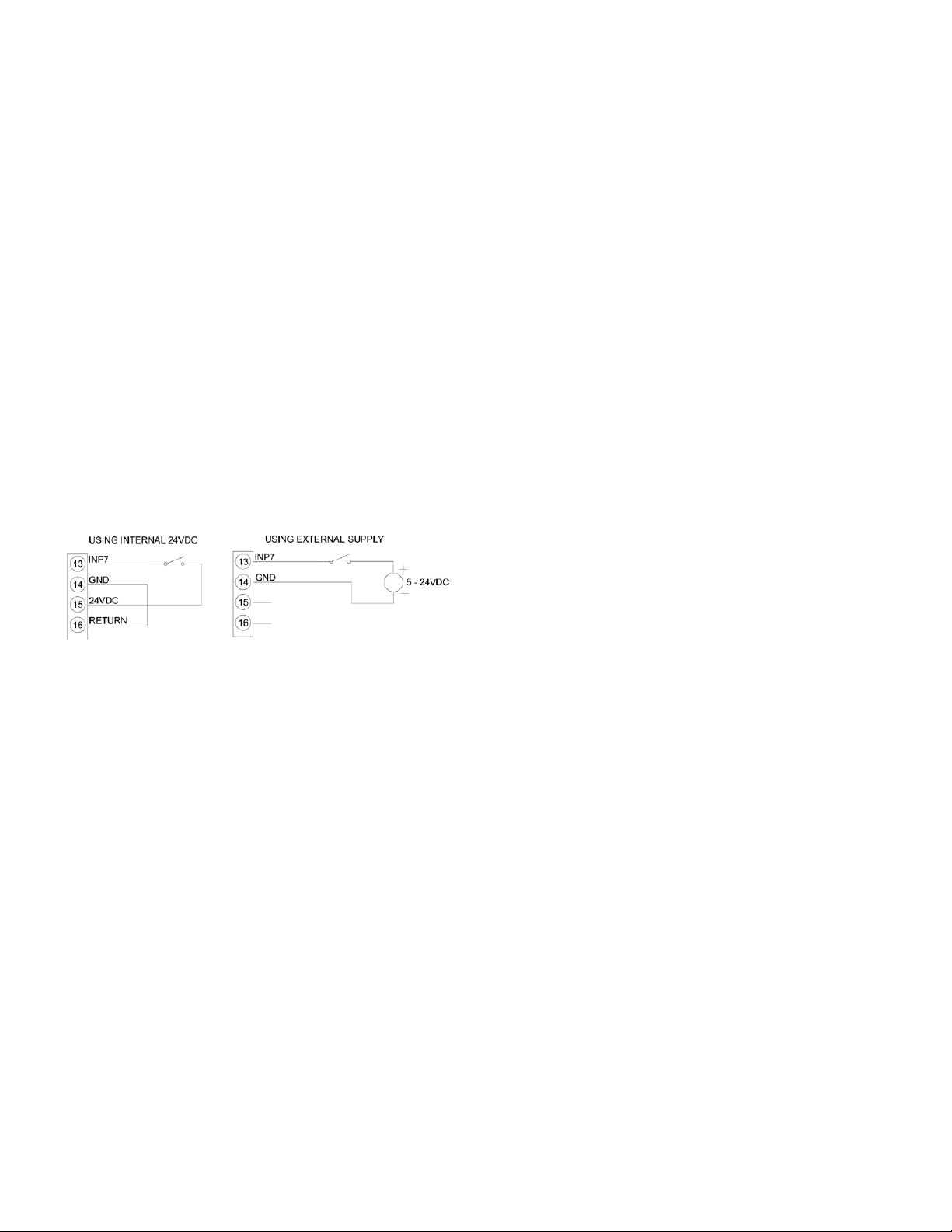

Inputs Signal Connections
The two inputs are assigned for external control commands.
Inputs 6 and 7 require a DC voltage between 5 and 24 Volts to
activate. A 24 V supply is available from the main terminal strip
pins 15 and 16 that can be used for activating the
external control inputs.
Digital CONTROL inputs:
Input 6 is assigned by default to RUN/STOP function with
Close/Open of a dry contact.
Input 7 is left unassigned by default.
Dry contact = voltage free contact.
The functionality along with the state of the enabling signal is
programmable by the user.
Communication Signal
Connections
The analyzer has two communication connectors located at
the right side in the upper cabinet. These connectors are the
Ethernet and USB A ports.
(See Figure 10). For connecting to them, use the
communication conduit hub port on the right side of the
instrument for wire entry.
Pin Signal
11 Digital input 6 live
12 Digital input 6 return
13 Digital input 7 live
14 Digital input 7 return
15 +24 V DC live
16 24 V DC ground
