Thermo Scientific Orion Star User manual

Thermo Scientific
Orion Star™and Star
Plus Meter User Guide
•English
•Español
•Français
•Deutsch
•Italiano

Ross and the COIL trade dress are trademarks of Thermo Fisher Scientific, Inc. and
its subsidiaries.
AQUAfast, AQUASensors, BOD AutoEZ, ionplus, KNIpHE, LogR, No Cal, ORION, perpHect,
PerpHecT, pHISA, pHuture, Pure Water, Sage, ROSS, ROSS Ultra, Sure-Flow, Titrator PLUS,
and TURBO2 are registered trademarks of Thermo Fisher Scientific, Inc. and its subsidiaries.
A+, All in One, Aplus, AUTO-BAR, AUTO-CAL, Auto-ID, AUTO-READ, AUTO-STIR, Auto-Test,
AutoTration, CISA, digital LogR, DuraProbe, EZ Startup, ISEasy, Low Maintenance Triode,
Minimum Stir Requirement, MSR, NISS, Optimum Results, Orion Dual Star, Orion Star, SAOB,
SMART AVERAGING, SMART STABILITY, Star LogR, Star Navigator 21, Stat Face, and Triode
are trademarks of Thermo Fisher Scientific, Inc. and its subsidiaries.
Guaranteed Success and The Technical Edge are service marks of Thermo Fisher Scientific,
Inc. and its subsidiaries.
© 2010 Thermo Fisher Scientific Inc. All rights reserved. All trademarks are the property
of Thermo Fisher Scientific, Inc. and its subsidiaries.
The specifications, descriptions, drawings, ordering information and part numbers within
this document are subject to change without notice.
This publication supersedes all previous publications on this subject.

Thermo Scientific Orion Star and Star Plus meters are designed for every
application, from basic portable measurements to advanced laboratory analysis.
This user guide contains information on the preparation, operation and
maintenance for the Orion Star and Star Plus meters.
English Page EN-1
Esta guía del usuario se presenta resumida para incluir los datos más importantes
en inglés, español, francés, alemán e italiano.
Para descargar la versión completa en el idioma de su elección, visite nuestro
sitio web en www.thermoscientific.com/water.
Ce guide d’utilisation a été abrégé de façon à inclure les informations les plus
pertinentes en anglais, espagnol, français, allemand et italien.
Pour télécharger une version complète dans votre langue, connectez-vous à notre
site www.thermoscientific.com/water.
Español Page ES-1
Français Page FR-1

Die vorliegende Kurzfassung der Bedienungsanleitung enthält die wichtigsten
Anweisungen auf Englisch, Spanisch, Französisch, Deutsch und Italienisch.
Die ausführliche Bedienungsanleitung ist in jeder dieser Sprachen zum Download
verfügbar. Besuchen Sie hierzu die Website www.thermoscientific.com/water.
La presente guida per l’utente è stata ridotta per includere i dettagli più
importanti in Inglese, Spagnolo, Francese, Tedesco e Italiano.
Per scaricare la versione completa nella Vostra lingua, visitate il nostro sito web
all’indirizzo www.thermoscientific.com/water.
Deutsch Page DE-1
Italiano Page IT-1

EN-IThermo Scientific Orion Star™and Star Plus Meter User Guide
Table of Contents
Chapter I Introduction
MeterFeatures....................................................EN-2
Chapter II Display
GeneralDescription................................................EN-3
Chapter III Keypad
GeneralDescription................................................EN-5

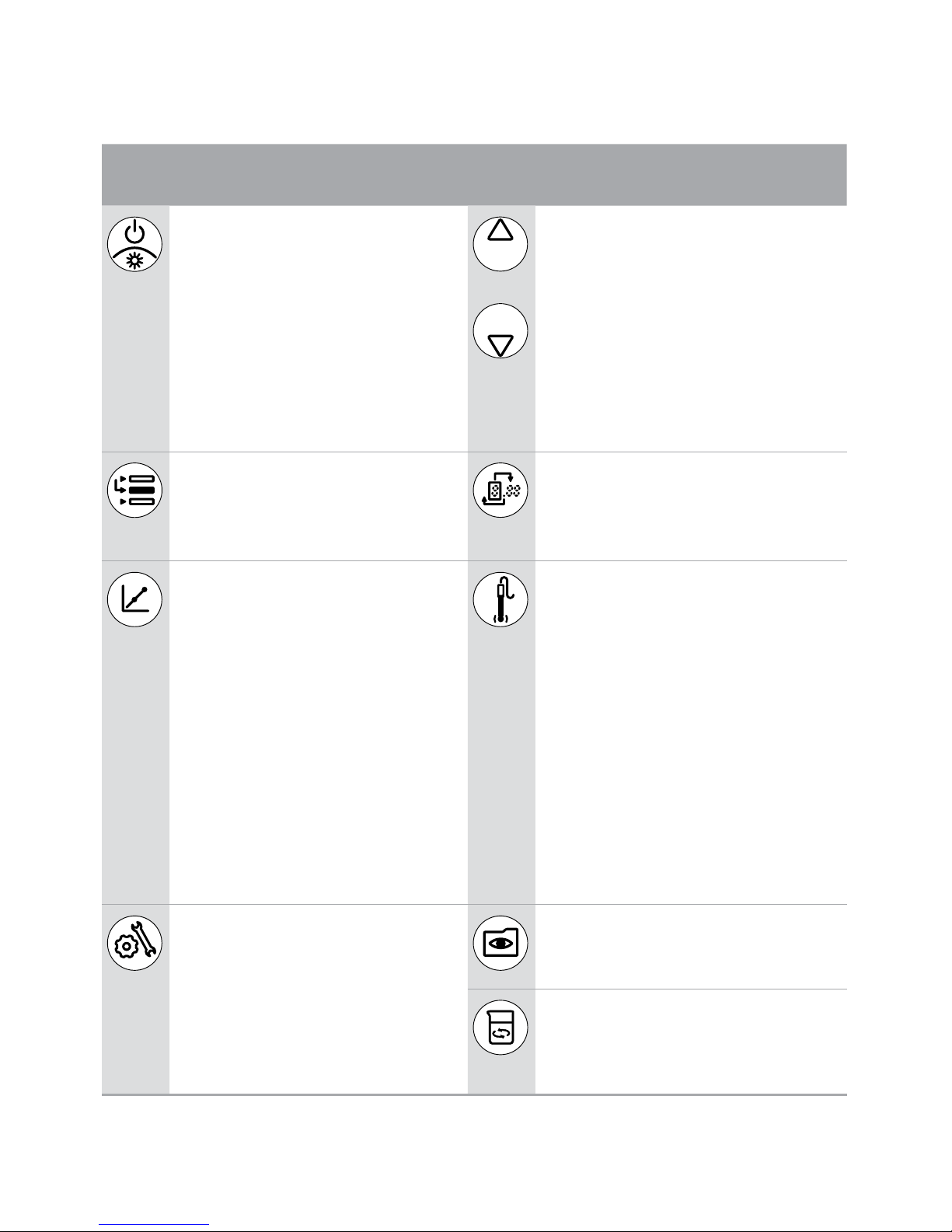

Key Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-6
Chapter IV Meter Preparation
InstallingthePowerAdapter..........................................EN-7

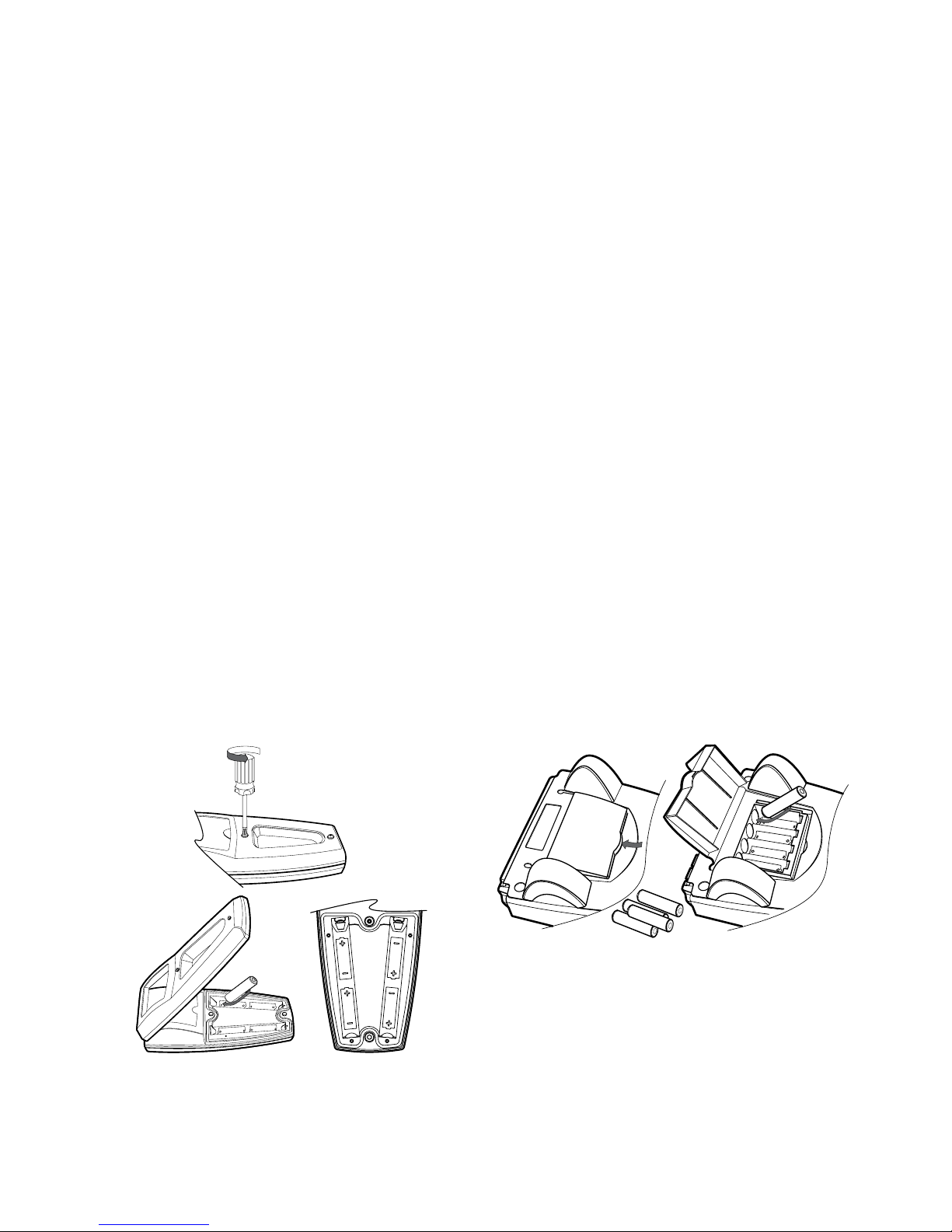

InstallingtheBatteries..............................................EN-8
ConnectingtheElectrodes...........................................EN-9
TurningontheInstrument ..........................................EN-10
MeterMaintenance...............................................EN-10
Chapter V Meter Setup
SetupMenu.....................................................EN-11
SetupMenuTable...............................................EN-12
GeneralMenuSettings.............................................EN-14
TimeandDateSettings ............................................EN-15
AUTO-READ™, Continuous or Timed Measurement Settings. . . . . . . . . . . . . . . .EN-16
Selecting the Measurement Parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-17
MethodSetup....................................................EN-18
Chapter VI pH Technique
pHSetupMenu ..................................................EN-19
pHCalibration....................................................EN-20
pHMeasurement.................................................EN-21
pH Temperature Display and Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-22
Chapter VII mV, Relative mV and ORP Technique
Relative mV and ORP Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-23
mV, Relative mV and ORP Measurement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-24
Chapter VIII Polarographic Dissolved Oxygen Technique
Polarographic Dissolved Oxygen Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-25
Polarographic Dissolved Oxygen Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-26
Polarographic Dissolved Oxygen Measurement. . . . . . . . . . . . . . . . . . . . . . . . . .EN-28
Polarographic Dissolved Oxygen Temperature Display and Calibration. . . . . . . . .EN-29
ENGLISH SECTION
E N

Thermo Scientific Orion Star™and Star Plus Meter User GuideEN-II
Chapter IX RDO®Optical Dissolved Oxygen Technique
OpticalCapOverview..............................................EN-31
RDO Optical Dissolved Oxygen Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-32
RDO Optical Dissolved Oxygen Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-35
RDO Optical Dissolved Oxygen Measurement . . . . . . . . . . . . . . . . . . . . . . . . . .EN-37
RDO Optical Dissolved Oxygen Temperature Display and Calibration . . . . . . . . .EN-38
Chapter X Conductivity Technique
ConductivitySetupMenu...........................................EN-39
ConductivityCalibration............................................EN-40
ConductivityMeasurement .........................................EN-42
ConductivityTemperature Display and Calibration . . . . . . . . . . . . . . . . . . . . . . . .EN-43
Chapter XI ISE Technique
ISESetupMenu..................................................EN-45
ISECalibration ...................................................EN-46
ISEMeasurement.................................................EN-47
ISE Temperature Display and Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-48
Chapter XII Data Archiving and Retrieval
DatalogandCalibrationLog.........................................EN-49
AutomaticDatalogFeature..........................................EN-49
DatalogDeletionSetting............................................EN-50
Viewing and Printing the Datalog and Calibration Log . . . . . . . . . . . . . . . . . . . . .EN-51
Chapter XIII Declaration of Conformity
DeclarationofConformity...........................................EN-53
WEEECompliance................................................EN-54
Chapter XIV Troubleshooting
MeterSelfTest...................................................EN-55
MeterErrorCodes................................................EN-56
GeneralTroubleshooting............................................EN-58
Chapter XV Meter Specifications
MeterSpecifications...............................................EN-61
OrderingInformation ..............................................EN-65
Appendix A Meter Setup Menu Features
pHSetupMenuFeatures...........................................EN-67
Dissolved Oxygen Setup Menu Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-67
ConductivitySetupMenuFeatures ...................................EN-68
ISESetupMenuFeatures...........................................EN-72
Appendix B Orion Star Plus Benchtop Meter and Autosampler Interfacing
MeterandAutosamplerSetup.......................................EN-73
Meter Preparation for Operating the Autosampler . . . . . . . . . . . . . . . . . . . . . . . .EN-74
MeterandAutosamplerOperation....................................EN-77
E N Table of Contents

EN-1Thermo Scientific Orion Star™and Star Plus Meter User Guide
Chapter I Introduction
Congratulations! You have selected an industry-leading Thermo Scientific Orion Star
or Star Plus series meter that is designed for electrochemistry measurements in the
field or in the laboratory.
• Orion 2-Star meters provide the single parameter measurement of pH.
• Orion 3-Star and Star Plus meters provide the single parameter measurement
of pH, dissolved oxygen, RDO®optical dissolved oxygen or conductivity.
• Orion 4-Star and Star Plus meters provide the dual parameter measurements
of pH/dissolved oxygen, pH/conductivity, pH/ISE (ion selective electrode)
or pH/RDO optical dissolved oxygen.
• Orion 5-Star and Star Plus meters provide the multi-parameter measurements
of pH/ISE/dissolved oxygen/conductivity, pH/dissolved oxygen/conductivity
or pH/RDO optical dissolved oxygen/conductivity.
All meters include a temperature measurement function. All meters
with pH measurement capability include a mV/relative mV/ORP function.
Built to meet the demands of busy, multiple user laboratory or plant environments,
all Orion Star and Star Plus series meters are microprocessor controlled, which
aids in the delivery of accurate and precise measurements. The waterproof portable
meters can even withstand submersion for short periods of time.
The 3-Star Plus, 4-Star Plus and 5-Star Plus meters have been enhanced to include
an increased number of datalog points, improved temperature displays and a new
temperature calibration mode for each measurement parameter. Benchtop 3-Star
Plus, 4-Star Plus and 5-Star Plus meters include autosampler capability and are
compatible with the AutoTration™-500 autosampler. Refer to the AutoTration-500
user guide for information on operating the Star Plus meters with the autosampler.
Note: Please read this user guide thoroughly before using your benchtop or
portable meter. Any use outside of these instructions may invalidate your warranty
and cause permanent damage to the meter.

Thermo Scientific Orion Star™and Star Plus Meter User GuideEN-2
Meter Features
To better meet the needs of users in environmental protection and control, food
and beverage, pharmaceutical and consumer product laboratories, the Orion Star
and Star Plus series meters include these key features:
• Password Protected Methods – The meter will save up to ten custom
measurements and calibrations for future reference. Password protection
of each method eliminates any tampering with methods as multiple users
access only the procedure most appropriate to their work.
• AUTO-READ™– The meter takes a measurement and automatically prints
or logs data when the reading becomes stable. The measurement is frozen
on the display until the user prompts the meter to take a new measurement.
• Stirrer Control – All 3-Star, 4-Star and 5-Star benchtop meters have a stirrer
control for the stirrer probe, Cat. No. 096019, and the AUTO-STIR™BOD probe
that eliminates the need for magnetic stir plates and stir bars.
• SMART STABILITY™and SMART AVERAGING™– Remove the guesswork
by automatically compensating for measurement conditions and optimizing the
meter response time.
• Display Backlight – All 3-Star, 4-Star and 5-Star meters include a display
backlight feature. When the meter is on, a quick press of will turn the
backlight on and off. When the meter is operating on battery power, the
backlight will automatically turn off after two minutes to conserve power.
When batteries are low, the backlight will no longer turn on.
• Automatic Shutoff – The meters will shut down after 20 minutes without
a keypress. This maximizes battery power on portable meters and benchtop
meters that are being run on battery power.
• Audible Signals – The meter will beep whenever a key is pressed, providing
immediate verification that the user’s input was received.
An easy-to-use reference guide, attached to each meter, supports daily meter use.
Introduction

EN-3Thermo Scientific Orion Star™and Star Plus Meter User Guide
Chapter II Display
General Description
Throughout a given process, the display on the Orion Star and Star Plus series
meters provides temperature and calibration data. The temperature appears in the
left, top corner of the display. The icon indicates that a calibration mode or
calibration setup menu is active. The man, 2, 4, 7, 9, 10, and 12 icons indicate
which pH buffers were saved after a pH calibration is performed. The setup icon
only appears when the meter is in setup mode. The icon indicates an error
condition and when it is displayed with the icon, a calibration alarm or electrode
quality issue exists. The icon indicates that the AUTO-READ measurement
mode is active and is discussed in greater detail in the Meter Setup section.
Temperature
Calibration
5 Star Meter
pH/ISE/ORP
Unit
Conductivity
Unit
DO Unit
This is the display of the 5-Star meter capable of multi-parameter measurements.
The single and dual parameter meters will have fewer measurement lines,
depending on the meter capabilities.
Note: In the measurement mode, the three main lines of data on the meter display
correspond to what is being measured.

Thermo Scientific Orion Star™and Star Plus Meter User GuideEN-4
Measurement Unit Icons
In the measurement mode, the arrow icon on the left side of the display screen
indicates the active line. Press to move the arrow icon to the desired line and
press / to scroll through the measurement unit icons associated with the
selected line. The measurement unit icons for the 5-Star multi-parameter meter are
shown below. The single and dual parameter meters will have fewer measurement
lines and icons, depending on the meter capabilities.
• The top line displays pH, mV, relative mV, ISE, or temperature.
• The middle line displays conductivity, TDS, salinity, resistivity, or temperature.
• The bottom line displays dissolved oxygen as % saturation, dissolved oxygen
as concentration, barometric pressure or temperature.
The units of measurement, which are displayed on the right side of the screen,
will flash until the reading is stable.
Note: If a measurement line is not needed, press to move the arrow
icon to the measurement line that is not needed and press / until the
measurement line is completely blank.
Display

EN-5Thermo Scientific Orion Star™and Star Plus Meter User Guide
Chapter III Keypad
General Description
The keypad layout is the same for all Orion Star and Star Plus series meters.
The portable and 2-Star benchtop meters have nine keys. The 3-Star, 4-Star and
5-Star benchtop meters have 10 keys due to the addition of the stir key – .
Stirrer (not on 2-Star)
Measure
Save/Print
View Log
Power/Backlight
Line Select
Digits
Setup
Calibrate
Benchtop Keypad
Scroll Up
Scroll Down
Power/Backlight Backlight
View Log
Measure
Save/Print
Scroll Up
Calibrate
Setup
Scroll Down
Digits
Portable Keypad
Line Select

Thermo Scientific Orion Star™and Star Plus Meter User GuideEN-6
Keypad
Key Definitions
Key Description Key Description
Turns the meter on, if the meter
is off.
Toggles the backlight on and off,
if the meter is on (3-Star, 4-Star
and 5-Star meters only).
If the meter is on, hold down
the key for about three seconds
to turn off the meter.
Changes the measurement
units of the selected line
in the measurement mode.
Changes the value on the
selected line in the setup,
methods and log view modes.
Edits the value of the flashing
digit for setup, password entry
and calibration modes.
Scrolls the arrow icon on left
of screen among the three
display lines, so the selected
line can be edited or calibrated.
Selects the next digit to edit and
moves the decimal point
for setup, password entry
and calibration modes.
Starts the calibration
for the selected line in the
measurement mode.
If the arrow icon points to
the top line and the displayed
units are pH, pressing the key
will start a pH calibration.
Each time the key is pressed in
the calibration mode, the meter
will accept the calibration point
and move to the next point
until the maximum number of
calibration points are reached.
Prints and logs a measurement
in the continuous or timed
measurement modes.
Prints, logs and freezes the
display when the reading
becomes stable in the AUTO-
READ measurement mode.
Exits the setup menu and
returns to measurement mode.
Accepts the calibration and
returns to measurement mode.
Enters the setup menu,
starting with selected line
in the measurement mode.
If the arrow icon points to
the top line and the displayed
units are ISE, pressing the key
will enter the ISE setup screen.
Enters the log view and
download menu.
Turns the stirrer on and off.

EN-7Thermo Scientific Orion Star™and Star Plus Meter User Guide
Chapter IV Meter Preparation
Installing the Power Adapter
The universal power adapter that is included with your benchtop meter is the only
power adapter recommended for use with this unit. The use of any other power
adapter will void your meter warranty. The external electrical power adapter is rated
to be operated at 100 to 240 VAC, 0.5 A, 50/60 Hz.
Based on your wall outlet, select one of the four plug plates provided and slide
it into the grooves on the adapter. A click will be heard when the plug is properly
in place.
Connect the output plug of the power adapter to the power input on the benchtop
meter. Refer to the diagram in the Connecting the Electrodes section.
Batteries can be installed in the benchtop Orion Star or Star Plus series meters,
so the meter setup settings are protected if the meter is disconnected from the
wall outlet or a brief power outage occurs.

Thermo Scientific Orion Star™and Star Plus Meter User GuideEN-8
Installing the Batteries
Orion Star and Star Plus series meters use four AA alkaline batteries. Do not use
lithium or rechargeable batteries. Improper installation of non-alkaline batteries
could create a hazard.
Note: For benchtop meters, the installation of batteries is not required if the unit
will always be connected to a power source via the universal power supply. For
portable meters, the batteries are supplied from the factory. To access the battery
compartment in portable meters, loosen the two screws in the back of the meter.
1. Confirm that the meter is off and gently place the meter upside down
on a clean, lint-free cloth to prevent scratching the display.
2. Remove the battery case cover.
3. Insert new batteries with the + side orientation as depicted in the battery
compartment housing.
4. Replace the battery case cover.
5. Stored data, calibrations and methods will remain in the meter’s nonvolatile
memory when the batteries are being replaced. However, the date and time
may need to be reset when the batteries are changed.
Meter Preparation

EN-9Thermo Scientific Orion Star™and Star Plus Meter User Guide
Connecting the Electrodes
Follow the diagrams below to correctly connect electrodes and probes to the meter.
The multi-parameter meter is depicted; single parameter and dual parameter meters
will have fewer connections, depending on the meter measurement capabilities.
Benchtop Meter Electrode Connections
Portable Meter Electrode Connections
RS232
BNC for
pH, ORP
or ISE
8 Pin MiniDIN
for Cond
or ATC 9 Pin
MiniDIN for
Dissolved
Oxygen
Meter Preparation
Stirrer Jack for
Stirrer Probe or
BOD AUTO-STIR
DO Probe
Reference
for
pH, ORP
or ISE
8 Pin MiniDIN
for Cond
or ATC
9 Pin
MiniDIN for
Dissolved
Oxygen
Ground
BNC for
pH, ORP
or ISE
Power
RS232

Thermo Scientific Orion Star™and Star Plus Meter User GuideEN-10
Meter Connections with Multiple Functions
• Use the BNC input to connect pH, ISE and ORP electrodes with a BNC
or waterproof BNC connector.
• Benchtop meters have a reference input that is used to connect a separate
reference electrode. Reference electrodes require an separate, appropriate
sensing electrode for measurements.
• The 970899WP dissolved oxygen probe can be used on the BNC input.
• Use the 8 pin miniDIN input for conductivity probes or for automatic temperature
compensation (ATC) probes.
• The DO AUTO-STIR probe uses the 9 pin miniDIN input and the stirrer jack.
• Connect a printer or computer to the RS232 input using the appropriate cable.
Turning on the Instrument
With the batteries installed in the portable meters and the power adapter attached
or the batteries installed in the benchtop meter, press to turn on the meter.
If using a 3-Star, 4-Star or 5-Star meter, press when the meter is powered on
to toggle the backlight on and off. When the benchtop meter is drawing line power,
the backlight will stay on until is pressed.
To turn off the meter, press and hold for about three seconds.
Meter Maintenance
For routine meter maintenance, dust and wipe the meter with a damp cloth.
If necessary, a warm water or a mild water-based detergent can be used.
Perform meter maintenance on a daily, weekly or monthly basis, as required
by the environment in which the meter is operated.
Immediately remove any spilled substance from the meter using the proper
cleaning procedure for the type of spill.
Meter Preparation

EN-11Thermo Scientific Orion Star™and Star Plus Meter User Guide
Chapter V Meter Setup
Setup Menu
To navigate the setup menu:
1. Press to enter the setup menu.
2. Press / until the desired setup option is displayed on the top line.
3. Press to move the arrow icon to the middle line.
4. Press / until the desired setup option is displayed on the middle line.
5. Press to move the arrow icon to the bottom line.
6. To scroll through a list of options on the bottom line, press / until the
desired option is displayed. To enter a numeric value for an option on the bottom
line, press / to adjust each digit and to move to the next digit.
For example, to change the pH measurement resolution press to scroll
from 0.01 to 0.001 on the bottom display line.
7. Press to move the arrow icon to the top line.
8. Repeat steps 2 through 7 to program a new setup option or press to exit
the setup menu and return to the measurement mode.
Note: Refer to Appendix A for a description of the special setup menu features.

Thermo Scientific Orion Star™and Star Plus Meter User GuideEN-12
Setup Menu Table
The following table is for the complete line of Orion Star and Star Plus meters.
Meters may not include all of the options listed in this table.
Top Line Middle Line Bottom Line Setup Menu Description (default setting, method specific)
PH rES 0.1, 0.01, 0.001 pH measurement resolution (0.01, yes)
PH bUF USA, EUr0 pH buffer set for automatic buffer recognition during calibration,
USA buffers are 1.68, 4.01, 7.00, 10.01, 12.46 and EUrO buffers
are 1.68, 4.01, 6.86, 9.18 (USA, yes)
ISE rES 1, 2, 3 ISE measurement resolution in significant figures (1, yes)
ISE UnIt m, mgL, PEr, PPb, n0nE ISE measurement units (PPb, yes)
ISE rAng L0w, HIgH ISE concentration range for calibration stability criteria (HIgH, yes)
ISE nLIn AUt0, 0FF ISE automatic blank correction for low-level calibration (AUt0, yes)
C0nd tC 0FF, LIn, nLF Conductivity temperature compensation type, LIn is for linear,
nLF is for non-linear pure water samples (LIn, yes)
C0nd C0EF 0.0 to 10.0 Conductivity temperature compensation coefficient in % change
in conductivity per °C, appears if LIn was selected for tC (2.1, yes)
C0nd tdSF 0.00 to 10.0 Conductivity TDS factor value (0.49, yes)
C0nd CELL 0.001 to 199.0 Conductivity default cell constant value for automatic conductivity
calibration mode (0.475, yes)
C0nd trEF 5, 10, 15, 20, 25 Conductivity reference temperature (25, yes)
C0nd tyPE Std, 1, 2, 3, 4, 5, 6, 7, USP Conductivity cell type and selectable range. Std is for standard,
USP is for planar, 1 through 7 for fixed ranges (Std, yes)
See the RDO Optical Dissolved Oxygen Setup Menu section for details on the RDO probe information menus.
d0 rES 0.1, 1 % sat DO % saturation measurement resolution (0.1, yes)
d0 rES 0.01, 0.1 mg/L DO mg/L measurement resolution (0.01, yes)
d0 bAr AUt0, mAn DO barometric pressure compensation type (AUt0, yes)
d0 PrES 450.0 to 850.0 DO manual barometric pressure compensation value, appears
if mAn was selected for bAr (760.0, yes)
d0 SAL AUt0, mAn DO salinity correction type (AUt0, yes)
d0 SALF 0 to 45 DO manual salinity correction value, appears if mAn was selected
for SAL or a DO meter without a conductivity mode is used (0, yes)
d0 CALt AIr, H20, mAn, SEt0 DO calibration type (AIr, yes)
d0 LIFE 365 to 0 Optical cap replacement countdown in days – 3, 4 and 5 Star Plus
RDO meters only (Set by RDO probe, no)
dUE PH 0 to 9999 pH calibration alarm value in hours, 0 is off (0, yes)
dUE 0rP 0 to 9999 ORP calibration alarm value in hours, 0 is off (0, yes)
dUE ISE 0 to 9999 ISE calibration alarm value in hours, 0 is off (0, yes)
dUE C0nd 0 to 9999 Conductivity calibration alarm value in hours, 0 is off (0, yes)
dUE d0 0 to 9999 DO calibration alarm value in hours, 0 is off (0, yes)
Meter Setup

EN-13Thermo Scientific Orion Star™and Star Plus Meter User Guide
Top Line Middle Line Bottom Line Setup Menu Description (default setting, method specific)
rEAd tyPE AUt0, tImE, C0nt, Measurement read type as AUTO-READ, timed or continuous
(AUt0, yes)
rEAd tInE 00:05 to 99:59 Timed measurement value in minutes and seconds (01:00, yes)
Note: This submenu is only available when the timed
measurement read type is selected.
L0g dEL n0, YES Delete datalog after download option, select YES to delete the
datalog when it is downloaded or select nO to overwrite the oldest
data when the datalog is full and not delete the datalog when
it is downloaded (n0, yes)
L0g AUt0 0FF, 0n Automatic datalog point saving option (0FF, yes)
gEn dEgC -5.0 to 105 Manual temperature value (25.0, yes)
gEn StIr 0FF, 1, 2, 3, 4, 5, 6, 7 Stirrer speed – 3, 4 and 5 Star benchtop meters only (4, yes)
gEn PASS 0000 to 9999 Meter password entry (0000, yes)
gEn AUt0 0n, 0FF Automatic meter shutoff option (0n, no)
gLP SEt 0FF, 0n GLP option, GLP feature enables or disables methods (0FF, no)
dAtE H0Ur HH00 to HH23 Hour setting (HH12, no)
dAtE tInE mm00 to mm59 Minute setting (mm00, no)
dAtE tYPE mdY, dmY Date format as month, day, year or day, month, year (mdY, no)
dAtE YEAr 2000 to 2099 Year setting (2004, no)
dAtE dAtE mm01 to mm12 Month setting (mm01, no)
dAtE dAY dd01 to dd31 Day of the month setting (dd01, no)
r232 bAUd 1200, 2400, 4800, 9600 Baud rate setting (9600, no)
r232 0UtF Prnt, C0mP Output format for printer or computer, COmP format is comma
delimited (Prnt, no)
AUt0 SAPL 0FF, 0n Autosampler – 3, 4 and 5 Star Plus benchtop meters only (OFF, no)
AUt0 trAY 28, 48 Beaker tray setting (28, no)
AUt0 rInb 1, 2, 3, 4, 5 Number of rinse beakers (3, no)
AUt0 rSEC 5 to 60 Rinse time in each rinse beaker, seconds (10, no)
AUt0 PH 0, 1, 2, 3 pH calibration points (3, no)
AUt0 0rP n0, YES ORP calibration option, appears if 0 was selected for PH (n0, no)
AUt0 ISE 0, 2, 3 ISE calibration points, appears if 0 was selected for PH (2, no)
1 AUt0 ISE1 Concentration value of ISE standard 1, appears if 2 or 3 was
selected for the ISE calibration points (1, no)
10 AUt0 ISE2 Concentration value of ISE standard 1, appears if 2 or 3 was
selected for the ISE calibration points (10, no)
100 AUt0 ISE3 Concentration value of ISE standard 1, appears if 3 was selected
for the ISE calibration points (100, no)
AUt0 C0nd 0, 1, 2, 3 Conductivity calibration points (3, no)
AUt0 n0SA 0 to 47 Number of sample beakers (1, no)
Meter Setup

Thermo Scientific Orion Star™and Star Plus Meter User GuideEN-14
General Menu Settings
• Manual Temperature controls temperature compensation
when no temperature probe is attached to the meter.
• Stirrer Speed sets the stirrer speed from 1 (slowest)
through 7 (fastest) and off (3-Star, 4-Star and 5-Star
benchtop meters only).
• Password Protection protects setup menu options and
methods from being accidentally erased or tampered with
(3-Star, 4-Star and 5-Star meters only).
• Automatic Shutoff controls whether the instrument will
automatically turn off after 20 minutes without a keypress.
1. In the measurement mode, press .
2. Press / to scroll through the setup menu until is displayed
on the top line.
3. Press to accept the selection and move the arrow icon to the middle line.
4. Press / to scroll through for the manual temperature setting,
for the stirrer speed setting, for password entry and for
the automatic shutoff setting.
5. Press to accept the selection and move the arrow icon to the bottom line.
6. To scroll through a list of options on the bottom line, press / until the
desired option is displayed. To enter a numeric value for an option on the bottom
line, press / to adjust each digit and to move to the next digit.
7. Press to accept the selection and move the arrow icon to the top line.
8. Repeat steps 3 through 7 to change another general setting or press
to return to the measurement mode.
Meter Setup
