Thermo Scientific Orion Lab Star DO113 User manual

Operations Manual Electrochemistry Meters
68X002224 | Revision 01 | June 2022
Orion Lab Star DO113 Dissolved
Oxygen Meter User Manual

Table of Contents
Chapter 1 ................................................................6
Introduction ....................................................6
1.1 Intended Use........................................6
1.1.1 Intended Use .............................................6
1.1.2 Non-Intended Use .....................................6
1.1.3 Safety ........................................................6
1.1.4 Power Connection .....................................6
1.2 Cleaning Instructions (Meter Only).........6
Chapter 2 ................................................................7
Getting Started ...............................................7
2.1 Electrode Holder Installation .................7
2.2 Universal Power Supply Assembly ........8
2.3 Keypad Functions ................................9
2.3.1 Setup Menu Scrolling.................................9
2.3.2 Setup Menu Value Changes.......................9
2.3.3 Mode Shortcut Key....................................9
2.3.4 Date and Time View Shortcut Key..............9
2.4 Display Overview ................................10
2.5 Meter Connections.............................11
2.6 Electrode Information .........................11
2.7 Meter Startup Sequence.....................11
Chapter 3 ..............................................................12
Setup Menu..................................................12
3.1 Setup Menu Overview ........................12
3.2 Setup Menu Items ..............................13
3.2.1 View Logs................................................13
3.2.1a Viewing the Data Log...........................13
3.2.1b Viewing the Calibration Log..................14
3.2.2 Log Export Type ......................................15
3.2.3 Export All Logs ........................................15
3.2.4 Temperature Calibration or Manual
Temperature Input ............................................16

3.2.4a Temperature Calibration.......................16
3.2.4b Manual Temperature Input...................16
3.2.5 Measure Mode ........................................17
3.2.6 DO Resolution .........................................17
3.2.7 Barometric Pressure Units .......................18
3.2.8 Barometric Pressure Value.......................18
3.2.9 Salinity Value............................................19
3.2.10 Read Type .............................................19
3.2.11 Timed Interval ........................................20
3.2.12 Calibration Due Alarm ............................20
3.2.13 Temperature Units .................................21
3.2.14 Set Date Format ....................................21
3.2.15 Set Date Value.......................................22
3.2.16 Set Time Value.......................................23
3.2.17 Audio Mode...........................................23
3.2.18 Sleep Mode ...........................................24
3.2.19 Clear Data .............................................24
3.2.20 Factory Reset ........................................25
Chapter 4 ..............................................................26
Calibration ....................................................26
4.1 DO Calibration....................................26
4.1.1 DO Calibration Overview ..........................26
4.1.2 DO Cal. Procedure for 100% Saturation...26
4.1.3 DO Cal. Procedure for 0% Saturation.......27
4.1.4 DO Cal. Procedure for Concentration.......27
4.1.5 DO Calibration Example ...........................28
4.2 Temperature Calibration .....................29
Chapter 5 ..............................................................30
Measurements..............................................30
5.1 Read Types........................................30
5.1.1 Continuous ..............................................30
5.1.2 Auto-Read...............................................30
5.1.3 Timed ......................................................30
5.2 DO Measurements .............................30
5.3 Data Viewing ......................................31
5.4 Data Exporting ...................................31

5.4.1 USB Computer Cable Interfacing .............31
5.4.2 Remote Commands.................................32
5.5 Software Update Procedure ...............33
Chapter 6 ..............................................................34
Troubleshooting............................................34
6.1 Meter Troubleshooting........................34
6.2 Measurement Troubleshooting ...........34
6.3 Technical Support ..............................34
Chapter 7 ..............................................................35
Meter Info .....................................................35
7.1 Meter Specifications ...........................35
7.2 Meter Dimensions ..............................36
7.3 Warranty ............................................36
7.3.1 Return of Items ........................................36
Chapter 8 ..............................................................37
Regulatory Compliance.................................37
8.1 European Union .................................37
8.2 Product Safety ...................................37
8.3 Electromagnetic Compatibility.............37
8.3.1 FCC Statement (USA) ..............................37
8.4 Canadian ISED IC Notice....................37
8.5 Environmental Compliance .................37
8.5.1 REACH - Europe ...................................37
8.5.2 RoHS - Europe ......................................37
8.6 WEEE Compliance .............................38
Chapter 9 ..............................................................39
Ordering Info.................................................39
9.1 Meter Ordering Information.................39
9.2 Electrode and Solution Ordering Info...39

6 Chapter 1 | Introduction
Chapter 1
Introduction
Thank you for purchasing the Thermo Scientific™Orion™
Lab Star DO113 dissolved oxygen bench meter. The Orion
Lab Star series meters are designed to provide the
important functions needed for routine measurements with
simplified, convenient, easy-to-use functionality.
The Orion Lab Star DO113 dissolved oxygen meters are
capable of measuring dissolved oxygen as % saturation or
concentration in mg/L or ppm simultaneously with
temperature. These meters offer a large, backlit display for
clear viewing with small footprint to conserve laboratory
bench space.
Ensure important data is preserved with a 500-point data
log with date/time stamp that can also be exported to a
printer or computer using the meter communication port.
All Orion Lab Star DO113 dissolved oxygen meters include
a meter-attached electrode holder and universal 100-240V
power adapter with wall plugs for US/Japan, Euro,
UK/Singapore, Australia/New Zealand and China.
Additional meter accessories can be viewed at
www.thermofisher.com/electrochemistry.
1.1 Intended Use
1.1.1 Intended Use
This device is a bench laboratory meter intended for use in
a typical, indoor, controlled, laboratory environment. This
device should only be used for analytical testing in
accordance with these instructions.
1.1.2 Non-Intended Use
This device is not a Medical Device. It is not intended to be
used to diagnose, treat, cure, or prevent disease.
1.1.3 Safety
CAUTION: This symbol, in the context of
a CAUTION, indicates a potentially
hazardous situation which if not avoided
could result in minor to moderate injury or
damage to the equipment.
Note: This symbol, in the context of a
Note, indicates to follow the manufacturer
specified instructions, notes and
requirements set out in the instruction
manuals.
CAUTION: Before using or maintaining
this product, please be sure to read the
manual carefully. Failure to follow these
instructions may cause the product to
malfunction.
CAUTION: Use this product only in the
way described in the product literature
and in this manual. Before using it, verify
that this product is suitable for its
intended use. If the product is used in a
manner not specified by the manufacturer,
the protection provided by the product
may be impaired.
CAUTION: Do not modify system
components. Use OEM exact
replacement equipment or parts. Before
use, confirm that the product has not
been altered in any way.
Note: Unauthorized repair of your meter
will invalidate the warranty. For additional
information, contact Technical Support at
1-800-225-1480, [phone] or
[e-mail].
1.1.4 Power Connection
See the Universal Power Supply Assembly section for
complete instructions on assembling and installing the
included meter power supply.
Note: Position the meter so the operator
can access the power connection and
unplug the power adapter in the event of
a fault so the hazard of electrocution can
be removed.
1.2 Cleaning Instructions
(Meter Only)
Wipe the exterior surfaces (except the display panel) using
a lint free cloth dampened in clean water.
Wipe the display panel with a clean microfiber cloth, taking
care to wipe lightly to avoid scratching the meter display.
The meter keypad can also be cleaned using a clean
microfiber cloth dampened with IPA (isopropyl alcohol) for
disinfection purposes.

Orion Lab Star DO113 Dissolved Oxygen Meter 7
Chapter 2
Getting Started
2.1 Electrode Holder
Installation
The meter-attached electrode holder (Catalog Number
LSTAR-ARM) can be installed on either side of the meter.
Unpack the base plate and stand with electrode
holder from the meter box.
Turn the meter over, with the meter display facing
down, on a clean dry surface.
Identify the side of the meter that the holder will be
installed on and remove the screw between the
circles on that side of the meter.
Align the base plate of the holder with the circles on
the meter.
Replace the screw from step 3 to attach the base
plate to the meter.
Turn the meter over, with meter display facing up.
Insert the stand with electrode holder into the metal
post on the base plate.
Place the electrodes into the electrode holder. The
recommended electrode diameter for each slot is
shown on the holder.

8 Chapter 2 | Getting Started
2.2 Universal Power
Supply Assembly
A universal power adapter (Catalog Number LSTAR-PWR)
with US/Japan, Euro, UK/Singapore, Australia/New
Zealand and China wall plug plates is included with the
meter. This universal power adapter is specifically for use
with this meter. Use of other power adapters can damage
the meter and will void the warranty.
Note: The power adapter plug has two prongs that allow
the power adapter to be locked onto the meter. These two
prongs must be properly aligned when connecting it to
ensure it is fully connected and locked onto the meter.

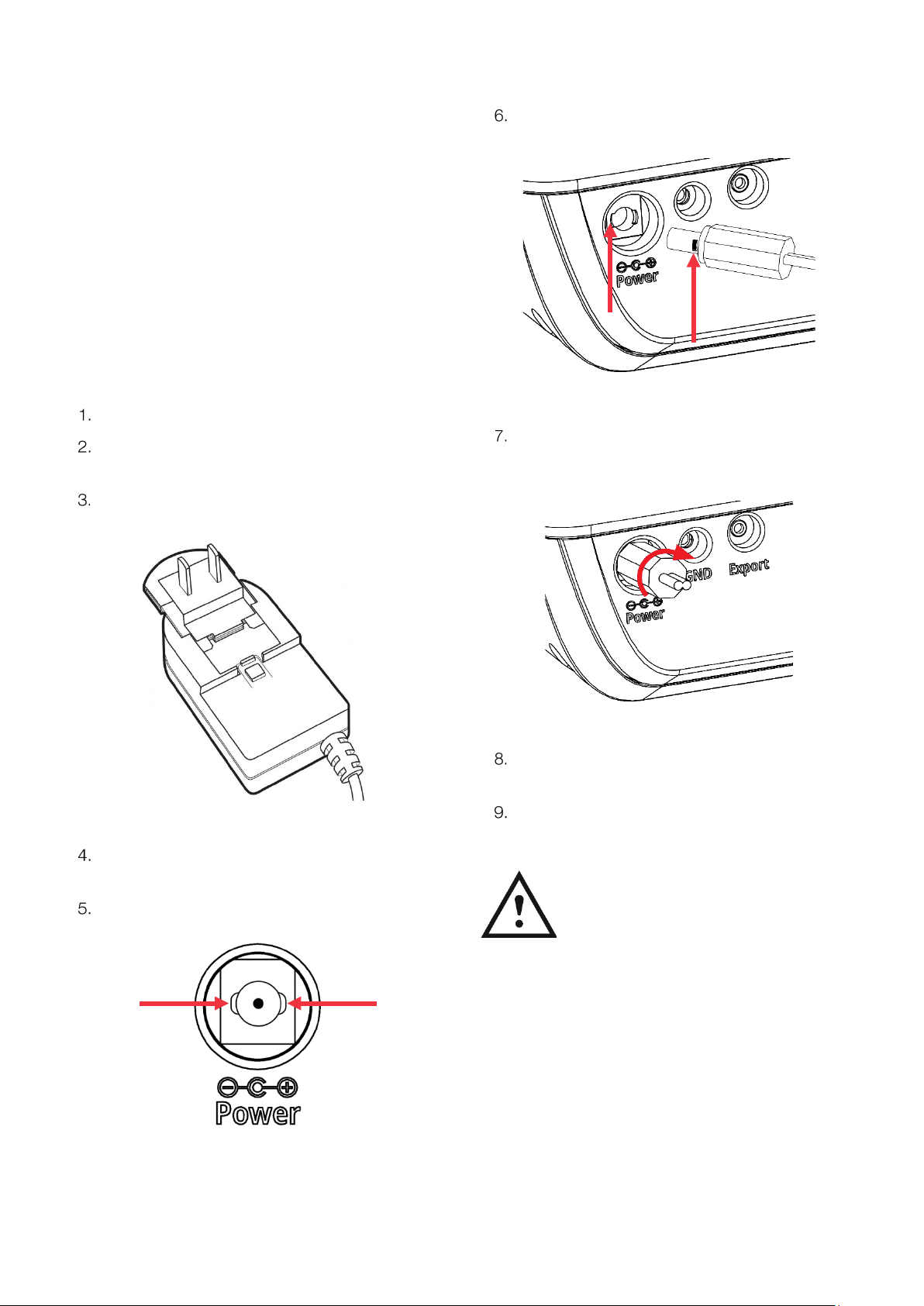

Unpack the power supply provided with the meter.
Select the appropriate wall plug plate for the power
outlet that will be used.
Slide the appropriate wall plug plate into the groove
on the back of the power adapter.
Connect the assembled power adapter to the meter
input.
Locate the two slots on the meter power input.
Align the two tabs on the power adapter connector
with the two slots on the meter power input.
Insert the power adapter connector into the meter
power input and twist clockwise to lock the
connection.
Connect the assembled power adapter to a power
outlet.
You are now ready to turn on the meter.
CAUTION: Use of a surge protector or
uninterrupted power supply (UPS) is
recommended, as an unintended power
surge of electricity to the meter may
damage the meter and void the warranty.

Orion Lab Star DO113 Dissolved Oxygen Meter 9
2.3 Keypad Functions
Key
Function
In Auto-Read measure mode, press to start a
new reading.
Press to escape the Setup Menu and
Calibration mode without saving changes.
In Continuous measure mode, press to save
the reading to the data log and export to an
external device if one is connected.
Press to enter the Setup Menu.
Press to exit the Setup Menu.
Press to enter the Calibration mode.
Press to exit the Calibration mode.
Press to scroll through menu items in the
Setup Menu; the list is cyclical.
In the Measure mode, press and hold (long
press) for three seconds as a shortcut key to
change the measure type from DO as %
saturation to concentration in mg/L to
concentration in ppm.
Press to change a setting in the Setup Menu.
Press to scroll through a list or change a
numeric value.
In the Calibration mode, press to manually
change the calibration value.
In the Measure mode, press and hold (long
press) for three seconds as a shortcut key to
view current date and time setting.
Press to save a setting in the Setup Menu.
Press to accept a calibration in the Calibration
mode.
Press to power on the meter. When the meter
is on, press to turn the backlight off or on.
When the meter is on, press and hold for
three seconds to power off the meter.
2.3.1 Setup Menu Scrolling
To scroll through the Setup Menu list:
•Press the “Menu” key to enter the Setup Menu.
•The first Setup Menu item will always be show.
•Press the key to scroll to the second item or
press the key to scroll to the last item.
•The item list is cyclical and will scroll from the last
item to the first item as the key is pressed.
2.3.2 Setup Menu Value Changes
For all numeric value changes, press the or key to
edit a value:
•Press the key once to increase the value by one
least significant digit/unit.
•Press the key once to decrease the value by one
least significant digit/unit.
•Press and hold the key to quickly increase the
numeric value.
•Press and hold the key to quickly decrease the
numeric value.
2.3.3 Mode Shortcut Key
In the main measure mode, press and hold (long press) the
or key for approximately three seconds to change the
main measure mode to dissolved oxygen as % saturation,
concentration in mg/L or concentration in ppm.
2.3.4 Date and Time View
Shortcut Key
In the main measure mode, press and hold (long press) the
or key for approximately three seconds to view the
current date and time settings.

10 Chapter 2 | Getting Started

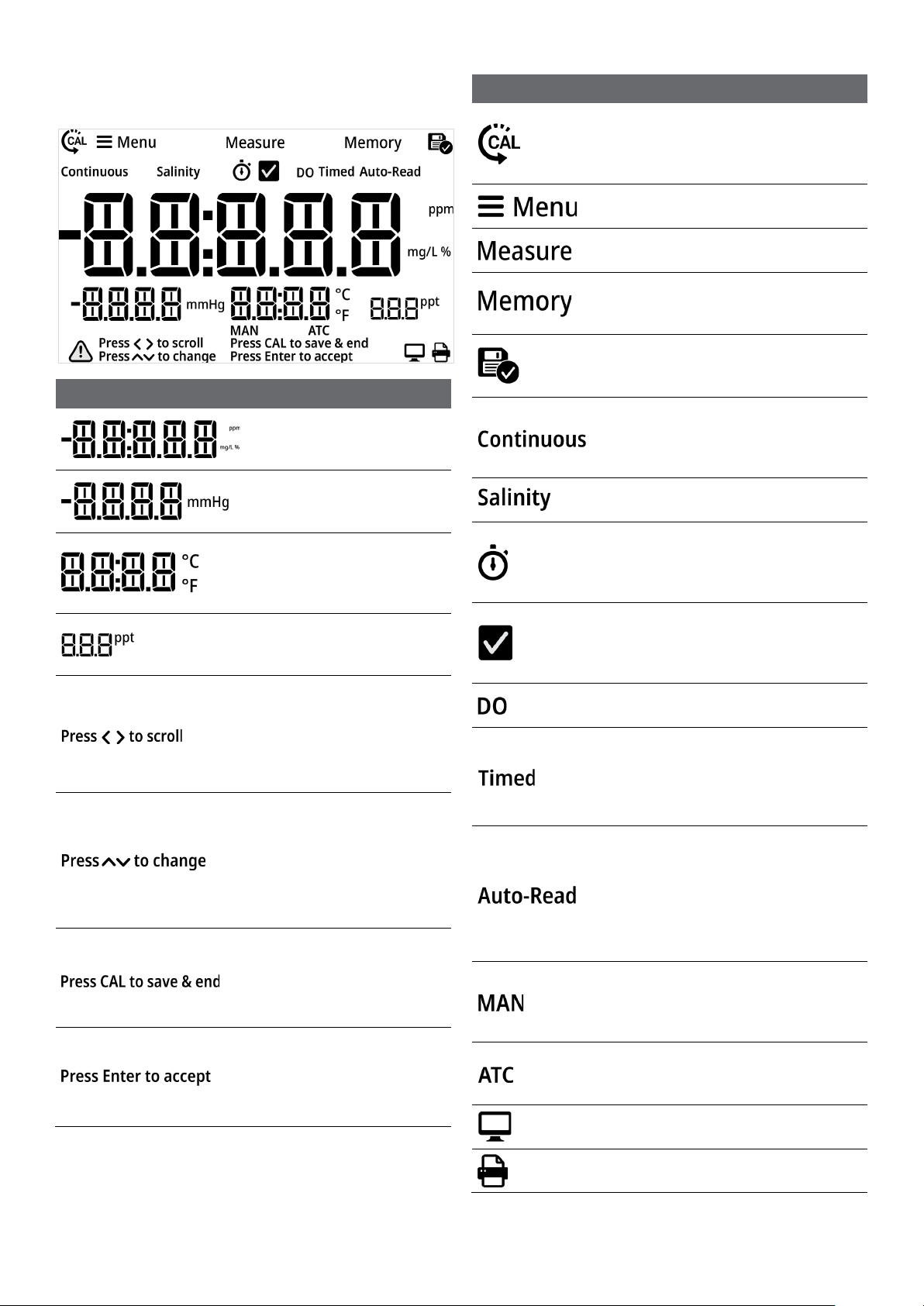

2.4 Display Overview
Icon
Description
Main Measurement Field:
Displays dissolved oxygen
readings in Measure mode.
2nd Measurement Field:
Displays barometric
pressure in Measure mode.
3rd Measurement Field:
Displays temperature value
as °C or °F in Measure
mode.
4th Measurement Field:
Displays salinity value in
Measure mode.
Press to scroll Icon:
On-screen text prompt
shown when keys can be
used to scroll through a list;
for example, scroll through
list of Setup Menu options.
Press to change Icon:
On-screen text prompt
shown when keys can be
used to change a value; for
example, to change the
temperature value in the
Setup Menu.
Press CAL to save & end
Icon:
On-screen text prompt
shown when in calibration
mode and calibration can be
saved and ended.
Press Enter to accept Icon:
On-screen text prompt
shown when changes must
be saved by pressing the
“Enter” key on the keypad.
Icon
Description
Calibration Icon: Indicates meter is in
the calibration mode; also shown with
the Setup Menu Icon and Memory Icon
when viewing the calibration log.
Setup Menu Icon: Indicates meter is in
the Setup Menu mode.
Measure Icon: Indicates meter is in the
Measure mode.
Memory Icon: Indicates meter is in the
Setup Menu and viewing the data log or
calibration log.
Log Saved Icon: Indicates meter is
actively saving data to the data log or
calibration log.
Continuous Icon: Indicates the current
meter read type is Continuous and
measurement values are continuously
updated on the display.
Salinity Icon: Indicates the salinity value
of the sample is being entered.
Stopwatch Icon: Indicates stability
criteria for current measurement is
stabilizing/not ready and meter is
actively reading.
Checkmark Icon: Indicates stability
criteria for current measurement is
stable/ready and meter has determined
the measurement is complete.
DO Icon: Indicates main measure mode
is dissolved oxygen
Timed Icon: Indicates the current meter
read type is Timed, measurement
values are continuously updated on the
display and logged/exported according
to the selected time intervals.
Auto-Read Icon: Indicates the current
meter read type is Auto-Read,
measurement value is updated on the
display until stable and then
measurement is logged/exported and
locked on display until the “Measure”
key is pressed again.
MAN Icon: Indicates no temperature
probe is connected to the meter, use
the Setup Menu to enter the sample
temperature.
ATC Icon: Indicates a temperature
probe is connected to the meter and
actively sending temperature readings.
Computer Export Icon: Indicates meter
is actively exporting data to a computer.
Printer Export Icon: Indicates meter is
actively exporting data to a printer.

Orion Lab Star DO113 Dissolved Oxygen Meter 11
2.5 Meter Connections
Input
Function
Power
Universal power supply
GND Ground
Export Connection to printer or computer
MiniDIN Connection to dissolved oxygen electrode
2.6 Electrode Information
The Orion Lab Star DO113 dissolved oxygen meter is
compatible with polarographic dissolved oxygen electrodes
with a MiniDIN connector. The Orion Lab Star DO113
dissolved oxygen meter can be purchased in a meter only
configuration (purchase electrode separately) or kitted with
a dissolved oxygen electrode.
Refer to the electrode instructions for specific care and
maintenance procedures. The following are general
recommendations for electrode preparation.
Remove the packaging from the electrode and save
for storage.
Unscrew the membrane cap from the electrode.
Rinse the inside and outside of the cap with distilled
or deionized water and blot dry.
Rinse the anode/cathode of the electrode with
distilled or deionized water and blot dry.
Fill the membrane cap about ¾ full with fresh
polarographic electrolyte solution.
Screw the membrane cap onto the electrode until
the cap is hand-tight.
Polarize the dissolved oxygen electrode. The
electrode must be polarized before use.
To polarize a new electrode, attach the electrode to
the meter, connect the meter to a power supply,
and wait 30 to 60 minutes.
The electrode is continuously polarized when it is
connected to the meter, so this process does not
need to be repeated unless electrode maintenance
is performed or the electrode is disconnected from
the meter for more than an hour.
If the electrode is disconnected from the meter for
less than an hour, allow the electrode to polarize for
5 to 25 minutes before use.
Rinse the electrode using distilled water.
2.7 Meter Startup
Sequence
When the meter is powered on, it displays a set of startup
screens, starting with all segments lit screen, followed by
the meter info screen and then the meter self-test screen.
The meter info screen shows the meter model number and
current software revision.
After the meter info screen, the meter performs a series of
internal self-tests to verify that the meter is operating
correctly and then the self-test results are shown.
Finally, the meter proceeds to the main measure mode.

12 Chapter 3 | Setup Menu
Chapter 3
Setup Menu
3.1 Setup Menu Overview
Use the meter Setup Menu to customize meter settings.
In the Measure Mode, press the “Menu” key to
access the meter Setup Menu.
The first Setup Menu item (View Logs, Data Log) will
be shown. To scroll through the Setup Menu list,
press the or key.
a. Press the key to scroll to the second item.
b. Press the key to scroll to the last item.
c. The list is cyclical, so continue to press the 
key to scroll from the last item to the first item.
To change a setting within a Setup Menu item,
press the or key.
a. For numeric value changes:
i. Press the key once to increase the
value by one least significant digit/unit.
ii. Press the key once to decrease the
value by one least significant digit/unit.
iii. Press and hold the key to quickly
increase the value.
iv. Press and hold the key to quickly
decrease the value.
Once a setting is changed, press the “Enter” key to
save the change.
When viewing data logs or calibration logs, press
the “Menu” key to go back to the main Setup Menu
list.
Press the “Measure” key at any time to exit the
Setup Menu and return to the measure mode.
#
Setup Menu Item
Description
1 View Logs
View up to 500 data log points
and active dissolved oxygen and
temperature calibrations
2 Log Export Type
Set the export type as computer
or printer or turn export off
3 Export All Logs
Send all saved data logs and
calibration logs to the selected
export device
4
Temperature
Calibration
or
Manual
Temperature Input
When DO electrode with built-in
ATC sensor is connected, use
the Temp. Calibration menu to
perform a temperature offset
calibration
When DO electrode without built-
in ATC sensor is connected, use
the Manual Temp. Input menu to
enter the sample temperature
value
5 Measure Mode
Set the main measure mode to
dissolved oxygen as %
saturation, mg/L or ppm
6 DO Resolution
Set the displayed DO resolution
as 0.1 or 1 % saturation; 0.01 or
0.1 mg/L or ppm
7
Barometric
Pressure Units
Set the barometric pressure units
as mmHg or bar
8
Barometric
Pressure Value
Enter the barometric pressure
value
9
Salinity Value
Enter the sample salinity value
10 Read Type
Set the read type to define how
measurements are performed
and when measurements are
saved and exported
11 Timed Interval
When Timed is set as the Read
Type, set the time interval to be
used to automatically save and
export measurements
12 Calibration Due
Alarm
Set the calibration due alarm
interval; an alarm is triggered if a
calibration is not performed
within the specified time interval
13
Temp. Units
Set the temp. units as °C or °F
14 Set Date Format
Set the date format as month-
day-year (MM.DD.YYYY) or day-
month-year (DD.MM.YYYY)
15
Set Date Value
Set the day, month and year
16 Set Time Value
Set the time in AM/PM or 24
hour formats
17
Audio Mode
Set the audible beep on or off
18
Sleep Mode
Set the sleep mode on or off
19 Clear Data
Erase all data logs or erase all
calibration logs
20 Factory Reset
Erase all data logs, calibration
logs and settings and return the
meter to its factory default state
Setup Menu Item
Setting Options for
Setup Menu
Item

Orion Lab Star DO113 Dissolved Oxygen Meter 13
3.2 Setup Menu Items
3.2.1 View Logs
View up to 500 data log points and active dissolved
oxygen % saturation, dissolved oxygen concentration and
temperature calibrations. When the “Menu” key is pressed,
the View Logs setup menu item is always shown first.
Press the or key to scroll through the data and
calibration log options.
Press key
Press key
Press key
Press key
Press the “Enter” key to view the display log.
3.2.1a Viewing the Data Log
Press the “Enter” key to view the display log.
For the data log, press the or key to scroll
through the data log points. Scroll through data log
points when viewing the date/time screens or the
measurement data screens.
Press key
For the data log, press the or key to change
the view from the date/time screen to the
measurement data screen.
Press or key
If desired, press the “Log/Export” key to export the
individual data log point being viewed.
Press the “Menu” key to return to the main Setup
Menu list.

14 Chapter 3 | Setup Menu

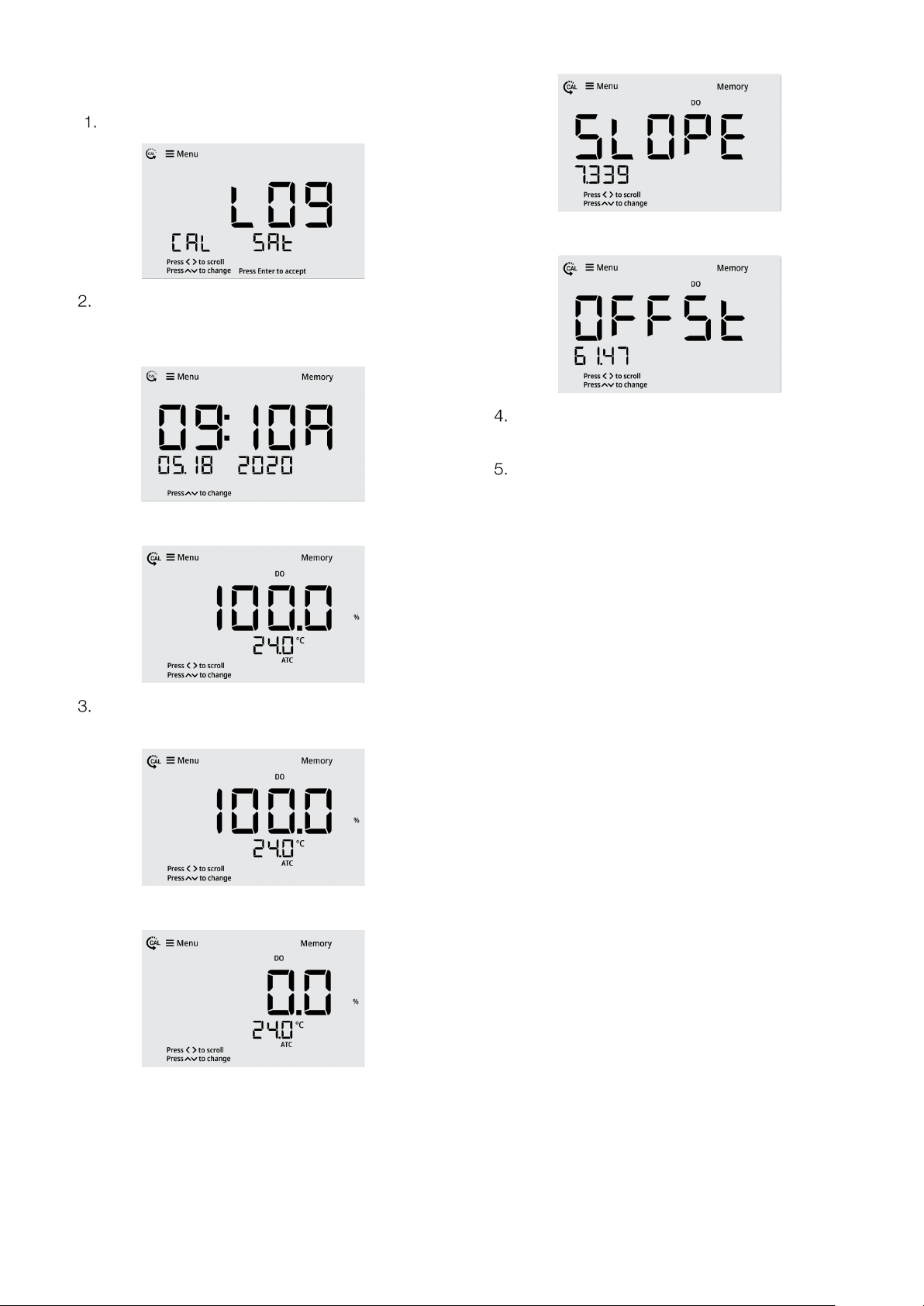

3.2.1b Viewing the Calibration Log
Press the “Enter” key to view the display log.
For the calibration log, press the or key to
change the view from the date/time screen to the
calibration data screen.
Press or key
For the calibration log, press the or key to
scroll through the calibration log data.
Press key
Press key
Press key
If desired, press the “Log/Export” key to export the
individual calibration log being viewed.
Press the “Menu” key to return to the main Setup
Menu list.

Orion Lab Star DO113 Dissolved Oxygen Meter 15
3.2.2 Log Export Type
Set the log export type as computer or printer or turn off
the export function. If computer is selected, the logs are
exported in CSV format. If printer is selected, the logs are
exported in list format. If off is selected, no logs will be
exported, and the Export All Logs menu will not be shown.
Press the or key to scroll through the Setup
Menu list until the Log Export Type item is shown.
Press the or key to change the setting to
computer or printer or off.
Press the “Enter” key to save the change.
3.2.3 Export All Logs
Send all saved data logs and calibration logs to the
selected export device. Note that this menu will not be
shown if the Log Export Type menu is set to off.
Press the or key to scroll through the Setup
Menu list until the Export All Logs item is shown.
Press the “Enter” key to export all saved logs to the
selected export device.
a. The display will show the data log numbers as
they are exported in the 4th measurement field.
b. The computer or printer icon will blink as the
logs are exported.
Note: If a large amount of data is exported, the meter may
take a few minutes to complete exporting all saved data
logs and calibration logs to the selected device.

16 Chapter 3 | Setup Menu
3.2.4 Temperature Calibration or
Manual Temperature Input
3.2.4a Temperature Calibration
When DO electrode with built-in ATC sensor is connected,
use the Temperature Calibration menu to perform a one-
point temperature offset calibration, up to ±5.0 °C.
Press the or key to scroll through the Setup
Menu list until the Temp. Calibration item is shown.
The temperature value will blink, indicating the
reading from the ATC probe is being measured.
Once the reading is stable, the value will stop
blinking and the checkmark icon will be shown.
Press the or key to adjust the temperature
value in the 3rd field. The temperature offset value
will be shown in the 2nd field.
a. Press the key to increase the value by 0.1°.
Press and hold the key to quickly increase.
b. Press the key to decrease the value by 0.1°.
Press and hold the key to quickly decrease.
Press the “Enter” key to save the change.
3.2.4b Manual Temperature Input
When DO electrode without built-in ATC sensor is
connected, use the Manual Temperature Input menu to
enter the sample temperature value, from -5.0 °C to
105.0 °C.
Press the or key to scroll through the Setup
Menu list until the Manual Temperature Input item is
shown.
Press the or key to adjust the temperature
value.
a. Press the key to increase the value by 0.1°.
Press and hold the key to quickly increase.
b. Press the key to decrease the value by 0.1°.
Press and hold the key to quickly decrease.
Press the “Enter” key to save the change.

Orion Lab Star DO113 Dissolved Oxygen Meter 17
3.2.5 Measure Mode
Set the measure mode to dissolved oxygen as %
saturation, concentration in mg/L or concentration in ppm.
Press the or key to scroll through the Setup
Menu list until the Measure Mode item is shown.
Press the or key to set the measure mode.
Press the “Enter” key to save the change.
3.2.6 DO Resolution
Set displayed dissolved oxygen resolution to 0.1 or 1 %
saturation; 0.01 or 0.1 mg/L or ppm.
The dissolved oxygen units shown in this Setup Menu item
are related to the previous setting selection in the
Measurement Mode item. For this example, dissolved
oxygen in concentration ppm is shown.
Press the or key to scroll through the Setup
Menu list until the DO Resolution item is shown.
Press the or key to set the DO resolution.
Press the “Enter” key to save the change.

18 Chapter 3 | Setup Menu
3.2.7 Barometric Pressure Units
Set the barometric pressure units as mmHg (mm mercury)
or bar.
Press the or key to scroll through the Setup
Menu list until the Barometric Pressure Units item is
shown.
Press the or key to set the units.
Press the “Enter” key to save the change.
3.2.8 Barometric Pressure Value
Enter the barometric pressure value as 400.0 to 850.0
mmHg or 0.533 to 1.133 bar. The entered barometric
pressure value is used for barometric pressure corrected
dissolved oxygen measurements.
The barometric pressure units shown in this Setup Menu
item are related to the previous setting selection in the
Barometric Pressure Units item. For this example,
barometric pressure in mmHg is shown.
Press the or key to scroll through the Setup
Menu list until the Barometric Pressure Value item is
shown.
Press the or key to adjust the barometric
pressure value.
a. Press the key to increase the value by 0.1.
Press and hold the key to quickly increase.
b. Press the key to decrease the value by 0.1.
Press and hold the key to quickly decrease.
Press the “Enter” key to save the change.

Orion Lab Star DO113 Dissolved Oxygen Meter 19
3.2.9 Salinity Value
Enter the sample salinity value as 0.0 to 50.0 ppt. The
entered salinity value is used for salinity corrected
dissolved oxygen measurements.
Press the or key to scroll through the Setup
Menu list until the Salinity Value item is shown.
Press the or key to set the salinity value.
Press the key to increase the value by 0.1. Press
and hold the key to quickly increase.
Press the key to decrease the value by 0.1. Press
and hold the key to quickly decrease.
Press the “Enter” key to save the change.
3.2.10 Read Type
Set the Read Type as Continuous, Auto-Read or Timed to
define how measurements are performed and when
measurements are saved and exported.
Continuous:
In the Continuous measure mode, measurements are
continuously updated on the display and the stopwatch
(stabilizing) or checkmark (stable) icon indicates the
measurement stability status. Press the “Log/Export” key
to save a measurement to the data log and export.
Auto-Read:
In the Auto-Read measure mode, press the “Measure” key
to start a measurement. When the measurement is stable,
the checkmark (stable) icon is shown and the
measurement is locked on the display until the “Measure”
key is pressed again. The stable measurement is
automatically saved to the data log and exported.
Timed:
In the Timed measure mode, the measurement values are
continuously updated on the display. Measurements are
automatically saved to the data log and exported at the
selected time intervals, from 5 seconds to 60 minutes, the
entire time the meter is in the measurement mode.
Press the or key to scroll through the Setup
Menu list until the Read Type item is shown.
Press the or key to set the read type.
Press the “Enter” key to save the change.

20 Chapter 3 | Setup Menu
3.2.11 Timed Interval
When Timed is set as the Read Type, set the time interval
from 5 seconds to 60 minutes. This time interval is used to
automatically save and export measurements.
Press the or key to scroll through the Setup
Menu list until the Timed Interval item is shown.
Press the or key to adjust the time value.
a. Press the key to increase the time value by
one second. Press and hold the key to
quickly increase.
b. Press the key to decrease the time value by
one second. Press and hold the key to
quickly decrease.
Press the “Enter” key to save the change.
3.2.12 Calibration Due Alarm
Set the calibration due alarm interval from 0 hours (off) to
168 hours. An alarm is triggered if a calibration is not
performed within the specified time interval.
Press the or key to scroll through the Setup
Menu list until the Calibration Due Alarm item is
shown.
Press the or key to adjust the alarm value.
a. Press the key to increase the alarm value by
one hour. Press and hold the key to quickly
increase.
b. Press the key to decrease the alarm value
by one hour. Press and hold the key to
quickly decrease.
Press the “Enter” key to save the change.
