Orion DUAL STAR™
pH/ISE Meter User Guide

ROSS and the COIL trade dress are trademarks of Thermo Fisher Scientific Inc. U.S. patent 6,793,787.
AQUAfast, Cahn, ionplus, KNIpHE, No Cal, ORION, perpHect, PerpHecT, PerpHecTion, pHISA, pHuture, Pure
Water, Sage, Sensing the Future, SensorLink, ROSS, ROSS Ultra, Sure-Flow, Titrator PLUS and TURBO2 are
registered trademarks of Thermo Fisher.
1-888-pHAX-ION, A+, All in One, Aplus, AQUAsnap, AssuredAccuracy, AUTO-BAR, AUTO-CAL, AUTO
DISPENSER, Auto-ID, AUTO-LOG, AUTO-READ, AUTO-STIR, Auto-Test, BOD AutoEZ, Cable-Free, CERTI-CAL,
CISA, DataCOLLECT, DataPLUS, digital LogR, DirectCal, DuraProbe, Environmental Product Authority, Extra
Easy/Extra Value, FAST QC, GAP, GLPcal, GLPcheck, GLPdoc, ISEasy, KAP, LabConnect, LogR, Low
Maintenance Triode, Minimum Stir Requirement, MSR, NISS, One-Touch, One-Touch Calibration, One-Touch
Measurement, Optimum Results, Orion Star, Pentrode, pHuture MMS, pHuture Pentrode, pHuture
Quatrode, pHuture Triode, Quatrode, QuiKcheK, rf link, ROSS Resolution, SAOB, SMART AVERAGING, Smart
CheK, SMART STABILITY, Stacked, Star Navigator 21, Stat Face, The Enhanced Lab, ThermaSense, Triode,
TRIUMpH, Unbreakable pH, Universal Access are trademarks of Thermo Fisher.
Guaranteed Success and The Technical Edge are service marks of Thermo Fisher.
PerpHecT meters are protected by U.S. patent 6,168,707.
PerpHecT ROSS electrodes are protected by U.S. patent 6,168,707.
ORION Series A meters and 900A printer are protected by U.S. patents 5,198,093, D334,208
and D346,753.
ionplus electrodes and Optimum Results solutions are protected by U.S. patent 5,830,338.
ROSS Ultra electrodes are protected by U.S. patent 6,793,787.
ORP standard is protected by U.S. patent 6,350,367.
No Cal electrodes are protected by U.S. patent 7,276,142.
© 2009 Thermo Fisher Scientific Inc. All rights reserved. All trademarks are the property of Thermo Fisher
Scientific Inc. and its subsidiaries.
The specifications, descriptions, drawings, ordering information and part numbers within this document
are subject to change without notice.
This publication supersedes all previous publications on this subject.

IThermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide
Table of Contents
Chapter 1 Introduction..........................................1
GeneralInformation................................................1
MeterPackingList.................................................2
Chapter 2 MeterOverview.......................................3
MeterConnections.................................................4
Channel1andChannel2Inputs.....................................5
Connecting Electrodes and Cables to the Meter . . . . . . . . . . . . . . . . . . . . . . . . 6
MeterKeypad.....................................................7
ShortcutKeysontheMeterKeypad..................................8
AlphanumericKeypad.............................................9
MeterDisplay....................................................10
DualChannelDisplay............................................10
SingleChannelDisplay ..........................................12
PoweringtheMeterOnandOff......................................14
MeterMaintenance...............................................14
Chapter 3 MeterSetup.........................................15
EZ Startup™Menu ................................................15
SetupMenu.....................................................19
NavigatingtheSetupMenu.......................................19
Channel1andChannel2SetupMenus..............................20
Instrument Parameters Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
AutosamplerSetupMenu ........................................33
Incremental Techniques Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
GLPSetupMenu...............................................34
EZStartupSetupMenu..........................................34

Thermo Scientific Orion DUAL STAR™pH/ISE Meter User GuideII
Chapter 4 Calibration and Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . 35
pHCalibrationandMeasurement.....................................35
pH Calibration Procedure (1 to 6 points). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
pHMeasurementProcedure......................................38
ISECalibrationandMeasurement....................................39
ISE Calibration Procedure (2 to 6 points) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
ISEMeasurementProcedure......................................42
mV Measurement and RmV and ORP Calibration and Measurement . . . . . . . . . 43
mVMeasurementProcedure......................................43
RmVCalibrationProcedure........................................44
RmVMeasurementProcedure.....................................45
ORPCalibrationProcedure........................................47
ORPMeasurementProcedure.....................................48
Temperature Calibration and Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Temperature Calibration Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Temperature Measurement Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Dissolved Oxygen Calibration and Measurement. . . . . . . . . . . . . . . . . . . . . . . . . 51
Dissolved Oxygen Calibration Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Dissolved Oxygen Measurement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Chapter 5 Methods............................................53
Saving the Current Meter Settings as a New Method . . . . . . . . . . . . . . . . . . . . . 53
LoadinganExistingMethod.........................................54
EditingorPrintinganExistingMethod.................................54
CopinganExistingMethod .........................................55
DeletinganExistingMethod ........................................56
Chapter 6 IncrementalTechniques................................57
SingleKnownAddition.............................................59
DoubleKnownAddition............................................61
SingleKnownSubtraction ..........................................63
DoubleKnownSubtraction..........................................66

IIIThermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide
Chapter 7 DataStorageandRetrieval.............................69
DataStorageSettings..............................................69
Viewing the Calibration Log and Data Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
InterfacingaPrinter ...............................................73
InterfacingaComputer.............................................73
MeterSoftwareUpgrade.........................................74
Chapter 8 AutosamplerOperation ...............................75
Interfacing the Meter and Autosampler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
AutosamplerSetupMenu...........................................76
RunningtheAutosampler...........................................79
AutosamplerErrorMessages......................................80
Chapter 9 CustomerServices ...................................81
TroubleshootingGuide.............................................81
ElectrodeStabilityTest...........................................81
MeterSelfTestandCheckout......................................82
UserReset....................................................83
FactoryConfiguration............................................84
AboutMeter...................................................84
ElectrodeConditionIcon .........................................85
Assistance ....................................................85
Warranty......................................................85
MeterErrorCodes................................................86
NoticeofCompliance..............................................89
WEEECompliance................................................89
DeclarationofConformity...........................................90
Real Time Clock Battery Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
OrderingInformation ..............................................92
MeterSpecifications...............................................95
MeterFeatures...................................................96

Thermo Scientific Orion DUAL STAR™pH/ISE Meter User GuideIV
Appendix 1 AdvancedMeterFeatures............................97
Multipoint Calibration Curve Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
AutomaticBlankCorrectionFeature...................................98
ErrorCodeE306...............................................100
IsopotentialPointFeature..........................................101
Determining an Isopotential Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Automatic pH Buffer Recognition Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Testing a pH Electrode for Automatic Buffer Recognition . . . . . . . . . . . . . . . 104
Important Note
Please read this user guide thoroughly before using your meter.
Any use outside of these instructions may invalidate your
warranty and cause permanent damage to the meter.
Contact Information
For assistance with Thermo Scientific Orion products, contact Technical Support.
Within the United States call 1.800.225.1480 and outside the United States call
978.232.6000 or fax [phone]. In Europe, the Middle East and Africa, contact
your local authorized dealer. For the most current contact information, visit
www.thermo.com/contactwater.
Applications and Technical Resources
For the latest application and technical resources for Thermo Scientific Orion
products, visit www.thermo.com/waterapps. Our application webpage includes
the Orion DUAL STAR Meter Quick Start Notes for Ammonia in Water and
Wastewater, Fluoride in Water and Wastewater, Nitrate in Water and Wastewater,
and pH of Water and Wastewater. These quick start notes provide step-by-step
illustrated instructions for performing common measurements on the Orion
DUAL STAR meter.

1Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide
Chapter 1 Introduction
General Information
This user guide contains information on the preparation, operation and
maintenance of the Thermo Scientific Orion DUAL STAR pH/ISE benchtop meter.
The Orion DUAL STAR meter has two measuring channels and is capable of
measuring pH, concentration (ISE), raw millivolts (mV), relative millivolts (RmV),
oxidation-reduction potential (ORP) and temperature.
Display Features
The large, backlit LCD screen on the Orion DUAL STAR meter displays both
measuring channels simultaneously or each measuring channel separately. Step-
by-step instructions and prompts are displayed on the meter to assist operators
with the setup, calibration and autosampler menus. A calibration graph, which
includes the electrode slope between points and the average slope, can be
viewed in the calibration mode.
Data Features
The Orion DUAL STAR meter can save up to 10 calibrations per channel and 1000
data points in the meter data log. A graph of the calibration points with slope can
be viewed on the meter display and printed. Calibration and measurement data
can be exported from the meter to a printer or computer. The meter saves up to
10 methods per channel, so switching the meter to different testing methods is
fast and simple.
Automation Features
The Orion DUAL STAR meter can be interfaced with the AutoTration™-500
autosampler for automated laboratory analysis.The autosampler has a 28 beaker
rack or 48 beaker rack for comprehensive, interchangeable configurations. The
autosampler function for the Orion DUAL STAR meter will be available in 2009.
Troubleshooting Features
Troubleshooting procedures are available in the meter setup menu and include a
meter stability test, meter self-test and meter reset functions.

Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide2
Meter Packing List
The Thermo Scientific Orion DUAL STAR pH/ISE benchtop meter includes:
One Orion DUAL STAR meter
Two BNC shorting caps, Cat. No. 090045
One universal power adapter, Cat. No. 1010003
One swing arm electrode stand, Cat. No. 090043
One RS232 interface cable, Cat. No. 1010053
One USB interface cable
One user guide
Refer to the Ordering Information section for a list of meter accessories,
pH electrodes, ion selective electrodes (ISE), ATC probes, buffers, solutions and
standards or visit www.thermo.com/water for a full offering of Thermo Scientific
Orion products.
Introduction

3Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide
Chapter 2 Meter Overview
25.0°C
log/print setup cal
25.0°C
1.00
Ch.2
F-stabilizing
ppm
ATC2
7.000 0.0mV
Ch.1
pH ready
pH
ATC1
0.0mV
Dual Channel
Display
Keypad
Channel Number
Designations
BNC Inputs

Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide4

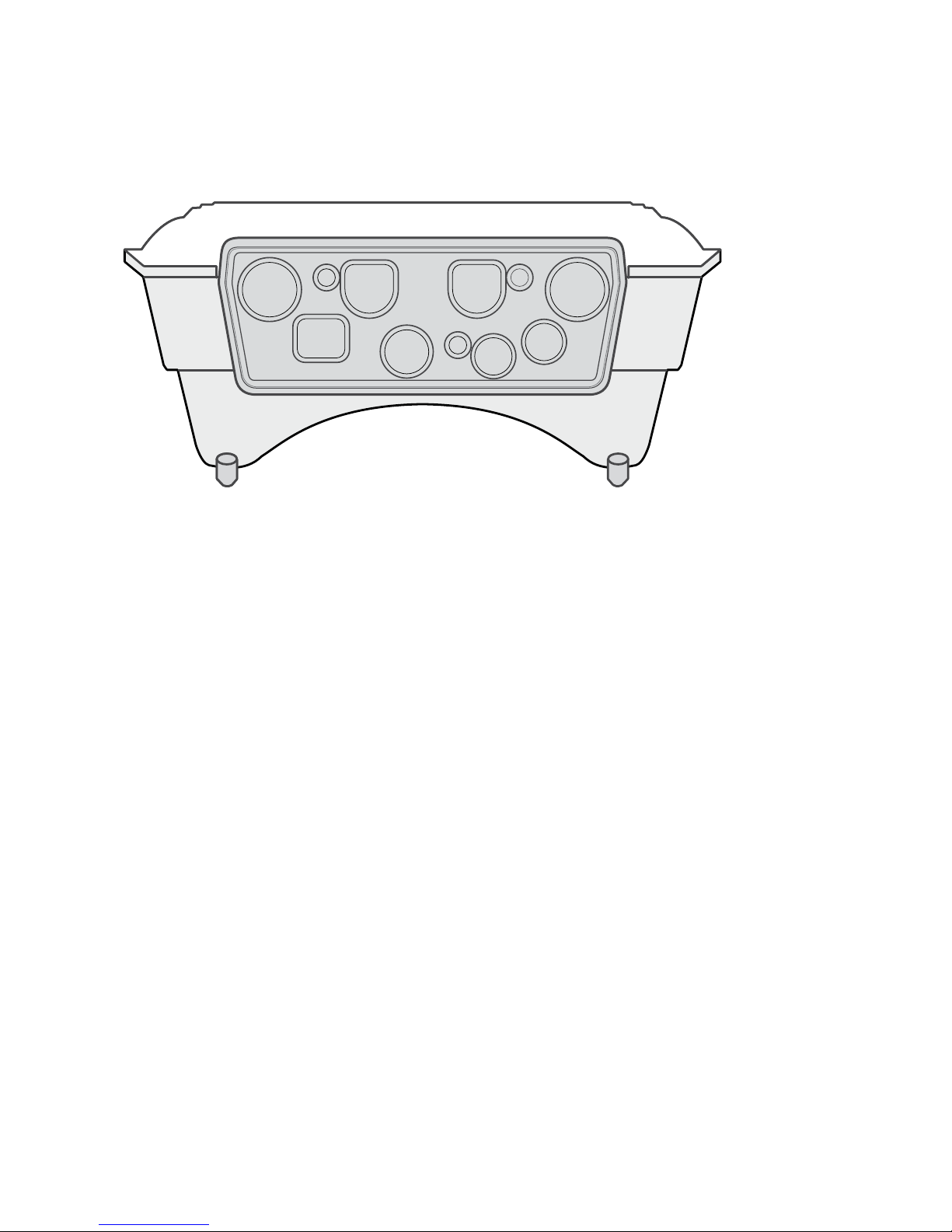

Meter Connections
BNC – Input for pH, ion selective (ISE) or ORP/redox electrodes with BNC or
waterproof BNC connectors.
Ref. – Input for reference electrodes with standard 2.5 mm pin-tip connectors.
ATC – Input for ATC probes with 8 pin MiniDIN connectors.
Stirrer – Input for the stirrer probe, Cat. No. 096019. The stirrer probe must be
purchased separately from the meter.
USB – Input for the USB cable, used to connect the meter to a computer. USB
function for the Orion DUAL STAR meter will be available by December 2009.
RS232 – Input for the RS232 cable, used to connect the meter to a printer
or computer.
Ground – Input for a ground wire with a standard pin-tip connector.
Power – Input for the universal power adapter that is included with the meter.
Ref. Ref. ATC
ATC
BNC
USB
BNC
Stirrer Ground Power
RS232
Meter Overview

5Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide

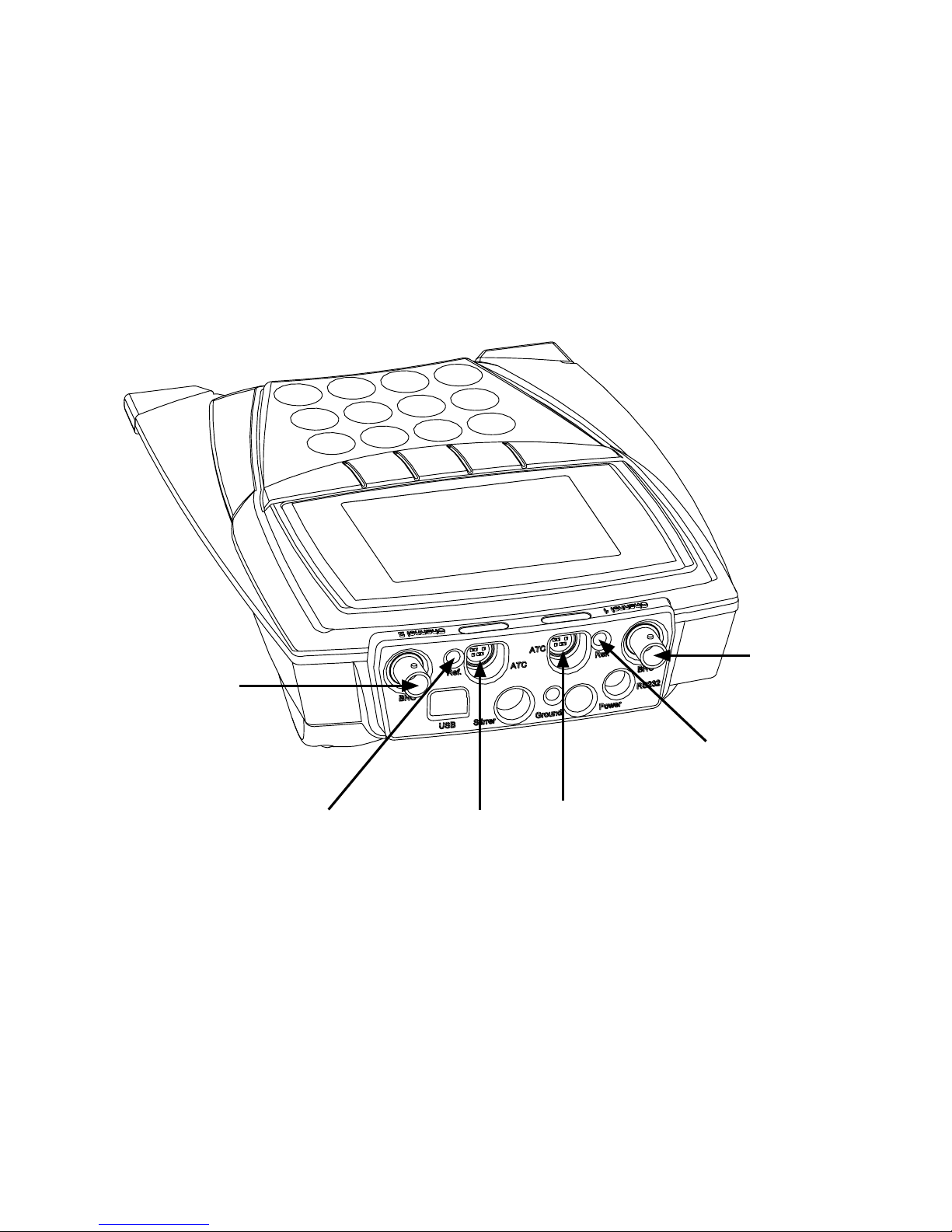

Channel 1 and Channel 2 Inputs
The BNC, Ref., and ATC connections are labeled as Channel 1 or Channel 2
on the ridge above the connections.
Using the meter orientation shown below, the channel 2 connections are on the
left and the channel 1 connections are on the right.
Channel 2
BNC Input
Channel 2
Ref. Input Channel 2
ATC Input
Channel 1
BNC Input
Channel 1
Ref. Input
Channel 1
ATC Input
Meter Overview

Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide6
Connecting Electrodes and Cables to the Meter
1. The universal power adapter is shipped with several plug plates for different
types of wall outlets. Remove the plastic protective cover from the groove
on the power adapter. Select the appropriate plug plate and slide it into the
groove on the power adapter. Connect the power adapter to the meter and
then to a wall outlet.
2. Connect the pH, ISE or ORP/redox electrode(s) to the BNC input(s) on the
meter. Attach a BNC connector to the meter input by sliding the connector
onto the input, pushing down on the connector and turning the connector
clockwise to lock it into position.
3. Connect the reference electrode(s) to the reference input(s) on the meter.
Note: If a combination electrode is used, a reference electrode is
not needed.
4. Connect the ATC probe(s) to the 8 pin miniDIN input(s) on the meter. The ATC
connector has a clip that locks the connection and prevents the probe from
detaching from the meter.
5. Connect the stirrer probe, Cat. No. 096019, to the stirrer input on the meter.
6. To connect a printer to the meter, connect the RS232 printer cable to the
RS232 input on the meter and the RS232 input on the printer.
Note: The Orion Star™printer, Cat. No. 1010006, is recommended for use
with the Orion DUAL STAR meter. The Orion Star printer is packaged with the
appropriate RS232 printer cable for interfacing the Orion DUAL STAR meter
with the Orion Star printer.
7. To connect a computer to the meter, connect the RS232 computer cable,
Cat. No. 1010053, to the RS232 input on the meter and the RS232 input on
the computer. Alternatively, connect the USB computer cable to the USB
input on the meter and the USB input on the computer. USB function for the
Orion DUAL STAR meter will be available by December 2009.
Meter Overview

7Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide

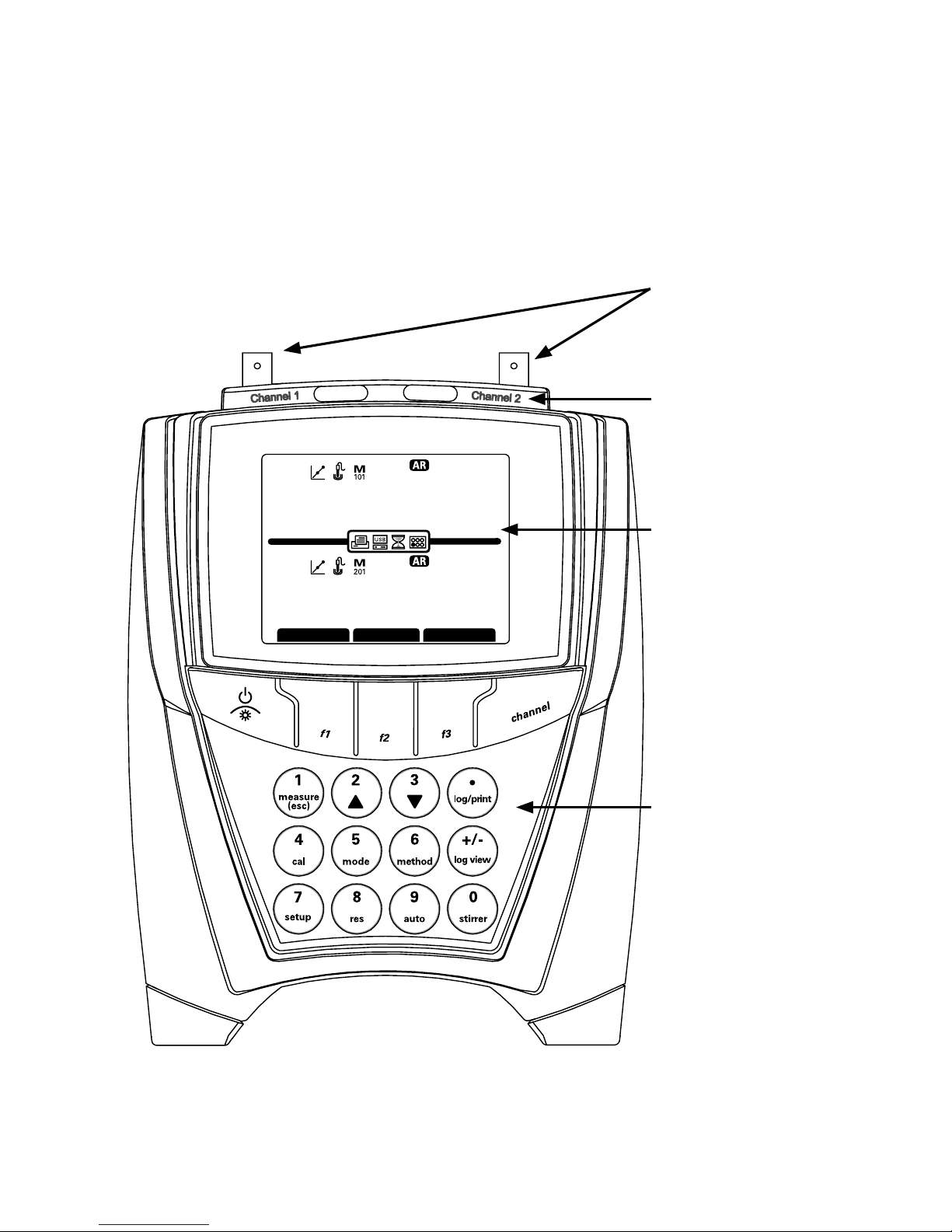

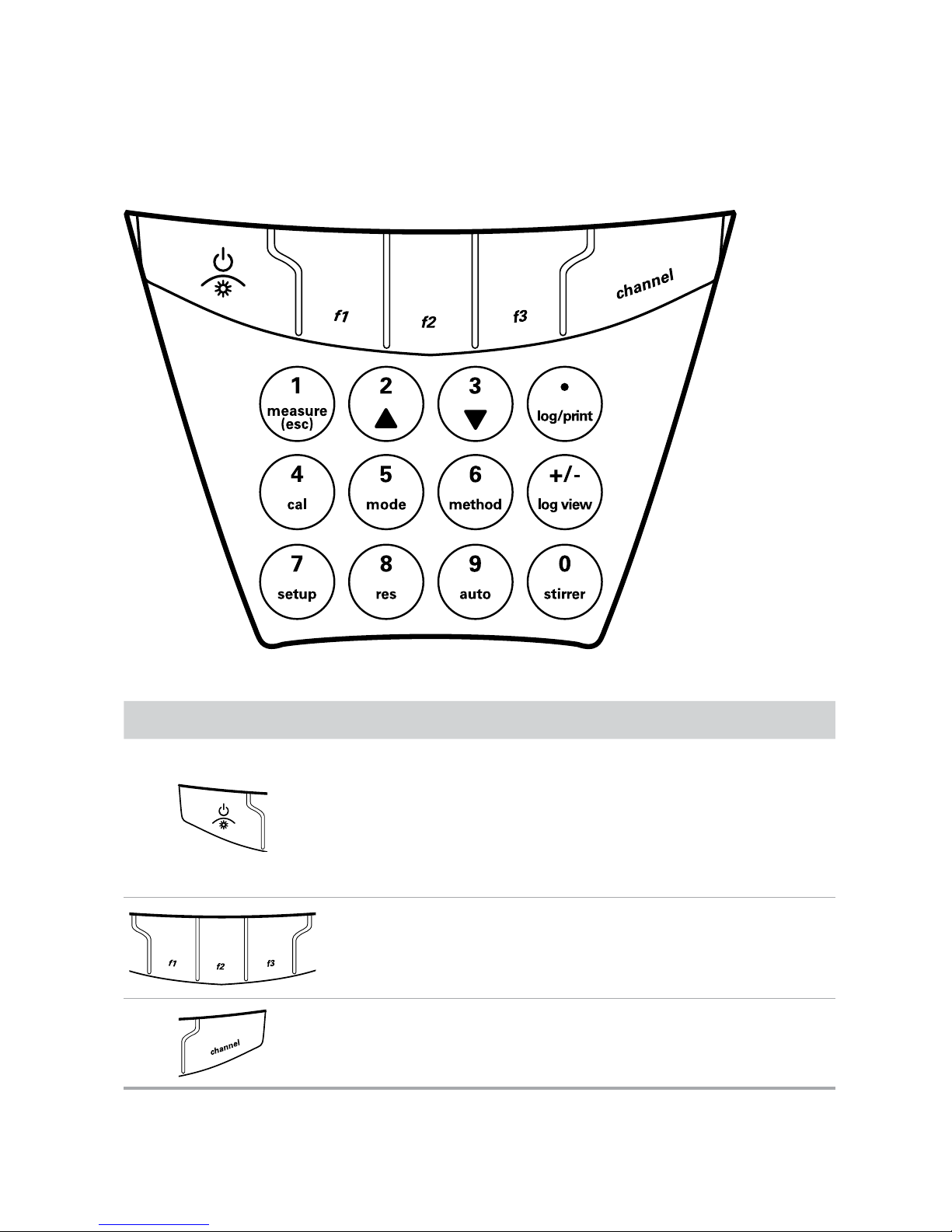

Meter Keypad
Key Description
To turn the meter on, press and hold down the power key for about
three seconds until the meter turns on.
When the meter is on, press and quickly release the power key to
turn the display backlight off or to vary the intensity of the backlight.
To turn the meter off, press and hold down the power key for about
three seconds until the meter turns off.
Press the f1, f2 and f3 function keys to perform the action shown
above each key on the display. The f1, f2 and f3 keys have menu-
dependent functions.
Press the channel key to display channel 1 only, channel 2 only or a
split screen with channel 1 on the top and channel 2 on the bottom.
Meter Overview

Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide8

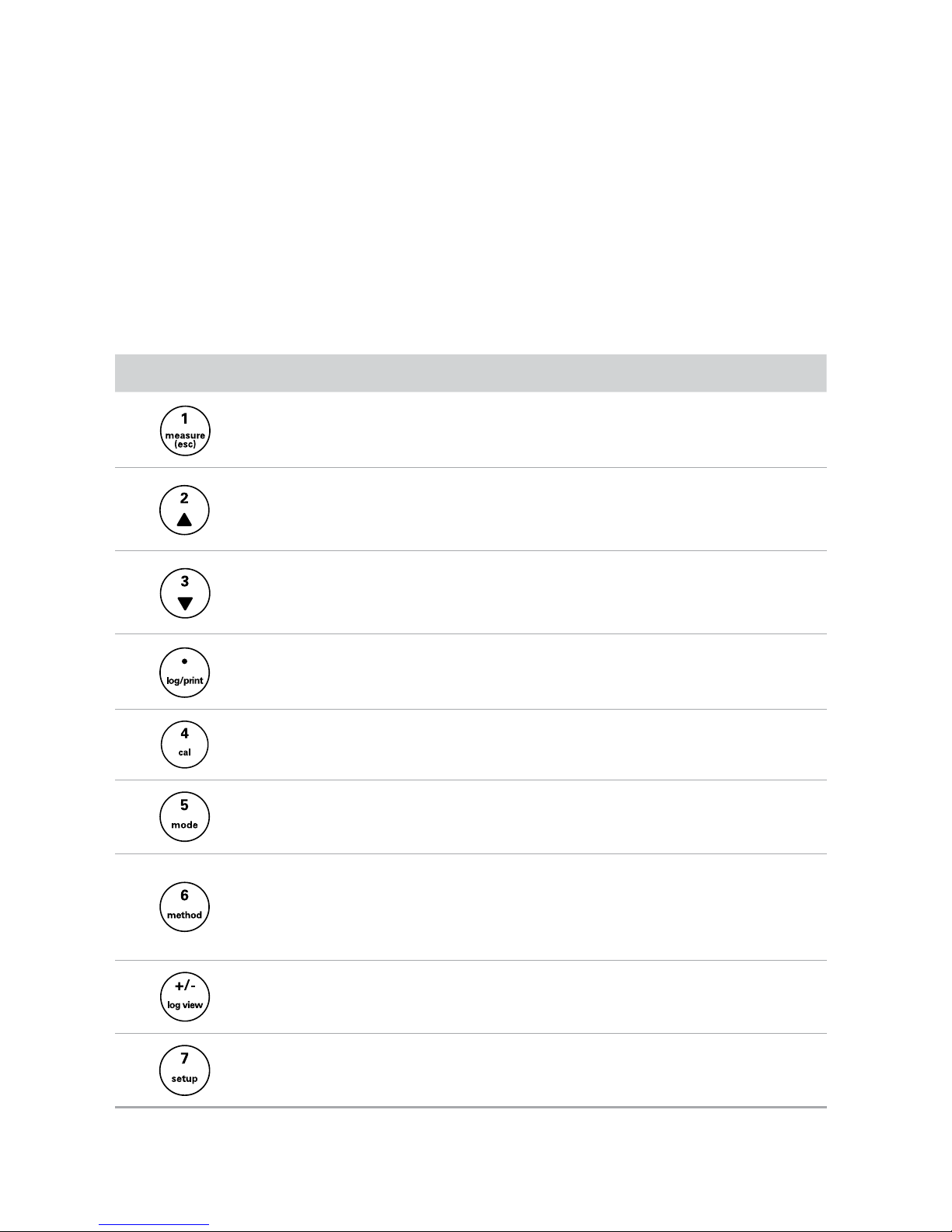

Shortcut Keys on the Meter Keypad
Press the shortcut keys in the measurement mode to move quickly to different
meter menus. Press the ▲/ ▼keys to scroll through lists of options on the
display. The ▲/ ▼keys allow the operator to loop through lists, so the meter will
return to the first item on the list after scrolling past the last item on the list. To
enter a numeric value, use the numeric keypad, decimal key and +/- key,
as required.
Shortcut Key Description
Press the measure key to return to the meter to the measurement mode. The
measure key can be used as an escape key in most meter menus.
Press the ▲ key to scroll up through lists of items on the display. This key
allows the operator to loop through the list, so the meter will go to the last
item on the list after scrolling past the first item on the list.
Press the ▼key to scroll down through lists of items on the display. This key
allows the operator to loop through the list, so the meter will go to the first
item on the list after scrolling past the last item on the list.
Press the log/print key to manually log, print or log and print a measurement.
Press the cal key to enter the calibration mode.
Press the mode key to change the measurement mode for channel 1 or
channel 2.
Press the method key to access the methods list for each channel. Existing
methods can be selected from the list and run on the meter. Methods can be
viewed, edited, copied, deleted, printed or the current settings can be saved
as a new method.
Press the log view key to view the data log and calibration log.
Press the setup key to enter the setup menu.
Meter Overview

9Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide
Shortcut Key Description

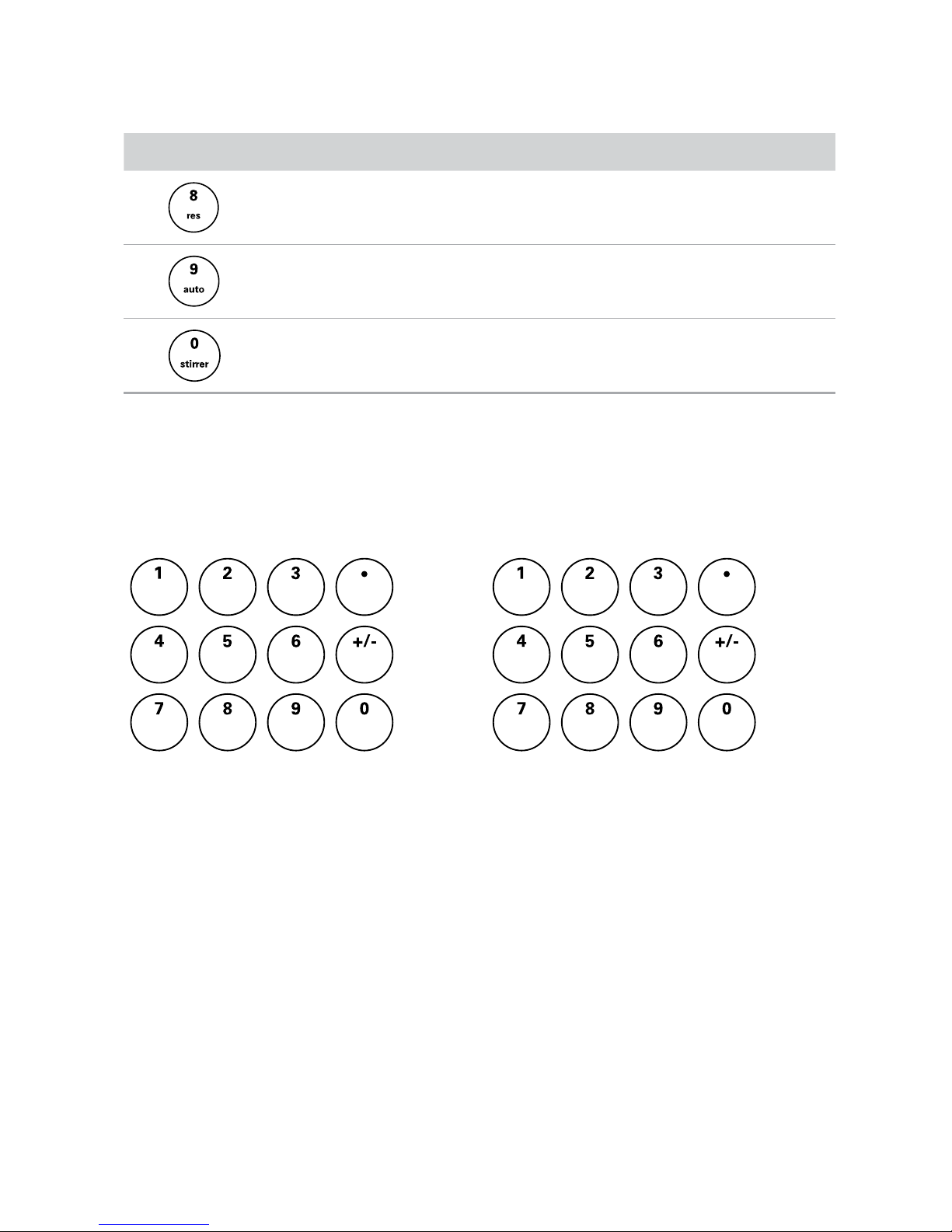

Press the res key to change the displayed measurement resolution for
channel 1 or channel 2.
Press the auto key to access the autosampler setup menu.
Press the stirrer key to turn on and off the stirrer probe.
Alphanumeric Keypad
Numeric Keypad Alphanumeric Keypad
The meter pullout guide shows the location of the letter keys on the keypad.
Use the alphanumeric keypad when entering the electrode serial number, sample
ID number and passwords.
The alphanumeric keypad works in the same way as a cell phone keypad.
For example, the 2key is used to enter 2, A, B or C. Enter the letter B by pressing
the 2key three times (2 → A →B). Uppercase or lowercase letters can be entered
by pressing the same key. For example, enter the letter a by pressing the 2key
five times (2 → A →B → C →a). The meter will automatically advance to the next
digit when no keys are pressed for about three seconds.
Meter Overview
abc def
jkl mnoghi
tuv wxyzpqrs

Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide10

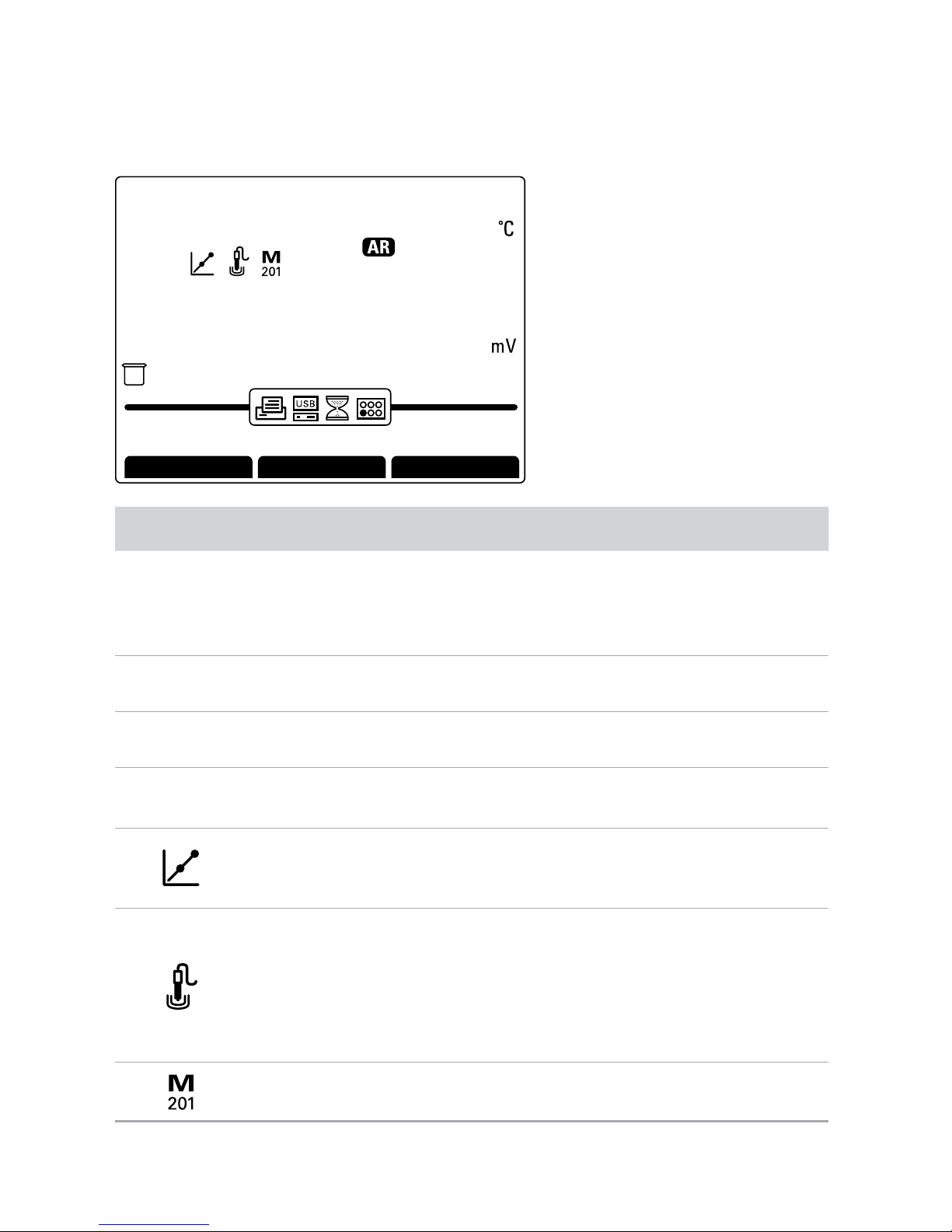

Meter Display

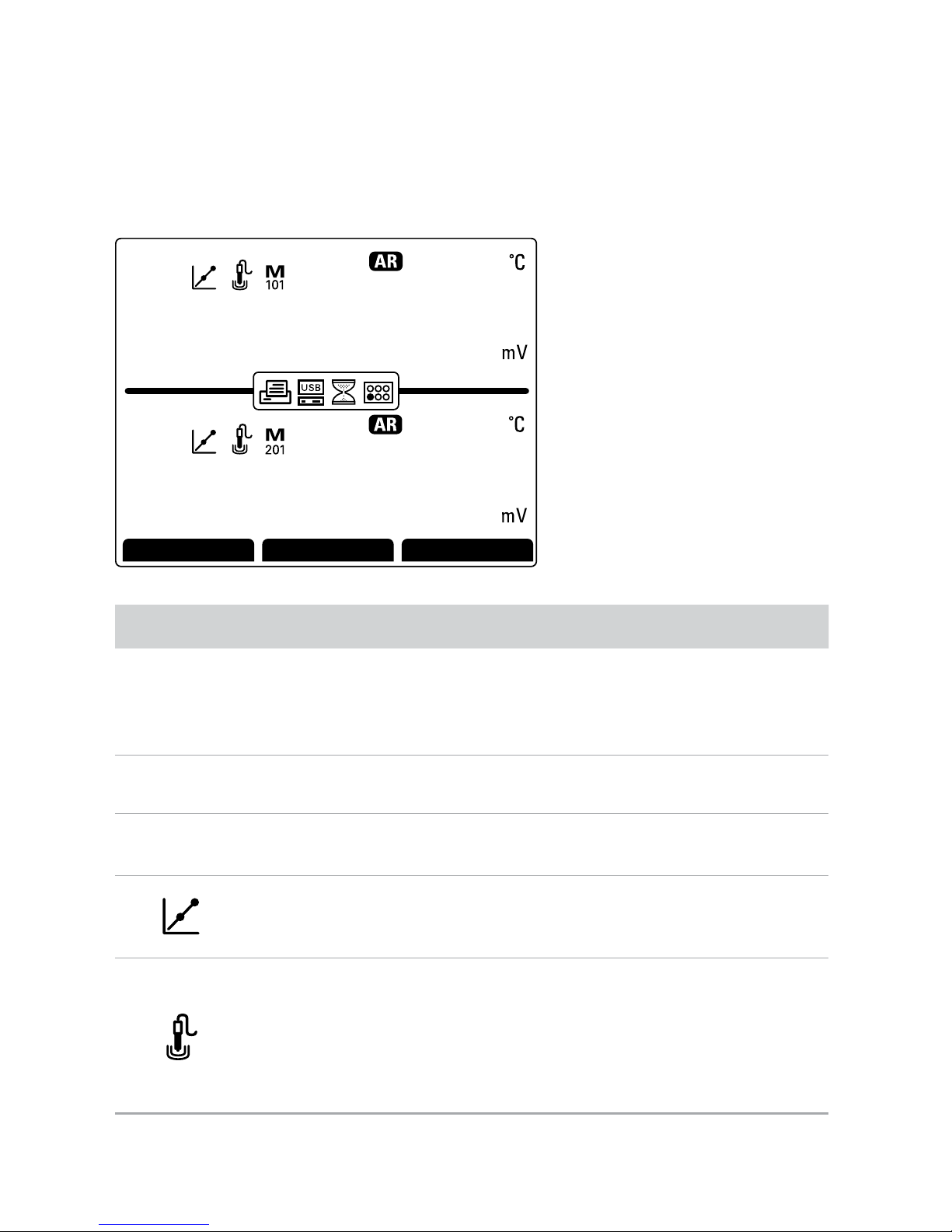

Dual Channel Display

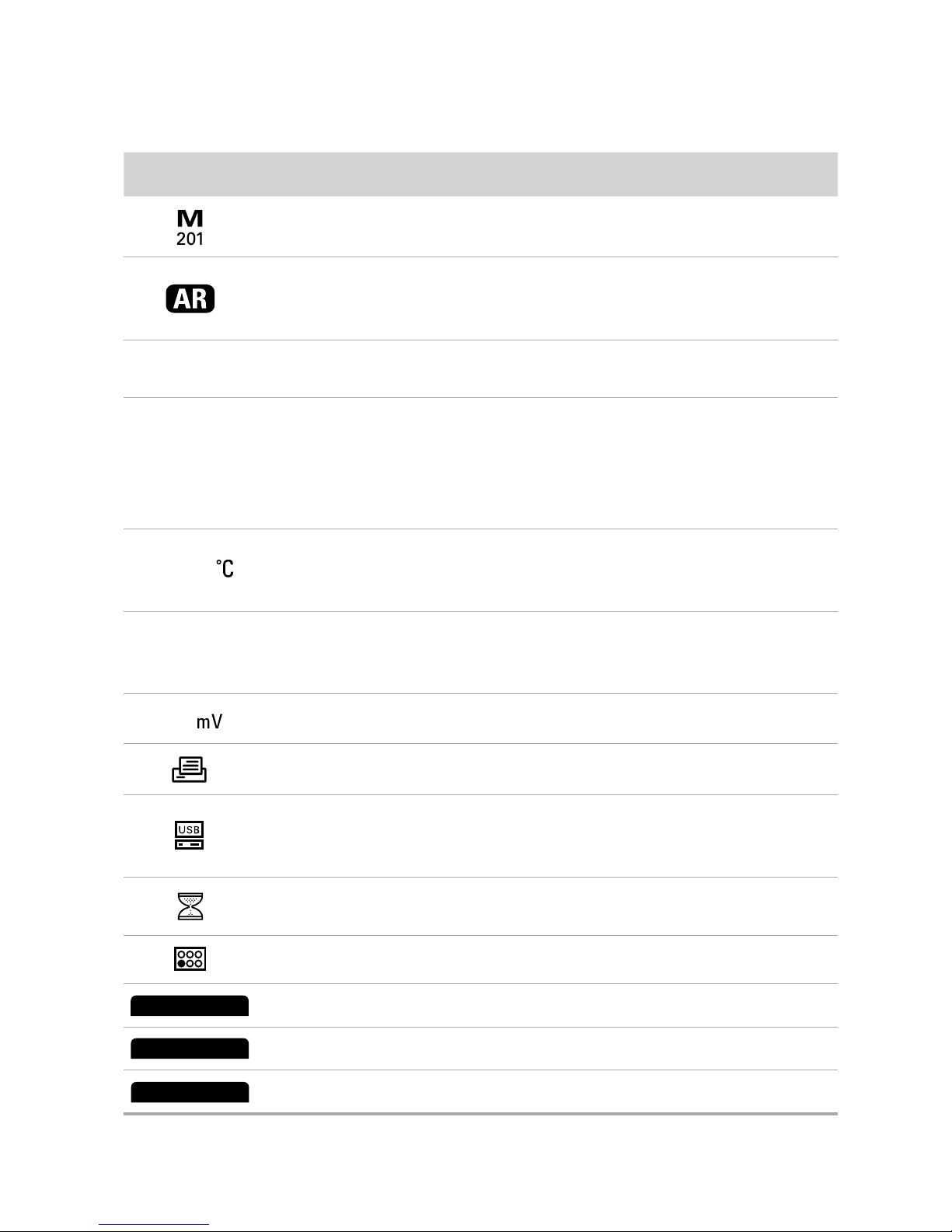

Display Icon Description
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Channel Number – Indicates that electrode channel number that corresponds
with the displayed measurement. Press the channel key to scroll through a
dual channel display for channel 1 and channel 2, a single channel display for
channel 1 and a single channel display for channel 2.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Electrode ID – Specifies that type of electrode that was selected by the
operator. To change the electrode ID, refer to the Setup Menu section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Measurement Value – Displays the current electrode reading based on the last
saved calibration.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Calibration Warning – Indicates that the electrode is calibrated. If the icon is
flashing, it indicates that the electrode needs to be calibrated. Calibrate the
electrode at least every twelve hours to prevent the icon from flashing.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Electrode Condition – Represents the performance of the electrode, based on
the last saved calibration and electrode measurement stability. If the electrode
icon has two lines, the electrode condition is good. If the electrode icon has
one line, the electrode condition is fair. If the electrode icon has a slash through
it, the electrode condition is bad. Refer to the Troubleshooting Guide section
for more information on the electrode condition icon.
Meter Overview
25.0
log/print setupcal
25.0
1.00 0.0
Ch.2
F-stabilizing
ppm
ATC2
7.000 0.0
Ch.1
pH ready
pH
ATC1

11Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide
Meter Overview

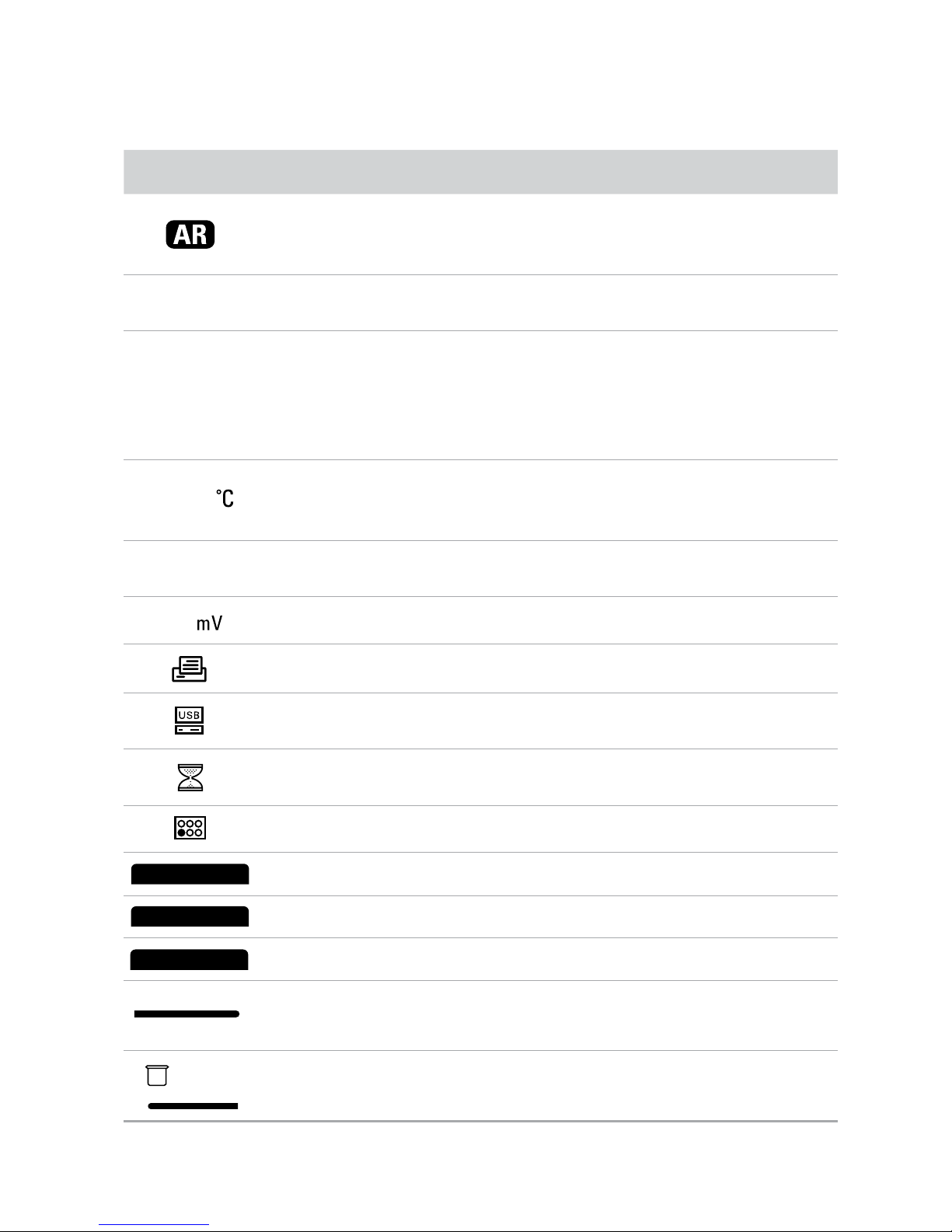

Display Icon Description
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Method Number – Shows the method that is currently being used on that
channel. To change the method number, refer to the Methods section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Auto-Read (AR) Read Type Indicator – If Auto-Read was selected as the read
type, the AR icon will appear when the reading is stable and the display has
been locked. To change the read type, refer to the Setup Menu section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Stabilizing/Ready Read Type Indicator – Specifies the measurement stability of
the electrode. To change the read type, refer to the Setup Menu section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Measurement Mode – Indicates the unit of measurement for the measurement
value and determines the type of calibration that will be performed. To
change the measurement mode, refer to the Setup Menu section. If the ISE
measurement mode is changed, the electrode must be re-calibrated with new
standards that have the same measurement unit as the measurement mode.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Temperature Measurement – Displays the current temperature based on the
selected ATC probe reading or entered temperature value. To change the
temperature display to Celsius or Fahrenheit, refer to the Setup Menu section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Temperature Source – Shows the origin of the current temperature
measurement. To change the source of the temperature measurement, refer to
the Setup Menu section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
mV Measurement – Shows the raw millivolt reading of the electrode.
Printer Interface – Indicates if a printer is interfaced with the meter.
Computer Interface – Indicates if a computer is interfaced with the meter. The
USB icon will only be shown when the meter is connected to a computer via
the USB input.
Timed Interval Read Type Indicator – Indicates when a timed reading is being
taken by the meter. To change the read type, refer to the Setup Menu section.
Autosampler Interface – Indicates if the meter is running the autosampler.
25.0
log/print setupcal
25.0
1.00 0.0
Ch.2
F-stabilizing
ppm
ATC2
7.000 0.0
Ch.1
pH ready
pH
ATC1
f1 Function – Displays the action that will be done when the f1 key is pressed.
25.0
log/print setupcal
25.0
1.00 0.0
Ch.2
F-stabilizing
ppm
ATC2
7.000 0.0
Ch.1
pH ready
pH
ATC1
f2 Function – Displays the action that will be done when the f2 key is pressed.
25.0
log/print setupcal
25.0
1.00 0.0
Ch.2
F-stabilizing
ppm
ATC2
7.000 0.0
Ch.1
pH ready
pH
ATC1
f3 Function – Displays the action that will be done when the f3 key is pressed.

Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide12
Single Channel Display
Display Icon Description
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Channel Number – Indicates that electrode channel number that corresponds
with the displayed measurement. Press the channel key to scroll through a
dual channel display for channel 1 and channel 2, a single channel display for
channel 1 and a single channel display for channel 2.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Electrode ID – Specifies that type of electrode that was selected by the
operator. To change the electrode ID, refer to the Setup Menu section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Electrode Serial Number – Shows the operator assigned electrode serial
number. To change the serial number, refer to the Setup Menu section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Measurement Value – Displays the current electrode reading based on the last
saved calibration.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Calibration Warning – Indicates that the electrode is calibrated. If the icon is
flashing, it indicates that the electrode needs to be calibrated. Calibrate the
electrode at least every twelve hours to prevent the icon from flashing.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Electrode Condition – Represents the performance of the electrode, based on
the last saved calibration and electrode measurement stability. If the electrode
icon has two lines, the electrode condition is good. If the electrode icon has
one line, the electrode condition is fair. If the electrode icon has a slash through
it, the electrode condition is bad. Refer to the Troubleshooting Guide section
for more information on the electrode condition icon.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Method Number – Shows the method that is currently being used on that
channel. To change the method number, refer to the Methods section.
Meter Overview
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID

13Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide
Display Icon Description
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Auto-Read (AR) Read Type Indicator – If Auto-Read was selected as the read
type, the AR icon will appear when the reading is stable and the display has
been locked. To change the read type, refer to the Setup Menu section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Stabilizing/Ready Read Type Indicator – Specifies the measurement stability of
the electrode. To change the read type, refer to the Setup Menu section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Measurement Mode – Indicates the unit of measurement for the measurement
value and determines the type of calibration that will be performed. To
change the measurement mode, refer to the Setup Menu section. If the ISE
measurement mode is changed, the electrode must be re-calibrated with new
standards that have the same measurement unit as the measurement mode.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Temperature Measurement – Displays the current temperature based on the
selected ATC probe reading or entered temperature value. To change the
temperature display to Celsius or Fahrenheit, refer to the Setup Menu section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Temperature Source – Shows the origin of the current temperature
measurement. To change the source, refer to the Setup Menu section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
mV Measurement – Shows the raw millivolt reading of the electrode.
Printer Interface – Indicates if a printer is interfaced with the meter.
Computer Interface – Indicates if a computer is interfaced with the meter. USB
will be shown when the meter is connected to a computer via the USB input.
Timed Interval Read Type Indicator – Indicates when a timed reading is being
taken by the meter. To change the read type, refer to the Setup Menu section.
Autosampler Interface – Indicates if the meter is running the autosampler.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
f1 Function – Displays the action that will be done when the f1 key is pressed.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
f2 Function – Displays the action that will be done when the f2 key is pressed.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
f3 Function – Displays the action that will be done when the f3 key is pressed.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Time and Date – Displays the current time and date settings. To change the
time and date, refer to the Setup Menu section.
25.0
sample id Ch. setupcal
1.00 0.0
Ch.2
F- s/n:ABCDE1234
ready
ppm
ATC2
15:45
05/25/2009
12345ABCD
ID
Sample ID – Shows the operator assigned sample ID number. To change the
sample ID number, refer to the Setup Menu section.
Meter Overview

Thermo Scientific Orion DUAL STAR™pH/ISE Meter User Guide14
Powering the Meter On and Off
1. If the meter is not connected to a wall outlet via the universal power adapter,
select the appropriate wall outlet plug and slide the plug plate it into the
groove on the power adapter. Connect the power adapter to the meter and
wall outlet.
2. Press and hold the power key for about three seconds to turn on the meter.
3. When the meter is on, press and quickly release the power key to turn the
display backlight off or to vary the intensity of the backlight. There are five
levels of intensity that the power key can be used to select.
4. To turn off the meter, press and hold the power key for about three seconds,
until the meter display is blank.
Meter Maintenance
For routine meter maintenance, dust and wipe the meter with a damp cloth.
If necessary, warm water or a mild water-based detergent can be used. Meter
maintenance can be performed on a daily, weekly or monthly basis, as required by
the environment in which the meter is operated.
Immediately remove any spilled substance from the meter using the proper
cleaning procedure for the type of spill.
Meter Overview
