Thermo Scientific AquaSensors AV38 User manual

Thermo Scientific AquaSensors™
AV38 and DataStick™Ethernet
Communications
User Guide

ROSS and the COIL trade dress are trademarks of Thermo Fisher Scientific Inc. U.S. patent 6,793,787.
AQUAfast, Cahn, ionplus, KNIpHE, No Cal, ORION, perpHect, PerpHecT, PerpHecTion, pHISA, pHuture, Pure Water, Sage, Sensing the Future, SensorLink,
ROSS, ROSS Ultra, Sure-Flow, Titrator PLUS and TURBO2 are registered trademarks of Thermo Fisher.
1-888-pHAX-ION, A+, All in One, Aplus, AQUAsnap, AssuredAccuracy, AUTO-BAR, AUTO-CAL, AUTO DISPENSER, Auto-ID, AUTO-LOG, AUTO-READ,
AUTO-STIR, Auto-Test, BOD AutoEZ, Cable-Free, CERTI-CAL, CISA, DataCOLLECT, DataPLUS, digital LogR, DirectCal, DuraProbe, Environmental Product
Authority, Extra Easy/Extra Value, FAST QC, GAP, GLPcal, GLPcheck, GLPdoc, ISEasy, KAP, LabConnect, LogR, Low Maintenance Triode, Minimum Stir
Requirement, MSR, NISS, One-Touch, One-Touch Calibration, One-Touch Measurement, Optimum Results, Orion Star, Pentrode, pHuture MMS, pHuture
Pentrode, pHuture Quatrode, pHuture Triode, Quatrode, QuiKcheK, rf link, ROSS Resolution, SAOB, SMART AVERAGING, Smart CheK, SMART STABILITY,
Stacked, Star Navigator 21, Stat Face, The Enhanced Lab, ThermaSense, Triode, TRIUMpH, Unbreakable pH, Universal Access are trademarks of
Thermo Fisher.
Guaranteed Success and The Technical Edge are service marks of Thermo Fisher.
PerpHecT meters are protected by U.S. patent 6,168,707.
PerpHecT ROSS electrodes are protected by U.S. patent 6,168,707.
ORION Series A meters and 900A printer are protected by U.S. patents 5,198,093, D334,208 and D346,753.
ionplus electrodes and Optimum Results solutions are protected by U.S. patent 5,830,338.
ROSS Ultra electrodes are protected by U.S. patent 6,793,787.
ORP standard is protected by U.S. patent 6,350,367.
No Cal electrodes are protected by U.S. patent 7,276,142.
© 2009 Thermo Fisher Scientific Inc. All rights reserved. All trademarks are the property of Thermo Fisher Scientific Inc. and its subsidiaries.
The specifications, descriptions, drawings, ordering information and part numbers within this document are subject to change without notice.
This publication supersedes all previous publications on this subject.

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 1
Table of Contents
1 Quick Start.................................................................................................................. 6
2 Introduction................................................................................................................. 7
3 Hardware Setup........................................................................................................... 9
3.1 Ethernet Communications Adapter................................................................... 10
3.1.1 Operating Temperature............................................................................. 11
3.1.2 Electrical Connections.............................................................................. 12
3.1.3 Location of Adapter’s MAC Address....................................................... 12
3.1.4 LED Indicators.......................................................................................... 13
3.1.5 Restoring Default IP Address, Subnet Mask, Gateway Address.............. 14
3.2 AV38 Local Display with Ethernet Option ...................................................... 15
3.2.1 Electrical Connections.............................................................................. 15
3.2.2 Location of AV38’s MAC Address.......................................................... 15
3.2.3 Restoring Default IP Address, Subnet Mask, Gateway Address.............. 16
4 Configuration Procedures ......................................................................................... 17
4.1 For Evaluation/Demonstration Purposes .......................................................... 19
4.1.1 Advanced Configuration........................................................................... 23
4.2 Commissioning an Ethernet Product for Service.............................................. 25
5 Web Server................................................................................................................ 37
5.1 Home Page........................................................................................................ 37
5.2 Calibration Page................................................................................................ 38
5.3 Configuration Page ........................................................................................... 39
5.4 Communications Settings Page ........................................................................ 41
5.4.1 Viewing/Changing the Communications Settings.................................... 41
5.4.2 Viewing/Clearing the Internal Counters................................................... 41
5.4.3 Upgrading the Firmware........................................................................... 42
6 EtherNet/IP ............................................................................................................... 43
6.1 Electronic Data Sheet (EDS) ............................................................................ 43
6.2 Definitions......................................................................................................... 43
6.3 Reference Documents....................................................................................... 43
6.4 Open DeviceNet Vendor Association, Inc. (ODVA)........................................ 44
6.5 Object Model .................................................................................................... 44
6.5.1 Configuration............................................................................................ 44
6.5.2 Identity Object (01HEX – 1 Instance)......................................................... 44
6.5.3 Message Router Object (02HEX – 0 Instances).......................................... 45
6.5.4 Assembly Object (04HEX – 2 Instances).................................................... 45
6.5.5 Connection Manager Object (06HEX)........................................................ 46
6.5.6 TCP Object (F5HEX – 1 Instance).............................................................. 46
6.5.7 Ethernet Link Object (F6HEX – 1 Instance)............................................... 47
6.5.8 System Status Object (64HEX – 1 Instance)............................................... 48
6.5.9 Sensor Installation Object (65HEX – 1 Instance) ....................................... 49
6.5.10 Sensor Value Object (66HEX – 1 Instance)................................................ 50
6.5.11 User Configuration Object (67HEX – 1 Instance) ...................................... 50
6.5.12 Generic Sensor Calibration Object (68HEX – 1 Instance).......................... 51

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 2
6.5.13 Conductivity Sensor Calibration Object (69HEX – 1 Instance).................. 52
6.5.14 Mode Configuration Object (75HEX – 1 Instance)..................................... 53
6.6 EtherNet/IP Reference...................................................................................... 53
7 Modbus TCP and PCCC........................................................................................... 54
7.1 Modbus TCP..................................................................................................... 54
7.1.1 Modbus TCP Reference............................................................................ 55
7.2 Programmable Controller Communication Commands (PCCC)...................... 55
7.2.1 SLC 5/03 and SLC 5/04 PLCs.................................................................. 56
7.2.2 Example SLC 5/03 Ladder Logic Programs............................................. 58
7.2.3 SLC 5/05 PLC........................................................................................... 68
7.2.4 Example SLC 5/05 Ladder Logic Programs............................................. 69
7.2.5 PCCC References...................................................................................... 70
7.3 Modbus TCP and PCCC Register Map ............................................................ 71
8 Certifications............................................................................................................. 82
9 General References................................................................................................... 82
10 Limited Warranty.................................................................................................. 83
11 Terms and Conditions........................................................................................... 84

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 3
Table of Figures
Figure 1: A diagram of an isolated Ethernet DataStick network....................................... 6
Figure 2: A diagram of an isolated AV38 network............................................................ 6
Figure 3: The Ethernet Communications Adapter............................................................. 7
Figure 4: The Ethernet option in the AV38 Local Display (front and rear views)............ 7
Figure 5: Dimensions of the Adapter................................................................................. 8

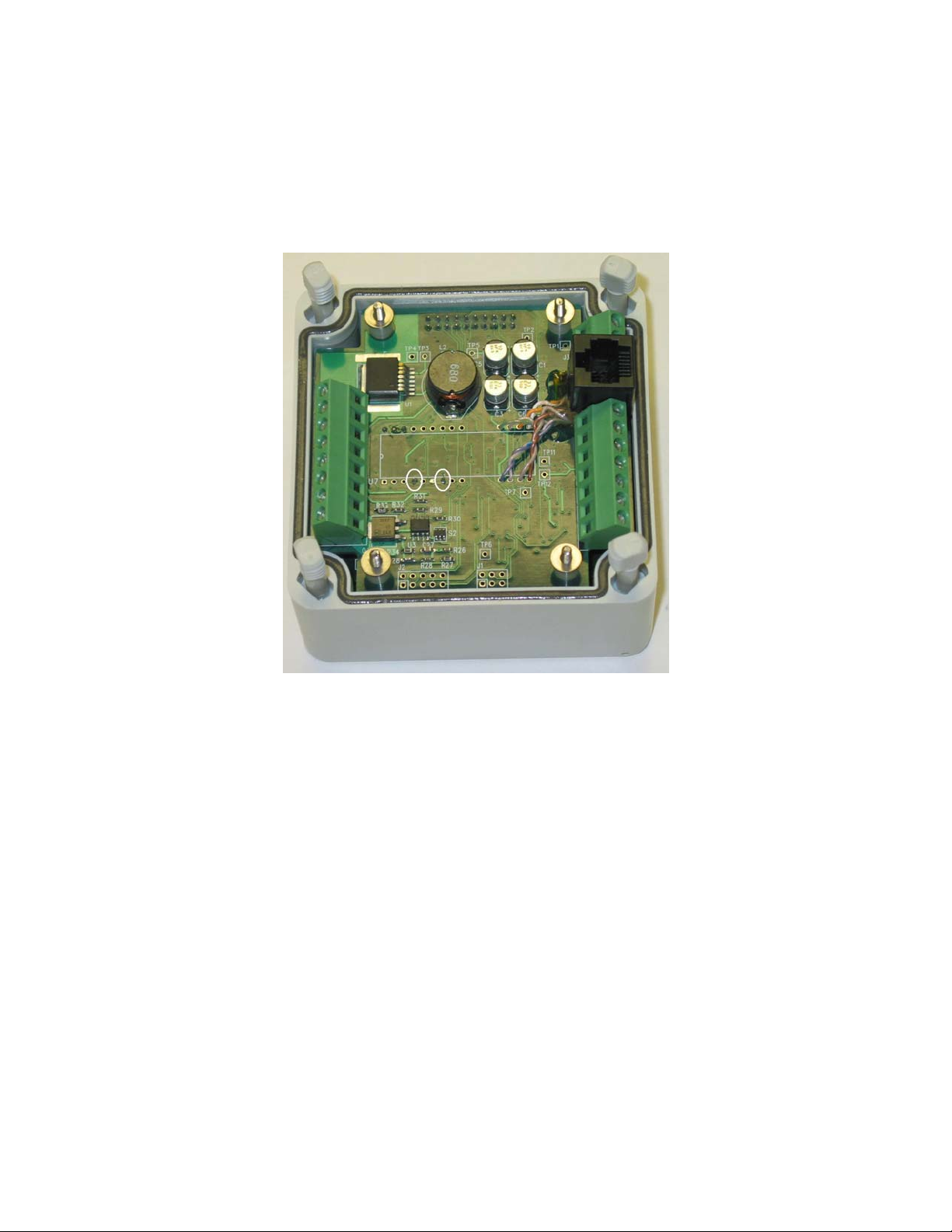

Figure 6: Ethernet Communications Adapter shown detached from a DataStick with a
toroidal Sensor Head........................................................................................................... 8

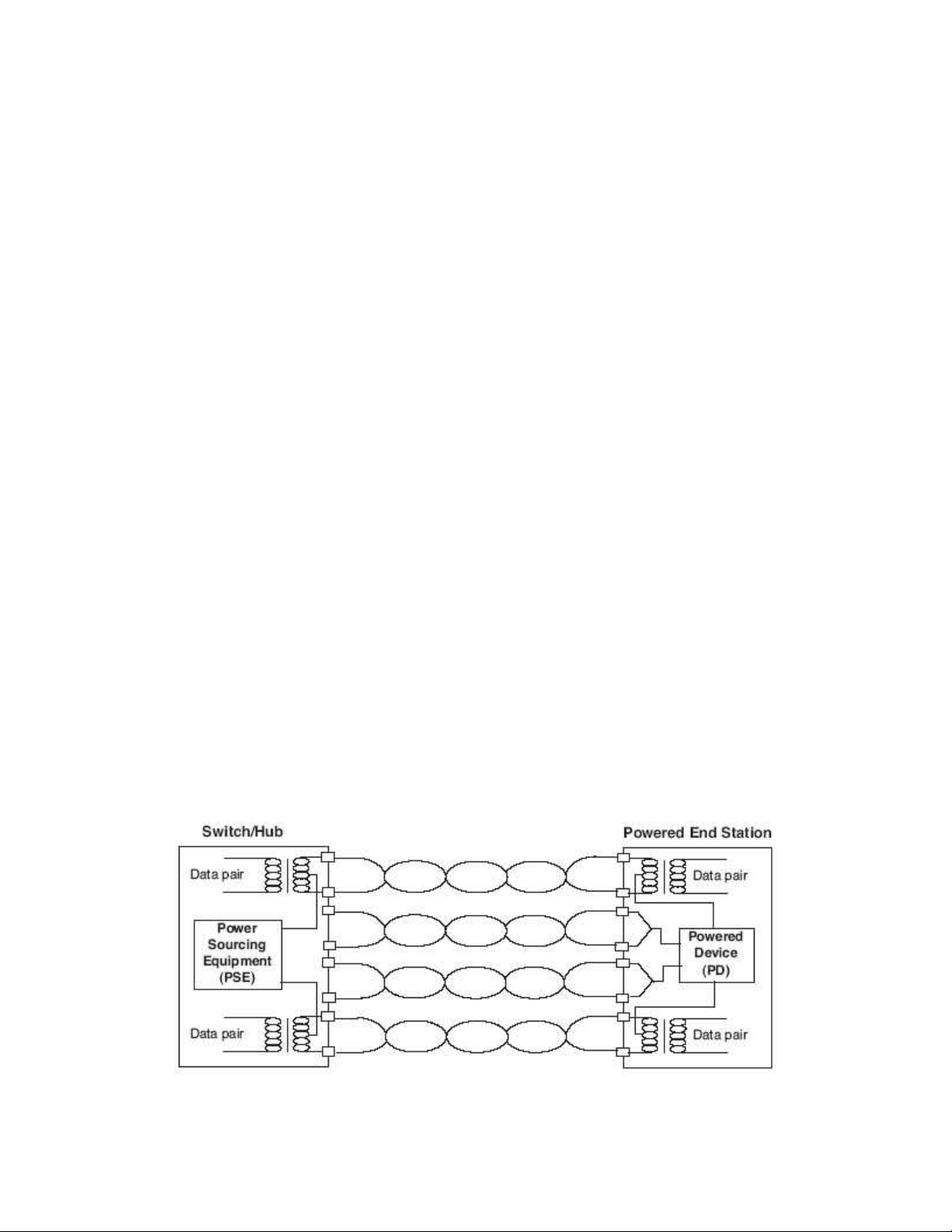

Figure 7: Endpoint power sourcing equipment, Mode A. The product is the Powered
End Station.......................................................................................................................... 9

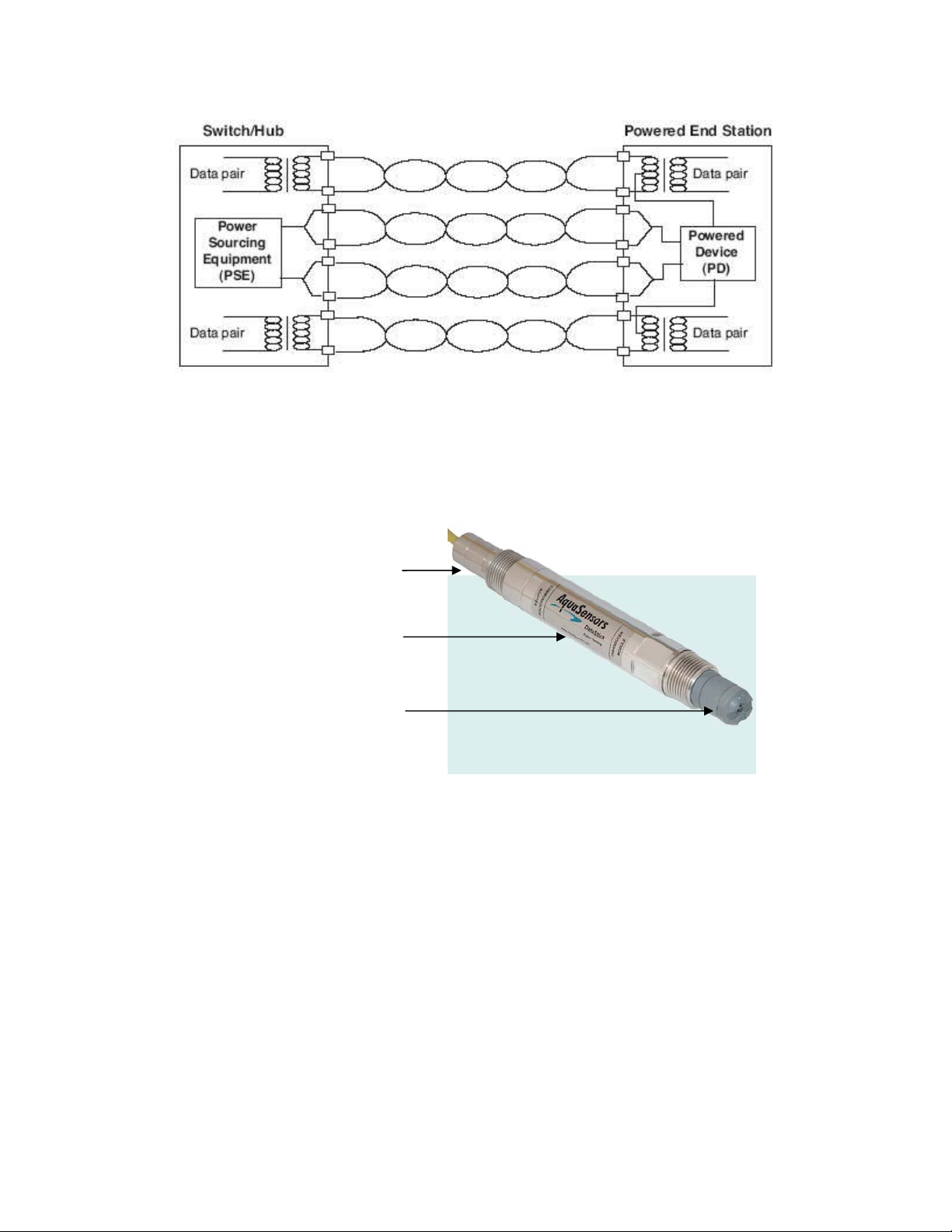

Figure 8: Endpoint power sourcing equipment, Mode B. The product is the Powered
End Station........................................................................................................................ 10
Figure 9: The three parts of the DataStick measurement system..................................... 10
Figure 10: The elements of the DataStick Measurement System.................................... 11
Figure 11: The different parts of the Adapter.................................................................. 11

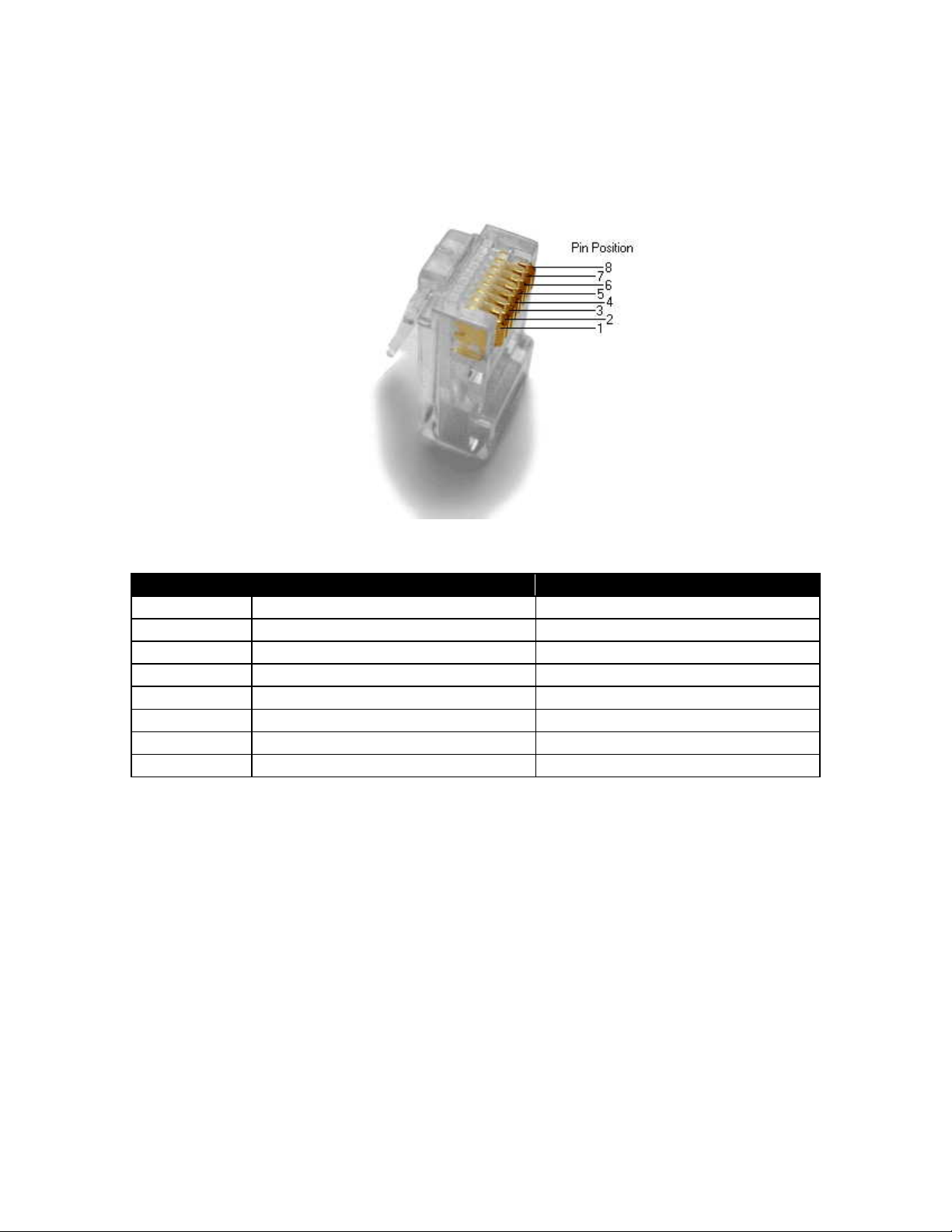

Figure 12: RJ45 plug pin positions.................................................................................. 12
Figure 13: LED indicators on the Adapter. Note that the Heartbeat LED is recessed
while the Link/Activity LED is not. ................................................................................. 13

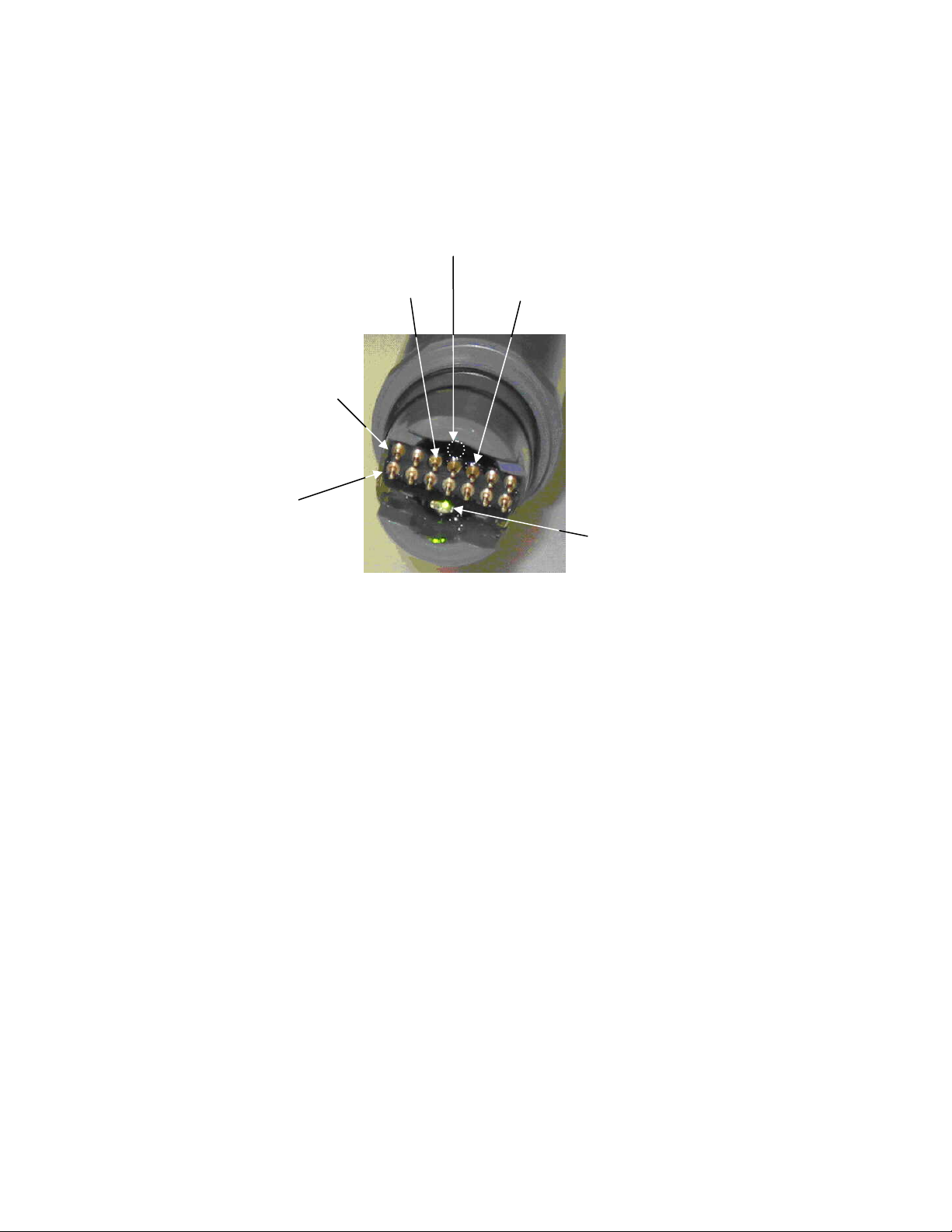

Figure 14: Pin numbering and LED locations. ................................................................ 14
Figure 15: The AV38's MAC address is in the lower right-hand corner of the overlay.. 15
Figure 16: Restoring default communications settings of an Adapter embedded inside an
AV38................................................................................................................................. 16
Figure 17: A power injector............................................................................................. 19
Figure 18: An Ethernet DataStick network for evaluation or demonstration purposes... 19
Figure 19: An AV38 network for evaluation or demonstration purposes. ...................... 20
Figure 20: Network Connections window....................................................................... 20
Figure 21: Local Area Connection Properties. ................................................................ 21
Figure 22: The Internet Protocol (TCP/IP) Properties window....................................... 21
Figure 23: Giving the laptop a static IP address.............................................................. 22
Figure 24: The Ethernet DataStick's Home Page............................................................. 23
Figure 25: Obtaining an IP address automatically........................................................... 24
Figure 26: The alternate configuration settings............................................................... 24
Figure 27: The output of the ipconfig command. ...................................................... 25
Figure 28: An Ethernet DataStick network constructed with a power injector and a cross-
over cable.......................................................................................................................... 26
Figure 29: An AV38 network constructed with a power injector and a cross-over cable.
........................................................................................................................................... 26
Figure 30: An Ethernet DataStick network constructed with an Ethernet switch and patch
cables................................................................................................................................. 27
Figure 31: An AV38 network constructed with an Ethernet switch and patch cables. ... 27
Figure 32: An Ethernet DataStick network constructed with a PoE switch and a patch
cable.................................................................................................................................. 28
Figure 33: An AV38 network constructed with a PoE switch and patch cables. ............ 28
Figure 34: Network Connections window....................................................................... 29

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 4
Figure 35: Local Area Connection Properties. ................................................................ 29
Figure 36: The Internet Protocol (TCP/IP) Properties window....................................... 30
Figure 37: Giving the computer a static IP address......................................................... 30
Figure 38: Verifying that no device is present using the ping command...................... 31
Figure 39: The Ethernet DataStick's Home Page............................................................. 32
Figure 40: The product's IP Setup Page........................................................................... 33
Figure 41: Entering the username and password in the IP Setup Page............................ 34
Figure 42: The IP address, subnet mask and gateway address edited as desired............. 35
Figure 43: The Home Page as seen from the Product's new IP address.......................... 36
Figure 44: The DataStick Measurement System Home Page.......................................... 37
Figure 45: Accessing the Calibration Page...................................................................... 38
Figure 46: The DataStick Measurement System Calibration Page.................................. 38
Figure 47: Accessing the Configuration Edit Page.......................................................... 39
Figure 48: The Configuration Edit Page.......................................................................... 40
Figure 49: The Communications Settings Page............................................................... 41
Figure 50: SLC 5/03 PLC connected to Ethernet network via a 1761-NET-ENI. .......... 56
Figure 51: The ENI Configuration Utility....................................................................... 57
Figure 52: The Com Port Redirector. .............................................................................. 58
Figure 53: The Message Routing tab of the ENI Configuration Utility.......................... 59
Figure 54: Part 1 of 3 of a ladder logic program that reads the Sensor Value from
N20:01............................................................................................................................... 60
Figure 55: Part 2 of 3 of a ladder logic program that reads the Sensor Value from
N20:01............................................................................................................................... 61
Figure 56: Part 3 of 3 of a ladder logic program that reads the Sensor Value from
N20:01............................................................................................................................... 62
Figure 57: The Setup screen for a MSG instruction in a SLC 5/03................................. 62
Figure 58: The Sensor Value in F8:0............................................................................... 63
Figure 59: Part 1 of 3 of a ladder logic program to read and write the Sensor Filter value
at N30:18........................................................................................................................... 64
Figure 60: Part 2 of 3 of a ladder logic program to read and write the Sensor Filter value
at N30:18........................................................................................................................... 65
Figure 61: Part 3 of 3 of a ladder logic program to read and write the Sensor Filter value
at N30:18........................................................................................................................... 66
Figure 62: The Setup screen for a MSG instruction in a SLC 5/03................................. 67
Figure 63: The N7 register showing the Sensor Filter value and the new Sensor Filter
value.................................................................................................................................. 68
Figure 64: SLC 5/05 PLC connected directly to an Ethernet network............................ 68
Figure 65: The Setup screen for a MSG instruction in a SLC 5/05 PLC......................... 69
Figure 66: Specifying the IP address of the Ethernet product on the Setup screen of the
SLC 5/05 MSG instruction. .............................................................................................. 70
Figure 67: The top entry is the Modbus TCP register and the bottom entry is the PCCC
register............................................................................................................................... 71

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 5
Table of Tables
Table 1: RJ45 connector pin assignment......................................................................... 12
Table 2: RJ45 jack signal names and functions............................................................... 15
Table 3: These objects are identical in the Ethernet products and DeviceNet Adapter
object models.................................................................................................................... 44
Table 4: Uptime registers................................................................................................. 71
Table 5: Register bank 1000; status registers. ................................................................. 72
Table 6: Register bank 2000; floating-point registers...................................................... 72
Table 7: Register bank 3000; integer registers. ............................................................... 74
Table 8: Register bank 4000; integer scale-factor registers............................................. 77
Table 9: Register bank 5000; information registers......................................................... 80
Table 10: Register bank 6000; AV38 configuration register........................................... 81
Contact Information
To contact Thermo Scientific AquaSensors Technical Support:
Within the United States call 1.800.225.1480 or fax [phone].
Outside the United States call 978.232.6000 or fax [phone].
In Europe, the Middle East and Africa, contact your local authorized dealer.
Visit us on the web at www.thermo.com/processwater
Ethernet Communications Adapter Part Numbers (for use with the DataStick)
•CA17R: 316 Stainless Steel Housing
•CA27R: CPVC Housing
•CA37R: PEEK® Housing
AV38 with Ethernet Part Number
AV38WX7Z: The variables W, X and Z are for specifying current output, relay
and mounting options. The number 7 indicates that the Ethernet
option is present.

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 6
1 Quick Start
If you’re familiar with setting a computer’s IP address and have a cross-over cable and a
power injector, the quickest way to establish communications with a Thermo Scientific
AquaSensors Ethernet product is to:
Figure 1: A diagram of an isolated Ethernet DataStick network.
Figure 2: A diagram of an isolated AV38 network.
1. Change the computer’s IP address to 192.168.0.1.
2. Plug the product into the PoE-side of the power injector.
3. Connect the power injector to the computer using a CAT5 cross-over cable.
4. Point your Web browser at 192.168.0.100 to see the Home Page.
The Home Page will show the product’s measurement values, configuration and
diagnostic information. From there, the product’s IP address can be changed if desired
by clicking on the CommSettings button.
If you’re not familiar with setting a computer’s IP address, see Section 3 for a detailed
description of the configuration procedure.

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 7
2 Introduction
This document describes the configuration and operation of the Thermo Scientific
AquaSensors Ethernet Communications product. It applies to V1.02.00 firmware or later.
The product is offered in two forms. The first form is as a Communications Adapter as
shown in Figure 3 that is plugged into the DataStick Body.
Figure 3: The Ethernet Communications Adapter.
The second form is as an option in the AV38 Local Display as shown in Figure 4.
Figure 4: The Ethernet option in the AV38 Local Display (front and rear views).
The product provides full-featured measurement, configuration, calibration and
diagnostics of any DataStick™ measurement system from any Ethernet-enabled device
via resident Web pages, EtherNet/IP, Modbus TCP, or Programmable Controller
Communication Commands (PCCC). An intermediate analyzer is not required.

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 8
In either form, the product supports the following protocols:
•EtherNet/IP
•Modbus TCP
•Programmable Controller Communication Commands (PCCC)
•TCP/IP (IPv4)
•UDP
•ICMP (for ping response)
•TFTP (for upgrading firmware)
The Ethernet Communications Adapter (Adapter) has a diameter of about 1 inch, a length
of about 4.5 inches, and it protrudes from the end of the DataStick Body by about 3.1
inches as shown in Figure 5.
Figure 5: Dimensions of the Adapter.
It has an integral CAT5 industrial Ethernet cable with an RJ45 connector on one end that
can be plugged in to any PoE switch or power injector. On the other end of the Adapter
is a keyed O-ring-sealed connector that can be plugged into any Thermo Scientific
AquaSensors DataStick. There are red and green LED indicators on this end of the
Adapter that make it easy to know when the Ethernet link is active. The cable can be up
to 100 meters (328 feet) long although we recommend that the Adapter be ordered with
10–30 feet of cable to reduce cost.
When plugged into a DataStick sensor system the Adapter becomes an integral part of the
measurement system and the system can be mounted as any industrial sensor would be
mounted for continuous use in process applications. Figure 6 shows an Adapter detached
from a DataStick with a toroidal Sensor Head.
Figure 6: Ethernet Communications Adapter shown detached from a DataStick with a toroidal
Sensor Head.
The Adapter can be used for direct access to DataStick measure, calibrate, configure and
diagnose information, even when the Sensor Head is changed from one type of analytical
measurement to another with power applied. The DataStick automatically supports
multiple measurement types and all Sensor Heads are automatically supported.

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 9
Refer to the DataStick Manual for detailed information on installation, maintenance and
operation of sensors.
The Ethernet option in the AV38 Local Display provides an RJ45 jack for connection to a
power injector or 802.3af-compliant (PoE) Ethernet hub or switch as shown on the right
side of Figure 4. It allows network access to the Modbus RTU DataStick connected to
the AV38.
In this form, power for the Ethernet option is provided by a Power-Over-Ethernet device,
and power for the AV38 Local Display is provided by an external 24 VDC power supply.
This manual includes only the Ethernet option in the AV38. For information about the
rest of the AV38, please see the AV38 User’s Manual.
3 Hardware Setup
Both forms of the product possess the same default communications settings. They are as
follows:
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
Gateway Address: 192.168.0.1
Both forms support a data rate of 10 Mbps (10Base-T).
Both forms comply with the IEEE 802.3af Power Over Ethernet standard and, as such,
are termed powered devices (PD). This means that they receive their power via the
Ethernet network.
Power Classification: Class 1
Supply Voltage: 44–57 VDC, 48 VDC nominal
Supply Current: 25 mA @ 48 VDC
They are insensitive to the polarity of the power supply and are capable of operating in
either Mode A or Mode B as shown in Figure 7 and Figure 8, respectively.
Figure 7: Endpoint power sourcing equipment, Mode A. The product is the Powered End Station.

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 10
Figure 8: Endpoint power sourcing equipment, Mode B. The product is the Powered End Station.
The rest of this section describes the hardware setup of each form of the product.
3.1 Ethernet Communications Adapter
The DataStick measurement system consists of three parts as shown in Figure 9 that are
assembled at Thermo Fisher Scientific.
Figure 9: The three parts of the DataStick measurement system.
The Adapter can be removed and replaced in the field. This may be desirable for any
number of reasons, some of which are:
•Ethernet Diagnostics: Observe the Link/Activity LED to confirm the
communications link
•DataStick Diagnostics: Temporarily plug in a USB Communications Adapter for
PC diagnostics
•Repair: Replace a damaged DataStick assembly without rewiring
•Change Measurement: Quickly swap the Sensor Head with a spare that’s been
calibrated in the laboratory
1. Plu
g
-in Etherne
t
Ada
p
te
r
2. DataStick Bod
y
3. Plu
g
-in Sensor Head

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 11
The Adapter is keyed and plugs into the end of the DataStick Body that’s marked
“Communications Adapter” as shown in Figure 10.
Figure 10: The elements of the DataStick Measurement System.
Insert the Adapter into the DataStick Body until it bottoms out. Rotate the Adapter until
it engages with the connector. Push the adapter in gently, and then tighten the retaining
ring with a 15/16-inch wrench. It is very important to tighten the retaining ring to ensure
a reliable connection. The different parts of the Adapter are shown in Figure 11.
Figure 11: The different parts of the Adapter.
3.1.1 Operating Temperature
While operating at room temperature (~22 °C or ~72 °F), the Adapter runs at around
body temperature (~37 °C or ~99 °F). This is normal.
ETHERNET
ADAPTER
DATASTICK BODY
Potted Part Number (this
side) and Serial Number
(opposite side)
Retaining Ring Use a 15/16-inch
wrench and rotate clockwise to
tighten.
O-Ring Seal It should be
free of dirt when inserted into
the DataStick™.

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 12
3.1.2 Electrical Connections
The Adapter is supplied with an 8-conductor integral industrial CAT5 Ethernet cable that
is terminated with an RJ45 plug. The pin positions of the plug are shown in Figure 12
and the signal names and functions are defined in Table 1.
Figure 12: RJ45 plug pin positions
Table 1: RJ45 connector pin assignment
Pin Position Signal Name/Function Mode A Signal Name/Function Mode B
1 Tx+ (Transmit)/DC+ Tx+ (Transmit)
2 Tx– (Transmit)/DC+ Tx– (Transmit)
3 Rx+ (Receive)/DC– Rx+ (Receive)
4 Not used DC+
5 Not used DC+
6 Rx– (Receive)/DC– Rx– (Receive)
7 Not used DC–
8 Not used DC–
3.1.3 Location of Adapter’s MAC Address
The Adapter’s Media Access Control (MAC) Address is printed on a label that is affixed
to the integral Ethernet cable. The MAC Address can also be read electronically using
the supported EtherNet/IP or Modbus TCP protocols, or by browsing to the Adapter’s
CommSettings Web page.

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 13
3.1.4 LED Indicators
There are two bi-color LED indicators visible from the DataStick-end of the Adapter as
shown in Figure 13.
Figure 13: LED indicators on the Adapter. Note that the Heartbeat LED is recessed while the
Link/Activity LED is not.
The Link/Activity LED glows green when there is a link between the Adapter and
another network device, and it glows red when there is network activity.
The Heartbeat LED is recessed within the body of the Adapter. It blinks green at a rate
of 1 Hz while the Adapter is operating normally. It blinks red and green to indicate that
the IP Address, Subnet Mask, and Gateway Address have been restored to default values.
See Section 3.1.5 for more information about restoring the communications settings to
default values.
Link/Activity LED
Heartbeat LED
(recessed)

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 14
3.1.5 Restoring Default IP Address, Subnet Mask, Gateway Address
In the event that the IP address of an Adapter is unknown, its communications settings
can be restored to factory default values by following the procedure below:
Figure 14: Pin numbering and LED locations.
1. Disconnect the Adapter from the network. Attention: Determine how your
control system will respond before disconnecting an Adapter from the
network.
2. Detach the Adapter from the DataStick.
3. Make an electrical connection between pins 5 and 9 on the DataStick-side of the
Adapter using a clip lead or equivalent as shown in Figure 14. Be careful to make
the connection only between pins 5 and 9.
4. Apply power to the Adapter and watch the Heartbeat LED shown in Figure 14.
After approximately 5 seconds, the Heartbeat LED will blink red and green at a
rate of 2 Hz. This indicates that the Adapter has detected the connection between
pins 5 and 9 and restored the communications settings to their factory default
values.
5. Disconnect the power from the Adapter and remove the electrical connection
between pins 5 and 9. Re-attach the Adapter to the DataStick.
6. Establish communications with the Adapter as described in Section 4.
Pin 1
Pin 2
Pin 5
Pin 9
Link/Activity LED
Heartbeat LED
(recessed)

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 15
3.2 AV38 Local Display with Ethernet Option
3.2.1 Electrical Connections
The option is supplied with an 8-conductor integral RJ45 jack as shown in Figure 15.
The signal names and functions of the jack are defined in Table 2.
Table 2: RJ45 jack signal names and functions
Position Signal Name/Function Mode A Signal Name/Function Mode B
1 Tx+ (Transmit)/DC+ Tx+ (Transmit)
2 Tx– (Transmit)/DC+ Tx– (Transmit)
3 Rx+ (Receive)/DC– Rx+ (Receive)
4 Not used DC+
5 Not used DC+
6 Rx– (Receive)/DC– Rx– (Receive)
7 Not used DC–
8 Not used DC–
3.2.2 Location of AV38’s MAC Address
The AV38’s Media Access Control (MAC) Address is printed on a label that is affixed to
the terminal block overlay inside the AV38 as shown in Figure 15.
Figure 15: The AV38's MAC address is in the lower right-hand corner of the overlay.

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 16
3.2.3 Restoring Default IP Address, Subnet Mask, Gateway Address
The communications settings of the option can be restored to factory default values by
following the procedure below.
Note: The AV38 must be powered-on during this procedure (24 VDC
applied to Terminal Block pins 1 [+] and 2 [–]).
Figure 16: Restoring default communications settings of an Adapter embedded inside an AV38.
1. Disconnect the AV38 from the Ethernet network. Attention: Determine how
your control system will respond before disconnecting an AV38.
2. Remove the terminal-block overlay.
3. Make an electrical connection between the two test points on the terminal board
of the AV38 using a clip lead or equivalent. The test points are circled in white in
Figure 16.
4. Reconnect the AV38 to the Ethernet network and wait at least 60 seconds for the
communications settings to be restored to their factory default values.
5. Disconnect the AV38 from the Ethernet network and remove the electrical
connection between the two test points. Replace the terminal-block overlay.
6. Establish communications with the AV38 as described in Section 4,
Configuration Procedures.

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 17
4 Configuration Procedures
The product is shipped from Thermo Fisher Scientific with a static IP address, subnet
mask and default gateway that can be changed by the user to conform to specific
networking requirements. These changes can be made from the resident Web page.
The product stores communications settings and other information in its own non-volatile
memory. You must, therefore, access the product to view and edit these parameters.
Changes to the IP Address, Subnet Mask, and Gateway Address require that you reset the
product before the new settings take effect. You can reset the product by cycling its
power.
Please contact Thermo Fisher Scientific for a list of networking infrastructure hardware
that includes manufacturers of power injectors as well as 802.3af-compliant industrial
and home/office Ethernet switches.
Note: When the Ethernet product’s cable is moved from one port on
an Ethernet switch to another, communication with that product will
not be possible until the tables inside the switch are rebuilt by cycling
the switch’s power.
Optionally, a virtual private network (VPN) can be established between Thermo Fisher
Scientific and the customer’s site to allow Thermo Fisher Scientific to configure and
diagnose Ethernet communications products and upgrade them if necessary.
The default static IP address for Thermo Scientific AquaSensors Ethernet products is
provided on a paper tag for initial access and setup. When connecting to a network, be
sure to configure an IP address that will not be in conflict with other devices or DHCP
servers on the network. If there is an IP address conflict, several devices on the network
may not communicate.
Note: It is important to tag Thermo Scientific AquaSensors Ethernet
communications products with currently configured IP address
information so that they can always be accessed.
Thermo Fisher Scientific ships Ethernet communications products with a paper tag that
gives currently configured IP address information along with a permanent tag that gives
the MAC address. For customers that order a preconfigured IP address, a permanent IP
address label can be provided.
In the event that the IP address for a Thermo Scientific AquaSensors Ethernet product is
lost, there are two ways to regain communications. The first involves a Discovery Utility
provided by Thermo Fisher Scientific that will find all Thermo Scientific AquaSensors
Ethernet communications products on a network and allow their IP addresses, subnet
masks and default gateways to be changed. The second involves restoring the settings to
default values as described in Section 3.
Configuration procedures in this section are explained using the Windows xp operating
system. When other operating systems are used, procedures may be slightly different.
When possible, obtain an IP address, subnet mask and default gateway from a network
administrator.

Thermo Scientific AquaSensors™DataStick™Ethernet Communications User Guide 18
There are many situations that may necessitate changing the configuration of the product.
This section describes two: The first involves evaluating or demonstrating an Ethernet
DataStick and the second involves configuring a product that’s to be put into service.
There are many ways to connect a product to a computer so that it can be configured.
This section describes three:
1. Using a power injector and a CAT5 cross-over cable
2. Using an Ethernet hub or switch and a CAT5 patch cable
3. Using an 802.3af-compliant (PoE) Ethernet hub or switch and a CAT5 patch
cable
Choose the way that is most convenient for you.
Attention: Determine how your control system will respond before
disconnecting a product from the network.
