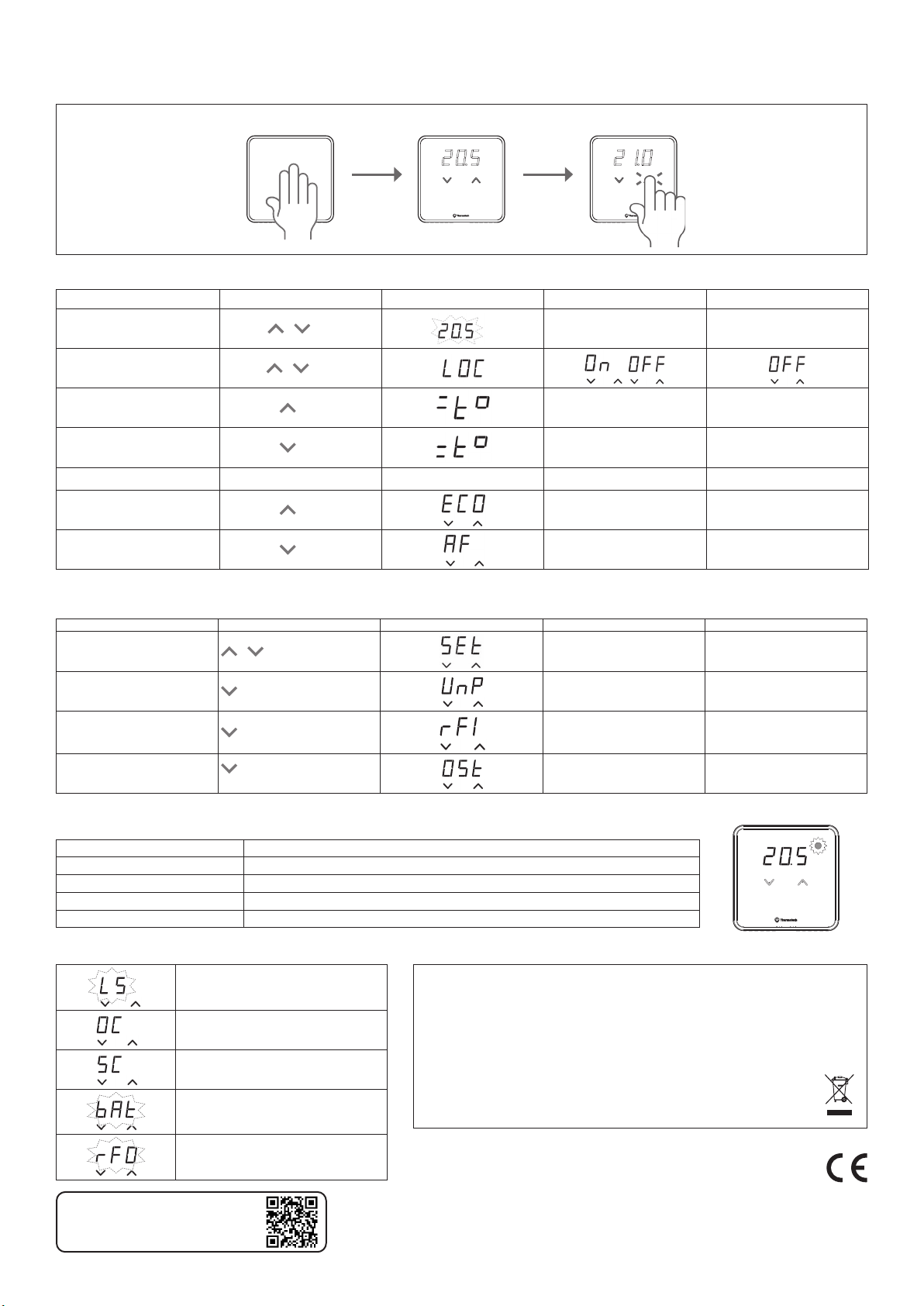

Thermotech 67940 User manual

Thermotech - Spårvägen 8 - S-90131 Umeå Sweden
ENG
IQ Room
Radio room thermostat, DC 3V
2xAAA
67940 (White)
67942 (Black)
Instruction manual
• Before setting up your product, please download and launch the
mobile application to follow the instructions.
• To save a changed value press and simultanously.
• Two fast flashes means the value is saved.
• A flashing value means that the value can be changed.
• A changed value will automatically be saved within 4 seconds.
IMPORTANT: The system can be put into standby
via the mobile application. When the system is in
standby mode, - - appears on the thermostat screen
and the setpoint of all the system will be 7°C. No ac-
tion will be possible until the system is turned back
ON via the mobile application.
General information
WEIGHT MATERIAL
APPV'D BY
2018-11-20 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
WEIGHT MATERIAL
APPV'D BY
2018-11-20 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
67940 67942
~1,5m
WEIGHT MATERIAL
APPV'D BY
2018-11-20 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
WEIGHT MATERIAL
APPV'D BY
2018-11-20 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
Format
NTDTT-00_ASSEMBLY_J
CODE
Material
SHEET 1 OF 1 Project
Drawn by Date Approved by
Revision Description
1st issue
A
CMl
A
Finishing
Dimensions
General tolerances
Linear: +/- 0.1 mm
Angular: +/- 0.5 °
Confiden�el. Copyright© 2021 Imhotep Créa�on. Tous droits réservés. Toute reproduc�on totale ou par�elle interdite. All right reserved. Any reproduc�on of this document without any agreement is prohibited.
mm
2:1
ZI Montplaisir
Rue du Champ de courses
38780 PONT EVEQUE
Tel. : [phone]
Fax : [phone]
Scale
(if not specified)
Filename
A3
DRAFT PART DRAWING
TITRE
10-12-21
2xAAA
WEIGHT MATERIAL
APPV'D BY
2018-11-20 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
Calibration ~3 sec
RF LORA
869.85MHZ
BLE
IQ Room IQ Base IQ Home
Radio pairing
WEIGHT MATERIAL
APPV'D BY
2018-12-05 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
WEIGHT MATERIAL
APPV'D BY
2018-12-05 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
WEIGHT MATERIAL
APPV'D BY
2018-12-05 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
(>5 sec.)
WEIGHT MATERIAL
APPV'D BY
2018-12-05 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
WEIGHT MATERIAL
APPV'D BY
2018-12-05 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
1 sec.
(4 sec.)

Thermotech - Spårvägen 8 - S-90131 Umeå Sweden
Operating status
Radio communication LED is blinking fast
Heat demand LED is fixed ON, only when the display is on
Low battery detection LED is blinking: Double blink every 5 minutes from 7:00am to 9:00pm
Leakage sensor detection given by UFH LED is blinking: Double blink every 5 minutes from 7:00am to 9:00pm
T° sensor failure detection LED is blinking: Double blink every 5 minutes from 7:00am to 9:00pm
Advanced settings
Setting Press Display Range Factory setting
Access settings + 10 sec.
Unpairing from Advanced settings display
Controller output identification from Unpairing display
Temp. compensation** from Controller output
identification -5...5°C 0°C
** Compensation of temperature if measured temperature diers from temperature shown on room thermostat.
Settings
* Light setting adjustable through the smartphone application in the settings menu then room settings
Setting Press Display Range Factory setting
Save + 1 sec.
x2 - -
Lock + 3 sec.
Max temp. 3 sec. 7...30°C 30°C
Min temp. 3 sec. 7...30°C 7°C
Light setting* By APP ---
Eco-mode 9 sec. -1...-8°C -3,5°C
Anti freeze mode 9 sec. 5...20°C 12°C
Temperature setting
WEIGHT MATERIAL
APPV'D BY
2018-12-05 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
WEIGHT MATERIAL
APPV'D BY
2018-12-05 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
Technical data
Power supply 2 x 1.5VDC AAA / LR03 Alkaline only
Radio (Lora): Emissions: 869,725- 869, 975Mhz
Power: <14dbm
Receiver category 2
Environment Operating temperature 0°C to 40°C
Storage temperature -20°C to +70°C
Humidity: 85% at +25°C (non condensing)
Protection rating IP20
Troubleshooting
Leak detection has occurred
Temperature sensor open circuit
Temperature sensor short circuit
Thermostat batteries are almost empty
Radio communication is lost
SIMPLIFIED EU DECLARATION OF CONFORMITY :
Hereby, Thermotech declares that the radio equipment type, Radio room thermostat IQ Room
(Ref: 67940 & 67942), is in compliance with directives
WEIGHT MATERIAL
APPV'D BY
2018-12-05 jens
DATE NAME
DRAWN BY DWG NO.
PROJECT
TITLE
SHEET SCALE
A3
REVISION
Spårvägen 8
901 31 Umeå
Sweden [phone]
1 of 1 1:1
1 sec.
To download the detailed instructions,
please scan the QR code
The full text of the EU declaration of conformity is available at the following internet address:
https://www.thermotech.se/dokumentation/
2014/53/EU and 2011/65/EU.
