Thies CLIMA 4.3515.30.000 User manual

Small Wind Transmitter
Instruction for Use
4.3515.30.000
Dok. No. 020783/01/21
T H E W O R L D O F W E A T H E R D A T A

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 020783/01/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 2 - 10
Safety Instructions
•Before operating with or at the device/product, read through the operating instructions.
This manual contains instructions which should be followed on mounting, start-up, and operation.
A non-observance might cause:
- failure of important functions
- endangerment of persons by electrical or mechanical effect
- damage to objects
•
Mounting, electrical connection and wiring of the device/product must be carried out only by a qualified
technician who is familiar with and observes the engineering regulations, provisions and standards ap-
plicable in each case.
•Repairs and maintenance may only be carried out by trained staff or Adolf Thies GmbH & Co. KG.
Only components and spare parts supplied and/or recommended by Adolf Thies GmbH & Co. KG
should be used for repairs.
•Electrical devices/products must be mounted and wired only in a voltage-free state.
•Adolf Thies GmbH & Co KG guarantees proper functioning of the device/products provided that no
modifications have been made to the mechanics, electronics or software, and that the following points
are observed:
•All information, warnings and instructions for use included in these operating instructions must be
taken into account and observed as this is essential to ensure trouble-free operation and a safe condi-
tion of the measuring system / device / product.
•The device / product is designed for a specific application as described in these operating instructions.
•The device / product should be operated with the accessories and consumables supplied and/or rec-
ommended by Adolf Thies GmbH & Co KG .
•Recommendation: As it is possible that each measuring system / device / product may, under certain
conditions, and in rare cases, may also output erroneous measuring values, it is recommended using
redundant systems with plausibility checks for security-relevant applications.
Environment
•As a longstanding manufacturer of sensors Adolf Thies GmbH & Co KG is committed
to the objectives of environmental protection and is therefore willing to take back all
supplied products governed by the provisions of "ElektroG" (German Electrical and
Electronic Equipment Act) and to perform environmentally compatible disposal and
recycling. We are prepared to take back all Thies products concerned free of charge if
returned to Thies by our customers carriage-paid.
•Make sure you retain packaging for storage or transport of products. Should packag-
ing however no longer be required, please arrange for recycling as the packaging ma-
terials are designed to be recycled.
Documentation
•© Copyright Adolf Thies GmbH & Co KG, Göttingen / Germany
•Although these operating instructions have been drawn up with due care, Adolf Thies GmbH & Co
KG can accept no liability whatsoever for any technical and typographical errors or omissions in this
document that might remain.
•We can accept no liability whatsoever for any losses arising from the information contained in this doc-
ument.
•Subject to modification in terms of content.
•The device / product should not be passed on without the/these operating instructions.

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 020783/01/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 3 - 10
Table of contents
1Models............................................................................................................................ 4
2Application...................................................................................................................... 4
3Mode of Operation.......................................................................................................... 4
4Recommendation Site Selection /Standard Installation................................................... 4
5Installation....................................................................................................................... 5
5.1 Mechanical Mounting.................................................................................................5
5.2 Electrical Mounting....................................................................................................5
6Maintenance................................................................................................................... 5
7Connecting Diagram....................................................................................................... 6
8Technical Data................................................................................................................ 6
9Dimension diagram......................................................................................................... 7
10 Accessories................................................................................................................. 7
11 EC-Declaration of Conformity ...................................................................................... 8

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 020783/01/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 4 - 10
1 Models
Order-No.
Meas. Range
Connection / Cable type
Cable length
4.3515.30.000
0,5 ... 40m/s
cable LiYY 2 x 0,25mm²
20m
Included in delivery
1 x Small Wind Transmitter
1 x Operating Instructions
2 Application
The wind transmitter serves for the detection of the horizontal wind speed. The measurement
values are output as potential-free pulses.
The signals can be transmitted to display instruments, measuring transducers, or datalog-
gers. In areas endangered by lightning it is recommendable to install a Lightning rod, order
no. 4.3100.99.000 as well as to fit the instrument on a metallic mast with the grounding set.
3 Mode of Operation
The wind transmitter converts wind velocity into an electrical signal. The signal is generated
by a reed contact, which is activated without contact magnetically by a cup anemometer.
The cup anemometer is mounted in a ball-bearing shaft and leads a magnet past the reed
contact, resulting in a frequency proportional to the number of rotations of the cup anemome-
ter. This frequency is almost linearly dependent on wind velocity. Cup star and upper part of
the shaft consist of synthetic fibre, the lower part is made of aluminium.
4 Recommendation Site Selection /Standard Installation
In general wind measurement instruments should be able to detect the wind conditions of a
large area. In order to obtain comparable values when determining the surface wind, meas-
urements should be taken at a height of 10 meters over an even area with no obstacles. An
area with no obstacles means that the distance between the wind transmitter and an obstacle
should be a least 10 times the height of the obstacle (s. VDI 3786). If it is not possible to fulfil
this condition, then the wind transmitter should be set up at a height where local obstacles do
not influence the measured values to any significant extent (approx. 6 - 10m above the obsta-
cle). The wind transmitter should be set up in the centre of flat roofs not on the edge to avoid
bias in the direction (privileged directions).

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 020783/01/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 5 - 10
5 Installation
Remark:
When using fastening adapters (angle, traverses, etc.) please take a possible effect by turbu-
lences into consideration.
Attention:
Storing, mounting and operation under weather conditions is permissible
only in vertical position, as otherwise water can get into the instrument.
5.1 Mechanical Mounting
The instrument can be mounted to a 50mm long tube of R 1" (diameter 35mm). The internal
diameters of the tube must be at least 20mm in order to be able to hold the connecting cable
with the plug connection.
Then, run the cable through the mast tube. Place the wind transmitter onto the tube and attach
it to the shaft with the two fixing screws.
If the instrument is being used in combination with a wind direction transmitter
(4.3124.40…,4.3127.40…), mount the small wind transmitter to the traverse, order-no.
4.3171.20.000 (see accessories),and screw this onto a mast with a diameter of 30...50mm.
5.2 Electrical Mounting
The electrical connection is carried out acc. to the connection diagram (chapter 7).
6 Maintenance
Heavy pollution can clog up the slit between the rotating and the stationary parts of the wind
transmitter. This slit must be kept clean.
After a long period of use, wear and tear may occur on the ball bearings and on the reed
contact. This will manifest itself in a higher starting torque, in the fact that the cup anemome-
ter does not start to move or in a lack of output pulses. To avoid errors in measurement, we
recommend that the instrument undergo an annual check-up and that the starting and the
stopping mechanism be tested for ease of movement by blowing on it gently. Moreover we
recommend that the instrument be overhauled once every two years by the manufacturer.

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 020783/01/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 6 - 10

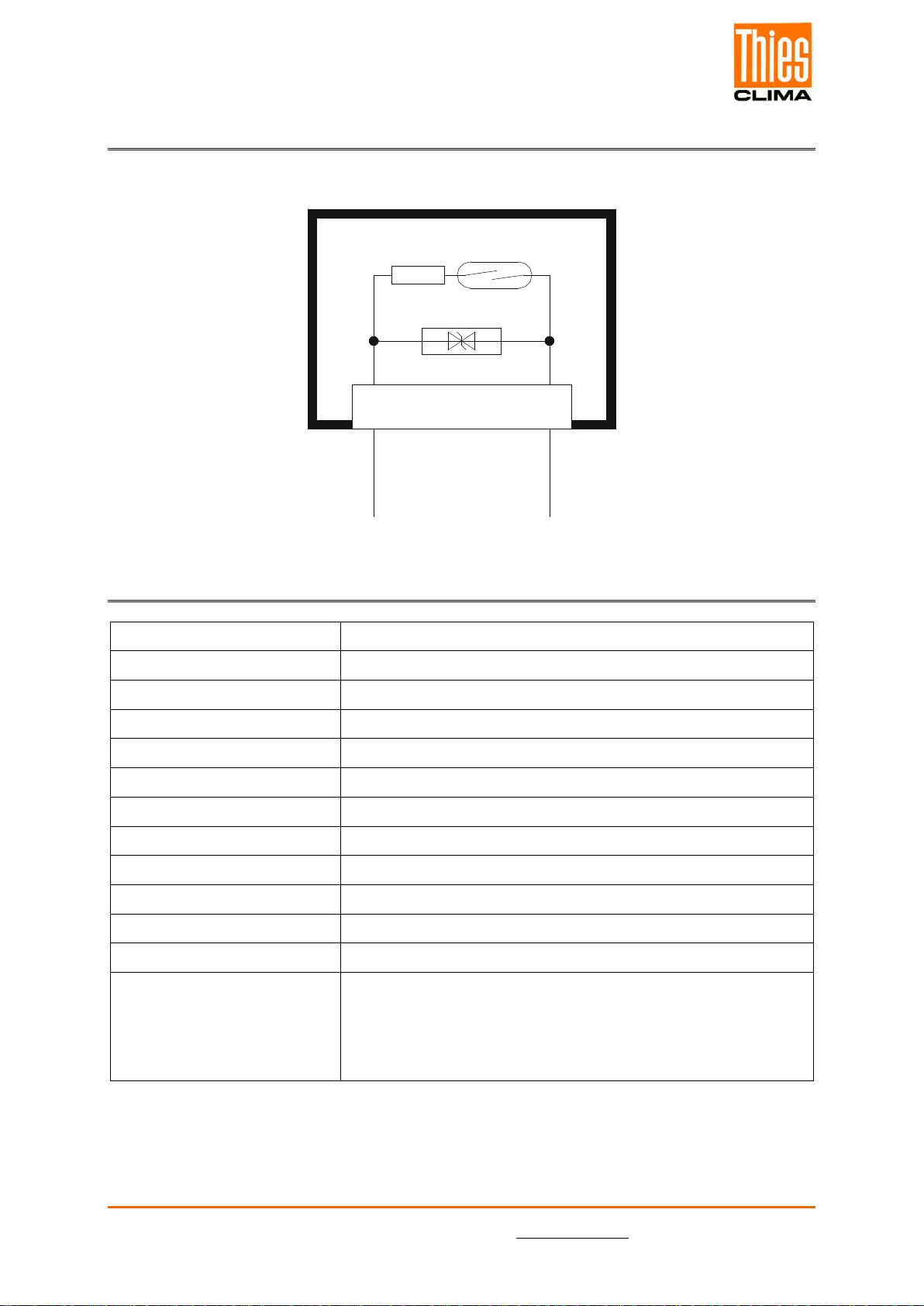

7 Connecting Diagram
100Ohm
Rv Reed-Switch
Cable
1 2
8 Technical Data
Measuring range
0,5 ... 40m/s
Resolution 0,8m wind run
Accuracy ± 0.5m/s or ± 5% of measuring value
Load max. 60m/s
Electr. output 50Hz at 40m/s
Contact
Reed contact
Contact load
0,5W; 24V DC; 20mA
Rv (see connection diagram)
0,5W , 100Ω
Ambient temperature - 25°C ... + 60°C, ice-free
Connection See model
Weight ca. 0,3kg
Protection IP 54
Material
Cupstar
Housing
Bottom
Polycarbonat with glass fiber (PC-GF10)
Polyoxymethylen (POM)
Alu (Si1)
To achieve a maximum switching cycle life, we recommend operating the reed contact in a
switching voltage range from 1V to 12V and a switching current range from 1mA to 10mA.

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 020783/01/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 7 - 10

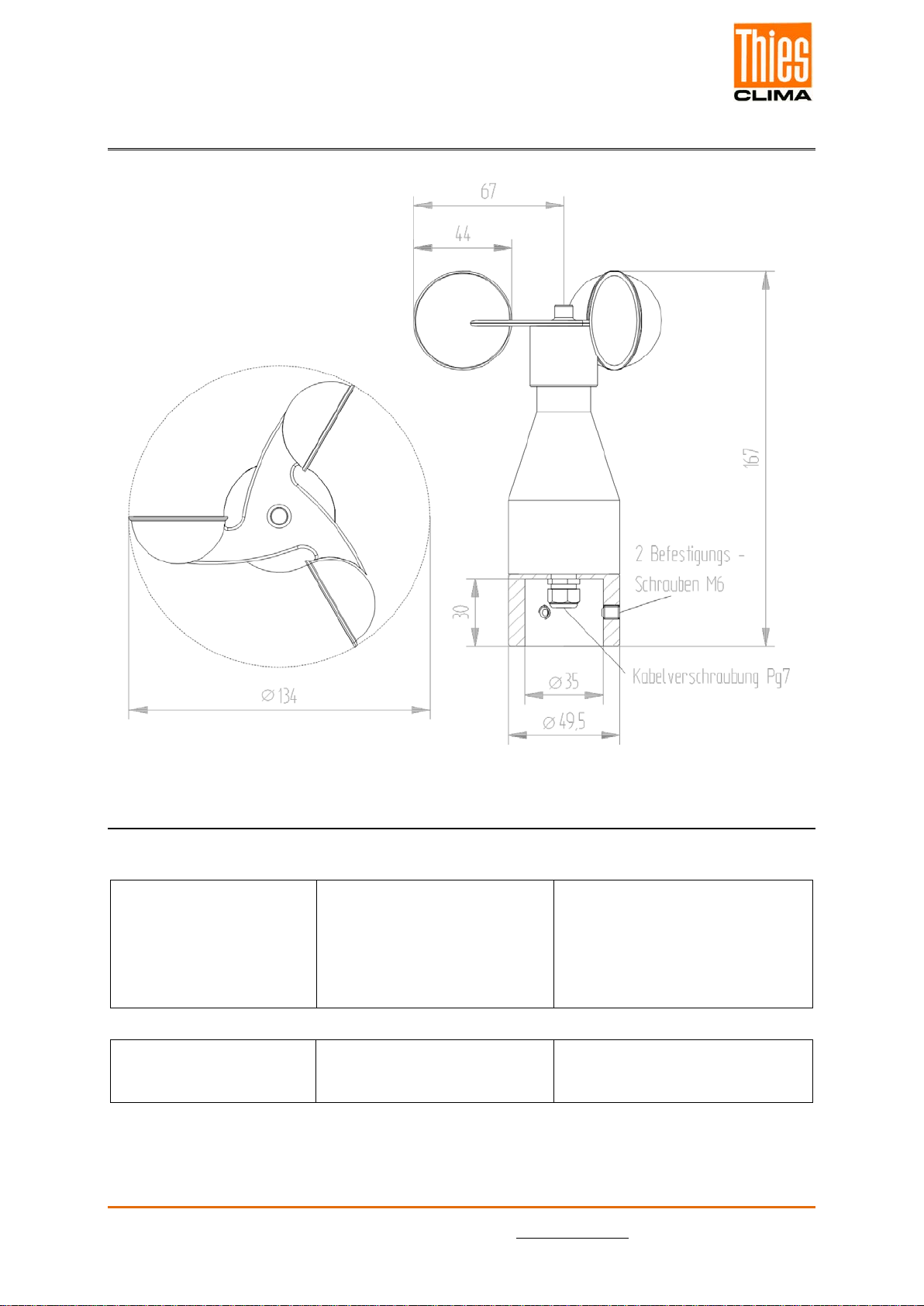

9 Dimension diagram
10 Accessories
The following accessories are available for the wind transmitter
Traverse
For mounting the wind
transmitter and wind di-
rection transmitter jointly
onto a mast
4.3171.20.000 Clamping range: Ø 30 ... 50mm
Sensor distance: 0,5m
Material: Aluminium
Lightning rod 4.3100.99.000 Height: 0,8m
Material: steel
Other accessories such as masts and additional mast- or system-constructions on request.

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 020783/01/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 8 - 10
11 EC-Declaration of Conformity
Document-No.: 000410 Month: 01 Year: 21
Manufacturer: A D O L F T H I E S G m b H & C o. K G
Hauptstr. 76
D-37083 Göttingen
Tel.: [phone]
Fax: [phone]
email: [e-mail]
This declaration of conformity is issued under the sole responsibility of the manufacturer
Description of Product: Small Wind Transmitter, Photo Wind Transmitter
Article No.
4.3515.30.000
4.3515.50.100
4.3515.50.109
4.3515.41.110
4.3515.50.000
4.3515.50.061
4.3515.51.000
4.3515.51.061
4.3515.50.115
4.3515.50.121
4.3515.50.161
4.3515.51.105
4.3515.51.110
4.3515.51.100
4.3515.51.101
4.3515.51.102
4.3515.51.461
4.3515.51.961
4.3515.51.115
4.3515.51.161
4.3515.51.361
4.3517.30.000
4.3517.30.010
4.3515.60.115
4.3515.61.100
4.3515.61.115
4.3517.60.010
4.3517.71.000
4.3517.30.020
4.3517.31.000
4.3517.51.000
4.3711.30.000
specified technical data in the document:
020917/02/97; 020760/01/21; 020743/01/21; 021125/11/13; 021543/08/07;
021640/07/10; 021646/10/10; 021694/01/21; 021777/11/14; 021781/06/15
The indicated products correspond to the essential requirement of the following European Directives and Regulations:
2014/30/EU DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014
on the harmonisation of the laws of the Member States relating to electromagnetic compatibility
2014/35/EU DIRECTIVE 2014/35/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014
on the harmonisation of the laws of the Member States relating to the making available on the market of electrical
equipment designed for use within certain voltage limits
552/2004/EC Regulation (EC) No 552/2004 of the European Parliament and the Council of 10 March 2004
on the interoperability of the European Air Traffic Management network (the interoperability Regulation)
2011/65/EU DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL
of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
2012/19/EU DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL
of 4 July 2012 on waste electrical and electronic equipment (WEEE)
The indicated products comply with the regulations of the directives. This is proved by the compliance with the following standards:
EN 61000-6-2
Electromagnetic compatibility
Immunity for industrial environment
EN 61000-6-3
Electromagnetic compatibility
Emission standard for residential, commercial and light industrial environments
EN 61010-1
Safety requirements for electrical equipment for measurement, control, and laboratory use.
Part 1: General requirements
EN 50581
Technical documentation for the assessment of electrical and electronic products with respect to the restriction
of hazardous substances
Place: Göttingen Date: 14.01.2021
Signed for and on behalf of:
This declaration certificates the compliance with the mentioned directives, however does not include any warranty of characteristics.
Please pay attention to the security advises of the provided instructions for use.

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 020783/01/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 9 - 10

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 020783/01/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 10 - 10
Please contact us for your system requirements.
We advise you
gladly.
ADOLF THIES GMBH & CO. KG
Meteorology and environmental metrology
Hauptstraße 76 · 37083 Göttingen · Germany
Phone [phone]
-0 · Fax [phone]
[email protected]
www.thiesclima.com
