THine THSCM101 Guide

THSCM101 Start Guide
Rev. 1.31
THSCM101
Start Guide
Rev. 1.31
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]

THSCM101 Start Guide
Rev. 1.31
Table of Contents
1. Start guide with i.MX 8M Mini EVK
1.1 What you need for i.MX 8M Mini EVK
1.2 i.MX 8M Mini EVK SD card preparation
1.3 i.MX 8M Mini EVK hardware setup
1.4 Login to Linux on i.MX 8M Mini EVK
1.5 THSCM101 firmware update(optional)
1.6 Stream camera images with i.MX 8M Mini EVK
2. Start guide with i.MX 8M Plus EVK
2.1 What you need to i.MX 8M Plus
2.2 i.MX 8M Plus EVK SD card preparation
2.3 i.MX 8M Plus EVK hardwaresetup
2.4 Login to Linux on i.MX 8M Plus EVK
2.5 THSCM101 firmware update(optional)
2.6 Stream camera images with i.MX 8M Plus EVK
3. Start guide with i.MX 8M EVK
3.1 What you need for i.MX 8M EVK
3.2 i.MX 8M EVK SD card preparation
3.3 i.MX 8M EVK hardware setup
3.4 Login to Linux on i.MX 8M EVK
3.5 THSCM101 firmware update(optional)
3.6 Stream camera images with i.MX 8M EVK
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]

THSCM101 Start Guide
Rev. 1.31
1.1 What you need for i.MX 8M Mini EVK
•i.MX 8M Mini EVK
•8MMINILPD4-EVKB
•CPU board
•Power supply
•USB micro-B cable
•Micro SD card
•32GByte
•i.MX 8M Mini SD card image for THSCM101
•Request the latest SD card image to THine Solutions.
https://www.thinesolutions.com/support-request
•THSCM101
•Camera board
•Mini SAS cable
•MIPI DSI to HDMI adaptor card
•IMX-MIPI-HDMI
•Mini SAS cable
•Display and HDMI cable
•Displaywith HDMI port
•HDMI cable
•PC
•Windows10
•SD card interface
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]

THSCM101 Start Guide
Rev. 1.31
1.2 i.MX 8M Mini EVK SD card preparation
Step 1 : Get .bz2 file of SD card image for i.MX 8M
Mini EVK.
•Request the latest SD card image to THine Solutions.
https://www.thinesolutions.com/support-request
Step 2 : Decompress
•Decompress the .wic file from .bz2 file.
Step 3 : Write
•Write the SD card image file, .wic to the micro SD card
by using disk image writer applicationsoftware such like
“Win32 Disk Imager”.
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]

THSCM101 Start Guide
Rev. 1.31
1.3 i.MX Mini EVK hardware setup (1/2)
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]

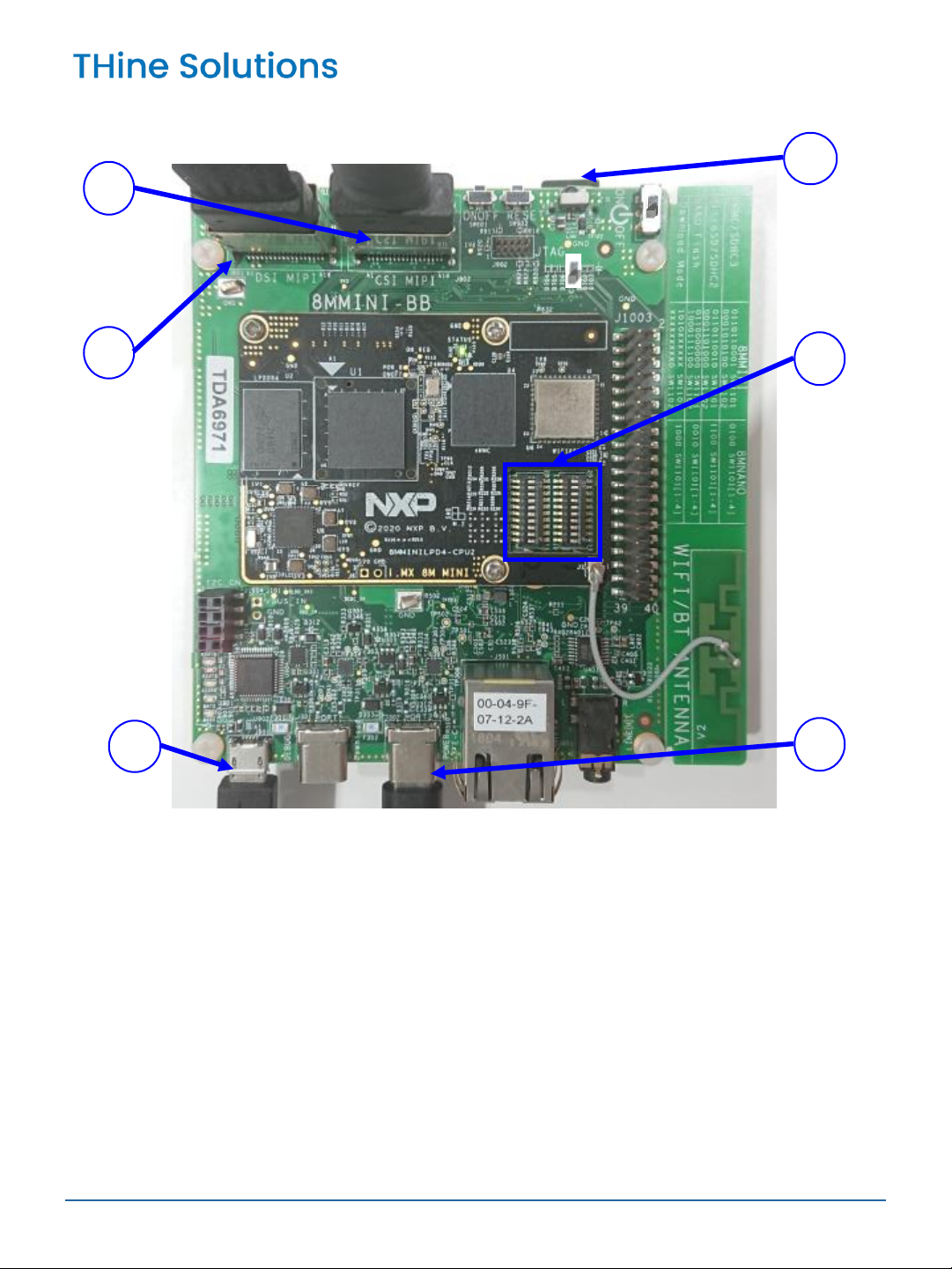

①Connect THSCM101 to i.MX 8M Mini EVK via Mini SAS cable
②Insert the micro SD card
③Set BOOT switches (SW1101 and SW1102). See next page.
④Connect AC adaptor to the power
⑤Connect the PC to i.MX 8M Mini EVK via USB2 cable
⑥Connect MIPI DSI to HDMI adaptor card via Mini SAS cable
•Connect the adaptor card to monitor via HDMI cable
1
6
4
2
5
3

THSCM101 Start Guide
Rev. 1.31
1.3 i.MX Mini EVK hardware setup (2/2)
Set BOOT Switches (SW1101 and SW1102) for
MicroSD/SDHC BOOT mode.
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]
Hardware setting is completed.
HDMI Display
THSCM101
Mini SAS cable
USB2 cable
HDMI cable
Windows 10 PC
I.MX 8M Mini EVK
SW1101
Mini SAS cable
MIPI DSI to HDMI adaptor card
OFF
ON
ON
OFF
ON
ON
OFF
OFF
ON
OFF
SW1102
OFF
OFF
OFF
ON
ON
OFF
ON
OFF
OFF
OFF

THSCM101 Start Guide
Rev. 1.31
1.4 Login to Linux on i.MX 8M Mini EVK (1/3)
Step 1: Power on i.MX 8M Mini EVK
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]
ON
OFF
Step 2:Launch “Tera term” on your Windows PC
•You may need to install VCP driver.
•http://www.ftdichip.com/Drivers/VCP.htm
Step 3: Select the serial option. Choose the highest
numbered COM port. For example, choose “COM7” in the
case that there are “COM6” and “COM7” as serial ports.

THSCM101 Start Guide
Rev. 1.31
1.4 Login to Linux on i.MX 8M Mini EVK (2/3)

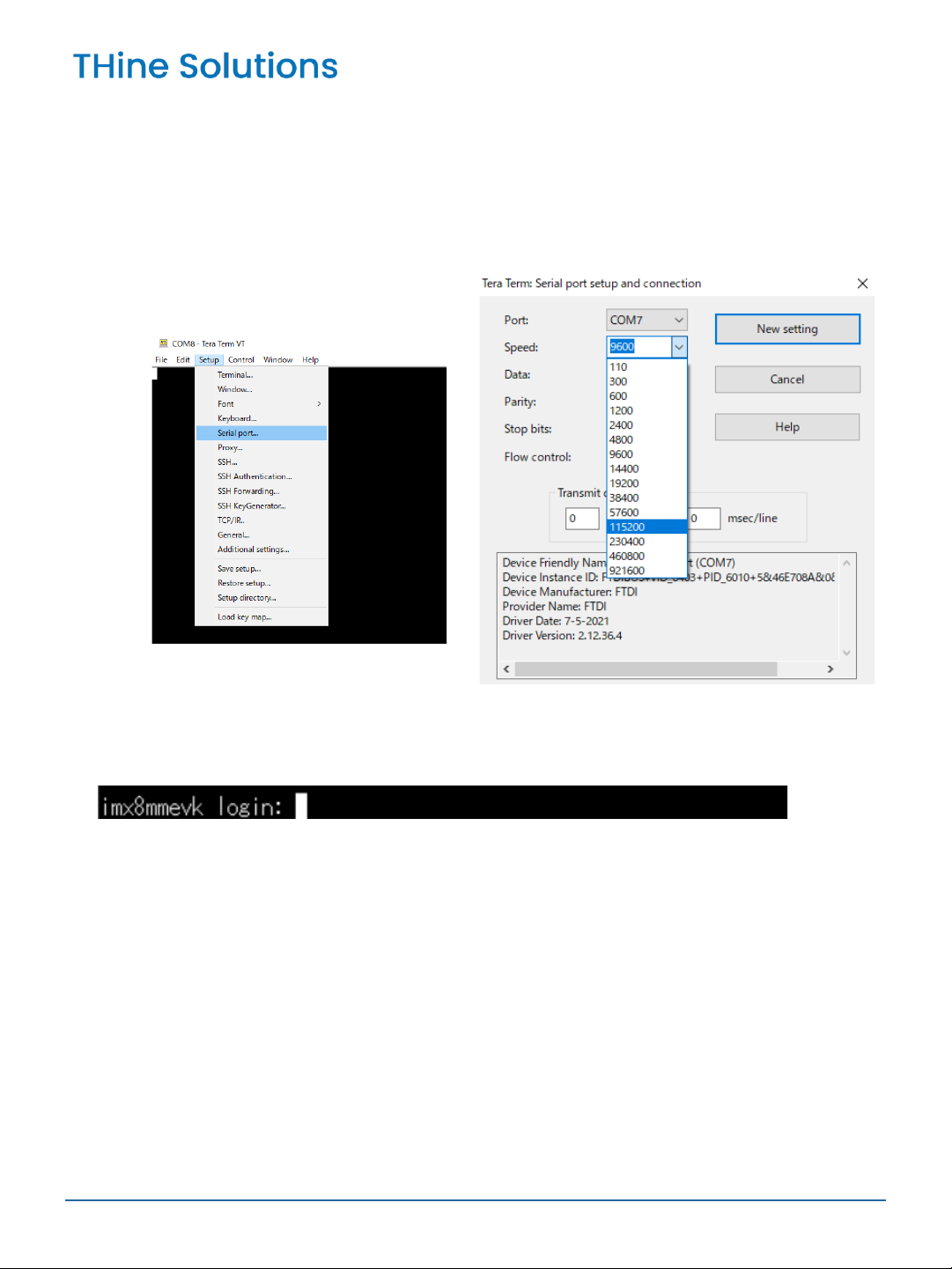

Step 4: Setup → Serial Port... to open port setup
window, then select the Speed as 115200. Then
click "New setting".
Step 5: Press enter key, then Tera Term displays
following message.
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]

THSCM101 Start Guide
Rev. 1.31
1.4 Login to Linux on i.MX 8M Mini EVK (3/3)
Step 6: Login as "root“
•Enter “root”, then press enter key.
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]

THSCM101 Start Guide
Rev. 1.31
1.5 THSCM101 firmware update (optional) (1/2)
Step 1: Check THSCM101 firmware version.
1-1) Identifythe firmwareversioninthe hardware.
You can identifythe THP7312-Pfirmware version inthe THSCM101 hardware by the following
command.
•v4l2-ctl --get-ctrl=thp7312_firmware_version
thp7312_firmware_version: 'THSCM101:THP7312 firmware version = xx.xx(*)‘
1-2) Identifythe firmwareversioninthe latestrelease pack
You can identifythe THP7312-P firmware versionof THSCM101 in the latestTHSCM101 SD
Card Image release pack byconfirming the README.txtinthe pack.
1-3) Compare the firmware version
You can go to section2.6 if the firmware versioninthe hardware is the latest.
Step 2: Shutdown and power off i.MX 8M Mini EVK.
Step 3: Connect P1(#3) to P1(#1):GND of THSCM101.
•Hold the jumper pin until firmware update completed
Step 4:Power on i.MX 8M Mini EVK and login as root.
www.thinesolutions.com| © THine Solutions, Inc. All rights reserved | [e-mail]
(*) xx.xx is the firmware version
e.g. Set 2.54mm pitch, φ0.5mm jumper to connect into the P1 #1 and P1 #3 thru
holes and hold.

THSCM101 Start Guide
Rev. 1.31
1.5 THSCM101 firmware update (optional) (2/2)
Step 5: Update THSCM101 firmware
•v4l2-ctl --set-ctrl=thp7312_firmware_update=1
Please confirm the completion of firmware update in the log.
Step 6: Shutdown and power off i.MX 8M Mini EVK
Step 7: Disconnect P1(#3) from P1(#1) : GND of
THSCM101
Step 8: Power on i.MX 8M Mini EVK and login as root.
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]

THSCM101 Start Guide
Rev. 1.31

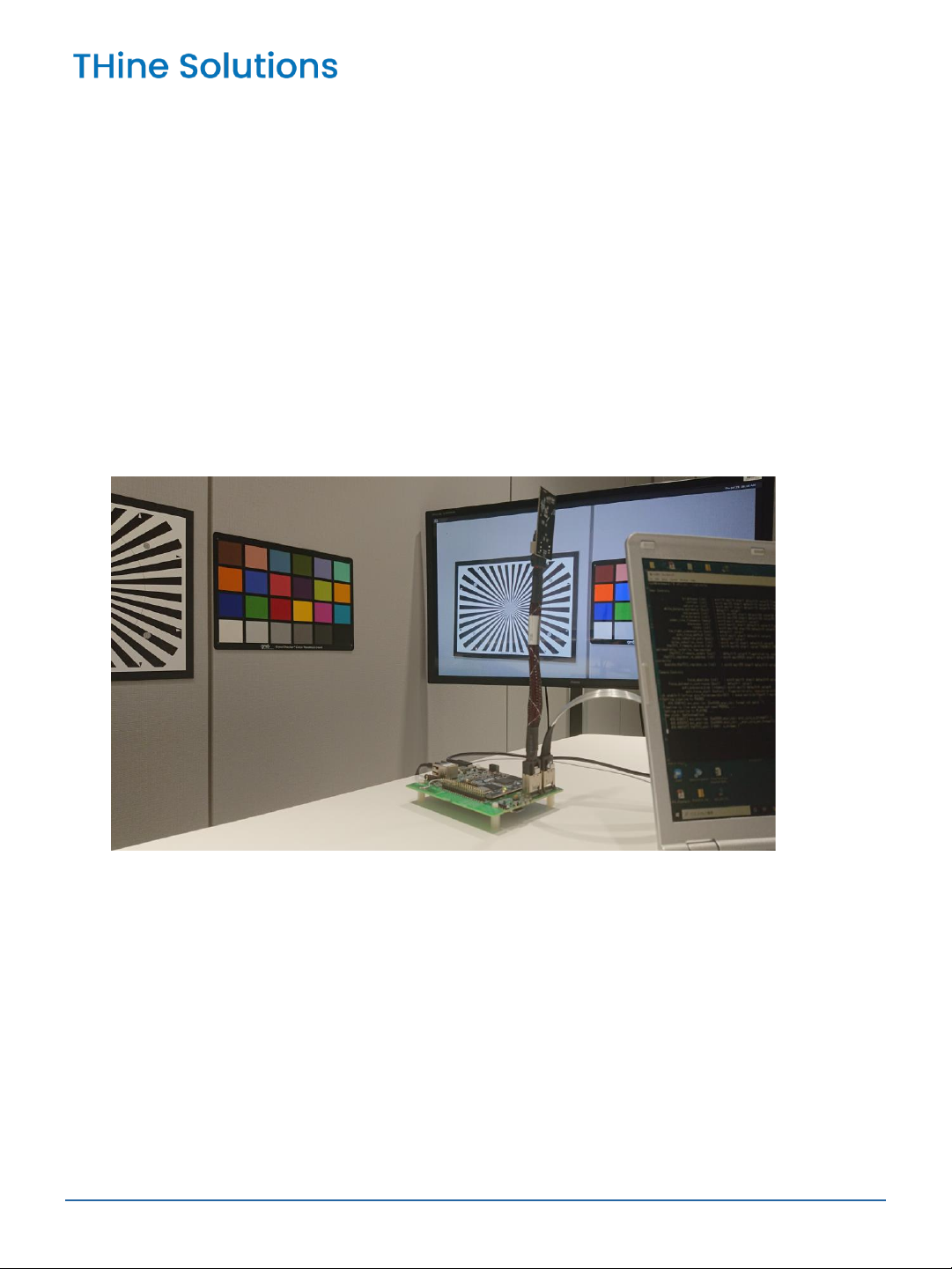

1.6 Stream camera images with i.MX 8M Mini EVK
Step 1: Enter the following command to stream 4K
30fps image.
gst-launch-1.0 v4l2src device=/dev/video0 ! video/x-
raw,format=YUY2,width=3840,height=2160,framerate=30/1 !
queue max-size-time=0 ! waylandsink enable-tile=true sync=false
You can see the streaming images on the display.
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]

THSCM101 Start Guide
Rev. 1.31
2.1 What you need for i.MX 8M Plus EVK
•i.MX 8M Plus EVK
•8MPLUSLPD4-EVK
•CPU board
•Power supply
•USB micro-B cable
•Micro SD card
•32GByte
•i.MX 8M Plus SD card image for THSCM101
•Request the latest SD card image to THine Solutions.
https://www.thinesolutions.com/support-request
•THSCM101
•Camera board
•Mini SAS cable
•Display and HDMI cable
•Displaywith HDMI port
•HDMI cable
•PC
•Windows10
•SD card interface
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]

THSCM101 Start Guide
Rev. 1.31
2.2 i.MX 8M Plus EVK SD card preparation
Step 1 : Get .bz2 file of SD card image for i.MX 8M
Plus EVK.
•Request the latest SD card image to THine Solutions.
https://www.thinesolutions.com/support-request
Step 2 : Decompress
•Decompress the .wic file from .bz2 file.
Step 3 : Write
•Write the SD card image file, .wic to the micro SD card
by using disk image writer applicationsoftware such like
“Win32 Disk Imager”.
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]

THSCM101 Start Guide
Rev. 1.31
2.3 i.MX Plus EVK hardware setup (1/2)
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]

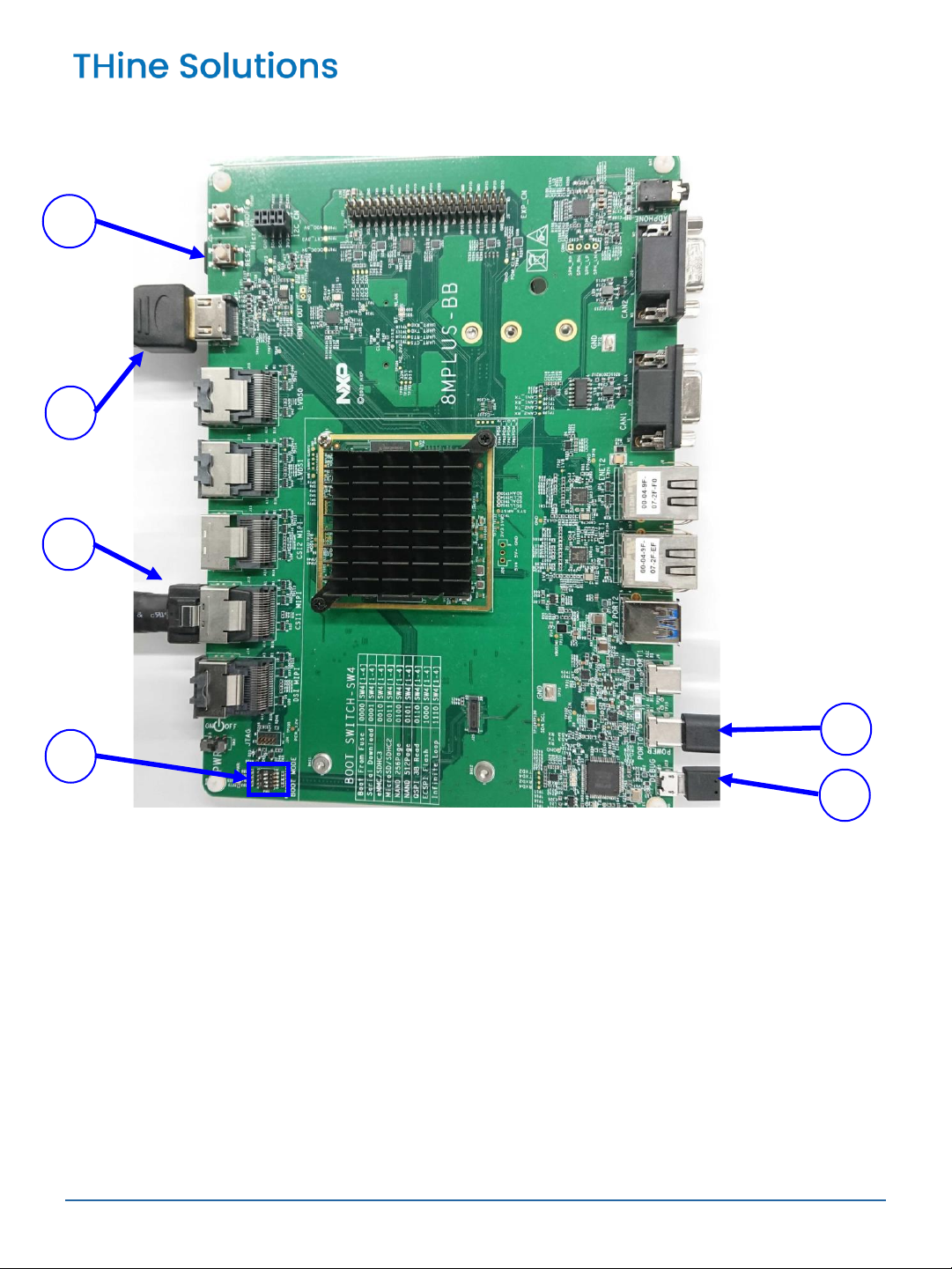

①Connect THSCM101 to i.MX 8M Plus EVK via Mini SAS cable
②Insert the micro SD card
③Set BOOT switches (SW4). See next page.
④Connect AC adaptor to the power
⑤Connect the PC to i.MX 8M Plus EVK via USB2 cable
⑥Connect the monitor to HDMI port of i.MX 8M Plus EVK
1
6
4
2
5
3

THSCM101 Start Guide
Rev. 1.31
2.3 i.MX 8M Plus EVK hardware Setup (2/2)
Set BOOT Device Switch (SW4) to OFF, OFF, ON, ON
(from 1-4 bit)
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]
Hardware setting is completed.
HDMI Display
THSCM101
Mini SAS cable
USB2 cable
HDMI cable
AC adaptor cable
Windows 10 PC
micro SD card
I.MX 8M Plus
EVK
OFF ON ONOFF

THSCM101 Start Guide
Rev. 1.31
2.4 Login to Linux on i.MX 8M Plus EVK (1/3)
Step 1: Power on i.MX 8M Plus EVK
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]
Step 2:Launch “Tera term” on your Windows PC
•You may need to install VCP driver.
•http://www.ftdichip.com/Drivers/VCP.htm
Step 3: Select the serial option. Choose the third
COM port. For example, choose “COM13” in the
case that there are “COM11” to “COM14” as serial
ports.
ON OFF

THSCM101 Start Guide
Rev. 1.31
Step 4: Setup → Serial Port... to open port setup
window, then select the Speed as 115200. Then
click "New setting".
Step 5: Press enter key, then Tera Term displays
following message.
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]
2.4 Login to Linux on i.MX 8M Plus EVK (2/3)

THSCM101 Start Guide
Rev. 1.31
Step 6: Login as "root“
•Enter “root”, then press enter key.
www.thinesolutions.com| © THine Solutions, Inc.All rights reserved | [e-mail]
2.4 Login to Linux on i.MX 8M Plus EVK (3/3)

THSCM101 Start Guide
Rev. 1.31
2.5 THSCM101 firmware update (optional) (1/2)
Step 1: Confirm if THSCM101 firmware version is latest.
1-1) Identify the firmwareversion in the hardware.
You can identifythe THP7312-Pfirmware version in the THSCM101hardware by the following
command.
•v4l2-ctl -d /dev/video3 --get-ctrl=thp7312_firmware_version
thp7312_firmware_version: 'THSCM101:THP7312 firmware version = xx.xx(*)‘
1-2) Identify the firmwareversion in the latest release pack
You can identifythe THP7312-P firmware versionof THSCM101 inthe latestTHSCM101 SD Card
Image release packby confirmingthe README.txtinthe pack.
1-3) Compare the firmware version
You can go to section 2.6 if the firmware versioninthe hardware is the latest.
Step 2: Shutdown and power off i.MX 8M Plus EVK.
Step 3: Connect P1(#3) to P1(#1):GND of THSCM101.
•Hold the jumper pin until firmware update completed
Step 4:Power on i.MX 8M Plus EVK and login as root.
www.thinesolutions.com| © THine Solutions, Inc. All rights reserved | [e-mail]
(*) xx.xx is the firmware version
e.g. Set 2.54mm pitch, φ0.5mm jumper to connect into the P1 #1 and P1 #3 thru
holes and hold.
