THine THSB-FMC-01VX1 User manual

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
1 Security E
THSB-FMC-01VX1
User Manual

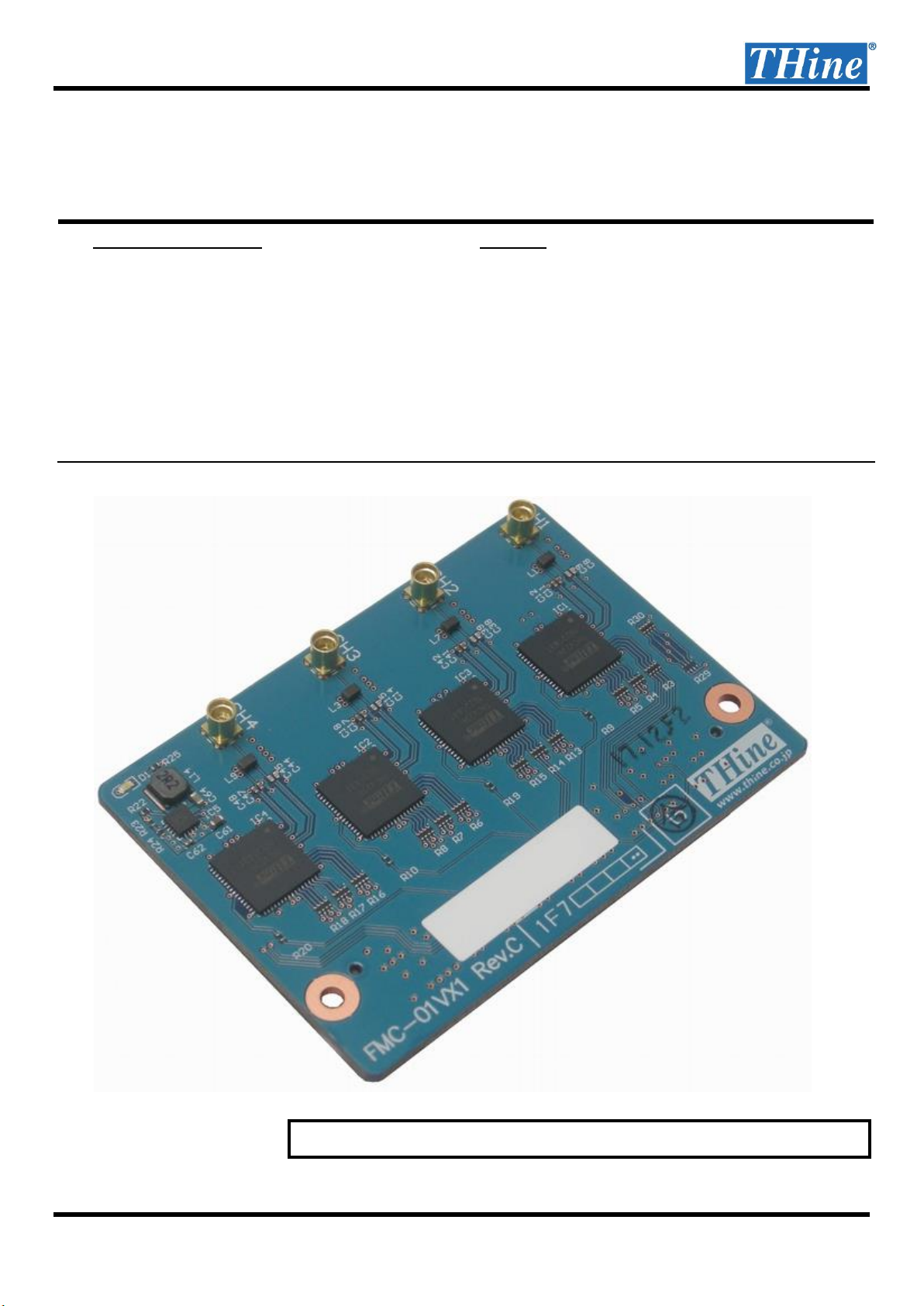

GENERALDESCRIPTION
THSB-FMC-01Vx1isanFMC/LPCdaughtercard
supportingV-by-One® HS receiverforthehigh-speedserial
interface.Allowstoreceive fourvideostreamingsof
V-by-One® HS.
THCV236isappliedasV-by-One® HSreceivertoprovide
a stablecommunicationsystemonlong-distancecables.
THSB-FMC-01Vx1also supportsPoweroverCoax
(PoC)systemandenablestouseV-by-One® HScamera
onlywith one coaxcable.
FEATURE
*W70mmxH 50mmsmallsize
* FMC/LPCStandard [Vita57.1]Connector
* FourMMCX connectorsforV-by-One® HSreceiver
*V-by-One® HSreceiverTHCV236,integratesadaptive
equalizerandstabilizecommunicationsystemon
long-distancecable.
* SupportPOWERoverCOAX(PoC)using5V
* Support2.5Vor3.3VforVADJpowersupply
FOR SAFETY PURPOSES,SEE ‘PRECAUTIONS FOR POC’ OF CHAPTER 3

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
2 Security E
TABLE OF CONTENTS
1. SAFETYPRECAUTIONS.........................................................................................................................3
2. DISCLAIMER ................................................................................................................................................6
3. PRECAUTIONS FOR POC...............................................................................................................................7
4. BLOCK DIAGRAM.........................................................................................................................................8
5. TOP & BOTTOM VIEW..................................................................................................................................9
6. BOARD SPECIFICATION ..............................................................................................................................10
7. POWER SUPPLY SYSTEM ............................................................................................................................11
8. PIN ASSIGNMENT OF FMC CONNECTOR.....................................................................................................11
9. PIN DESCRIPTION OF FMC CONNECTOR ....................................................................................................14
10. POWER-ON LED ........................................................................................................................................15
FIGURE
FIG 4-1 BLOCK DIAGRAM ...................................................................................................................................8
FIG 5-1 TOP VIEW ...............................................................................................................................................9
FIG 5-2 BOTTOM VIEW........................................................................................................................................9
FIG 7-1 POWER SUPPLY SYSTEM .......................................................................................................................11
FIG 10-1 POWER-ON LED.................................................................................................................................15
TABLE
TABLE 8-1 COLOR INDICATOR FOR PIN ASSIGNMENT........................................................................................11
TABLE 8-2 PIN ASSIGNMENT OF FMC C/D COLUMNS .......................................................................................12
TABLE 8-3 PIN ASSIGNMENT OF FMC G/H COLUMNS.......................................................................................13
TABLE 9-1 PIN DESCRIPTION OF FMC CONNECTOR..........................................................................................14

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
3 Security E
1. SAFETY PRECAUTIONS
Observe the precautions listed below to prevent injuries to you or other personnel or damage to property.
- Before using the product, read these safety precautions carefully.
- These precautions contain serious safety instructions that must be observed.
- After reading through this manual, be sure to keep it always handy.
The following conventions are used to indicate the possibility of injury/damage and classify precautions if the product is
handled incorrectly.
Danger
Indicates the high possibility of serious injury or death if the product is
handled incorrectly.
Warning
Indicates the possibility of serious injury or death if the product is
handled incorrectly.
Caution
Indicates the possibility of injury or physical damage in connection with
houses or household goods if the product is handled incorrectly.
The following graphical symbols are used to indicate and classify precautions in this manual. (Examples)
Turn off the power switch.
Do not disassemble the product.
Do not attempt this.

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
4 Security E
Warning
In the event of a failure, disconnect the power supply.
If the product is used as is, a fire or electric shock may occur. Disconnect the power supply immediately and
contact our sales personnel for repair.
If an unpleasant smell or smoking occurs, disconnect the power supply.
If the product is used as is, a fire or electric shock may occur. Disconnect the power supply immediately.
After verifying that no smoking is observed, contact our sales personnel for repair.
Do not disassemble, repair or modify the product.
Otherwise, a fire or electric shock may occur due to a short circuit or heat generation. For inspection,
modification or repair, contact our sales personnel.
Do not place the product on unstable locations.
Otherwise, it may drop or fall, resulting in injury to persons or failure.
If the product is dropped or damaged, do not use it as is.
Otherwise, a fire or electric shock may occur.
Do not touch the product with a metallic object.
Otherwise, a fire or electric shock may occur.
Do not place the product in a place with dusty or humidity or getting water.
Otherwise, a fire or electric shock may occur.
Do not get the product wet or touch it with a wet hand.
Otherwise, the product may break down or it may cause a fire, smoking or electric shock.
Do not touch a connector on the product (gold-plated portion).
Otherwise, the surface of a connector may be contaminated with sweat or skin oil, resulting in contact failure
of a connector or it may cause a malfunction, fire or electric shock due to static electricity.

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
5 Security E
Caution
Do not use or place the product in the following locations.
- Humid and dusty locations
- Airless locations such as closet or bookshelf
- Locations which receive oily smoke or steam
- Locations exposed to direct sunlight
- Locations close to heating equipment
- Closed inside of a car where the temperature becomes high
- Staticky locations
- Locations close to water or chemicals
Otherwise, a fire, electric shock, accident or deformation may occur due to a short circuit or heat generation.
Do not place heavy things on the product.
Otherwise, the product may be damaged.

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
6 Security E
2. Disclaimer
This product is an evaluation board intended for FMC interface Card function. THine Electronics, Inc. assumes no
responsibility for any damages resulting from the use of this product for purposes other than those stated.
Even if the product is used properly, THine Electronics, Inc. assumes no responsibility for any damages caused by:
(1) Earthquake, thunder, natural disaster or fire resulting from the use beyond our responsibility, acts by a third
party or other accidents, the customer’s willful or accidental misuse or use under other abnormal conditions.
(2) Secondary impact arising from use of this product or its unusable state (business interruption or others)
(3) Use of this product against the instructions given in this manual.
(4) Malfunctions due to connection to other devices.
THine Electronics, Inc. assumes no responsibility or liability for:
(1) Erasure or corruption of data arising from use of this product.
(2) Any consequences or other abnormalities arising from use of this product, or
(3) Damage of this product not due to our responsibility or failure due to modification
This product has been developed by assuming its use for research, testing or evaluation. It is not authorized for use in
any system or application that requires high reliability.
Repair of this product is carried out by replacing it on a chargeable basis, not repairing the faulty devices. However,
non-chargeable replacement is offered for initial failure if such notification is received within two weeks after delivery
of the product.
The specification of this product is subject to change without prior notice. The product is subject to discontinuation
without prior notice.

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
7 Security E
3. Precautions for PoC
This product is applied POWER over COAX (PoC) system and output signals of MMCX are superimposed 5 V Power
Supply. Before using the product, read this special precaution carefully.
Special Precaution
Do not short output signals via MMCX connector to GND or other signals.
Otherwise, the product may break down or it may cause a fire, smoking or electric shock.

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
8 Security E

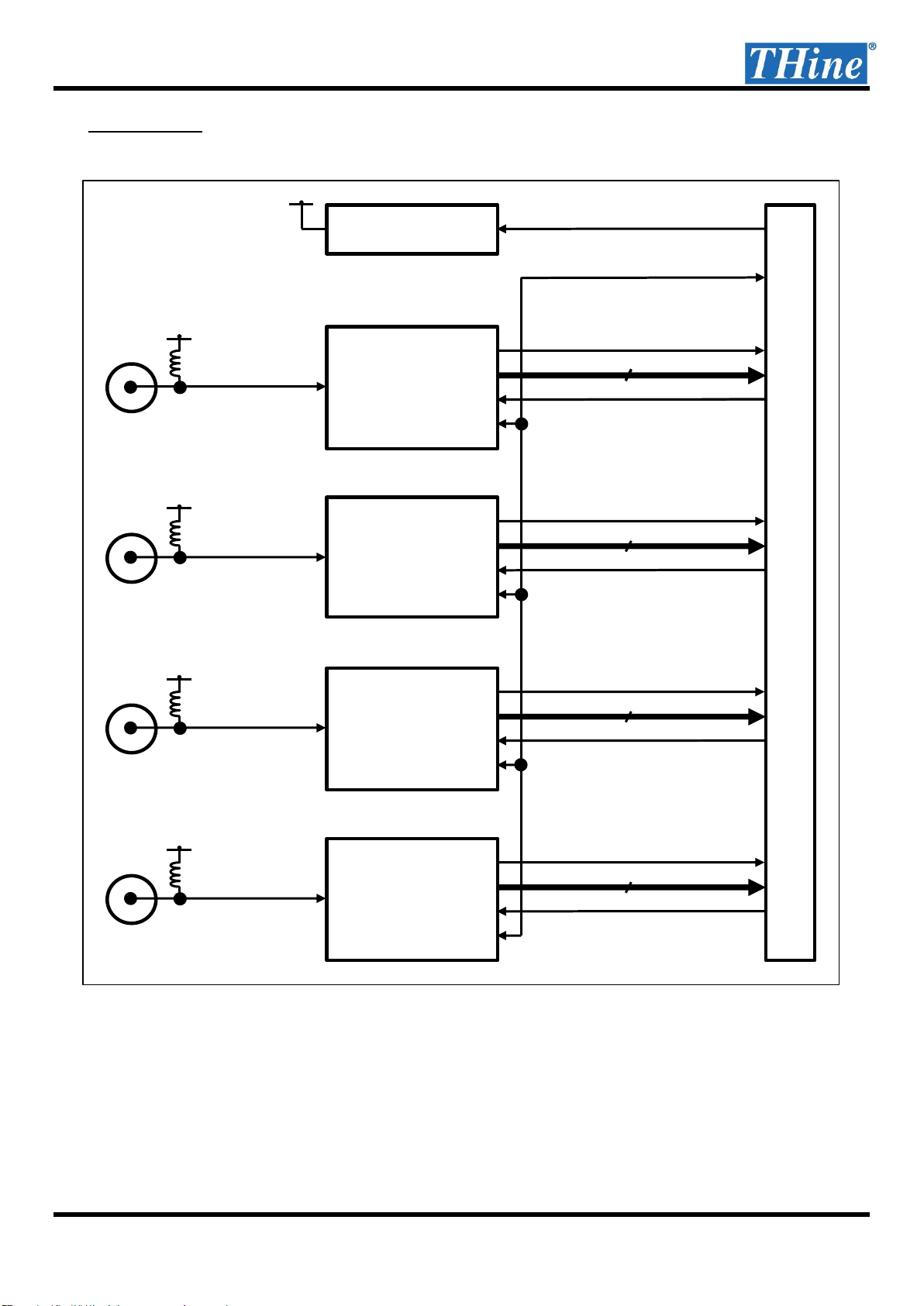

4. Block Diagram
Fig 4-1 Block Diagram
PowerDown
V-by-One®HS
FMC LPC Connector ASP-134604-01
VS/HS/DE/Data[7:0]
Clock
MMCX
12V
5V
5V
V-by-One®HS
VS/HS/DE/Data[7:0]
Clock
MMCX
5V
V-by-One® HS
VS/HS/DE/Data[7:0]
Clock
MMCX
5V
V-by-One®HS
VS/HS/DE/Data[7:0]
Clock
MMCX
5V
DC/DC Switching
Regulator
V-by-One®HS RX
THCV236
V-by-One®HS RX
THCV236
V-by-One®HS RX
THCV236
V-by-One®HS RX
THCV236
SCL/SDA
PowerDown
PowerDown
PowerDown

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
9 Security E

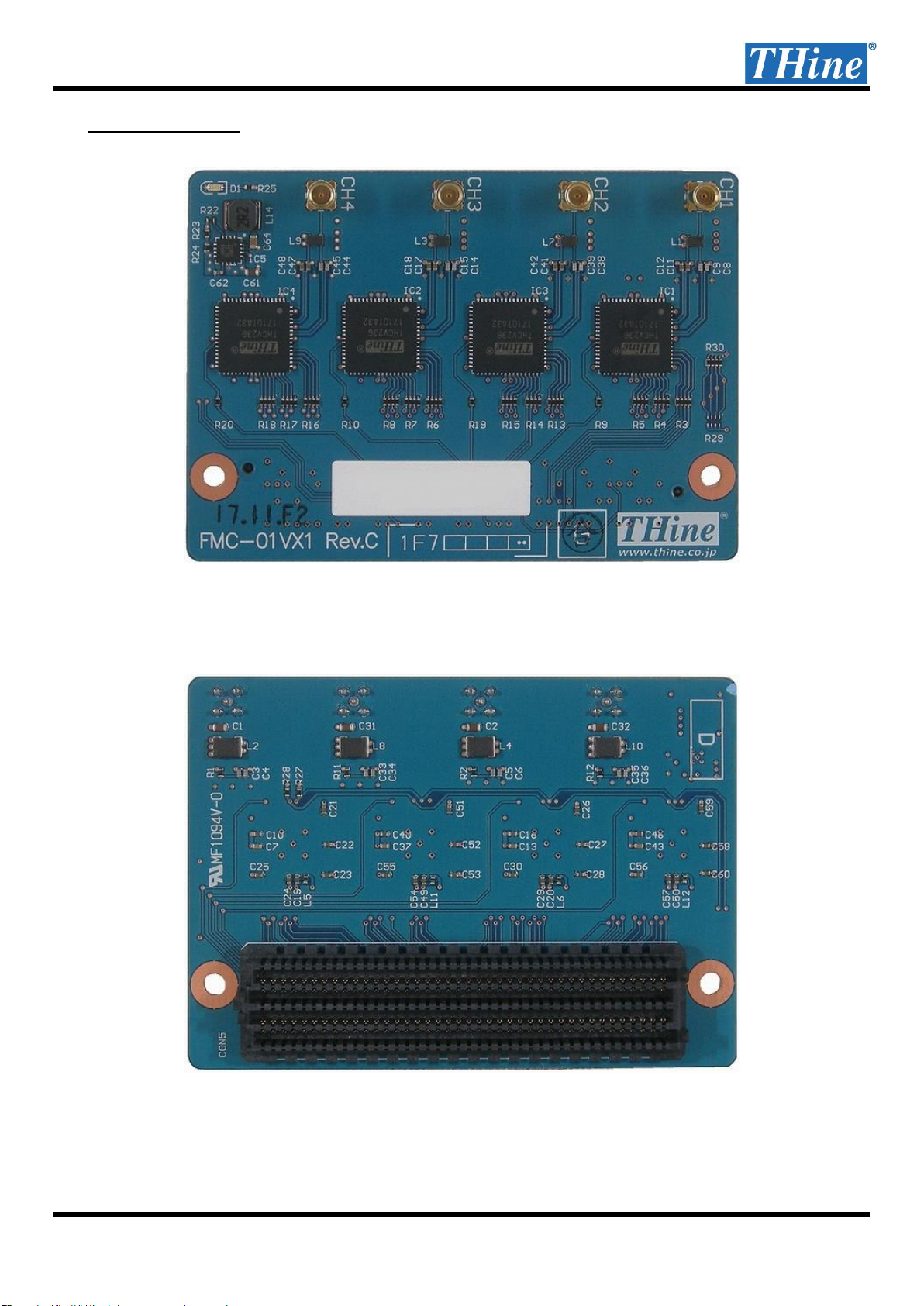

5. Top & Bottom View
Fig 5-1 Top View
Fig 5-2 Bottom View

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
10 Security E
6. Board Specification
Outline Size : W: 70mm x H: 50mm
Layer Structure : 4 Layer
Thickness of PCB : 1.6 mm
Material : FR-4
FMC Connector : Samtec, ASP-134604-01
MMCX Connector : Molex, 0734151471
V-by-One®HS Receiver : THine Electronics, THCV236
DC/DC Switching Regulator : Texas Instruments, TLV62130RGTR

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
11 Security E
VADJ電源は2.5Vもしくは3.3Vに設定してください
VADJ
12V/1A
DC/DC Switching
Regulator
5V/2A
FMC LPC Connector ASP-134604-01
3P3V
12P0V
V-by-One®HS RX
THCV236 ×4
2.5V/1A
or
3.3V/1A
3P3VAUX
MMCX ×4
NC
NC

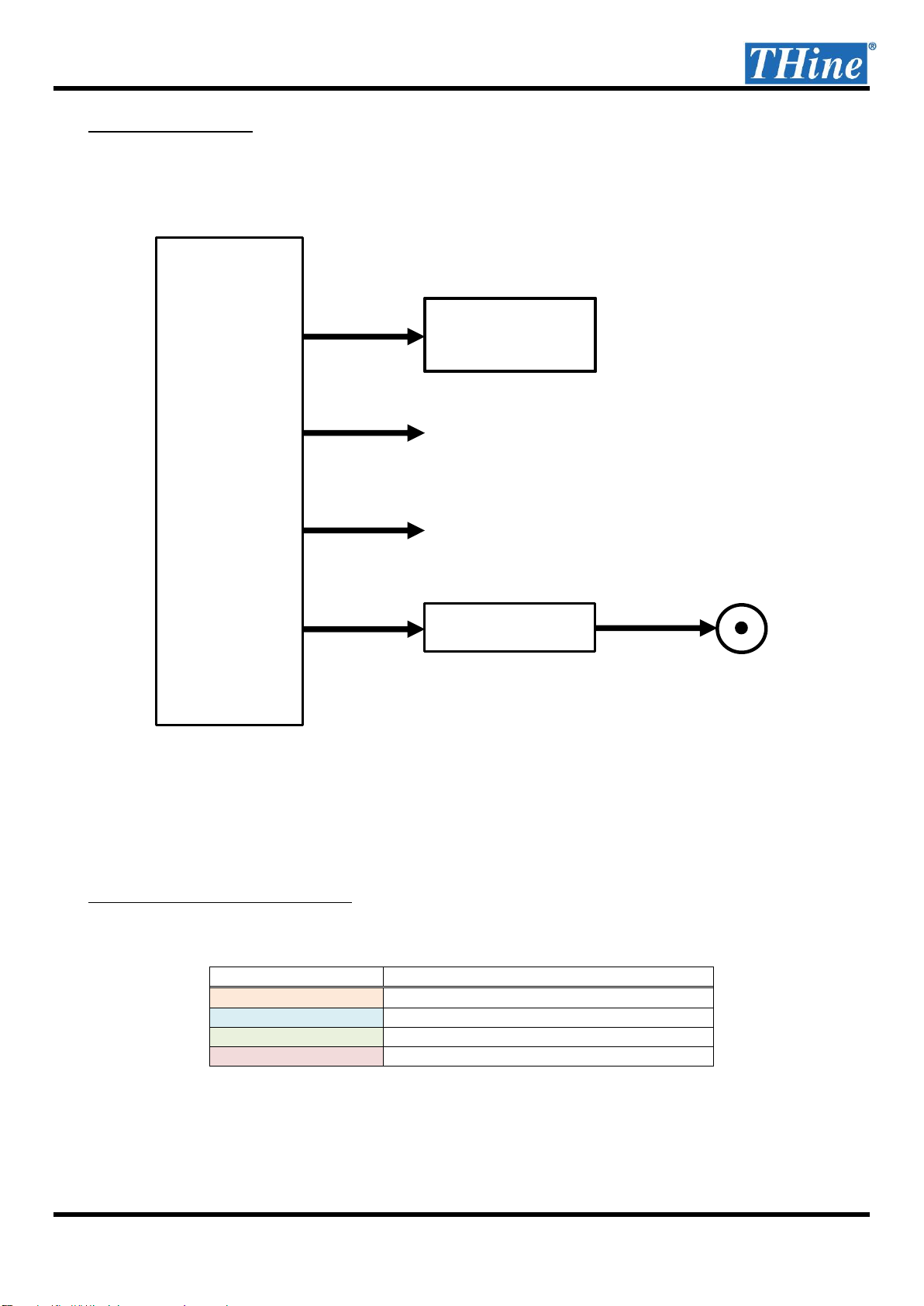

7. Power Supply System
Use 2.5 V or 3.3 V for VADJ voltage on your FPGA board. Other voltage is not supported.
8. Pin Assignment of FMC Connector
Table 8-1 Color Indicator for Pin Assignment
Color Indicator
Description
V-by-One® HSchannel 1
V-by-One® HSchannel 2
V-by-One® HSchannel 3
V-by-One® HSchannel 4
Use 2.5 V or 3.3 V for VADJ Power Supply on your FPGAboard
Fig 7-1 Power Supply System

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
12 Security E
Table 8-2 PinAssignment of FMC C/D columns
THSB-FMC-01Vx1
Signal Name
Column C
Column D
THSB-FMC-01Vx1
Signal Name
GND
GND
1
PG_C2M
NC
NC
DP0_C2M_P
2
GND
GND
NC
DP0_C2M_N
3
GND
GND
GND
GND
4
GBTCLK0_M2C_P
NC
GND
GND
5
GBTCLK0_M2C_N
NC
NC
DP0_M2C_P
6
GND
GND
NC
DP0_M2C_N
7
GND
GND
GND
GND
8
LA01_P_CC
VBO1-PDN
GND
GND
9
LA01_N_CC
VBO2-PDN
VBO1-D0
LA06_P
10
GND
GND
VBO1-D1
LA06_N
11
LA05_P
VBO1-DEI
GND
GND
12
LA05_N
VBO1-HSI
GND
GND
13
GND
GND
NC
LA10_P
14
LA09_P
NC
NC
LA10_N
15
LA09_N
NC
GND
GND
16
GND
GND
GND
GND
17
LA13_P
VBO2-D2
VBO2-CLK
LA14_P
18
LA13_N
VBO2-D3
NC
LA14_N
19
GND
GND
GND
GND
20
LA17_P_CC
VBO3-CLK
GND
GND
21
LA17_N_CC
NC
NC
LA18_P_CC
22
GND
GND
NC
LA18_N_CC
23
LA23_P
NC
GND
GND
24
LA23_N
NC
GND
GND
25
GND
GND
NC
LA27_P
26
LA26_P
NC
VBO-SCL
LA27_N
27
LA26_N
VBO-SDA
GND
GND
28
GND
GND
GND
GND
29
TCK
NC
NC
SCL
30
TDI
FMC-TDI
NC
SDA
31
TDO
FMC-TDO
GND
GND
32
3P3VAUX
NC
GND
GND
33
TMS
NC
NC
GA0
34
TRST_L
NC
12P0V
12P0V
35
GA1
NC
GND
GND
36
3P3V
NC
12P0V
12P0V
37
GND
GND
GND
GND
38
3P3V
NC
NC
3P3V
39
GND
GND
GND
GND
40
3P3V
NC

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
13 Security E
Table 8-3 PinAssignment of FMC G/H columns
THSB-FMC-01Vx1
Signal Name
Column G
Column H
THSB-FMC-01Vx1
Signal Name
GND
GND
1
VREF_A_M2C
NC
VBO3-PDN
CLK1_M2C_P
2
PRSNT_M2C_L
GND
VBO4-PDN
CLK1_M2C_N
3
GND
GND
GND
GND
4
CLK0_M2C_P
NC
GND
GND
5
CLK0_M2C_N
NC
VBO1-CLK
LA00_P_CC
6
GND
GND
NC
LA00_N_CC
7
LA02_P
VBO1-VSI
GND
GND
8
LA02_N
VBO1-D2
VBO1-D3
LA03_P
9
GND
GND
VBO1-D5
LA03_N
10
LA04_P
VBO1-D4
GND
GND
11
LA04_N
VBO1-D6
VBO1-D7
LA08_P
12
GND
GND
NC
LA08_N
13
LA07_P
NC
GND
GND
14
LA07_N
VBO2-D0
VBO2-D1
LA12_P
15
GND
GND
VBO2-HSI
LA12_N
16
LA11_P
VBO2-DEI
GND
GND
17
LA11_N
VBO2-VSI
VBO2-D4
LA16_P
18
GND
GND
VBO2-D6
LA16_N
19
LA15_P
VBO2-D5
GND
GND
20
LA15_N
VBO2-D7
VBO3-D0
LA20_P
21
GND
GND
VBO3-DEI
LA20_N
22
LA19_P
VBO3-D1
GND
GND
23
LA19_N
VBO3-HSI
VBO3-VSI
LA22_P
24
GND
GND
VBO3-D3
LA22_N
25
LA21_P
VBO3-D2
GND
GND
26
LA21_N
VBO3-D4
VBO3-D5
LA25_P
27
GND
GND
VBO3-D7
LA25_N
28
LA24_P
VBO3-D6
GND
GND
29
LA24_N
VBO4-D0
VBO4-CLK
LA29_P
30
GND
GND
NC
LA29_N
31
LA28_P
VBO4-D1
GND
GND
32
LA28_N
VBO4-DEI
VBO4-HSI
LA31_P
33
GND
GND
VBO4-D2
LA31_N
34
LA30_P
VBO4-VSI
GND
GND
35
LA30_N
VBO4-D3
VBO4-D4
LA33_P
36
GND
GND
VBO4-D6
LA33_N
37
LA32_P
VBO4-D5
GND
GND
38
LA32_N
VBO4-D7
VADJ
VADJ
39
GND
GND
GND
GND
40
VADJ
VADJ

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
14 Security E
9. Pin Description of FMC Connector
Table 9-1 Pin Description of FMC Connector
Signal Name
FMC Pin
Name
Pin
Direction
Description
VBO1-CLK
LA00_CC_P
Output
THCV236 channel1 pixel clock
VBO1-VSI
LA02_P
Output
THCV236 channel1 Vertical SYNC
VBO1-HSI
LA05_N
Output
THCV236 channel1 Horizontal SYNC
VBO1-DEI
LA05_P
Output
THCV236 channel1 Data Enable
VBO1-D0
LA06_P
Output
THCV236 channel1 pixel data bit 0
VBO1-D1
LA06_N
Output
THCV236 channel1 pixel data bit 1
VBO1-D2
LA02_N
Output
THCV236 channel1 pixel data bit 2
VBO1-D3
LA03_P
Output
THCV236 channel1 pixel data bit 3
VBO1-D4
LA04_P
Output
THCV236 channel1 pixel data bit 4
VBO1-D5
LA03_N
Output
THCV236 channel1 pixel data bit 5
VBO1-D6
LA04_N
Output
THCV236 channel1 pixel data bit 6
VBO1-D7
LA08_P
Output
THCV236 channel1 pixel data bit 7
VBO1-PDN
LA01_CC_P
Input
THCV236 channel1 Power Down (Active High)
VBO2-CLK
LA14_P
Output
THCV236 channel2 pixel clock
VBO2-VSI
LA11_N
Output
THCV236 channel2 Vertical SYNC
VBO2-HSI
LA12_N
Output
THCV236 channel2 Horizontal SYNC
VBO2-DEI
LA11_P
Output
THCV236 channel2 Data Enable
VBO2-D0
LA07_N
Output
THCV236 channel2 pixel data bit 0
VBO2-D1
LA12_P
Output
THCV236 channel2 pixel data bit 1
VBO2-D2
LA13_P
Output
THCV236 channel2 pixel data bit 2
VBO2-D3
LA13_N
Output
THCV236 channel2 pixel data bit 3
VBO2-D4
LA16_P
Output
THCV236 channel2 pixel data bit 4
VBO2-D5
LA15_P
Output
THCV236 channel2 pixel data bit 5
VBO2-D6
LA16_N
Output
THCV236 channel2 pixel data bit 6
VBO2-D7
LA15_N
Output
THCV236 channel2 pixel data bit 7
VBO2-PDN
LA01_CC_N
Input
THCV236 channel2 Power Down (Active High)
VBO3-CLK
LA17_CC_P
Output
THCV236 channel3 pixel clock
VBO3-VSI
LA22_P
Output
THCV236 channel3 Vertical SYNC
VBO3-HSI
LA19_N
Output
THCV236 channel3 Horizontal SYNC
VBO3-DEI
LA20_N
Output
THCV236 channel3 Data Enable
VBO3-D0
LA20_P
Output
THCV236 channel3 pixel data bit 0
VBO3-D1
LA19_P
Output
THCV236 channel3 pixel data bit 1
VBO3-D2
LA21_P
Output
THCV236 channel3 pixel data bit 2
VBO3-D3
LA22_N
Output
THCV236 channel3 pixel data bit 3
VBO3-D4
LA21_N
Output
THCV236 channel3 pixel data bit 4
VBO3-D5
LA25_P
Output
THCV236 channel3 pixel data bit 5
VBO3-D6
LA24_P
Output
THCV236 channel3 pixel data bit 6
VBO3-D7
LA25_N
Output
THCV236 channel3 pixel data bit 7
VBO3-PDN
CLK1_M2C_P
Input
THCV236 channel3 Power Down (Active High)

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
15 Security E
VBO4-CLK
LA29_P
Output
THCV236 channel4 pixel clock
VBO4-VSI
LA30_P
Output
THCV236 channel4 Vertical SYNC
VBO4-HSI
LA31_P
Output
THCV236 channel4 Horizontal SYNC
VBO4-DEI
LA28_N
Output
THCV236 channel4 Data Enable
VBO4-D0
LA24_N
Output
THCV236 channel4 pixel data bit 0
VBO4-D1
LA28_P
Output
THCV236 channel4 pixel data bit 1
VBO4-D2
LA31_N
Output
THCV236 channel4 pixel data bit 2
VBO4-D3
LA30_N
Output
THCV236 channel4 pixel data bit 3
VBO4-D4
LA33_P
Output
THCV236 channel4 pixel data bit 4
VBO4-D5
LA32_P
Output
THCV236 channel4 pixel data bit 5
VBO4-D6
LA33_N
Output
THCV236 channel4 pixel data bit 6
VBO4-D7
LA32_N
Output
THCV236 channel4 pixel data bit 7
VBO4-PDN
CLK1_M2C_N
Input
THCV236 channel4 Power Down (Active High)
VBO-SCL
LA27_N
Input
I2C serial clock for THCV236 all channels
VBO-SDA
LA26_N
Input / Output
I2C serial data for THCV236 all channels
10. Power-on LED
THSB-FMC-01Vx1 has power-on LED. It turns on the blue light upon suppling12V power through FMC connector.
LED turns off
LED turns on
Fig 10-1 Power-on LED

THSB-FMC-01Vx1_UserManual_Rev1.0_E
Copyright©2017 THine Electronics, Inc. THine Electronics, Inc.
16 Security E
Notices and Requests
1. The product specifications described in this material are subject to change without prior notice.
2. This material contains our copyright, know-how or other proprietary. Copying or disclosing to third parties the
contents of this material without our prior permission is prohibited.
3. Note that if infringement of any third party's industrial ownership should occur by using this product, we will be
exempted from the responsibility unless it directly relates to the production process or functions of the product.
4. Please note that this product is not designed to be radiation-proof.
5. Customers are asked, if required, to judge by themselves if this product falls under the category of strategic goods
under the Foreign Exchange and Foreign Trade Control Law.
THine Electronics, Inc.
[e-mail]
