Thrane&Thrane TT-3020B User manual

TTT-3020B
aMaritime
a t ra s i eCapsat Transceiver
for the
Inmarsat-C Network
I t lla aInstallation Manual
Version 2.20
© Copyright Thrane & Thrane A/S. May 1995
Tobaksvejen 23, DK-2860 Soeborg. Denmark
http://funk-an-bord.de
-- Page 1 of 42 --
Materialien zur LRC Prüfung

ra e & h nThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
a i Ma uInstallation Manual
530MAY95 Page ii
Table of Contents
1. Introduction 1
2. Equipment installation 2
2.1 Introduction 2
2.1.1 Initial inspection 2
2.1.2 Packing list 3
2.1.3 Storage 4
2.1.4 Repacking for shipment 4
2.2 Technical specifications 5
2.3 Power requirements 7
2.3.1 AC mains operation 7
2.3.1.1 Integrated Capsat System 7
2.3.1.2 Power connector 8
2.3.2 Fuses 9
2.3.3 Grounding 9
2.4 TT-3001 Antennas 11
2.4.1 Antenna types 11
2.4.1.1 TT-3001B Option 001 Maritime Antenna 11
2.4.2 Mounting bracket 12
2.4.3 Antenna connector 12
2.4.4 Antenna cable 12

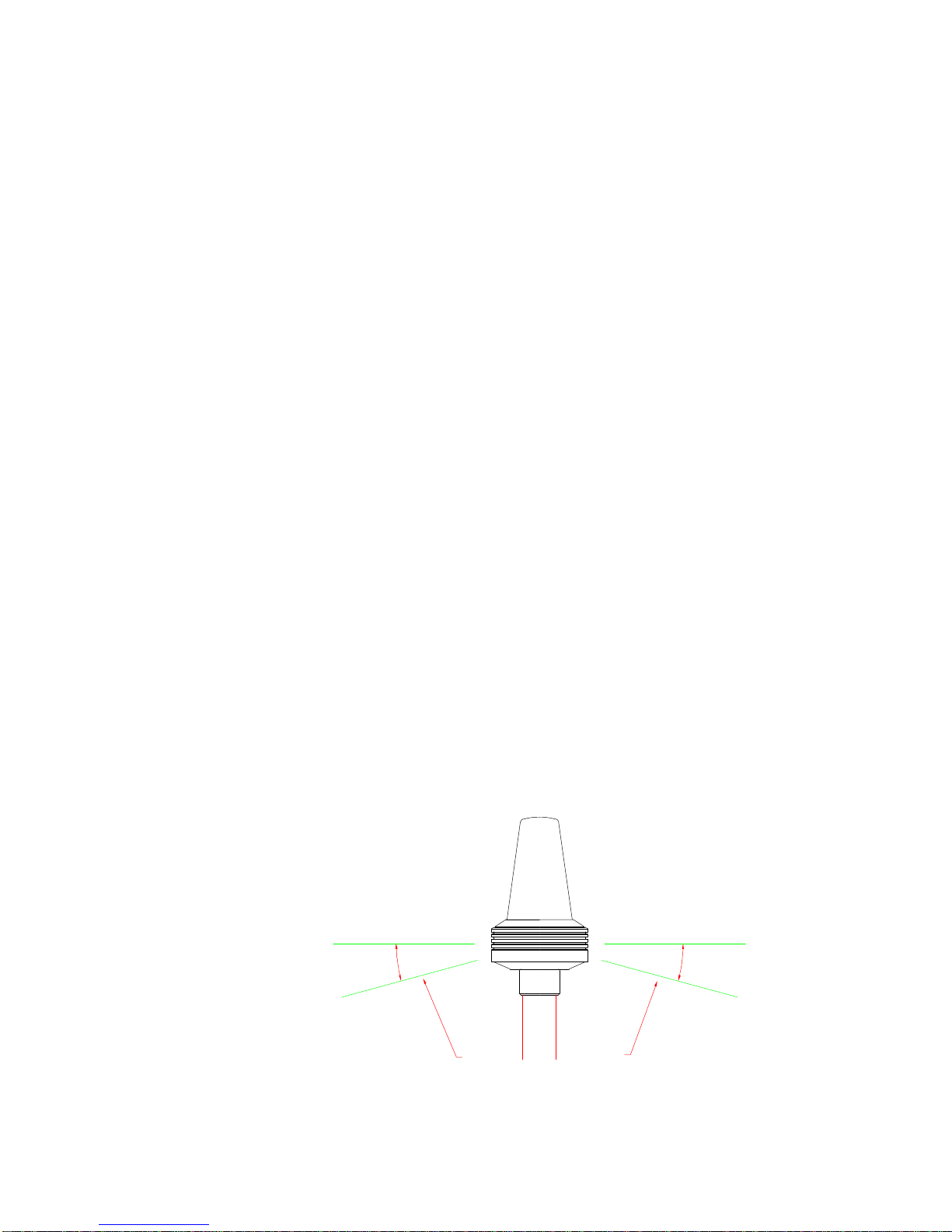

2.4.5 Mounting considerations 13
2.4.5.1 TT-3001B-opt. 001 Maritime Antenna 13
2.4.6 Safety Distance for Antenna Units 15
2.5 TT-3020B Capsat Transceiver 16
2.5.1 Mounting bracket 16
2.5.2 Communication port 16
2.5.2.1 Baudrate and protocol settings 16
2.5.2.2 X4 Connector interface 17
2.5.2.3 Interfacing to peripherals 17
2.5.2.3.1 TT-3606A Message Terminal 18
2.5.2.3.2 IBM Compatible PC (Personal Computer) 18
2.5.2.3.3 Computerized equipment 18
2.5.2.3.4 Flow control 19
2.5.3 T-Bus Connector 19
2.5.3.1 Changing port X5 to input NMEA 0183 data 20
2.5.3.2 Changing port X5 to output NMEA 0183 data 20
2.5.3.3 Changing port X5 to T-Bus communication 20
2.5.4 Switch settings 21
2.5.5 Jumper configurations 22
2.5.5.1 Default configuration 22
2.5.6 Clock battery back-up 22
2.5.7 NMEA 0183 Navigational Interface 23
2.5.7.1 NMEA 0183 Reception 23
2.5.7.2 NMEA 0183 Transmission 24
http://funk-an-bord.de
-- Page 2 of 42 --
Materialien zur LRC Prüfung

TThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
I t l o lInstallation Manual
P gPage iii 530MAY95
2.6 TT-3606A Message Terminal (optional) 26
2.6.1 Communication port 26
2.6.2 Printer port 26
2.6.3 VDU Interface 27
2.6.3.1 TT-3602D SVGA Monitor 27
2.6.3.2 TT-3680M DC to DC Converter (70Watt) 28
2.6.4 TT-3601A keyboard 28
2.7 TT-3680A/B Power Supply (optional) 29
2.7.1 TT-3680A Power Supply (80 Watt) 29
2.7.2 TT-3680B Power Supply (200 Watt) 29
2.8 TT-3608A Hard Copy Printer 30
2.8.1 Mounting plate 30
2.9 TT-3042B Remote Alarm 32
2.10 Built-in GPS (optional) 32
2.11 General interconnect information 34
3. System Generation 35
3.1 Introduction 35
3.2 Terminal preparation 36
3.2.1 TT-3606A Message Terminal 36
3.2.2 IBM Compatible PC 36
3.2.3 Computerized equipment/handheld terminals 36
3.3 Entering the System Generation 37
3.4 The system generation menu 37
3.4.1 Entering your mobile type and number 38
3.4.1.1 Fast access to the Mobile Type 38
3.5 Leaving the system generation 40
4. Commissioning of the equipment 41
4.1 Introduction 41
4.2 The first login (commissioning) 42
4.3 Overview of a Link Test 42
4.4 Details of a Link Test 43
4.5 Commissioned status 44
4.6 Uncommissioned status 44
http://funk-an-bord.de
-- Page 3 of 42 --
Materialien zur LRC Prüfung

ra e & h nThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
a i Ma uInstallation Manual
530MAY95 ePage 11
1. t tioIntroduction
This manual provides instructions for installing, configuring and testing of a TT-3000
Integrated Capsat System that includes a model TT-3020B Capsat Transceiver.
The various Capsat Systems available from Thrane & Thrane are decribed in the manual
Integrated Capsat Systems. Please consult this manual if your uncertain what kind of
system you will be installing.
A wide variety of options and accessories may be linked together with the Capsat
Transceiver, and the specific installation and configuring of these are to be found in
their respective Reference Manuals.
The relevant cabinet drawings and mounting information illustrations are found in the
back of this manual.
http://funk-an-bord.de
-- Page 4 of 42 --
Materialien zur LRC Prüfung

TThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
I t l o lInstallation Manual
P gPage 2530MAY95
2.2. ui all ioEquipment installation
2.1 Introduction
This chapter provides specific information enabling you to install the Model TT-3020B
Capsat Transceiver into your own system, with minimal effort. The default, or factory
configuration is described, together with procedures for altering this configuration.
2.1.1 Initial inspection
R NWARNING
To avoid hazardous electrical shock, do not perform electrical
tests if there is any sign of shipping damage to any portion of
the front or rear panel or the outer cover. Read the safety
summary at the front of this manual before installing or
operating the TT-3020B Transceiver.
Inspect the shipping carton immediately upon receipt for evidence of mishandling
during the transit. If the shipping carton is severely damaged or waterstained request
that the carrier's agent be present when opening the carton. Save the carton packing
material for future use.
Contents of the shipment should be as listed in the packing list below. If the contents
are incomplete, if there is mechanical damage or defect, or if the TT-3020B Capsat
Transceiver does not work properly, notify your dealer.
After you unpack the TT-3020B Capsat Transceiver , inspect it thoroughly for hidden
damage and loose components or fittings.
²Inspect the cable harness for stress, loose or broken wires, or broken cable tires.
²Examine all the components for loose or missing hardware. Tighten all loose
hardware.
²Remove loose debris from the cabinet interior.
http://funk-an-bord.de
-- Page 5 of 42 --
Materialien zur LRC Prüfung

ra e & h nThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
a i Ma uInstallation Manual
530MAY95 ePage 33
2.1.2 Packing list
Your Transceiver unit comes in a box with the following parts:
t u bPart number tItem
st aPart Name UseUse
403022-001 1TT-3020B Capsat Transceiver
52-200145-048 12 HCF 1876 screw, pozi,
mushroom, 4x8mm Fitting the angle or distance mountings
33-200192-120 2Fuse, 12A mT Spare
31-200098-009 1Connector, D 9-pin male Spare
31-200100-009 1House, D 9-pin Spare
31-200472-058 1Connector, BNC Solder,
Male Spare
37-101098 1Battery Cable, 2m, 1.5mm2Connecting Transceiver to
Power Supply
61-100823 1PC Cable 9-9 Pin, 2m Connecting Transceiver to PC
or Message Terminal
37-201237-925 1PC-Adaptor 9/25 pin Connecting Transceiver to PC
41-100742 2Distance, Mounting Fitting Message Terminal to
Transceiver
41-100562 2Angle, Mounting Fiiting Transceiver or
Message Terminal to desk or
console
40-10202-002 1Diskette, 3½": TT-10202B
Capsat Program For PC
98-403020-002 1TT-3000 Capsat System
Reference Manual including
the following:
Integrated Capsat Systems
Operators Guide
This manual
1Transceiver Test Sheet
1Inmarsat-C Commissioning
Application Form
http://funk-an-bord.de
-- Page 6 of 42 --
Materialien zur LRC Prüfung

TThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
I t l o lInstallation Manual
P gPage 4530MAY95
The Antenna is shipped in a separate box.
69-102881 1TT-3001B Antenna Unit
51-200833-003 1Unbraco Key, Steel N3 For antenna mounting
51-200834-006 1Unbraco Key, Steel N6 For antenna mounting
1Self-bonding tape, 30cm For sealing the antenna
connector
1Description for fitting self-
bonding tape
403020-941 1Antenna cable, 5m
Table 1: Packing list.
2.1.3 Storage
The TT-3020B may be stored or shipped in temperatures within the limits -40° C to +80°
C. It is advisable to protect the TT-3020B from extreme temperature variation which can
cause excessive condensation. It is recommended that the TT-3020B is unpacked
immediately on delivery.
2.1.4 Repacking for shipment
The shipping carton for the TT-3020B has been carefully designed to protect the
transceiver and its accessories during shipment. This carton and its associated packing
material should be used if repacking for shipment. Attach a tag indicating the type of
service required, a failure description, return address, model number and full serial
number. Mark the carton FRAGILE to ensure careful handling.
If the original shipping carton is not available, the following general instructions should
be used for repacking with commercially available material.
1. Wrap the TT-3020B in heavy paper or plastic. Attach a tag indicating the type of
service required, return address, model number and full serial number.
2. Use a strong shipping container, e.g. a double walled carton of 160 kg test material.
3. Protect the front- and rear panel with cardboard and insert a 7 cm to 10 cm layer of
shock absorbing material between all surfaces of the equipment and the sides of the
container.
4. Seal the shipping container securely.
5. Mark the shipping container FRAGILE to ensure careful handling.
http://funk-an-bord.de
-- Page 7 of 42 --
Materialien zur LRC Prüfung

ra e & h nThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
a i Ma uInstallation Manual
530MAY95 ePage 55
2.2 Technical specifications
Model TT-3020B
General Specifications Meets or exceeds all INMARSAT
specifications for the Inmarsat-C
Network and GMDSS requirements.
Transmit Frequency 1626.5 to 1646.5 MHz.
Receive Frequency 1530.0 to 1545.0 MHz.
Channel Spacing 5 kHz.
Modulation 1200 symbols/sec BPSK.
Ambiquity Resolution Unique word.
Coding R 1/2 K=7 convolutional code,
(interleaved code symbols RX).
DataRate 600 bit/sec.
RX Frame Length 8.64 seconds.
TX Signalling Access Mode Slotted ALOHA.
TX Message Channel TDMA & FDMA,interleaved code
symbol.
Antenna Interface Standard 50 Ohm female N-connnector,
max 100 meter cable.
GPS Interface 50 dB antenna amplification, 50 Ohm
female SMA-connector output for GPS
antenna
Terminal Interface CCITT Rec.V.24/28, 100-9600 Baud IA-5
code, DB-9F connector.
Printer Interface Standard parallel Centronics, DB-25F
connector.
Navigator and Alarm Interface CCITT Rec. V.10 Special with NMEA-
0183 interface and multidrop
addressing, female BNC-connector,
max.100 meter cable.
System Setup EEPROM programming from operator
terminal
DC Power Source 10.5 to 32 V floating DC
RX: 9.5 W
TX: 80 W
Ambient Temperature -25°C to 55°C operating
-40°C to 80°C storage.
Electronic Unit Mounting Flange mounting with optional 19" rack
bracket.
Dimensions H x W x D 62mm x 214mm x 279mm.
Weight 3.2 Kg
http://funk-an-bord.de
-- Page 8 of 42 --
Materialien zur LRC Prüfung

TThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
I t l o lInstallation Manual
P gPage 6530MAY95
Maritime Antenna
TT-3001B Opt. 001 Inmarsat-C/GPS omnidirectional antenna, RHC polarized.
G/T: -23 dB/K
EIRP: 14 dBW ± 2dB at 5° elevation.
Temperature: -35°C to55°C operating,
-40°C to 80°C storage.
Dimensions (H x G): 237 mm x 150 mm
conical ex. mounting.
Weight 2.2 Kg.
Solar Radiation Infra-red radiation 500W/m2 (EME).
Relative Humidity 95% non-condensing at 40°C.
Precipitation Up to 50 mm/hour, droplet size 0.5 to
4.5 mm (EME).
Ice Up to 25 mm (EME).
Wind Up to 200 km/hour (maritime antenna).
Vibration Operational Random 5-20 Hz: 0.02 g2/Hz
20-150 Hz: -3dB/oct. (1.0g RMS).
Vibration Survival Random 5-20 Hz: 0.05 g2/Hz
20-150 Hz: -3dB/oct. (1.7g RMS).
Shock Half sine 20g/11ms
Antenna Mounting (Maritime) Standard 1.5" tube mounting.
Other Antennas Please refer to dedicated brochures.
Inmarsat-C Protocol support Message transmission and reception
with IA-5, ITA-2 and binary transfer
to/from the following destinations:
Telex
PSTN (telephone modems and fax
modems)
PSDN (X.25 network)
EGC message reception with
automatical geographical area selection
Polling and datareporting with
automatic transmission of position
reports down to 1 per minute.
Special Access Codes
Basic X.400
DNID Messaging
Program Unreserved Datareporting
Pre-assigned Datareporting
GMDSS facilities.
Transmit message size: Max 32Kbyte
Receive storage: 128 Kbyte
Table 2: Technical specifications.
As our products are under continuous research and development, any information may
change without prior notice.
http://funk-an-bord.de
-- Page 9 of 42 --
Materialien zur LRC Prüfung

ra e & h nThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
a i Ma uInstallation Manual
530MAY95 ePage 77
2.3 Power requirements
Depending on your particular TT-3000 System you will need AC supply or a DC supply.
A TT-3000 Integrated Capsat System operates on either 115 VAC, 220 VAC or floating
DC in the range from 10.5-32 Volt. The total power consumption varies with the
particular system in question.
As a guide-line, please note the power consumption of the following equipment:
TT-1542B Call Alarm 0.6 W
TT-3022A Capsat Transceiver incl. antenna 9.5W RX 80W TX
TT-3602D SVGA Monitor 60 W
TT-3606A Message Terminal, incl keyboard. 8W
TT-3608A Printer 33W
TT-3042B Remote Alarm 2.5W 7W Print
Option 005 Built-in GPS 2W
Table 3: Capsat System component power requirements.
2.3.1 AC mains operation
As the TT-3020B Capsat Transceiver is designed to work on floating DC ranging from
10.5 - 32 Volt, an AC/DC converter is needed in case the Transceiver is subject to work
in AC environments.
2.3.1.1 Integrated Capsat System
For a TT-3000 Integrated Capsat System with an IBM compatible PC we recommend the
TT-3680A Power Supply.
The TT-3680A Power Supply operates on either 115 VAC or 230 VAC. (internally
selectable) and supplies 24 VDC/96 Watt as a maximum.
The TT-3680A will adjust the DC output level (10.5 - 32 Volt) according to the total load.
The TT-3680A Power Supply may be connected to the emergency batteries offering
automatic switch-over to DC in case of a mains line drop-out.
For a TT-3000 Integrated Capsat System with a TT-3608A Message Terminal we
recommend the TT-3680B Power Supply.
http://funk-an-bord.de
-- Page 10 of 42 --
Materialien zur LRC Prüfung

TThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
I t l o lInstallation Manual
P gPage 8530MAY95
The TT-3680B Power Supply operates on either 115 VAC or 230 VAC. (internally
selectable) and supplies 24 VDC/200 Watt as a maximum.
The TT-3680B will adjust the DC output level (10.5 - 32 Volt) according to the total load.
The TT-3680B Power Supply may be connected to the emergency batteries offering
automatic switch-over to DC in case of a mains line drop-out.
2.3.1.2 Power connector
The battery connector matches the Thrane & Thrane standards for battery connectors.
Regardless whether the unit is designed to work on floating DC or modified to match
your DC requirements the pin assignment of the DC/Battery power connector looks like
this:
PPin eName i sc tSignal Description
1SGND Safety Ground
2SUP+ Supply Voltage, positive terminal
3SUP- Supply Voltage, negative terminal
4ON/OFF Remote ON/OFF Switch
Table 4: TT-3020B Capsat Transceiver DC Power Connector pin assignment
Pin 4 is a unique feature for the TT-3020B Capsat Transceiver.
When this pin is left floating the Transceiver is turned off, but if pin 4 is shorted to the
negative terminal of the battery or DC-supply the Transceiver will switch on. This
makes it possible for other equipment to perform remote power control of the TT-3020B.
The remote power control can be triggered by an external relay or solid state switch.
The battery connection is floating, i.e. there is no galvanic connection from any of the
battery poles to the cabinet frame.
http://funk-an-bord.de
-- Page 11 of 42 --
Materialien zur LRC Prüfung

ra e & h nThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
a i Ma uInstallation Manual
530MAY95 ePage 99
2.3.2 Fuses
In case you experience that a fuse needs replacement, please check that the equipment
has not been exposed to physical damage before fuse replacement takes place.
WWARNING
To avoid hazardous electrical shock, do not perform electrical
tests if there is any sign of shipping damage to any portion of
the front or rear panel or the outer cover. Read the safety
summary at the front of this manual before installing or
operating the TT-3020B Transceiver.
As a guide-line, please note the fuse location of the following equipment:
mEquipment Location zFuse size
TT-1542B Call Alarm No fuse available.
TT-3020B Capsat
Transceiver incl. antenna Externally accessed, located on the rear panel. 12A mT.
TT-3602D SVGA Monitor External accessed,
located on the rear panel 3.15A mT.
TT-3680M DC to DC
converter External accessed, located on the front and
the rear panel
Input 10A mT.
Output 1A mT.
TT-3606A Message
Terminal, incl keyboard. Externally accessed, located on the rear panel. 3.15A mT.
TT-3608A Printer Internally accessed,
remove topcover. 1.5A mT.
TT-3680A Power Supply
(80 Watt) Internally accessed, remove topcover. 1A mT.
TT-3680B Power Supply
(200 Watt) Internally accessed, remove topcover. 3.15A mT.
TT-3042B Remote Alarm Externally accessed,
located on the rear panel. 1A mT.
Table 5: Capsat System fuses
The TT-3680A/B Power Supply may blow an internal fuse in case you power up the
entire Integrated System with all DC units turned on. It is therefore recommended to
power up the DC units one by one.
2.3.3 Grounding
RF-grounding of an Integrated Capsat System requires special attention.
http://funk-an-bord.de
-- Page 12 of 42 --
Materialien zur LRC Prüfung

TThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
I t l o lInstallation Manual
P gPage 010 530MAY95
Each unit shall have its own individual low-inductance earth connection. The use of a
common busbar for grounding is not recommended as this can lead to unwanted
common-mode coupling effects.
The ground should be connected to the cabinets metal frame to provide a return path
for fault currents due to equipment malfunction or external faults such as lightning faults.
Interconnecting cables must be well screened.
http://funk-an-bord.de
-- Page 13 of 42 --
Materialien zur LRC Prüfung

ra e & h nThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
a i Ma uInstallation Manual
530MAY95 P gPage 111
2.4 TT-3001 Antennas
Figure 1: Maritime antenna.
2.4.1 Antenna types
Your Integrated Capsat System has been delivered with a TT-3001B Option 001
Maritime Antenna. The antenna is compatible electrically with the earlier TT-3001A
antenna with or without Option 003 (GPS signal filter).
2.4.1.1 TT-3001B Option 001 Maritime Antenna
This is an omni-directional antenna with built-in
²High Power Amplifier, HPA, TT part no. 60-102195
²Low Noise Amplifier, LNA, TT part no. 60-101805
²Combiner, TT part no. 60-102193
²Diplexer, TT part no. 69-101916
²Maritime Antenna element, TT part no. 69-102192
The antenna is very compact and is designed to operate in a corrosive environment and
in extreme weather conditions without any service. It has a modular construction that
allows easy exchange of antenna elements. The antenna housing is sealed with tamper-
resistant TORX screws, so that it can only be disassembled by Thrane & Thrane
approved technicians.
The antenna is fully compatible with the Inmarsat-C GMDSS specifications, and can also
receive GPS signals while not transmitting.
http://funk-an-bord.de
-- Page 14 of 42 --
Materialien zur LRC Prüfung

TThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
I t l o lInstallation Manual
P gPage 212 530MAY95
2.4.2 Mounting bracket
The omnidirectional maintenance free antenna unit must be mounted in a high location
with direct line-of-sight to the satellites.
Illustration of the 1½" Adaptor for mouting on a pole is enclosed in the back of this
manual.
The Adaptor may be removed by loosening the three Allan screws fitting the bracket to
the antenna.
2.4.3 Antenna connector
"N" type connectors are available from manufacturers like:
Suhner, Radial, Omnispectra, Kings, etc.
2.4.4 Antenna cable
Your Integrated Capsat System, has been delivered with a 5m coaxial cable, pre-
terminated with a standard connector of "N" type.
The specifications requires that the total maximal attenuation at 1.65 GHz must be less
than 16 dB, and the maximal total (short-circuited in one end) DC resistance must not
exceed 0.8 Ohms.
In case the antenna cable is to be produced on site, the cable type should match the
below listed guide-lines:
R gRange (m) eCable type no. ec eConnector type no.
u r(Suhners)
1 - 5 RG-223U, 5.5 mm (Cable enclosed)
6 - 40 RG-214U, 10.8 mm 11N-50-7-44
41 - 80 SA7272, 10.0 mm 11N-50-7-35
81 - 100 SA12272, 15.0 mm 11N-50-12-35C
Table 6: TT-3020B Capsat Transceiver Antenna Cable types
All antenna cables types are double shielded.
The antenna cable may run together with radar or navigator cables. Separate cable
ditch is not required.
http://funk-an-bord.de
-- Page 15 of 42 --
Materialien zur LRC Prüfung

ra e & h nThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
a i Ma uInstallation Manual
530MAY95 P gPage 313
If you install your system in a permanent location, we recommend that you, after the
installation of the antenna, wrap the connector with the enclosed self-bonding tape,
disabling water from penetrating the connection.
2.4.5 Mounting considerations
2.4.5.1 TT-3001B-opt. 001 Maritime Antenna
When installing the Maritime Antenna you should find a location on the vessel that is as
free from obstructions as possible. Also you should maintain a certain distance to other
antennas, especially radar installations. Normally the best place for the antenna would
be above radar scanning antennas. The following safe distances should be maintained:
Distance to HF antennas > 5 m
Distance to VHF antennas > 4 m
Distance to magnet compass > 3 m
The antenna is designed to provide satellite coverage even when the vessel has pitch
and roll movements up to 15°. To maintain this coverage the antenna should be free
from obstructions in the area down to 15° below the horizon. Since this may not be
possible in the fore and aft directions of the vessel, the clear area can be reduced to 5°
below the horizon in the fore and aft directions and 15° below the horizon in the port
and starboard directions. Any compromise in this recommendation will degrade
performance.
15°
HorizonHorizon
Zenith
15°
Obstructions should be below these lines
Capsat
Figure 2: TT-3001B Option 001 Maritime Antenna mounting.
http://funk-an-bord.de
-- Page 16 of 42 --
Materialien zur LRC Prüfung

TThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
I t l o lInstallation Manual
P gPage 414 530MAY95
If an obstruction such as a pole or a funnel is unavoidable, the following guidelines
apply:
The distance to the obstruction should large enough, so that the obstruction only covers
3 degrees. This means that the safe distance is:
Safe distance = 20 * Diameter of obstruction
Example:
Obstruction is a 4" pole. Diameter = 0.1 m. Safe distance is 20 * 0.1 m = 2 m
Max. obstruction angle 3 degrees Capsat
Figure 3: TT-3001B Option 001 Maritime Antenna mounting near pole or funnel.
http://funk-an-bord.de
-- Page 17 of 42 --
Materialien zur LRC Prüfung

ra e & h nThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
a i Ma uInstallation Manual
530MAY95 P gPage 515
2.4.6 Safety Distance for Antenna Units
The safety levels for the Thrane & Thrane INMARSAT-C Antenna Units are based on the
ANSI standard C95.1-1982 "American National Standard Safety Levels With Respect to
Human Exposure to Radio Frequency Electromagnetic Fields, 300 kHz to 100 GHz"
This standard recommends the maximum power density at 1.6 GHz exposed to human
beings not to exceed 5 mW/cm².
At the maximum radiated output power from the INMARSAT-C Antenna (16 dBW EIRP)
this corresponds to a minimum safety distance on 30 cm.
To be sure that this distance is respected the Thrane & Thrane INMARSAT-C Antenna
Units are provided with a label declaring a minimum safety distance on 2 feet (61 cm).
In the future standards from the European Telecommunication Standard Institute (ETSI)
concerning 1.5/1.6 GHz Satellite Earth Stations the recommendation will be maximum
8W/m² (0.8 mW/cm²). This tighter recommendations correspond to a minimum safety
distance on 60 cm at 16 dBW, so these future European recommendations are also
covered within the declared minimum safety distance on 2 feet (62 cm).
http://funk-an-bord.de
-- Page 18 of 42 --
Materialien zur LRC Prüfung

TThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
I t l o lInstallation Manual
P gPage 616 530MAY95
2.5 TT-3020B Capsat Transceiver
Figure 4: TT-3020B Capsat Transceiver
2.5.1 Mounting bracket
The TT-3020B Capsat Transceiver is supplied with an universal mounting bracket (41-
100562) which allows "over" or "under" mounting to e.g. a table or ceiling.
It is recommended that the Transceiver is mounted in an open air location allowing the
operator full access to the front panel in a distress situation.
When the Transceiver is used with other Thrane & Thrane equipment such as the
TT-3606A Message Terminal or the TT-3210A Radiotelex Modem, stacked mounting may
be achieved using mounting bracket 41-100742.
It is strongly recommended not to stack mount the TT-3020B Capsat Transceiver with
the TT-3680A Power Supply because of the heat generation from this unit.
2.5.2 Communication port
The TT-3020B Capsat Transceiver communicates with a controller device via the
standard EIA RS-232D ports, located on the rear panel at X4.
2.5.2.1 Baudrate and protocol settings
The TT-3020B accepts the following:
http://funk-an-bord.de
-- Page 19 of 42 --
Materialien zur LRC Prüfung

ra e & h nThrane & Thrane
TTT-3020B C p a raCapsat Transceiver
a i Ma uInstallation Manual
530MAY95 P gPage 717
dBaud rates r o sProtocol settings d aHandshake
110 Baud 7/8 databits Hardware
150 Baud No/Even/Odd parity Using DTR and CTS
300 Baud 1/2 stopbits
600 Baud
1200 Baud
2400 Baud
4800 Baud
9600 Baud
Table 7: Automatic baudrate settings.
The serial port communication parameters are factory programmed to:
, at b s n i b4800 Baud, 8 databits, no parity, 1 stopbit
Please refer to chapter section 3.3 to alter the baudrate and the protocol settings by
means of Automatic Baud Rate Recognition.
Alternatively these settings may be customer defined.
2.5.2.2 X4 Connector interface
The TT-3020B uses the the following signals (marked with a üin the Used column):
eName g p oSignal description n9-Pin UseUsed vLevels D ec nDirection
DCD Data Carrier Detect 1RS-232/423 oè
RxD Received Data 2üRS-232/423 oè
TxD Transmitted Data 3üRS-232 oç
DTR Data Terminal Ready 4üRS-232 oç
GND Ground 5ü
DSR Data Set Ready 6üRS-232/423 oç
RTS Request To Send 7RS-232 oç
CTS Clear To Send 8üRS-232/423 oè
RI Ring Indicator 9üRS-232/423 oè
Table 8: TT-3020B X4 pin assignment.
The oèsymbol means that the signal is generated by the Transceiver.
For full operating specifications for the serial interface, you are kindly requested to
refer to the CCITT Rec. V24, the EIA RS-423C or EIA RS-232D.
2.5.2.3 Interfacing to peripherals
The transceiver may be used in numerous configurations for operation with equipment
like:
http://funk-an-bord.de
-- Page 20 of 42 --
Materialien zur LRC Prüfung
