THUNDER TIGER RAPTOR 30 Quick guide

0
NOTICE
This is an improved electronic duplicate of the Thunder Tiger Manual for the Raptor 30 V2. ACE
also has an electronic version this manual available, but it misses the parts list section and could
use some improvements.
I would like to thank BimmerM3 at the RunRyder forum (www.runryder.com), for sending me a
Raptor 30 V2 manual. This enabled me to reconstruct the manual, partly by scanning in parts
and by manually creating the pages, and partly by copying and modifying the ACE manual.
I did a very careful job in duplicating the manual, but of course I can not assume responsibility in
case of errors. The duplicate has been kept as close as possible to the original manual, but at
numerous places errors and typos were corrected. At many places the English text was
improved, as well as the layout. Some part numbers have been corrected. A few sentences
where correction would need more than changing a few words were left unchanged.
The front page has been recreated in color, where the original manual is all black and white. A
colored front page is so much more inviting!
I hope you enjoy the use of this electronic manual.
January 2004
Wouter Pasman
Netherlands.

1
INTRODUCTION
Congratulations on your purchase of the Raptor 30 V2 helicopter. This model was designed and
engineered by the World-renowned Mr. Shigetada Taya. It combines elements of his previously
successful designs with today's advanced technologies. Raptor 30 in 1998, many have been sold
around the world. It is the most popular 30-size helicopter in the world. The raptor 30 has helped
beginners master the art of RC helicopter flying. The Raptor 30 has helped experienced pilots
learn new 3-D maneuvers. This is truly a versatile model helicopter for everyone. We did not just
sit on our laurel, our team of engineers and test pilots have collected feedback from around the
world and have now made the Raptor 30 an even better helicopter. We made new molds and
tooling for new parts. Many areas have subtle changes to increase strength and durability.
As one of the largest R/C manufacturers in the world, Thunder Tiger has spared no expense to
bring you this incredible new machine. All production parts are manufactured by use of the most
modern technology available and meets or exceeds the standards as set forth by ISO-9001.
In the last few years we have spent time and resources to develop a new Thunder Tiger PRO-
39H(R) ring engine for the Raptor 30 V2 and for other 30-size helicopters. The new PRO-39H(R)
has much better transition characteristics than the Pro 36H ABC engine. The needles are easy to
set. The ring design eliminates the criticalness of ABC engines. You will find the new 39H engine
produce more power than any other available 30-size engines. Together, the new Raptor 30 V2
and the PRO 39H(R) engine will provide you with many hours of enjoyment. Thank you again for
purchasing our fine products.
CONTENTS
Introduction...............................................p.1
Contents ...................................................p.1
Warnings ..................................................p.1
Additional Items Needed ..........................p.3
Tools Needed ...........................................p.3
Assembling Section..................................p.4
Flight Training Section..............................p.18
Maintenance Section................................p.26
Blade Modification ....................................p.35
Parts List Section .....................................p.36
WARNING
This radio controlled helicopter is not a toy. It is a sophisticated piece of equipment and is
designed for hobby use only. If not properly assembled and operated, it is capable of causing
property damage and bodily harm to both the operator and/or spectators. Thunder Tiger and its
duly authorized distributors assume no liability for damage that could occur from the assembly
and/or use/misuse of this product.
AMA INFORMATION
Operating a model helicopter requires a high degree of diligence and skill. If you are a newcomer
to the hobby, it is best to seek help and guidance from accomplished model helicopter pilots.
This will greatly speed up the learning process and have you flying successfully in a reasonable
time. We also would strongly urge you to join the Academy of Model Aeronautics. The AMA is a

2
non-profit organization that provides its members with a liability insurance plan as well as
monthly magazine entitled Model Aviation. All AMA charter aircraft clubs require all pilots to hold
acurrent AMA sporting license prior to operation of their models at club fields. For further
information, contact the AMA at:
Academy of Model Aeronautics
5151 East Memorial Drive
Muncie, IN 47302
[phone]
FLIGHT SAFETY CHECKLIST
1. Make sure both the transmitter and receiver batteries are fully charged prior to operation the
helicopter.
2. Make sure all flight controls operate properly prior to flying.
3. Range check the radio before the first flight. The servos must operate properly with the
transmitter antenna collapsed at a range of at least 50 ft.(15 meters).
4. Check to make sure there is no radio interference on your radio channel before operating the
helicopter.
5. Use only the recommended engine fuel as specified by the engine manufacturer.
6. Make sure the transmitter and receiver are turned on before starting the engine.
7. The engine throttle must be in the idle position before starting the engine.
8. Model helicopter main and tail rotors operate at high RPM. Make sure nothing can come in
contact with the rotor blades during flight.
9. After starting the helicopter, maintain a safe distance during the flight.
10. Never operate the helicopter in rain or excessive wind conditions.
11. Always operate and fly your helicopter in a safe and responsible manner.
12. Never fly a model helicopter over other pilots, spectators or cars.
POST FLIGHT INSPECTION
1. Inspect the model thoroughly to insure no parts have come loose or become damaged during
the flight and landing. Replace damaged parts and tighten loose screws before flying again.
2. Pump out any remaining fuel from the fuel tank.
3. Wipe off excess oil and fuel from helicopter body and other exposed parts.
4. Lubricate all moving parts ensures smooth operation for the next time you fly.
5. Store model in a cool, dry place. Avoid storage in direct sunlight or near a source of heat.
Following these few, simple safety rules will allow you to enjoy the thrill of model helicopter flying
for many years to come.

3

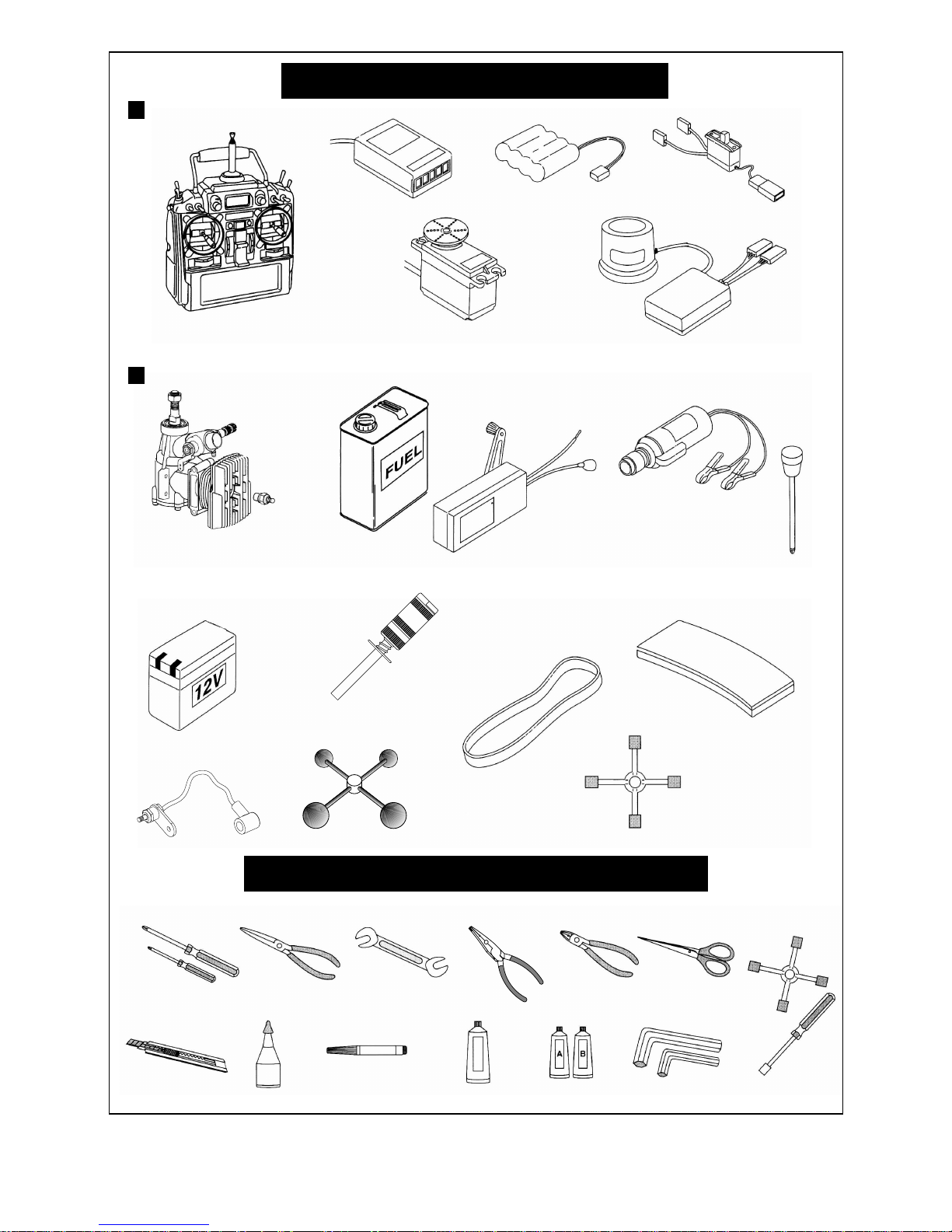

TOOLS REQUIRED FOR ASSEMBLY
OTHER ITEMS REQUIRED
Receiver
Transmitter
(helicopter type only
6ormorechannels)
Servo x 5
Battery
1000mAh
Switch harness
Extended 6mm Hex
Starting Tool
Fuel Pump
HELI ENGINE(39-size)
Socket Drivers
Hex WrenchGrease
Blue Locktite
Instant Glue
Hobby Knife
Metric
4-way Wrench
ScissorsNipper5.5mm WrenchNeedle Nose PliersScrew Driver
Glow Plug Wrench
Gyro
Glow Fuel(15%-30%)
12V Battery
1.5V Glow starter
(1.2V~1.5V)
Rubber Band
Foam
RADIO SET
ENGINE
Glow Plug
12V Electric starter
7mm
5.5mm
7mm
8mm
5.5mm
7mm
8mm
10mm
Remote Glow Plug
Extension
Epoxy
Training Gear
(for beginners only)
Ball Link Pliers

4
ASSEMBLING SECTION
The parts in the Raptor kit are packed according to the assembly steps. The part number and quantity contained
in each are always shown in the square box on each page. Do not open all the bags at once. Open only the bag
that is needed for the current assembly step.

(3 )BK0463
(2 )BK0062
(5 )CB0363-1
(4 )BE1867
(1) BK0605
To Engine
(6) BB362-2
(6) BB362-2
To Muffl er
5
2Clutch Bell Assembly
1 Fuel Tank Assembly
(1) BK0605 Fuel Tank .....................1
(2) BK0062 Fuel Tank Grommet.....1
(3) BK0463 Fuel Tank Nipple..........1
(4) BE1867 Clunk.............................1
(5) CB0363-1 Silicone Fuel Tube....1
(6) BB0362-2 Silicone Fuel Tube.....2
Note: After assembly, check to make sure the Fuel Tank
clunk can move from top to bottom without touching the
back of tank. Also, a fuel filter (available from any hobby
shop, TTR1164) should be placed between the fuel tank
and the carburetor.
(1) HMV1680 Bearing (d8xD16xW5).....1
(2) HMV1260Y Bearing (d6xD12xW4)...1
(3) BK0591 Clutch Bell..........................1
(4) BK0593 Drive Gear(Pinion).............1
(5) BK0590 Clutch Liner........................1
(1) HMV1680
(4) BK0593
(3) BK0591
(2) HMV1260Y
(5) BK0590
The liner comes glued in the
clutch bell already.

(10) BK0600
(14) BK0594
(6) HME4-5B
(1) HSE3-12B
(2) HMV696Z
Top Starter Shaft
Bearing
(1) HSE3-12B
(8) BK0057
(15) Fuel Tank Ass'y
(16) Clutch Bell
Assembly
(13) BK0592
(3) HMV6800 Upper Main Shaft bearing
(4) BK0059 Main Frame Spacer(S)
(5) BK0058 Main Frame Spacer (L)
(11) BV0035
(1) HSE3-12B
(3) HMV6800
Lower Main Shaft Bearing
(9) BK0599
(7) BK0081
(12) BK0036
6

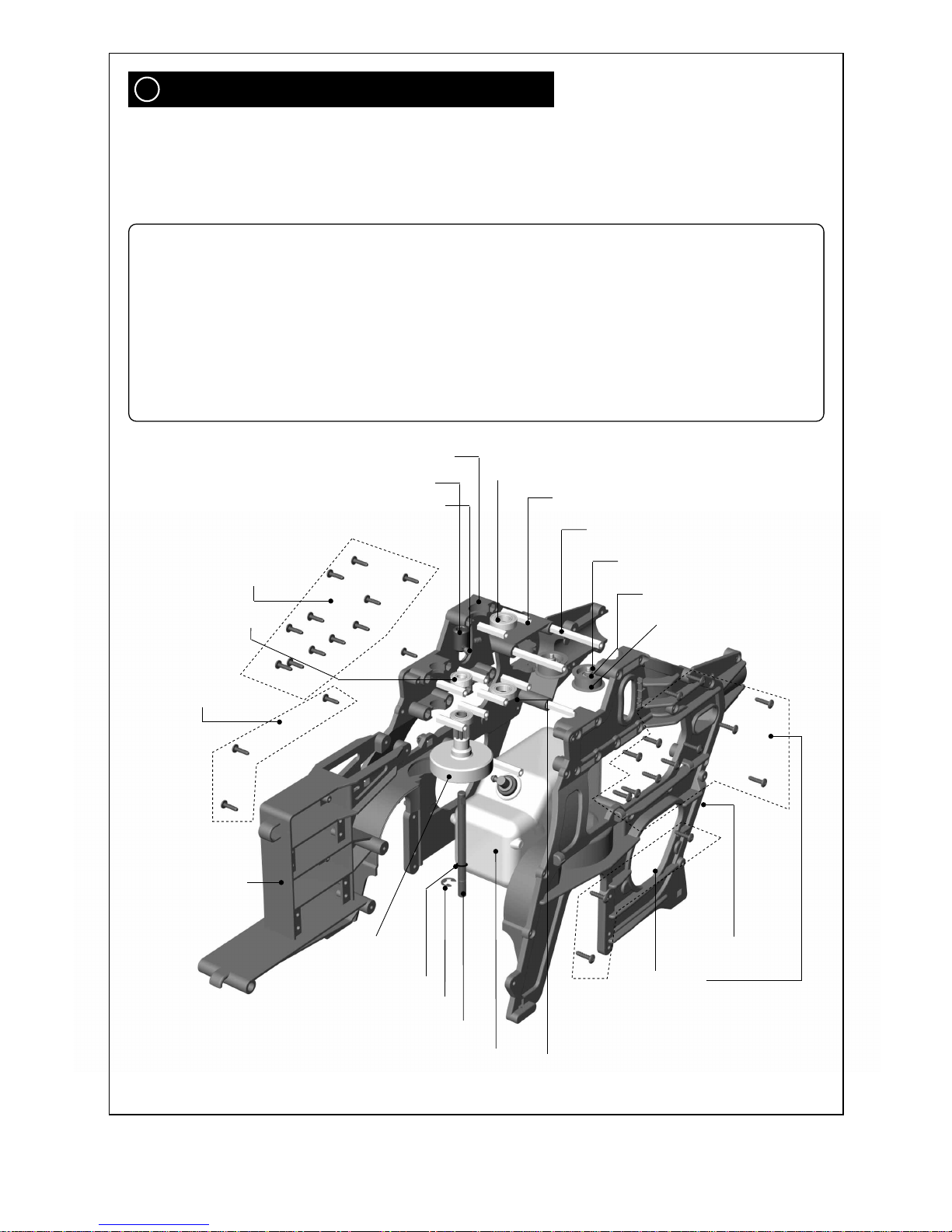

3Main Frame Assembly-Part1
(1) HSE3-12B Self Tapping Screw (M3x12).. 30
(2) HMV696Z Bearing (d6xD15xW5).......... 1
(3) HMV6800 Bearing (d10xD19xW5).......... 2
(4) BK0059 Frame Spacer (S)....................... 8
(5) BK0058 Frame Spacer (L)...................... 4
(6) HME4-5B Set Screw (M4x5)................... 2
(7) BK0081 Pin............................................. 2
(8) BK0057 Servo Frame.............................. 1
(9) BK0599 Main Frame Left Side.............. 1
(10) BK0600 Main Frame Right Side..........1
(11) BV0035 Guide Pulley.......................... 2
(12) BK0036 Pulley Collar.......................... 4
(13) BK0592 Starter Shaft.......................... 1
(14) BK0594 Starter Coupling.................... 1
(15) Fuel Tank Assembly
(16) Clutch Assembly
(17) HMS5 E-CLIP..................................... 1
(18) BK0584 Thrust Washer.......................1
Please insert the frame spacers, bearings, pulley and parts in the frames according the drawing below. Tighten the
screws snugly, but do not over torque them which could strip the plastic.
Insert starter shaft through the center of the clutch bell assembly, through the top starter shaft bearing and into the
starter coupling. Secure with the two set screws. Make sure this is tightly secured.
(17) HMS5
(18) BK0584

(3) HMV740ZZ
(4) BK0077
(5) BK0079
(6) BK0075
(7) BK0015
(8) BK0016
(9) BK0014
(1) HMJ2-10N
(2) HMC3-10B
(3) HMV740ZZ (1) HMJ2-10N (8) BK0016
(3) HMV740ZZ
(5) BK0079
(6) BK0075
(3) HMV740ZZ
(4) BK0077
(2) HMC3-10B
(7) BK0015
For sport kit (29BB) version, (3) will be replaced by Bushing(BK0107x4)
7
4Main Drive Gear Assembly
(1) HMC3-12B Socket Screw (M3x12).......... 4
(2) HMQ14 Snap Ring.................................... 2
(3) BV0033 One Way Clutch Housing.............1
(4) BK0031 Main Spur Gear........................... 1
(5) BK0032 Tail Drive Pulley........................... 1
(6) BK0034 One Way Clutch Shaft..................1
5Washout Assembly
(1) HMJ2-10N Self Tapping Screw(M2x10).. 2
(2) HMC3-10B Socket Screw (M3x10)......... 2
(3) HMV740ZZ Bearing (d4xD7xW2.5)........ 4
(4) BK0077 Collar ........................................ 2
(5) BK0079 Pin............................................. 2
(6) BK0075 Linkage Ball.............................. 2
(7) BK0015 Flybar Control Lever.................. 2
(8) BK0016 Washout Linkage ..................... 2
(9) BK0014 Washout Base............................1
Make sure Linkage Balls are attached to the
inside hole of each stabilizer control lever.
(1) HMC3-12B
(6) BK0034
(2) HMQ14
(5) BK0032
(4) BK0031
(2) HMQ14
(3) BV0033
Add a dropofBlueLocktiteonthe
thread of each of these four screws.

8

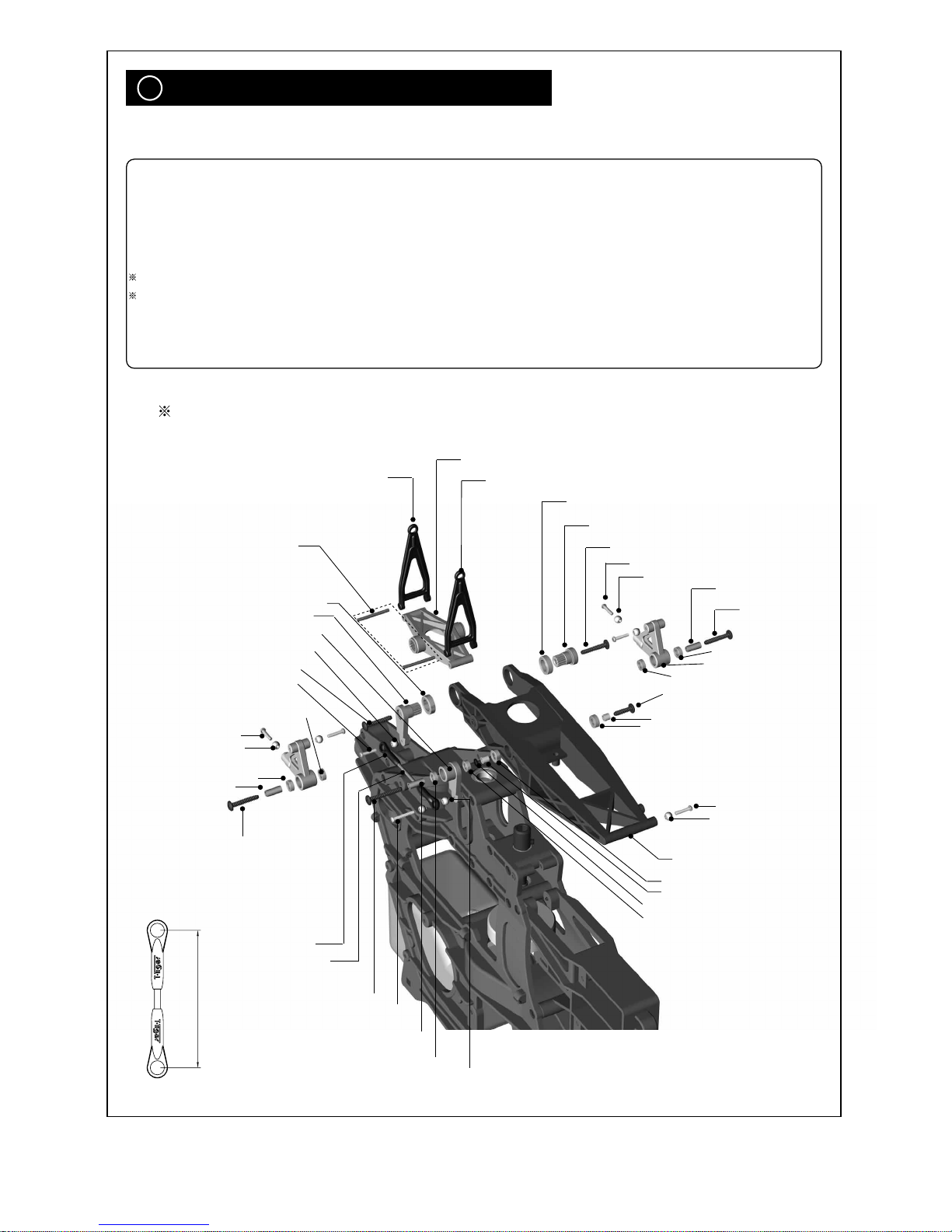

6Main Frame Assembly-Part2
Add a drop of CA to the two screws at the pivoting point of the collective pitch control arm.
Attach the linkage rod to the parallel elevator linkage balls.
(1) HSE3-18B
(2) HSE3-12B
(3) HMJ3-22B
(4) HMJ2-14N
(5) HMJ2-10N
(6) HMV1280
(7) HMV740ZZ
(8) HMV840ZZ
(9) BK0076
(10) BK0078
(1) HSE3-18B
(12) BK0084
(13) BK0075
(14) BK0023
(15) BK0018
(16) BK0020
(17) BK0022
(18) BK0019
(20) BK0093
(21) BK0021
(22) BK0017
(14) BK0023
(7) HMV740ZZ
(5) HMJ2-10N
(13) BK0075
(8) HMV840ZZ
(10) BK0078
(11) BK0088
(7) HMV740ZZ
(13) BK0075
(7) HMV740ZZ
(9) BK0076
(6) HMV1280
(13) BK0075
(1) HSE3-18B
(5) HMJ2-10N
(7) HMV740ZZ
(5) HMJ2-10N
(13) BK0075
(7) HMV740ZZ
(9) BK0076
(1) HSE3-18B
(19) BK0086
For sport kit (29BB) version,
(7) will be replaced by Bushing(BK0107x6)
(8) will be replaced by Bushing(BK0108x2)
Warning, do not over-torque the self-tapping screws.
(1) HSE3-18B Self Tapping Screw(M3x18)....4
(2) HSE3-12B Self Tapping Screw(M3x12)... 1
(3) HMJ3-22B Self Tapping Screw(M3x22)....1
(4) HMJ2-14N Self Tapping Screw(M2x14)... 1
(5) HMJ2-10N Self Tapping Screw(M2x10)... 6
(6) HMV1280 Bearing (d8xD12xW3.5)......... 2
(7) HMV740ZZ Bearing (d4xD7xW2.5)........ 6
(8) HMV840ZZ Bearing (d4xD8xW3)............ 2
(9) BK0076 Collar......................................... 3
(10) BK0078 Collar ...................................... 2
(11) BK0088 Flat Washer ......................... 1
(12) BK0084 Pin .......................................... 2
(13) BK0075 Linkage Ball..............................8
(14) BK0023 Elevator Control Arm Link........ 2
(15) BK0018 Elevator Control Arm................ 1
(16) BK0020 Elevator Arm Control Shaft....... 1
(17) BK0022 Aileron Control Lever................ 2
(18) BK0019 Elevator Arm Parallel Lever...... 1
(19) BK0086 Ball Link....................................2
(20) BK0093 Linkage Rod ............................ 1
(21) BK0021 Elevator Control Lever..............1
(22) BK0017 Collective Pitch Control Arm..... 1
66mm

9
7Main Frame Assembly-Part3
58mm
(1) HSE3-18B Self Tapping Screw(M3x18).4
(2) HME4-5B Set Screw(M4x5)..................4
(3) BK0066 Skid Brace...............................2
(4) BK0064 Skid Pipe.................................2
(5) BK0065 Skid Pipe End Cap..................4
(1) BK0616 Socket Screw(M3x20)............1
(2) HMM3Z Lock Nut (M3)........................ 1
(3) HME4-5B Set Screw (M4x5)............... 2
(4) BK0086 Ball Link ................................ 4
(5) BK0092 Linkage Rod ......................... 2
(6) BK0030 Main Shaft Lock Ring............ 1
(7) BK0029 Main Shaft ............................ 1
(8) Wash Out Assembly
(9) BV0601 Swash Plate Assembly...........1
(10) Main Gear Assembly
Insert Main Shaft through the shaft bearings making sure that the end with the holes closest to the end is
pointed down. Next, slide main gear assembly into position on the shaft and line up the holes in the main
shaft with the holes in one way clutch shaft of the main gear assembly. Insert the socket head screw and
secure with the lock nut. Next, slide on the mainshaft lock ring on top of the main shaft bearing and secure
with the two set screws. Then slide on the swash plate assembly and attach the elevator and aileron
control linkages to the outside swash plate linkage balls. Next, slide on washout assembly and attach
washout linkage to the inner linkage balls of the swash plate.
(3) BK0066
(2) HME4-5B
(5) BK0065
(1) HSE3-18B
(5) BK0065
(4) BK0064
(2) HME4-5B
(3) BK0066
(2) HME4-5B
(1) BK0616
(2) HMM3Z
(3) HME4-5B
(6) BK0030
(7) BK0029
(9) BV0601
(10) Main Gear Assembly
(8) Washout Assembly
(4) BK0086
(5) BK0092
(4) BK0086
8Landing Skid Assembly

(5) No.9219
(4) BK0037
(6) Engine Ass'y.
(3) BK0087
(1) HMC3-14B
(2) HMC3-35B
(3) BK0087
Add Blue Locktite
Engine mount
Attachment
(1) HMC3-14B
(1) HMC3-14B
Add Blue Locktite
(3) BK0087
(3) BK0087
10

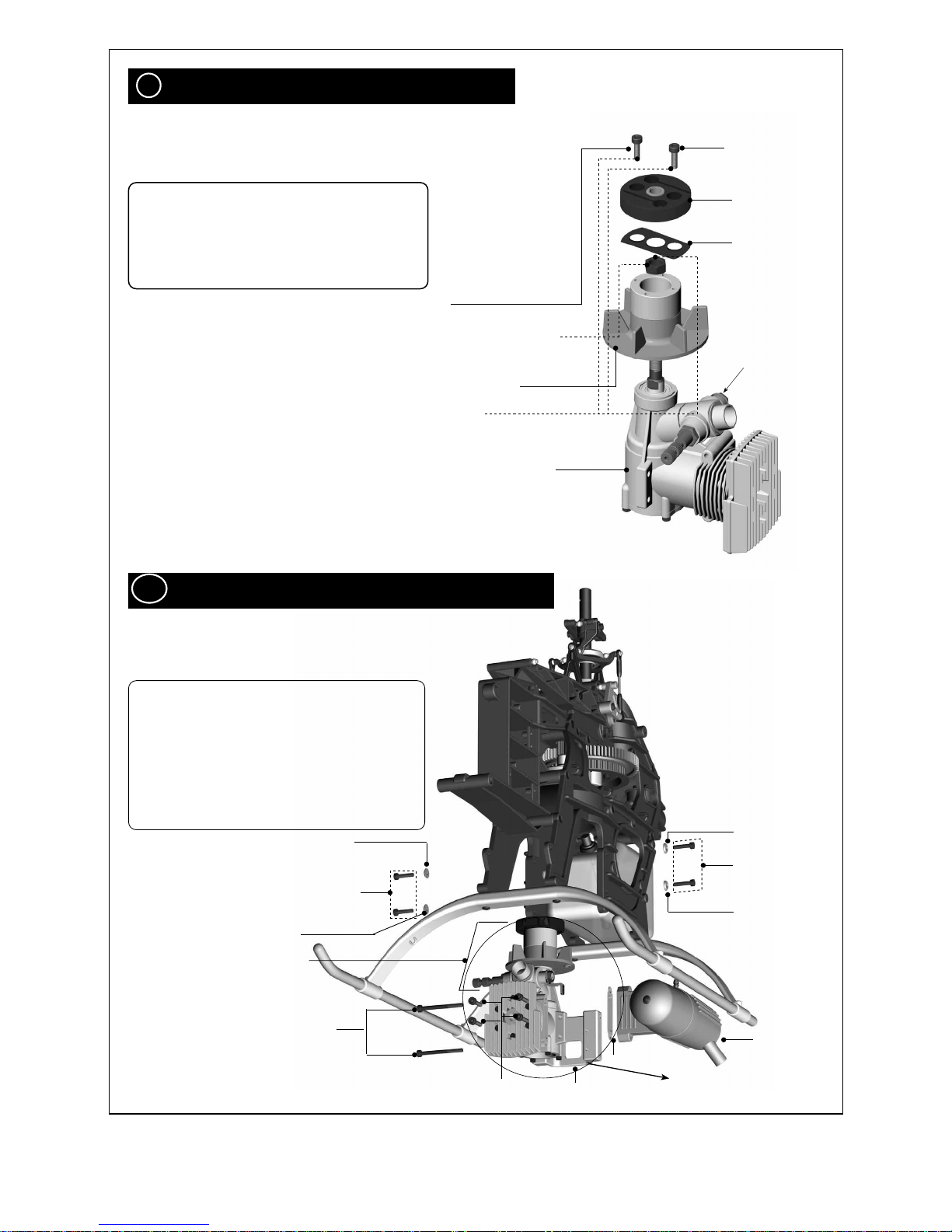

9Engine Assembly
Note: A piston lock purchased from your dealer will make this a
much easier task. You must replace the standard throttle arm
w/the extended throttle arm and attach the linkage ball.
(1) HMC3-10B Socket Screw(M3x10)..... 2
(2) BV0589 Clutch Shoe..........................1
(3) BV0038 Cooling Fan.......................... 1
(4) No.9604 TT PRO-39H(R) Engine.......1
(5) BK0170 Shim.....................................1
(1) HMC3-14B Socket Screw(M3xH)....... 8
(2) HMC3-35B Socket Screw(M3x32)..... 2
(3) BK0087 Flat Washer........................ 4
(4) BK0037 Engine Mount........................ 1
(5) No.9219 Muffler................................... 1
(6) Engine Assembly
(7) BA1578 Muffler Gasket.......................1
Add blue Loctite to all metal to metal screw surfaces.
After installing the engine, connect the silicone fuel tube
to the carburator and muffler.
10 Main Frame Assembly-Part4
(1) HMC3-10B
(4) No.9604
(3) BV0038
(1) HMC3-10B
Tighten the engine nut securely by
grabbing the plastic fan with a towel.
Add Blue Locktite
Linkage Ball to
throttle Arm
(2) BV0589
(5) BK0170
(7) BA1578

(32) BK0584
(30) BK0595
(29) BK0587 (28) BK0012
(26) BV0085
(25) BK0007
(24) BK0583
(23) BK0596
(22) BK0006
(20) BK0005
(19) BK0002
(18) BK0010
(17) BK0067
(16) BK0088
(15) BK0581
(25) BK0007
(4) HME4-5B
(31) BK0075
(9) HMV740ZZ
(13) BK0076
(1) HMC3-14B
(31) BK0075
(9) HMV740ZZ
(3) HMJ2-10N
(11) HMX0612
(5) HME3-10B
(17) BK0067
(5) HME3-10B
(8) HMV830ZZ
(21) BK0004
(3) HMJ2-10N
(31) BK0075
(9) HMV740ZZ
(13) BK0076
(1) HMC3-14B
(22) BK0006
(10) HMV840ZZ
(14) BK0078
(2) HMC3-8B
(26) BV0085
(3) HMJ2-10N
(31) BK0075
(23) BK0596
(7) HMC4-8B
(12) HMV1360Z
(32) BK0584
(11) HMX0612
(27) BK0582
(7) HMC4-8B
(6) BK0435
(12) HMV1360Z
(6) BK0435
(12 ) HMV1360Z
(31) BK0075
(3) HMJ2-10N
11
11 Main Rotor Head Assembly
For Sport kit (29BB) version,
(9) will be replaced by Bushing(BK0107x4)
(10) will be replaced by Bushing(BK0108x2)
(1) HMC3-14B Socket Screw(M3x14)........... 2
(2) HMC3-8B Socket Screw(M3x8)................ 2
(3) HMJ2-10N Self Tapping Screw(M2x10).... 8
(4) HME4-5B Set Screw(M4x5)...................... 2
(5) HME3-10B Set Screw(M3x10).................. 2
(6) BK0435 Washer (d4xD11xW1.7)............ 2
(7) HMC4-8B Socket Screw (M4x8)............. 2
(8) HMV830ZZ Bearing (d3xD8xW4)............ 2
(9) HMV740ZZ Bearing (d4xD7xW2.5)......... 4
(10) HMV840ZZ Bearing (d4xD8xW3).......... 2
(11) HMX0612 Thrust Bearing...................... 2
(12) HMV1360Z Bearing (d6xD13xW5).......... 4
(13) BK0076 Collar.......................................... 2
(14) BK0078 Collar.......................................... 2
(15) BK0581 Flap Collar.................................. 2
(16) BK0088 Flat Washer................................ 2
(17) BK0067 Flybar Paddle............................ 2
(18) BK0010 Flybar Rod..................................1
(19) BK0002 Flybar Control Arm.................... 2
(20) BK0005 Flybar Arm Bushing................... 2
(21) BK0004 Flybar Seesaw Hub....................1
(22) BK0006 Mixing Lever.............................. 2
(23) BK0596 Main Rotor Pitch Housing........... 2
(24) BK0583 Feathering Shaft................ 1
(25) BK0007 Flybar Control Rod............. 2
(26) BV0085 Double Link ...................... 2
(27) BK0582 Flap Damper...................... 2
(28) BK0012 Pin..................................... 2
(29) BK0587 Main Rotor Hub Pin............1
(30) BK0595 Main Rotor Hub.................. 1
(31) BK0075 Ball Link............................. 8
(32) BK0584 Thrust Washer.................... 2
Assembly Hint: Start from the bottom of the main Rotor Hub and work your way up to the flybar assembly. When
screwing on the flybar paddles to the flybar, stop when you can see the rod in the window of the paddle. Then, lay
the assembly on a flat surface and align the paddles so they are exactly parallel. Insert and tighten the set screws.
Attach the flybar control rod to the flybar control arm and use the Double Link to connect the mixing lever (short side)
to the Main rotor Pitch Housing.
Diagram for Thrust Bearing Assembly
Small Internal Diameter-
always go toward the
Blade
Large Internal Diameter-
always go toward the
Main Rotor Hub
(11) HMX0612

(5) HME3-18B
(6) HMM3Z
(8) HMV1050
(16) BK0302-1
(29) HMM26B
(3) HSE2-10B
(11) BK0082
(19) BK0026
(20) BK0025
(9) HMV1060
(22) BK0028
(23) BK0053
(18) BK0307
(6) HMM3Z
(5) HME3-18B
(8) HMV1050
(29) HMM26B
(13) BK0083
(28) BK0075
(4) HMF2-8N
(30) HME3-4B
(24) BK0050
(14) BK0414
(7) HMV1150X
(27) BK0047
(25) BK0051
(10) HMV740ZZ
(28) BK0075
(4) HMF2-8N (12) BK0076
(1) HSE3-18B
(10) HMV740Z
(15) BK0088
(17) BK0303-1
(2) HMC2610B
(2) HMC2610B
(16) BK0303-1
(3) HME3-18B
(6) BK0626
(1) BK0616 (5) BK0086
(5) BK0086
(2) HMM3Z
(6) BK0626
(3) HME3-18B
(7) Main Rotor Head Ass'y.
12

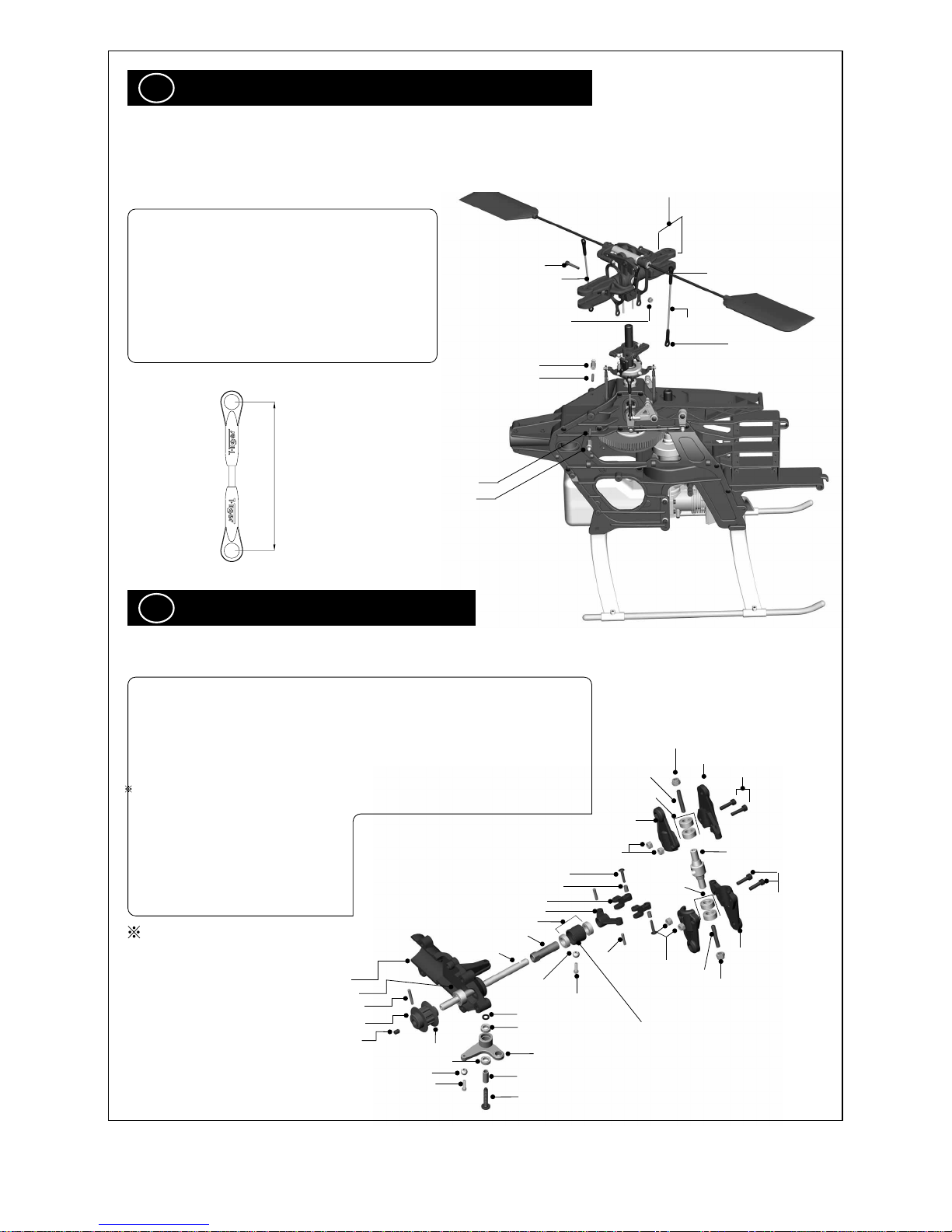

12 Main Frame Assembly-Part5
(1) BK0616 Socket Screw(M3x20)..... 1
(2) HMM3Z Lock Nut(M3)........................1
(3) HME3-18B Set Screw(M3x18)........... 1
(4) BK0095 Linkage Rod......................... 2
(5) BK0086 Ball Link............................... 4
(6) BK0626 Canopy Retaining Post........ 2
(7) Main Rotor Head Assembly
Slide the main Rotor assembly over the main shaft and align the two pins to
slide in the washout assembly. Make sure the holes in the main shaft line up
with the holes in the main rotor head. Insert the socket screw and secure with
locknut. Attach the ball linkage rods to the long end of the mixing lever and
to the remaining inside linkage balls of the swash plate.
Assembly Tip: Work from left to right when assembling the parts. The tail pitch
control lever screws into the arm extending from the tail unit housing.
For sport kit (29BB) version,
(10) will be replaced by
Bushing(BK0107x2)
(1) HSE3-18B Self Tapping Screw(M3x18).1
(2) HMC2610B
Self Tapping Screw(M2.6x10) 4
(3) HSE2-10B Self Tapping Screw(M2x10).2
(4) HMF2-8N Screw(M2x8).........................2
(5) HME3-18B Set Screw(M3x18).............. 2
(6) HMM3Z Lock Nut(M3)........................... 2
(7) HMV1150X Bearing (d5xD11xW5)....... 1
(8) HMV1050 Bearing (d3xD8xW4)........ 4
(9) HMV1060 Bearing (d6xD10xW3)........ 2
(10) HMV740ZZ Bearing (d4xD7xW2.5)... 2
(11) BK0082 Collar(2x3x4)......................... 2
(12) BK0076 Collar(3x4x10)....................... 1
(13) BK0083 Pin(2x9)................................. 2
(14) BK0414 Pin(2x12)............................... 1
(15) BK0088 Flat Washer............................1
(16) BK0302-1 Tail Pitch Housing (A)........ 2
(17) BK0303-1 Tail Pitch Housing (B)........ 2
(18) BK0307 Tail Rotor Hub....................... 1
(19) BK0026 Tail Pitch Control Link........... 2
(20) BK0025 Tail Pitch Control Fork...........1
(21) BK0027 Tail Pitch Control Slider.................. 1
(22) BK0028 Tail Pitch Control Slider Bushing.... 1
(23) BK0053 Tail Rotor Shaft.............................. 1
(24) BK0050 Tail Pulley....................................... 1
(25) BK0051 Tail Pulley Flange........................... 1
(26) BK0024 Tail Pitch Control Lever.................. 1
(27) BK0047 Tail Unit Housing (R)...................... 1
(28) BK0075 Link Ball......................................... 2
(29)HMM26B Lock Nut(M2).................................4
(30)HME3-4B Set Screw(M3x4)...........................1
13 Tail Unit Assembly
(4) BK0095
(4) BK0095
(26) BK0024
100mm
(21) BK0027

(5) BK0068
(4) HMM3Z
(3) HSE3-12B
(1) HMC3-14B
(5) BK0068
(4) HMM3Z
(4) HMM3Z
(6)Tail Ass'y
(2) HMC3-20B
(3) HSE3-12B
(4) HMM3Z
(7) BK0071
(8) BK0069
(6) BK0046
(5) HMV1150X
(16) BV0052
(1) HMC3-20B
(2) HMC3-25B
(15) BK0086
(14) BK0100-2
(12) BK0091
(11) BK0060
(12) BK0091
(13) BK0089
(17) Tail Unit
(9) BK0070
(19) BK0447
(18) HMJ2-8N
(10) BK0540
13
14 Tail Boom Assembly
(1) HMC3-20B Socket Screw(M3x20)..4
(2) HMC3-25B Socket Screw(M3x25)..2
(3)
HSE3-12B Self Tapping Screw(M3x12) .. 4
(4) HMM3Z Lock Nut(M3).................... 6
(5) HMV1150X Bearing (d5xD11xW5)..1
(6) BK0046 Tail Unit Housing (L)..........1
(7) BK0071 Vertical Fin........................ 1
(8) BK0069 Stabilizer Fin..................... 1
(9) BK0070 Stabilizer Fin Bracket........ 1
(10) BK0540 Tail Support Rod..............2
(11) BK0060 Tail Boom........................ 1
(12) BK0091 Rod Guide........................3
(13) BK0089 Tail Rotor Drive Belt... .....1
(14) BK0100-2 Tail Linkage Rod.......... 1
(15) BK0086 Ball Link.......................... 1
(16) BV0052 Tail Idle Pulley................. 1
(17) Tail Unit
(18)
HMJ2-8N Self Tapping Screw(M2x8)..4
(19) BK0447 Tail Support Rod End........... 4
Assembly Tip: Slide the 3 rod guides onto the boom and space them out evenly as shown. Then slide the tail linkage
rod into the rod guides. Next, insert the tail rotor drive belt into the boom so that it comes out of both ends. Place
drive belt over tail drive pulley and complete balance of tail boom assembly. Remember to connect the tail linkage
rod to the tail control lever.
15 Main Frame Assembly-Part6
(1) HMC3-14B Socket Screw(M3x14)......2
(2) HMC3-20B Socket Screw(M3x20)......4
(3)
HSE3-12B Self Tapping Screw(M3x12).... 2
(4) HMM3Z Lock Nut(M3)........................ 6
(5) BK0068 Tail Rotor Blade.................... 2
(6) Tail Assembly
Pull the belt through the tail base, keeping the belt correctly aligned.
Push the tail boom into the tail base all the way to the end. Place the
drive belt over the tail drive spur gear. Then, gently pull back on the tail
boom until the tension on the belt allows no more than 5mm(3/16") of
free play in the belt. Tighten the locknuts and proceed with the rest of
the assembly.
Insert the four 3x20 socket screws into the tail base of the Main Frame
and secure with lock nuts. Do not tighten at this point.
Hold the tail boom in one hand and hook your index finger on your free
hand through the exposed loop of the tail rotor drive belt. Hold it so the
belt is vertical and parallel to the tail drive pulley.
Boom Drive belt
Important: Next, rotate the belt 90-degree counter clockwise.
90-degree

(1) HSE2612N
(9) BK0086
(5) BK0093
(2) HMF2-8N
(1) HSE2612N
(10) BK0086
(6) BK0094
(8) BK0105
(10) BK0086
(7) BK0100-1
(4) HME4-5B
(1) HSE2612N
(9) BK0075
(2) HMF2-8N
(1) HSE2612N
(1) HSE2612N
Aileron Servo
Rudder Servo
Elevator Servo
16 Servo Installation-Part1
Assembly Tip: Remove all the servo wheels prior to attaching the steel linkage
balls. Make sure all linkages are the correct length.
Before installing Aileron Servo, tape the
wire as shown.
86mm
73mm
Mount the Steel Linkage Balls at
10.5mm(approx 7/16") from the center of
the servo horn.
FUTABA
(1) HSE2612N Self Tapping Screw(M2.6x12)....12
(2) HMF2-8N Screw(M2x8)................................. 4
(3) HML2 Hex Nut(M2)....................................... 4
(4) HME4-5B Set Screw(M4x5).......................... 2
(5) BK0093 Linkage Rod.................................... 2
(6) BK0094 Linkage Rod..................................... 1
(7) BK0100-1 Linkage Rod................................. 1
(8) BK0105 Tail Control Rod Joint....................... 1
(9) BK0075 Linkage Ball..................................... 4
(10) BK0086 Ball Link......................................... 7
14

(7) BK0086
(6) BK0092
(3) HML2
(4) BK0075
(2) HMF2-8N
(4) BK0075
(3) HML2
(1) HSE2612N
(1) HSE2612N
(2) HMF2-8N (4) BK0075
Pitch Servo
Throttle Servo
(3) HML2
(2) HMF2-8N
(7) BK0086
(5) BK0094
(1) HSE2612N
75mm
15
17 Servo Installation-Part2
Mount the Steel Link
Ball at 10.5mm(approx
7/16") from the center
of the servo horn.
51mm
(1) HSE2612N Self Tapping Screw(M2.6x12).... 8
(2) HMF2-8N Screw(M2x8)................................ 3
(3) HML2 Hex Nut(M2)...................................... 3
(4) BK0075 Linkage Ball.................................... 3
(5) BK0094 Linkage Rod .................................. 1
(6) BK0092 Linkage Rod .................................. 1
(7) BK0086 Ball Link.......................................... 4
Assembly Tip: Remove all the servo wheels prior to attaching the steel linkage
balls. Make sure all linkages are the correct length.
On/Off Switch
Gyro Amplifier
Receiver
Battery Pack
(2) BK0106
(1) BE1052
Thunder Tiger TG-8000 piezo
gyro is recommended
(2) BK0106
(2) BK0106
(2) BK0106
On/Off Switch Face Plate
18 Receiver/Gyro Installation
(1) BE1052 Antenna Tube................... 1
(2) BK0106 Double Sided Tape.......... 2
Thunder Tiger recognizes that there are many brands of radios and gyros to choose from. You are encouraged to
seek the advice of experienced helicopter pilots when making this decision. We do recommend the use of the Thunder
Tiger TG-8000 piezo Gyro since it was designed expressly for this machine.

16

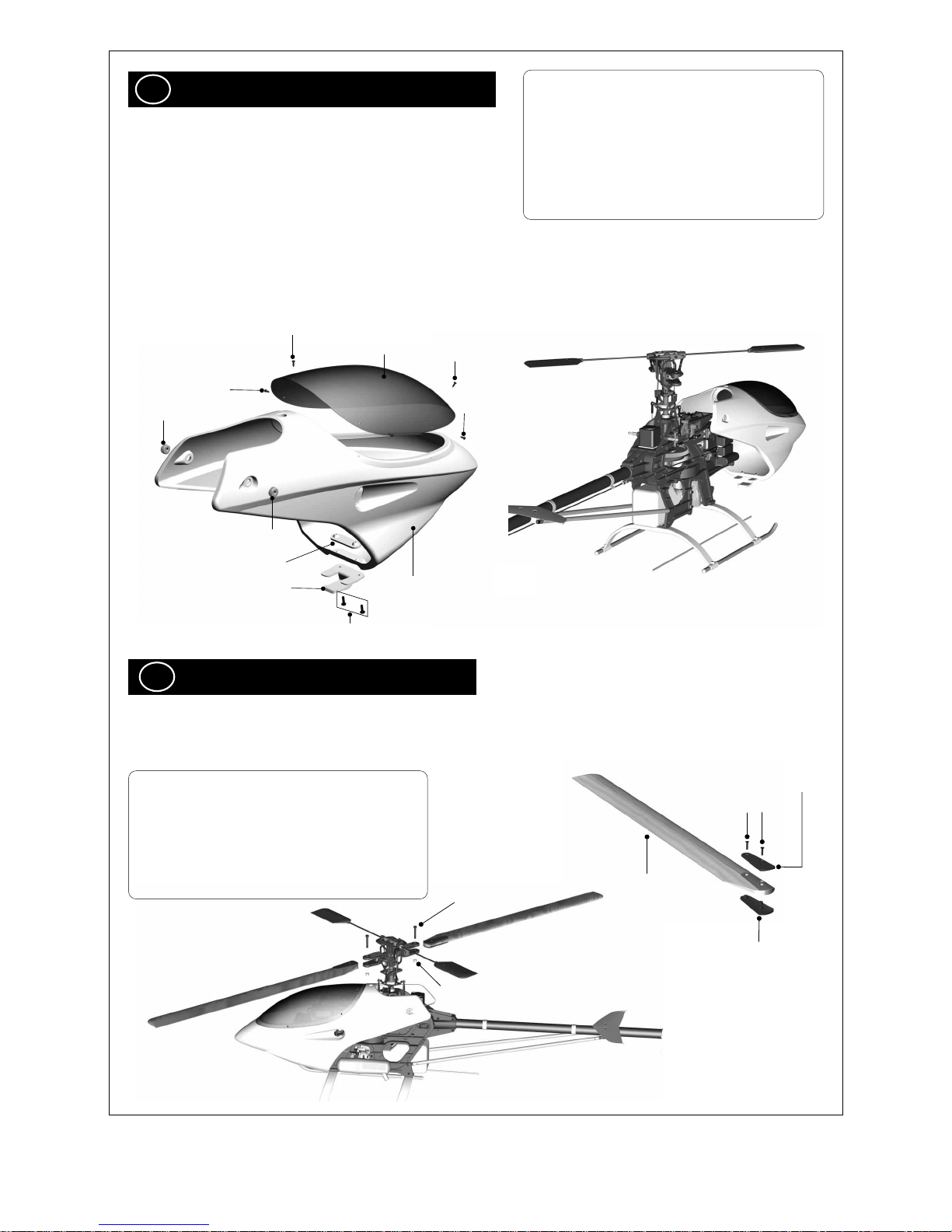

19 Body/Canopy Assembly
Cut off the bubble from the body leaving the lip all the way
around. Neatness counts, so take your time. Next trim the
flange from the canopy leaving a clean edge. You can lightly
sand the edges to get it smooth and even. On the lip of the
opening in the body, mark six points for drilling holes to secure
canopy: 1-in front, 1-inrearand2oneachside.
Using double stick tape secure canopy to body. Take a very
sharp awl and make pilot holes through the canopy and body
lip. Make sure all holes line up. Remove double stick tape
and put in the self tapping screws. Install the body clip, decals,
and rubber grommets.
(1) HMJ2-6B Self Tapping Screw(M2x4).. 6
(2)
HSE3-12B Self Tapping Screw(M3x12).... 2
(3) BK0611 Body...................................... 1
(4) BK0102 Rubber Grommet ................. 2
(5) BK0098 Body Clip-A........................... 1
(6) BK0099 Body Clip-B........................... 1
(7) BK0612 Canopy.................................. 1
(8) JV0093 Decal......................................1
(4) BK0102
(4) BK0611
(2) HSE3-12B
(6) BK0099
(5) BK0098
(4) BK0102
(7) BK0612
(1) HMJ2-6B
(1) HMJ2-6B
(1) HMJ2-6B
(1) HMJ2-6B
20 Main Rotor Assembly
Important-While Thunder Tiger takes great care to manufacture the most balanced blades available, no two rotor
blades are exactly the same. It is highly recommended that you purchase a blade balancer from your hobby dealer.
Follow the manufacturers instructions for balancing the blades and install on helicopter .
(1) BK0072 Main Rotor Blade................
(2)
HMD2612B Self Tapping Screw (M2.6x12)....... 2
(3) BK0073 Upper Blade Grip... ............. 2
(4) BK0074 Lower Blade Grip................ 2
(5) HMM4Z Lock Nut(M4)...................... 2
(6) HMC4-27B Socket Screw.................. 2
(1) BK0072
(6) HMC4-27B
(5) HMM4Z
(2) HMD2612B
(3) BK0073
(4) BK0074
2

17

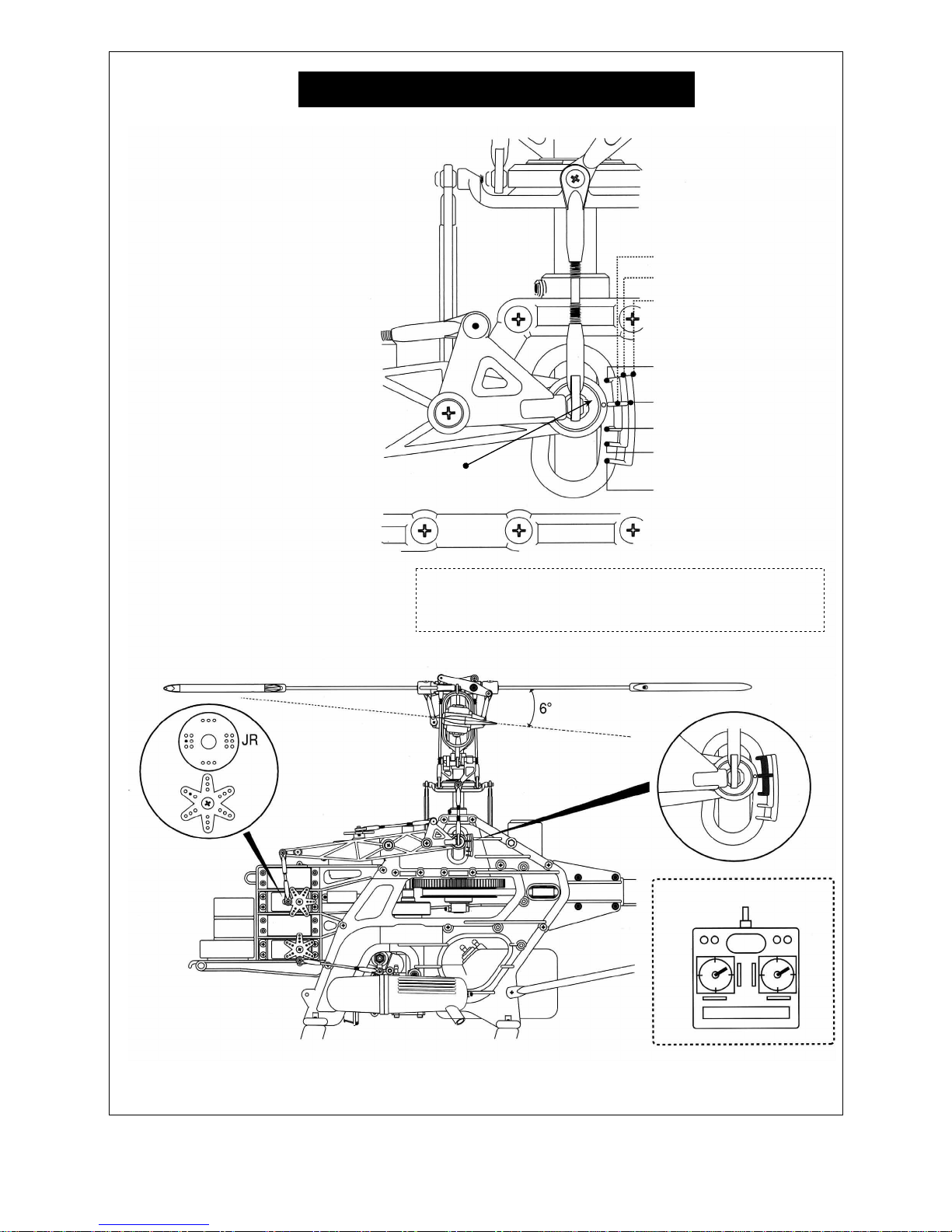

On the left side frame, there are
three pitch scales molded onto
the plastic frame. The three
different scales are designed for
beginner, intermediate or expert
F3C and 3D pilots.
Use the "pointer" on the collective
tray and the plastic molded scales
to set up the initial collective
control.
The actualblade angle in degrees
can be checked using a pitch
gauge (sold seperately).
Setting up Main Rotor Blades Pitch Angle
The hovering pitch angle should be at 6û.Toget the 0ûto 12û
collective range, mount the steel linkage ball at 10.5mm away
from the center of the collective servo horn.
6ûhovering pitch angle is used for beginners, intermediates and experts. The throttle/collective must be
in the center position when adjusting the collective pushrod length to make the "point" line up with the 6û
hover point on the molded scale (see above diagrams).
For Beginners
For Intermediates
For F3C or 3D
Top End Pitch 12û
Hover 6û
Beginners 0û
Intermediates -4û
Bottom End Pitch -8û
Pointer
Throttle Stick in the center
position
Mount the Steel
Linkage Ball at
10.5mm from the
center of the servo
horn.
FUTABA
(Hint for beginners)
•
•
•

18
•Move the throttle/collective stick to the full throttle position(see upper right diagram). The molded "pointer"
should now line up with the upper limit mark, which should provide about 12ûof blade pitch.
Move the throttle/collective stick to the low stick position. Use the ATV function of your transmitter to make
the "pointer" line up with the 0ûmark for beginners (with the -4ûmark for intermediates, and -8-degree
mark for experts).
Throttle at High Position
Throttle at Low Position
nHigh End Blade Pitch Setting
Low End Blade Pitch Setting
Linkage Position for beginner
n
•
