Timex Expedition 567-095006 NA User manual

®
W-195 567-095006 NA

1

SELECTING PRESSURE AND TEMPERATURE UNITS 24
CALIBRATING THE BAROMETER 25
ALTI - ALTIMETER MODE 28
USING THE ALTIMETER 29
SELECTING ALTITUDE UNITS 30
ALTIMETER PERFORMANCE 31
CALIBRATING THE ALTIMETER AND CLEARING HIGH AND ACC 32
CHRO - CHRONOGRAPH MODE 34
TERMINOLOGY 34
USING THE CHRONOGRAPH 35
LAP/SPLIT TIMING 36
CHANGING THE DISPLAY FORMAT 37
If no laps have yet been taken: 37
If you have taken at least one lap: 38
REVIEWING STORED LAP/SPLIT TIMES 38
TIMER - COUNTDOWN TIMER MODE 40
SETTING THE COUNTDOWN TIMER 40
USING THE COUNTDOWN TIMER 41
ALARM - ALARM MODE 43
SETTING AN ALARM 43
SELECTING AND ARMING/DISARMING ALARMS 44
BACKUP ALERT 45
TRADEMARK AND WARRANTY INFORMATION 46
INTRODUCTION 4
WATCH FEATURES 5
WATCH MODES 8
BUTTON FUNCTIONS 9
NORMAL OPERATION 9
SETTING OPERATION 11
WATCH DISPLAY SYMBOLS 13
WEATHER FORECASTING 14
NOTES ON CALIBRATING THE ALTIMETER AND BAROMETER 15
WHAT IS CALIBRATION? 15
HOW OFTEN SHOULD I CALIBRATE? 15
DO I NEED TO CALIBRATE BOTH THE BAROMETER AND THE ALTIMETER? 16
TEMPERATURE ACCURACY 17
TIME - TIME OF DAY MODE 18
SETTING TIME OF DAY 19
USING THE DUAL TIME ZONE FEATURE 21
Viewing the secondary time zone 21
Switching time zones 22
VIEWING TEMPERATURE AND AIR PRESSURE DATA 22
BARO - BAROMETER MODE 23
VIEWING TEMPERATURE AND PRESSURE DATA 24
32

Watch Features
Time of Day
•Displays hours,minutes and seconds in 12- or 24-hour
format for two time zones.
•Displays month and date,as well as day of the week.
•Optional hourly chime.
Altimeter
•Reports altitude from -2296 to 29,520 feet (-700 to
9000 meters) with 10 ft or 5 m resolution.
•Displays current altitude as well as a graph of altitude
change over time.
•Displays accumulated total of all altitude gains,known
as “total ascent” or “climb”.
•Records highest altitude achieved.
•Selectable display units (meters or feet)
Introduction
Welcome!
Thank you for purchasing a TIMEX® EXPEDITION®
adventure tech altimeter watch. The watch is equipped
with a variety of features to enhance your outdoor
experience.So,if you are trekking the trails,skiing the
slopes or just hanging out, enjoy the journey.
Register your product at www.timex.com
54

Chronograph
•Time events up to 24 hours with 1/100-second
resolution.
•Store up to 30 lap/split times.
•View stored lap times as well as best (shortest) lap
time,average lap time and total event time.
Count Down Timer
•Time events up to 24 hours.An alert is generated
when the timer reaches zero.
•Timer can be set to count down to zero once or to
repeat the countdown indefinitely.
Alarm
•Five independent daily alarms,each with a five-minute
backup alert.
Barometer
•Reports air pressure from 8.85 to 32.45 inches of
Mercury (“inHg”) (300 to 1100 mbar) with 0.05 inHg
(1 mbar) resolution.
•Displays current air pressure as well as a graph of
change in air pressure over time.
•Both sea level and local (absolute) air pressure can be
displayed.
• Forecasts the weather for the next 4–6 hour period.
•Selectable display units (inHG or mbar)
Thermometer
•Selectable display units (°F or °C)
•Reports current air temperature from 14 to 140 °F
(-10 to 60 °C).
76

TIMER - The Countdown Timer is useful for timing
fixed-time events
ALARM -Five daily alarms to keep you on time
TIP: Press and hold the MODE button for three seconds to
go directly to TIME mode from any other mode in the
watch.

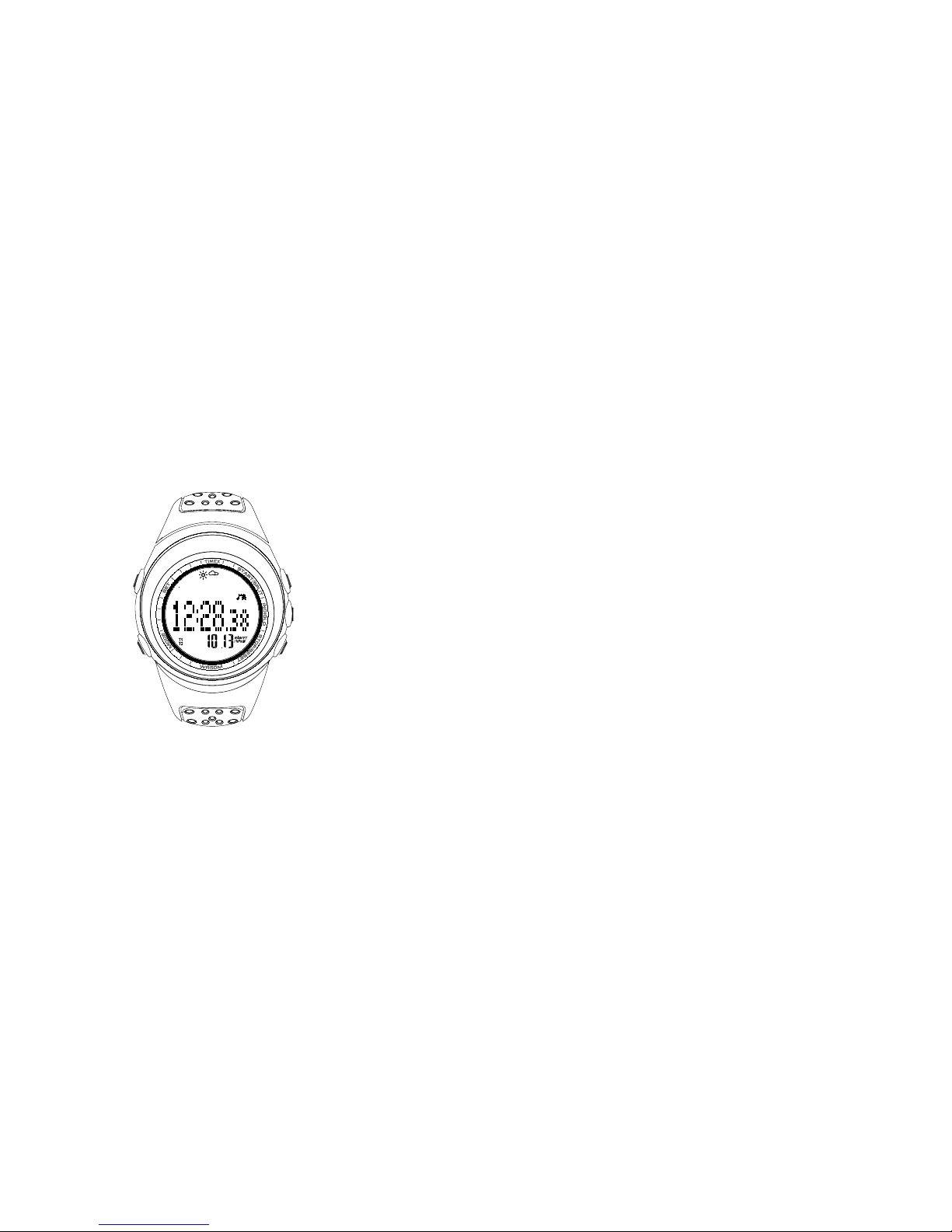

Button Functions
The buttons on your watch are multi-functional, serving
two main purposes - enabling you to perform everyday
functions like checking the time and timing a workout,
and setting things like Time of Day or an Alarm.
Normal Operation
The buttons on your watch largely operate in the same
way from mode to mode and the primary functions for
them are printed on the case itself.This section describes
the typical functions of the buttons.
INDIGLO® Night-Light
Watch Modes
The features of this watch are grouped into modes that
are accessible by pressing and releasing the MODE button
– each depression of the MODE button takes you to the
next mode in the loop.The modes are arranged in the
following order:
TIME > BARO > ALTI > CHRO > TIMER > ALARM
TIME - Displays the time of day and date as well as
weather info
BARO - View air pressure,temperature & weather
information
ALTI - Presents altitude and temperature data
CHRO - Use the Chronograph for timing purposes
98

Setting Operation
When setting Time of Day,Alarms or the Countdown Timer
and so on, the button functions change from what is print-
ed on the case.
NOTE: These setting functions are the same in any mode
where you can set a value.
1. Press and hold the SET button. While you are holding
the button, “HOLD ADJUST” will appear on the display.
2. After a couple of seconds,the “HOLD” message will
disappear followed by a flashing value.
3. Change the flashing value by pressing either
START/SPLIT (to increase) or STOP/RESET
(to decrease). Press and hold the button to
increase/decrease the value quickly.
4. When the flashing value is set as intended, press
MODE to advance to the next value.1110
SET START / SPLIT
INDIGLO®
STOP / RESET
MODE

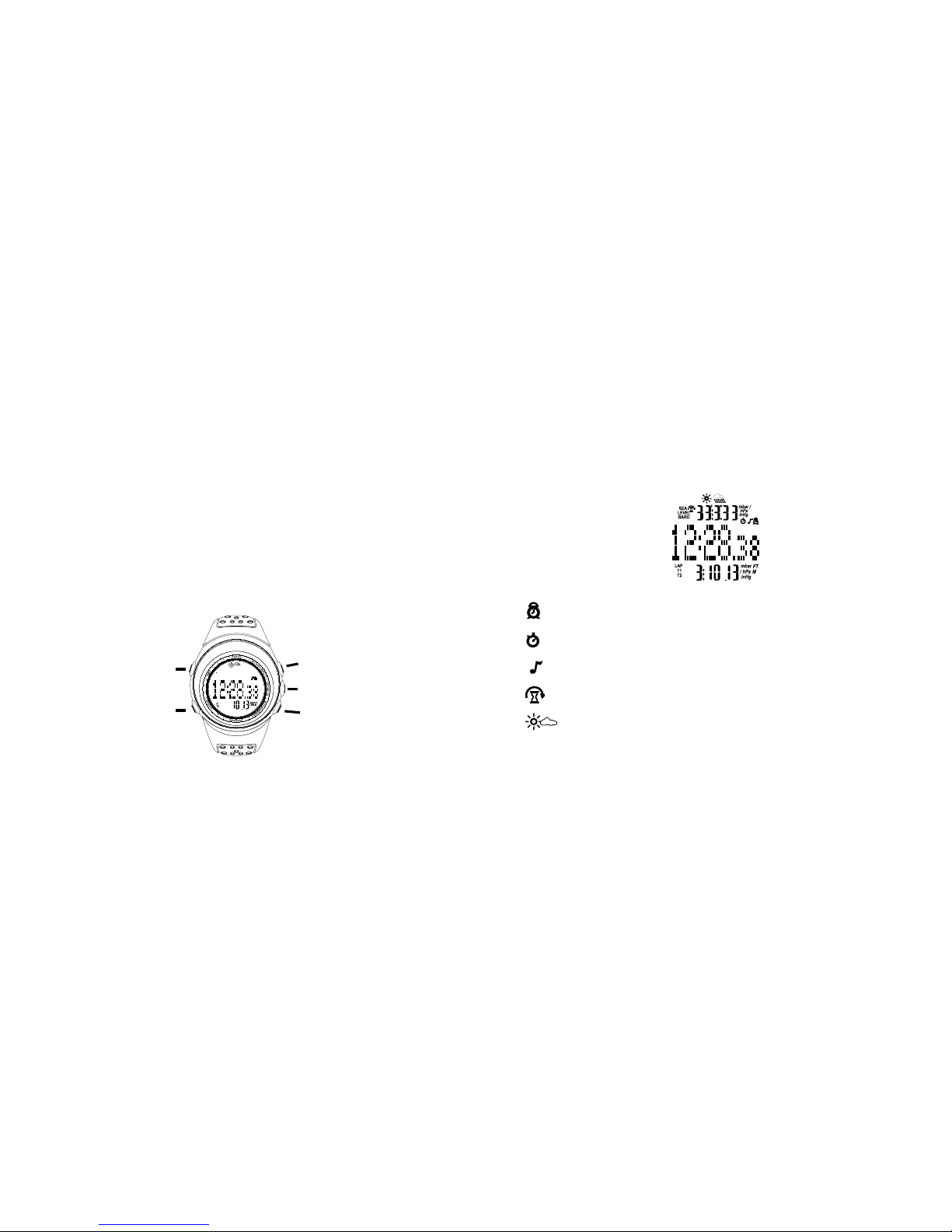

Watch Display Symbols
Alarm is armed (flashing if backup alarm is active)
Chronograph is running
Hourly Chime is enabled
Countdown Timer is running
Indicates weather forecast
5. Repeat steps 3 and 4 for each of the values you wish
to set.
TIP: If you accidentally skip past a setting, continue to
press and release the MODE button to move all the way
through the settings and back to the one that requires
adjustment.
6. When you are satisfied that everything is set as
intended, press the SET button to save your settings
and exit.
1312
PRESS TO EXIT SETTING
PRESS FOR NEXT VALUE
INCREASE FLASHING VALUE
LAMP
DECREASE FLASHING VALUE

Notes on calibrating the Altimeter and Barometer
The watch relies on a sensitive electronic sensor to
measure the air pressure and temperature.This sensor
must be calibrated periodically to maintain the high degree
of accuracy you expect from the watch.
What is calibration?
“Calibration” is simply a technique to improve the accura-
cy of the pressure/temperature sensor,primarily by com-
pensating for local temperature and weather effects.The
watch employs two related methods of calibration, using
either sea level pressure or the local altitude as a refer-
ence,depending on the watch mode used for calibration.
How often should I calibrate?
Timex recommends that you calibrate the sensor prior to
any activity where you will be using the altimeter feature
Weather Forecasting
The watch can predict the weather for the upcoming 4 - 6
hour period based on the air pressure trend information for
the previous twelve hours.The weather forecast is indicated
at the top of the watch display by a series of symbols.
Generally,if the air pressure is rising, the weather situation is
considered to be improving and is indicated by the presence
of the sun symbol. If the air pressure trend is falling, then the
weather situation is worsening and is indicated by showing
the clouds and/or precipitation symbols.
The weather forecast is always visible in TIME and BARO
modes and visible in ALTI mode when no altitude changes
are detected.
1514
CONDITIONS

reference source available.
For example,if you are standing at a trail head and know
the correct altitude,then the most accurate calibration will
be obtained by calibrating within ALTI mode (since it relies
on altitude as the reference). However,if you don’t know
your altitude,you can find out the current sea level pres-
sure (published online or in a newspaper) and calibrate the
sensor within BARO mode. For example,the U.S.weather
service publishes the sea-level pressure for all of its
stations at http://www.weather.gov
Temperature Accuracy
When worn on your wrist, the thermometer reading is
affected by body heat and may report a temperature
different from the actual air temperature by 10 degrees or
more.Long periods of exposure to direct sunlight may also
affect the accuracy. Try wearing the watch outside your
and then again whenever you experience significant
changes in altitude or temperature during your activity.
If you are not using the altimeter feature,then daily
calibration will maintain the accuracy of the barometer
and weather forecasting feature.
Whenever possible,the sensor should be calibrated soon
after you experience significant temperature changes.
Do I need to calibrate both the Barometer and the
Altimeter?
No.BARO mode calibrates the sensor based upon the sea
level air pressure,while ALTI allows you to calibrate the
sensor by telling the watch about your current altitude.
Calibration performed in either mode will calibrate the
sensor for all modes. For the best accuracy,we recom-
mend that you choose only one calibration method each
time you calibrate the sensor,based on the most accurate
1716
