Timex M851 Guide

M851 WristApp GUI Plug-in
Design Guide
Timex Corporation
March 31, 2003

M851 WristApp GUI Plug-in Design Guide Rev 1.0
DOCUMENT REVISION HISTORY
REVISION: 1.0 DATE: 5/06/2003 AUTHOR: Brigham W. Thorp
AFFECTED
PAGES
DESCRIPTION
All Created document.
Timex Corporation
i

M851 WristApp GUI Plug-in Design Guide Rev 1.0
TABLE OF CONTENTS
1INTRODUCTION ................................................................................................................................ 1
1.1 APPLICABLE DOCUMENTS ............................................................................................................... 1
2SYSTEM OVERVIEW ........................................................................................................................ 2
3DEVELOPING THE APPLICATION ............................................................................................... 3
3.1 REQUIRED TOOLS............................................................................................................................ 3
3.2 CREATING THE APPLICATION ........................................................................................................... 3
3.2.1 Show Function ........................................................................................................................ 3
3.2.2 ProcessData Function ............................................................................................................3
3.2.3 Creating the DLL.................................................................................................................... 4
3.2.4 Example application – World Time ........................................................................................ 6
3.3 WRISTAPP INFORMATION................................................................................................................ 7
3.3.1 Distributing the WristApp.......................................................................................................7
3.3.2 Changed WristApp Data......................................................................................................... 8
3.3.3 Reading WristApp Data.......................................................................................................... 8
4TRADEMARKS ................................................................................................................................... 8
Timex Corporation
ii

M851 WristApp GUI Plug-in Design Guide Rev 1.0
1 Introduction
The Timex Data Link USB watch supports downloading of programs called WristApps that add additional
functionality to the device. Unlike built-in applications that are present in the device ROM, WristApps have
code that use some watch memory. In addition, a WristApp may or may not have a database associated
with it. For example, the World Time WristApp contains a database while the Pulse Wrist App does not.
The database associated with the WristApp gives the user the ability to add different data to the mode.
The WristApp GUI Plug-in gives users the ability to change data within a WristApp database.
This document serves as a guide for developing a WristApp GUI Plug-in for the PIM (Personal
Information Manager) software.
1.1 Applicable Documents
The following documents serves as detailed reference in the creation of this document.
•M851 WristApp API Reference Guide
Please visit http://www.timex.com/developer for more information.
Timex Corporation 1

M851 WristApp GUI Plug-in Design Guide Rev 1.0
2 System Overview
This part of the documentation describes how the system is integrated as a whole. The PIM is the main
application that handles all of the different parts of the system. When you double click on an application in
the mode list, the PIM either launches the built-in mode editor if the mode is an internal application, or it
launches the WristApp GUI Plug-in if the mode is a WristApp and has a GUI Plug-in associated with it.
The PIM also handles calling the module that handles communicating data with the watch. Finally, the
PIM contains all of the data editors for each of the built-in modes. The data-editors themselves handle
import plug-ins that allow you to import data from different sources such as CSV files or schedules over

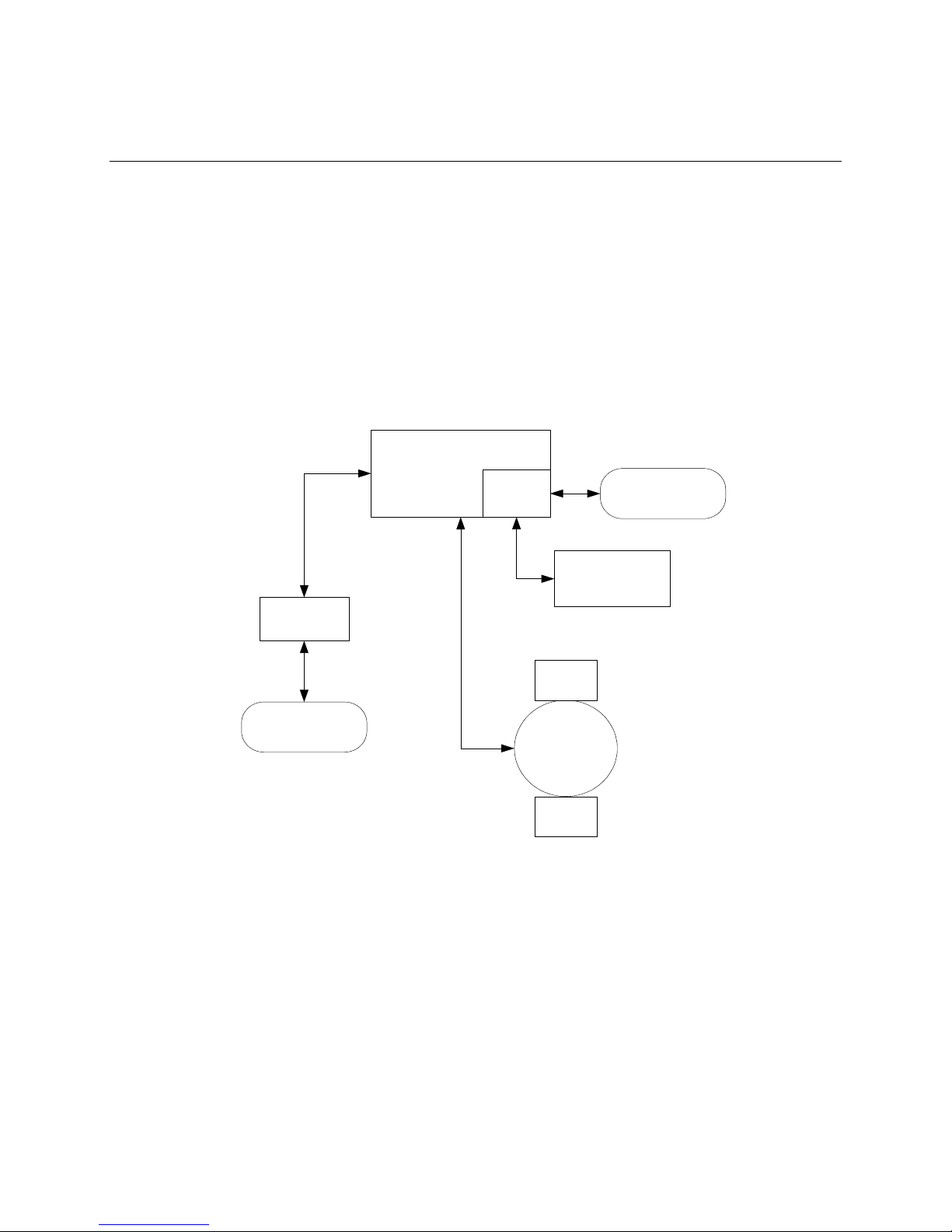

the Internet. The simple diagram shown below represents the Timex Data Link USB system.
PIM
WristApp
GUI Plug-in
WristApp
Database
Watch
Timex Data Link USB PC Software Architecture
Edit Built-
in Mode
Import Plug-in
Mode Data
Timex Corporation 2

M851 WristApp GUI Plug-in Design Guide Rev 1.0
3 Developing the Application
This section defines how to create a WristApp GUI Plug-in Application. This document assumes that a
WristApp has been developed in accordance with the WristApp Design Guide.
3.1 Required Tools
To develop the application, you must have a supported 32-bit Windows development platform. This could
be Microsoft Visual Studio (Visual Basic and/or C++), Borland Delphi, or any other development tools that
create 32-bit Windows applications.
3.2 Creating the application
There are two functions that must be defined for the PIM to call so that the application can show it’s
configuration screen, and the application can create the database on the fly (which could handle getting
data from the Web, for example, just before a download occurs, without having to enter the data manually
again).
There are two functions that the PIM software may call within the WristApp GUI Plug-in. These two
functions are Show and ProcessData. Both functions are described below.
3.2.1 Show Function
extern "C" BOOL FAR PASCAL EXPORT Show(LPCTSTR lpszDataPath, LPVOID pData);
This function is used to show a GUI to the user so that they can modify data using a user interface. This
function is called by the PIM when the user double-clicks on the WristApp entry in the mode list. Typically,
this function will instantiate a class (such as a dialog) that is then shown.
When the user has finished with the dialog, the updated database should be saved. For consitency
between applications, Timex recommends using a dialog based class and saving data on the OK button
press. Closing of the dialog should occur on the OK button, Cancel button, or ‘X’ button press.
Parameters:
lpszDataPath – This is the directory where the data file (WristApp database) is located
pData – NULL will be passed. This value is only used for the internal application dialogs.
3.2.2 ProcessData Function
extern "C" BOOL FAR PASCAL EXPORT ProcessData(LPCTSTR lpszDataPath, LPVOID pData);
This function is used to update the WristApp database with new data without having input from the user.
The function is called when the user clicks on the Send and Refresh buttons, as well as if the WristApp is
setup for Auto Import; all database data is regenerated. Everything from reading the old data, gathering
the new data, and creating the database is done in this function.
Parameters:
lpszDataPath – This is the directory where the data file (WristApp database) is located
pData – NULL will be passed. This value is only used for the internal application dialogs.
Timex Corporation 3

M851 WristApp GUI Plug-in Design Guide Rev 1.0
3.2.3 Creating the DLL

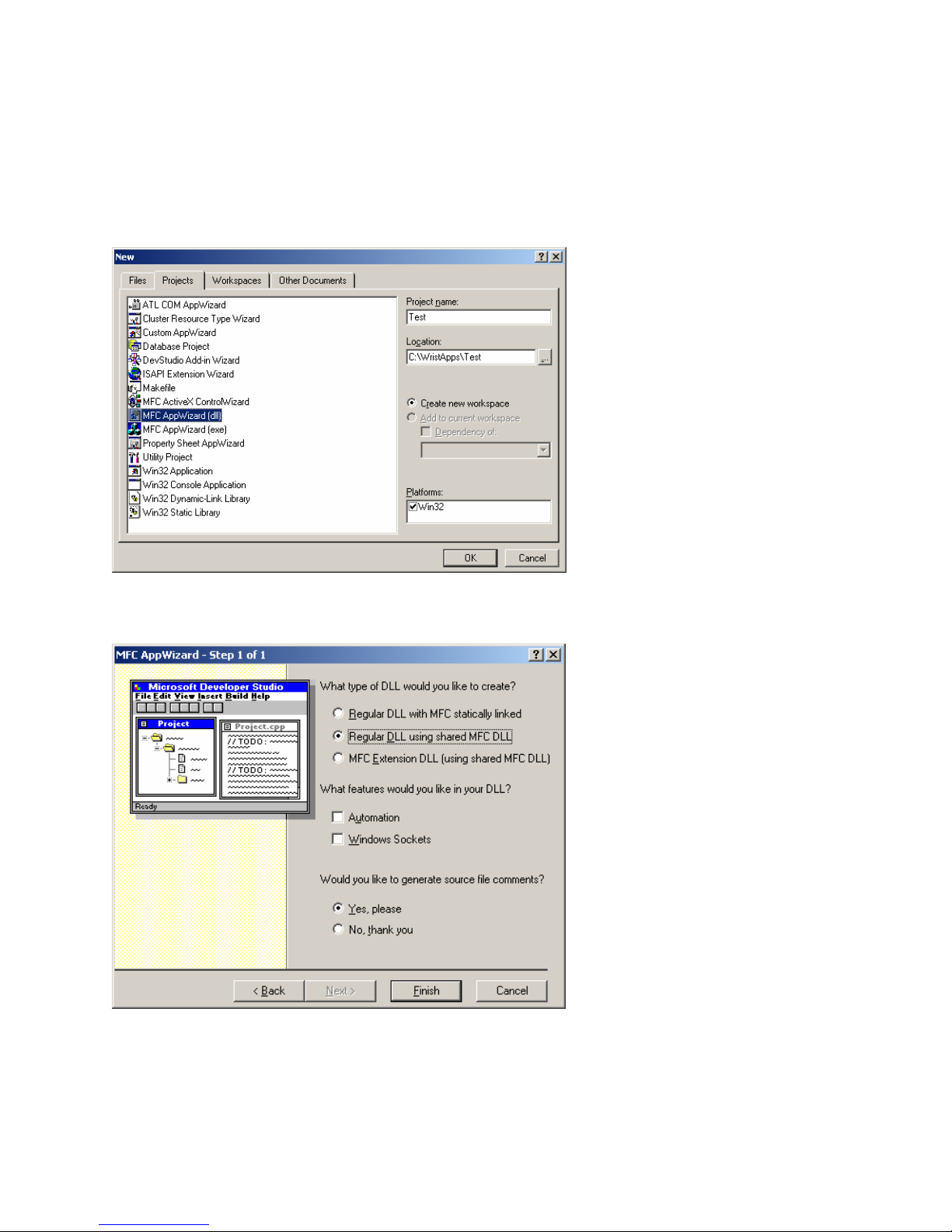

The following screenshots show how to create the application using Microsoft’s Visual C++ 6.0.
Step 1: Launch Microsoft Visual C++. Select File…New
Step 2: Select MFC AppWizard (dll) , enter the name of the project, as well as the project location., then
click on OK.
Step 3: Choose Regular DLL using shared MFC DLL, and leave the other settings alone. Click on Finish.
Timex Corporation 4

M851 WristApp GUI Plug-in Design Guide Rev 1.0

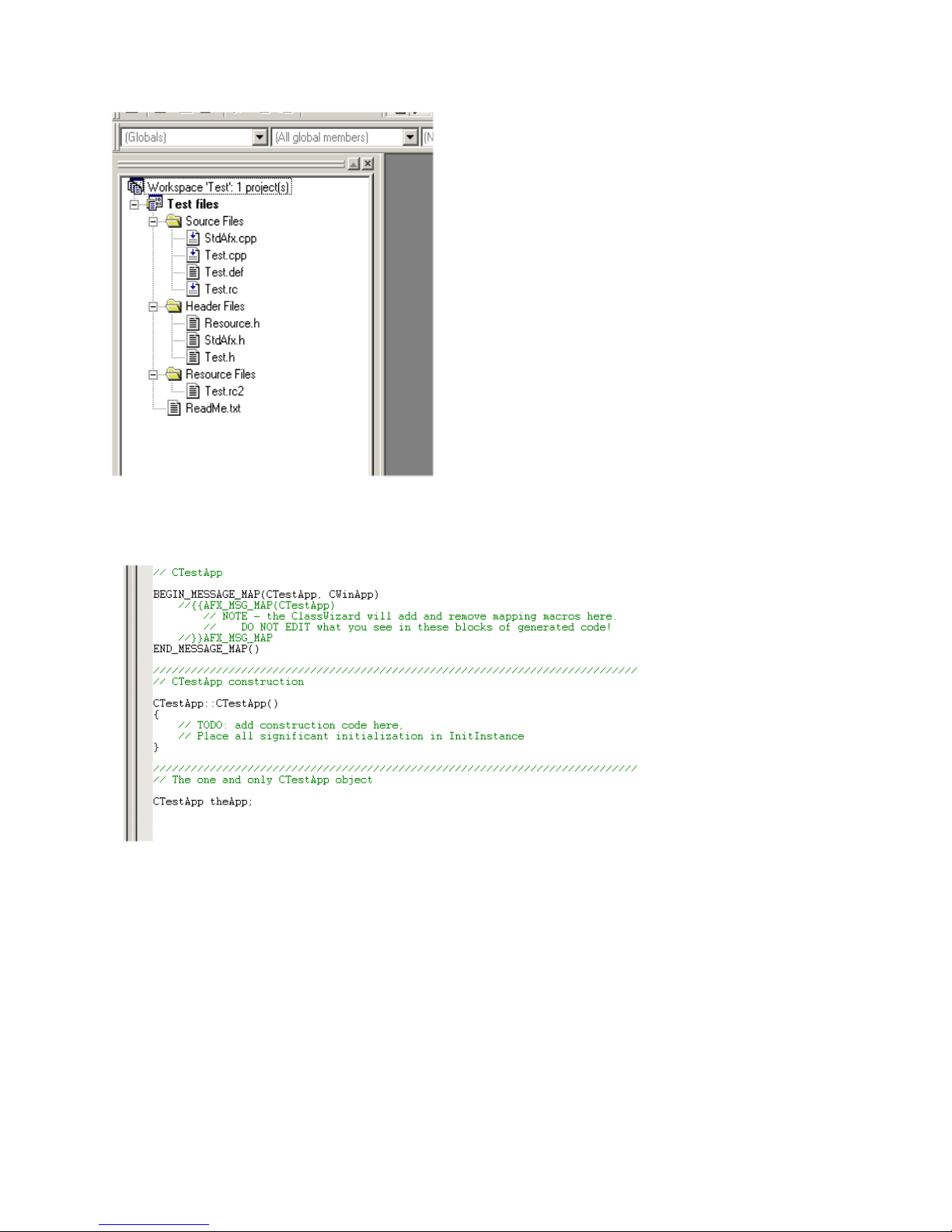

Step 4: The project will have the basic files present for you to have a DLL. At this point, you need to
define the entry functions.
Step 5: Open the class associated with the application. After CTestAPP theApp definition shown above,
place the definitions from the two entry points above. Here is the example code for the WorldTime
WristApp:
extern "C" BOOL FAR PASCAL EXPORT Show(LPCTSTR lpszDataPath, LPVOID pData)
{
//Need to use this macro whenever we access resources from MFC DLL
AFX_MANAGE_STATE(AfxGetStaticModuleState());
CString sINIFile = lpszDataPath;
sINIFile += "App\\TestApp.ini";
CTestApp dlg;
dlg.m_sIniFileName = lpszDataPath;
dlg.m_sIniFileName += "App\\TestApp.ini";
return dlg.DoModal();
Timex Corporation 5

M851 WristApp GUI Plug-in Design Guide Rev 1.0
}
extern "C" BOOL FAR PASCAL EXPORT ProcessData(LPCTSTR lpszDataPath, LPVOID pData)
{
//Need to use this macro whenever we access resources from MFC DLL
AFX_MANAGE_STATE(AfxGetStaticModuleState());
CString sINIFile = lpszDataPath;
sINIFile += "TestApp.ini";
theApp.CreateDatabase(sINIFile);
return TRUE;
}
Please note that the CreateDatabase routine defined above is a generic function that could be called to
create the actual WristApp database.
After adding these two functions, you must then add the function names to the DEFinition file. Open
TEST.DEF and add the two functions as shown:
3.2.4 Example application – World Time
The World Time WristApp that comes with the Timex Data Link USB has a user interface that allows you
to configure the different time zones within the WristApp.
As described above, the Show and ProcessData functions are called by the PIM to launch the GUI Plug-
in. In the World Time WristApp Plug-in, created using Microsoft’s Visual C++ with MFC libraries, there is a
dialog class that handles such messages as WM_INITDIALOG, BN_CLICKED for the OK and Cancel
buttons, as well as WM_DESTROY. In addition to the dialog class, there is an app class based on the
CWinApp base class which has routines for saving the World Time database.
The pseudo-code below shows how the World Time GUI Plug-in works. Please refer to the included
source code for the actual functionality:
Show
{
Instantiate the app class
Initialize the character mapping for the watch
Initialize the World Time dialog
{
Load the World Time cities from the INI file
Fill the list view with the city data
Enter message loop (exit on OK, Canel, or Close events)
Timex Corporation 6

M851 WristApp GUI Plug-in Design Guide Rev 1.0
OK button press
{
Retrieve dialog data
Save changes to INI file
Create the Wrist App database
}
}
}
ProcessData
{
Instantiate the app class
Initialize the character mapping for the watch
Load the World Time cities from the INI file
Create the Wrist App database
}
3.3 WristApp Information
3.3.1 Distributing the WristApp
The following files generated by the WristApp developer will be used for distribution of the wristapp.
Application_name may be any text supported by Windows, as long as the total length of the name (with
extension) does not exceed 256 characters.
Filename Description
application_name.APP
Information file required by PIM.
application_name.TXT (or .HTML) Description of the wristapp and its operation. This may
also be a .HTML file. If there are graphics with the
HTML, they must be added to this directory as well
application_name_PAR_018.BIN Parameter file required by M851 OS to initialize the
wristapp in the system.
application_name_CODE_018.BIN WristApp code.
application_name_DBASE_018.BIN WristApp database file – this file is created by the
WristApp PC interface.
application_name.DLL WristApp PC interface – this is the file that will be
created by following this documentation. This is only
required if changing data is allowed
Please refer to the WristApp Design Guide on the contents of the WristApp configuration files. Please
note that the DLL that is created is present in the same directory as the other WristApp files (the App
subdirectory where the PIM is installed) . However, the developer is free to place any additional
subdirectories into the WristApp directory to be used for data storage.
Timex Corporation 7

M851 WristApp GUI Plug-in Design Guide Rev 1.0
Timex Corporation 8
3.3.2 Changed WristApp Data
When the database changes between downloads, the packager (TUCP.DLL) checks the size of the
database and the contents versus the last data sent to the watch. If the size of the new data is larger than
the previously allocated space, then a full download will occur. There is no call that needs to be done in
order for this to occur. The packager handles this for you. All that is required is that the database differs in
some way versus the previously downloaded database. If the database is the same size, yet the contents
are different, then the database will be re-downloaded, but the code will not have to be downloaded
again. This applies to all applications with database data associated with them.
3.3.3 Reading WristApp Data
If the WristApp has been modified in the watch, it will be uploaded back to the PC when the next read
occurs, which happens when the watch is connected to the PC. The packager DLL reads the files and
puts it into the DB directory in the PIM’s installation directory.
Each wristapp that has been uploaded back to the PC will have the name upwristappdbX.bin where X is
the instance of the application. When downloading, the PIM will place the instance number in the
WristApp’s associated .INI file (which is created if it doesn’t exist). The file shown below describes how
the INI file will be created:
[System]
Instance=5
In the example above, the WristApp has an instance of 5, so the WristApp’s file will be upwristappdb5.bin.
When the user double-clicks on your WristApp in the PIM’s mode list, you can read this file before
showing the user interface and show the changes to the user.
If the above Instance value was NULL (no value to the right of the equals sign), then that means no data
was read for the WristApp. In this case, you should provide default data for the user when the UI
launches.
This file should be the same format as the database that was downloaded, and its up to the WristApp
code to make sure that the database stays the same.
4 Trademarks
TIMEX is a registered trademark and service mark of Timex Corporation.
TIMEX DATA LINK and WristApp are trademarks of Timex Corporation in the U.S. and other countries.
Night-Mode is a registered trademark of Timex Corporation.
INDIGLO is a registered trademark of Indiglo Corporation.
