Tineco FURFREE Series User manual

PURE ONE STATION FURFREE SERIES
Clean Station
Instruction Manual
Manual De Uso
Mode D’emploi
*Actual product may differ from illustration.
TINECO IS HERE TO HELP.
We’ll get back to you within 1 business day.
www.tineco.com
1-855-292-8864

EN
1
CONTENTS
Important Safety Instructions...............................................................2
Specications ........................................................................................6
Overview................................................................................................7
Assembly ...............................................................................................9
Operation ...........................................................................................11
Maintenance .......................................................................................16
Troubleshooting..................................................................................19
Warranty ..............................................................................................20
TINECO IS HERE TO HELP.
We’ll get back to you within 1 business day.
www.tineco.com
1-855-292-8864

EN
2
SAVE THESE INSTRUCTIONS
Household use only.
When using an electrical appliance, basic precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
WARNING – To reduce the risk of re, electric shock, or injury:
1. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children should not play with the
appliance. Cleaning and user maintenance shall not be performed by children without
supervision.
2. The appliance is not to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction.
3. For INDOOR use ONLY. Do not use the appliance outdoors, nor in commercial or
industrial environments. Do not use the appliance on wet surfaces or surfaces with
standing water.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near
children, pets or plants.
5. Use only as described in this manual. Use only manufacturer’s recommended
attachments.
6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged,
left outdoors, dropped into water, or is not working as it should, return it to a service
center.
7. Do not handle charger, including charger plug, and charger terminals with wet hands.
8. Do not block openings. Stop use if openings become blocked. Clean and remove any
blocked objects according to the manual instructions.
9. Keep hair, loose clothing, ngers, and all parts of your body away from openings and
moving parts.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up ammable or combustible liquids, such as gasoline, or use in
areas where they may be present.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot
ashes.
13. Do not use without a lter.
14. Prevent unintentional activation. Ensure the switch is in the off position before
connecting to the battery pack, picking up or carrying the appliance. Carrying the
appliance with your nger on the switch or powering on the appliance with the switch
on may cause accidents.
Important Safety Instructions

EN
3
15. Disconnect the battery pack from the appliance before making any adjustments,
changing accessories, storing the appliance. Such preventive safety measures reduce
the risk of starting the appliance accidentally.
16. For the purposes of recharging the battery, only use the detachable supply unit
provided with this appliance. A charger that is suitable for one type of battery pack may
create a risk of re when used with another battery pack.
17. Use appliances only with specically designated Tineco battery packs. Use of any other
battery packs may create a risk of injury and re.
18. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a
re.
19. Under improper usage, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid comes into eye contact, seek medical
help. Liquid ejected from the battery may cause irritation or burns.
20. Do not use a battery pack or appliance that is damaged or modied. Damaged or
modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk
of injury.
21. Do not expose a battery pack or appliance to re or excessive heat. Exposure to re or
temperatures above 266°F (130°C) may cause an explosion.
22. Follow all charging instructions and do not charge the battery pack or appliance
outside of the temperature range specied in the instructions. Charging improperly or
at temperatures outside of the specied range may damage the battery and increase
the risk of re.
23. Have servicing performed by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the product is maintained.
24. This appliance contains battery cells that are non-replaceable. Do not modify or
attempt to repair the appliance or the battery pack except as indicated in the
instructions for use and care.
25. Always turn off this appliance before connecting or disconnecting the motorized
nozzle.
26. Do not charge or store the appliance outdoors or inside a car. Only charge, store or use
the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but
lower than 104°F (40°C). The charger is for indoor use only.
27. The appliance is only to be used with the unit provided. The plug must be removed
from the socket-outlet before cleaning or maintaining the appliance.
28. Do not leave appliance when plugged in. Unplug from outlet when not in use and
before servicing.
29. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away from
heated surfaces.
30. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
31. Do not handle plug or appliance with wet hands.

EN
4
32. Do not handle plug or appliance with wet hands.
33. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that
may reduce air ow.
34. Turn off all controls before unplugging.
35. “Connect to a properly grounded outlet only. See Grounding Instructions.”
36. ”While grooming your pet, use proper care. Handle carefully and brush gently. To
prevent injury to your pet, avoid using this tool on the face of your pet.”
GROUNDING INSTRUCTIONS
1) This appliance must be grounded. If it should malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric
shock. This appliance is equipped with a cord having an equipment-grounding
conductor and grounding plug. The plug must be inserted into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
WARNING – Improper connection of the equipment-grounding conductor can result
in a risk of electric shock. Check with a qualied electrician or service person if you
are in doubt as to whether the outlet is properly grounded. Do not modify the plug
provided with the appliance – if it will not t the outlet, have a proper outlet installed
by a qualied electrician.

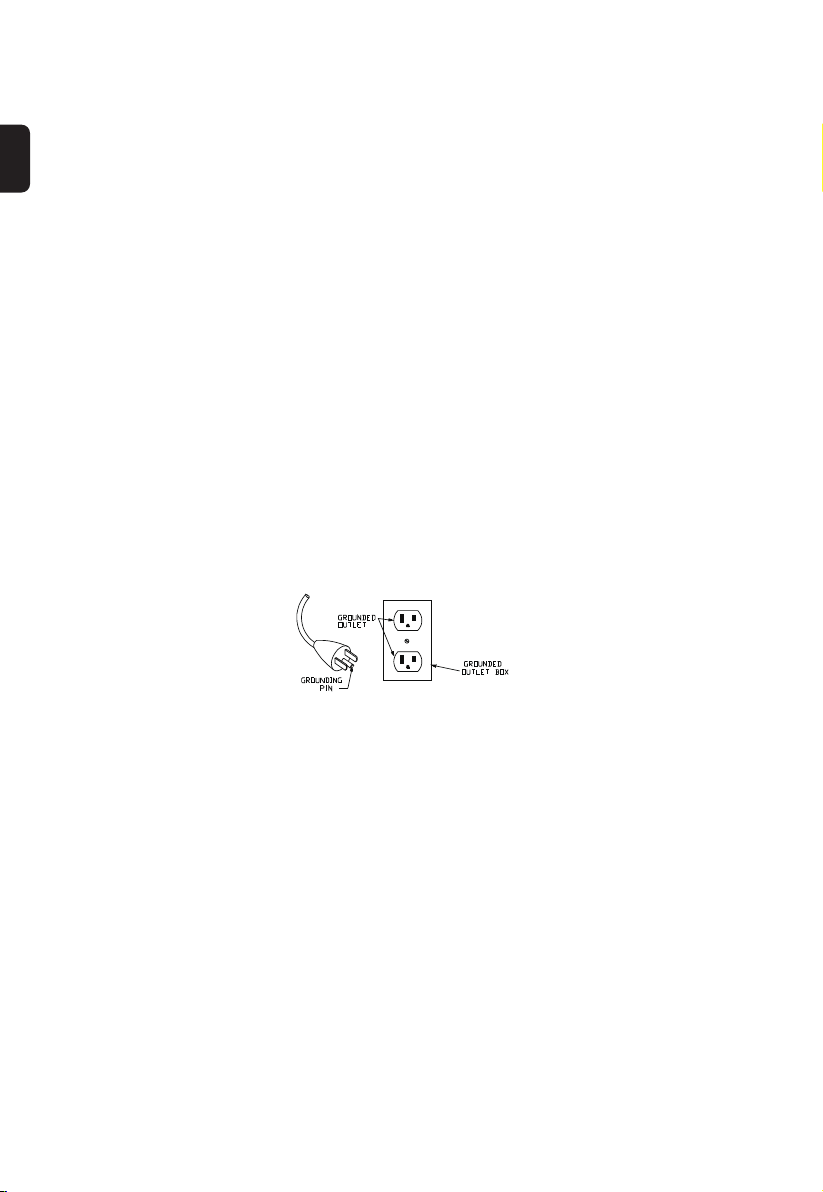

2) This appliance is for use on a nominal 120-V circuit and has a grounding attachment
plug that looks like the plug illustrated below. Make sure that the appliance is
connected to an outlet having the same conguration as the plug. No adaptor should
be used with this appliance.
FCC Supplier’s Declaration of Conformity
Tineco / PURE ONE STATION FURFREE SERIES
This appliance complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This appliance may not cause harmful interference, and (2) this appliance must accept
any interference received, including interference that may cause undesired operation.
Tineco INTELLIGENT, INC.
1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA
WWW.TINECO.COM
1-855-292-8864
Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital appliance, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not

EN
5
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance
of 20cm between the radiator and any part of your body.
Note
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modications to this equipment, such modications could void the user’s
authority to operate this equipment.
IC Note
This appliance contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) this appliance may not cause interference.
(2) this appliance must accept any interference, including interference that may cause
undesired operation of the appliance.
- This Class B digital apparatus complies with Canadian ICES-003.
- This equipment complies with ISED RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20cm between the radiator and any part of your body.

EN
6
CLEAN STATION
Input (Self-Cleaning Mode) 120V 60Hz 4.2A
Input (Charging) 120V 60Hz 0.5A
Output 18V 1A
Disposal
• The battery contains materials that are harmful to the environment and must be removed from the
appliance before it is discarded.
• Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling.
Do not put them into re, water or soil. Do not dispose of chargers into household waste!
• If battery leakage contacts skin or clothing, immediately ush with water to avoid irritation and seek
medical help.
Specications

EN
7
A. Upper Part
B. Dustbin Module
C. Docking Base
D. Digital Display
E. Dustbin Release Button
F. Dustbin
Overview
A B
G.HEPA Filter
H. 2-in-1 Crevice Dusting Brush
I. Mini Power Brush
J. Charging port
K. Cleaning tool
A. Extension Hose
B. Brush
D
J
K
E
F
G
H
I
FURFREE KIT
Note: Furmaid kit is exclusively compatible with specic models, please refer to the vacuum cleaner
manual for details.
A
B
C

EN
8
A. Voice Prompt Button
B. Pet Grooming Button
C. Malfunction
D. Vacuum Locked/Unlocked
E. Signal Connection
F. Dustbin Maintenance
G.Dust Monitoring Loop(Clean-
ing is complete when the dust
monitoring loop turns from red
to solid blue.)
H. Self-cleaning
I. Tineco Logo
Digital Display of Clean Station
A B C D E F G H I

EN
9
Assembly

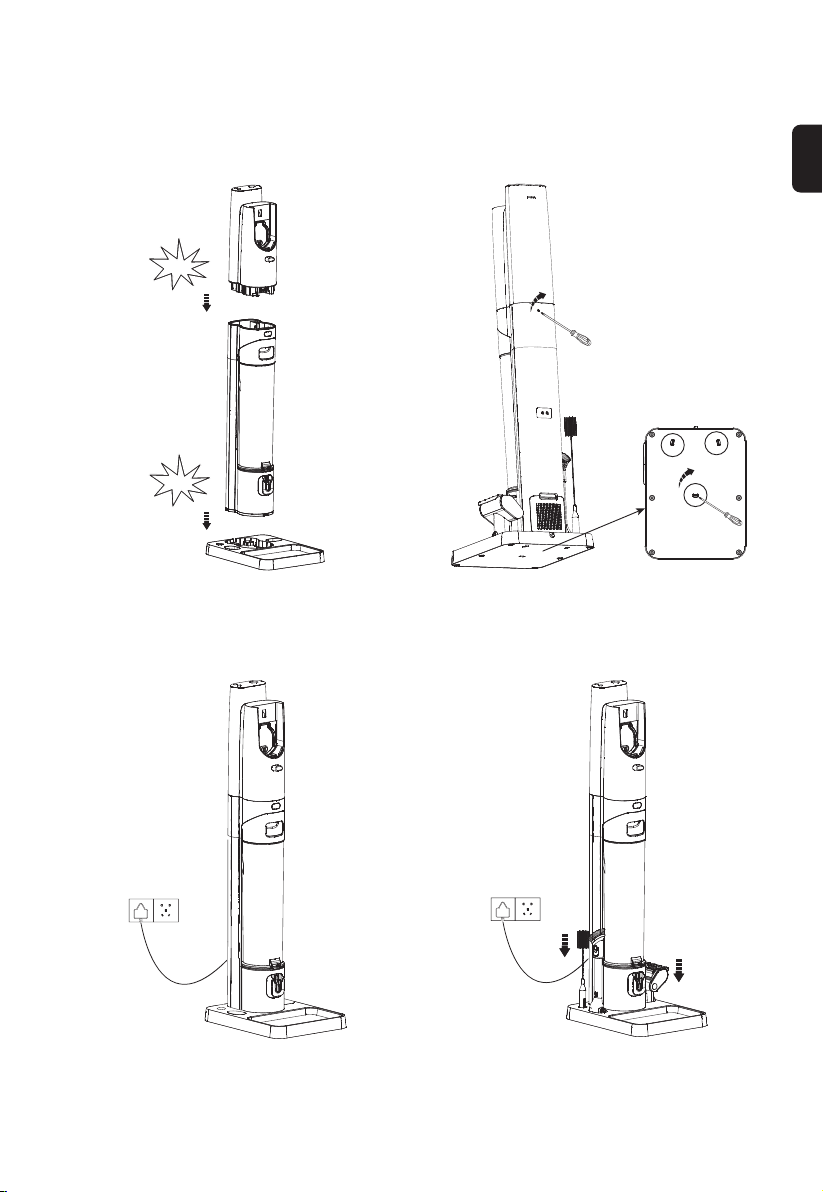

Clean Station Assembly
Note: Please make sure the clean station is placed on a hard at surface
Insert dustbin module into docking base rst,
then insert upper part into dustbin module.
In the event that the Clean Station need to be
disassembled, press the latch with tool to remove
the three parts.
Plug in the Clean Station. Place the accessories on the clean station for
convenient storage after use .
Upper Part
Dustbin Module
Docking Base
click
click

EN
10
FURFREE Kit installation.
Remove the brush roller. Install the extension hose.
Place the vacuum cleaner onto the Clean Station.
Note: Do not bend connecting part when
assembling.
Insert the extension hose to the connection port of
the brush.

EN
11
Operation
Vacuum’s Dustbin Emptying & Vacuum Charging
Note:
• To make sure that the vacuum cleaner is successfully charged, please place it near the charging port.
Also, place the dustbin close enough to the suction port of the Clean Station to ensure that the
Clean Station is fully operational.
• The vacuum cleaner cannot be charged when connected to accessories other than the brush roller.
• The vacuum cleaner is not allowed to be removed when the self-cleaning or pet grooming feature is
activated.

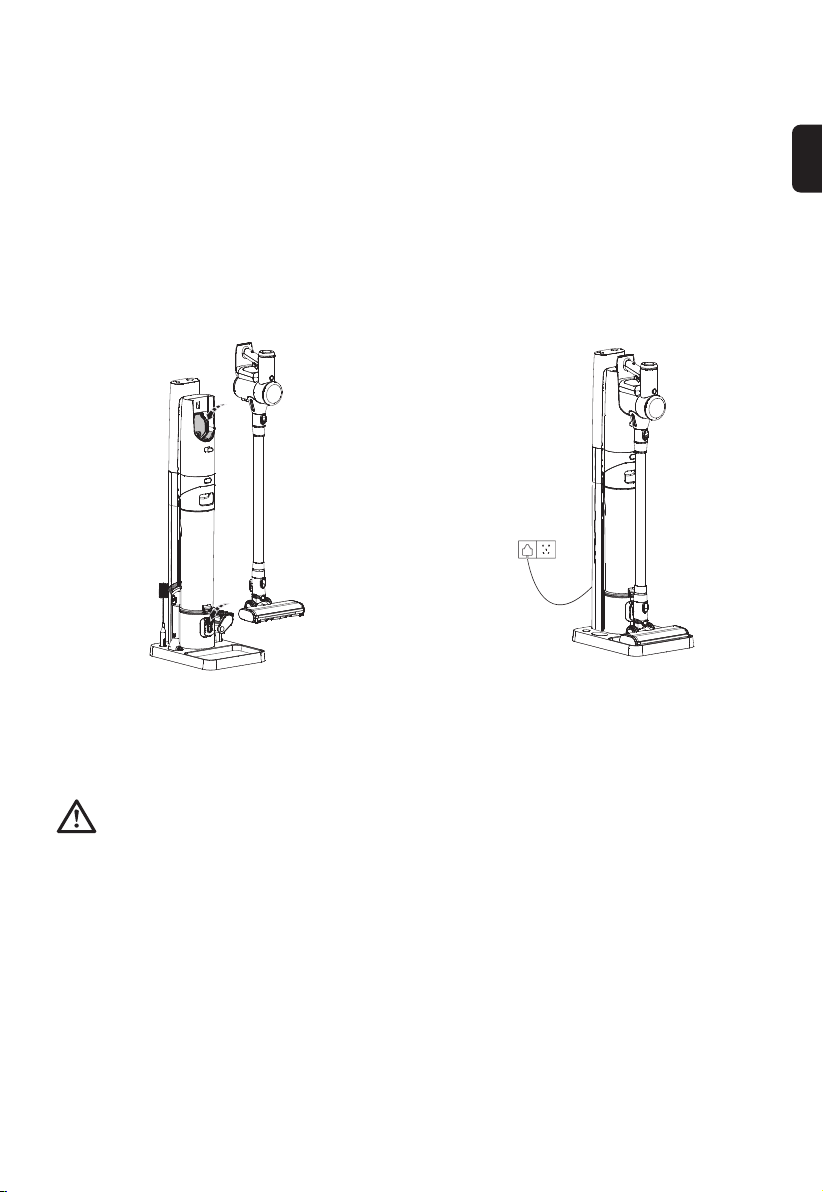

Place the vacuum onto the Clean Station.
The Clean Station will then start charging, and
meantime, self-cleaning will also be activated.
When self-cleaning is complete, the Dust
Monitoring Loop turns solid blue, and the voice
announces “Self-cleaning completed.”
Warning:
• Only use the Tineco-provided adapter to charge the appliance.
• To avoid trip hazards, please place the appliance securely on the charging dock, near a wall during
charging.
• During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is
fully charged every 3 months.
• Do not expose appliance to sunlight or freezing temperature. Recommended temperature range:
39.2°F (4°C)~104°F (40°C).
