TIPTEL Ergophone 6050 User manual

Operating instructions (en)

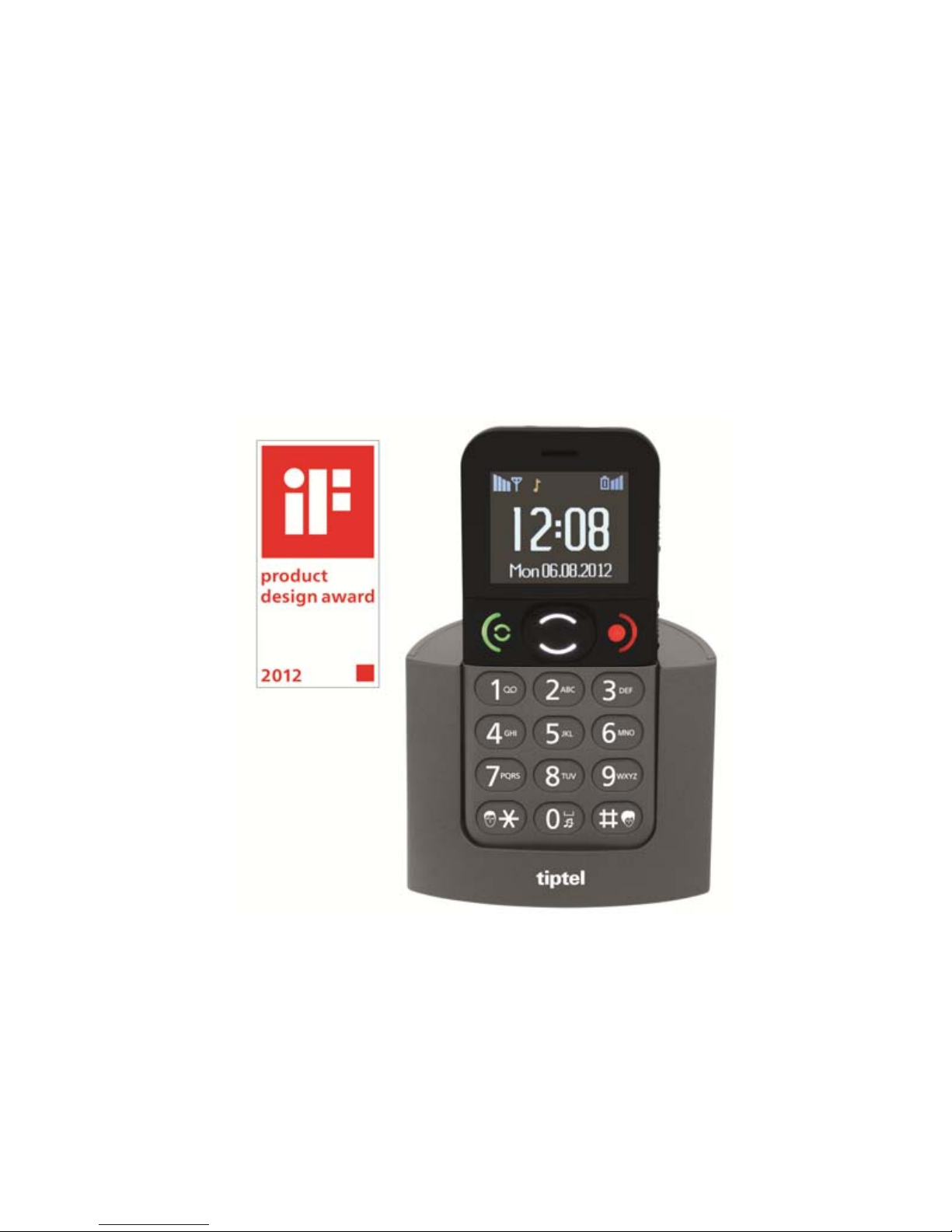

tiptel Ergophone 6050
tiptel

Contents
3
Contents
Contents .............................................................................................3
Safety information ..............................................................................7
Initial use ............................................................................................9
Check the contents ......................................................................... 9
Installing the SIM card and battery................................................. 9
Switching on the telephone ............................................................ 10
Setting language, date and time..................................................... 11
Charging the battery ....................................................................... 11
Telephone controls ............................................................................13
Controls on the front ....................................................................... 13
Controls on the rear ........................................................................ 15
Controls on the left.......................................................................... 15
Controls on the right ....................................................................... 16
Features on the top......................................................................... 16
Features on the underside.............................................................. 16
Symbols on the display................................................................... 17
Making calls........................................................................................18
Accepting calls................................................................................ 18
Rejecting calls ................................................................................. 18
Calling with direct dial..................................................................... 18
Dialling with the redial function....................................................... 19
Calling with speed dial.................................................................... 19
Dialling from the contacts ............................................................... 20
Hands-free talking and muting ....................................................... 21
Silent................................................................................................ 21

Contents
4
Speaking keys and telephone numbers......................................... 22
Phonebook..........................................................................................23
Options in contacts ......................................................................... 23
Call ............................................................................................... 23
Send text message ...................................................................... 24
Add new contact .......................................................................... 24
View .............................................................................................. 25
Edit ............................................................................................... 25
Delete ........................................................................................... 25
Move............................................................................................. 25
Copy/move/delete all contacts .................................................... 25
Phonebook settings ..................................................................... 25
Setup speed dialling .................................................................... 26
Call history..........................................................................................27
Options in call logs ......................................................................... 27
Call ............................................................................................... 28
Send text message ...................................................................... 28
Call details.................................................................................... 28
Delete ........................................................................................... 28
Messaging (SMS) ...............................................................................29
View received SMSs........................................................................ 29
Send SMS ....................................................................................... 30
Write SMS text.............................................................................. 30
Advanced message functions ........................................................ 31
Drafts ............................................................................................ 31
Templates..................................................................................... 32
Delete SMS .................................................................................. 32
Message settings ......................................................................... 32

Contents
5
Organizer ............................................................................................34
Alarm ............................................................................................... 34
Tasks ............................................................................................... 35
Radio ............................................................................................... 35
Radio options ............................................................................... 35
Calendar.......................................................................................... 36
Calculator ........................................................................................ 36
Settings...............................................................................................37
Phone settings ................................................................................ 37
Time & date.................................................................................. 37
Language ..................................................................................... 37
Tone settings................................................................................ 37
Alert type ...................................................................................... 38
Volume ......................................................................................... 38
Time voice ....................................................................................... 38
Call settings..................................................................................... 39
Caller ID........................................................................................ 39
Call waiting................................................................................... 39
Call divert ..................................................................................... 40
Call barring................................................................................... 40
Network selection ........................................................................ 40
Changing password........................................................................ 40
Emergency settings ........................................................................ 41
Restore factory settings .................................................................. 41
Emergency calls .................................................................................42
Testing the emergency call function ........................................... 43
Set-up of emergency calls .............................................................. 43
Emergency numbers ................................................................... 43

Contents
6
Emergency SMS .......................................................................... 44
Emergency display ...................................................................... 44
Cancelling an emergency call ........................................................ 44
Important information on emergency call functions....................... 45
Appendix............................................................................................. 46
Service............................................................................................. 46
Guarantee........................................................................................ 46
CE sign............................................................................................ 48
Ecological information .................................................................... 48

Safety information
7
Safety information
Only use the telephone at places where it is permitted. The use of mo-
bile phones is generally prohibited in hospitals and aircraft, and at pet-
rol stations.
Do not open the device yourself and do not attempt repairs on your
own. Repairs may only be carried out by qualified specialists.
Do not expose the telephone to smoke, chemicals, humidity, dust or
excessive heat (direct sunlight).
Keep the telephone and accessories away from children.
The telephone's speaker can be set to a very loud volume. Check the
volume before use to avoid damaging your hearing.
When driving, only use the telephone with an approved hands-free set.
Observe national legislation governing the use of mobile telephones.
Keep the telephone 20cm away from an implanted pacemaker. Imme-
diately switch off the telephone if you feel or suspect any impairment.
Do not use any power supply unit other than the one supplied.
Only use original accessories and batteries.
The telephone is not waterproof. Avoid contact with liquids.
Do not rely exclusively on your mobile telephone's emergency call
function in emergencies. Establishing an emergency connection may
not always be possible for technical reasons.
Dispose of the device and the battery in line with environmental guide-
lines. Your local waste disposal provider offers collection points for
electronic waste and batteries. Do not dispose of the device or battery
in household waste or throw into a fire.

Safety information
8
Dispose of packaging material in line with local regulations.

Initial use
9
Initial use
Check the contents
Included in the delivery:
tiptel Ergophone 6050 mobile phone
Power supply unit
Charger
Li-Ion 3.7 V/1000mAh battery pack
Headset
Operating instructions
Installing the SIM card and battery
The SIM card and battery need to be installed before the phone is used
for the first time. The SIM card is not provided with the device. Your ser-
vice provider will provide one. Handle the SIM
card with care and avoid touching its contacts.
Take off the case cover on the back of the device
to insert the SIM card and battery. To do this,
press the top of the cover on the rear and slide it
downwards.
Carefully insert the SIM card into the SIM card
holder as shown. This is on the underside of the telephone.

Initial use
10
The SIM card is pushed, with the card's contacts
facing downwards, between the telephone's con-
tacts and the metal retaining clip. The notch in
the casing must be facing the same way as the
SIM card. The SIM card must fit exactly into the
notch.
Then the battery is inserted. The three battery
contacts must be pointing towards the three con-
tact pins on the telephone on the bottom right
underneath the SIM card.
The battery is first inserted at the bottom at the
contact areas and then at the top into the notch
of the telephone.
Then replace the casing cover and push it up-
wards until it clicks into place.
Switching on the telephone
Press the red hang up key for 3–5 seconds until the display lights up.
You are then prompted to enter the PIN (personal identification number)
for your SIM card. You can find this four-digit number in the documenta-
tion for your SIM card. Use the keypad to enter the four digits, and then
press the green dial key .

Initial use
11
Note: You can change your SIM card PIN from the telephone set-
tings, and you can also disable the PIN prompt when the tel-
ephone is switched on.
The telephone is now ready to be used.
Setting language, date and time
After the telephone is switched on for the first time, you are automatically
prompted to set the language, date and time.
First select the language required and confirm it with the dial key . Next,
enter the time (first hours, then minutes), then the date (first day, then
month, then year), confirming each time with the dial key .
Note: The automatic prompt for language, time and date is only
shown when the telephone is switched on for the first time
and when a different SIM card has been inserted. It is possi-
ble to change these settings any time from the main menu
Settings Phone Settings and then "Time and Date"
or "Language".
Charging the battery
A charger and a power supply unit are supplied with your telephone. In-
sert the small connector on the power supply unit into the jack on the rear
of the charger, then plug the power supply unit into the wall socket.

Initial use
12
Put the telephone into the charger to charge the battery. The right-hand
bar segment in the charge status display flashes during the charge pro-
cess. All of the segments in the display are filled when the charge process
is complete. The charge status display no longer flashes.
Note: Instead of charging via the charger, the power supply plug
can also be connected directly to the jack on the underside of
the telephone. The battery can also be charged via a USB
connector on a computer.
Fully charge the battery prior to initial use. To preserve the battery thereaf-
ter, only place the telephone in the charger when the battery is almost flat
(when only 1-2 bars in the charge status display are filled).
You will usually need to recharge the battery about once a week (depend-
ing on the duration of your calls). Battery performance diminishes over
time. If you notice after a time that you need to recharge your telephone
more frequently, replace the battery.

Telephone controls
13
Telephone controls
The telephone has controls and connections on the front and rear, left and
right, and top and underside.
Controls on the front
1
2
3
4
5
6
7

Telephone controls
14
1
Dial key
Dialling after entry of a telephone number.
Acceptance of calls when the phone is ringing.
Confirmation of displays in the bottom left.
Redial when in standby.
2 Call of the answering machine with prolonged
pressing.
3
Male speed-dial key with prolonged pressing.
Enter the + sign by pressing twice.
Input of special characters in text entry.
4
Up and
down
arrows
Selection within menus.
In standby, access to the main menu (up key) and
writing a new SMS (down key)
5
Hang up
key
Ends a call.
Call rejection when phone is ringing.
Switch on/off with prolonged pressing.
Confirmation of displays in bottom right.
In standby, direct access to Phonebook.
6
Female speed-dial key with prolonged pressing.
Changing of input method in text entry.
7
Entry of spaces in text.
Switch between ringing and silent, both with vibration,
with prolonged pressing.

Telephone controls
15
Controls on the rear
The emergency call key (SOS) is here.
Pressing this for about 3 seconds initiates an emer-
gency call. Please refer to the "Emergency Calls" sec-
tion for a description of this function.
Controls on the left
At the top is a rocker switch marked +and –, and at the bot-
tom a switch marked "FM".
The +- rocker switch enables you to change the speaker vol-
ume during a call. It also adjusts the volume of the integrated
radio. If the function is enabled, the telephone provides a time
check when the + key is pressed for a prolonged period in
standby.
Prolonged pressing of the "FM" switch powers on and off the
integrated radio.

Telephone controls
16
Controls on the right
Two sliding switches are located here.
The top sliding switch powers on and off the integrated torch
on the top of the telephone.
The lower sliding switch enables/disables the key lock.
An appropriate symbol shows that the key lock is enabled.
Note: Calls can be accepted with the dial key even when the key
lock is enabled.
Features on the top
The integrated torch is on the top. The upper sliding switch on the right-
hand side is used to power it on and off. Also here is the jack for connect-
ing the headset. A headset is supplied with the telephone.
Features on the underside
On the underside are the contacts for the charger, the mini-USB jack for
charging the battery (using the power unit supplied or a computer) and a
microphone.

Telephone controls
17
Symbols on the display
In addition to the name of the mobile network provider, and the date and
time, the display always shows the strength of the mobile network signal
and the battery charge status. The other symbols are dependent on cir-
cumstances.
Symbol Description
Displays the wireless network signal strength
Battery charge status
New unread SMS text message(s)
Missed call(s)
Ring tone without vibration enabled
Ring tone with vibration enabled
Silent mode with vibration enabled
Roaming active (mobile is registered in a network abroad)
Call divert enabled
Call waiting from second caller
Alarm clock enabled
Headset connected

Making calls
18
Making calls
Accepting calls
When an incoming call is waiting to be accepted, the telephone rings (if
"silent" is not enabled) and vibrates (if vibration is enabled). The display
shows the number of the caller and the symbol for an incoming call. If the
caller having this number is in the phone book, the name of the caller is
displayed instead of the number. The call is accepted by pressing the dial
key .
Rejecting calls
If the hang up key is pressed when a call comes in, the call is rejected.
The caller hears the engaged tone.
Calling with direct dial
For direct dialling, enter the telephone number with the numeric keys and
then press the dial key . The connection is established as required.
Note: Always remember that you must always dial an area code in
mobile networks.

Making calls
19
Dialling with the redial function
When the telephone is in standby, pressing the dial key without first en-
tering a number opens the call logs (also refer to the "Call logs" section).
The dial key opens the required list, and then you can scroll up and
down within the call log using arrow keys and . Pressing
again opens a menu from where you are able to call the selected number
or send an SMS.
Note: If you have missed a call or received an SMS, the call log only
displays the missed call or new SMS when you press the dial
key. It is not until you have viewed it and pressed the dial key
again that all call log entries are displayed.
Calling with speed dial
The telephone features speed dial keys to store frequently-dialled num-
bers.
When the phone is in standby, these speed dial keys are accessed by
pressing digits -, and for about 2 seconds. The corresponding
number is then dialled automatically.
Key has a symbol of a male face and key a symbol of a female
face. These two keys can be used, for example, to store the speed dial
numbers of your son and daughter.

Making calls
20
To use speed dial numbers, they must first be assigned. Main menu
Phonebook Opt. Speed dial settings is used for this. The tele-
phone numbers for speed dialling must be stored in the phonebook.
The key is reserved for speed dialling of the answering machine. Here
the telephone number of the mailbox must be set up at the service pro-
vider. If this has not yet been set up, prolonged pressing of the key
prompts for the number.
Dialling from the contacts
If the hang up key is pressed when the telephone is in standby, the
contacts open and the first entry is displayed.
You can scroll up and down using arrow keys and .
If one of the number keys is pressed several times in quick succession,
the first entry starting with that particular letter is displayed. To display the
first entry beginning with "L" for example, the key must be pressed
three times in quick succession.
Pressing the key opens a selection menu, and pressing it again when
the "Call" entry is enabled dials the number of the entry currently being
displayed.
Note: Contacts can be called, sent text message, changed and de-
leted.
