Titan TTB767STM User manual

TTB767STM
EAN: 5059340085883
Steam Cleaner
Original Instructions - TTB767STMTM_Version 01 200812
WARNING! Read the instructions before using the appliance!
EN
BX220IM

2
Getting started… 03
Safety 03
Your appliance 08
Before you start 09
In more detail… 09
Assembly 12
Operation 13
Care and maintenance 14
Troubleshooting 16
Recycling and disposal 16
Guarantee 17
Specications 17
EC declaration of conformity 18
EN
Let's
get started...
These instructions are for your safety. Please read through them thoroughly
before use and retain them for future reference.

3
Getting started...
EN
Safety
Safety warnings
CAUTION! Risk of injury. The lling
aperture shall not be opened during use.
Read this instruction manual thoroughly
before using this appliance. Follow all the
safety instructions to avoid damage caused by
improper use.
Keep this instruction manual for future use.
Should this appliance be passed on to a third
party, this instruction manual must be included.
Use this appliance only in accordance with
these instructions. Do not attempt to modify the
appliance in any way.
This appliance can be used by persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance.
Keep the appliance out of reach of children
when it is energized or cooling down.
Ensure the rated voltage shown on the rating
label corresponds with the voltage of the supply
mains.

4
Getting started...
EN
The appliance must not be left unattended while
it is connected to the supply mains.
Do not touch the power plug with wet hands.
Lay out the cord in such a way that no
unintentional pulling or tripping over it is
possible.
Always switch off the appliance and disconnect
from the socket outlet before lling it with water,
changing accessories or cleaning it.
The appliance has to be disconnected after use
and before carrying out user maintenance on the
appliance.
Do not submerge the appliance in water or other
liquids.
Protect the power cord against damages. Do
not let it hang over sharp edges, do not squeeze
or bend it. Keep the power cord away from
hot surfaces and open ames and ensure that
nobody can pull on or trip over it unintentionally.
Do not operate any appliance with a damaged
power cord or plug, when the appliance
malfunctions or has been damaged in any
manner. If the power cord is damaged, it must
be replaced by the manufacturer, its service
agent or similarly qualied persons in order to
avoid a hazard.
Safety

5
Getting started...
EN
Do not insert foreign objects into the interior
of the housing. Do not dismantle or open
the appliance under any circumstances. No
warranty claims are accepted for damage
caused by improper handling.
Operate the appliance with the supplied parts
only to avoid the risk of injury.
Do not direct the steam jet at persons or
animals. Hot steam under high pressure can
cause serious injuries.
The liquid or steam must not be directed
towards equipment containing electrical
components, such as the interior of ovens.
The appliance is not to be used if it has been
dropped, if there are visible signs of damage or
if it is leaking.
Connect the power plug to an easily reachable
socket outlet so that in case of an emergency
the appliance can be disconnected immediately.
Pull the power plug out of the socket outlet to
completely switch off the appliance. Use the
power plug as the disconnection device.
This appliance is not intended to be operated by
means of an external timer or separate remote-
control system.
Safety

6
Getting started...
EN
The appliance is with a British Standard plug.
In the event of an electrical overload the fuse
may blow. Have the fuse replaced by the
manufacturer or qualied service personnel.
For additional protection, we recommend the
use of a residual current device (RCD) with
a tripping current not exceeding 30 mA in
the electrical circuit supplying power to your
appliance.
Do not operate the appliance with an empty
water tank. Disconnect the supply mains when
the water reserve is used up.
Do not add cleaning solutions, scented perfumes,
oils or any other chemicals to the water tank as
this may damage the appliance or make it unsafe
for use. If you live in an area with hard water, we
recommend the use of distilled water.
Use extra caution when using the appliance to
clean stairs or other uneven surfaces.
Do not touch hot surfaces when using the
appliance. Let the accessories cool down before
changing them.
Do not steam at one spot for an extended period
of time to avoid damages to the surfaces.
Safety

7
Getting started...
EN
Do not use the window wiper on a cold surface,
the sudden thermal change could cause the
surface to break. Warm the surface with the
steam jet thoroughly from a distance of about
40 cm.
Symbol explanation
On the appliance, the rating label and within these instructions you will nd among
others the following symbols and abbreviations. Familiarise yourself with them to
reduce hazards like personal injuries and damage to property.
V~ Volt, (alternating voltage) L Litre
W Watt g/min Gram/minute
Hz Hertz
Warning sign. Read the instruction manual.
Always disconnect the appliance from power supply and let the appliance
cool down before performing inspection, maintenance and cleaning work!
WARNING! Hot steam! Risk of scalding.
T2A
Protection fuse is 13 A.
The appliance complies with the applicable European directives and an
evaluation method of conformity for these directives was done.
Waste electrical appliances should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or local store for recycling advice.
Indoor use only.
IPX4 Protected against splashing water from any direction. Do not immerse in
water.
This appliance is classied as protection class I and must be
connected to a protective ground.
Safety

8
Getting started...
EN
1
2
3 4
5
6
7
10
8
13 14 15
17 18 19 20
16
11
9
12
Your appliance

9
In more detail...
EN
1 On/off switch
2 Steam ready light
3 Water tank cap
4 Carrying handle
5 Cord winder
6 Power cord with plug
7 Steam gun
8 Side button
9 Safety lock
10 Steam trigger
11 Extension tube (with connector)
12 Extension tube
13 Ironing steam head
14 Wand nozzle
15 Round brush
16 Floor brush
17 Filling funnel
18 Measuring cup
19 Floor cloth x2
20 Cloth cover for ironing
Unpacking
DANGER! Risk of suffocation! Keep all packaging materials away from
children.
Unpack all parts and lay them on a at, stable surface. Remove all packing
materials.
Make sure the delivery contents are complete and free of any damage. If
you nd that parts are missing or show damage do not use the appliance but
contact your dealer. Using an incomplete or damaged appliance represents a
hazard to people and property.
Keep the packaging for storing the appliance when not in use for an extended
period of time.
Intended use
This appliance is designed for cleaning surfaces which are resistant to hot
steam. Do not use on leather or wooden polished furniture, waxed oors,
synthetic fabrics, velvet or other delicate, steam sensitive materials. It is
recommended to test on a small hidden area of the working surface before
use.
This appliance is intended for private domestic use only, not for any
commercial trade use. It must not be used for any purposes other than those
described.
This appliance is splash-proof only. Do not expose to high pressure water jets.
This appliance is not intended for cleaning swimming pools.
Before you start

10
In more detail...
EN
Filling the water tank
WARNING! Switch the appliance off and disconnect it from the socket outlet
before lling the water tank.
NOTE: Use the steam trigger on the steam gun and direct the jet into a
suitable container to bleed out the remaining pressure from the water tank.
NOTE: Always let the appliance cool down and then loosen the water tank
cap slowly to let the pressure and hot steam escape.
1. Turn the water tank cap (3) anti-clockwise to remove it (Fig. 1).
Fig. 1
2. Position the lling funnel (17) on the water tank inlet (Fig. 2).
3. Pour up approx. 1000 ml of water slowly using the measuring cup (18) (Fig. 3).
Fig. 2 Fig. 3
4. Ret the water tank cap (3) and turn it clockwise to tighten it in place (Fig. 4).
Fig. 4
Before you start

11
In more detail...
EN
Before you start
Switching on/off
WARNING! Before switching on the appliance, make sure that there is
sufcient water inside the water tank. Rell the water tank if necessary.
1. Connect the power plug (6) to a suitable socket outlet.
2. To switch the appliance on, press the "I" down on the on/off switch (1). The steam
ready light (2) illuminates red and the appliance starts to heat up (Fig. 5).
3. To switch the appliance off, press the "O" down on the on/off switch (1).
Disconnect the appliance and let it cool down (Fig. 5).
Fig. 5
Child lock
Use the child lock to prevent the steam from being dispensed accidently.
Fig. 6 Fig. 7
1. Slide the safety lock (9) backward and the side button (8) will pop out. The child
lock is activated (Fig. 6).
2. To deactivate the child lock, press the side button (8) down and slide the safety
lock (9) forward (Fig. 7).

12
In more detail...
EN
Assembly
Assembly

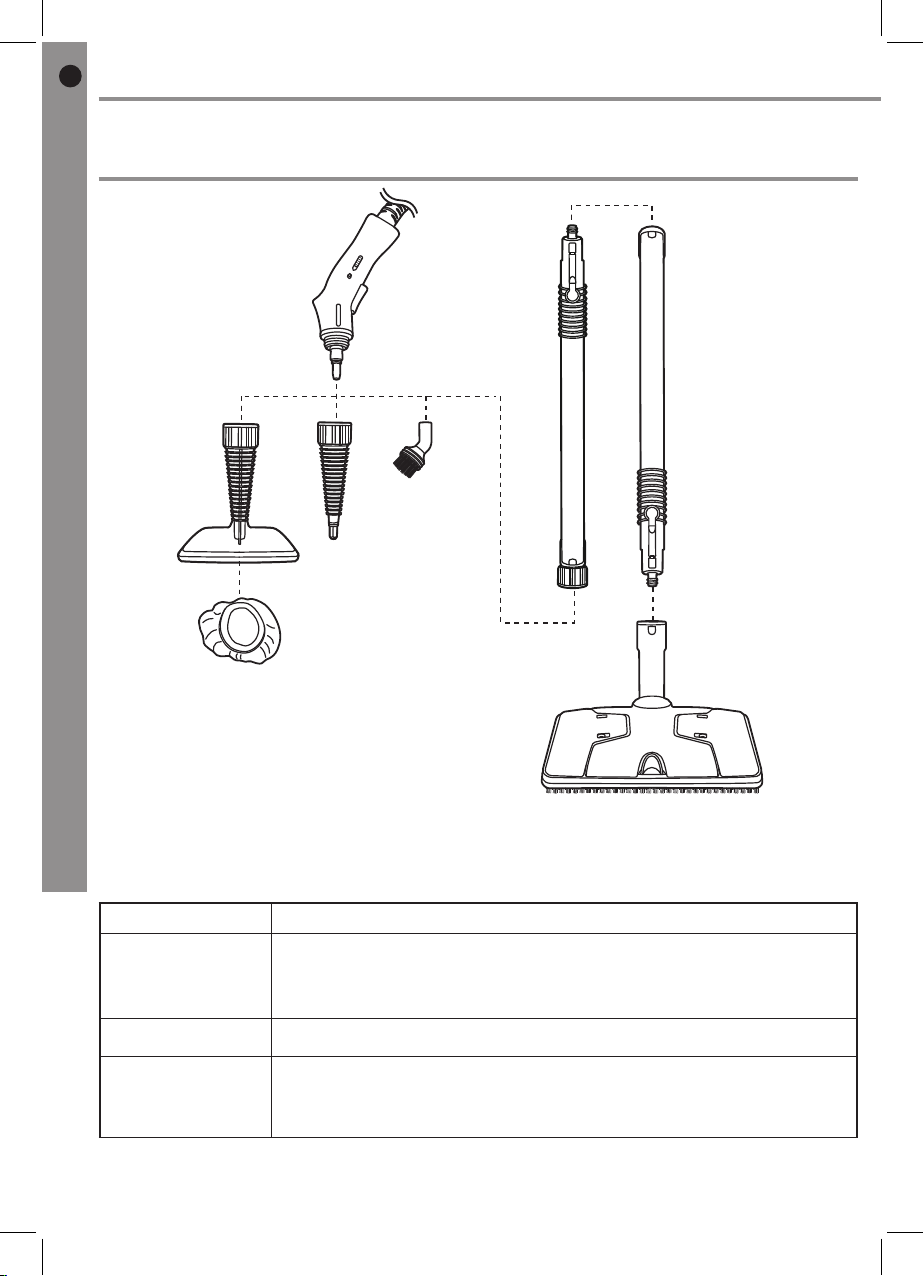

1. Connect the desired attachment to the steam gun (7). Press and turn clockwise to
lock it in place.
2. Turn anti-clockwise and pull to remove the attachment.
Attachments Intended use
Ironing steam
head (13) with
cloth cover (20)
• Fit the cloth cover (20) to protect delicate fabrics from steam
and heat when ironing with the steam head (13).
• Remove dust from sofas, armchairs, cushions or mattresses.
Wand nozzle (14) • For cleaning deep-seated dirt on all surfaces.
Round brush (15) • Remove stubborn stains on cook tops and scale buildup on
bathroom xtures.

13
In more detail...
EN
Assembly / Operation
Floor brush (16)
• Fit it to the extension tube (12), then to the extension tube
with connector (11) which connects to the steam gun.
• For soft surfaces, such as carpets and rugs, attach a oor
cloth (19) onto it. Slide the switch to the left to move the
sliding plate out and then press to clamp the oor cloth.
• For hard surfaces, slide the switch to the right to move the
sliding plate in.
CAUTION! Avoid getting the ngers caught in between the clamp and the
spikes of the oor brush (16) when attaching the oor cloth (19).
Operation
WARNING! Never open the water tank cap during use.
CAUTION! Do not touch. The surface of the unit is hot during operation.
NOTE: The steam ready light illuminates red and green during operation to
show that the appliance has reached the working pressure.

14
In more detail...
EN
Operation / Care and maintenance
Fig. 8

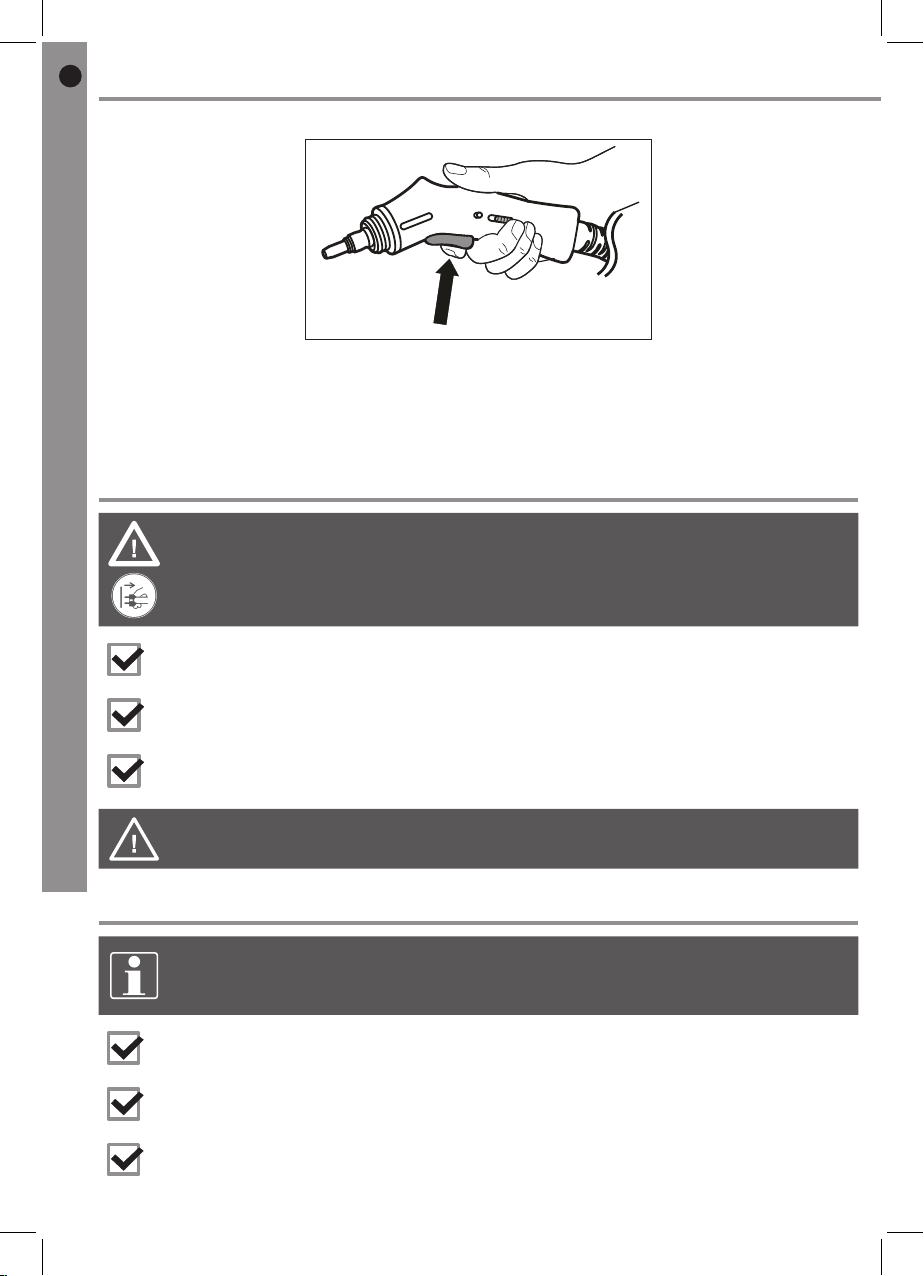

1. Press the steam trigger (10) on the steam gun (7) to dispense steam (Fig. 8).
2. If needed, connect the desired attachment to the steam gun (7) (see section
"Assembly").
The golden rules for care
WARNING! Always disconnect the appliance from power supply and let
the appliance cool down before performing inspection, maintenance and
cleaning work!
Keep the appliance clean. Remove debris from it after each use and before
storage.
Regular and proper cleaning will help ensure safe use and prolong the life of
the appliance.
Inspect the appliance before each use for worn and damaged parts. Do not
operate it if you nd broken and worn parts.
WARNING! Only perform repairs and maintenance work according to these
instructions! All further works must be performed by a qualied specialist!
General cleaning
NOTE: Do not use chemical, alkaline, abrasive or other aggressive
detergents or disinfectants to clean this appliance as they might be harmful
to its surfaces.
Clean the appliance with a damp cloth. Shake to remove any residues and
blocked items from the attachments.
Soak the oor cloths and the cloth cover for the multipurpose brush in warm
soapy water for about 5-10 minutes. Then rinse with fresh water.
Pour clean water into the water tank. Shake the appliance gently and drain
the water out of the water tank. Repeat for several times.

15
In more detail...
EN
Care and maintenance
Repair
This appliance does not contain any parts that can be repaired by the consumer. Contact
an authorised service centre or a similarly qualied person to have it checked and
repaired.
UK plug
If you need to replace the tted plug, then follow the instructions below.
IMPORTANT: The wires in the mains lead are coloured in accordance with the
following code:
Blue – Neutral Brown – Live
As the colours of the wire in the mains lead of this appliance may not correspond with
the coloured marking identifying the terminals in your plug, proceed as follows. The
wire, which is coloured blue, must be connected to the terminal, which is marked with
N or coloured black. The wire, which is coloured brown, must be connected to the
terminal, which is marked L or coloured red.
Connect Blue to
N (Neutral)
Outer sleeve
rmly clamped Cable grip
Brown L (Live)
13 AMP fuse
approved to
BS 1362
WARNING! Never connect live or neutral wires to the earth terminal of
the plug.

16
In more detail...
EN
Troubleshooting
Suspected malfunctions are often due to causes that the users can x themselves.
Therefore check the appliance using this section. In most cases the problem can be
solved quickly.
WARNING! Only perform the steps described within these instructions!
All further inspection, maintenance and repair work must be performed
by an authorised service centre or a similarly qualied specialist if you
cannot solve the problem yourself!
Problem Possible cause Solution
1. No steam comes
out of the nozzle on
the steam gun.
1.1 No water in the water tank.
1.2 The working temperature
has not reached.
1.1 Rell the water tank.
1.2 Wait until the steam
ready light turns green.
2. Surfaces become
cloudy, streaky or
spotty after steaming.
2.1 The oor cloth or brush
cover is too wet or dirty.
2.2 The steam gun is directed
at one same spot for too
long.
2.3 Hard water is used.
2.1 Disconnect and change
with a dry, clean oor
cloth or brush cover.
2.2 Do not direct the steam
jet at one same spot for
more than 15 seconds.
2.3 Use distilled water.
3. Floor head is hard
to move.
3.1 The oor cloth or brush
cover is not attached
correctly.
3.2 The oor cloth or brush
cover is too wet or dirty.
3.1 Disconnect and ret
the oor cloth or brush
cover.
3.2 Disconnect and change
with a dry, clean oor
cloth or brush cover.
4. The steam ready
light illuminates red
and green alternately
during use.
This is normal and indicates the appliance is heating up to
the desired temperature. The steam ready light stays green
when it is ready to use.
Recycling and disposal
Waste electrical appliances should not be disposed of with household
waste. Please recycle where facilities exist. Check with your local
authority or local store for recycling advice.
Troubleshooting / Recycling and disposal

17
In more detail...
EN
Guarantee
This appliance carries a guarantee of 24 months starting from the day of purchase.
Please retain your receipt as a proof.
This guarantee specically excludes losses due to:
- Normal wear and tear, including accessory wear
- Overload, misuse or neglect
- Failure of consumable items (such as batteries)
- Repairs attempted by anyone other than an authorized agent
- Accidental damage caused by foreign objects or substances
- Lack of routine maintenance
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
Due to continuous appliance improvement, we reserve the right to change the
appliance specication without prior notice.
This guarantee does not affect your statutory rights.
For any inquiries relating to the guarantee please contact your retailer:
If you purchased this appliance in B&Q store or website then call 0800 324 7818.
If you bought this appliance in SFX outlet or website then call 1800 932 230.
Specications
Rated voltage: 220-240 V~, 50/60 Hz
Rated power consumption: 1500 W
Water tank capacity: 1.3 L
Heating time for the rst use: approx. 7 minutes
Amount of steam: approx. 30 g/min
Working time: approx. 20 minutes
Working pressure: 3 Bar
IP rating: IPX4
Length of power line: 3 meters
Guarantee / Specications

Manufacturer,Fabricant,Producent,
Producător,Fabricante:
3 Sheldon Square
London
W2 6PX
United Kingdom
Kingfisher International Products Limited
UK Manufacturer
EU Manufacturer
Kingfisher International Products B.V.
Rapenburgerstraat 175E
1011 VM Amsterdam
The Netherlands
www.diy.com
www.screwfix.com
To view instruction manuals online,
visit www.kingfisher.com/products
