TLV LEX8-TZ User manual

172-65379M-07 (LEX8-TZ) 6 October 2021
Temperature Control Trap
(with Bimetal Element)
LEX8-TZ
Copyright © 2021 by TLV CO., LTD.
All rights reserved

172-65379M-07 (LEX8-TZ) 6 Oct 2021
1
Contents
Introduction ....................................................................... 1
Safety Considerations....................................................... 2
Checking the Piping.......................................................... 4
Specifications.................................................................... 4
Configuration..................................................................... 5
Installation......................................................................... 6
Adjusting the Set Temperature ......................................... 7
Cleaning Function........................................................... 10
Maintenance.................................................................... 12
Disassembly/Reassembly............................................... 13
Troubleshooting .............................................................. 16
TLV EXPRESS LIMITED WARRANTY........................... 17
Service ............................................................................ 19
Introduction
Thank you for purchasing the TLV temperature control trap.
This product has been thoroughly inspected before being shipped from the
factory. When the product is delivered, before doing anything else, check the
specifications and external appearance to make sure nothing is out of the
ordinary. Also be sure to read this manual carefully before use and follow the
instructions to be sure of using the product properly.
Unlike most steam traps, this temperature control trap (with bimetal element)
enables the desired condensate discharge temperature to be set. Note: only
the temperature of condensate discharged can be controlled; this temperature
control trap does not control product temperature nor temperature of
condensate accumulating in the system.
This temperature control trap is also ideal for heating of heavy oil tank and oil
feed pipe lines, and for the tracing of valves, instrumentation, etc.
If detailed instructions for special order specifications or options not contained
in this manual are required, please contact TLV for full details.
This instruction manual is intended for use with the model(s) listed on the front
cover. It is needed not only for installation, but for subsequent maintenance,
disassembly/reassembly and troubleshooting. Please keep it in a safe place
for future reference.

172-65379M-07 (LEX8-TZ) 6 Oct 2021
2
Safety Considerations
Read this section carefully before use and be sure to follow the instructions.
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
The precautions listed in this manual are designed to ensure safety and prevent
equipment damage and personal injury. For situations that may occur as a result of
erroneous handling, three different types of cautionary items are used to indicate
the degree of urgency and the scale of potential damage and danger: DANGER,
WARNING and CAUTION.
The three types of cautionary items above are very important for safety: be sure to
observe all of them as they relate to installation, use, maintenance and repair.
Furthermore, TLV accepts no responsibility for any accidents or damage occurring
as a result of failure to observe these precautions.
Symbols
Indicates a DANGER, WARNING or CAUTION item.
Indicates an urgent situation which poses a threat of death or
serious injury
Indicates that there is a potential threat of death or serious injury
Indicates that there is a possibility of injury or equipment / product
damage
Install properly and DO NOT use this product outside the
recommended operating pressure, temperature and other
specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions that may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
Take measures to prevent people from coming into direct
contact with product outlets.
Failure to do so may result in burns or other injury from the discharge
of fluids.
When disassembling or removing the product, wait until the
internal pressure equals atmospheric pressure and the surface
of the product has cooled to room temperature.
Disassembling or removing the product when it is hot or under
pressure may lead to discharge of fluids, causing burns, other injuries
or damage.
Do not remove cap nut or cover while the product is under
pressure. Allow the product body temperature to cool to room
temperature before removing cap nut or cover.
Failure to do so may result in burns or other injury.
Continued on the next page
DANGER
WARNING
CAUTION
CAUTION

172-65379M-07 (LEX8-TZ) 6 Oct 2021
3
Be sure to use only the recommended components when
repairing the product, and NEVER attempt to modify the product
in any way.
Failure to observe these precautions may result in damage to the
product and burns or other injury due to malfunction or the discharge
of fluids.
Use only under conditions in which no freeze-up will occur.
Freezing may damage the product, leading to fluid discharge, which
may cause burns or other injury.
Use only under conditions in which no water hammer will occur.
The impact of water hammer may damage the product, leading to
fluid discharge, which may cause burns or other injury.
CAUTION

172-65379M-07 (LEX8-TZ) 6 Oct 2021
4
Checking the Piping
Use only under conditions in which no water hammer will occur. The
impact of water hammer may damage the product, leading to fluid
discharge, which may cause burns or other injury.
CAUTION
Check to make sure that the pipes to be connected to the product have been
installed properly.
1. Is the pipe diameter suitable?
2. Has sufficient space been secured for maintenance?
3. Have isolation valves been installed at the inlet and outlet?
If the outlet is subject to back pressure, has a check valve been installed?
4. Has the product been installed so that condensate will easily flow naturally down
into the product by gravity?
Specifications
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions which may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
CAUTION
Use only under conditions in which no freeze-up will occur. Freezing
may damage the product, leading to fluid discharge, which may cause
burns or other injury.
CAUTION

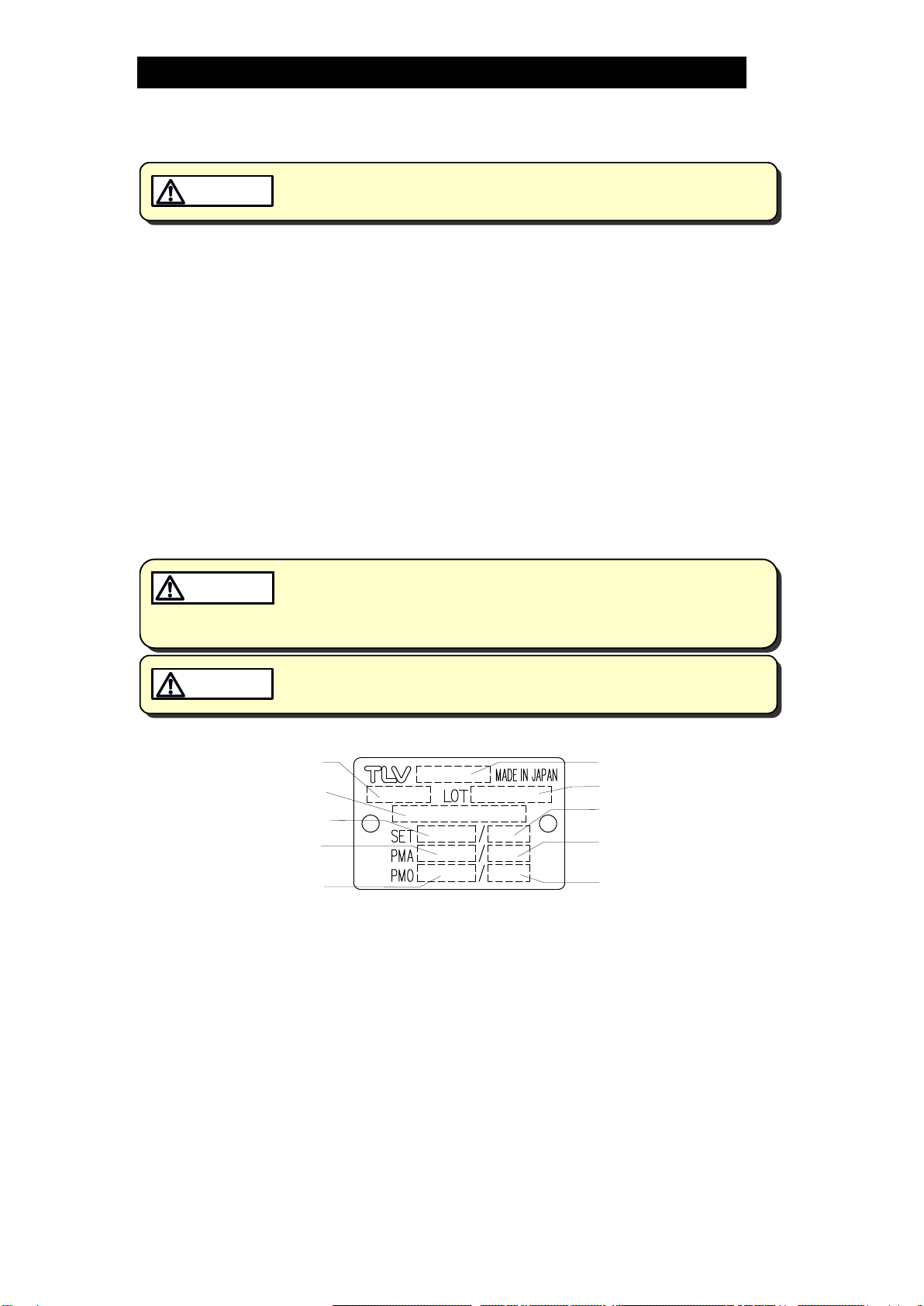

Refer to the product nameplate for detailed specifications.
*
Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are
PRESSURE SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS.
**
Valve No. is displayed for products with options. This item is omitted from the nameplate
when there are no options.
***
Set Pressure and Set Temperature are the initial settings when shipped from the
factory.
Model
Production Lot No.
Set Temperature***
Maximum Allowable
Temperature (TMA)*
Maximum Operating
Temperature (TMO)
Nominal Diameter
Valve No.**
Set Pressure***
Maximum Allowable
*
Pressure*
Maximum Operating
Pressure

172-65379M-07 (LEX8-TZ) 6 Oct 2021
5

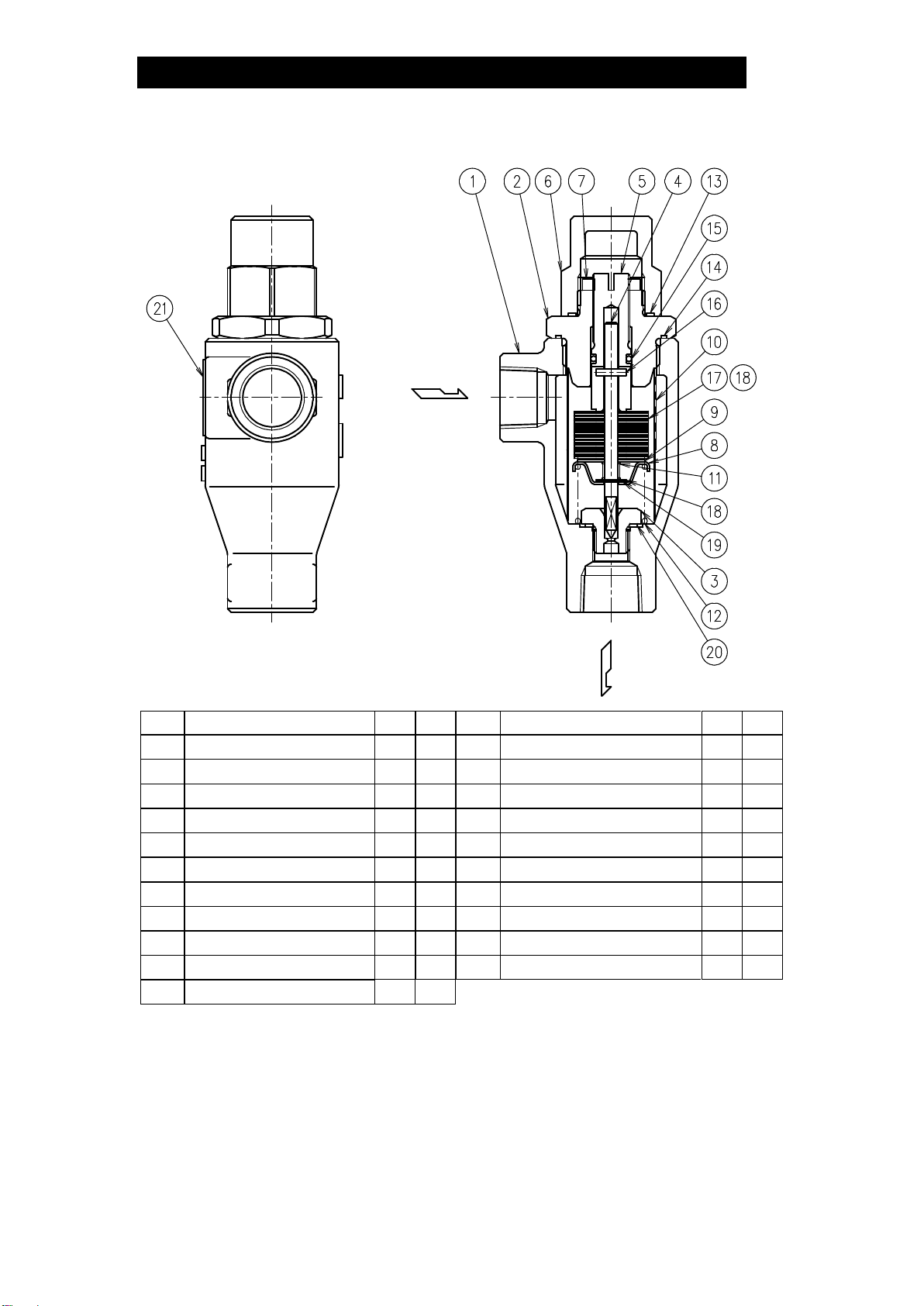

Configuration
No.
Name
M*
R*
No.
Name
M*
R*
1
Body
12
Overexpansion Spring

2
Cover
13
Cap Nut Gasket


3
Valve Seat

14
Cover Gasket


4
Valve Stem

15
Seal Ring


5
Adjusting Screw
16
Spring Pin

6
Cap Nut
17
Bimetal Element

7
Locknut
18
Washer

8
Spring Guide

19
Snap Ring

9
Thrust Plate

20
Valve Seat Gasket


10
Screen

21
Nameplate
11
Return Spring

* Replacement parts are available only in the following kits: M = Maintenance Kit; R = Repair Kit

172-65379M-07 (LEX8-TZ) 6 Oct 2021
6
Installation
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions which may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
CAUTION
Take measures to prevent people from coming into direct contact with
product outlets. Failure to do so may result in burns or other injury from
the discharge of fluids.
CAUTION
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
1. Before installing the product, open the inlet valve and blow out the piping to
remove any piping scraps, dirt and oil. Close the inlet valve after blowdown.
2. Before installation, be sure to remove all protective seals.
3. Install the product so the arrow on the body is pointing in the direction of
condensate flow.
4. The product may be installed either horizontally or vertically; there are no
restrictions on the orientation of installation. However, when installing
horizontally, make sure that the product is installed with the temperature adjusting
screw positioned higher than the piping in which the product is installed. (Upside-
down installation is not permissible.)
5. Open the inlet valve gradually and check to make sure that the product functions
properly.
If there is a problem, determine the cause using the “Troubleshooting” section in
this manual.

172-65379M-07 (LEX8-TZ) 6 Oct 2021
7
Adjusting the Set Temperature
Do not remove cap nut or cover while trap is under pressure. Allow trap
body temperature to cool to room temperature before removing cap
nut or cover. Failure to do so may result in burns or other injury.
CAUTION
Always wear heat-insulated gloves when handling products with high
body temperatures, such as when in operation. Failure to do so may
result in burns.
CAUTION
Follow the procedure below to adjust.
1. For your safety, wear heat-insulated gloves or eye protectors, etc. to prevent
burns.
2. Close the external valve from which the steam and condensate flow to the product
(the “inlet isolation valve”).
3. Close the external valve to which the condensate flows from the product (the
“outlet isolation valve”).
4. Wait until the pressure between the inlet isolation valve and the product equals
atmospheric pressure (when the product body temperature cools to room
temperature).
5. Hold the cover with one wrench and use another wrench to slowly loosen the cap
nut carefully checking for any steam leaks that might occur. In the event steam
leaks are detected, immediately stop the work and proceed with maintenance
referring to “Disassembly/Reassembly”section.
6. Remove the cap nut.
7. Hold the adjusting screw in place with a flat-head screwdriver and loosen the
locknut slowly carefully checking for any steam leaks that might occur. In the
event steam leaks are detected, immediately stop the work and proceed with
maintenance referring to “Disassembly / Reassembly”section.
8. Remove the locknut.

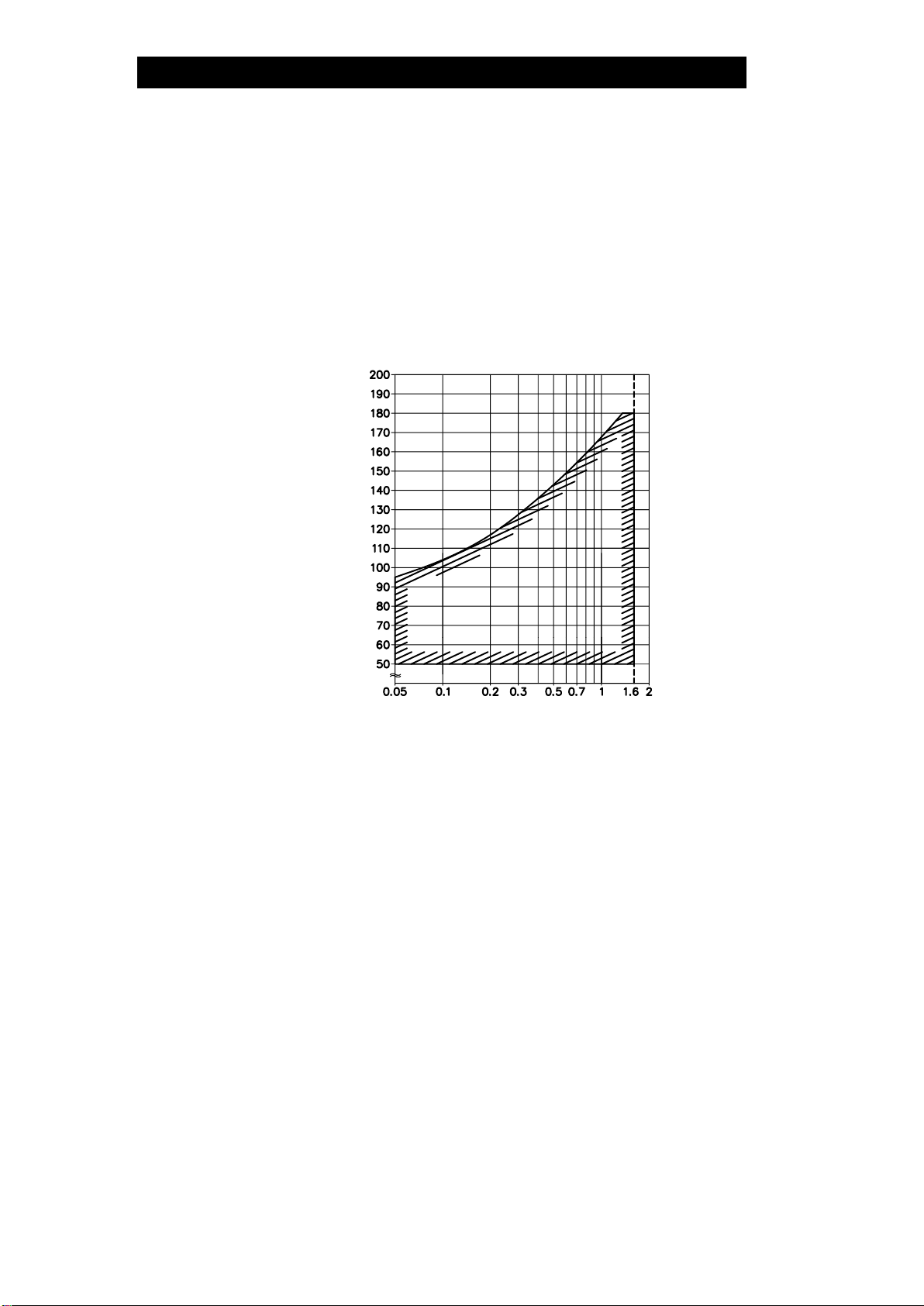

9. Use a flat-head screwdriver to turn the adjusting screw to adjust temperature. To
raise the temperature setting, turn the adjusting screw counterclockwise. To lower
the temperature setting, turn the adjusting screw clockwise. Refer to set
temperature adjustment chart for the number of turns required from the “0”
position to reach the desired temperature.
10. After completing the adjustment, replace the locknut. Hold the adjusting screw in
place with a flat-head screwdriver and tighten the locknut securely.
11. Replace the cap nut and tighten it to the proper torque (see page 14). Hold the
cover with one wrench and use another wrench to tighten.
12. First fully open the outlet isolation valve slowly.
13. Slowly open the inlet isolation valve carefully checking for any steam leaks that
might occur. In the event steam leaks are detected, immediately close the inlet
isolation valve, then the outlet isolation valve, and repair the source of leakage.
14. Check the temperature setting by observing an inline temperature sensor or by
measuring the temperature at the wrench flat on the product’s inlet side at least 30
minutes after supplying steam with the new setting. The product set temperature
will be approximately 10 to 20 °C higher than the surface reading. If the resultant
temperature is not as required, repeat procedure from step “2” above.
15. Fully open the outlet isolation valve slowly.

172-65379M-07 (LEX8-TZ) 6 Oct 2021
8
16. Slowly open the inlet isolation valve carefully checking for any steam leaks that
might occur.
17. In the event steam leaks are detected, immediately close the inlet isolation valve,
then the outlet isolation valve, and repair the source of leakage. In the event
steam leaks are detected somewhere other than the outlet piping, immediately
close the inlet isolation valve, then the outlet isolation valve and repair the leaks
referring to “Disassembly/Reassembly”section.
Temperature Setting Range (°C)
Set Temperature (°C)
Operating Pressure (MPaG)

172-65379M-07 (LEX8-TZ) 6 Oct 2021
9
Temperature Setting Example
As shown in the figure on the right, this
temperature control trap is positioned with the
bottom of the adjuster slot in the adjusting
screw (A) even with the very top of the cover
(B) , which represents the 70 °C at 0.5 MPaG
setting.
This is the standard factory setting.
For example, to set the product to 120 °C (from 70 °C factory setting position), refer
to the adjustment chart on the previous page determine the number of turns.
1) From 120 °C, go straight across until intersection the oblique line.
2) From the intersection point, go straight down and find the number of turns required
(+2).
3) Turn the adjusting screw 2 turns counterclockwise
Adjustment Chart
Note: The standard factory setting is 70 °C at 0.5 MPaG.
Since the set-temperature is little affected by steam
pressure, the temperature Adjustment Chart shows
only the relationship between set temperature and
the number of turns from factory setting.
Change from this to the desired setting, as indicated
in the Adjustment Chart.
Adjuster Slot
Adjusting Screw
Cover
A
B
Number of Turns of Adjusting Screw
Set Temperature (°C)
–: Turn Clockwise
(decrease set temperature)
+ : Turn Counterclockwise
(increase set temperature)

172-65379M-07 (LEX8-TZ) 6 Oct 2021
10
Cleaning Function
Do not remove cap nut or cover while trap is under pressure. Allow trap
body temperature to cool to room temperature before removing cap
nut or cover. Failure to do so may result in burns or other injury.
CAUTION
Always wear heat-insulated gloves when handling products with high
body temperatures, such as when in operation. Failure to do so may
result in burns.
CAUTION
Rust, scale and other buildup on the valve seat can hinder the sealing ability of the
steam trap leading to steam leakage and higher product temperatures, or block the
valve seat opening preventing condensate discharge and resulting in the decrease of
the product temperature. Follow the steps below to remove any accumulation from
around the valve opening.
1. For your safety, wear heat-insulated gloves or eye protector, etc. to prevent burns.
2. Close the external valve from which the steam and condensate flow to the
product (the “inlet isolation valve”).
3. Close the external valve to which the condensate flows from the product (the
“outlet isolation valve”).
4. Wait until the pressure between the inlet isolation valve and the product equals
atmospheric pressure (when the product body temperature cools to room
temperature).
5. Hold the cover with one wrench and use another wrench to slowly loosen the cap
nut carefully checking for any steam leaks that might occur. In the event steam
leaks are detected, immediately stop the work and proceed with maintenance
referring to “Disassembly/Reassembly”section.
6. Remove the cap nut.
7. Hold the adjusting screw in place with a flat-head screwdriver and loosen the
locknut slowly carefully checking for any steam leaks that might occur. In the
event steam leaks are detected, immediately stop the work and proceed with
maintenance referring to “Disassembly/Reassembly”section.
8. Remove the locknut.
9. Check the current set position of the adjusting screw.
10. Check and record the number of turns required to return to the standard factory
setting (when points (A) and (B) are even with each other as shown on the figure
in the “Temperature Setting Example” section).
11. Use a flat-head screwdriver to slowly turn the adjusting screw clockwise (to
tighten) until it stops. (This causes the cleaning edge of the stem to reach the
valve seat and loosen debris).
12. Slowly turn the adjusting screw counterclockwise (to loosen) until it stops. (This
will allow flushing once the steam is safely turned on using the instructions that
follow).
13. Replace the cap nut and tighten it to the proper torque (see “Table of Tightening
Torques”). Hold the cover with one wrench and use another wrench to tighten.
14. First fully open the outlet isolation valve slowly.
15. Slowly open the inlet isolation valve carefully checking for any steam leaks that
might occur. In the event steam leaks are detected, immediately close the inlet
isolation valve, then the outlet isolation valve, and repair the source of leakage.

172-65379M-07 (LEX8-TZ) 6 Oct 2021
11
16. Wait 10 seconds to allow any loose scale to be flushed internally. Be aware of
any external steam leak including the outlet connection if opened to atmosphere.
Be careful to not come in contact with any steam that is discharging from an open
outlet connection. If any steam leaks are detected somewhere other than the
outlet piping, immediately close the inlet isolation valve, then the outlet isolation
valve, and repair the source of leakage.
17. Close the inlet isolation valve.
18. Close the outlet isolation valve.
19. Wait until the pressure between the inlet isolation valve and the product equals
atmospheric pressure (when the product body temperature cools to room
temperature).
20. Hold the cover with one wrench and use another wrench to slowly loosen the cap
nut carefully checking for any steam leaks that might occur. In the event steam
leaks are detected, immediately stop the work and proceed with maintenance
referring to “Disassembly/Reassembly”section.
21. Remove the cap nut.
22. Slowly turn the adjusting screw clockwise (to tighten) to return to the original
position checked in step “10” above.
23. Hold the adjusting screw in place with a flat-head screwdriver and tighten the
locknut securely.
24. Replace the cap nut and tighten to the proper torque (see “Table of Tightening
Torques”).
25. First fully open the outlet isolation valve.
26. Slowly open the inlet isolation valve carefully checking for any steam leaks. In the
event steam leaks are detected, immediately close the inlet isolation valve, then
the outlet isolation valve, and repair the source of leakage.
27. Check the temperature setting by observing an inline temperature sensor or by
measuring the temperature at the product inlet wrench flat at least 30 minutes
after supplying steam with the new settings. The product set temperature will be
approximately 10 to 20 C higher than the temperature reading on the product
body surface.
28. If the resultant temperature is no as desired, use the above instructions for
adjusting temperature settings. (See “Adjusting the Set Temperature”)

172-65379M-07 (LEX8-TZ) 6 Oct 2021
12
Maintenance
Take measures to prevent people from coming into direct contact with
product outlets. Failure to do so may result in burns or other injury from
the discharge of fluids.
CAUTION
Be sure to use only the recommended components when repairing the
product, and NEVER attempt to modify the product in any way. Failure to
observe these precautions may result in damage to the product or burns
or other injury due to malfunction or the discharge of fluids.
CAUTION
Operational Check
A visual inspection of the following items should be done on a daily basis to
determine whether the product is operating properly or has failed. Periodically (at
least biannually) the operation should also be checked by using diagnostic
equipment such as a product diagnostic instrument or a thermometer.
If the product should fail, it may cause damage to piping and equipment, resulting in
faulty or low quality products or losses due to steam leakage.
Normal
:
Condensate is being discharged from the discharge outlet.
Condensate temperature should be around the set
temperature. (The surface temperature of the product should
be about 10 to 20 °C lower than the set temperature.)
Blocked
(Discharge Impossible)
:
No condensate is discharged and the surface temperature of
the product is low.
Blowing
:
Live steam continually flows from the outlet and there is a
continuous hissing sound of flow.
(When conducting a visual inspection, flash steam is sometimes mistaken for steam
leakage. For this reason, the use of a steam trap diagnostic instrument [such as TLV
TrapMan if appropriate] in conjunction with the visual inspection is highly
recommended.)
Parts Inspection
When parts have been removed, or during periodic inspections, use the following
table to inspect the parts and replace any that are found to be defective.
Procedure
Gasket(s):
Check for warping and damage
Seal Ring:
Check for scratches and wear
Valve Stem:
Check for scratches and wear
Bimetal Element:
Check wear and deformation
Over-expansion and Return Springs:
Check for wear
Screen:
Check for clogging and corrosion
Valve Seat:
Check the seating surfaces for damage or wear
(After cleaning inside the body)
Check gasket for warping and damage
Check valve seat for damage or wear

172-65379M-07 (LEX8-TZ) 6 Oct 2021
13
Disassembly/Reassembly
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product
has cooled to room temperature. Disassembling or removing the
product when it is hot or under pressure may lead to discharge of fluids,
causing burns, other injuries or damage.
CAUTION
Use the following procedures to remove components. Use the same procedures in
reverse to reassemble. (Installation, inspection, maintenance, repairs, disassembly,
adjustment and valve opening/closing should be carried out only by trained
maintenance personnel.)
Detaching/Reattaching the Cap Nut, Locknut and Cover Unit
Part
During Disassembly
During Reassembly
Cap Nut
Remove with a spanner or socket
wrench
Consult the table of tightening torques
and tighten to the proper torque
Cap Nut
Gasket
Remove the gasket and clean
sealing surfaces
Replace with a new gasket if warped or
damaged
Locknut
Remove with a spanner or socket
wrench
Tighten enough to prevent the
adjustment screw from turning
Cover
Remove with a spanner or socket
wrench
Consult the table of tightening torques
and tighten to the proper torque
Cover
Gasket
Remove the gasket and clean
sealing surfaces
Replace with a new gasket; coat surfaces
with anti-seize
Adjusting
Screw &
Seal Ring
Screw in by using a flat-head
screwdriver
Be careful not to damage the seal ring
during reassembly and coat seal ring
surface with silicon type heat resistant
grease
Disassembly/Reassembly of the Valve Unit
Part
During Disassembly
During Reassembly
Snap Ring
Remove the snap ring from the
valve stem
Reattach to the valve stem
Washer
Remove washer from the valve
stem by lifting up and off
Slide onto the valve stem
Return Spring
Remove the return spring from the
valve stem by lifting up and off
Place on the valve stem
Thrust Plate
Remove the plate from the valve
stem by lifting up and off
Slide onto the valve stem
Bimetal
Element
(2 discs)
10 sets
Remove the bimetal element from
the valve stem by lifting up and off
Reassemble the bimetal elements,
paying special attention to the
proper orientation
(the TLV marks on the outside)
Washer
Remove the washer from the valve
stem by lifting up and off
Place 1 washer between each pair
of bimetal disks

172-65379M-07 (LEX8-TZ) 6 Oct 2021
14
Disassembly/Reassembly of the Body Unit
Part
During Disassembly
During Reassembly
Screen
Remove without bending
Reinsert without bending
Spring
Guide
Remove from the product body
Reassemble, being extremely careful to
reinsert in the correct orientation
Overexpan-
sion Spring
Remove from the product body
Reassemble, being careful not to place it
on the valve seat
Valve Seat
The surfaces of the valve seat are
highly polished; remove by using a
socket wrench, being careful not to
scratch the sealing surfaces
Consult the table of tightening torques
and tighten to the proper torque; be
careful not to scratch the seating
surfaces during reassembly
Valve Seat
Gasket
Remove, being careful not to bend
and clean sealing surfaces
Replace with a new gasket; coat
surfaces with anti-seize
Table of Tightening Torques
Cap Nut
Locknut
Cover
Valve Seat
Torque
Distance
Across
Flats
Torque
Distance
Across Flats
mm
Torque
Distance
Across Flats
mm
Torque
Distance
Across Flats
mm
Nm
mm
Nm
Nm
Nm
35
24
-
14
100
32
22
14
(1 Nm 10 kgcm)
NOTE: - Coat all threaded portions with anti-seize.
- If drawings or other special documentation were supplied for the product,
any torque given there takes precedence over values shown here.

172-65379M-07 (LEX8-TZ) 6 Oct 2021
15

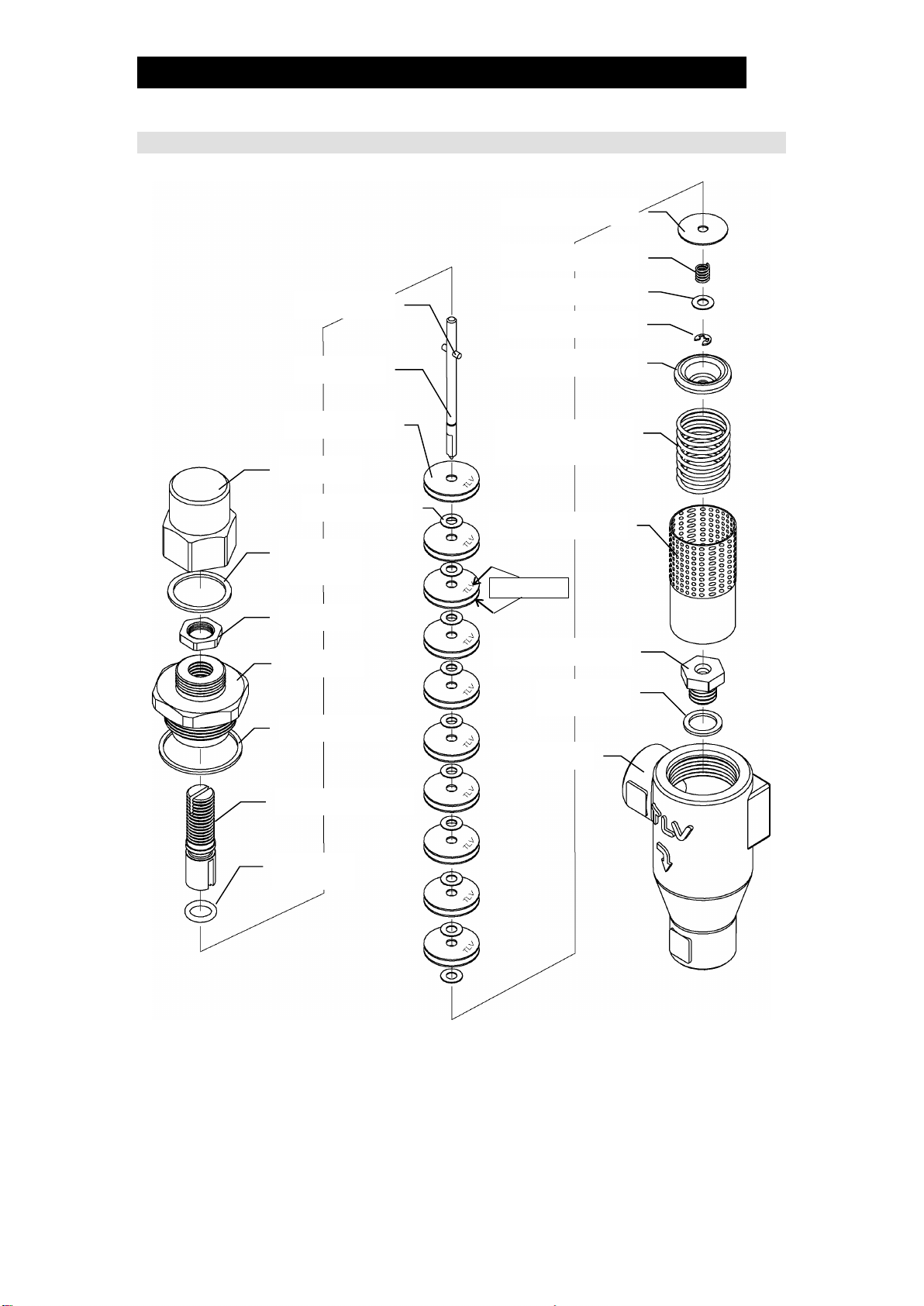

Exploded View
Cap Nut
Cap Nut
Gasket
Locknut
Cover
Cover Gasket
Adjusting Screw
Seal Ring
Valve Stem
Spring Pin
Bimetal Plate
Thrust Plate
Washer
Return Spring
Washer
Snap Ring
Spring Guide
Overexpansion
Spring
Screen
Valve Seat
Valve Seat
Gasket
Body
TLV Mark

172-65379M-07 (LEX8-TZ) 6 Oct 2021
16
Troubleshooting
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product
has cooled to room temperature. Disassembling or removing the
product when it is hot or under pressure may lead to discharge of fluids,
causing burns, other injuries or damage.
CAUTION
When the product fails to operate properly, use the following table to locate the cause and
remedy.
Problem
Cause
Remedy
No
condensate is
discharged or
temperature
doesn’t rise to
the set
temperature
The bimetal element is broken
Replace with a new bimetal
element
The assembly (orientation) of the
bimetal elements is not correct
Correct the assembly of the
bimetal elements
There is a build-up of dirt, etc. in the
spaces between the bimetal elements
Clean the bimetal elements
The valve seat is clogged with rust and
scale
Use built-in cleaning function
The screen or piping are clogged with
rust and scale
Clean parts
The adjusting screw is not correctly
positioned
Readjust the screw
Steam is
blowing or the
temperature
rises above
the set
temperature
There is a build-up of dirt or scale on
the valve stem or seating surfaces of
the valve seat
Use built-in cleaning function
The valve stem is worn
Replace with a new valve stem
The valve seat is worn
Replace with a new valve seat
The sealing surfaces of the valve stem
are damaged
Replace with a new valve stem
The sealing surfaces of the valve seat
are damaged
Replace with a new valve seat
The valve seat has loosened
Retighten to the proper torque
The valve seat gasket is damaged
Replace with a new gasket
The adjusting screw is not correctly
positioned
Readjust the screw
There is
leakage to the
outside of the
product
Leakage from the cap nut gasket:
The gasket or the seal ring is damaged
or deteriorated
Replace with a new gasket or
seal ring
Leakage from the adjusting screw:
The seal ring is damaged or
deteriorated
Replace with a new seal ring
Leakage from the cover gasket:
The gasket is damaged
Replace with a new gasket
NOTE: When replacing parts with new, use the parts list for reference, and replace with parts from the
Maintenance Kit, Repair Kit, etc. Please note that replacement parts are only available as part of
a replacement parts kit.

172-65379M-07 (LEX8-TZ) 6 Oct 2021
17
TLV EXPRESS LIMITED WARRANTY
Subject to the limitations set forth below, TLV CO., LTD., a Japanese corporation
(“TLV”), warrants that products which are sold by it, TLV International Inc. (“TII”) or
one of its group companies excluding TLV Corporation (a corporation of the United
States of America), (hereinafter the “Products”) are designed and manufactured by
TLV, conform to the specifications published by TLV for the corresponding part
numbers (the “Specifications”) and are free from defective workmanship and
materials. The party from whom the Products were purchased shall be known
hereinafter as the “Seller”. With regard to products or components manufactured by
unrelated third parties (the “Components”), TLV provides no warranty other than the
warranty from the third party manufacturer(s), if any.
Exceptions to Warranty
This warranty does not cover defects or failures caused by:
1. improper shipping, installation, use, handling, etc., by persons other than TLV, TII
or TLV group company personnel, or service representatives authorized by TLV;
or
2. dirt, scale or rust, etc.; or
3. improper disassembly and reassembly, or inadequate inspection and
maintenance by persons other than TLV or TLV group company personnel, or
service representatives authorized by TLV; or
4. disasters or forces of nature or Acts of God; or
5. abuse, abnormal use, accidents or any other cause beyond the control of TLV,
TII or TLV group companies; or
6. improper storage, maintenance or repair; or
7. operation of the Products not in accordance with instructions issued with the
Products or with accepted industry practices; or
8. use for a purpose or in a manner for which the Products were not intended; or
9. use of the Products in a manner inconsistent with the Specifications; or
10. use of the Products with Hazardous Fluids (fluids other than steam, air, water,
nitrogen, carbon dioxide and inert gases (helium, neon, argon, krypton, xenon
and radon)); or
11. failure to follow the instructions contained in the TLV Instruction Manual for the
Product.
Duration of Warranty
This warranty is effective for a period of one (1) year after delivery of Products to the
first end user. Notwithstanding the foregoing, asserting a claim under this warranty
must be brought within three (3) years after the date of delivery to the initial buyer if
not sold initially to the first end user.
ANY IMPLIED WARRANTIES NOT NEGATED HEREBY WHICH MAY ARISE BY
OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE AND ANY EXPRESS WARRANTIES NOT
NEGATED HEREBY, ARE GIVEN SOLELY TO THE INITIAL BUYER AND ARE LIMITED IN
DURATION TO ONE (1) YEAR FROM THE DATE OF SHIPMENT BY THE SELLER.
Exclusive Remedy
THE EXCLUSIVE REMEDY UNDER THIS WARRANTY, UNDER ANY EXPRESS
WARRANTY OR UNDER ANY IMPLIED WARRANTIES NOT NEGATED HEREBY
(INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE), IS REPLACEMENT; PROVIDED: (a) THE CLAIMED DEFECT IS

172-65379M-07 (LEX8-TZ) 6 Oct 2021
18
REPORTED TO THE SELLER IN WRITING WITHIN THE WARRANTY PERIOD,
INCLUDING A DETAILED WRITTEN DESCRIPTION OF THE CLAIMED DEFECT AND
HOW AND WHEN THE CLAIMED DEFECTIVE PRODUCT WAS USED; AND (b) THE
CLAIMED DEFECTIVE PRODUCT AND A COPY OF THE PURCHASE INVOICE IS
RETURNED TO THE SELLER, FREIGHT AND TRANSPORTATION COSTS PREPAID,
UNDER A RETURN MATERIAL AUTHORIZATION AND TRACKING NUMBER ISSUED BY
THE SELLER. ALL LABOR COSTS, SHIPPING COSTS, AND TRANSPORTATION COSTS
ASSOCIATED WITH THE RETURN OR REPLACEMENT OF THE CLAIMED DEFECTIVE
PRODUCT ARE SOLELY THE RESPONSIBILITY OF BUYER OR THE FIRST END USER.
THE SELLER RESERVES THE RIGHT TO INSPECT ON THE FIRST END USER’S SITE
ANY PRODUCTS CLAIMED TO BE DEFECTIVE BEFORE ISSUING A RETURN MATERIAL
AUTHORIZATION. SHOULD SUCH INSPECTION REVEAL, IN THE SELLER’S
REASONABLE DISCRETION, THAT THE CLAIMED DEFECT IS NOT COVERED BY THIS
WARRANTY, THE PARTY ASSERTING THIS WARRANTY SHALL PAY THE SELLER FOR
THE TIME AND EXPENSES RELATED TO SUCH ON-SITE INSPECTION.
Exclusion of Consequential and Incidental Damages
IT IS SPECIFICALLY ACKNOWLEDGED THAT THIS WARRANTY, ANY OTHER EXPRESS
WARRANTY NOT NEGATED HEREBY, AND ANY IMPLIED WARRANTY NOT NEGATED
HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR
ITS TLV GROUP COMPANIES WILL IN ANY EVENT BE LIABLE FOR, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO LOST PROFITS, THE
COST OF DISASSEMBLY AND SHIPMENT OF THE DEFECTIVE PRODUCT, INJURY TO
OTHER PROPERTY, DAMAGE TO BUYER’S OR THE FIRST END USER’S PRODUCT,
DAMAGE TO BUYER’S OR THE FIRST END USER’S PROCESSES, LOSS OF USE, OR
OTHER COMMERCIAL LOSSES. WHERE, DUE TO OPERATION OF LAW,
CONSEQUENTIAL AND INCIDENTAL DAMAGES UNDER THIS WARRANTY, UNDER ANY
OTHER EXPRESS WARRANTY NOT NEGATED HEREBY OR UNDER ANY IMPLIED
WARRANTY NOT NEGATED HEREBY (INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) CANNOT BE
EXCLUDED, SUCH DAMAGES ARE EXPRESSLY LIMITED IN AMOUNT TO THE
PURCHASE PRICE OF THE DEFECTIVE PRODUCT. THIS EXCLUSION OF
CONSEQUENTIAL AND INCIDENTAL DAMAGES, AND THE PROVISION OF THIS
WARRANTY LIMITING REMEDIES HEREUNDER TO REPLACEMENT, ARE
INDEPENDENT PROVISIONS, AND ANY DETERMINATION THAT THE LIMITATION OF
REMEDIES FAILS OF ITS ESSENTIAL PURPOSE OR ANY OTHER DETERMINATION
THAT EITHER OF THE ABOVE REMEDIES IS UNENFORCEABLE, SHALL NOT BE
CONSTRUED TO MAKE THE OTHER PROVISIONS UNENFORCEABLE.
Exclusion of Other Warranties
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
AND ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSLY DISCLAIMED.
Severability
Any provision of this warranty which is invalid, prohibited or unenforceable in any
jurisdiction shall, as to such jurisdiction, be ineffective to the extent of such invalidity,
prohibition or unenforceability without invalidating the remaining provisions hereof,
and any such invalidity, prohibition or unenforceability in any such jurisdiction shall
not invalidate or render unenforceable such provision in any other jurisdiction.

172-65379M-07 (LEX8-TZ) 6 Oct 2021
19
Service
For Service or Technical Assistance: Contact your TLV representative or your regional
TLV office.
In Europe:
Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany
Tel:
Fax:
[49]-(0)7263-9150-0
[49]-(0)7263-9150-50
Units 7 & 8, Furlong Business Park, Bishops Cleeve, Gloucestershire GL52
8TW, U.K.
Tel:
Fax:
[44]-(0)1242-227223
[44]-(0)1242-223077
Parc d’Ariane 2, bât. C, 290 rue Ferdinand Perrier, 69800 Saint Priest,
France
Tel:
Fax:
[33]–(0)4-72482222
[33]-(0)4-72482220
In North America:
13901 South Lakes Drive, Charlotte, NC 28273-6790, U.S.A.
Tel:
Fax:
[1]-704-597-9070
[1]-704-583-1610
In Mexico and Latin America:
Av. Jesús del Monte 39-B-1001, Col. Hda. de las Palmas, Huixquilucan,
Edo. de México, 52763, Mexico
Tel:
Fax:
[52]-55-5359-7949
[52]-55-5359-7585
In Oceania:
Unit 8, 137-145 Rooks Road, Nunawading, Victoria 3131, Australia
Tel:
Fax:
[61]-(0)3-9873 5610
[61]-(0)3-9873 5010
In East Asia:
36 Kaki Bukit Place, #02-01/02, Singapore 416214
Tel:
Fax:
[65]-6747 4600
[65]-6742 0345
Room 5406, No. 103 Cao Bao Road, Shanghai, China 200233
Tel:
Fax:
[86]-(0)21-6482-8622
[86]-(0)21-6482-8623
No.16, Jalan MJ14, Taman Industri Meranti Jaya, 47120 Puchong,
Selangor, Malaysia
Tel:
Fax:
[60]-3-8065-2928
[60]-3-8065-2923
252/94 (K-L) 17th Floor, Muang Thai-Phatra Complex Tower B,
Rachadaphisek Road, Huaykwang, Bangkok 10310, Thailand
Tel:
Fax:
[66]-2-693-3799
[66]-2-693-3979
#302-1 Bundang Technopark B, 723 Pangyo-ro, Bundang, Seongnam,
Gyeonggi, 13511, Korea
Tel:
Fax:
[82]-(0)31-726-2105
[82]-(0)31-726-2195
In the Middle East:
Building 2W, No. M002, PO Box 371684, Dubai Airport Free Zone, Dubai,
UAE
Email:
[email protected]
In Other Countries:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-427-1818
[81]-(0)79-425-1167
Manufacturer:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-422-1122
[81]-(0)79-422-0112
