TLV DC3S-L User manual

172-65286MA-03 (DC3S-L) 6 October 2021
Cyclone Separator Trap (for Steam)
DC3S-L
Copyright © 2021 by TLV CO., LTD.
All rights reserved

172-65286MA-03 (DC3S-L) 6 Oct 2021
1
Contents
Introduction ....................................................................... 1
Safety Considerations....................................................... 2
Specifications.................................................................... 4
Configuration..................................................................... 4
Installation......................................................................... 5
Maintenance...................................................................... 6
Disassembly/Reassembly................................................. 7
Troubleshooting .............................................................. 10
TLV EXPRESS LIMITED WARRANTY............................. 11
Service............................................................................. 13
Introduction
Thank you for purchasing the TLV cyclone separator trap for steam.
This product has been thoroughly inspected before being shipped from the
factory. When the separator trap is delivered, before doing anything else,
check the specifications and external appearance to make sure nothing is out
of the ordinary. Also be sure to read this manual carefully before use and
follow the instructions to be sure of using the separator trap properly.
For use on steam mains and branches, the cyclone separator traps use
centrifugal force to separate condensate from steam, and feature a built-in
free float steam trap for the automatic discharge of the collected condensate.
The combination of separator and built-in trap makes this product suitable for
use in locations where a separator would be installed together with a trap.
If detailed instructions for special order specifications or options not contained
in this manual are required, please contact TLV for full details.
This instruction manual is for the models listed on the front cover. It is needed
not only for installation but for subsequent maintenance,
disassembly/reassembly and troubleshooting. Please keep it in a safe place
for future reference.

172-65286MA-03 (DC3S-L) 6 Oct 2021
2
Safety Considerations
Read this section carefully before use and be sure to follow the instructions.
Installation, inspection, maintenance, repairs, disassembly, adjustment and
valve opening/closing should be carried out only by trained maintenance
personnel.
The precautions listed in this manual are designed to ensure safety and prevent
equipment damage and personal injury. For situations that may occur as a result
of erroneous handling, three different types of cautionary items are used to
indicate the degree of urgency and the scale of potential damage and danger:
DANGER, WARNING and CAUTION.
The three types of cautionary items above are very important for safety: be sure
to observe all of them as they relate to installation, use, maintenance, and repair.
Furthermore, TLV accepts no responsibility for any accidents or damage
occurring as a result of failure to observe these precautions.
Symbols
Indicates a DANGER, WARNING or CAUTION item.
Indicates an urgent situation which poses a threat of death or
serious injury
Indicates that there is a potential threat of death or serious injury
Indicates that there is a possibility of injury or equipment / product
damage
DO NOT use for toxic, flammable or otherwise hazardous
fluids.
This product is a separator trap for steam that separates and
discharges condensate from steam piping systems. Use only for
steam and/or steam condensate. This product is for intended use
only. Improper use may result in such hazards as damage to the
product or malfunctions that may lead to serious accidents.
NEVER apply direct heat to the float.
The float may explode due to increased internal pressure, causing
accidents leading to serious injury or damage to property and
equipment.
Install properly and DO NOT use this product outside the
recommended operating pressure, temperature and other
specification ranges.
Improper use may result in such hazards as damage to the product
or malfunctions that may lead to serious accidents. Local
regulations may restrict the use of this product to below the
conditions quoted.
DO NOT use this product in excess of the maximum operating
pressure differential.
Such use could make discharge impossible (blocked).
Continued on the next page
DANGER
WARNING
CAUTION
WARNING
CAUTION

172-65286MA-03 (DC3S-L) 6 Oct 2021
3
Use hoisting equipment for heavy objects (weighing
approximately 20 kg (44 lb) or more).
Failure to do so may result in back strain or other injury if the object
should fall.
Take measures to prevent people from coming into direct
contact with product outlets.
Failure to do so may result in burns or other injury from the
discharge of fluids.
When disassembling or removing the product, wait until the
internal pressure equals atmospheric pressure and the surface
of the product has cooled to room temperature.
Disassembling or removing the product when it is hot or under
pressure may lead to discharge of fluids, causing burns, other
injuries or damage.
Be sure to use only the recommended components when
repairing the product, and NEVER attempt to modify the
product in any way.
Failure to observe these precautions may result in damage to the
product and burns or other injury due to malfunction or the
discharge of fluids.
Do not use excessive force when connecting threaded pipes to
the product.
Over-tightening may cause breakage leading to fluid discharge,
which may cause burns or other injury.
Use only under conditions in which no freeze-up will occur.
Freezing may damage the product, leading to fluid discharge, which
may cause burns or other injury.
Use only under conditions in which no water hammer will
occur.
The impact of water hammer may damage the product, leading to
fluid discharge, which may cause burns or other injury.
CAUTION

172-65286MA-03 (DC3S-L) 6 Oct 2021
4
Specifications
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions which may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
CAUTION
DO NOT use this product in excess of the maximum operating pressure
differential; such use could make discharge impossible (blocked).
CAUTION
Use only under conditions in which no freeze-up will occur. Freezing
may damage the product, leading to fluid discharge, which may cause
burns or other injury.
CAUTION
Refer to the product nameplate for detailed specifications.
* Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are
PRESSURE SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS.
** Valve No. is displayed for products with options. This item is omitted from the nameplate
when there are no options.
Configuration
DO NOT use for toxic, flammable or otherwise hazardous fluids.
This product is a separator for steam that separates and discharges
condensate from steam piping systems. Use only for steam and/or
steam condensate. This product is for intended use only. Improper use
may result in such hazards as damage to the product or malfunctions
that may lead to serious accidents.
WARNING
Model
Maximum Allowable
Temperature (TMA)*
Maximum Allowable
Pressure*
Nominal Diameter
Maximum Differential
Pressure
Production Lot No.
Valve No.**
Maximum Operating
Temperature

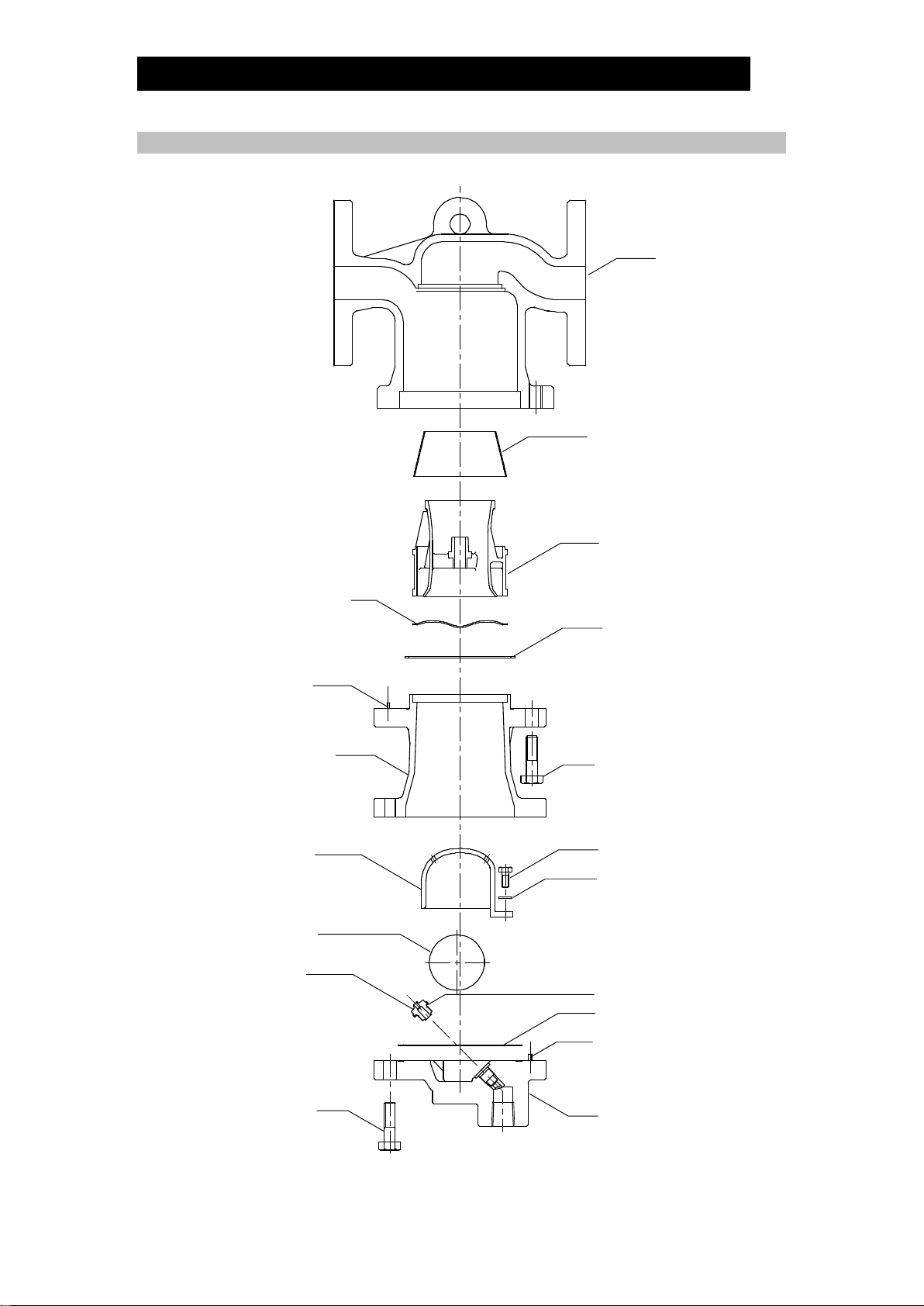

No.
Name
1
Body
2
Separator Body
3
Trap Cover
4
Separator
5
Float
6
Float Cover
7
Guide Pin
8
Trap Valve Seat
9
Valve Seat Gasket
10
Trap Cover Gasket
11
Wave Spring
12
Body Gasket
13
Screen
14
Bushing
15
Float Cover Bolt
16
Spring Washer
17
Body Bolt
18
Trap Cover Bolt
19
Nameplate
20
Flange
Separator
Outlet
Steam Trap
Outlet

172-65286MA-03 (DC3S-L) 6 Oct 2021
5
Installation
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions which may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
CAUTION
Use hoisting equipment for heavy objects (weighing approximately
20 kg (44 lb) or more). Failure to do so may result in back strain or other
injury if the object should fall.
CAUTION
Take measures to prevent people from coming into direct contact with
product outlets. Failure to do so may result in burns or other injury from
the discharge of fluids.
CAUTION
Do not use excessive force when connecting threaded pipes to the
product. Over-tightening may cause breakage leading to fluid
discharge, which may cause burns or other injury.
CAUTION
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
1. Before installation, be sure to remove all protective seals.
2. Before installing the product, blow out the inlet piping to remove any piping
scraps, dirt and oil. Close the inlet valve after blowdown.
3. Install the product at the point on the piping where the separation of condensate
will have the greatest effect on efficiency. For example, on a steam main or
branch at the inlet of equipment requiring high-quality dry steam.
4. Install the product so the arrow on the product is pointing in the direction of flow.
5. The product should be inclined no more than 10° horizontally and front-to-back.
6. Install a separator outlet valve and separator outlet piping, and steam trap outlet
fittings and steam trap outlet piping.
7. To facilitate inspection and maintenance, install a union at the steam trap outlet
and ensure that there is sufficient space for maintenance.
8. Open the inlet valve and outlet valves and check to make sure that the product
functions properly.
If there is a problem, determine the cause by using the “Troubleshooting” guide in
this manual.

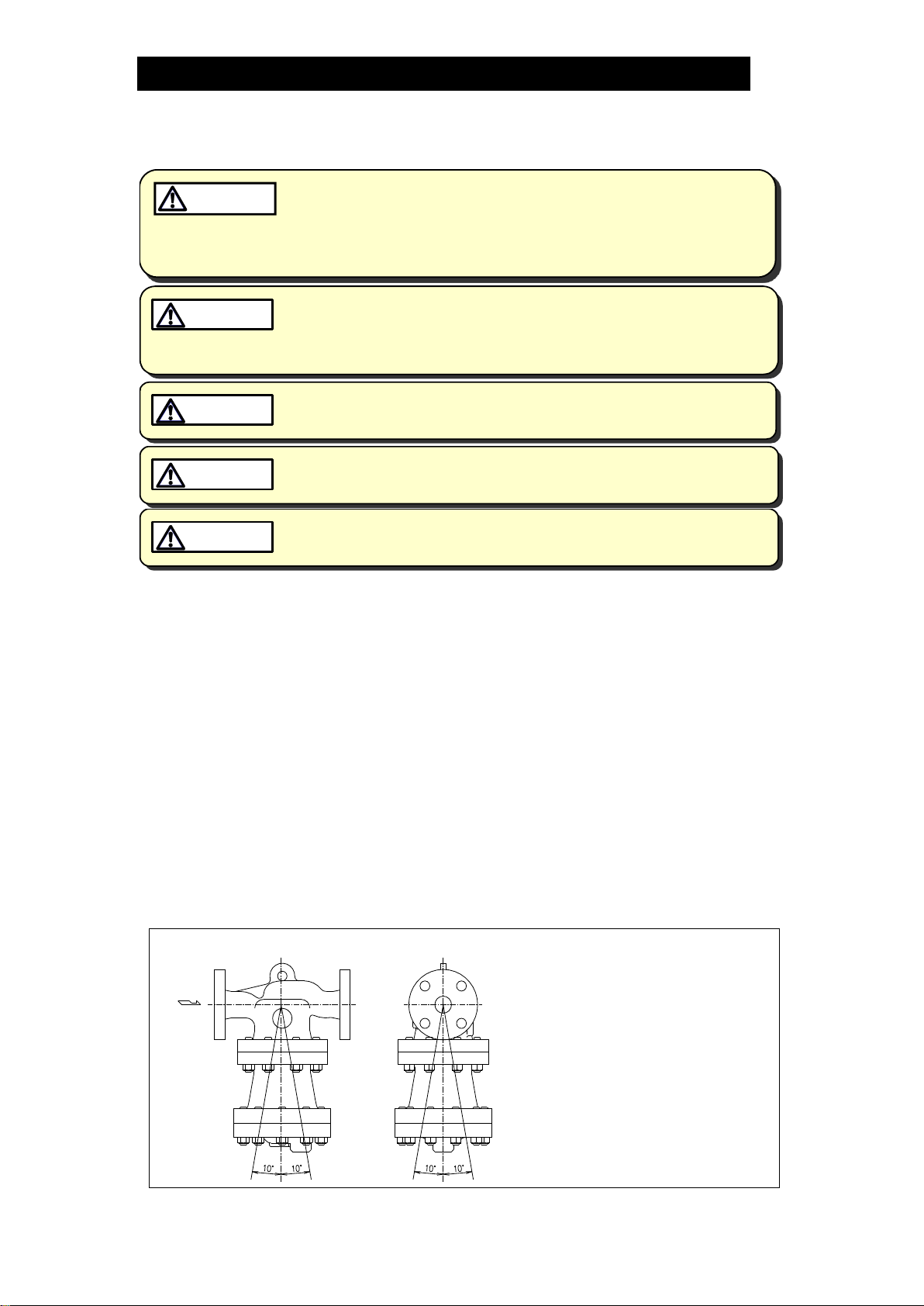

Tolerance Angle for Installation: 10°
Make sure the product is installed
with the raised TLV lettering on the
body horizontal.
DO NOT use for toxic, flammable or otherwise hazardous fluids.
This product is a separator for steam that separates and discharges
condensate from steam piping systems. Use only for steam and/or
steam condensate. This product is for intended use only. Improper use
may result in such hazards as damage to the product or malfunctions
that may lead to serious accidents.
WARNING

172-65286MA-03 (DC3S-L) 6 Oct 2021
6
Maintenance
Take measures to prevent people from coming into direct contact with
product outlets. Failure to do so may result in burns or other injury from
the discharge of fluids.
CAUTION
Be sure to use only the recommended components when repairing the
product, and NEVER attempt to modify the product in any way. Failure to
observe these precautions may result in damage to the product or burns
or other injury due to malfunction or the discharge of fluids.
CAUTION
Operational Check
A visual inspection of the following items should be done on a daily basis to
determine whether the product is operating properly or has failed. Periodically (at
least biannually) the operation should also be checked by using diagnostic
equipment, such as a stethoscope or thermometer. (Inspection, installation,
maintenance, repairs, disassembly, adjustment and valve opening/closing should be
carried out only by trained maintenance personnel.)
Check to see if steam is flowing from the separator outlet. Check all flow meters and
check the differential pressure. If there is insufficient flow or differential pressure is
too large, disassemble and check for clogging of the screen.
If the product should fail, it may cause damage to piping and equipment, resulting in
faulty or low quality products or losses due to steam leakage.
(Steam Trap Operational Check)
Normal
:
Condensate is discharged continuously from the product outlet with
flash steam and the sound of flow can be heard. If there is very little
condensate, there is almost no sound of flow.
Blocked
(Discharge
Impossible)
:
No condensate is discharged from the trap outlet. The product is quiet
and makes no noise, and the surface temperature of the product is
low.
Blowing
:
Live steam continuously flows from the trap outlet and there is a
continuous metallic sound.
Steam
Leakage
:
Live steam is discharged through the product outlet together with the
condensate and there is a high-pitched sound.
Parts Inspection
When parts have been removed, or during periodic inspections, use the following
table to inspect the parts and replace any that are found to be defective.
Procedure
Screen:
Check for clogging or corrosion
Gaskets:
Check for warping or damage
Float:
Check for scratches or dents
Trap Valve Seat:
Check for wear or scratches
Body Interior:
Check for build-up

172-65286MA-03 (DC3S-L) 6 Oct 2021
7
Disassembly/Reassembly
NEVER apply direct heat to the float. The float may explode due to
increased internal pressure, causing accidents leading to serious injury
or damage to property and equipment.
WARNING
Use hoisting equipment for heavy objects (weighing approximately
20 kg (44 lb) or more). Failure to do so may result in back strain or other
injury if the object should fall.
CAUTION
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product
has cooled to room temperature. Disassembling or removing the
product when it is hot or under pressure may lead to discharge of fluids,
causing burns, other injuries or damage.
CAUTION
Use the following procedures to remove components. Use the same procedures in
reverse to reassemble. (Installation, maintenance, repairs, disassembly, adjustment
and valve opening/closing should be carried out only by trained maintenance
personnel.)
Removing/Reattaching the Trap Cover
Part
During Disassembly
During Reassembly
Trap Cover Bolt
Remove with a socket wrench
Consult the table of tightening
torques and tighten to the proper
torque
Trap Cover
Remove the trap cover by pulling it
down, being careful not to scratch the
seating surface
Make sure there are no pieces of the
old gasket left on the sealing
surfaces of the separator body and
trap cover, align the guide pin on the
separator body with the guide pin
hole on the trap cover and reattach
Trap Cover
Gasket
Remove the gasket and clean
sealing surfaces
Replace with a new gasket
Removing/Reinserting Parts inside the Trap Cover
Part
During Disassembly
During Reassembly
Float Cover Bolt
(Spring Washer)
Remove with a socket wrench
Consult the table of tightening
torques and tighten to the proper
torque
Float Cover
Remove by lifting up and off
Place it into position
Float
Remove, being careful not to scratch
the polished surface
Insert, being careful not to scratch
the polished surface
Trap Valve Seat
Remove with a socket wrench
Consult the table of tightening
torques and tighten to the proper
torque
Valve Seat
Gasket
Remove the gasket and clean
sealing surfaces
Replace with a new gasket

172-65286MA-03 (DC3S-L) 6 Oct 2021
8
Separating/Reattaching Body and Separator Body
Part
During Disassembly
During Reassembly
Body Bolt
Remove with a socket wrench
Consult the table of tightening
torques and tighten to the proper
torque
Separator Body
Pull down and out from the body,
being careful not to let the separator
fall as it comes out with the separator
body
Make sure there are no pieces of
the old gasket left on the sealing
surfaces of the separator body and
body, align the guide pin on the
separator body with the guide pin
hole on the body and reattach
Separator
Remove when detaching the
separator body
Insert into the groove in the
separator body
Screen
Remove, being careful not to bend
Place on top of the separator, being
careful not to bend
Wave Spring
Remove with the separator
Insert into the groove in the
separator body
Body Gasket
Remove the gasket and clean
sealing surfaces
Replace with a new gasket
Table of Tightening Torques
Part
Size
Torque
Distance Across Flats
mm
(in)
Nm
(lbfft)
mm
(in)
Body Bolt
15 –40
(1∕2–11∕2)
60
(44)
17
(21/32)
50
(2)
70
(51)
19
(3/4)
Trap Cover Bolt
15 –40
(1∕2–11∕2)
60
(44)
17
(21/32)
50
(2)
70
(51)
19
(3/4)
Trap Valve Seat
15, 20
(1∕2, 3∕4)
10
(7)
11
(7/16)
25, 40
(1, 13∕4)
15
(11)
13
(1/2)
50
(2)
40
(29)
17
(21/32)
Float Cover Bolt
15 –50
(1∕2–2)
20
(15)
13
(1/2)
NOTE:
-Coat all threaded portions with anti-seize.
-If drawings or other special documentation were supplied
for the product, any torque given there takes precedence
over values shown here.
(1 Nm 10 kgcm)

172-65286MA-03 (DC3S-L) 6 Oct 2021
9
Exploded View
Body
Screen
Separator
Body Gasket
Wave Spring
Guide Pin
Separator Body
Body Bolt
Float Cover Bolt
Spring Washer
Float Cover
Float
Trap Valve Seat
Valve Seat Gasket
Trap Cover Gasket
Trap Cover
Trap Cover Bolt
Guide Pin

172-65286MA-03 (DC3S-L) 6 Oct 2021
10
Troubleshooting
NEVER apply direct heat to the float. The float may explode due to
increased internal pressure, causing accidents leading to serious injury
or damage to property and equipment.
WARNING
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product
has cooled to room temperature. Disassembling or removing the
product when it is hot or under pressure may lead to discharge of fluids,
causing burns, other injuries or damage.
CAUTION
When the product fails to operate properly, use the following table to locate the cause
and remedy.
Problem
Cause
Remedy
No condensate is
discharged (blocked)
or discharge is poor
The float is damaged or filled with
condensate
Replace with a new float
The trap valve seat port, screen or
piping is clogged with rust or scale
Clean parts
The trap operating pressure exceeds
the maximum specified pressure, or
there is insufficient pressure differential
between the trap inlet and outlet
Compare specifications and
actual operating conditions
Steam is discharged
or leaks from the trap
outlet
(blowing)
(steam leakage)
Rust and scale have accumulated
around the trap valve seat or beneath
the float
Clean parts
The trap valve seat is damaged
Replace with a new trap
valve seat
The float is deformed or coated with
scale
Clean or replace with a new
float
The separator is installed above the
maximum allowable inclination
Correct the installation
Steam is leaking
from sealing
surfaces
Gasket deterioration or damage
Replace with a new gasket
Improper tightening torques were used
Tighten to the proper torque
Water is mixed in
with the steam from
the separator outlet
Steam flow velocity is too high
Take steps necessary to
lower the steam flow velocity
Review causes listed above in “No condensate is discharged…” and
follow the appropriate remedy
Separator outlet
pressure drops or
desired flow rate is
unachievable
The screen is clogged with rust and
scale
Clean or replace with a new
screen

172-65286MA-03 (DC3S-L) 6 Oct 2021
11
TLV EXPRESS LIMITED WARRANTY
Subject to the limitations set forth below, TLV CO., LTD., a Japanese corporation
(“TLV”), warrants that products which are sold by it, TLV International Inc. (“TII”) or
one of its group companies excluding TLV Corporation (a corporation of the United
States of America), (hereinafter the “Products”) are designed and manufactured by
TLV, conform to the specifications published by TLV for the corresponding part
numbers (the “Specifications”) and are free from defective workmanship and
materials. The party from whom the Products were purchased shall be known
hereinafter as the “Seller”. With regard to products or components manufactured by
unrelated third parties (the “Components”), TLV provides no warranty other than the
warranty from the third party manufacturer(s), if any.
Exceptions to Warranty
This warranty does not cover defects or failures caused by:
1. improper shipping, installation, use, handling, etc., by persons other than TLV,
TII or TLV group company personnel, or service representatives authorized by
TLV; or
2. dirt, scale or rust, etc.; or
3. improper disassembly and reassembly, or inadequate inspection and
maintenance by persons other than TLV or TLV group company personnel, or
service representatives authorized by TLV; or
4. disasters or forces of nature or Acts of God; or
5. abuse, abnormal use, accidents or any other cause beyond the control of TLV,
TII or TLV group companies; or
6. improper storage, maintenance or repair; or
7. operation of the Products not in accordance with instructions issued with the
Products or with accepted industry practices; or
8. use for a purpose or in a manner for which the Products were not intended; or
9. use of the Products in a manner inconsistent with the Specifications; or
10. use of the Products with Hazardous Fluids (fluids other than steam, air, water,
nitrogen, carbon dioxide and inert gases (helium, neon, argon, krypton, xenon
and radon)); or
11. failure to follow the instructions contained in the TLV Instruction Manual for the
Product.
Duration of Warranty
This warranty is effective for a period of one (1) year after delivery of Products to the
first end user. Notwithstanding the foregoing, asserting a claim under this warranty
must be brought within three (3) years after the date of delivery to the initial buyer if
not sold initially to the first end user.
ANY IMPLIED WARRANTIES NOT NEGATED HEREBY WHICH MAY ARISE BY
OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE AND ANY EXPRESS WARRANTIES NOT
NEGATED HEREBY, ARE GIVEN SOLELY TO THE INITIAL BUYER AND ARE LIMITED IN
DURATION TO ONE (1) YEAR FROM THE DATE OF SHIPMENT BY THE SELLER.
Exclusive Remedy
THE EXCLUSIVE REMEDY UNDER THIS WARRANTY, UNDER ANY EXPRESS
WARRANTY OR UNDER ANY IMPLIED WARRANTIES NOT NEGATED HEREBY
(INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE), IS REPLACEMENT; PROVIDED: (a) THE CLAIMED DEFECT IS

172-65286MA-03 (DC3S-L) 6 Oct 2021
12
REPORTED TO THE SELLER IN WRITING WITHIN THE WARRANTY PERIOD, INCLUDING
A DETAILED WRITTEN DESCRIPTION OF THE CLAIMED DEFECT AND HOW AND WHEN
THE CLAIMED DEFECTIVE PRODUCT WAS USED; AND (b) THE CLAIMED DEFECTIVE
PRODUCT AND A COPY OF THE PURCHASE INVOICE IS RETURNED TO THE SELLER,
FREIGHT AND TRANSPORTATION COSTS PREPAID, UNDER A RETURN MATERIAL
AUTHORIZATION AND TRACKING NUMBER ISSUED BY THE SELLER. ALL LABOR
COSTS, SHIPPING COSTS, AND TRANSPORTATION COSTS ASSOCIATED WITH THE
RETURN OR REPLACEMENT OF THE CLAIMED DEFECTIVE PRODUCT ARE SOLELY
THE RESPONSIBILITY OF BUYER OR THE FIRST END USER. THE SELLER RESERVES
THE RIGHT TO INSPECT ON THE FIRST END USER’S SITE ANY PRODUCTS CLAIMED
TO BE DEFECTIVE BEFORE ISSUING A RETURN MATERIAL AUTHORIZATION. SHOULD
SUCH INSPECTION REVEAL, IN THE SELLER’S REASONABLE DISCRETION, THAT THE
CLAIMED DEFECT IS NOT COVERED BY THIS WARRANTY, THE PARTY ASSERTING
THIS WARRANTY SHALL PAY THE SELLER FOR THE TIME AND EXPENSES RELATED
TO SUCH ON-SITE INSPECTION.
Exclusion of Consequential and Incidental Damages
IT IS SPECIFICALLY ACKNOWLEDGED THAT THIS WARRANTY, ANY OTHER EXPRESS
WARRANTY NOT NEGATED HEREBY, AND ANY IMPLIED WARRANTY NOT NEGATED
HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR ITS TLV
GROUP COMPANIES WILL IN ANY EVENT BE LIABLE FOR, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO LOST PROFITS, THE
COST OF DISASSEMBLY AND SHIPMENT OF THE DEFECTIVE PRODUCT, INJURY TO
OTHER PROPERTY, DAMAGE TO BUYER’S OR THE FIRST END USER’S PRODUCT,
DAMAGE TO BUYER’S OR THE FIRST END USER’S PROCESSES, LOSS OF USE, OR
OTHER COMMERCIAL LOSSES. WHERE, DUE TO OPERATION OF LAW,
CONSEQUENTIAL AND INCIDENTAL DAMAGES UNDER THIS WARRANTY, UNDER ANY
OTHER EXPRESS WARRANTY NOT NEGATED HEREBY OR UNDER ANY IMPLIED
WARRANTY NOT NEGATED HEREBY (INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) CANNOT BE
EXCLUDED, SUCH DAMAGES ARE EXPRESSLY LIMITED IN AMOUNT TO THE
PURCHASE PRICE OF THE DEFECTIVE PRODUCT. THIS EXCLUSION OF
CONSEQUENTIAL AND INCIDENTAL DAMAGES, AND THE PROVISION OF THIS
WARRANTY LIMITING REMEDIES HEREUNDER TO REPLACEMENT, ARE INDEPENDENT
PROVISIONS, AND ANY DETERMINATION THAT THE LIMITATION OF REMEDIES FAILS
OF ITS ESSENTIAL PURPOSE OR ANY OTHER DETERMINATION THAT EITHER OF THE
ABOVE REMEDIES IS UNENFORCEABLE, SHALL NOT BE CONSTRUED TO MAKE THE
OTHER PROVISIONS UNENFORCEABLE.
Exclusion of Other Warranties
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
AND ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSLY DISCLAIMED.
Severability
Any provision of this warranty which is invalid, prohibited or unenforceable in any
jurisdiction shall, as to such jurisdiction, be ineffective to the extent of such invalidity,
prohibition or unenforceability without invalidating the remaining provisions hereof,
and any such invalidity, prohibition or unenforceability in any such jurisdiction shall
not invalidate or render unenforceable such provision in any other jurisdiction.

172-65286MA-03 (DC3S-L) 6 Oct 2021
13
Service
For Service or Technical Assistance: Contact your TLV representative or your regional TLV office.
In Europe:
Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany
Tel:
Fax:
[49]-(0)7263-9150-0
[49]-(0)7263-9150-50
Units 7 & 8, Furlong Business Park, Bishops Cleeve, Gloucestershire GL52
8TW, U.K.
Tel:
Fax:
[44]-(0)1242-227223
[44]-(0)1242-223077
Parc d’Ariane 2, bât. C, 290 rue Ferdinand Perrier, 69800 Saint Priest,
France
Tel:
Fax:
33–(0)4-72482222
[33]-(0)4-72482220
In North America:
13901 South Lakes Drive, Charlotte, NC 28273-6790, U.S.A.
Tel:
Fax:
[1]-704-597-9070
[1]-704-583-1610
In Mexico and Latin America:
Av. Jesús del Monte 39-B-1001, Col. Hda. de las Palmas, Huixquilucan,
Edo. de México, 52763, Mexico
Tel:
Fax:
[52]-55-5359-7949
[52]-55-5359-7585
In Oceania:
Unit 8, 137-145 Rooks Road, Nunawading, Victoria 3131, Australia
Tel:
Fax:
[61]-(0)3-9873 5610
[61]-(0)3-9873 5010
In East Asia:
36 Kaki Bukit Place, #02-01/02, Singapore 416214
Tel:
Fax:
[65]-6747 4600
[65]-6742 0345
Room 5406, No. 103 Cao Bao Road, Shanghai, China 200233
Tel:
Fax:
[86]-(0)21-6482-8622
[86]-(0)21-6482-8623
No.16, Jalan MJ14, Taman Industri Meranti Jaya, 47120 Puchong,
Selangor, Malaysia
Tel:
Fax:
[60]-3-8065-2928
[60]-3-8065-2923
252/94 (K-L) 17th Floor, Muang Thai-Phatra Complex Tower B,
Rachadaphisek Road, Huaykwang, Bangkok 10310, Thailand
Tel:
Fax:
[66]-2-693-3799
[66]-2-693-3979
#302-1 Bundang Technopark B, 723 Pangyo-ro, Bundang, Seongnam,
Gyeonggi, 13511, Korea
Tel:
Fax:
[82]-(0)31-726-2105
[82]-(0)31-726-2195
In the Middle East:
Building 2W, No. M002, POBox371684, Dubai Airport Free Zone, Dubai, UAE
Email:
[email protected]
In Other Countries:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-427-1818
[81]-(0)79-425-1167
Manufacturer:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-422-1122
[81]-(0)79-422-0112
