TMG TMG-TWB24 User manual

Truck Wheel Balancer
MODEL:TMG-TWB24
W W W. T M G I N D U S T RI A L . C O M To l l F r ee : 1 - 8 7 7- 7 6 1 - 2 8 1 9
With
p
neumatic lift
p
latform
PRODUCT MANUAL
Please read the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: [email protected]
Do not return the product to dealer, they are not equipped to handle your
requests

Contents
1.Summary of the balancing machine……………………………..............……...3
1.1.Brief introduction of appearance………………………………......................................…..3
1.2.Performance and characteristic………………………….….........................……...............3
1.3.Main technical parameters………………………....……...…….....................................…..4
1.4.Operating principle……………………....……....................................................................4
2.Balancing machine installation guide..............................................................5
3.Use of balancing machine...............................................................................6
3.1.Attention before using ...................................................................……………………...6
3.2.Introduction of panel.......................................................……………………………….…6
3.3.Putting through the power and number input..……..............……………………………..7
3.4.Select and change the unit...................................................................................……..8
3.5.Some examples about balancing...................................................................................8
3.6.Options for mode of balancing.......................................................................................9
3.7.Precautions in the process of use and balancing experiences......................................10
3.8.Balancing experiences...................................................................................................10
4.Self-calibration……...........………………………......…………………………….11
5.Function setting.............................…………………....…………......………...…13
6.Balancing machine self-testing function..………………….......………………...13
7.Common failure codes and solutions...............................................................14
8.Accessories accompanying machines………………………......………............15
9.Exploded drawing.............................................................................................16
W W W . T M G I N D U S T R I A L . C O M P 2 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

1. Summary of the balancing machine
1.1.Brief introduction of appearance
1.2. Performance and characteristic
●This machine adopts imported large-scale integrated circuit to make up the microcomputer
system with high intelligence and high stability.This machine is equipped with the
counterweight optimization procedure.
●Main shaft of balancing adopts imported bearing for transmission, it is
processed accurately.It is wear-resisting and low noise.
●The most advanced motor driving system in 21st century in the world with
extremely high stability.
●Test function of full-automatic dynamic balance and static balance.
●Functions to balance three kinds of aluminium alloy wheel rim.
●Balance precision is up to ±1g, balance takes at least 8 seconds each time.
●Functions of self correction and full automatic diagnosis.
●With pneumatic lifting device and international standard jig.
●With pedal positioning brake, stable positioning and convenient counterweight.
Wheel cover
Distance finder
Pneumatic switch
Pneumatic lifting
device
Outer air source holes
in the bottom
Protective
axle for balancing
Pedal brake
Handle
Switch Counter
Main box
control
W W W . T M G I N D U S T R I A L . C O M P 3 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

1.3. Main technical parameters
Scope of application
Garage, transportation company ,
Department motorcade, The
professional service station of tire
Power supply
110~120V/60Hz 1PH
Machine motor
3/4HP
Maximum diameter of wheel
47”
Width of steel rim
5-1/2”～20”
Diameter of steel rim
13”～24”
Maximum weight of wheel
150kg
Measurement time
8 seconds each time
Working temperature
0~50℃
1.4.Operating principle
The CPU can only run the balancing operation when it receives the normal information from
each unit. In the balance process, the CPU comprehensively analyzes the unevenness detected
by the piezoelectric sensor and the Angle signal of the counting sensor, calculates the unbalance
value, which is displayed by the LED, realizes man-machine dialogue through the keyboard, and
achieves the tire balance.
W W W . T M G I N D U S T R I A L . C O M P 4 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

2. Balancing machine installation guide
1. Open the package, remove the connecting screw between the balancer and the bottom
bracket of the packing case, lift-off balancing machine，place it on a flat, solid ground，there
should be more than 800mm space around the balancing machine for the operating
convenience.
2.Electrical connection（Must comply with the requirements of the country and region）
Operated by a professional electrician, the body box must be grounded.
2. Before connecting the main shaft of the balancing machine with the screw, wipe the
connection between the spindle head and the screw first, then tighten it with a wrench.
3. Loosen the screw, turn the control panel, adjust the Angle and then tighten the screw
4. Open the cover at the back of the machine and install the wheel cover as shown in the picture
5.Installation the protective and wheel on the pneumatic lifting device, then contact the air source
W W W . T M G I N D U S T R I A L . C O M P 5 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

3. Use of balancing machine
3.1.Attention before using
※Carrying the balance machine can only lift the machine chassis , can't lift the main shaft in any
case.
※Balancing machine and Pneumatic lifting device must place at steady ground (can be fixed
with expansion screw ) and guarantee enough space all around or it will cause the balance error
if the machine is unstable.
※Outer power must have protective devices to prevent electricity leak, the machine case must
be grounded (earth connection is in rear of the machine).
※Balancing machine cann’t be placed in a moist environment , otherwise machine will be
damaged.
※While installing the lead screw on the shaft , clean the main shaft and lead screw level with
alcohol or petrol first , then connect the lead screw to the main shaft and fasten by spanner
※While balancing medium and small sized tire , choose suitable cone. Then lock the tire with
cone and nut (inside of the tire is close to the machine case)
※While balancing the large sized tire , first fasten clean matching device on the main shaft, then
clamp the tire on the main shaft with cone which is suitable for the tire centre bore and balance
tire.
※While installing the large sized tire, pneumatic lifting device can be used to assist installation.
※The external air source connected to pneumatic lifting device must guarantee to be about
115psi (moves the pneumatic switch to lift or drop).
(For unidentified name, please see brief introduction of appearance and accessories
accompanying machines.)
3.2. Introduction of panel:
④
③
⑫
⑬
①
⑤
⑮
⑯
②
⑥
⑦
⑭
⑪
⑩
⑨
⑧
W W W . T M G I N D U S T R I A L . C O M P 6 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

①indication for uneven edge inside wheel
②indication for uneven edge outside wheel
③indication for uneven edge position inside wheel
④indication for uneven edge position outside wheel
⑤indication of balance mode
⑥Data to debug key
⑦Enter key
⑧Accurate key
⑨Option key
⑩Data reduction key
⑪Data increment key
⑫Stop key
⑬Unit conversion key
⑭Function key
⑮Start key
⑯Bus/Car shift key
3.3. Putting through the power and number input
1.Turn on the power switch and start self-check inside the balancing machine. The default
measurement option after self-inspection is standard dynamic balance of truck state.（It takes
more than 5 seconds to restart the machine）.
2.Wheel installation
When the wheel is installed, different clamps are selected according to the tire size, as shown in
the picture：
W W W . T M G I N D U S T R I A L . C O M P 7 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

3.Wheel data input:
Press key and choose a，pull the ruler to the inside of the rim and install the equalizer，
according to the number，press or key，type the actual value. This machine defaults
to the common value mm。
Then press key and select input rim width data b，measure the width of two rims with the
width gauge in the accessories, press or key，input the width data of the caliper. This
machine defaults to British Inch.
Then press key and select data d to enter the tire diameter，Check the tire marking to
confirm rim diameter and then press or key, input the rim diameter date. This machine
defaults to British inch.
3.4. Select and change the unit
Press key can change Gram & Ounce
3.5. Some examples about balancing
After boot, the spindle is fitted with tires to select the appropriate cone, and the release nut is
locked, Input a、b、d three datas, For instance：as picture
1. Press key, 8 seconds later, automatic brake shows as picture:
is add lead lump value inside tire
is add lead lump value outside tire
2. Rotate wheel to make inside indicator lamp be on and vertical over the main shaft, strike 145g
lead lump on wheel steel (as picture)
W W W . T M G I N D U S T R I A L . C O M P 8 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

3. Then rotate wheel to make outside indicator lamp be on and vertical over the main shaft, take
away 115g lead lump from wheel steel (as picture)
4.At this time outside indicator also indicates 0, balance is over, unload the tire . if you test the
tire again, you needn’t switch off power
3.6. Options for mode of balancing(Press F key to select)
According to wheel material and rim structure , choose the following balance mode to press F
key in succession and can show the balance mode that rim needs for different structure and
material
1.Static balance: revision is adopted when balance lump can’t added on wheels both sides of rim
W W W . T M G I N D U S T R I A L . C O M P 9 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

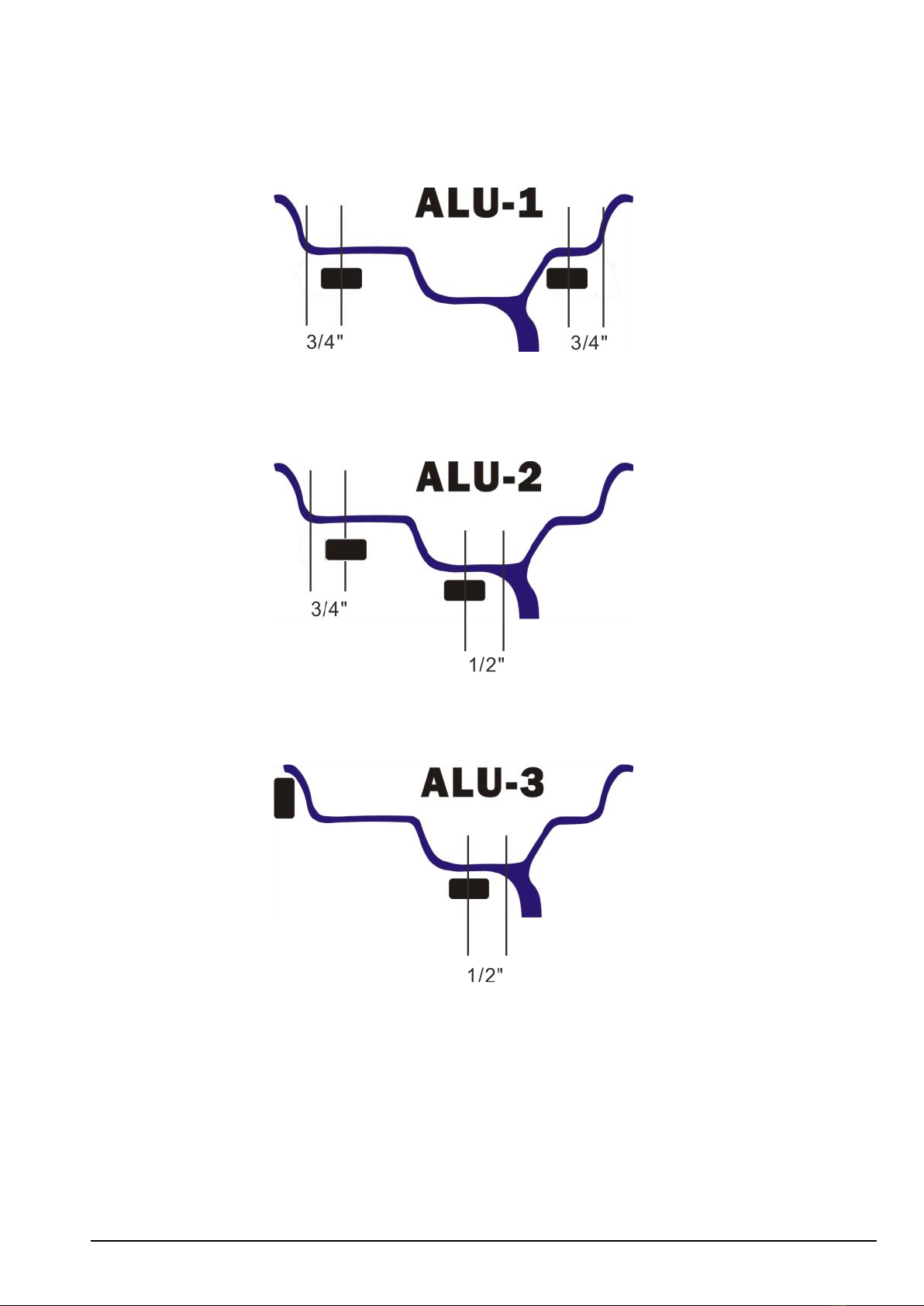

2. ALU1-Balance the light-alloy rim, adopt a way of adhering balance lump on the two shoulders
in the rim
A1=A+3/4” A2=A+b-3/4”
3. ALU2-Balance the light-alloy rim, adopt a way of gluing balance lump hidden inside
A1=A+3/4” A2=Point 0 the outer distance of flange-1/2”
4. ALU3-Inner circle clips balance lump, outside adhere to balance lump
A1=A A2=Point 0 the outer distance of flange-1/2
W W W . T M G I N D U S T R I A L . C O M P 1 0 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

3.7.Precautions in the process of use
Attention:
·When power starts, push the wheel by hands to assist starting which will extend motor’s
life.Due to balance angle error, please find out by yourself when this machine rotates wheel to
find balance point, pay attention which direction is much more accurate when wheel turns
inward or outward.
·As the balance is over, unload the tire, pay attention to handling with care , don’t strike the
main shaft.
·While assisting braking , by the time when the display board has data to show , then can step
on the pedal brake at the lower right corner of the machine , otherwise diminish the life-span of
the machine.
3.8.Balancing experiences:
1.As indicated data is less than 50g, lead lump can be struck at the same time on both sides
2.When number is greater than 50g , producer proposes to balance one side after another,
namely one side which balance number is greater is balanced to reach “00” and then another
side is balanced to reach " 00 ".
3.When there is still a small remaining part of lead lump after striking lead lump, it is because
there is a error of lead lump position,it can be solved through moving lead lump to direction
where there is space.
4.After “00”-“00” occur, 5,6,7g will occur also by accident, it is thought to normal
phenomenon.Precision of this machine is 5g namely it is zero below 4g. Allowed change scope
of this machine is 3g, 7g error will indicate by accident, it will not affect balancing effect of this
machine.
5.When appearing incorrectly or repeatedly strike but not reach 00, you can self correct the
machine (please see the next page for re-storation of standard process)
Comments: This experience is only for reference. Hope user can grasp machine
performance skillfully for better use.
W W W . T M G I N D U S T R I A L . C O M P 1 1 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

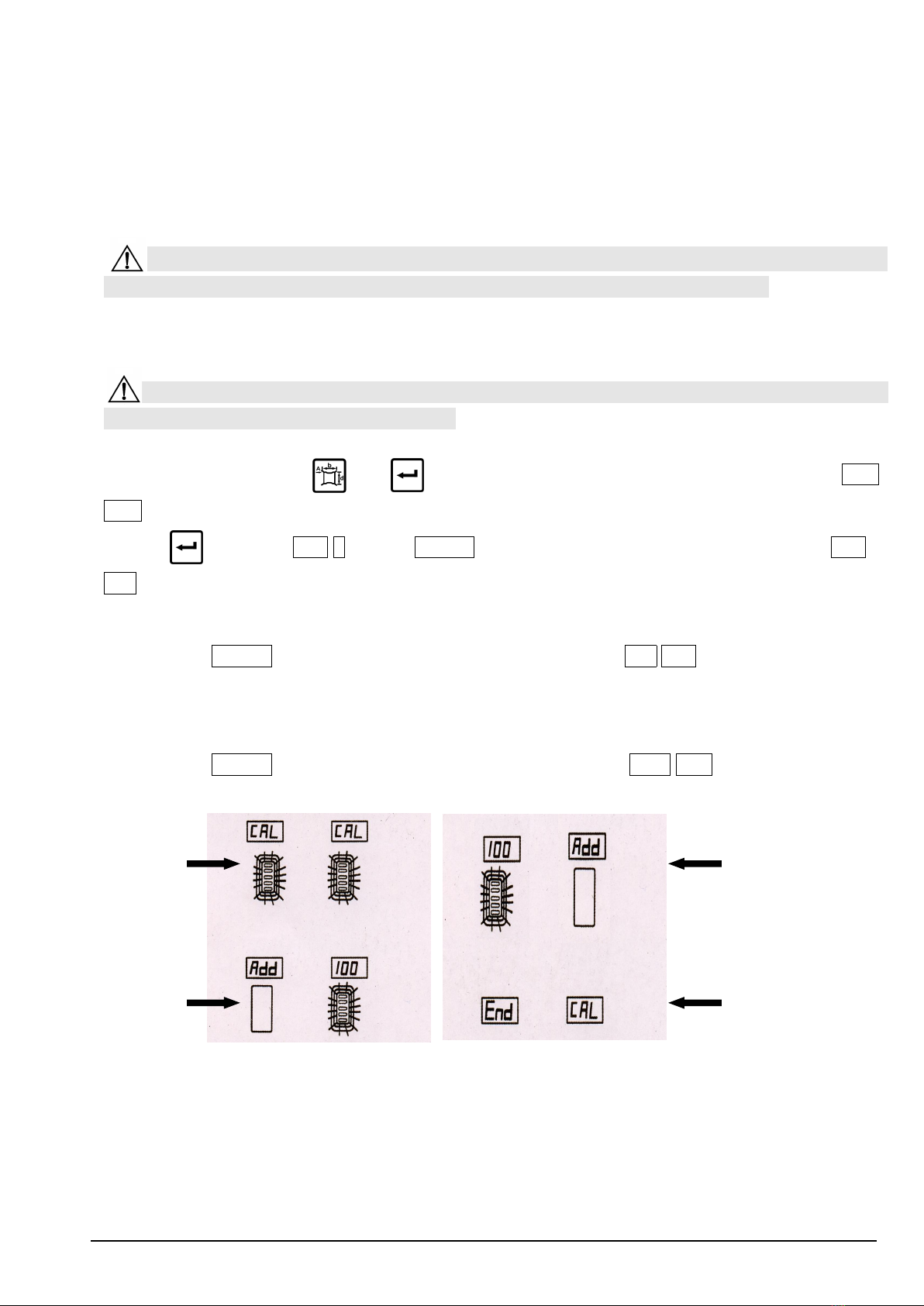

4.Self -calibration（Car and truck tires need to be corrected separately）
Self correction has been finished in the factory. If you use for many years and change part or
doubt balance to be a big error, you can self correct it again.( Choose one medium-sized tire to
install on main shaft , uneventy of steel rim on both sides of wheel is relatively slight)
Warning:When going self calibration, Make sure that the wheel is required to be
plentiful air, Remove dirt or impurities from the tires, The balancer must be stable
1.Input correct number of this tire A, b ,d.
Attention: Incorrect input of size will lead to that machine can’t correctly determine caliber
so following measurement will have errors.
2.at the same time press and keys，A few seconds later，display window show CAL
CAL
3.press key show Add 0，press START key, after the machine stops running show Add
100, push the wheel, just above the outside position,(When the leaded position indicator lights
are all on), add 100g standard lead lump
4.then press START key, after the machine stops running show100 Add ,Remove the 100g
rectified lead block from the outside,directly above the inner side position（When the leaded
position indicator lights are all on）
5.then press START key, after the machine stops running show END CAL , self calibration is
ending .
Step 2
Step 3
Step 4
Step 5
W W W . T M G I N D U S T R I A L . C O M P 1 2 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

Two key elements to judge if self correction is accurate
1. Accurate number indication
2. Show that phase is right (namely outside indicator lamps are all on and 100g lead lump is
rightly under shaft. )
Problems that occur after self correction:
1.Number indicated is ok, but phase is inaccurate, deviation is very great.
Trouble: don’t reduce after finishing striking the lead lump, usually the store device is
damaged . Change it.
2. Showing ERR (this machine screen shows Err. -8-)
A .Problems with computer board.
B .The circuit of sensor is broken.
3.Number indicated has a big deviation, namely within 10g. (not affect using )
A. Generally use lead lump of 100g inaccurately.
B. The edge outside wheel rim is irregular, can take down the lead lump and strike lead lump
again on the opposite side and make comparation through drawing 2 times average.
4.Self correction cann’t be done because of different practices, fingers can
slightly give a push. Time difference between two fingers is half a second.
5. Number indicated deviates a lot , changed number is still very big , generally because the
board damage of the computer or the sensor is problematic.
W W W . T M G I N D U S T R I A L . C O M P 1 3 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

5. Function setting
Press key in 5 seconds , access to the following feature settings:
—p— Protection cover setting
b1p On the top operation，then press key , press confirm to set B1p.
electric whistle ON、OFF, press key confirm .
APP On the top operation, press key, press key confirm to set APP.
Press key,set 1g or 5g，press key confirm
P.C Protection cover control function setting.on the top operation, press key, press
key confirm to set P.C. press key to set ON/OFF, press key confirm.
Press Stop key to exit function settings(Option, without include)
6.Balancing machine self-testing function
Press and key ，A few seconds later，display window show CAL CAL,
press key , A few seconds later，display window show ES . Then press
key，show POS XXX . To push the wheel forward or backward, from 0 to 127 repeated
change，it shows that the photoelectric sensor works normally.Then press
Key, show STA XXX , To press the balance shaft by hand, Digital change, It shows that
the vertical sensor assembly is normal. Then press key, Show DYN XXX ,
To press the balance shaft by hand, Digital change, It shows that the horizontal sensor
assembly is normal. Press Stop key to end self-testing.
W W W . T M G I N D U S T R I A L . C O M P 1 4 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

7.Common failure codes and solutions
Err—1— No counting signal, replace the computer and photo electricity board
Err—2— The test speed is not enough, the spindle does not rotate the wheel
Err—3— Big Measurement error, cannot calculate, replace the wheel and test again
Err—4— Detection of reverse， replace the photoelectric board or computer board、 three phase
electric phase modulation
Err—5— Choose the function of protective cover correctly
Err—6— The code is not set
Err—7— Incorrect correction，re-calibration
Err—8— Uninitialized，need correction
Prompt：
1. When using a balancing machine without a tire protective cover，press the start key, if the
display window shows -ERR-5-, indicates that the balancing machine is in a self-locking
state, unlock it before working normally. Method are as follows:Press key for 5 seconds，
display , press , display , press or key,
display , then press unlock function， press STOP to eliminate. The balancer
will lock itself immediately if it is subject to external interference (such as electromagnetic
interference)，achieve self – protection.
2. No error display during measurement， such as display 0 0
（0.00 0.00），
Re-calibrate can
be solve this problem.
3. If any key does not work (the machine is not working).Turn off the power and restart it.
W W W . T M G I N D U S T R I A L . C O M P 1 5 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

8．Accessories accompanying machines.
A set of balancing machine and name of all accessories
1. one lead screw connecting with
main shaft
5.five cones,(scope is 45mm-280mm)
2.one plastic calliper
6.one handle
3.one bags of lead lump
7.one center wheel
4.one balance pincers
8.two matching machine outside shaft
W W W . T M G I N D U S T R I A L . C O M P 1 6 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

EXPLODED DRAWINGS
W W W . T M G I N D U S T R I A L . C O M P 1 7 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

W W W . T M G I N D U S T R I A L . C O M P 1 8 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

W W W . T M G I N D U S T R I A L . C O M P 1 9 / 1 9 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
