Toa HF-640S User manual

INTERCOM STATION
(Users' Manual)
HF-640S
GENERAL DESCRIPTION
TheHF-640S isanoutdoor use weather resistant, flush wallmounting
type intercom station. TheYC-150 (flush mounting type back box)
and theYS-13 (wall mounting typebackbox) are available asoptional
items foreasy installation.
Speaker
Front Panel
Microphone
Front Panel Mounting Screws
NamePlate (Microphone andSpeaker
Volume Controls arelocated behind the
nameplate)
In-use Lamp
Calling-button
ACCESSORIES:
Name plate
Woodscrews
Machine screws
INSTALLATION
(1) Mounting into the YC-150 Back Box:
1 Install the box into a wall vertically.
2 Unscrew the front panel mounting screw and remove the
front panel from the station. Then, mount the station into
the box with the four machine screws.
3 Adjust the microphone and speaker volume controls.
(Refer to "Adjustments")
4 Fill in the name plate and stick it on the station.
5 Attach the front panel with the front panel mounting screws.
Machine Screws
Front Panel
Mounting Screws
Station Front Panel
(2) Mounting in the YS-13 Box:
Install the box (YS-13) vertically and mount the station in the same
manner as mentioned in (1).
Note In this case, avoid installing the box in a place exposed to direct
rain.
(3) Mounting on Wall Board:
1 Make a vertical rectangular cutout of 74mm(W)x138 mm(H).
2 Unscrew the front panel fixing screws and remove the panel
from the station. Then, mount the station to the wall with
the four wood screws.
3 Adjust the microphone and speaker volume controls.
(Refer to "Adjustment")
4 Fill in the name plate and stick it on the station.
5 Attach the panel with the front panel mounting screws.
Wood Screws
Front Panel Fixing Screws
Fixing Cutout
Station
Front Panel
TOA Corporation
Printed in Japan
CAUTION
Do not locate the station where water or other liquids may come in direct contact with
the station.
CONNECTIONS
COMPONENTS
(1) For Call Bell, Chime, etc.:
Install wiring as follows for a call bell, chime, or other equipment to
be activated by the "make" contact of the station.
1 Connect the terminal block and the terminals of the station
per the pictorial.
2 Connect bell, chime, etc., to terminals 5 and 6.
3 Remove the screw marked "SW".
Terminal Block
There is no polarity between
pair 1 and 2.
Forabell,chime, oretc.
Remove the screw
(Notes) •Conversation can be started only when the station (HF-
640S) has been called from another station by the person
hearing the call buzzer or bell.
•Conversation cannotbecancelled bythestation (HF-640S).
•Avoid connecting any power source, bell, chime or other
equipment which draw more than 24V DC, 1A, to termi-
nals 5 and 6.
(2) For Calling up a Designated Station:
Install wiring as follows for calling up a pre-programed station:
(Note) Conversation cannot be cancelled by the station (HF-640S).
Terminal block
Do not remove the screw
ADJUSTMENTS
Adjust the microphone and speaker volume controls of the station
for suitable level depending on the station location.
Adjust the volume controls by removing
name plate before fixing the front panel.
After adjusting the volume controls,
stick the name card on the station.
Microphone Volume Control
In-use Lamp
Speaker Volume Control
Remove the Name Plate and
adjust the volume controls.
Noise Level
(Phone)
Volume
Setting
Microphone Sensitivity
Conversations may sometimes be inter-
rupted by the high surrounding noise
level at the station. In order to eliminate
such trouble, adjust the microphone
sensitivity VOLUME (see ) on the
station according to the surrounding
noise level. Please refer to the table 1
for adjustment.
SpeakerVolume
When the station is installed in highly reverberant places such as
rooms with low ceilings, concrete walls or narrow corridors, sound
produced by the loud speaker may be picked up on the microphone,
causing a temporary interruption of conversation.
In such cases, turn down the speaker volume by using the trimmer
(see ) on the station. If the volume of the speaker is too low, adjust
the microphone sensitivity (control) VOLUME and speaker volume
control together.
Note: Use a small slotted screw driver for adjustment. After adjust-
ment, make a test.
CAUTION:
•Usea small Phillipsscrewdriver for the necessary adjustments.
•After adjusting the volume, do not fail to conduct a conversation
test.
1
4
4
[Table 1]
HF-640S

Other manuals for HF-640S

1

Other Toa Intercom System manuals

Toa RS-160 User manual

Toa

Toa RS-160 User manual

Toa N-8000MI User manual

Toa

Toa N-8000MI User manual

Toa Q-N-8050WP User manual

Toa

Toa Q-N-8050WP User manual

Toa TOAEXES-5OOO User manual

Toa

Toa TOAEXES-5OOO User manual

Toa EXES-6000 CP-66 User manual

Toa

Toa EXES-6000 CP-66 User manual

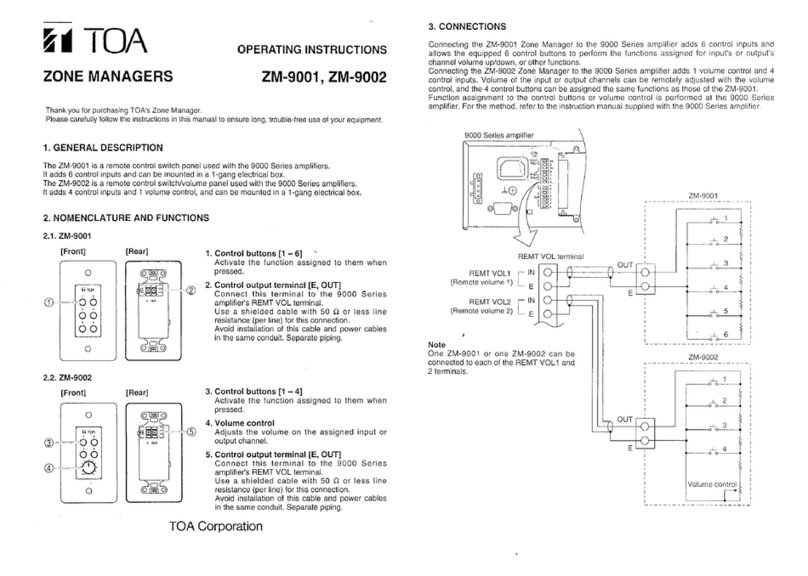

Toa ZM-9001 User manual

Toa

Toa ZM-9001 User manual

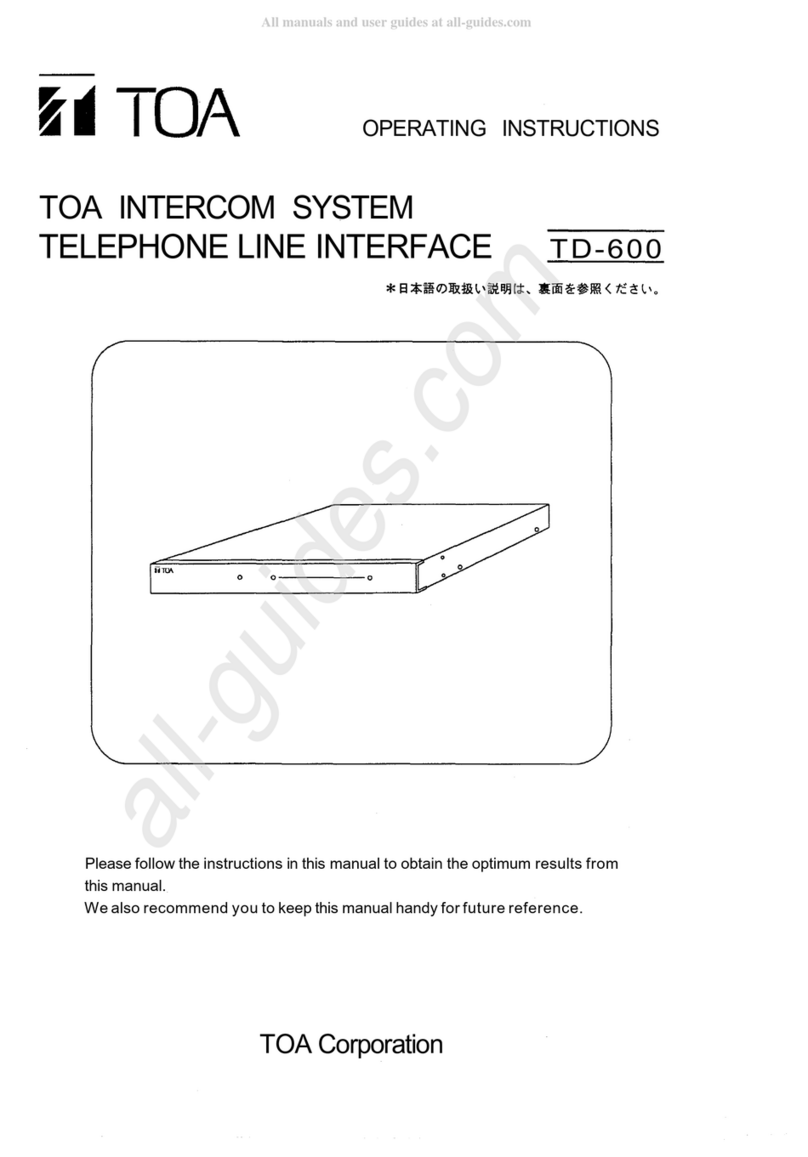

Toa TD-600 User manual

Toa

Toa TD-600 User manual

Toa RS-410EC e User manual

Toa

Toa RS-410EC e User manual

Toa N-SP80MS1 User manual

Toa

Toa N-SP80MS1 User manual

Toa RS-180 User manual

Toa

Toa RS-180 User manual

Toa N-8500MS User manual

Toa

Toa N-8500MS User manual

Toa N-8011MS User manual

Toa

Toa N-8011MS User manual

Toa N-8010MS User manual

Toa

Toa N-8010MS User manual

Toa VS-900DI User manual

Toa

Toa VS-900DI User manual

Toa N-8000EX User manual

Toa

Toa N-8000EX User manual

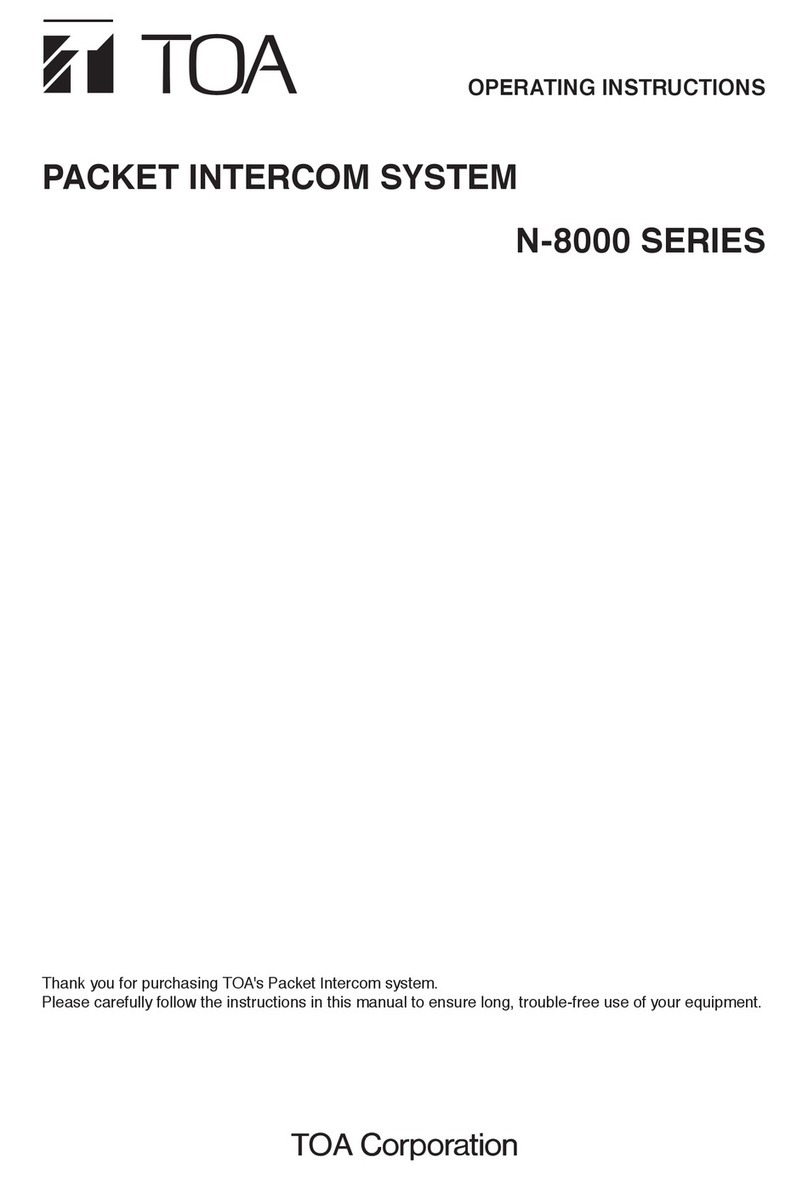

Toa N-8000 SERIES User manual
