Toa VX-3308WM User manual
PLEASE READ THIS MANUAL FIRST!
WALL-MOUNT VOICE EVACUATION SYSTEM
VX-3308WM
Thank you for purchasing TOA’s Wall-Mount Voice Evacuation System.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
1134
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg, Germany
1134-CPR-221
EN 54-4: 1997/AC: 1999+ A1: 2002+ A2: 2006
EN 54-16: 2008
Fire Detection and fire alarm systems: Voice alarm control and indication
system for fire detection and fire alarm systems for buildings
Options:
manual silencing of voice alarm condition
manual reset of voice alarm condition
voice alarm condition output
indication of a fault related to voice alarm zones
voice alarm manual control
emergency microphones
power amplifiers
battery box
18
DOP 18-002
When an EN 54-4 and EN 54-16 compliant VX-3000 system has to be installed, then carefully read the
separate manual titled "APPENDIX: ADDITIONAL INSTALLATION INSTRUCTIONS FOR AN EN 54-4
AND EN 54-16 COMPLIANT SYSTEM" and follow up the installation and configuration requirements
explained therein. This APPENDIX contains the basic description of settings and installations, so please
refer to the general instruction sections in this document for more details.
2
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ............................................................................. 3
2. COMPOSITION OF THE VX-3000 INSTRUCTION MANUAL ... 5
3. GENERAL DESCRIPTION .......................................................................... 5
4. SYSTEM FEATURES ...................................................................................... 5
5. SYSTEM EXAMPLE ........................................................................................ 6
6. AFFIXING DECLARATION OF COMPLIANCE
(EN 54-4 AND EN 54-16 STANDARD) ................................................. 7
3
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
• This equipment is not suitable for use in locations where children are likely to be present.
• An equipment installer and the person in charge of maintenance are required to fully understand the functions
and structure of this unit, then be aware of electrical and mechanical risks before work.
Before starting work, he or she should take possible measures to prevent occurrence of such risks.
Be sure to contact your nearest TOA dealer if you need to conrm unclear points about risk sources of this
unit.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual rst and
understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
WARNING
CAUTION
When Installing the Unit
• Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in re or electric shock.
• Since the unit is designed for indoor use, do not
install it outdoors. If installed outdoors, the aging of
parts causes the unit to fall off, resulting in personal
injury. Also, when it gets wet with rain, there is a
danger of electric shock.
• (Applicable to VX-3308WM and VX-030DA only )
Use the unit only with the voltage specied on
the unit. Using a voltage higher than that which is
specied may result in re or electric shock.
• (Applicable to VX-3308WM only)
Do not cut, kink, otherwise damage nor modify
the power supply cord. In addition, avoid using the
power cord in close proximity to heaters, and never
place heavy objects -- including the unit itself -- on
the power cord, as doing so may result in re or
electric shock.
• (Applicable to RM-200SF, RM-300X, RM-320F, and
RM-210F only)
Avoid installing or mounting the unit in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in the unit falling
down and causing personal injury and/or property
damage.
• (Applicable to RM-200SF, RM-300X, RM-320F, and
RM-210F only)
Install the unit only in a location that can structurally
support the weight of the unit and the mounting
bracket. Doing otherwise may result in the unit
falling down and causing personal injury and/or
property damage.
When the Unit is in Use
• Should the following irregularity be found during
use, immediately switch off the power, disconnect
the power supply plug from the AC outlet and
contact your nearest TOA dealer. Make no further
attempt to operate the unit in this condition as this
may cause re or electric shock.
· If you detect smoke or a strange smell coming
from the unit
· If water or any metallic object gets into the unit
· If the unit falls, or the unit case breaks
• To prevent a re or electric shock, never open nor
remove the unit case as there are high voltage
components inside the unit.
(Applicable to RM-200SF and RM- only)
Refer all servicing to qualied service personnel.
• Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the unit. If they
accidentally spill into the unit, this may cause a re
or electric shock.
WARNING
4
• Do not insert nor drop metallic objects or ammable
materials in the ventilation slots of the unit’s cover,
as this may result in re or electric shock.
• When replacing the fuse, be sure to use the supplied
one. Using any other fuse than supplied may cause
re or electric shock.
VX-030DA: Blade 20 A
VX-3308WM:
AC T8A H, AC T6.3A L, and Blade 30 A
• Be sure to switch off the amplier’s power when
replacing the fuse.
Inserting or removing the fuse with the amplier’s
power on may cause personal injury.
• Handle or use the batteries properly.
Doing otherwise may cause leakage or explosion
of the batteries, resulting in a re, personal injury,
damage to peripheral equipment, or contamination
of environment.
When Installing the Unit
• Do not block the ventilation slots in the unit’s cover.
Doing so may cause heat to build up inside the
unit and result in re. Also, periodically clean the
ventilation slots of dust.
• Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke
or steam as doing otherwise may result in re or
electric shock.
• Note correct polarity (positive and negative
orientation) when connecting the power supply
cord. Reversed polarity connections will cause
damage to the unit.
• To avoid electric shocks, be sure to switch off the
VX-3308WM’s power when connecting the unit.
• When connecting multiple appliances to a single
power socket through a multi-outlet power strip, a
total current consumption of the appliances must
not exceed the allowable current capacity of the
power socket.
Failure to observe this instruction may result in a
re or electric shock.
When the Unit is in Use
• Do not operate the unit for an extended period of
time with the sound distorting. Doing so may cause
the connected speakers to heat, resulting in a re.
• Use the specied AC adapter for the unit. Note that
the use of other adapter may cause a re.
• Contact your TOA dealer as to the cleaning. If dust is
allowed to accumulate in the unit over a long period
of time, a re or damage to the unit may result.
• Make sure to observe the following handling
precautions so that a re or personal injury does
not result from leakage or explosion of the battery.
· Do not short, disassemble, heat nor put the battery
into a re.
· Avoid using both new and old batteries together.
· Never charge batteries of the type which are not
rechargeable.
· Do not solder a battery directly.
· Be sure to use the specied type of batteries.
· Note correct polarity (positive and negative
orientation) when connecting a battery to the unit.
· Avoid locations exposed to the direct sunlight,
high temperature and high humidity when storing
batteries.
• (Applicable to RM-200SF, RM-300X, RM-320F, and
RM-210F only)
Have the unit checked periodically by the shop from
where it was purchased. Failure to do so may result
in corrosion or damage to the unit or its mounting
bracket that could cause the unit to fall, possibly
causing personal injury.
CAUTION
5
2. COMPOSITION OF THE VX-3000 INSTRUCTION MANUAL
The VX-3000 system Instruction manual is divided into 4 parts.
Please read the proper manual for your purpose.
For unit installation
For broadcast management and setup
For broadcasting operation
USER'S MANUAL
(PLEASE READ THIS MANUAL FIRST)
Operating instructions*
Setting software instructions*
Installation manual*
This manual
3. GENERAL DESCRIPTION
The TOA VX-3308WM Wall-Mount Voice Evacuation System is designed for both general and emergency
purpose broadcasts.
It is comprised of the Voice Evacuation Frame, Digital Power Amplier modules, Power Supply unit, Emergency
Power Supply, and a user-specied number of Remote Microphones.
The system complies with the EN 54-4 and EN 54-16 Standard and its failure detection circuitry operates
continuously to check components and speaker lines for any irregularities. If detected, failure warnings are
provided by way of an LED indicator and a buzzer.
The VX-3308 system allows 4 types of broadcasts to be made: General-purpose broadcast such as general paging
and BGM, Emergency warning broadcast that can be broadcast with priority over the Emergency broadcast,
Emergency broadcast that the emergency messages are to be broadcast by an automatic announcement
device or remote microphone, All-zone emergency broadcast that is to be made available even during system
malfunctions or failures. Two patterns of the Emergency broadcast can be activated simultaneously.
The dedicated software is used to perform all necessary settings related to the entire system operation and
functions including system congurations, input-to-output signal routing, function assignment to the operation
keys, operation of the control terminals, and selection of the failure detection points.
4. SYSTEM FEATURES
• VX-3308 system is a voice evacuation system.
• Decentralized conguration is possible via network.
• VX-3308 system is constructed up to 256 zones as system.
• Speaker Selector function is implemented, then VX-3308 system is able to cover many zones.
• A general broadcast for a sound quality regulating function is possible to digitalize all sound.
• A general broadcasting is possible by latitude setting of control input/output and priorities.
* These manuals can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/).
6
5. SYSTEM EXAMPLE
VX-3308WM+VX-3065BB+RM200SF System Connection Diagram
LAN
VX-3000 System
VX-3000 System
BGM unit
RM-300X RM-210F RM-200SF RM-320F
VX-3065BB
VX-3308WM
STANBY AMP
VX-030DA
AMP1
VX-030DA
extension
7

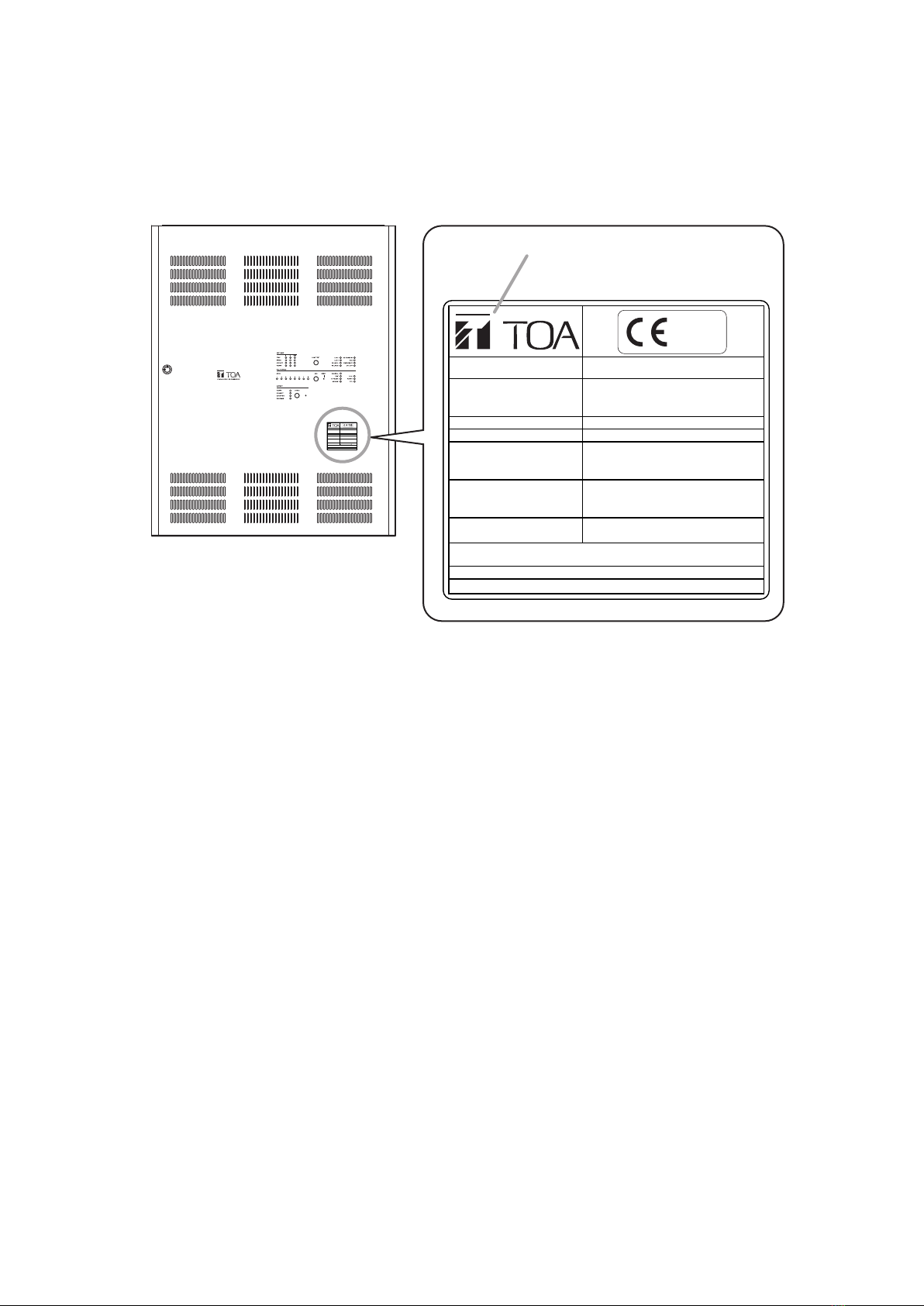

6. AFFIXING DECLARATION OF COMPLIANCE (EN 54-4 AND EN 54-16
STANDARD)
To declare that the VX-3308WM complies with EN 54-4 and EN 54-16, afx the sticker supplied with the
VX-3308WM visible to the front panel of the equipment as shown below.
Model
VX-3308WM
Manufacturer’s
Representative
TOAElectronics Europe GmbH
Süderstraße282, 20537 Hamburg
Germany
No.of Notified Body 1134
No.of DoP 18-002
Intendeduse Firedetection andfire alarm systems
− Voicealarmcontrol andindicating
equipment
Appliedstandards acc. to
EUregulation 305/2011:
EN54-4:1997/AC:1999+A1:2002
EN54-16:2008
Serialno.
220- 230 V AC / 50 Hz / 460 W
Madein Tiwan
+ A2:2006
[C00] 18L87 00001
Sticker (supplied with the VX-3308WM)
VX-3308WM
Model
Manufacturer’s
Representative
TOA Electronics Europe GmbH
Süderstraße 282, 20537 Hamburg
Germany
No. of Notified Body 1134
No. of DoP 18-002
Intended use Fire detection and fire alarm systems
− Voice alarm control and indicating
equipment
Applied standards acc. to
EU regulation 305/2011:
EN 54-4:1997/AC:1999+A1:2002
EN 54-16:2008
Serial no.
220 - 230 V AC / 50 Hz / 460 W
Made in Taiwan
+ A2:2006
xx
xx: manufactured year
VX-3308WM -CE
Traceability Information for Europe
Manufacturer:
TOA Corporation
7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
URL: https://www.toa.jp/
133-02-00447-03
Other manuals for VX-3308WM
2
Table of contents
