TH2515 Operation Manual
Contents
Contents
1) Introduction to Instrument, Unpacking and Installing.......................................................1
1.1 Introduction to Instrument................................................................................. 1
1.2 Unpacking ........................................................................................................... 1
1.3 Power Connection .............................................................................................. 1
1.4 Fuse..................................................................................................................... 2
1.5 Environment ....................................................................................................... 2
1.6 Use of Test Fixture.............................................................................................. 2
1.7 Warm-up............................................................................................................. 2
1.8 Other Features.................................................................................................... 2
2) Introduction to Front and Rear Panels...............................................................................3
2.1 Introduction to Front Panel ................................................................................ 3

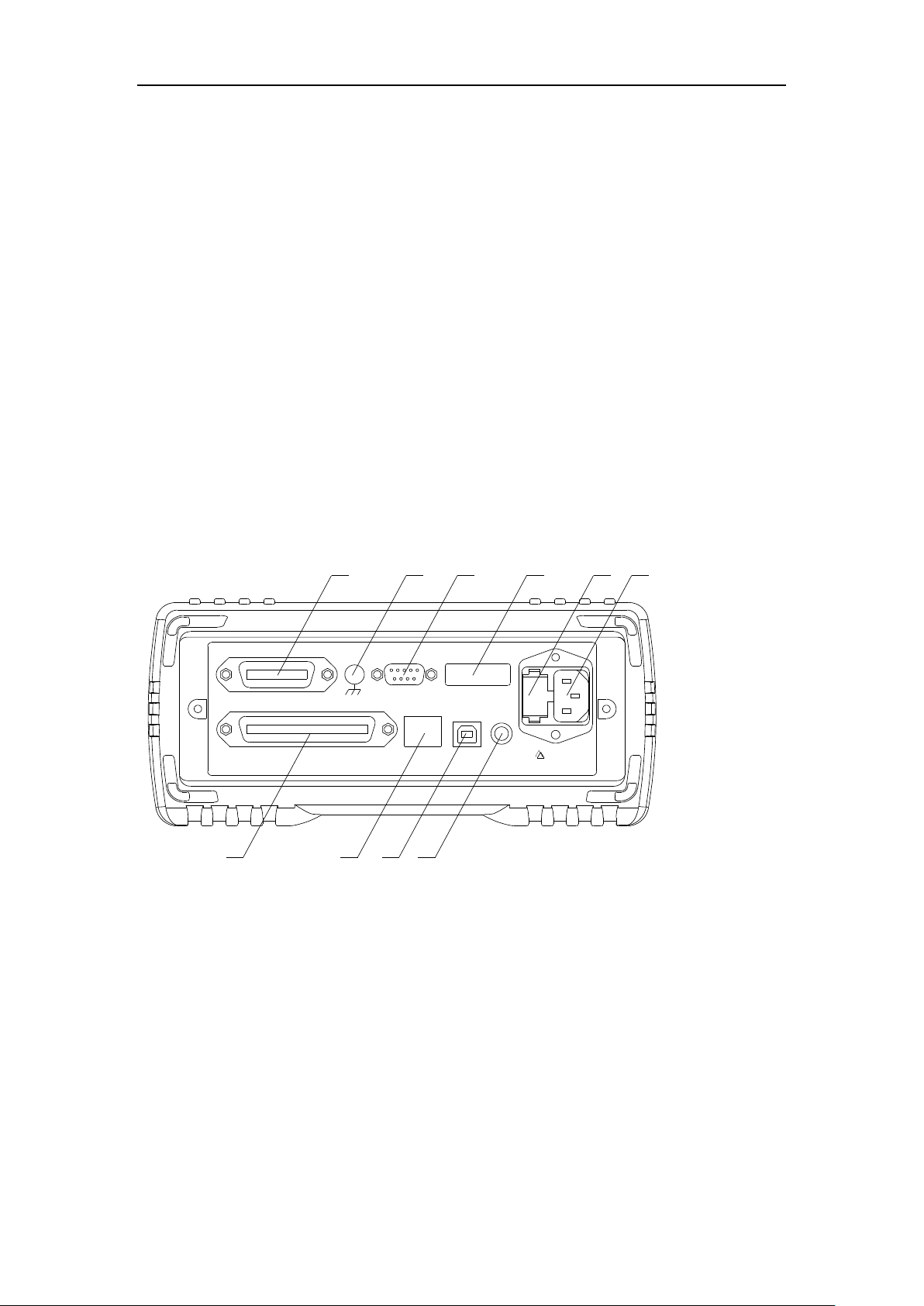

2.2 Introduction to Rear Panel ................................................................................. 4
2.3 Display Zone ....................................................................................................... 5
2.4 Introduction to Buttons on Front Panel ............................................................. 6
2.4.1 [MEAS DISP]........................................................................................................ 6
2.4.2 [SYSTEM SETUP].................................................................................................. 6
2.5 Simple Operation................................................................................................ 6
2.6 Starting Up.......................................................................................................... 7
3) Basic Operation ..................................................................................................................8
3.1 <MEAS DISP> ...................................................................................................... 8
3.1.1 Measurement Functions..................................................................................... 8
3.1.2 Measurement Range .......................................................................................... 9
3.1.3 Measurement Speed ........................................................................................ 10
3.1.4 File Manage ...................................................................................................... 10
3.1.5 Tools ................................................................................................................. 10
3.2 <COMP DISP>.................................................................................................... 11
3.2.1 File Manage ...................................................................................................... 12
3.2.2 Tools ................................................................................................................. 12
3.2.3 COMP (ON/OFF) ............................................................................................... 12

TH2515 Operation Manual
Contents
3.2.4 Compare Mode and SETTINGS of ABS & Percent Error.................................... 13
3.3 <BIN DISP> ........................................................................................................ 13
3.4 STATIS DISP ....................................................................................................... 14
3.4.1 Edge Mode and Settings of Its Relevant Values ............................................... 15
3.4.2 Status ON/OFF .................................................................................................. 15
3.4.3 Parameters of Statistic Analysis ....................................................................... 15
3.4.4 TOOLS ............................................................................................................... 16
3.4.5 FILE.................................................................................................................... 16
3.5 <MEAS SETUP> ................................................................................................. 16
3.6 <TC/∆t SETUP>.................................................................................................. 19
3.6.1 Temperature Correction................................................................................... 19
3.6.2 Temperature Conversion.................................................................................. 20
3.6.3 Types of Temperature Sensor .......................................................................... 21
3.6.4 Parameter Setting............................................................................................. 22
3.6.5 File .................................................................................................................... 22
3.7 <BIN SETUP> ..................................................................................................... 22
3.7.1 File .................................................................................................................... 23
3.7.2 Tools ................................................................................................................. 23
4) System Setup and File Manage ....................................................................................... 25
4.1 System Setup .................................................................................................... 25
4.1.1 TouchTone ........................................................................................................ 25
4.1.2 Language........................................................................................................... 25
4.1.3 Password........................................................................................................... 26
4.1.4 Bus Mode.......................................................................................................... 26
4.1.5 Baud Rate.......................................................................................................... 27
4.1.6 Bus Addr ........................................................................................................... 27
4.1.7 EOC Signal......................................................................................................... 27
4.1.8 Err.OUT signal ................................................................................................... 28
4.1.9 Power Supply Frequency .................................................................................. 29
4.1.10 Setting Time and Date ...................................................................................... 29

TH2515 Operation Manual
Contents
4.2 <File Manage> .................................................................................................. 30
4.2.1 Introduction to Save/Recall.............................................................................. 30
4.2.2 Structure of File Folder/File in a U Disk............................................................ 30
4.2.3 DHCP................................................................................................................. 34
4.2.4 IP ADDR............................................................................................................. 35
4.2.5 SUBNET MASK................................................................................................... 35
4.2.6 GATEWAY.......................................................................................................... 35
4.2.7 DNS SERVER1, DNS SERVER2 ............................................................................ 35
5) Performance Index .......................................................................................................... 36
5.1 Measurement Function .................................................................................... 36
5.1.1 Measurement Parameters and Notations........................................................ 36
5.1.2 Measurement Groups....................................................................................... 36
5.1.3 Equivalent Mode............................................................................................... 36
5.1.4 Range ................................................................................................................ 36
5.1.5 Trigger............................................................................................................... 36
5.1.6 Mode of Test Terminal ..................................................................................... 37
5.1.7 Time Expenditure of Measurement ................................................................. 37
5.1.8 Average............................................................................................................. 37
5.1.9 Display Digits .................................................................................................... 37
5.2 Test Signal......................................................................................................... 38
5.2.1 Current range.................................................................................................... 38
5.2.2 Output Voltage of Open Circuit........................................................................ 38
5.2.3 Maximum Display Range .................................................................................. 38
5.3 Measurement Accuracy.................................................................................... 38
5.3.1 Basic Accuracy for Resistance Measurement................................................... 39
5.3.2 Accuracy for Temperature Measurement (Pt500) ........................................... 40
5.3.3 Accuracy for Temperature Measurement (Analog Input)................................ 40
5.3.4 Temperature correction factor......................................................................... 41
6) Remote Control ............................................................................................................... 42
6.1 RS232C Connection .......................................................................................... 42

TH2515 Operation Manual
Contents
6.2 GPIB Bus (option).............................................................................................. 43
6.2.1 GPIB Interface Function.................................................................................... 45
6.2.2 GPIB Addressing................................................................................................ 45
6.2.3 GPIB Bus Commands ........................................................................................ 45
6.2.4 SCPI (Standard Commands for Programmable Instruments)........................... 46
6.3 LAN Remote Control System ............................................................................ 47
6.3.1 Access TH2515 through a Browser................................................................... 49
6.3.2 Access TH2515 through the Software of a Upper Computer........................... 49
6.4 USBTMC Remote Control System..................................................................... 50
6.4.1 System Configuration ....................................................................................... 50
6.4.2 Install the Driver ............................................................................................... 50
6.5 USBVCOM Virtual Serial Port............................................................................ 51
6.5.1 System Configuration ....................................................................................... 51
6.5.2 Installing Driver................................................................................................. 51
7) SCIP Command Reference............................................................................................... 53
7.1 TH2515 Subsystem Commands ........................................................................ 53
7.1.1 DISPlay Subsystem Commands......................................................................... 53
7.1.2 FUNCtion Subsystem Commands ..................................................................... 55
7.1.3 APERture Subsystem Commands ..................................................................... 59
7.1.4 TRIGger Subsystem Commands........................................................................ 60
7.1.5 FETCH? Subsystem Commands ........................................................................ 61
7.1.6 TEMPerature Subsystem Commands ............................................................... 63
7.1.7 COMParator Subsystem Commands ................................................................ 65
7.1.8 BIN Subsystem Commands............................................................................... 68
7.1.9 STATistics Subsystem Commands..................................................................... 73
7.1.10 IO Subsystem Commands................................................................................. 77
7.1.11 MEMory Subsystem Commands....................................................................... 77
7.1.12 SYSTem Subsystem Commands........................................................................ 78
7.1.13 GPIB Common Commands ............................................................................... 81
8) Handler Interface ............................................................................................................ 85

TH2515 Operation Manual
Contents
9) Package Contents and Warranty..................................................................................... 89
9.1 Package Contents ............................................................................................. 89
9.2 Marks ................................................................................................................ 89
9.3 Package............................................................................................................. 89
9.4 Shipping ............................................................................................................ 90
9.5 Storage.............................................................................................................. 90
9.6 Warranty........................................................................................................... 90
Declaration
The descriptions contained in this manual may not cover all information about this instrument.
Introductions to the improvements of the instrument in performance, function, internal structure,
outer appearance, accessories, packing material, etc. are subject to change without notice. If you
find any inconformity of this manual with our instruments, please contact us for further
consultation by the address listed on the cover.

TH2515 Operation Manual
1
1) Introduction to Instrument, Unpacking and
Installing
Thank you for your purchase and use of our products! This chapter will introduce the basic
instrument performance, which is followed by notes of unpacking and installing.
1.1Introduction to Instrument
TH2515 is a DC Resistance Meter with color LCD display and touch function. Its accuracy of 0.01%
is able to meet general resistance test requirements. Better measurement result is obtained for
temperature-sensitive resistors by the adoption of temperature compensation function. Statistic
function has the capacity to make statistic analysis of massive test data.
TH2515 is a powerful test tool for all kinds of resistor design, detection, quality control and
production. Its high test speed is applicable to the spot-check machines on production lines. With
multiple output data and comparison mode, TH2515 can meet different test requirements of
different resistor manufacturers. The prominent performance makes the test results come up to
IEC and MIL standard.
1.2Unpacking
Inspect the shipping container for damage after unpacking it. It is not recommended to power on
the instrument in the case of a damage container.
If the contents in the container do not conform to the packing list, notify us or your dealer.
1.3Power Connection
1) Power supply: 90V to 240V (dependable on the voltage setup on the rear panel).
2) Power supply frequencies: 50Hz and 60Hz
3) Power supply power range: ≤30VA
4) L (line wire), N (neutral wire) and E (earth ground wire) of the power supply input socket
should correspond to the power plug of the instrument.
5) The instrument has been specially designed for decreasing noise jamming caused by the
input in AC power terminal, but it is also recommended to use it in the environment of low
noise. If noises cannot be avoided, install a power source filter please.
WARNING: To avoid injury to personnel and damage to the instrument resulting from electric
shock, do sure that the earth ground wire is safely grounded.

TH2515 Operation Manual
2
1.4Fuse
The fuse is a standard configuration, so use the included custom fuse please.
1.5Environment
1) Do not store or use the instrument where it could be exposed to many dusts, great vibration,
direct sunshine and corrosive gas.
2) Working condition:
Temperature: 0℃to 40℃Relative humidity: ≤80% No condensation
Storage condition:
Temperature: -10℃to 50℃Relative humidity: ≤90%No condensation
3) For high accuracy, do not block the left air vent so as to ensure good ventilation.
4) The instrument has been specially designed for decreasing noise jamming caused by the AC
power input, but it is also recommended to use it in the environment of low noise. If noise
cannot be avoided, install a power filter please.
5) Test leads on the instrument that are connected to DUTs should be kept away from strong
electromagnetic fields to avoid interference.
1.6Use of Test Fixture
Only use the test fixture or cable made by our company, because the use of other test fixtures or
cables may result in incorrect measurement results. In addition, for good contact of DUT and
fixture, keep the test fixture or cable and pins of DUT clean.
Connect the test fixture or cable to HI and LO terminals on the instrument front panel. Ensure the
color and arrow conformity of the test fixture with that of sockets on panels, thus to avoid
abnormal measurement.
1.7Warm-up
1) For accurate measurement, the warm-up time should not be less than 30 minutes.
2) Do not turn on or off the instrument frequently. This may cause internal data confusion.
1.8Other Features
1) Consumption: ≤10VA
2) Dimensions (W*H*D): 235mm*104mm*360mm; this dimension is the final packaging size.
3) Weight: Approx. 3.6kg

TH2515 Operation Manual
3
2) Introduction to Front and Rear Panels
This chapter will describe the basic operation of TH2515. Before using the instrument, please
read this chapter carefully.
2.1Introduction to Front Panel
Figure 2-1 shows the front panel of TH2515.
POWER
MEAS SYSTEM
FILE 0 ADJ
TRIGGER
ENTER
DRIVE SENSE
DUT
HI
LO
Match the arrow and color
while connecting the test leads.
CAUTION:
！
INPUT
TH2515 DC RESISTANCE METER
1 2 3 4 5 6 7
12 11 9 810
Figure 2-1 Front Panel
1) USB interface
HOST interface of USB
2) LCD and touch screen
480*272 dot-matrix, 24-bit, 4.3-inch TFT and touch LCD is used for measurement setup and
result display.
3) [MEAS]
Press [MEAS] to enter into the MEAS DISP page.
4) [FILE]
Press [FILE] to enter into the page of internal and external File Manage.
5) [SYSTEM]
Press [SYSTEM] to enter into the SYSTEM SETUP page.
6) [0 ADJ]
Press [0 ADJ] to execute correction function.
7) Test terminals (INPUT)
4-terminal test terminal is used to measure DUT by a 4-terminal test cable.

TH2515 Operation Manual
4
The color and arrow of the test cable should correspond to that of socket on panel, thus to
avoid abnormal measurement.
8) [TRIGGER]
When the trigger mode is set as MANU (manual), pressing this key can trigger the
instrument manually.
9) [ENTER]
Press this key to terminate and store input data.
10) Universal Arrow Keys
There are four arrow keys: up, down, left and right arrow keys.
11) Trademark and Model
Show instrument trademark and model.
12) POWER
It is the power switch.
2.2Introduction to Rear Panel
Figure 2-2 shows the rear panel of TH2515.
HANDLER
GPIB
USB
LAN EXT HOLD
RS-232C
！~110V-240V
50/60Hz 30VA
S/N:
R5-211-00001
1 2 3 4 5 6
789
10
Figure 2-2 Rear Panel
1) GPIB Interface (Option)
The GPIB interface is used to communicate with PC and further construct a GPIB test system.
2) Ground Terminal
This terminal connects the instrument chassis thus to protect or shield ground connection.
3) RS232C Serial Interface
It realizes serial communication of the instrument with PC.
4) Nameplate
It shows the instrument model.
5) Fuse socket
Fuse will be placed in this socket to protect the instrument.
6) Power Socket
It is used to input AC power.

TH2515 Operation Manual
5
7) TEMP.INPUT
It is used to insert the temperature sensor or serve as the input interface of analog temperature.
8) USB Interface
PC can remotely control TH2515 through USB DEVICE.
9) LAN Interface
This instrument can communicate with PC by this interface.
10) HANDLER Interface
Through HANDLER interface, an automatic test system can be conveniently constructed to realize
auto test. TH2515 will output bin comparator result signals, measuring result and some simple
signal control. Please refer to the introduction of HANDLER in Chapter 8 for specific information.
2.3Display Zone
TH2515 adopts 24-bit 4.3-inch LCD touch screen with a resolution of 480*272. The display screen
is divided into the following zones, as shown in figure 2-3.
Figure 2-3 Display zone
1. Page name
This zone shows the current page name.
2. FILE
In this zone, file manage can be executed such as File Manage, Screen Copy.
3. TOOLS
Some short-cut functions can be set: DISP ON/OFF, 0 ADJ ON/OFF, 0 ADJ, OVC ON/OFF, SelfCalib
AUTO/MANU, Save Data.
4. Soft keys
This zone displays the function menu corresponding to the cursor-located zone.
5. Result display
This zone displays the measurement result such as resistance and temperature.
6. Prompt information

TH2515 Operation Manual
6
This zone displays all prompt information.
7. Function zone
This zone is used to change the measurement parameters.
2.4Introduction to Buttons on Front Panel
2.4.1 [MEAS DISP]
Press <MEAS DISP> to enter into display homepage. Selectable functions in this page are shown
as follows:
<MEAS DISP>
<COMP DISP>
<BIN DISP>
<STATIS DISP>
< >
<MORE 1/2>
<MEAS SETUP>
<TC/∆t SETUP>
<BIN SETUP>
<SYSTEM SETUP>
< >
<MORE 2/2>
2.4.2 [SYSTEM SETUP]
Press the [SYSTEM] button to enter into the <SYSTEM SETUP> page; the following soft keys will be
displayed:
<SYSTEM SETUP>
<LAN SETUP>
<MEAS DISP>
2.5Simple Operation
Simple operation steps for TH2515:
Use [MEAS], [SYSTEM] or [FILE] or soft keys to enter into the page required to enter. (Refer
to figure 2-5)
Use arrow buttons ([←] [↑] [→] [↓]) to move the cursor to desired zone.
When the cursor is moved to a soft key zone, press ENTER to confirm the selection. If it is
required to input a number or a file name, use the keyboard to input and press ENTER to
finish entry. You can use arrow buttons to select a number or a letter.

TH2515 Operation Manual
7
NOTE: DO NOT use acute units or nails to touch the screen. Doing so will cause damage
to the screen, our company shall not be liable to this case.
2.6Starting Up
Ensure the power earth (ground) wire is grounded, plug into a 3-wire power socket. Press down
the power switch on the bottom left corner of the front panel, the instrument will be started up
and a boot screen will be displayed.
Figure 2-4 shows the boot screen of TH2515, indicating product information such as instrument
trademark, model and version.
Figure 2-4 TH2515 Boot Screen
If the password protection is enabled, you will be asked to input your password. After inputting
your password, press [ENTER] to enter into the main menu page.
NOTE: This series of products have enabled password protection and the default password is
2515. You can reset the password by yourself. Refer to the password function on <SYSTEM
SETUP> page for more details.

TH2515 Operation Manual
8
3) Basic Operation
3.1<MEAS DISP>
Touch the screen or press down [MEAS], the <MEAS DISP> page will be displayed in the screen
shown as figure 3-1.
Figure 3-1 Measure Display
The following measurement parameters can be set on this page.
Measurement function (FUNC R-T)
Resistance range (RANGE AUTO)
Measurement speed (FAST SLOW2)
Measurement temperature (TC/∆t T.SENS)
File manage (FILE)
Other tools (TOOLS)
Soft keys (used to enter into operation pages)
3.1.1 Measurement Functions
Measurable parameters on TH2515 are as follows:
R (Resistance)
R-T (Resistance and temperature)
T (Temperature)
LPR (Resistance tested at low voltage)
LPR-T (Temperature and resistance tested at low voltage)
----------------------------------------------------------------------------------------------------------------------
Note: Settings and modifications of all functions can be taken by the following steps:
1. Touch the corresponding function zone and then select the desired soft keys.
2. Use arrow buttons and [ENTER] button to set and modify the corresponding function.
----------------------------------------------------------------------------------------------------------------------

TH2515 Operation Manual
9
Setting steps for measurement function:
You use buttons or touch the screen to select FUNC, available soft keys will be displayed in the
right soft key zone.
R
R-T
T
LPR
LPR-T
3.1.2 Measurement Range
There are two resistance modes: resistance measurement mode and resistance measurement
mode at low voltage.
Measure and display two types of parameters: resistance parameters and temperature
parameters. Parameters of resistance range, current, resolution, etc. have been displayed in
diagram 3-1-2.
TH2515 has 11 DC resistance ranges: 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω, 2kΩ, 20kΩ, 100kΩ, 1MΩ,
10MΩ, 100MΩ.
TH2515 has 4 DC low voltage resistance ranges: 2Ω, 20Ω, 200Ω, 2KΩ.
The testing range of temperature of TH2515: -10℃to 99.9℃.
Resistance Range
Current
Resolution
Accuracy
Rd% + Fs%
20mΩ
1A
0.1uΩ
0.10+0.025
200mΩ
1uΩ
0.05+0.030
2Ω
100mA
10 uΩ
0.03+0.010
20Ω
10mA
100 uΩ
0.02+0.008
200Ω
1mΩ
0.01+0.002
2kΩ
1mA
10 mΩ
0.01+0.002
20kΩ
100uA
100 mΩ
0.01+0.002
100kΩ
1Ω
0.01+0.005
1M
10uA
10Ω
0.02+0.005
10MΩ
1uA
100Ω
0.05+0.010
100MΩ
100nA
1kΩ
0.40+0.040
Diagram 3-1-2
NOTE:
Error= (measured value*Rd% + range*Fs%)/measured value
Operation steps for setting measurement ranges:
1) Touch the range zone, the following soft keys will be displayed.
AUTO Set the range mode as AUTO.
HOLD Switch the range mode from AUTO to HOLD. When the range mode is set as HOLD,
the range will be locked at the current measurement range which is displayed in the RANG

TH2515 Operation Manual
10
zone.
↑ (+) Increase the range.
↓ (-) Decrease the range.
2) Touch the corresponding soft key to select the required range.
3.1.3 Measurement Speed
The measurement speed of TH2515 is decided by the following factors:
Integral sampling period (approx. 5ms)
Average times (measurement times)
Measurement delay time (a time starting from the measurement start-up to the
measurement beginning)
Time showing measurement result
Three measurement speeds are available on TH2515: FAST (fast, approx. 50meas/sec), MED
(medium, approx. 6meas/sec) and SLOW (including SLOW1 and SLOW 2, approx. 2meas/sec).
Operation steps for setting measurement speed:
TH2515 displays the measurement result as a 6-digit number in the decimal point floating mode.
In FAST mode, the result is shown as a 5-digit number while in MED and SLOW, as a 6-digit
number and temperature as 4-digit.
1) Touch the speed zone, the following soft keys will be displayed.
FAST
MED
SLOW1
SLOW2
2) Use above soft keys to modify the speed.
3.1.4 File Manage
1）Touch FILE, the following soft keys will be displayed.
File Manage: Touch this key to enter into the file operation page.
Screen Copy：Touch this key to capture the current screen and save it to a U disk in image
format. Before a U disk is inserted, the save function will be disabled.
2) As for File Manage, please refer to 4.2 for details.
3.1.5 Tools
Operation steps for setting tools:
Touch TOOLS, the following soft keys will be displayed in the soft key zone.
Display (ON/OFF): Display the measurement result or not. ON is to display, OFF is not to
display.
0 ADJ (ON/OFF): OFF means the base number at the short correction will not be subtracted
while ON is to subtract the base number.

TH2515 Operation Manual
11
0 ADJ: Execute short correction. In this process, please ensure the test terminals have been
correctly shorted. Only by doing this, unexpected measurement errors could be avoided.
OVC (ON/OFF): ON is to take over voltage compensation for measurement results. OFF is not
to.
Correction: Auto and Manual
Save data: Touch the screen or press the corresponding button to save the current
measurement results to a U disk. If no external U disk is founded, this function will be invalid.
Once a U disk is found and this function is selected, the corresponding soft key will be
displayed as STOP SAVE and you can press this soft key to terminate this operation.
NOTE:
SPEED：In SLOW2, SLOW1 or MED mode, the measurement result is a 6-digit number while FAST
is a 5-digit one.
SAVE: Once START SAVE is selected, you must press STOP SAVE to terminate or the saved data will
be lost.
SHORT: When this key is used to take short correction, the test fixture should be correctly
connected. If not, the deducted data will be wrong, and further it will cause result errors. The
correct connection is shown as the following figure.
3.2<COMP DISP>
Touch <MEAS DISP> or press [MEAS] to select the COMP DISP soft key to enter into the <COMP
DISP> page shown as figure 3-2.

TH2515 Operation Manual
12
Figure 3-2
The following parameters can be set on this page:
FILE
TOOLS
COMP ON/OFF
COMP MODE
HIGH (nominal value)
LOW (%)
3.2.1 File Manage
1) Touch FILE, the following soft keys will be displayed:
File manage: Touch this soft key to enter into the file manage page.
Screen copy: Touch this key to save the current screen page to a U disk. If no U disk is found,
this function will be disabled.
2) Refer to 4.2 for more details about FILE MANAGE.
3.2.2 Tools
Touch <TOOLS>, the following soft keys will be displayed.
DISP (ON/OFF): ON is to display the measurement result and OFF is not to display.
BEEP (NG/GD/OFF): NG: The beeper will sound when the measurement result is not
consistent with the setting value. GD: The beep will sound when the measurement result
conforms to the setting value. OFF: Turn off the beeper.
COUNT (ON/OFF): ON：Start count; OFF: Stop count.
COUNT CLEAR：Clear the count numbers of TOT, IN, HI and LO and start count from zero.
DATA STORAGE: Save all data.
3.2.3 COMP (ON/OFF)
COMP (ON/OFF): ON indicates the compare function has been turned on. Only when the

TH2515 Operation Manual
13
compare function is in ON mode, count function can be enabled.
OFF is to turn off this function.
3.2.4 Compare Mode and SETTINGS of ABS & Percent Error
You can set the compare mode and concerned values by touching the screen or pressing
keyboard. There are two compare modes: ABS and %.
Compare modes:
1) ABS (high and low limits)
In this mode, you can set low and high limits. The instrument will take comparison between the
tested values and the set ones so as to judge the DUT is HI or LO or IN.
2) % (percent error)
In this mode, you can set the nominal value and the percent error. If you set the nominal value as
100 and percent as 10, the set value should be 100±10%. The instrument will take comparison
between the tested values and the set ones so as to judge the DUT is HI or LO or IN.
3.3<BIN DISP>
Touch <MEAS DISP> or press [MEAS]. Then select the soft key BIN DISP to enter into <BIN DISP>
shown as figure 3-3.
Figure 3-3 Bin display
The following parameters can be set on <BIN DISP>.
FILE
1) File Manage: Touch this key to enter into the file manage page.
2) Screen Copy: Touch this key to save the current screen page to an external U disk. If no U
disk is found, this function will be disabled.
TOOLS
1) DISP (ON/OFF): ON is to display the result while OFF is not to.
2) SAVE DATA: Touch this key to save the result. Touch again to stop saving.
BIN
BIN ON/OFF: ON is to turn on bin compare display while OFF is to turn off.
BIN BEEP ON/OFF

TH2515 Operation Manual
14
OFF is to turn off the bin beep function.
NG: Bin beep function is ON. When the result is not consistent with the bin setting, the beep will
sound.
GD: Bin beep function is ON. When the result is consistent with bin setting, the beep will sound.
NG Color
OFF：When the measurement result is different from the bin setting, there is no display. GREY:
When the measurement result is different from the bin setting, the corresponding bin will be
displayed in grey; RED: When the measurement result is different from the bin setting, the
corresponding bin will be displayed in red; GREEN: When the measurement result is different
from the bin setting, the corresponding bin will be displayed in green.
GD Color
OFF：When the measurement result conforms to the bin setting, there is no display. GREY: When
the measurement result conforms to the bin setting, the corresponding bin will be displayed in
grey; RED: When the measurement result conforms to the bin setting, the corresponding bin will
be displayed in red; GREEN: When the measurement result conforms to the bin setting, the
corresponding bin will be displayed in green.
---------------------------------------------------------------------------------------------------------
NOTE: NG is the abbreviation of not good while GD is the abbreviation of good.
---------------------------------------------------------------------------------------------------------
3.4STATIS DISP
Touch the main menu or press [MEAS]. And then touch the soft key STATIS DISP to enter into the
STATIS DISP page shown as figure 3-4.
Figure 3-4 Statistic display
The function of this page is to count measurement data. It is workable to analyze the average
value of results for multiple measurements, the PASS/FAIL rate and some engineering coefficients.
Details are as below.
