TH2829XSeriesOperationManual Contents
II

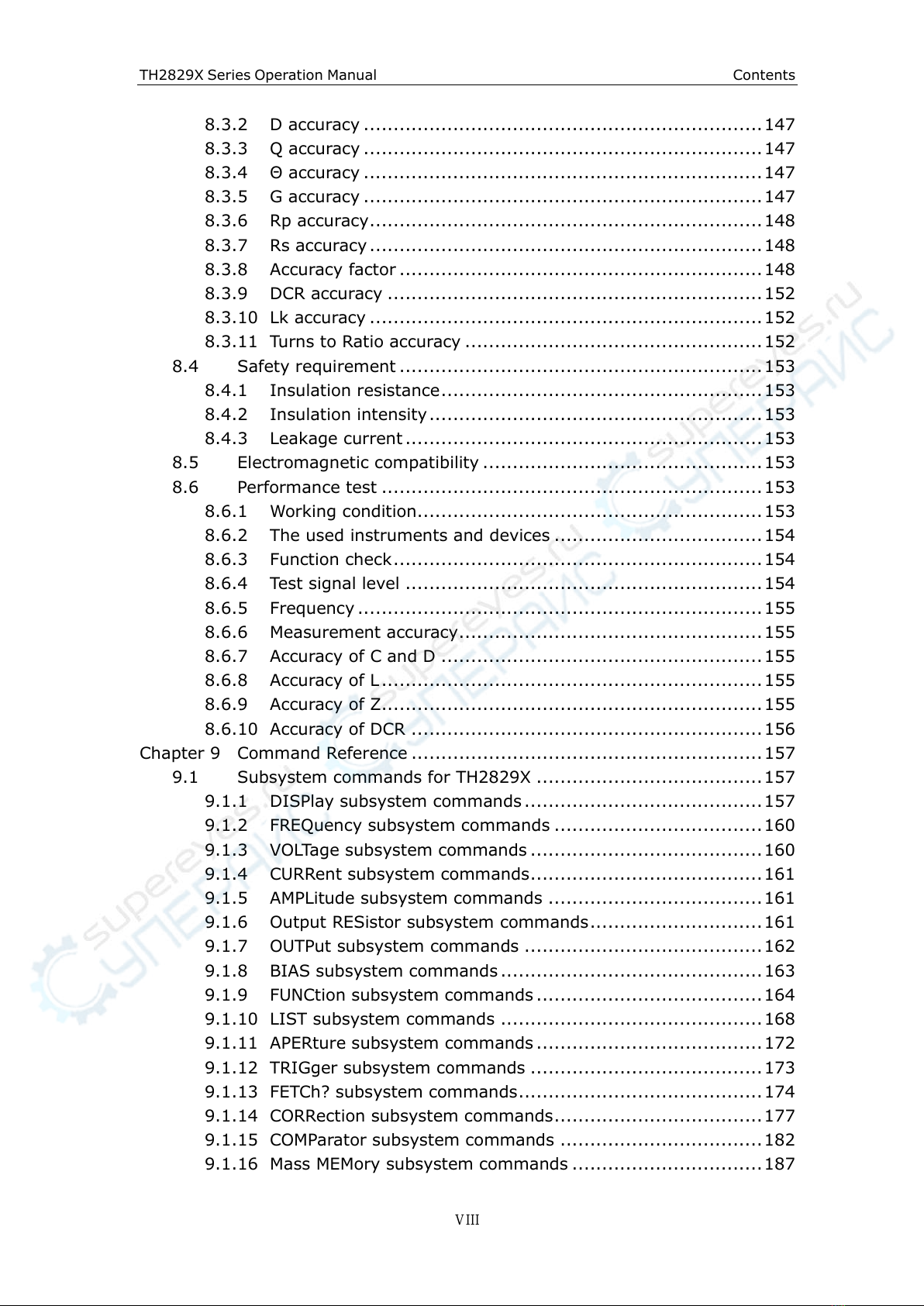

Contents
Chapter 1 Out of Box Audit .................................................................... 1
1.1 To Inspect the package........................................................... 1
1.2 Power connection................................................................... 1
1.3 Fuse .................................................................................... 1
1.4 Environment ......................................................................... 2
1.5 Use of Test Fixture ................................................................. 2
1.6 Warm-up .............................................................................. 2

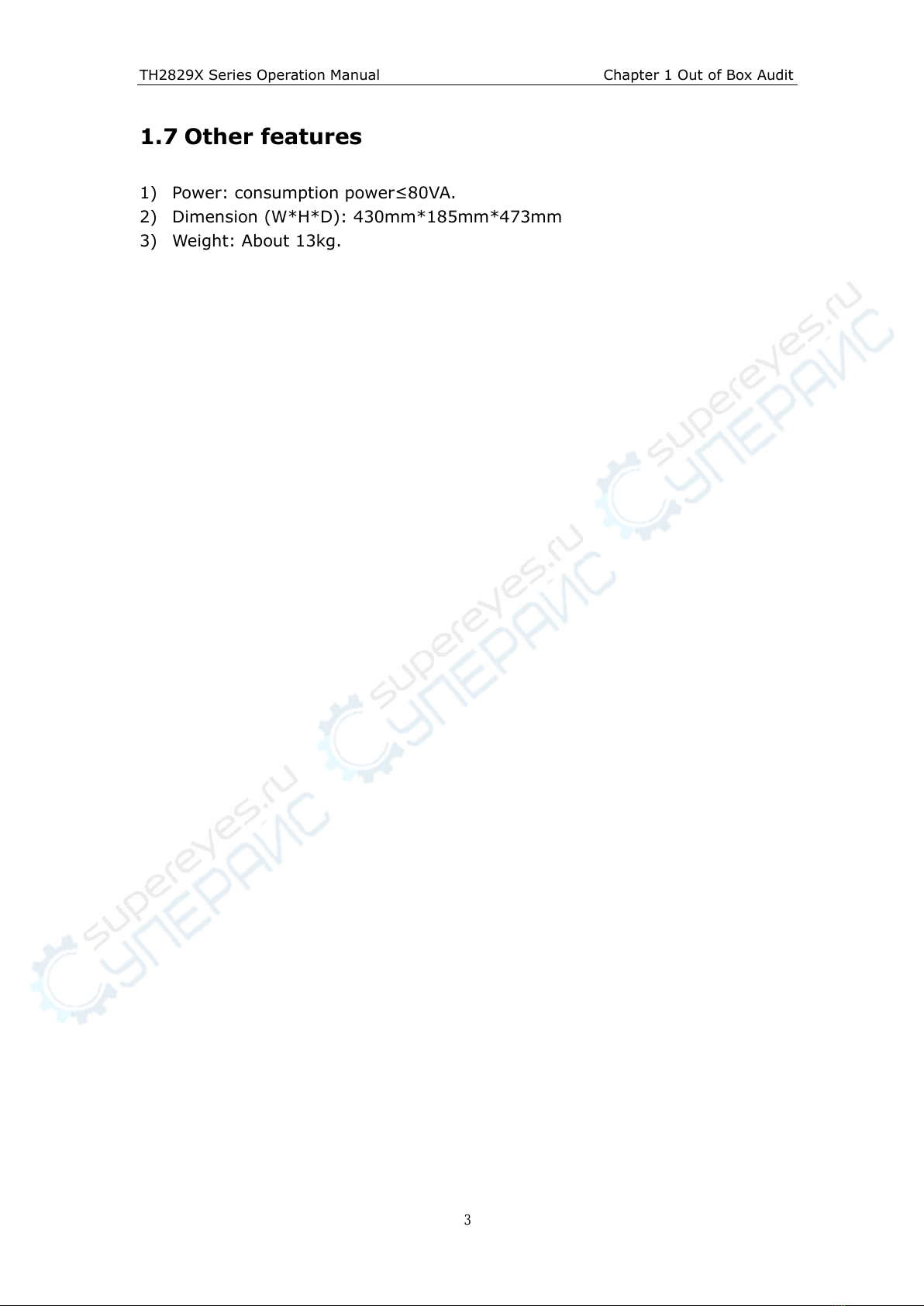

1.7 Other features....................................................................... 3
Chapter 2 Introduction.......................................................................... 4
2.1 Introduction to front panel ...................................................... 4
2.2 Introduction to rear panel ....................................................... 6
2.3 Introduction to display zone .................................................... 7
2.4 Main menu keys and corresponding displayed pages ................... 8
2.4.1 [DISP] ............................................................................ 8
2.4.2 [SETUP].......................................................................... 8
2.4.3 [SYSTEM]........................................................................ 9
2.5 Basic Operation ..................................................................... 9
2.6 Start the instrument..............................................................10
Chapter 3 Introduction to [DISP] ...........................................................11
3.1 <MEAS DISPLAY>.................................................................11
3.1.1 Test function...................................................................12
3.1.2 Test range ......................................................................14
3.1.3 Test frequency ................................................................14
3.1.4 Test level .......................................................................15
3.1.5 DC bias..........................................................................16
3.1.6 Test speed......................................................................17
3.1.7 Tools .............................................................................17
3.1.8 Save LCR test result by U disk...........................................18
3.2 <BIN NO. DISP> ..................................................................19
3.2.1 Comparator function ........................................................20
3.3 <BIN COUNT DISP>..............................................................20
3.3.1 PARAM...........................................................................21
3.3.2 NOM..............................................................................21
3.3.3 BIN ...............................................................................21
3.3.4 HIGH/LOW .....................................................................22
3.3.5 COUNT ..........................................................................22
3.3.6 AUX ..............................................................................22
3.3.7 OUT ..............................................................................22
3.4 <LIST SWEEP DISP>.............................................................22
3.4.1 Sweep mode...................................................................23
3.4.2 FREQ (Hz) ......................................................................24
3.4.3 Cp[F] D[ ] ......................................................................24

TH2829XSeriesOperationManual Contents
III
3.4.4 CMP (Compare)...............................................................24
3.5 <TRACE SWEEP> .................................................................24
3.5.1 FORMAT .........................................................................25
3.5.2 SCALE ...........................................................................25
3.5.3 READ.............................................................................25
3.5.4 TRACE ...........................................................................26
3.5.5 POINTS..........................................................................26
3.5.6 TRIGGER........................................................................26
3.5.7 SAVE CSV & SAVE AS.......................................................26
3.6 <MEAS SETUP>....................................................................27
3.6.1 Trigger mode ..................................................................29
3.6.2 Auto level control function ................................................29
3.6.3 Bias current isolation function ...........................................30
3.6.4 Average .........................................................................31
3.6.5 Level monitor function .....................................................31
3.6.6 Delay time .....................................................................32
3.6.7 Output impedance ...........................................................32
3.6.8 Deviation test function .....................................................32
3.7 <CORRECTION>...................................................................33
3.7.1 OPEN.............................................................................35
3.7.2 SHORT...........................................................................36
3.7.3 LOAD.............................................................................38
3.7.4 Load correction test function.............................................39
3.7.5 Cable length selection ......................................................39
3.8 <LIMIT TABLE> ....................................................................40
3.8.1 Swap parameter..............................................................40
3.8.2 Limit modes of compare function .......................................41
3.8.3 Set nominal value of tolerance mode..................................42
3.8.4 Comparator function ON/OFF ............................................42
3.8.5 Auxiliary bin ON/OFF .......................................................43
3.8.6 HIGH/LOW .....................................................................43
3.9 <LIST SWEEP SETUP> ..........................................................44
3.9.1 MODE ............................................................................45
3.9.2 Test parameter ...............................................................45
3.9.3 Sweep parameter setup ...................................................46
3.10 TRACE SWEEP SETUP ............................................................46
3.10.1 Function.........................................................................47
3.10.2 Level .............................................................................47
3.10.3 DC Bias..........................................................................47
3.10.4 Trace .............................................................................48
3.10.5 Range............................................................................48
3.10.6 Scale .............................................................................48
3.10.7 Frequency ......................................................................48
3.10.8 Speed............................................................................48

TH2829XSeriesOperationManual Contents
IV
3.10.9 Format ..........................................................................48
3.10.10Trigger...........................................................................48
3.10.11Mode .............................................................................48
3.10.12Start delay .....................................................................49
3.10.13Point .............................................................................49
3.10.14Step delay......................................................................49
3.10.15Maximum and minimum ...................................................49
3.10.16START ...........................................................................49
3.10.17END ..............................................................................49
3.10.18Coordination range settiing ...............................................49
Chapter 4 [SYSTEM] and <FILE MANAGE>..............................................51
4.1 <SYSTEM SETUP> ................................................................51
4.1.1 MAIN FUNC ....................................................................51
4.1.2 ON BEEPERS...................................................................52
4.1.3 PASS BEEP .....................................................................52
4.1.4 FAIL BEEP ......................................................................52
4.1.5 LANGUAGE .....................................................................53
4.1.6 THEME...........................................................................53
4.1.7 PASS WORD ...................................................................53
4.1.8 BUS MODE (Reserved function) .........................................54
4.1.9 GPIB ADDR (Reserved function) ........................................54
4.1.10 TALK ONLY .....................................................................55
4.1.11 BIAS SRC.......................................................................55
4.1.12 BAUD RATE ....................................................................56
4.1.13 DATA/TIME .....................................................................56
4.2 LCR <FILE MANAGE> ............................................................56
4.2.1 Setup file for single-group component (*.STA).....................57
4.2.2 U-disk manage performance .............................................58
4.2.3 Operation steps for file management..................................59
Chapter 5 Execute LCR operation and some examples ..............................61
5.1 Correction operation..............................................................61
5.1.1 Sweep correction.............................................................61
5.1.2 Point-frequency correction ................................................61
5.2 Correct connection of DUT......................................................62
5.3 Eliminate the influence of stray impedance ...............................63
5.4 Operation example for testing inductance with TH2829AX...........64
5.5 Operation example of testing capacitance by multi-frequency list
sweep 66
5.6 Operation example of load correction.......................................69
Chapter 6 Transformer Single-machine Test ............................................71
6.1 Circuit for transformer single-machine test ...............................71
6.1.1 Some parameters of transformer .......................................71
6.1.2 Transformer single test circuit and TURN test ......................71
6.1.3 Transformer leakage inductance test ..................................72

TH2829XSeriesOperationManual Contents
V
6.1.4 Capacitance test between windings of transformer ...............72
6.2 <Transformer Measure Setup> ...............................................73
6.2.1 DELAY ...........................................................................74
6.2.2 Bias...............................................................................74
6.2.3 MODE ............................................................................74
6.2.4 Setting TURN test conditions.............................................75
6.2.5 Setting Lx test conditions .................................................75
6.2.6 Setting DCR test conditions ..............................................76
6.2.7 Test frequency, voltage and switch.....................................76
6.3 <TRANS LIMIT SETUP> .........................................................76
6.3.1 LMT MODE .....................................................................77
6.3.2 Parameter column ...........................................................77
6.4 <TRANS MEAS DISP> ...........................................................78
6.5 <Transformer Judge Display>.................................................78
6.5.1 Save transformer single-group test result by U disk..............79
Chapter 7 Transformer Auto Scanning Test..............................................81
7.1 Introduction to scan test function............................................81
7.2 Install and connect the scanning test system ............................81
7.3 Upper panel of scanning box ..................................................82
7.4 Lower panel of scanning box ..................................................84
7.5 HANDLER interface ...............................................................84
7.5.1 Timing diagram of HANDLER signal ....................................84
7.5.2 Distribution and connection diagram for HANDLER ...............85
7.6 Example of transformer .........................................................85
7.7 <Transformer ID> ................................................................86
7.7.1 CLEAR RAM ....................................................................86
7.7.2 TRANSFORMER PIN LABEL ................................................87
7.7.3 AUTOTRIG DELAY ............................................................87
7.7.4 HANDLER MODE..............................................................88
7.7.5 SAVE LOG MODE .............................................................89
7.7.6 COPY PINOFFSET and COPY A=>ALL..................................90
7.7.7 PASS DISP TIME .............................................................91
7.7.8 PASS DISP SIZE..............................................................92
7.7.9 COMMAND EXTRIG ..........................................................92
7.7.10 NO MINUS DEV ...............................................................93
7.7.11 SCAN DISP FONT ............................................................93
7.7.12 EXT RESET FUNC.............................................................93
7.7.13 SCAN PAGE FROM and SCAN PAGE NUMS ...........................93
7.7.14 RESCAN IF FAIL ..............................................................94
7.7.15 SAVE LOG AS..................................................................95
7.7.16 DC BIAS FACTOR.............................................................95
7.7.17 HDL VAL ID TIME ............................................................96
7.7.18 RELAY ACT TIME .............................................................96
7.7.19 Transformer ID ...............................................................97

TH2829XSeriesOperationManual Contents
VI
7.7.20 PRIMARY NUMS...............................................................97
7.7.21 SECONDARY NUMS..........................................................97
7.7.22 RESCAN INTERVAL ..........................................................97
7.7.23 SCAN DISP MODE............................................................98
7.7.24 FAIL RESCAN ..................................................................98
7.7.25 DCR MEAS DELAY............................................................98
7.7.26 DCR OVER DELAY ............................................................98
7.7.27 IBIAS ON DELAY .............................................................99
7.7.28 IGNORE NOM..................................................................99
7.7.29 TRIGGER DELAY..............................................................99
7.7.30 CYLINDER CTRL ..............................................................99
7.8 ALLOCATE PIN TO FIXTURE ..................................................100
7.8.1 PIN TO FIXTURE............................................................100
7.8.2 HFLX ...........................................................................100
7.9 PIN SETUP .........................................................................101
7.10 SERIES PIN SHORT SETUP ...................................................102
7.11 PARALLEL PIN SHORT SETUP ................................................103
7.12 <TRANS TEST CONDITION>.................................................104
7.12.1 Frequency, voltage, switch and scanning sequence.............104
7.12.2 Setting TURN test conditions...........................................105
7.12.3 Setting Lx test conditions ...............................................108
7.12.4 Setting Lk test conditions ...............................................112
7.12.5 Setting Cx test conditions...............................................113
7.12.6 Setting Zx test conditions...............................................114
7.12.7 Setting ACR test conditions.............................................116
7.12.8 Setting DCR test conditions ............................................117
7.12.9 Setting PS test conditions ...............................................118
7.12.10Setting BL test conditions ...............................................119
7.12.11Setting LED test conditions .............................................120
7.13 <TRANS SCAN TEST> .........................................................122
7.13.1 Display zone.................................................................122
7.13.2 Function keys ...............................................................123
7.13.3 PRI page-turning function...............................................124
7.13.4 Lk Pin Disp ...................................................................125
7.13.5 BAL display ..................................................................126
7.13.6 <FILE MANAGE>...........................................................126
7.13.7 Operation steps for file manage.......................................127
7.13.8 Stored files of TH2829AX-24 ...........................................129
7.13.9 Compatibility of stored files ............................................130
7.13.10Transformer deviation-deduction .....................................130
7.13.11Save scan test results by U disk ......................................132
7.14 Statistic page of transformer scan test...................................133
7.14.1 Reset statistic count value ..............................................133
7.15 FOCUS SCAN......................................................................134

TH2829XSeriesOperationManual Contents
VII
7.16 Frequently asked questions and answers in transformer scan test
135
7.16.1 High and low limits ........................................................135
7.16.2 Measurement item loss ..................................................135
7.16.3 Measurement interruption ..............................................136
7.16.4 Poor DCR accuracy ........................................................136
7.16.5 Poor Lk accuracy ...........................................................136
7.16.6 Inaccurate TURN ...........................................................136
7.16.7 Unstable TURN..............................................................137
7.16.8 Difference between the first and the second Lx..................137
7.16.9 Poor stability of Cx and Zx open test data .........................137
7.16.10DCR and PS open cannot reach infinite large .....................137
7.17 User-made test fixture.........................................................137
7.17.1 Use TH1801-EXT2A-OUT to make test fixture ....................138
7.17.2 Example of using TH1801-EXT11A(5.0)-B pin signal ...........139
7.17.3 Scan test interface board................................................139
7.18 Self-check function of scanner relay ......................................140
7.18.1 Operation steps for scan self-check..................................140
7.18.2 Displayed information on screen ......................................141
7.18.3 Detection method for relay short .....................................142
Chapter 8 Performance and Test ..........................................................143
8.1 Test function ......................................................................143
8.1.1 Parameter and symbol ...................................................143
8.1.2 Test combination ...........................................................143
8.1.3 Mathematical operation ..................................................143
8.1.4 Equivalent mode ...........................................................143
8.1.5 Range..........................................................................143
8.1.6 Trigger.........................................................................143
8.1.7 Delay time ...................................................................144
8.1.8 Connection modes of test terminals .................................144
8.1.9 Test speed (Frequency>=10kHz) .....................................144
8.1.10 Average .......................................................................144
8.1.11 Display digit .................................................................144
8.2 Test signal .........................................................................144
8.2.1 Test signal frequency .....................................................144
8.2.2 Signal mode .................................................................145
8.2.3 Test signal level ............................................................145
8.2.4 Output impedance .........................................................145
8.2.5 Monitor for test signal level.............................................145
8.2.6 Maximum measurement display range..............................145
8.2.7 DC bias voltage source...................................................146
8.2.8 Diode test ....................................................................146
8.3 Measurement accuracy ........................................................146
8.3.1 │Z│,│Y│, L, C, R, X, G, B accuracies.............................146

TH2829XSeriesOperationManual Contents
VIII
8.3.2 D accuracy ...................................................................147
8.3.3 Q accuracy ...................................................................147
8.3.4 Θ accuracy ...................................................................147
8.3.5 G accuracy ...................................................................147
8.3.6 Rp accuracy..................................................................148
8.3.7 Rs accuracy ..................................................................148
8.3.8 Accuracy factor .............................................................148
8.3.9 DCR accuracy ...............................................................152
8.3.10 Lk accuracy ..................................................................152
8.3.11 Turns to Ratio accuracy ..................................................152
8.4 Safety requirement .............................................................153
8.4.1 Insulation resistance......................................................153
8.4.2 Insulation intensity........................................................153
8.4.3 Leakage current ............................................................153
8.5 Electromagnetic compatibility ...............................................153
8.6 Performance test ................................................................153
8.6.1 Working condition..........................................................153
8.6.2 The used instruments and devices ...................................154
8.6.3 Function check..............................................................154
8.6.4 Test signal level ............................................................154
8.6.5 Frequency ....................................................................155
8.6.6 Measurement accuracy...................................................155
8.6.7 Accuracy of C and D ......................................................155
8.6.8 Accuracy of L ................................................................ 155
8.6.9 Accuracy of Z................................................................155
8.6.10 Accuracy of DCR ...........................................................156
Chapter 9 Command Reference ...........................................................157
9.1 Subsystem commands for TH2829X ......................................157
9.1.1 DISPlay subsystem commands ........................................157
9.1.2 FREQuency subsystem commands ...................................160
9.1.3 VOLTage subsystem commands .......................................160
9.1.4 CURRent subsystem commands.......................................161
9.1.5 AMPLitude subsystem commands ....................................161
9.1.6 Output RESistor subsystem commands.............................161
9.1.7 OUTPut subsystem commands ........................................162
9.1.8 BIAS subsystem commands ............................................163
9.1.9 FUNCtion subsystem commands ......................................164
9.1.10 LIST subsystem commands ............................................168
9.1.11 APERture subsystem commands ......................................172
9.1.12 TRIGger subsystem commands .......................................173
9.1.13 FETCh? subsystem commands.........................................174
9.1.14 CORRection subsystem commands...................................177
9.1.15 COMParator subsystem commands ..................................182
9.1.16 Mass MEMory subsystem commands ................................187

TH2829XSeriesOperationManual Contents
IX
9.1.17 TRAN subsystem commands ...........................................187
9.2 GPIB Common Commands ...................................................196
Chapter 10 Description for Handler........................................................200
10.1 Technology description ............................................................200
10.2 Operation description ..............................................................200
Announcement
The description of the manual may not cover all contents of the instrument, and
our company is subject to change and to improve the performance, function,
inner structure, appearance, accessory and package of the instrument without
notice. If there is puzzle caused by inconsistency of manual and instrument, then
you can contact with our company by the address on the cover.

TH2829X Series Operation Manual Chapter 1 Out of Box Audit
1
Chapter 1 Out of Box Audit
When you receive the instrument, some inspections are necessary, and the
condition must be understood and available before installing the instrument.
1.1 To Inspect the package
Inspect the shipping container for damage after unpacking it. It is not
recommended to power on the instrument in the case of a damaged container.
If the contents in the container do not conform to the packing list, notify us or
your dealer.
1.2 Power connection
1) Power-supplying voltage range: 100~120Vac or 198~242Vac. Being related
with the power setup on the rear panel.
2) Power-supplying frequency range: 47~63Hz.
3) Power-supplying power range: less than 80VA.
4) Power supplying input phase line L, zero line N, ground lead E should be as
same as the power plug of the instrument.
5) After careful design, the instrument can reduce the clutter jamming caused
by AC power terminal input, however, it should be used under the
environment with low-noise. Please install power filter if being unavoidable.
———————————————————————————————————————
Warning: In order to prevent user and instrument from being hurt by
leakage, it is necessary for user to guarantee the ground line of supply
power being reliably grounded.
———————————————————————————————————————
1.3 Fuse
The instrument has installed fuse, so operators should use the installed fuse of
our company.
———————————————————————————————————————
Warning: Be sure that the location of fuse is consistent with
power-supplying voltage range before charging.
———————————————————————————————————————

TH2829X Series Operation Manual Chapter 1 Out of Box Audit
2
1.4 Environment
1) Please do not operate the instrument in the place that is vibrative, dusty,
under direct sunlight or where there is corrosive air.
2) The normal working temperature is 0℃～40℃, relative humidity ≤75%, so
the instrument should be used under above condition to guarantee the
accuracy.
3) There is heat abstractor on the rear panel to avoid the inner temperature
rising. In order to keep good airiness, please don’t obstruct the left and right
airiness holes to make the instrument maintain the accuracy.
4) Although the instrument has been specially designed for reducing the noise
caused by ac power, a place with low noise is still recommended. If this
cannot be arranged, please make sure to use power filter for the instrument.
5) Please store the instrument in the place where temperature is between 5℃
and 40℃, humidity is less than 85%RH. If the instrument will not be put in
use for a time, please have it properly packed with its original box or a similar
box for storing.
6) The instrument, especially the test cable should be far from strong
electro-magnetic field, to avoid the jamming on measurement.
1.5 Use of Test Fixture
Please use the accessory test fixture or cable, the test fixture made by user or
from other company may cause the incorrect measurement result. The
test fixture or cable should be kept clean, as well as the pin of DUT, thus to
guarantee the good connection between DUT and fixture.
Connect the fixture or cable to four test terminals Hcur, Hpot, Lcur, Lpot on the
front panel. As for the DUT with shielding shell, connect shielding layer or ground
“┴” .
Note: When test fixture or cable has not being installed, the instrument will
display an unstable test result.
1.6 Warm-up
1) To guarantee the accurate measurement, the warm-up time is no less than
15min.
2) Please not turn on or off instrument frequently, in order to avoid the inner
data fluster.

TH2829X Series Operation Manual Chapter 1 Out of Box Audit
3
1.7 Other features
1) Power: consumption power≤80VA.
2) Dimension (W*H*D): 430mm*185mm*47 3mm
3) Weight: About 13kg.

TH2829X Series Operation Manual Chapter 2 Introduction
4
Chapter 2 Introduction
In this chapter, the basic operation features of TH2829X series are described.
Please read the content carefully before using TH2829X series instruments, thus
you can learn the operation of TH2829X.
2.1 Introduction to front panel
Figure 2-1 shows the front panel of TH2829X.
DCV BIAS
KEYLOCK
DCI BIAS
DISP SETUP SYSTEM 7 8 9 ESC
654
1 2 3
0+/- ENTER
RESET
PASS
FAIL
TRIGGER
CAL
PQRS TUV WXYZ
GHI JKL MNO
ABC DEF
TH2829AX AUTOMATIC TRANSFORMER TEST SYSTEM
-Hz20 Hz200k
MENU OPERATION
(-) (+)
LCUR LPOT HPOT HCUR
±42 Max
！
VDC
TURNS
UNKNOWN
CATⅠ
ENTRY
COPY
RETURN
POWER
1 2 3 4 5 6 7 8 9 10 11 12 13 15
161718212223242526
14
1927 20
1) USB HOST interface
Connect U flash disk so as to save or use a specified file.
2) [KEYLOCK]
Press [KEYLOCK], it will be lighted, which means the function of current panel
is locked. Press it again, it will be off, which means discharging the lock status.
If the password function is ON, it means correct password is necessary when
discharging the key-lock, or the key cannot be unlocked.
When the instrument is controlled by RS232, [KEYLOCK] will be lighted. Press
it again, it will be off, which means discharging the lock status.
3) [DC BIAS]
[DC BIAS] is used to permit or forbid the output of 0-100mA/10V DC bias
source. Press this key, it will be lighted which means DC bias output is
permitted. Press this key once more, it will be off which means DC bias output
is prohibited. The key is useless in some pages where the DC BIAS cannot be
added.
4) [DC SOURCE]
This key is only valid in TH2829A(B/C) LCR Meter. It is the function of DC
voltage source (-10~+10V).
5) Brand and model
Brand and model
6) LCD
800*480 colorful TFT LCD display, showing the measurement results and

TH2829X Series Operation Manual Chapter 2 Introduction
5
conditions.
7) [COPY]
Copy the currently displayed page to USB memory.
8) [DISP]
Press this key to enter into the corresponding test display page.
9) [SETUP]
Press this key to enter into the corresponding test setup page.
10) [SYSTEM]
Press this key to enter into the system setup page.
11) Numerical keys
These keys are used to input data to the instrument. The key consists of
numerical keys [0] to [9], decimal point [.] and [+/-] key.
12) [ESC]
ESCAPE key
13) [←]
BACKSPACE key is used to delete the last numeric of the input value.
14) [CAL]
Execute the calibration operation. Press this key to execute OPEN/SHORT
calibration.
15) PASS indicator
LED indicator shows the test result has passed.
16) [TRIGGER]
When the trigger mode is set to MAN mode, press this key to trigger the
instrument.
17) [RESET]
Press this key, when transformer auto scanning is cancelled, other operation
cannot be executed on other pages.
18) FAIL indicator
LED indicator shows the test result has failed.
19) [ENTER]
This key is used to end the input of data, and confirm and save the data
displayed on the inputting line (the bottom line on LCD).
20) Test terminals (UNKNOWN)
4-teminal test pair are used to connect 4-terminal test fixture or cable to
measure DUT.
The 4 terminals are respectively as follows: Hcur, Hpot, Lpot and Lcur.
Transformer secondary test terminal (TURNS)
(+): Secondary (+) terminal
(-): Secondary (-) terminal
21) CURSOR
This key is used to move the cursor on the LCD displayed page. When the
cursor moves to a zone, the corresponding zone will be lightened.
22) Knob for menu selection and numeric input
This knob is used to move the cursor, select and set parameters.

TH2829X Series Operation Manual Chapter 2 Introduction
6
23) Confirmation key
This key is used to end the data input, confirm and save the data input
through knob.
24) Ground terminal
The ground terminal is connected with the case of instrument, which can be
used to protect or shield the ground connection.
25) FILE
This key is used to enter into FILE MANAGE interface (when in LCR funtion, it
is the only way to enter into the FILE MANAGE interface).
26) Soft keys
Six soft keys are used to select parameters. The corresponding function of
each soft key has been displayed on its left (the right part of LCD). The
function definition varies with different pages.
27) POWER
Power switch
2.2 Introduction to rear panel
Figure 2-2 shows the rear panel of TH2829X.
RATING FUSE
110V/60Hz 80VA
220V/50Hz 80VA T2AL 250V
~
~
T4AL 250V
!
TO AVOID ELECTRIC SHOCK,
THE POWER CORD PROTECTIVE GROUNDING CONDUCTOR
MUST BE CONNECTED TO GROUND.
DISCONNECT POWER SUPPLY BEFORE REPLACING FUSE.
WARNING
RS-232C
LAN DEVICE
SCANNER
HANDLER
DC BIAS INTERFACE
IEEE-488
1 2 3 4 5 6 7 8 9 10 11
Figure 2-2 Rear panel
1) HANDLER interface
Handler interface is used to realize the sorting output of test results.
2) LAN interface
LAN interface is used to realize the control and the communication of network
system.
3) Nameplate
Information about production date, instrument number and manufacturer
etc..
4) USB DEVICE interface
The tester can communicate with PC through the USB DEVICE interface.
5) SCANNER interface
Control the transformer scanning box through SCANNER interface.

TH2829X Series Operation Manual Chapter 2 Introduction
7
6) IEEE-488 interface
The tester can communicate with PC through GPIB interface.
7) RS232 interface
Series communication interface can realize the communication with PC.
8) Fan window
Heat elimination, maintaining the normal working temperature
9) Power socket
Input AC power.
10) Fuse base
Being used to install power fuse, protect instrument, and switch 110V/220V
by changing the direction of core.
———————————————————————————————————————
Warning: Be sure that the direction of fuse is accordant with
power-supply voltage range before charging.
———————————————————————————————————————
11) Ground terminal
The ground terminal is connected with instrument casing, being available for
protecting or shielding ground connection.
2.3 Introduction to display zone
TH2829X applies a 65k, 7-inch TFT display. The display screen is divided into the
following zones:
1
4 3 2
Figure 2-3 display zones
1) Display page name
Indicate the name of the currently displayed page.

TH2829X Series Operation Manual Chapter 2 Introduction
8
2) Soft keys
The zone is used to display the function definition of soft key. The definition of
soft key can be different as the difference of cursor’s direction in the zone.
3) Test result/ condition display zone
In this zone, test result information and current condition are displayed.
4) Help
In this zone, information about system and user data input is displayed.
2.4 Main menu keys and corresponding displayed
pages
2.4.1 [DISP]
When the LCR function is active, press this key-[DISP] to enter into the LCR
measurement display page, the following soft keys will be displayed in the soft
key zone.
<MEAS DISPLAY>
<BIN NO.>
<BIN COUNT>
<LIST SWEEP>
<TRACE SWEEP>
When the transformer measurement function is active, press this key-[DISP],
the following soft keys will be displayed on the transformer measurement display
page.
<TRANS DISP>
<JUDGE DISP>
<FILE MANAGE>
When the transformer scan function is active, press this key-[DISP], the
following soft keys will be displayed on the transformer scan display page.
<DEVIATION DEDUCT SETUP>
When in FOCUS SCAN function, no function page will be displayed.
2.4.2 [SETUP]
When the LCR function is active, press this key-[SETUP], the following soft keys
will be displayed in the soft key zone on the LCR measurement setup page.
<MEAS SETUP>
<CORRECTION>
<LIMIT TABLE>
<LIST SETUP>
<TRACE SETUP>
When the transformer measurement function is active, press this key-[SETUP],

TH2829X Series Operation Manual Chapter 2 Introduction
9
the following soft keys will be displayed on the transformer measurement setup
page.
<TRANS MEAS>
<LIMIT TABLE>
<CORRECTION>
<FILE MANAGE>
When the transformer scan function is active, press this key-[SETUP], the
following soft keys will be displayed on the transformer scan setup page.
<TRANS ID>
<PIN SETUP>
<TEST CONDITION>
<STATISTICS>
<FILE MANAGE>
<TOOLS>
When in FOCUS SCAN function, the setup pages are the same as the transformer
scan setup pages.
2.4.3 [SYSTEM]
This key-[SYSTEM] is used to enter into the system setup page. The following
soft keys will be available:
<SYSTEM SETUP>
<LAN SETUP>
2.5 Basic Operation
Basic operation of TH2829X is as follows:
Use menu keys ([DISP], SETUP], [SYSTEM]) and soft keys to select the
desired page.
Use cursor keys ([←][→]) and the slide switch to move the cursor to the
desired zone. When the cursor moves to a specified zone, the zone will
become reverse expression.
The soft key functions corresponding to the current zone of the cursor will be
displayed in the soft key zone. Users can select and use the desired key.
Numeric keys, [BACKSPACE] and [ENTER] are used to input data.
When a numeric key is pressed down, the usable unit soft key will be
displayed in the soft key zone. You can choose a unit soft key or press [ENTER]
to end data inputting. When [ENTER] is used to terminate data inputting, the
unit of data will be set to a default unit, such as Hz, V or A. For example, the
default unit for frequency is Hz.

TH2829X Series Operation Manual Chapter 2 Introduction
10
2.6 Start the instrument
Plug in 3-line power plug.
Caution: Keep the power-supply voltage and frequency conform to above
specifications. Power input phase line L, zero line N, ground line E should be the
same as that of the instrument.
Press the power switch at the left corner on the front panel and then a boot screen
will appear which displays our company logo, instrument model (TH2829AX), and
the version number of the software (Ver1.0.0).
If the password protection function is on, users are required to input the
password and then press [ENTER] to enter into the page of main menu.
———————————————————————————————————————
Note: The instrument has a default password-2829. In your practical use, you
can change it and set your own one. Please see <SYSTEM> section for more
information.

TH2829X Series Operation Manual Chapter 3 Introduction to [MEAS]
1 1
Chapter 3 Introduction to [DISP]
3.1 <MEAS DISPLAY>
When the LCR function is applied, press [DISP], the <MEAS DISPLAY> page will
be displayed on screen as shown in the following figure.
TH2829X-301
On this page, the test result is displayed in upper-case character. The
measurement control parameters can be set in this page:
Test function (FUNCA)
Test function (FUNCB)
Test frequency (FREQ)
Test level (LEVEL)
Test range (RANGE)
Test speed (SPEED)
DC bias (DC BIAS)
DC voltage source (DC SRC)
There are 8 zones in this page: FUNCA, FUNCB, FREQ, LEVEL, RANG, SPEED, DC
BIAS, DC SRC. The details will be discussed later.
The test result/ condition display zone shows the information about test condition.
These conditions can be set on <Measure> page or <Correction> page.
Signal source voltage/ current monitor (Vm, Im)
Open, short, load correction ON/OFF status (CORR)
