Tonghui TH2821A User manual

OPERATION MANUAL
English
November 2005
1st Edition Rev 1.0.0
© Copyright 2005 Changzhou Tonghui Electronic Co., Ltd.
All rights reserved.
TH2821A
Portable LCR Meter

TH2821A OPERATION MANUAL
2
Contents
Contents............................................................2
How to Contact Us.......................................3
Incoming Inspection.....................................4
Notes on Use ...............................................5
Warranty:....................................................6
Chapter 1 Overview............................................7
1.1 Introduction...........................................7
1.2 Main Functions.......................................7
1.3 Specifications ........................................9
1.4 Environment Requirements...................12
Chapter 2 Panel Illustration..............................13
2.1 LCD Display Illustration.........................13
2.2 Keyboard Illustration............................15
Chapter 3 Operation.........................................17
3.1 Power on .............................................17
3.2 How to operate....................................18
3.2.1 First Key Functions .....................18
3.2.2 Second Key Functions: ................20
3.3 Battery recharge..................................30
3.4 Clearing Instruction..............................31
Appendix .........................................................32

TH2821A OPERATION MANUAL
3
How to Contact Us
Changzhou Tonghui Electronic Co., Ltd.
Address: No. 3, Tianshan Road, New District,
Changzhou, Jiangsu, China
Tel: [phone]
Fax:[phone]
http://www.tonghui.com.cn
http://www.tonghui.cn
Email: [email protected]

TH2821A OPERATION MANUAL
4
Incoming Inspection
Inspect the shipping container for damage. The contents of
the shipment should be listed as follows. If the contents are
incomplete, if there is damage or defect, please contact
our company or your nearest Sales and Service Office.
Accessories
TH26028 DC Power Adapter 1
TH26027 4 terminal Kelvin test clip leads 1
LH-200H7C rechargeable battery (inside) 1
User Manual 1
Options
TH26029 SMD component test fixture

TH2821A OPERATION MANUAL
5
Notes on Use
zThis meter is only for indoor use.
zTurn off the TH2821A while switching the power supply
between battery and DC adapter or replacing the
battery.
zAlthough internal circuit protection is provided, DC
voltage or current may damage TH2821A. Before you
measure a capacitor, be sure the capacitor is fully
discharged.
zCharging may disturb measurement result sometimes.
zNickel Metal Hydride rechargeable battery can be used
for the power supply. TH2821A will not work normally
when battery voltage is less than 6V.
zThe 12V AC to DC adaptor is recommended to be used
for TH2821A power supply.
zPerform Open and Short corrections for accurate
measurement especially when test fixture is changed.
zThe functions locked with password are not accessible
by users.

TH2821A OPERATION MANUAL
6
Warranty:
This instrument product is warranted against defects in
material and workmanship for a period of two years from
the date of shipment. During the warranty period, Our
company will, at its option, either repair or replace
products which prove to be defective. For warranty service
or repair, this product must be returned to a service facility
designated by our company.
Warranty limitation
The foregoing warranty shall not apply to defects resulting
from improper or inadequate maintenance by Buyer,
Buyer-supplied software or interfacing, unauthorized
modification or misuse, or improper site preparation or
maintenance.

Chapter 1 Overview
Thank you for purchasing our product. To get the maximum
performance from the instrument, please read this manual
first, and keep this manual at hand.
1.1 Introduction
TH2821A is a microprocessor-controlled portable meter with
low power consumption. It can measure six basic parameters,
they are inductance L, capacitance C, resistance R,
impedance |Z|, dissipation factor D and quality factor Q.
TH2821A can fulfill the measurement needs of various
component manufacturers and maintenance technicians.
1.2 Main Functions
1．Test Parameter
L-Q, C-D, R-Q and Z-Q.
2．Correction
OPEN: multi-frequency correction of open circuit;
SHORT: multi-frequency correction of short circuit.
3．Display Mode
Direct —— direct measurement value;
∆—— absolute deviation;
∆% —— percent deviation.
4．Range Hold
When measuring a large number of components with
the same nominal value, this function can effectively
improve the measuring rate.

TH2821A OPERATION MANUAL
8
5．Comparator Function
Built-in 4 Bins comparator: NG, P1, P2 and P3.
6．Equivalent Circuit Mode
Both parallel and series equivalent circuit modes can
be obtained.
7．Data Hold
This function can be used to freeze the current display
value.
8．Alarm Mode
NG, P1, P2, P3 and OFF modes can be selected.

TH2821A OPERATION MANUAL
9
1.3 Specifications
Parameter L-Q, C-D, R-Q and Z-Q
Frequency 100 Hz, 120 Hz , 1 kHz and 10 kHz
Accuracy Basic Accuracy: 0.3%
Display 5digits display for both primary and secondary
parameters
100 Hz,120 Hz 1 µH – 9999 H
L 1 kHz,10 kHz 0.1 µH – 999.9 H
100 Hz, 120Hz 1 pF – 9999 µF
C 1kHz,10 kHz 0.1 pF – 999.9 µF
R, |Z| 0.0001 Ω- 999.9 MΩ
D, Q 0.0001 – 9999
Measurement
Range
∆% 0.0001% - 9999%
10kHz 0.1 Vrms (1±15%)
120Hz
1kHz 0.3 Vrms (1±15%)
Test Level
(Range Auto
and Open
Circuit) 100Hz 0.42 Vrms (1±15%)
Ranging Mode Auto and Hold
Equivalent
Circuit Parallel and Series
Display Direct, ∆ABS and ∆%
Correction Open and Short Zeroing
Rate Approx. 3 meas/sec
Terminals 5 terminals

TH2821A OPERATION MANUAL
10
(Continued)
Comparator 4 Bins：NG, P1, P2 and P3
∆% -9999% - 99999%
L 0.0001 µH – 99999 H
C 0.0001 pF – 99999 µF
R 0.0001 Ω- 99999 MΩ
Limit Setup
Range
Nominal
Z 0.0001 Ω- 99999 MΩ
Alarm Mode NG, P1, P2, P3 and OFF
Power Supply 9V rechargeable battery or DC12V(100 mA)
adapter
Low Battery
Indication Approx. 6V
Power
Consumption Normal: Approx. 25 mA Auto power-off: Approx. 500 nA
Auto Power
Off time Approx. 5 minutes
Weight Approx. 400 g
Dimensions 200mm(L) × 95mm(W) × 40mm(D)
Table 1-1 Specifications

TH2821A OPERATION MANUAL
11
*Note：
Primary parameter accuracy(Ae)
C：Ae = 0.3%(1+Cx/Cmax+Cmin/Cx)
L：Ae = 0.3% (1+ Lx/Lmax+ Lmin/Lx)
Z：Ae = 0.3% (1+ Zx/Zmax+ Zmin/Zx)
R：Ae =0.3%(1+ Rx/Rmax+ Rmin/Rx)
Max and Min values are as follows：
Parameter Range Auto
Cmax 80µF/f
Cmin 150pF/f
Lmax 159H/f
Lmin 0.32mH/f
Zmax 1MΩ
Zmin 1.59Ω
Here：Zmax = Rmax; Zmin = Rmin, Frequency unit: kHz.
Secondary parameter accuracy
De= Ae/3 when Dx ≤0.1
De= Ae(1+Dx)/3 when Dx＞0.1
Qe=ex
ex DQ DQ
×
×
±µ1
when Qx·De<1

TH2821A OPERATION MANUAL
12
1.4 Environment Requirements
1．Please do not operate TH2821A under the following
environment conditions, as any of them will directly
affect measuring precision or damage the meter:
zPlease do not operate the instrument in places
where is dusty, vibrant, under direct sunlight, or
where there is corrosive air.
zAlthough TH2821A has been specially designed
for reducing the noise caused by AC power, the
environment with low noise is still recommended.
If this can not be arranged, please make sure to
use power filter for the AC-DC adaptor.
2．The TH2821A must be operated under the following
environment conditions:
Temperature: 0°C ~ 40°C,
Humidity: ≤90% RH at 40°C.
3．Storage Temperature: -25°C ~ 50°C.

TH2821A OPERATION MANUAL
13
Chapter 2 Panel Illustration
2.1 LCD Display Illustration

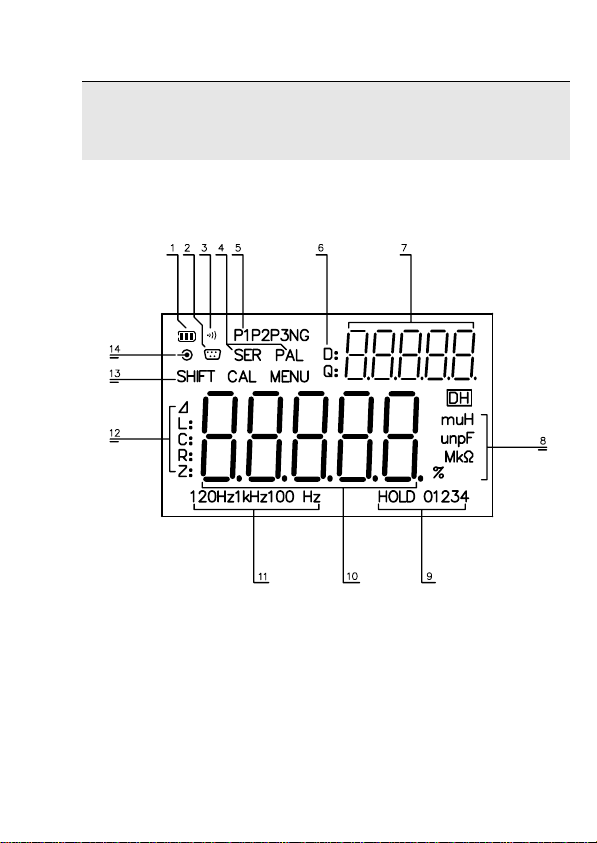

Figure 2-1 LCD Display

TH2821A OPERATION MANUAL
14
No. Description No. Description
1 Battery Power
Indicator 8 Unit Indicator
2 Remote
Indicator 9 Ranging Mode Indicator
3 Beeper
Indicator 10 Primary Parameter Display
4 Series/Parallel
Indicator 11 Frequency Indicator
5 Comparator
Indicator 12 Primary Parameter Indicator
6 Secondary
Parameter
Indicator 13 2nd Function Indicator
7 Secondary Parameter
Display 14 DC Adaptor Power Supply
Indicator
Table 2-1 LCD Description
Others:
DH: Data hold indictor
CAL: Correction function indictor
MENU: Menu operation indictor

TH2821A OPERATION MANUAL
15
2.2 Keyboard Illustration
DHSHIFT
PARA
POWER
ENTER
MENU
ESC
CLEAR LIMIT
DISPLAY
EQU
▲
BUZZER
▲
①②③④
⑤⑥⑦⑧
FREQ
AUTO
U
V
Figure 2-2 Keyboard
ÂConvention：
Key Function Conventions
1st function: PARA
2nd function: CLEAR
3rd function: }

TH2821A OPERATION MANUAL
16
No. Key Function SHIFT+
Key Function
○
1 POWER Power
On/Off
○
2 PARA Parameter
Selection CLEAR Correction key
○
3 U Range Up LIMIT Sorting Limit
Setup
○
4 FREQ Frequency
Selection MENU Auxiliary Menu
○
5 AUTO Range Auto
Selection DISPLAY Display Mode Selection
○
6 VRange Down BUZZER Alarm Mode
Setup
○
7 DH Data Hold EQU Equivalent
Circuit
○
8 SHIFT 2nd Function
Table 2-2 Key Description
The 3rd Functions：
}, o, q, p, rand xare valid during Menu
setup and Data input operations.

TH2821A OPERATION MANUAL
17
Chapter 3 Operation
3.1 Power on
1. Press POWER key to turn on TH2821A.
2. The operation system version will be displayed.
3. At last the instrument enters the measurement state.

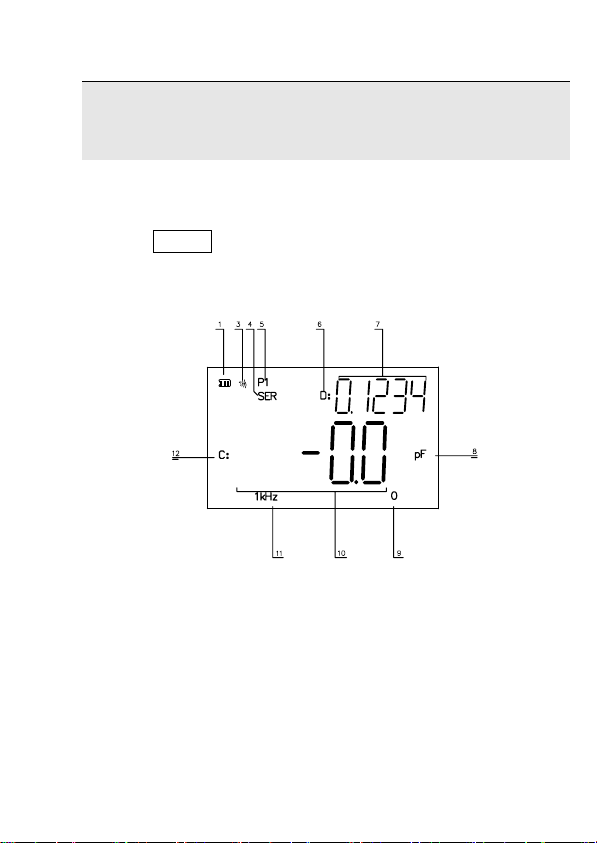

Figure 4-1 Measurement Display
Measurement display description:
1. Battery Supply 3. Beeper ON
4. Series Circuit 5. Sorting Result: P1
6. Parameter D 7. Secondary parameter
8. Unit 9. Range 0 (Auto)
10. Primary parameter 11. Frequency: 1 kHz
12. Parameter C

TH2821A OPERATION MANUAL
18
3.2 How to operate
3.2.1 First Key Functions
1. Parameter Setup：
Press PARA key to select the following measurement
parameter combinations：L-Q, C-D, R-Q and Z-Q.
Units Description:
L µH mH H
C pF nF µF
R/|Z| ΩkΩMΩ
Table 4-1 Units
|Z| is the absolute value of impedance. Measurement
value of L, C or R may be positive or negative. Negative
capacitance value means that the device under test is
actually an inductor; also negative inductance value means
that the device under test is actually a capacitor. In theory
R should be positive constantly, under some condition, R
may be negative due to over zero correction. Please carry
out correct zero correction.
The maximum number of display digits is 5, but 5-digit is
not always available and 4-digit is displayed sometimes.
The conversion is described in the following description:
From 4-digit to 5-digit:
When the first 2 digit of current value is less than 18.
From 5-digit to 4-digit:
When the first 2 digit of current value is more than 20.
2. Frequency Setup:
Use FREQ key to select the following test frequencies in
turn: 100 Hz, 120 Hz ，1 kHz and 10 kHz.

TH2821A OPERATION MANUAL
19
3. Range Setup:
U, Vand AUTO keys are used to set the measurement
range. AUTO key toggles ranging mode between “Auto”
and “Hold”. Uand Vkeys are used to increase or
decrease the measurement range, if the current ranging
mode is “Auto”, then the ranging mode is changed to
“Hold” at the same time.
*Note：
When ranging mode is set to HOLD, the measurement
range is fixed at current range. Overload symbol “-----” will
be displayed if the impedance under test exceeds the
current effective measurement range or display range.
Range
No. Range Resistor Range Up Range Down
0 100kΩ
1 10kΩ
2 1kΩ
3 100Ω
4 20Ω
Ï
20kΩ
Ï
2kΩ
Ï
200Ω
Ï
20Ω
Ï
Ð
18kΩ
Ð
1.8kΩ
Ð
180Ω
Ð
18Ω
Ð
Table 4-2 Ranges

TH2821A OPERATION MANUAL
20
*Note：
How to calculate the measurement range
Example: Assume capacitance C=210pF, dissipation D=0.0010 and
test frequency f=1 kHz.
Solution:
Ω≈
××××
=≈
+=
−9.757
1021010001416.32
1
2
1
2
1
9
X
X
X
XX
fC
Z
fCj
RZ
π
π
From the Table 4-2, we can get the correct measurement range is
No. 2.
4. Data Hold
Press DH key to freeze the display, press DH key again to
release.
3.2.2 Second Key Functions:
1. Correction Function
zPress ukey to select the second function, “SHIFT”
will be lighted on the screen.
zPress CLEAR key to enter the correction function, the
following information will be displayed on the screen.

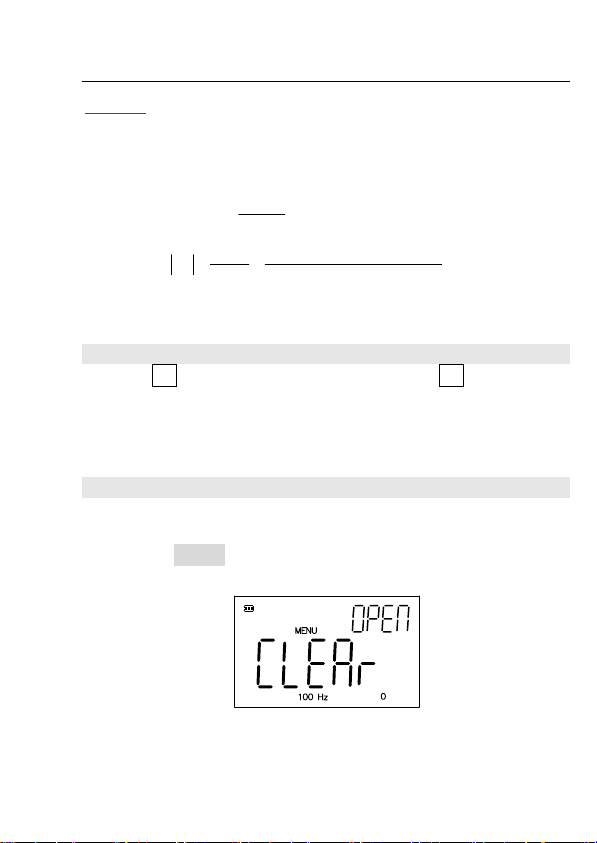

Figure 4-2 Correction Display
