Topcon LS-B100 User manual

INSTRUCTION MANUAL
LASER SENSOR
LS-B100
Thank you for purchasing the TOPCON LS-B100.
For the best performance of the instruments, please read these instructions
carefully and keep them in a convenient location for future reference.
GENERAL HANDLING PRECAUTIONS
Before starting work or operation, be sure to check that the system is
functioning properly. Remove the batteries from the instrument when
you will not be using it for long period. When washing the instrument,
avoid spraying it with a high pressure stream of water from a water
hose. The inside of the instrument will be damaged by the water. This
instrument is designed based on the International Standard IPX 6, but it
is not protected from a high pressure water stream or submergence.
Affection of the radio waves
When using the instrument in the following place, the strong radio wave
may cause faulty operation.
• Near the instrument occurring strong radio waves. (e.g. Transceiver)
• Near the radio wave towers such as television or radio.
DISPLAY FOR SAFE USE
In order to encourage the safe use of products and prevent any danger to
the operator and others or damage to properties, important warnings are
put on the products and inserted in the instruction manuals.
We suggest that everyone understand the meaning of the following displays
and icons before reading the “Safety Cautions” and text.
• Injury refers to hurt, burn, electric shock, etc.
• Physical damage refers to extensive damage to buildings or equipment and furni-
ture.
HANDLING PRECAUTIONS
Guarding the instrument against shock
When transporting the instrument, provide some protection to minimize risk
of shock. Heavy shock may affect beam accuracy.
SAFETY CAUTIONS
Standard Set Composition
1 LS-B100 Instrument ................................................ 1pc.
2 C-size dry cells........................................................ 4pcs.
3 Carrying case .......................................................... 1pc.
4 Instruction manual................................................... 1pc.
Nomenclature and Functions
Operation
1Position a rotating laser and turn on the laser.
2Raise or lower the machine blade or arm to position the cutting
edge or bucket at the desired grade elevation.
3Mount the LS-B100 onto the mast near the path of the laser beam
and turn on the LS-B100.
4Keep the machine blade or arm motionless and raise or lower the
LS-B100 and adjust until ON-GRADE position are flashing. This is
the ON GRADE position.
5Securely clamp the LS-B100 in place. The reference position has
been set.
6While operating, use the LED display to continually check grade,
moving the blade or cutting / filling according to the direction of the
LS-B100 display.
Display Meaning
WARNING Ignoring or disregard of this display may lead to death or serious
injury.
CAUTION Ignoring or disregard of this display may lead to personal injury
or physical damage to the instrument.
WARNING
• There is a risk of fire, electric shock or physical harm if you attempt to disas-
semble or repair the instrument yourself.
This is only to be carried out by TOPCON or an authorized dealer, only!
• Risk of fire or electric shock.
Do not use damaged power cable, plug and socket.
• Risk of fire or electric shock.
Do not use a wet battery.
• May ignite explosively.
Never use an instrument near flammable gas, liquid matter, and do not use in a coal
mine.
• Battery can cause explosion or injury.
Do not dispose in fire or heat.
• The short circuit of a battery can cause a fire.
Do not short circuit battery when storing it.
• Battery can cause explosion or injury.
Remove battery when using the connector for external power supply.
CAUTION
Do not allow skin or clothing to come into contact with acid from the batteries, if this
does occur then wash off with copious amounts of water and seek medical advice.
EXCEPTIONS FROM RESPONSIBILITY
1) The user of this product is expected to follow all operating instructions and make periodic checks
of the product’s performance.
2) The manufacturer, or its representatives, assumes no responsibility for results of a faulty or
intentional usage or misuse including any direct, indirect, consequential damage, and loss of
profits.
3) The manufacturer, or its representatives, assumes no responsibility for consequential dam-
age,and loss of profits by any disaster, (an earthquake, storms, floods etc.).
A fire, accident, or an act of a third party and/or a usage any other usual conditions.
4) The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of
profits due to a change of data, loss of data, an interruption of business etc., caused by using the
product or an unusable product.
5) The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of
profits caused by usage except for explained in the user manual.
6) The manufacturer, or its representatives, assumes no responsibility for damage caused by
wrong movement, or action due to connecting with other products.

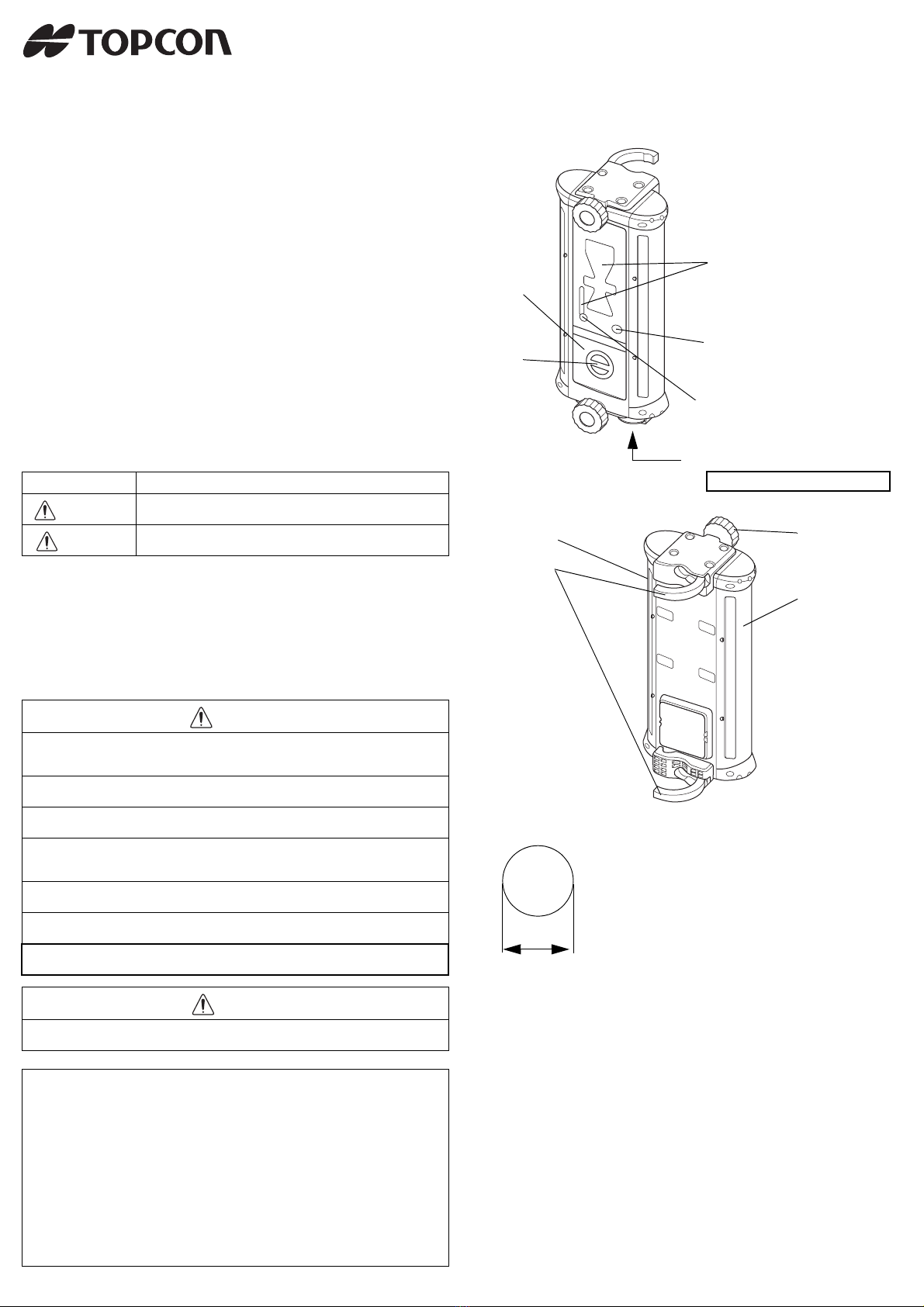

Shape: Cylindrical
Dimension: 45 to 51mm in diameter
Please refer to the instruction manual for the machine or
contact the machine manufacturer for instructions on install-
ing the mast onto the machine (by welding, etc.).
45 to 51mm
Indicator
Battery
cover
Battery cover
knob
Power switch
Power ON: Short push
Power OFF: Long push
Detective precision (Mode) switch
Clamp knob
Detector
Detector
Clamp
Connector for external power supply
Please refer to the back of the
instruction manual for the indicator
display patterns.
Remove battery when connecting.
Pipes that can be installed onto the LS-B100 are as described below.

Indicator
TOPCON CORPORATION
75-1 Hasunuma-cho, Itabashi-ku, Tokyo 174-8580, Japan
www.topcon.co.jp
TOPCON POSITIONING SYSTEMS, INC.
7400 National Drive, Livermore, CA 94551, U.S.A.
Phone: [phone] Fax: [phone] www.topcon.com
TOPCON CALIFORNIA
3380 Industrial Blvd, Suite 105, West Sacramento, CA 95691, U.S.A.
Phone: [phone] Fax: [phone]
TOPCON EUROPE POSITIONING B.V.
Essebaan 11, 2908 LJ Capelle a/d IJssel, The Netherlands.
Phone: [phone] Fax: [phone] www.topconeurope.com
TOPCON DEUTSCHLAND G.m.b.H.
Giesserallee 31, 47877 Willich, GERMANY
Phone: [phone] Fax: [phone] [email protected]
www.topcon.de
TOPCON S.A.R.L.
89, Rue de Paris, 92585 Clichy, Cedex, France.
Phone: [phone] Fax: [phone] [email protected]
TOPCON SCANDINAVIA A. B.
Neongatan 2 S-43151 Mölndal, SWEDEN
Phone: [phone] Fax: [phone]
TOPCON (GREAT BRITAIN)LTD.
Topcon House Kennet Side, Bone Lane, Newbury, Berkshire RG14 5PX U.K.
Phone: [phone] Fax: [phone]
[email protected] [email protected]
TOPCON SOUTH ASIA PTE. LTD.
Blk 192 Pandan Loop, #07-01 Pantech Industrial Complex, Singapore 128381
Phone: [phone] Fax: [phone] www.topcon.com.sg
TOPCON INSTRUMENTS (THAILAND) CO., LTD.
77/162 Sinn Sathorn Tower, 37th Fl.,
Krungdhonburi Rd., Klongtonsai, Klongsarn, Bangkok 10600 Thailand.
Phone: [phone]~7 Fax: [phone]
TOPCON INSTRUMENTS (MALAYSIA) SDN. BHD.
Excella Business Park Block C, Ground & 1st Floor, Jalan Ampang Putra,
Taman Ampang Hilir, 55100 Kuala Lumpur, MALAYSIA
Phone: [phone] Fax: [phone]
TOPCON KOREA CORPORATION
2F Yooseoung Bldg., 1595-3, Seocho-Dong, Seocho-gu, Seoul, 137-876, Korea.
Phone: 82-2-2055-0321 Fax: 82-2-2055-0319 www.topcon.co.kr
TOPCON CORPORATION BEIJING OFFICE
Block No.9, Kangding Street
Beijing Economic Technological Development Area, Beijing, China 100176
Phone: [phone] Fax: [phone]
TOPCON CORPORATION DUBAI OFFICE
P. O Box293705, Office C-25(row C-2), Dubai Airport Free Zone, Dubai, UAE
Phone: [phone] Fax: [phone]
IRELAND OFFICE
Unit 69 Western Parkway Business Center
Phone: [phone] Fax: [phone]
Lower Ballymount Road, Dublin 12, Lreland
5E
H
e
i
g
h
t a
l
ert warn
i
ng o
f
rotating laser
A flash signifies that the height alert function of rotating
laser is operating.
(This function is not usable to the rotating laser which does
not have the height alert and the function to output alarm
signal.)
Rotating laser battery warning display
A flash shows that the rotating laser power is low.
(This function is not usable to the rotating laser which does
not have the function to output alarm signal.)
Goes out:
Battery is sufficient. (When Mode 1 is selected, the lamp will
light up.)
Flashes slowly:
The power is low, but sensor is still usable.
Flashes quickly:
Dead battery. Replace the dry battery with new one.
Mode1
Mode2
Mode3
Mode4
Precision mode
Auto-cut off function
The power will be turned off automatically after detecting no laser beam for
more than approx. 60 minutes.
(To turn on the laser sensor, press the power switch again.)
Mode1: ±3mm (0.009ft)
Mode2: ±6mm (0.019ft)
Mode3: ±15mm (0.049ft)
Mode4: ±30mm (0.098ft)
When the laser
beam is off to the top
or to the bottom
Specifications
Detective range : 175mm (6.8inches)
Detective angle : 360°
Detective precision : Mode1: ±3mm (0.009ft)
: Mode2: ±6mm (0.019ft)
: Mode3: ±15mm (0.049ft)
: Mode4: ±30mm (0.098ft)
Detectable laser wave length : 633 to 785nm
Laser detecting range
(diameter)
: 800m (2625ft)
(Using RL-100 1S/2S)
Internal battery :
:
C-size dry cells 4pcs.
Battery pack BT-68Q (sold separately)
External power supply : DC 10V to 30V
Continuous operating time
(+20°C/+68°F)
:
:
Approximately 100 hours
(Using alkaline manganese dry cells)
Approximately 50 hours
(Using Battery pack BT-68Q)
Operating temperature : -20°C to +50°C (-4°F to +122°F)
Water proof : IP66 (Based on the standard IEC60529)
Dimensions (W/D/H) : 158x166x357 (mm) (6.2"x6.5"x14.0")
(With Mechanical Clamp)
Weight (Without cells) : 2.0kg (4.4lbs)
Detective angle, Detective precision and Laser detecting range may vary depending on rotat-
ing laser being used or atmospheric conditions.
Battery using time will vary depending on environmental conditions and operations done with
LS-B100.
Flashes slowly

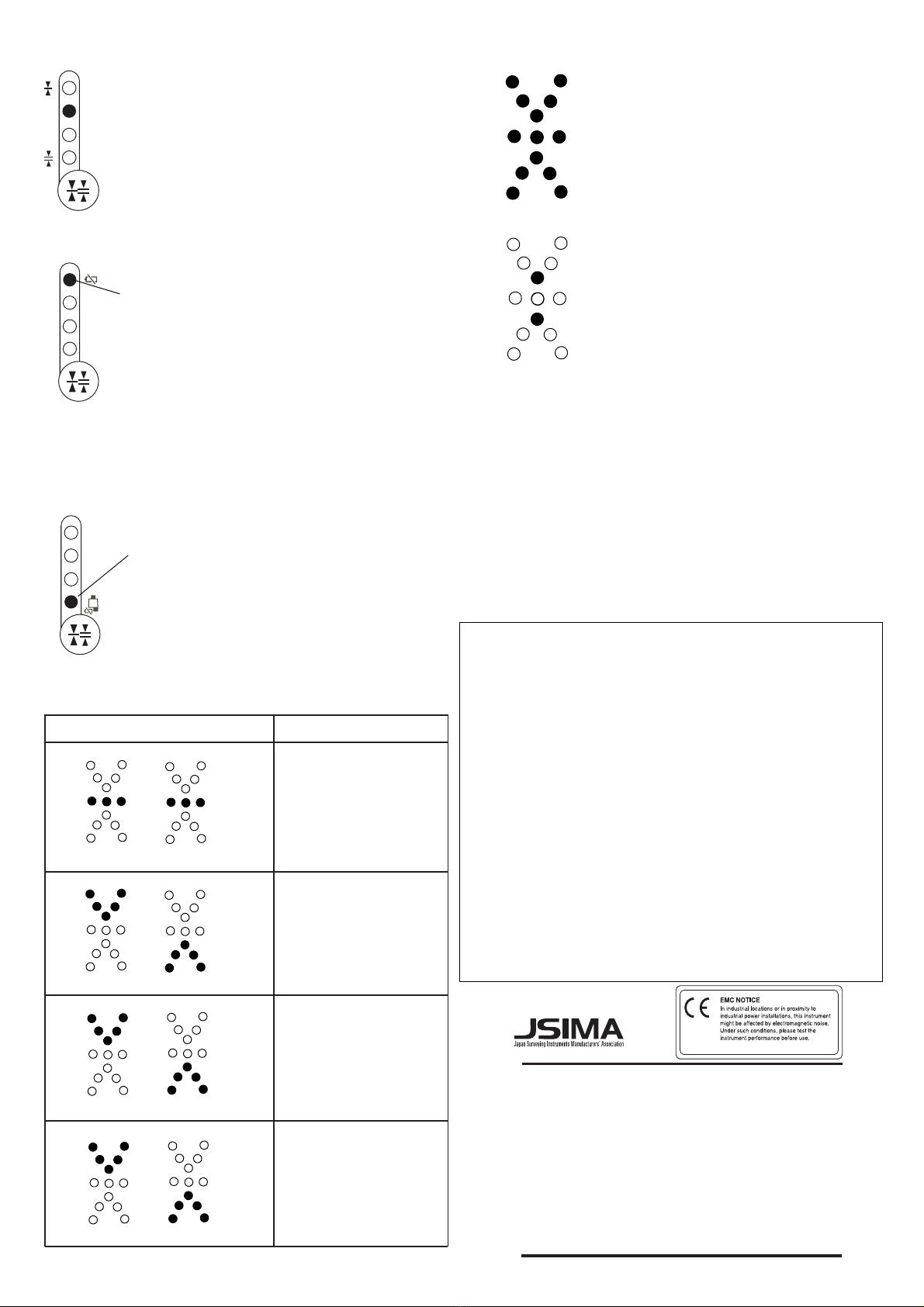

Laser beam positions and display patterns
Indicator (LED)
±50mm/±0.16ft
(100mm/0.32ft width)
±87.5mm/±0.28ft
(175mm/0.57ft width)
Detective precision
Flashes quickly
Flashes more slowly
Battery remaining display
Battery remaining display LED
Power-save function
The instrument turns the power-save mode after detecting no
laser beam for more than approx. five minutes.
During the power-save mode, LED (1 yellow, 1 red) will flash.
(The mode is canceled automatically when the instrument
detects a laser beam again. The mode can also be canceled
by pressing the power switch again.)
Rotating laser battery
remaining warning LED
Flashes
Flashes
Connector for external power supply
Connecting the connector cable PC-18 (sold separately) to the connector for
external power supply will enable the use of the LS-B100 from an external
power supply. When the instrument is operated with the external power supply,
the power-save and the auto-cut off functions will be invalidated. The LS-B100
will turn on when connection is made to external power supply. The power
switch of the instrument will not function when an external power supply is
used.
It is possible to change the detective precision of the
instrument.
Please select Mode 1 to 4 according to the objective of the
operation.
Pressing the detective precision (Mode) switch will change
the mode and the corresponding LED lamp will light up.
(During battery remaining display shown below, the lamp
will flash.)
Battery remaining for the LS-B100 will be displayed at 3 levels.
* When turning the power on by pressing the power switch for more than
5 seconds, the power-save and the auto-cut off functions may be inval-
idated.
31267 90021
