Operational and Maintenance Manual for TorcUP
SQ-1, SQ-3, SQ-5 & SQ-10
Single Swivel Square Drive Hydraulic Torque Wrenches
Version 2: 2016 September
Series SQ-1, SQ-3, SQ-5 & SQ-10 SQ Series Uni-Swivel Square Drive Hydraulic Torque Wrenches
are designed for installing and removing threaded fasteners requiring precise high torque during bolt
makeup and maximum torque during bolt breakout.
TorcUP Inc. is not responsible for customer modication of tools for applications on
which TorcUP Inc. was not consulted.
IMPORTANT SAFETY INFORMATION ENCLOSED.
READ THIS MANUAL BEFORE OPERATING TOOL.
IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PLACE THE INFORMATION IN THIS
MANUAL INTO THE HANDS OF THE OPERATOR.
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
USING THE TOOL
• Always operate, inspect and maintain this tool in accordance with American National Standards
Safety Code for Hydraulic Rams and Jacks (ANSI B30.1).
• This tool will function using an air or electric powered hydraulic pump. Adhere to the pump safety
requirements and follow instructions when connecting the pump to the tool.
• Use only equipment rated for the same pressure and torque.
• Use only a hydraulic pump capable of generating 10,000 psi (681 bar) maximum pressure with this
tool.
• Use only twin line hydraulic hose rated for 10,000 psi (681 bar) pressure with this tool.
• Do not interchange the male and female swivel inlets on the tool or the connections on one end of
the hose. Reversing the inlets will reverse the power stroke cycle and may damage the tool.
• Do not use damaged, frayed or deteriorated hoses and ttings. Make certain there are no cracks,
splits or leaks in the hoses.
• Use the quick connect system to attach the hoses to the tool and pump.
• When connecting hoses that have not been preloaded with hydraulic oil, make certain the pump
reservoir is not drained of oil during start-up.
• Do not remove any labels. Replace any damaged label.
• Do not handle pressurized hoses. Escaping oil under pressure can penetrate the skin, causing
serious injury. If oil is injected under the skin, see a doctor immediately.
• Never pressurize uncoupled couplers. Only use hydraulic equipment in a coupled system.
• Always wear eye protection when operating or performing maintenance on this tool.
• Always wear head and hand protection and protective clothing when operating this tool.
NOTICE
WARNING
For Technical Support & Information Contact:
TorcUP Inc.
1025 Conroy Place, Easton, PA 18040 USA
Phone: [phone] Fax:[phone]
email: [email protected]
The use of other than genuine TorcUP replacement parts may result in safety
hazards, decreased tool performance, increased maintenance, and may invalidate
all warranties. Repairs should be made only by authorized personnel. Consult
your nearest TorcUP Authorized Service Center.
Refer All Communications to the Nearest TorcUP Ofce or Distributor.

2
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY
Do NOT Exceed Maximum Pressure. See Torque Chart with Tool. Damage May Occur.
Always wear eye
protection
when operating or
performing
maintenance
on this tool.
Always wear ear
protection
when operating
this tool.
Do not carry
the tool
by the hose.
Keep body stance
balanced and rm.
Do not overreach
when operating
this tool.
USING THE TOOL
• Keep hands, loose clothing and long hair away from the reaction arm and working area during operation.
• This tool will exert a strong reaction force. Use proper mechanical support and correct reaction arm
positioning to control these forces. Do not position the reaction arm so that it tilts the tool off the axis of the
bolt and never use the swivel inlets as a reaction stop.
• Avoid sharp bends and kinks that will cause severe back-up pressure in hoses and lead to premature hose
failure.
• Use accessories recommended by TorcUP.
• Use only impact sockets and accessories. Do not use hand (chrome) sockets or accessories.
• Use only sockets and accessories that correctly t the bolt or nut and function without tilting the tool off the
axis of the bolt.
• This tool is not insulated against electric shock.
• This equipment must not be operated or serviced unless the operator read the operating instructions and
fully understands the purpose, consequences and procedure of each step.
• When operating a larger tool above waist height, employ a secondary means of support for safety
purposes. A tool sling or chains may be used. Consult your safety department for further suggestions.
Depending on the working environment your local health and safety regulations may require
you wear protective gear (i.e. safety shoes, hard hat, gloves, coveralls, etc.). In case external
forces are exerted on the equipment, non-compliance with these regulations may result in
injury. EAR PROTECTION MUST BE WORN WHEN OPERATING THIS TOOL.
The Torque Reaction Arm must be
positioned against a positive stop.
Do not use the arm as a dead
handle. Take all precautions to
make certain the operator’s hand
cannot be pinched between the
arm and a solid object.
Do not use damaged,
frayed or deteriorated
hydraulic hoses
and ttings.
WARNING

3
PLACING THE TOOL IN SERVICE
CONNECTING THE TOOL
1. Attach the twin line hose to the swivel inlets of the square drive torque wrench using the
spring–loaded quick connect ends.
2. Connect the opposite ends of the hose to the pump in the same manner.
ADJUSTMENTS
SETTING THE SQUARE DRIVE FOR ROTATION
The position of the square drive when looking toward the shroud will determine if the tool is
set to tighten or loosen the nut. When the square drive extends to the left when looking at
the shroud with the swivels away from you, the tool is set to loosen the nut. When the square
drive extends to the right, the tool is set to tighten the nut. To change the direction of rotation
for models SQ-1 SQ-3, and SQ-10 simply push the square drive into the housing until the drive
projects out the opposite side of the tool. For the model SQ-5, loosen and remove the square
drive retaining knob, and pull the square drive out of the housing. Insert the square drive into
the opposite side of the housing, and secure it by installing the knob in the splined end of the
drive.
SETTING THE TORQUE
After determining the desired torque, use the calibration certicate provided with the tool to
determine the pressure necessary to achieve that torque. You may also refer to the chart
engraved on the shroud of the tool or the chart provided on pages 8-11 of this manual.
1. Connect the tool to the power supply and turn the pump on.
2. Depress the remote control button causing the pressure to be shown on the gauge.
3. Adjust the pressure by loosening the wing nut that locks the pressure adjustment thumb
screw. Rotate the thumbscrew clockwise to increase the pressure and counterclockwise to
decrease the pressure. When decreasing pressure, always lower the pressure below the
desired point and then bring the gauge back up to the desired pressure.
4. When the desired pressure is reached, retighten the wing nut and cycle the tool again to
conrm that the desired pressure setting has been obtained.

4
The function of a reaction device is to hold the tool in position against the forces generated to
tighten or loosen bolts or nuts. Hydraulic wrenches generate tremendous force.
SETTING THE REACTION ARM
An improperly
positioned reaction
arm may result in
operator injury
or damage to tooling.
Square Drive Hydraulic Wrench Reaction Points (Dwg.01)
Make sure the reaction arm is positioned correctly.
(Refer to Dwg. 01).
The reaction arm can be positioned numerous
places within a 360O circle. However, for the arm to
be correctly positioned, it must be set within a 90O
quadrant of that circle. That quadrant is the area
located between the protruding square drive and
the bottom of the housing away from the swivel
inlets. It will always be toward the lower half of the
housing and on one side of the housing when
tightening and on the other side when loosening.
(Dwg. 01)

5
OPERATING THE WRENCH
The position of the square drive relative to the shroud
determines whether the action will tighten or loosen the
nut. (Refer to Dwg. 02 for application examples).
The power stroke of the piston assembly will always
turn the square drive toward the shroud.
1. Insert the square drive into the mating socket. Then,
insert the safety pin through the socket, and seat the
included O-ring into the groove to capture the pin.
Place the socket onto the nut making sure the socket
is the proper size and that all mating parts are fully
seated.
2. Position the reaction arm or surface against an
adjacent nut, ange or solid system component. Make
certain that there is clearance for the hoses, swivels,
inlets and end plug. DO NOT allow the tool to react
against the hoses, swivels, inlets or end plug.
3. After turning the pump on and presetting the
pressure for the correct torque, depress the remote control button to advance the piston
assembly.
4. When the wrench is started, the reaction surface of the wrench or reaction arm will move
against the contact point, and the nut will begin to turn.
5. When the nut is no longer turning and the pump gauge reaches the preset pressure,
release the remote control button. The piston rod will retract when the button is released,
and under normal conditions, an audible “click” will be heard as the tool resets itself.
6. Continue to cycle the tool until it “stalls” and the preset psi/torque has been attained.
7. Cycle the tool one additional time to ensure full torque.
Square Drive Position for Loosening and Tightening(Dwg.02)
Drawing 02

6
MARINE MOLY GREASE
Lubrication frequency is dependent on factors known only to the user. The amount of
contaminants in the work area is one factor. Tools used in a clean room environment will
obviously require less service than a tool used outdoors and dropped in loose dirt or sand.
Marine Moly Grease is formulated not to wash out of the tool in areas where
lubrication is critical.
Whenever lubrication is required, lubricate as follows:
1. Remove the drive plate, ratchet, drive segment and sleeves as instructed in the
maintenance section, and wash the components in a suitable cleaning solution in a well
ventilated area.
2. After drying the components, wipe a lm of Marine Moly Grease onto the wear surface of
both sleeves and the ends of the ratchet.
3. Spread a light lm of Marine Moly Grease onto the inner face and both sides of the drive
plate. Do not pack the teeth of the drive segment or ratchet with lubricant. It can prevent
the teeth from engaging properly.
4. Place a daub of Marine Moly Grease in the piston rod recess of the drive plate before
linking the piston rod to the drive plate at assembly.
CRITICAL LUBRICATION
It is imperative to lubricate the piston rod recess of the drive plate to piston rod contact area
every 80 hours of continuous duty cycling.
Lubricate as follows:
1. Remove shroud screws, shroud, and roll pin.
2. Pry the drive plate assembly forward from the piston rod to expose the recessed contact
area in the drive plate.
3. With a rag, wipe clean the area, and apply a sizeable amount of Marine Moly Grease.
4. Reassemble as instructed in the maintenance section.
LUBRICATION

7

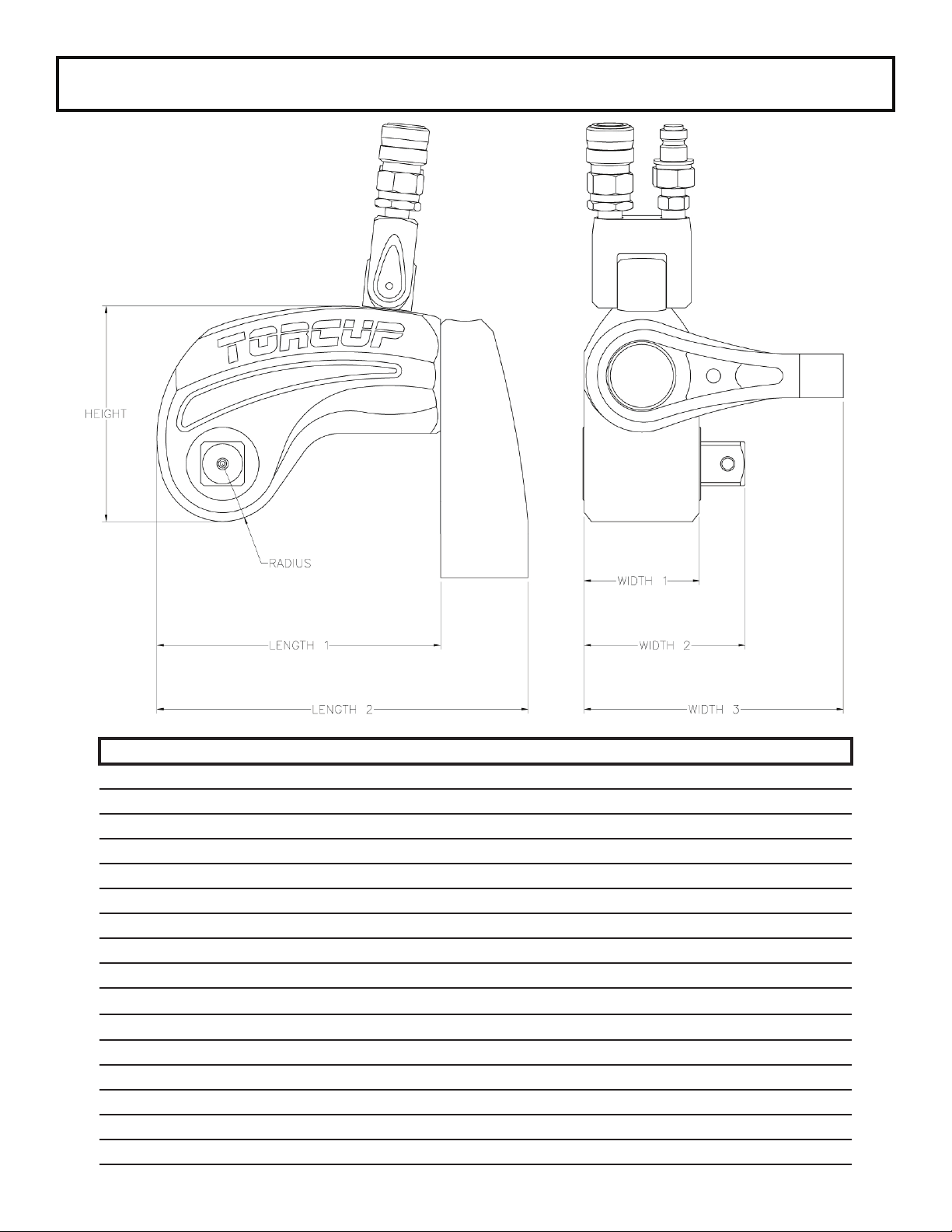

SQ Series Uni-Swivel Wrench Technical & Dimensional Data
Model Number SQ-1 SQ-3 SQ-5 SQ-10
Square drive 3/4” 1” 1 1/2” 1 1/2”
Min. Torque (ft/lbs) 156 379 507 956
Max. Torque (ft/lbs) 1414 3515 5523 10620
Min. Torque (nm) 212 515 690 1300
Max. Torque (nm) 1923 4780 7511 14443
Output Accuracy +/-3% +/-3% +/-3% +/-3%
Repeatability 100% 100% 100% 100%
Duty Cycle 100% 100% 100% 100%
Tool Weight (lbs/kg) 5.5/2.5 11.0/5.0 18.5/8.4 32.0/14.5
Height (in/mm) 3.76/95.5 4.91/124.7 6.05/153.6 7.34/186.4
Length 1 (in/mm) 4.91/124.7 6.48/164.5 7.95/201.9 9.85/250.1
Length 2 (in/mm) 6.47/164.3 8.48/215.3 10.70/271.7 2.85/326.3
Radius (in/mm) 0.99/25.1 1.31/33.2 1.57/39.8 2.13/54.1
Width 1 (in/mm) 2.00/50.8 2.63/66.8 3.13/79.5 3.95/100.3
Width 2 (in/mm) 2.75/69.8 3.68/93.5 4.64/117.8 5.47/138.9
Width 3 (in/mm) 4.61/117.0 5.92/150.3 7.00/117.8 8.74/222.0

8

9

10

11
..


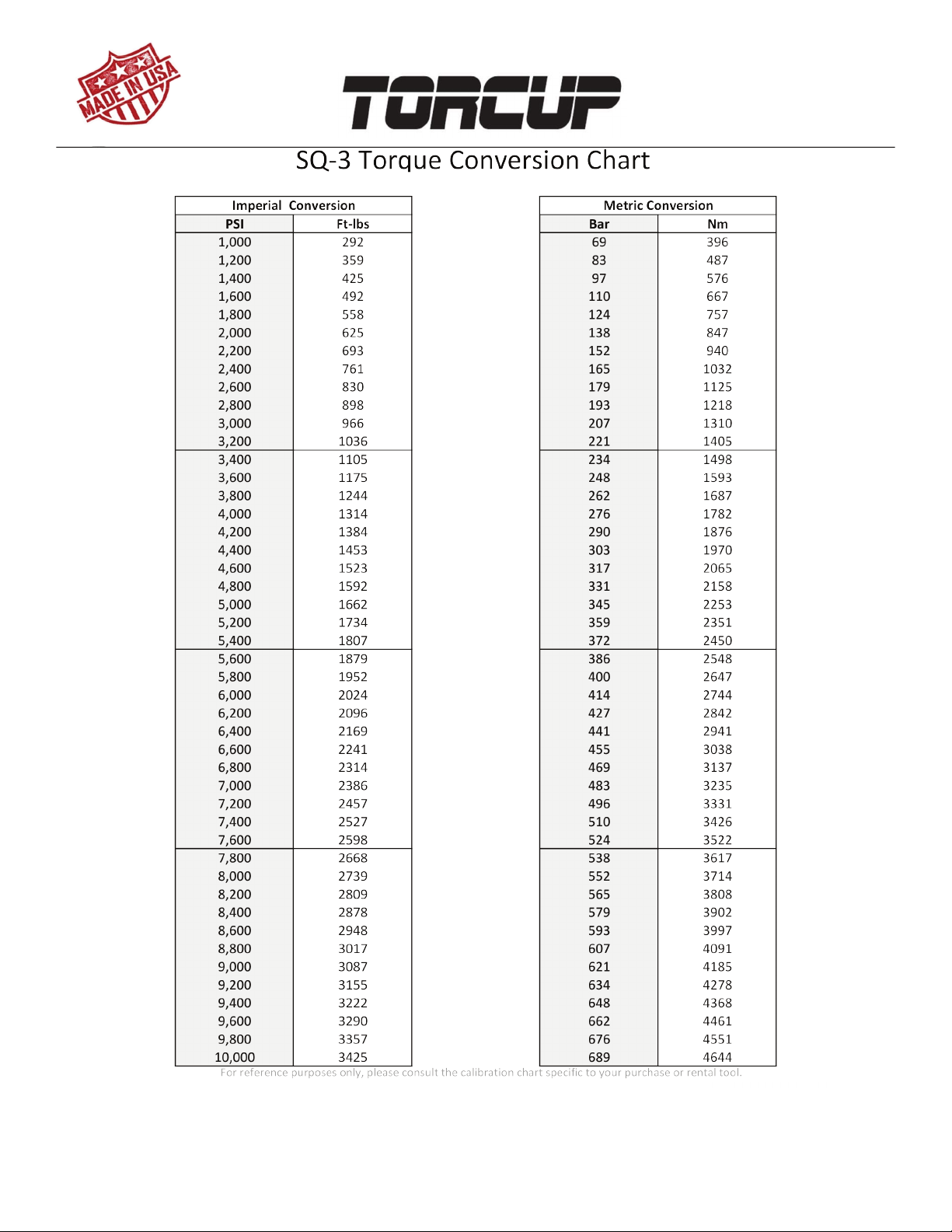

SQ-10 Torque Conversion Chart
  
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
 


   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   


TorcUP, Inc.
1025 Conroy Place
Easton, Pa 18040 ACC REDITED
Tel:[phone] Fax: [phone] Mi

12

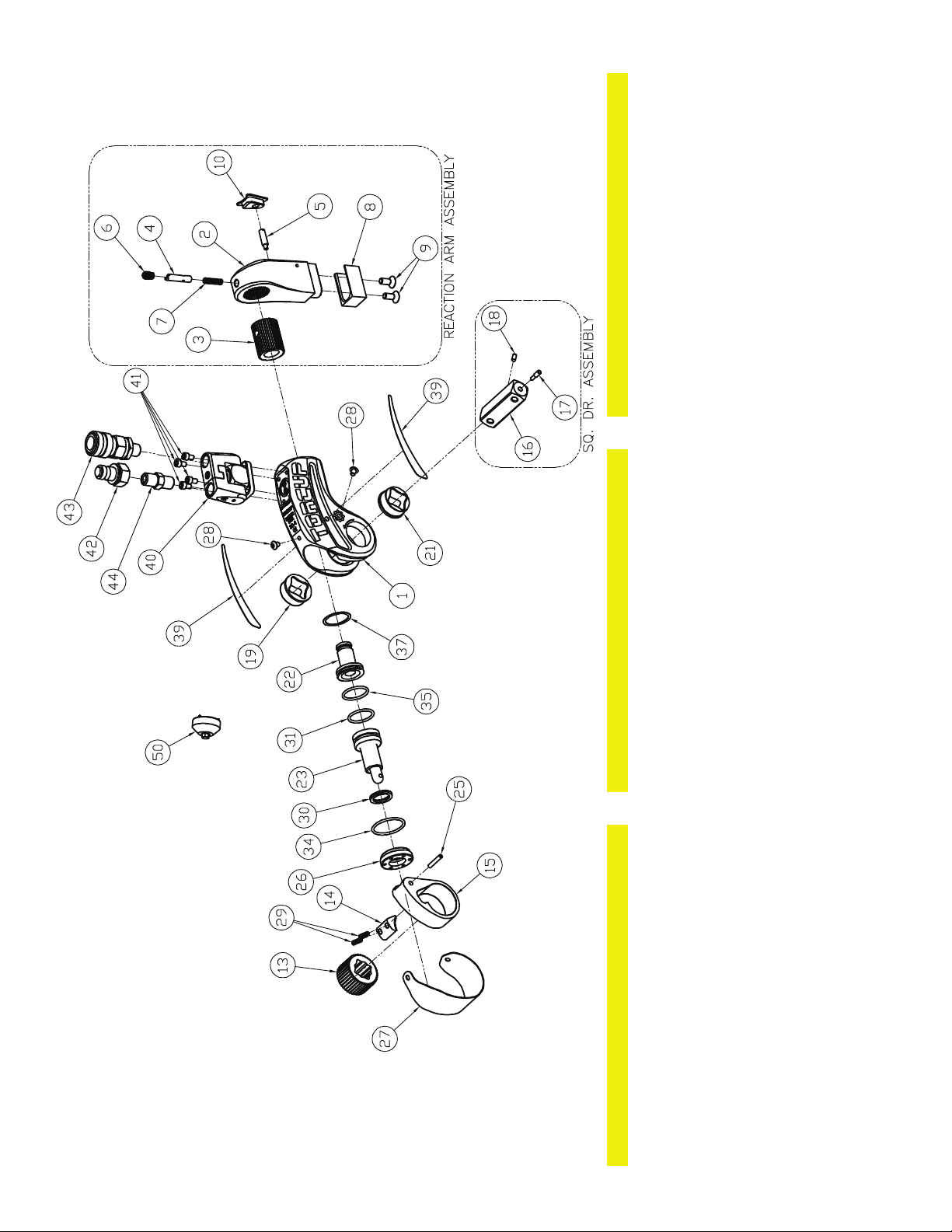

SQ-1 Series Wrench
ITEM NAME PART # QTY. ITEM NAME PART # QTY. ITEM NAME PART # QTY.
1
Housing
SQ-1-01
1
16
Square Drive
SQ-1-11-1
1
34
Gland Seal
SQ-1-35
1
2
Reaction Arm
SQ-1-03-1
1
17
Sq. Dr. Locking Pin
SQ-1-11-2
1
35
End Plug Seal
SQ-1-37
1
3
Spline Sleeve
SQ-1-03-2
1
18
Sq. Drive Pin
SQ-1-11-3
1
37
Cylinder Ring
SQ-1-43
1
4
Locking Pin
SQ-1-03-3
1
21
Sq. Drive Sleeve
SQ-1-13
2
39
Side Label Set
LBL-SQ-1
1
5
Retract Button
SQ-1-03-4
1
22
End Plug
SQ-1-15
1
40
Swivel Assembly
CSS-00
1
6
Reaction Arm Screw
SQ-1-03-5
1
23
Piston Rod Assembly
SQ-1-17-00
1
41
Swivel Post Screw
CSS-21
4
7
Retract Arm Spring
SQ-1-03-6
1
25
Roll Pin
SQ-1-19
1
42
Male Coupler
HC-M-100
1
8
Retract Arm Cover
SQ-1-03-7
1
26
Cylinder Gland
SQ-1-21
1
43
Female Coupler
HC-F-400
1
9
Cover Screw
SQ-1-03-8
2
27
Shroud
SQ-1-23
1
44
Male 1/4" NPT Nipple
F004004
1
10
Retract Button Cover
SQ-1-03-9
1
28
Shroud Screw
SQ-1-25
2
50
Gland Wrench
ATU-2-GW
13
Ratchet
SQ-1-05
1
29
Drive Segment Spring
SQ-1-27
2
14
Drive Segment SQ-1-07 1
30
Rod Seal SQ-1-31 1 Reaction Arm Assembly SQ-1-03
15
Drive Plate SQ-1-09 1
31
Piston Seal SQ-1-33 1 Square Drive Assembly SQ-1-11
Part Numbers for Ordering

13
SQ-3 Series Wrench
ITEM NAME PART # QTY. ITEM NAME PART # QTY. ITEM NAME PART # QTY.
1
Housing
SQ-3-01
1
16
Square Drive
SQ-3-11-1
1
34
Gland Seal
SQ-3-35
1
2
Reaction Arm
SQ-3-03-1
1
17
Sq. Dr. Locking Pin
SQ-3-11-2
1
35
End Plug Seal
SQ-3-37
1
3
Spline Sleeve
SQ-3-03-2
1
18
Sq. Drive Pin
SQ-3-11-3
1
37
Cylinder Ring
SQ-3-43
1
4
Locking Pin
SQ-3-03-3
1
21
Sq. Drive Sleeve
SQ-3-13
2
38
Ratchet Spring
SQ-3-53
1
5
Retract Button
SQ-3-03-4
1
22
End Plug
SQ-3-15
1
39
Side Label Set
LBL-SQ-3
1
6
Reaction Arm Screw
SQ-3-03-5
1
23
Piston Rod Assembly
SQ-3-17-00
1
40
Swivel Assembly
CSL-00-3
1
7
Retract Arm Spring
SQ-3-03-6
1
25
Roll Pin
SQ-3-19
1
41
Swivel Post Screw
CSL-23
4
8
Retract Arm Cover
SQ-3-03-7
1
26
Cylinder Gland
SQ-3-21
1
42
Male Coupler
HC-M-100
1
9
Cover Screw
SQ-3-03-8
2
27
Shroud
SQ-3-23
1
43
Female Coupler
HC-F-400
1
10
Retract Button Cover
SQ-3-03-9
1
28
Shroud Screw
SQ-3-25
4
44
Male 1/4" NPT Nipple
F004004
1
13
Ratchet
SQ-3-05
1
29
Drive Segment Spring
SQ-3-27
2
50
Gland Wrench
ATU-3-GW
14
Drive Segment SQ-3-07 1
30 Rod Seal SQ-3-31 1
15
Drive Plate SQ-3-09 1
31
Piston Seal SQ-3-33 1 Reaction Arm Assembly SQ-3-03
Square Drive Assembly SQ-3-11
Part Numbers for Ordering

14
SQ-5 Series Wrench
ITEM NAME PART # QTY. ITEM NAME PART # QTY. ITEM NAME PART # QTY.
1
Housing
SQ-5-01
1
16
Square Drive
SQ-5-11-1
1
34
Gland Seal
SQ-5-35
1
2
Reaction Arm
SQ-5-03-1
1
19
Sq. Dr. Retaining Knob
SQ-5-11-6
1
35
End Plug Seal
SQ-5-37
1
3
Spline Sleeve
SQ-5-03-2
1
20
Sleeve Retaining Ring
SQ-5-12
2
36
Housing Side Plug
SQ-5-39
2
4
Locking Pin
SQ-5-03-3
1
21
Sq. Drive Sleeve
SQ-5-13
2
37
Cylinder Ring
SQ-5-43
1
5
Retract Button
SQ-5-03-4
1
22
End Plug
SQ-5-15
1
39
Side Label Set
LBL-SQ-5
1
6
Reaction Arm Screw
SQ-5-03-5
1
23
Piston Rod Assembly
SQ-5-17-00
1
40
Swivel Assembly
CSL-00-5
1
7
Retract Arm Spring
SQ-5-03-6
1
25
Roll Pin
SQ-5-19
1
41
Swivel Post Screw
CSL-23
4
8
Retract Arm Cover
SQ-5-03-7
1
26
Cylinder Gland
SQ-5-21
1
42
Male Coupler
HC-M-100
1
9
Cover Screw
SQ-5-03-8
3
27
Shroud
SQ-5-23
1
43
Female Coupler
HC-F-400
1
10
Retract Button Cover
SQ-5-03-9
1
28
Shroud Screw
SQ-5-25
3
44
Male 1/4" NPT Nipple
F004004
1
13
Ratchet
SQ-5-05
1
29
Drive Segment Spring
SQ-5-27
2
50
Gland Wrench
ATU-5-GW
14
Drive Segment SQ-5-07 1
30
Rod Seal SQ-5-31 1 Reaction Arm Assembly SQ-5-03
15
Drive Plate SQ-5-09 1
31
Piston Seal SQ-5-33 1 Square Drive Assembly SQ-5-11
Part Numbers for Ordering

15
SQ-10 Series Wrench
ITEM NAME PART # QTY. ITEM NAME PART # QTY. ITEM NAME PART # QTY.
1
Housing
SQ-10-01
1
16
Square Drive
SQ-10-11-1
1
35
End Plug Seal
SQ-10-37
1
2
Reaction Arm
SQ-10-03-1
1
17
Sq. Dr. Locking Pin
SQ-10-11-2
1
36
Side Housing Plugs
SQ-10-39
2
3
Spline Sleeve
SQ-10-03-2
1
18
Sq. Drive Pin
SQ-10-11-3
1
37
Cylinder Ring
SQ-10-43
1
4
Locking Pin
SQ-10-03-3
1
21
Sq. Drive Sleeve
SQ-10-13
2
38
Ratchet Spring
SQ-10-53
1
5
Retract Button
SQ-10-03-4
1
22
End Plug
SQ-10-15
1
39
Side Label Set
LBL-SQ-10
1
6
Reaction Arm Screw
SQ-10-03-5
1
23
Piston Rod Assembly
SQ-10-17-00
1
40
Swivel Assembly
CSL-00-5
1
7
Retract Arm Spring
SQ-10-03-6
1
25
Roll Pin
SQ-10-19
1
41
Swivel Post Screw
CSL-23
4
8
Retract Arm Cover
SQ-10-03-7
1
26
Cylinder Gland
SQ-10-21
1
42
Male Coupler
HC-M-100
1
9
Cover Screw
SQ-10-03-8
2
27
Shroud
SQ-10-23
1
43
Female Coupler
HC-F-400
1
10
Retract Button Cover
SQ-10-03-9
1
28
Shroud Screw
SQ-10-25
4
44
Male 1/4" NPT Nipple
F004004
1
11
Ret. Button Guide Screw
SQ-10-03-10
1
29
Drive Segment Spring
SQ-10-27
2
50
Gland Wrench
ATU-11-GW
13
Ratchet SQ-10-05 1
30 Rod Seal SQ-10-31 1
14
Drive Segment SQ-10-07 1
31
Piston Seal SQ-10-33 1 Reaction Arm Assembly SQ-10-03
15
Drive Plate SQ-10-09 1
34
Gland Seal SQ-10-35 1 Square Drive Assembly SQ-10-11
Part Numbers for Ordering

16
SQ Series CSS Uni-Swivel
Available Repair Kits
ITEM NAME PART # Post Kit CSS-PKIT
1Post CSS-01 ITEM NAME PART #
2Joint CSS-03 1Post CSS-01
3Swivel Arm (Advance) CSS-05 7Swivel O-ring (Small) CSS-09
4Swivel Arm (Retract) CSS-07 8Swivel O-ring (Large) CSS-11
5Retaining Ring CSS-19 9Post O-ring CSS-13
7Swivel O-ring (Small) CSS-09 12 Swivel Post Screw CSS-21
8Swivel O-ring (Large) CSS-11
9Post O-ring CSS-13 Joint Kit CSS-JKIT
10 Joint O-ring CSS-15 ITEM NAME PART #
11 Swivel Screw CSS-17 2Joint CSS-03
12 Swivel Post Screw CSS-21 3Swivel Arm (Advance) CSS-05
4Swivel Arm (Retract) CSS-07
5Retaining Ring CSS-19
9Post O-ring CSS-13
10 Joint O-ring CSS-15
11 Swivel Screw CSS-17
Seal Kit CSS-SKIT
ITEM NAME PART #
7Swivel O-ring (Small) CSS-09
8Swivel O-ring (Large) CSS-11
9Post O-ring CSS-13
10 Joint O-ring CSS-15
12 Swivel Post Screw CSS-21
CSS Uni-Swivel Parts List

17
SQ Series CSL Uni-Swivel
Available Repair Kits
ITEM NAME PART # Post Kit CSL-PKIT
1Post CSL-01-X* ITEM NAME PART #
2Joint CSL-03 1Post CSL-01-X*
3Swivel Arm (Advance) CSL-05 7Swivel O-ring (Small) CSL-11
4Swivel Arm (Retract) CSL-07 8Swivel O-ring (Large) CSL-13
6Cap CSL-09 9Post O-ring CSL-15
7Swivel O-ring (Small) CSL-11 12 Swivel Post Screw CSL-23
8Swivel O-ring (Large) CSL-13
9Post O-ring CSL-15 Joint Kit CSL-JKIT
10 Joint O-ring CSL-17 ITEM NAME PART #
11 Swivel Screw CSL-19 2Joint CSL-03
12
Swivel Post Screw
CSL-23
3
Swivel Arm (Advance)
CSL-05
13
Cap Screw
CSL-21
4
Swivel Arm (Retract)
CSL-07
6
Cap
CSL-09
Note:
The SQ-3 uses post # CSL-01-3
9
Post O-ring
CSL-15
The SQ-5 & 10 use post # CSL-01-5
10
Joint O-ring
CSL-17
11
Swivel Screw
CSL-19
13
Cap Screw
CSL-21
Seal Kit
CSL-SKIT
ITEM
NAME
PART #
7
Swivel O-ring (Small)
CSL-11
8
Swivel O-ring (Large)
CSL-13
9
Post O-ring
CSL-15
10
Joint O-ring
CSL-17
12
Swivel Post Screw
CSL-23
13
Cap Screw
CSL-21
CSL Uni-Swivel Parts List

18
SQ Series Uni-Swivel Assembly
1. Clamp the post (1) in a copper-covered or leather-covered vice by the base.
2. Slide the post O-rings (9) onto the post starting from the top to the base.
3. Lightly lubricate the post.
4. Using hand pressure, press the joint (2) onto the post until it makes contact with the base of the
post and until the top of the post is ush with the top of the joint.
5. For CSS uni-swivels: Install the retaining ring (5) into the groove on the top of the post by
spreading it open slightly and working it around the post. For CSL uni-swivels: Install the cap (6)
and secure with the cap screws (13).
6. Slide the joint O-rings (10) onto the arms of the joint from outside to inside.
7. Lightly lubricate the arms of the joint.
8. Using hand pressure, press the swivels (3 & 4) onto the joint. Note: One of the arms of the joint
has an ‘R’ engraved on the end denoting that it is the retract side. Install the retract swivel (4) onto
this arm.
9. Swing the arms together so they interlock and fasten them together with the swivel screw (11).
10. Install the large and small swivel O-rings (7 & 8) into their glands in the cylinder housing.
11. Install the uni-swivel assembly onto the cylinder housing with the swivel post screws (12).

19
SQ Series Wrench Available Accessories
