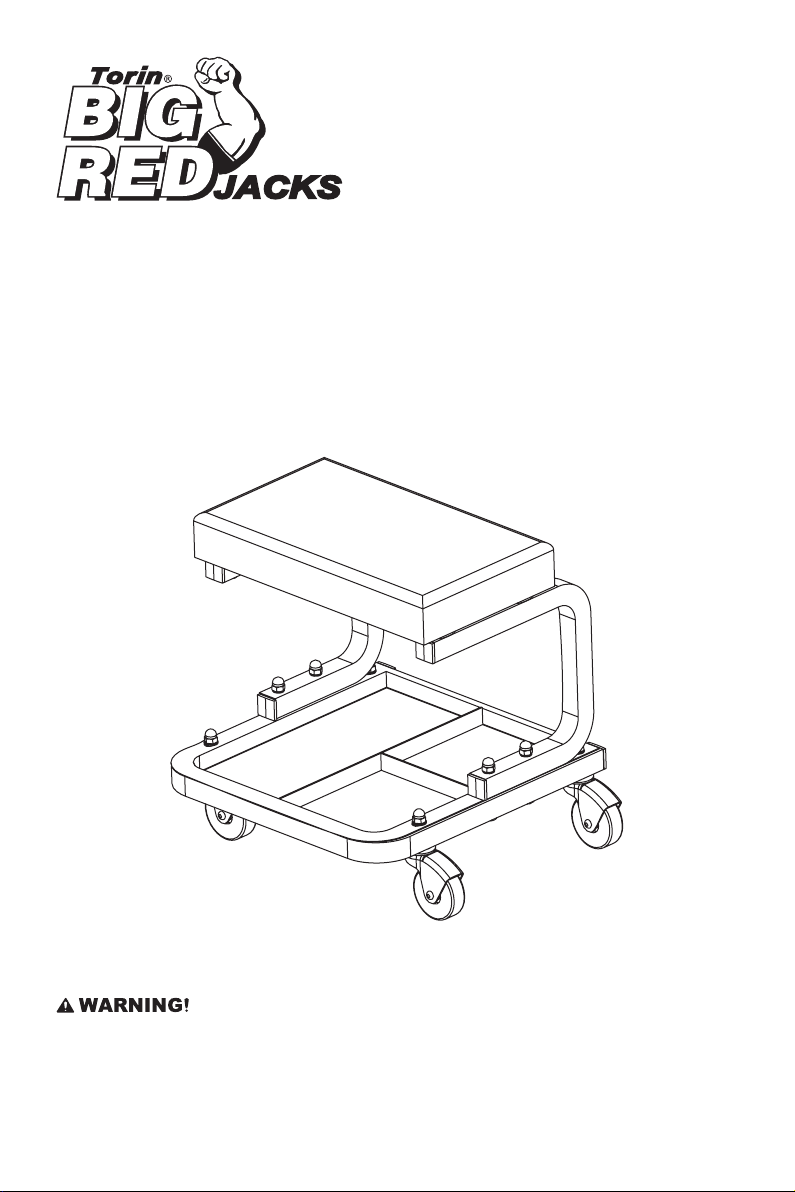

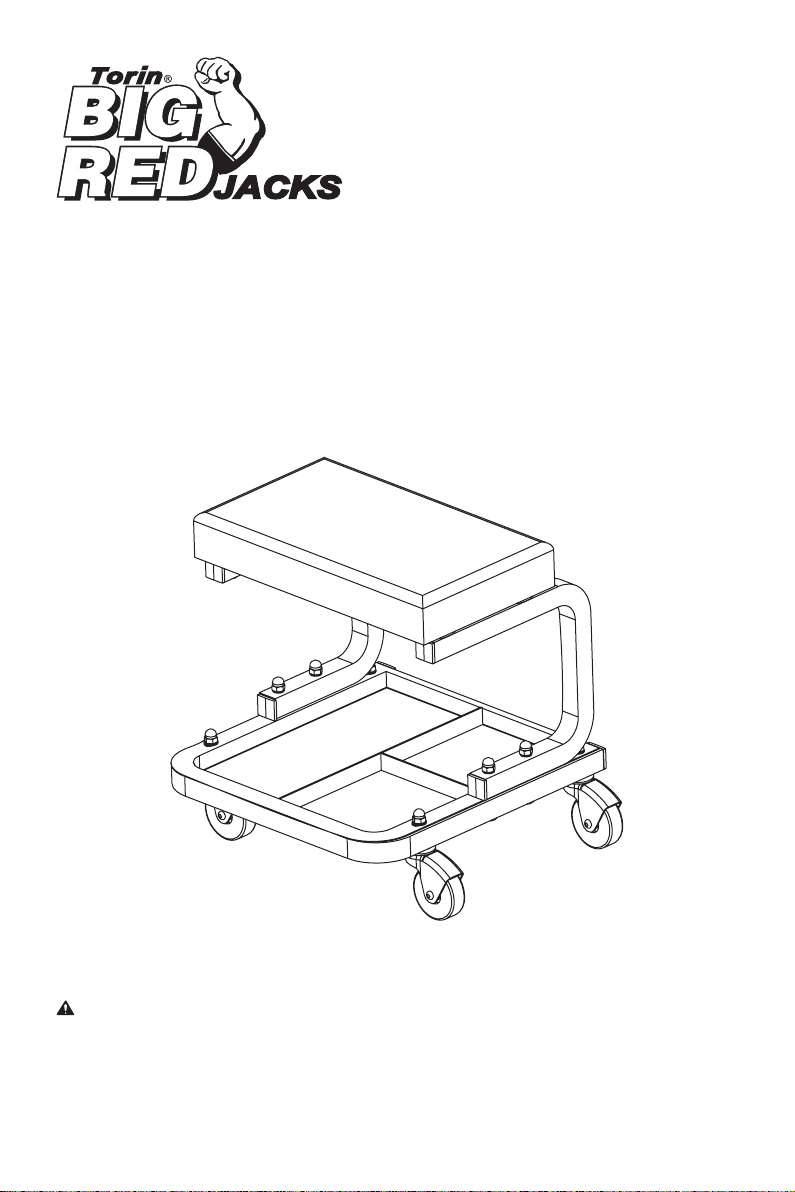

Torin BIG RED TR6300 User manual

OWNER’S MANUAL
CREEPER SEAT
Item: TR6300
Questions, problems, missing parts? Before returning to your retailer, call our customer service department at
1-888-44-TORIN (1-888-448-6746), 8 a.m.- 5 p.m., PST, Monday-Friday.
Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure
to follow the safety rules and other basic safety precautions may result in serious personal injury.
Version 20161114

2
IMPORTANT
OWNER / USER RESPONSIBILITY
INTENDED USE
TECHNICAL SPECIFICATIONS
Before You Begin Register This Product.
For future reference, record the model name, model number, date of manufacture and purchase date of this
product. You can nd this information on the product.
Model Name
Model Number
Date of Manufacture
Date of Purchase
DO NOT OPERATE OR REPAIR THIS PRODUCT WITHOUT READING THIS MANUAL.
Read and follow the safety instructions. Keep Instructions readily available for operators. Make certain all
operators are properly trained and understand how to safely and correctly operate the product. By proceeding
you agree that you fully understand and comprehend the full contents of this manual. Failure to operate this
product as intended may cause injury or death. The manufacturer is not responsible for any damages or injury
caused by improper use or neglect. Allow product operation only with all parts in place and operating safely.
Use only genuine replacement parts. Service and maintain the product only with authorized or approved
replacement parts; negligence will make the product unsafe for use and will void the warranty. Carefully
inspect the product on a regular basis and perform all maintenance as required. Store these instructions
in a protected dry location. Keep all decals on the product clean and visible. Do not modify and/or use for
any application other than that for which this product was designed. If you have any questions relative to a
particular application, DO NOT use the product until you have rst contacted the distributor or manufacturer to
determine if it can or should be performed on the product.
For technical questions please call 1-888-448-6746.
This device is designed to be as a mechanic’s creeper. It is intended to be used to support and move, along
a smooth and level surface, rated capacity loads consisting of a single person weighing no more than the
capacity specied. This product is used for the purpose of performing automotive maintenance or service.
This device is not intended, designed or engineered to be used for any other purpose.
Description
Item TR6300
Capacity 250 lbs
____________________________
____________________________
____________________________
____________________________

3
GENERAL SAFETY RULES
USE AND CARE
INSPECTION
GENERAL SAFETY RULES
IMPORTANT SAFETY CONSIDERATIONS
WARNING: Read and understand all instructions. Failure to follow all instructions listed below may
result in serious injury.
WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot
cover all possible conditions or situations that could occur. It must be understood by the operator
that common sense and caution are factors that cannot be built into this product, but must be supplied by
the operator.
CAUTION: Do not allow persons to operate or assemble this product until they have read this
manual and have developed a thorough understanding of how the product works.
• Inspect the product carefully before each use. Ensure the product is not damaged, excessively worn, or
missing parts.
• Do not use the product unless it is properly lubricated.
• Using a product that is not in good clean working condition or properly lubricated may cause serious injury.
• Inspect the work area before each use. Make sure it is free and clear of any potential hazards.
Make certain that the operator thoroughly understands the inherent dangers associated with the use and
misuse of the product. If any doubt exists as to the safe and proper use of this product, remove from service
immediately.
• Do not modify the product in any way. Unauthorized modication may impair the function and/or safety and
could affect the life of the equipment.
• Always check of damaged or worn out parts before using the product. Broken parts will affect the
product operation. Replace or repair damaged or worn parts immediately.
• Store idle. When the product is not in use, store it in a secure place out of the reach of children. Inspect it
for good working condition prior to storage and before re-use.
• Not for use by children or people with reduced mental capacity.
• Do not use under the inuence of drugs or alcohol.
• Ensure children and other bystanders are kept at a safe distance when using product.
• Instructions and safety information shall be conveyed in the operator’s native language before use of this
product is authorized.
NOTE: Any creeper that appears damaged in any way, or operates abnormally shall be removed from service
immediately. If the creeper has been subjected to a shock load (a load dropped suddenly, unexpectedly
upon it), immediately discontinue use until repairs have been completed. It is recommended that
weekly inspection be completed to check that product is in good working condition.

4
SAFETY MARKINGS
SAFETY
WARNING!
1. Study, understand, and follow all instructions before operating this device.
2. Do not exceed rated capacity. (includes user, tools, equipment and personal items).
3. Use only on hard, level surfaces, with less than 3 degrees of slope.
4. Do use as a dolly.
5. Sit down gently! Avoid shock loads caused by jumping or falling onto product.
6. Do not stand on product.
7. Beware of pinch and crush hazards when folding and unfolding.
8. Keep out of the reach of children! This device is not appropriate for children’s use.
9. Do not use product unless vehicle is properly secured.
10. Only attachments and/or adapters supplied by the manufacturer shall be used.
11. Do not allow anyone under a vehicle that is being repaired, until the vehicle has been properly supported
by jack stands.
12. Use wheel chocks or other blocking devices on opposing wheels before perfoming work on a vehicle.
13. No alterations shall be made to this product.
14. Do not use this product for any use other than the manufacturer specied usage.
15. Failure to heed these markings may result in personal injury and/or property damage.
DO NOT OPERATE OR REPAIR THIS EQUIPMENT WITHOUT READING THIS MANUAL.
To maintain the product and user safety, the responsibility of the owner is to read and follow these instructions.
• Inspect the product for proper operation and function.
• Keep instructions readily available for equipment operators.
• Make certain all equipment operators are properly trained; understand how to safely and correctly operate
the unit.
• Allow unit operation only with all parts in place and operating properly.
• Use only genuine replacement parts.
• Service and maintain the unit only with authorized or approved replacement parts; negligence will make the
product unsafe for use and void the warranty.
• Folding components can present pinch and crush hazards during use of this product. Exercise caution when
performing adjustments and always be alert and sober
• Carefully inspect the unit on a regular basis and perform all maintenance as required.
• Store these instructions in a dry and clean environment that allows any user access to the manual before
use.
• Keep all decals on the unit clean and visible.
Always follow safety precautions when installing and operating this product. Keep all decals on the unit
clean and visible. Before proceeding ensure that you fully understand and comprehend the full contents of
this manual. Failure to operate this equipment as directed may cause injury or death. The distributor is not
responsible for any damages or injury caused by improper use or neglect.
SAFETY!
BEFORE PERFORMING ANY WORK ON A VEHICLE OR USING THIS PRODUCT;
Always use Jack Stands!
DO NOT USE wood blocks or any other non-approved load sustaining devices. The manufacturer only
warrants loads to be sustained by jack stands that meet current ASME standards.
DO NOT USE wood blocks or any other non-approved lifting devices for a means of lifting with a jack and or
load being raised. Failure to head these warnings may cause injury or death.
Folding components can present pinch and crush hazards during use of this product. Exercise caution when
performing adjustments and always be alert and sober while assembling and using this equipment.
CAUTION

5
PREPARATION
Before assembling Creeper, make sure all parts are present. Compare parts with package contents list. If
any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer
service for replacement parts.

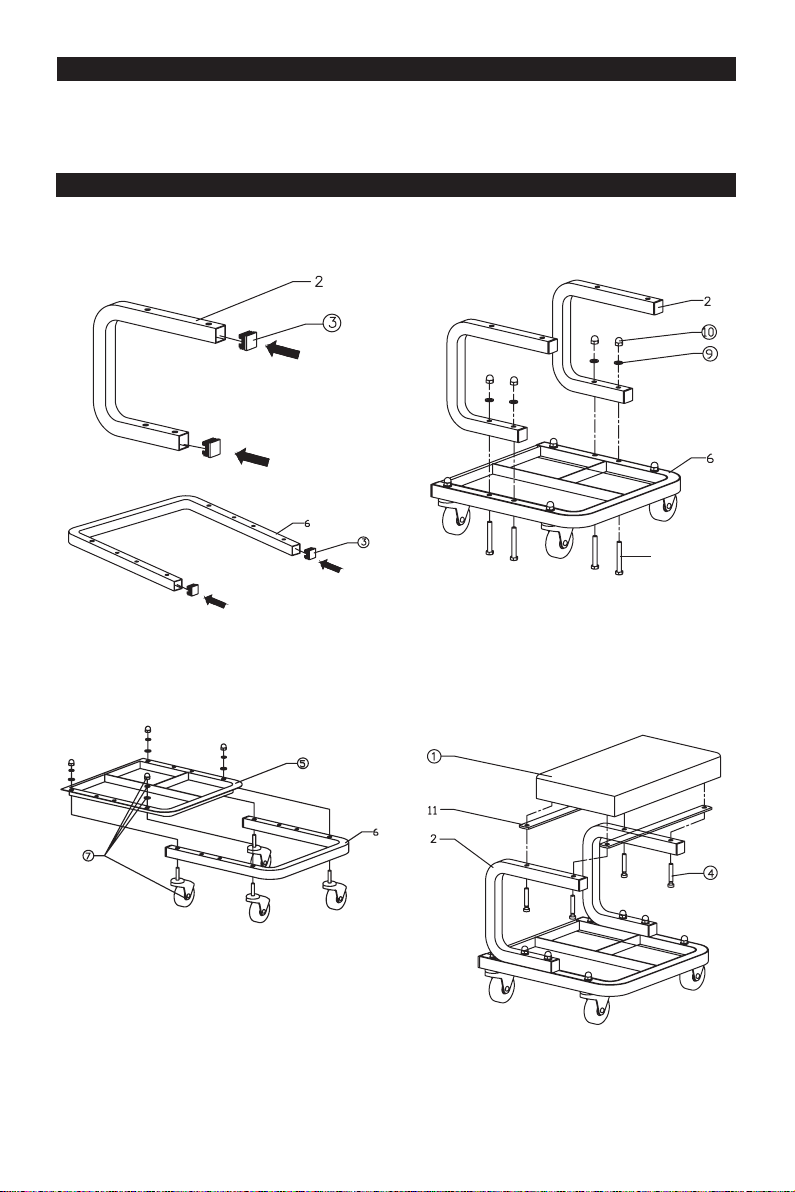

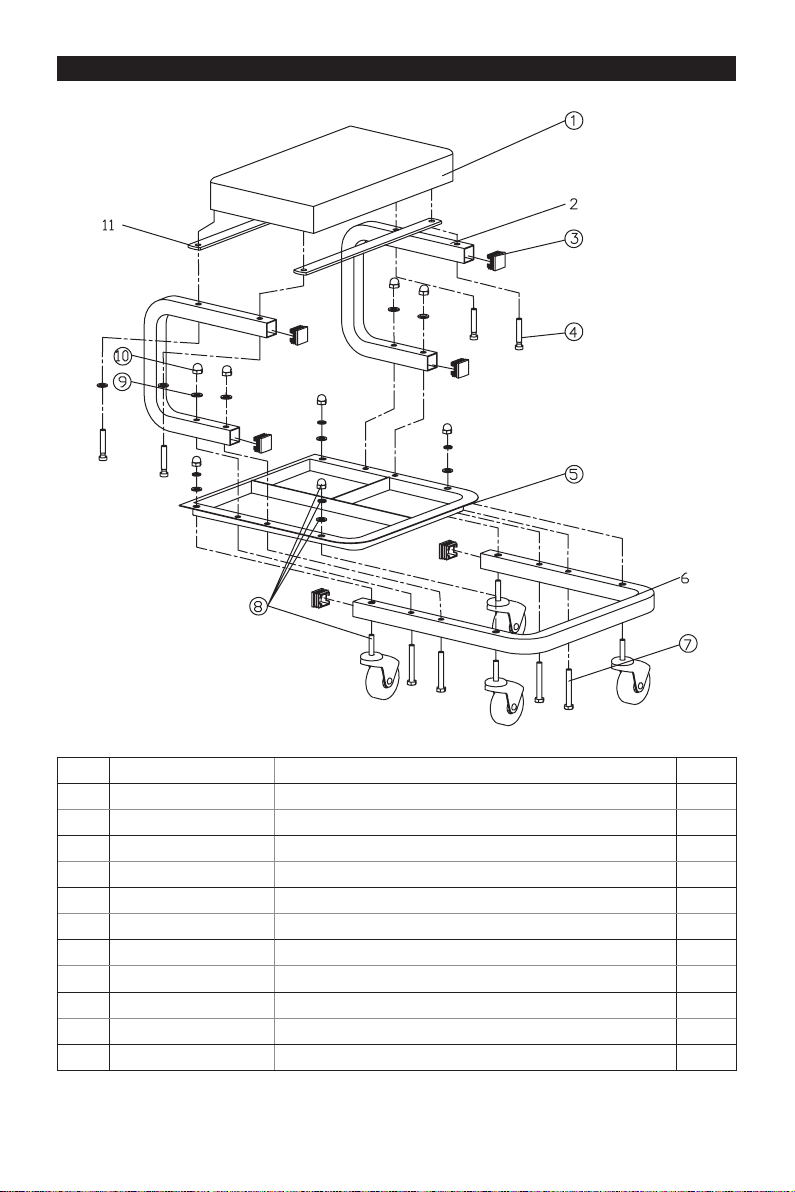

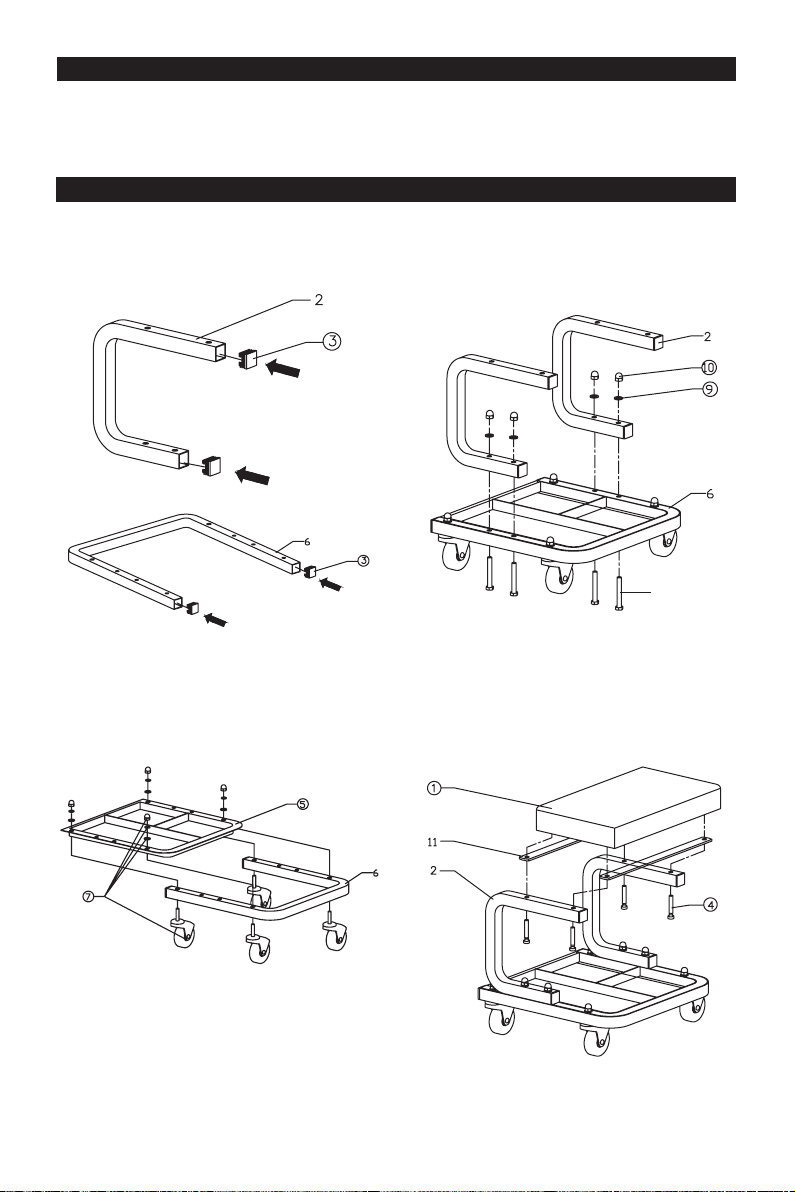

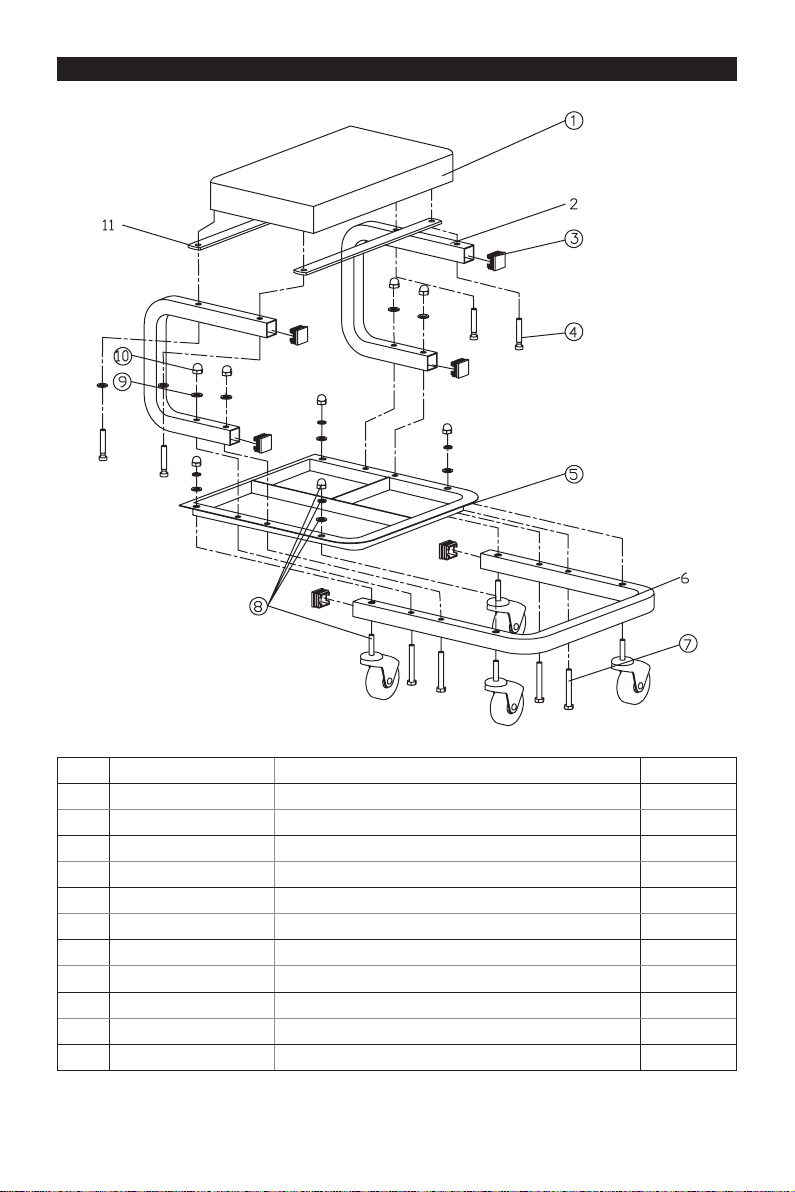

1. Knock the plastic end caps(NO.3) into the holes
of two metal frames(NO.2) and the metal frame
base(NO.6).
2. Put the plastic tray (NO.5) onto the metal frame
base (NO.6) and align the holes, then attach the
four caster assemblies(NO.7) and tighten all four
nuts.
3. Use hex bolts(NO.7),washers(NO.9) and acorn
cap nuts(NO.10) to connect the two metal
frames(NO.2) to the metal frame base(NO.6)
4. Put the at steel frame supports ( NO.11) on the
metal frames(NO.2) horizontally, then connect
the seat pad, at steel frame supports (NO.11)
and metal frames(NO.2) with four cross-recess
screws(NO.4).
5. Assembly is now complete.
