Torklift A7202 User manual

Page 1
STABLE LOAD
TECH SUPPORT [phone]
A7202
IMPORTANT OWNER-OPERATOR INSTALLATION INSTRUCTIONS
REVISED BY: JDK 10.27.2011
APPLICATION FITS:
2011 CHEVROLET 3500
LONG BOX
AFTER INSTALL, PLEASE GIVE
THIS BOOKLET TO YOUR CUSTOMER

Page 2
NOTE: Adjustment of the airspring pressure, either up or down, is recom-
mended to obtain the best handling and ride quality. Air pressure will vary
depending on your particular application.
On some applications, after lowering your airbag pressure, a small gap may
remain between the overload spring and the stable load. This is acceptable. It
is not necessary for the stable load to be in continuous contact with the over-
load.
-ADDENDUM-

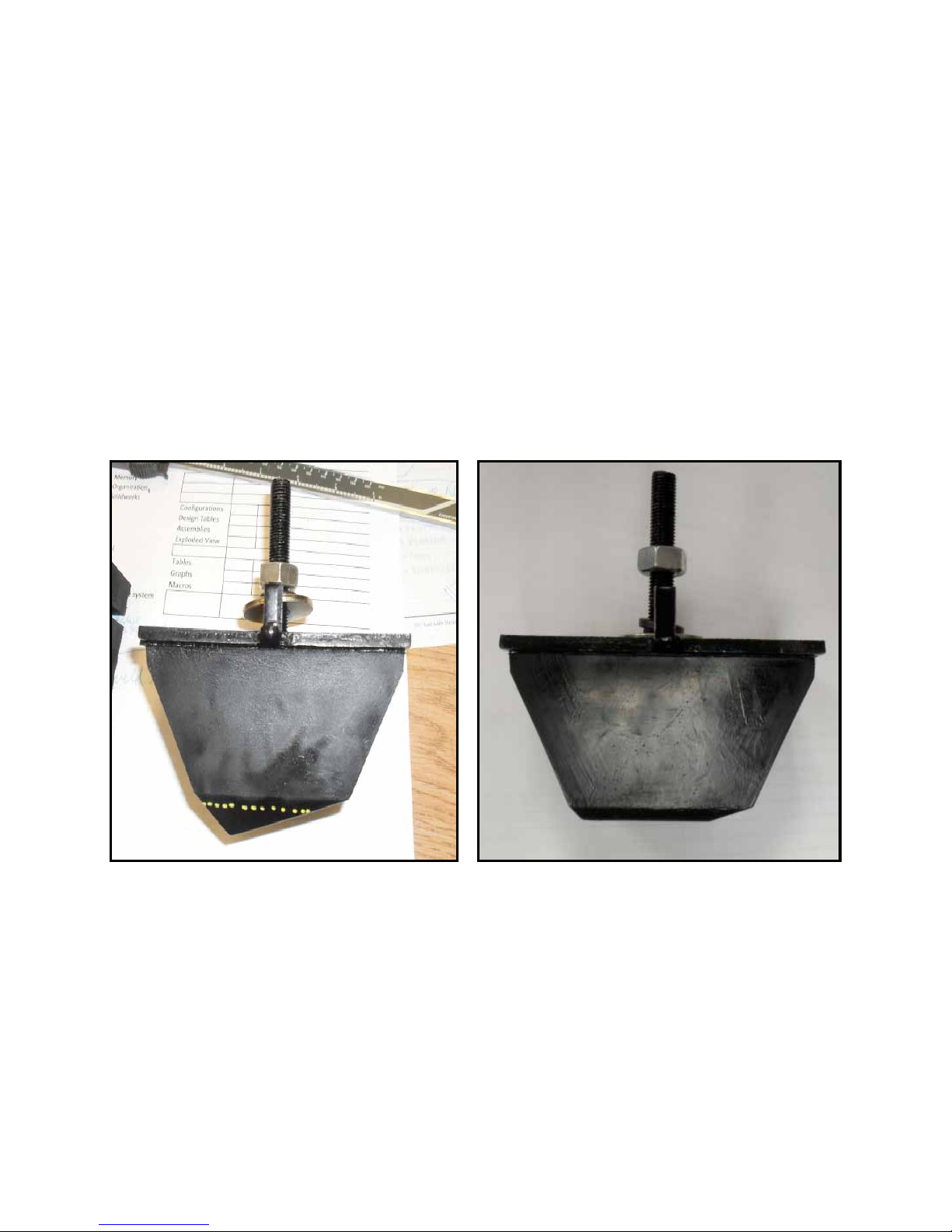

In order to eliminate the slapping noise some customers may experi-
ence. Cut the lower portion of the stable load off to reduce the surface
contact area. You will want to cut it off parallel to the main plate and
approximately 3/16” below the seam line. See attached pictures.
*NOTE TORQUE STABLE LOAD HARWARE TO 40 FOOT POUNDS.
Our Stableloads are intended to be used with
the factory overload spring suspension and not
intended to be used with aftermarket springs
and Overloads.

Page 3
1. Spray the top of the factory rubber contact pad with WD-40 or equivalent lubri-
cant. Use a screwdriver to pry the pad off of the overload frame bracket.
SEE PHOTO A
2. Clamp the Stable Load in the vise and use a screw driver and hammer or pliers to
remove the anti-rotation tabs. The adapter plate will be used as the anti-rotation
device. SEE PHOTO B
3. Place one of the adapters on top of a stable load. Place the stable load up to the
overload frame bracket with the bolt going through the notch. Use the supplied at
washer, lock washer and hex nut to install onto the over load frame bracket. Make
sure the ap that points down is on the inner side of the stable load. Adjust for proper
tment. Repeat the process for the three remaining Stable Loads. SEE PHOTO C,
D,
2011 Chevrolet Installation
PHOTO A
FACTORY REAR
OVERLOAD SPRING
FACTORY OVERLOAD
BUMP STOP BRACKET ON
FRAME
DRIVERS SIDE
A7202 PARTS INVENTORY
4 - STABLE LOAD PAD 4 - ADAPTER PLATE

Page 4
PHOTO C
STABLE LOAD
PHOTO B

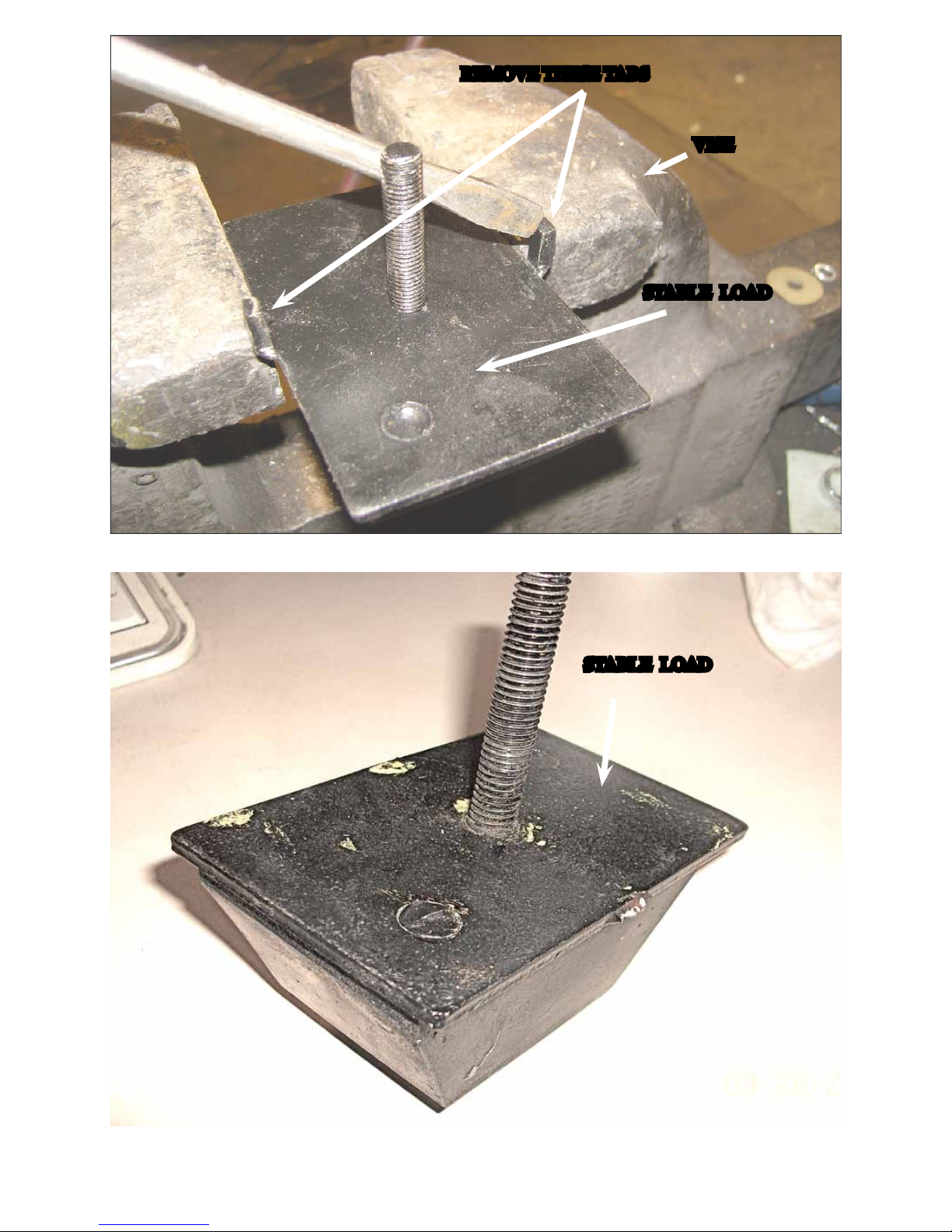

REMOVE THESE TABS
STABLE LOAD
VISE

Page 5
PHOTO D
ADAPTER PLATE
STABLE LOAD
FACTORY OVER-
LOAD SPRING
LEAF SPRING
SUSPENSION
DRIVERS SIDE
REAR

Page 6
CONTACT YOUR LOCAL DEALER FOR MORE DETAILS
VISIT WWW.TORKLIFT.COM
FOR MORE INFORMATION

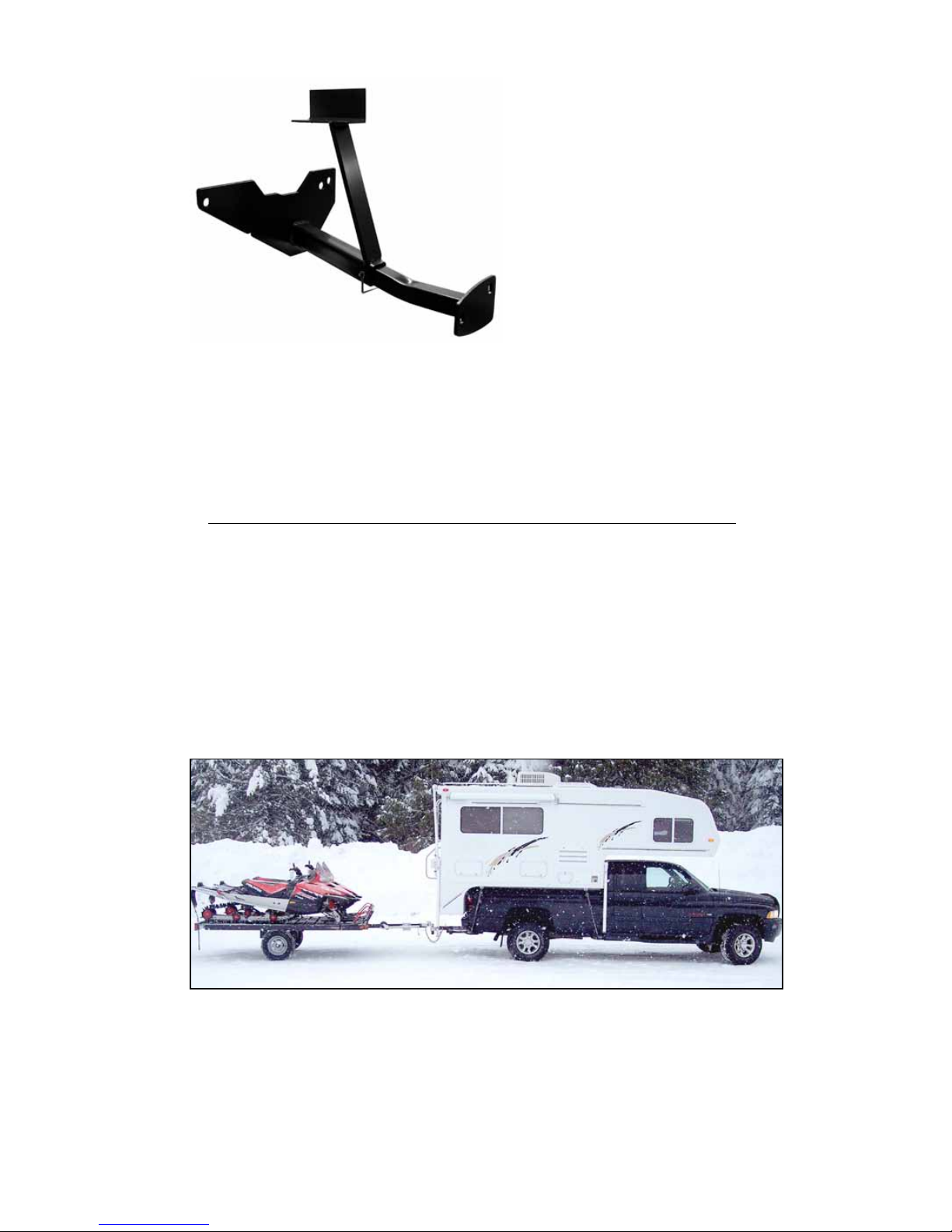

Frame Mounted Tie Downs
