FormNo.3374-403RevB
LithiumBatteryCharger
Greensmaster®eFlex™®TractionUnits
ModelNo.119-4300
Operator'sManual
IMPORTANTSAFETY
INSTRUCTIONS
DANGER—Toreducetheriskofreorelectric
shock,carefullyfollowtheseinstructions.
SAVETHESEINSTRUCTIONS
Thismanualcontainsimportantsafetyandoperatinginstructions
forbatterychargerModel119-4300.
Beforeusingthebatterycharger,readallinstructionsand
cautionarymarkingsonbatterycharger,battery,andproduct
usingbattery.
CAUTION
Toreduceriskofinjury,chargeonlyToro04232eFlex
typeLithiumIonrechargeablebatteries.Othertypes
ofbatteriesmayburst,causingpersonalinjuryand
damage.
Besurethevoltageselectorisincorrectvoltagepositionbefore
pluggingin.
•ForuseintheU.S.A.,thevoltageselectorswitchmustbe
placedinthe120voltposition.Foruseincountriesother
thantheU.S.A,thevoltageselectormayneedtobeplacedin
otherthanthe120voltposition.Conrmthevoltageavailable
ateachcountrylocationbeforeusingtheproduct.
•ForconnectiontoasupplynotintheU.S.A.,usean
attachmentplugadapterofthepropercongurationforthe
poweroutlet,ifneeded.
General
Thisisthesafetyalertsymbol.Itisusedtoalertyouto
potentialpersonalinjuryhazards.Obeyallsafetymessages
thatfollowthissymboltoavoidpossibleinjuryordeath.
Improperlyusingormaintainingthischargercouldresult
ininjuryordeath.Toreducethispotential,complywiththe
allsafetyinstructions.
CAUTION
Attemptingtochargebatteriesotherthanthosefor
theToroeFLEXWalkingGreensmowercanresultin
excessiveheatandotherrelatedproductmalfunctions,
whichcanleadtopropertydamageand/orinjury.
CAUTION
AttemptingtochargetheTORO04232lithium
ionbatterypackwithanychargerotherthanthis
designatedchargercanleadtoexcessiveheatand
otherrelatedproductmalfunctions,whichcanleadto
propertydamageand/orinjury.
•Failuretocomplywiththeseinstructionsmayresultin
personalinjury,riskofre,orelectricalshock.
•Donotgetthechargerwet;keepitprotectedfromrainand
snow.
•Ariskofre,electricshock,orinjurymayresultfromtheuse
ofanaccessorynotrecommendedorsoldbyToro.
•Toreduceriskofabatterypackexplosion,followthese
instructions,thosepublishedintheOperator’sManualforthe
machinewithregardtothebattery,andtheinstructionsfor
anyequipmentyouintendtouseinthevicinityofthebattery
packcharger.Reviewcautionarymarkingsontheseproducts
andontheirengines.
Training
•Thisapplianceisnotintendedforusebypersons(including
children)withreducedphysical,sensory,ormental
capabilities,orlackofexperienceandknowledge,unless
theyhavebeengivensupervisionorinstructionconcerning
useofthelithiumionbatterychargerbyapersonresponsible
fortheirsafety.
•Read,understand,andfollowallinstructionsonthecharger
andinthemanual(s)beforeoperatingthischarger.Be
thoroughlyfamiliarwithallthecontrolsandtheproperuseof
thecharger.Knowhowtostopthechargeranddisengagethe
controlsquickly.
CAUTION
RiskofExplosiveGases.Althoughrare,thebattery
packcouldemitexplosivegasesifitissignicantly
overcharged.Itisimportantthatyoucomplywithall
instructionsrelatingtothischarger,thebattery,and
anyequipmentinoperationnearby.
Preparation
•Keepchildrenandbystandersaway—Keeppeopleasafe
distanceawayfromtheworkarea.
•Dressproperly—Donotwearlooseclothingorjewelry.Wear
rubber-soledshoeswhenoperatingthecharger.
•TurntheignitionswitchonthemachinetotheOffpositionand
wait5secondsuntilthemachinehascompletelypowered
downbeforeyouconnectthebatterypacktothecharger.
Failuretodothismaycauseanarctooccur.
•Ensurethattheareaiswellventilatedwhilechargingisunder
way.
©2014—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.Toro.com.OriginalInstructions(EN)
PrintedintheUSA
AllRightsReserved*3374-403*B

•Studyallbatterypackmanufacturer’sspecicprecautionsfor
chargingandtakethestepsneededtocomplywiththem.
•Thisbatterypackchargerisforuseonlyonnominal120and
240VACcircuits,andisequippedwithagroundingplugfor
120VACoperation.Forusewith240voltcircuits,contact
yourAuthorizedPartsDealerforthecorrectpowercord.
CAUTION
Riskofreorelectricshock.Connectthebattery
packchargerdirectlytoagroundingreceptacle
(three-prong).Donotusethischargeronan
ungroundedoutlet,evenwithanadaptor.
Operation
•GeneralPrecautions
–Neverchargeafrozenbattery.
–Donotabusethecord—Nevercarrythechargerbyits
cordoryankonthepowersupplycordtodisconnectthe
chargerfromthereceptacle.Keepthecordfromheat,
oil,andsharpedges.
–Keepthecaseintact.
–Whencarryingthecharger,alwaysbesureofyour
footing,andkeeparmholdonthehandle.Walk;never
run.Exercisecautiontoavoidslippingorfalling.
•PersonalPrecautions
DANGER
Neveraltertheprovidedpowercordorplug.Ifit
willnotttheoutlet,waitforaqualiedelectrician
toinstallaproperoutlet.Animproperconnection
cancauseanelectricshock.
–Wearcompleteeyeprotectionandclothingprotection.
–Immediatelywashanyskinorclothingthatbattery
packelectrolytecontactswithsoapandwater.Should
electrolytegetinyoureye,immediatelyoodtheeye
withcoldrunningwaterforatleast10minutesand
immediatelycallforemergencymedicalservice.
–Donoteversmokeorpermitasparkorameneara
battery.
–Takeextraprecautionstoavoiddroppingametaltoolnear
orontoabattery.Itmightcauseasparkorshort-circuit
anelectricalpartthatcouldleadtoanexplosion.
–Removemetalitemssuchasrings,bracelets,necklaces,
andwatchesfromyourpersonwhenworkingwitha
lithiumionbattery.Alithiumionbatterypackcanproduce
enoughcurrenttocauseasevereburn.
–UsethischargeronlyforchargingTorolithiumion
batteriesfortheeFLEXWalkingGreensmower,as
speciedintheequipment’sOperator’sManual.Do
notuseitforanyotherpurpose.
•Location
–Neveroperatethechargerwithoutgoodvisibilityorlight.
–Operatethechargerinanopenareawithgoodventilation.
•OutputConnectionPrecautions
–Thechargermustalwaysbeoffpriortoconnectingor
disconnectingthebatterypacktothecharger,Never
allowametalobjecttotouchtherecessedpinsinthe
endoftheconnector.
–Complywiththeinstructionsinthismanualwhenyou
connectanddisconnectthechargerandthebattery.
•PowerConnectionPrecautions
–Grounding—Thechargershouldbegroundedtoreduce
theriskofelectricshock.Theelectriccordincludedwith
thischargerwillsupplyagroundwhenpluggedintoa
properlywiredgroundingoutletinstalledinaccordance
withalllocalcodesandordinances.
CAUTION
Riskofreorelectricshock.Connectthe
batterypackchargerdirectlytoagrounding
receptacle(three-prong).Donotusethis
chargeronanungroundedoutlet,evenwithan
adaptor.
–Donotuseanextensioncordunlessabsolutely
necessary.Useofanimproperextensioncordcould
increasetheriskofreandelectricshock.Ifyoumust
useanextensioncord,makesureofthefollowing:
◊Thepinsontheplugoftheextensioncordmatchthe
number,size,andshapeofthoseontheplugthat
camewiththecharger.
◊Theextensioncordisproperlywiredandinsulated
andisinsafeelectricalcondition.
◊ThewiresizelargeenoughfortheACampererating
ofthechargerasspeciedinthetablebelow.
ACInputRatingCordSize—MinimumWireGauge
(A.W.G.)
CordLength
MinMax7.6m
(25ft)
15.2m
(50ft)
30.5m
(100ft)
45.6m
(150ft)
4A5A18181412
–Ensurethatthechargeristurnedoffpriortopluggingthe
powersupplycordintoanelectricaloutlet.
–Ifthepowersupplycordisdamagedinanymanner
whileitispluggedin,disconnectthecordfromthewall
receptacleandcontactanAuthorizedServiceDealerfor
areplacement.
–Disconnectthecharger—Unplugthechargerfromthe
electricaloutletwhennotinuse,beforemovingitto
anotherlocation,orpriortoservicingit.
–Alwayspulltheplugratherthanthecordwhen
disconnectingthepowersupplycordtoavoiddamageto
theelectricplugandcord.
MaintenanceandStorage
CAUTION
Riskofelectricalshock.Donotattempttoservicethis
chargerunlessyouareauthorizedandqualiedtodo
so.
Storeanidlechargerindoors.Whenthechargerisnotinuse,it
shouldbestoredindoorsinadry,securedplaceoutofthereach
ofunauthorizedusers.
Maintainthechargerwithcare.
Replacementparts—Whenservicingthecharger,useonly
identicalreplacementparts.
•TakethechargertoanAuthorizedToroDistributorwhen
serviceorrepairisrequired.
•Donotdisassemblethecharger;incorrectreassemblymay
resultinariskofelectricshockorre.
2

•Unplugthepowercordfromtheoutletbeforestartingany
maintenanceorcleaningtoreduceriskofelectricshock,
Turningoffthepowerswitchwillnotreducethisrisk.
•Checkallfastenersatfrequentintervalsforpropertightness
toensurethatthechargerisinsafeworkingcondition.
•AlwaysrefertotheOperator’sManualforimportantdetailsif
thechargeristobestoredforanextendedperiod.
•Maintainorreplacesafetyandinstructionlabelsasneeded.
•Replaceadamagedcordorplugimmediately.Donotoperate
thechargerwithadamagedcordorplug.
•Ifthechargerhasreceivedasharpblow,beendropped,or
otherwisedamagedinanyway,donotoperateit;takeittoan
AuthorizedToroDistributor.
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaofpotentialdanger.
Replaceanydecalthatisdamagedorlost.
121–4653
1.Warning—readtheOperator’sManual;keepthemachinedry;
donotoperatethemachinewithadamagedelectricalcord.
4.Toxicgasinhalationhazard—donotchargethebattery
indoors.
2.Warning—donotremovethebatterychargercover;donot
breakthebatterychargerapart.
5.Electricshockhazard—donotallowtoolstoshortcircuit
batterypostswhenperformingmaintenance.
3.Explosionhazard—avoidsparks,re,openames,or
smoking.
Setup
1
VerifyingtheVoltageSetting
oftheCharger
NoPartsRequired
Procedure
1.Checktheorientationofthefusetrayunderthepowercord
receptacletodetermineifthecurrentvoltagesettingofthe
chargerissettothesamevoltageratingoftheelectrical
outletyouwillusetopowerit(Figure1).
Note:Figure1illustratesthesettingfor110–120Vpower.
Important:Anincorrectvoltagesettingonthebattery
packchargercoulddamagethechargerand/orbattery.
220-240V
110-120V
g017276
1
3
2
Figure1
1.Voltagesetting3.Fusetrayholderreference
mark
2.Fusetrayvoltagearrow
2.Ifyouneedtochangethevoltagesetting,removethefuse
trayusingamedium-sized,at-bladedscrewdriver.
3

3.Turnthefusetrayoversothatthevoltageonthefusetray
linesupwiththereferencemarkonthefusetrayholder
(Figure1).
4.Pressthefusetraybackintotheholderwithslow,even
pressureuntilitisfullyseated.
2
MountingtheChargerona
Wall
NoPartsRequired
Procedure
Youcanmountthechargeronawallusingthewall-mountkey
holescutintothebackoftheunit.Obtainappropriatescrews
forattachingthechargertothewall.Thescrewsshouldhavea
6mm(1/4inch)diametershaftwithaheaddiameterof11mm
(0.45inch).
Important:Surveyyourworkareaanddeterminealocation
thatbestmeetsthecriteriaforsafeandeffectiveoperation
ofthecharger.
Operation
Thechargerisdesignedforunattendeduse,evenforaperiodof
months,suchaswinterstorage.
Important:SeethetractionunitandbatteryOperator’s
Manualfortemperaturerestrictionsonthebatterypack.
ProductOverview
ON
CHARGING
READY
G0171 11
9
1
2
3
5
4
8
5
6
7
Figure2
1.Outputconnectorandcord6.Handle
2.Fusetray7.LCDmessagedisplay
3.Inputpowersocket8.LEDstatuslights
4.Powerswitch9.Power-supplycord
5.Wallmountkeyholes
ConnectingtoaPowerSource
Toreducetheriskofelectricshock,thischargerhasa3-prong
groundedplug.Iftheplugdoesnottintothewallreceptacle,
contactaqualiedelectriciantoinstalltheproperoutlet.Donot
changethechargerorthepowersupplycordpluginanyway.
DANGER
Contactwithwaterwhileoperatingthemachinecould
causeelectricshock,causinginjuryordeath.Don't
handletheplugorthechargerwithwethandsorwhile
standinginwater.
Important:Checkthepowersupplycordperiodicallyfor
holesorcracksintheinsulation.Donotuseadamagedcord.
Donotrunthecordthroughstandingwaterorwetgrass.
1.Makesurethatthechargeristurnedoff(Figure3).
1
G0171 12
Figure3
1.Pressthepowerswitchtoturnitoff.
2.Insertthechargerplugonthepowersupplycordintothe
matchinginputpowersocketonthecharger.
WARNING
Adamagedchargercordcancauseanelectrical
shockorare.
Thoroughlyinspectthepowersupplycordbefore
usingthecharger.Ifthecordisdamaged,donot
operatethechargeruntilyouobtainareplacement.
3.Insertthewallplugendofthepowersupplycordintoa
groundedelectricaloutlet.
ChargingtheBattery
DANGER
Batterychargingisdangerouswhendoneimproperly.
Donotallowuntrainedpeopletooperatethis
equipment.Thoroughlyreviewthesafetyinstructions
atthestartofthismanualbeforeyouoperatethis
equipment.Keepthismanualwiththechargeratall
times.
1.ParktheeFlexwalkgreensmowerinthelocationdesignated
forovernightcharging.
2.Settheparkingbrake(Figure4).
4

G017156
1
2
3
4
5
6
789
Figure4
1.EZ-Turnswitch6.Handle
2.Openspacefor
operationallights
7.InfoCenterLCDdisplay
3.Parkingbreaklatch8.Keyswitch
4.Servicebrake9.Speedcontrol
5.Operatorpresencecontrol
3.TurnthepowertotheeFlexoff(Figure3).
4.Verifythechargeristurnedoff(Figure5).
g025754
Figure5
1.Pressthepowerswitchtoturnitoff.
Note:Thepowerofthechargermustbecycledoffprior
toattemptingtochargethebattery.Thechargerwillnot
recognizethatabatteryhasbeenconnectedandcharging
willnotcommence.
5.PulltheeFlexT-handleconnectoroffthemainbatterypower
supplyconnectorafxedtothebatterytray(Figure6).

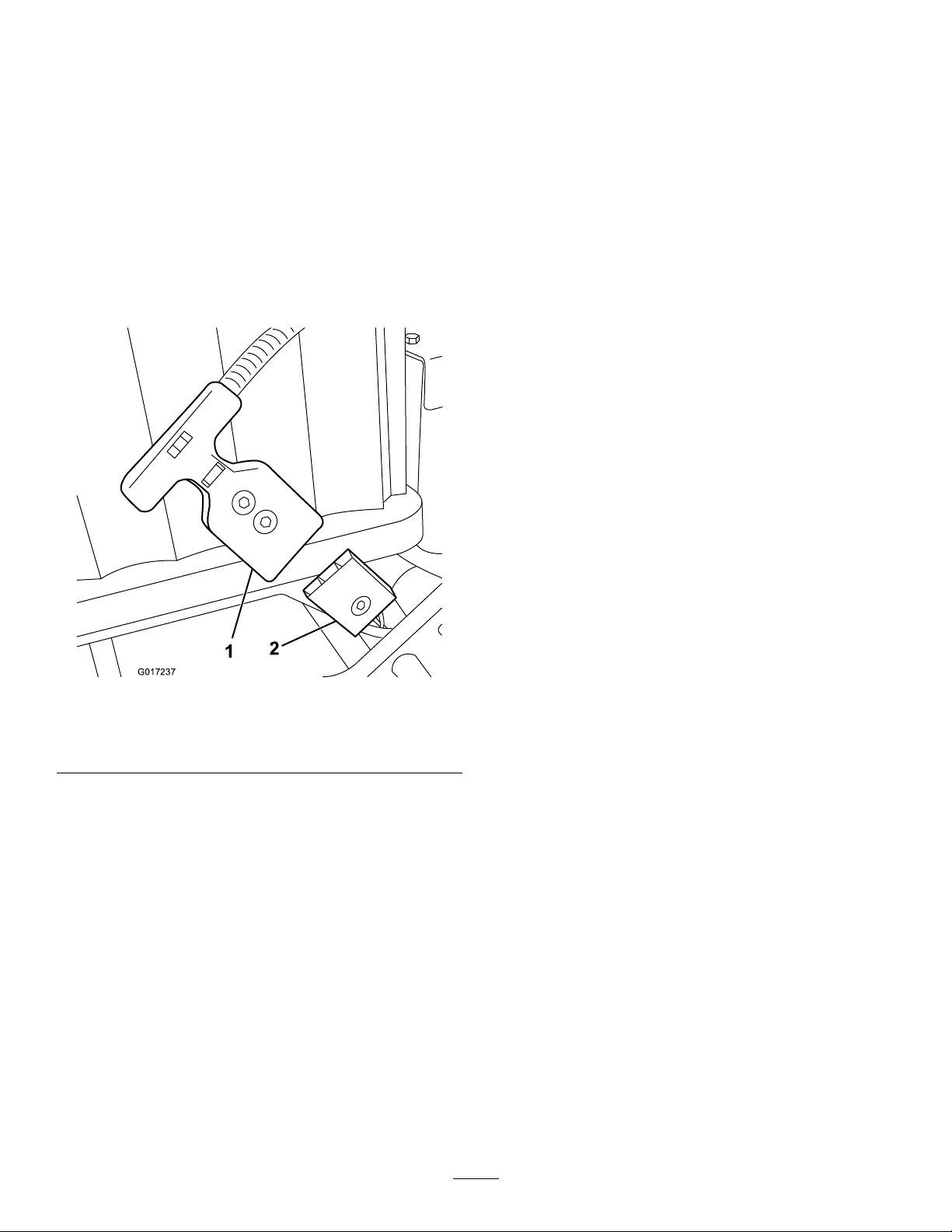

G017237
12
Figure6
1.T-handleconnector2.Mainpowersupply
connectoronthebattery
platform
6.Cleananddryboththebatterypackandchargerconnectors.
Important:Donotusestrongsolventsthatwilldegrade
thestrengthoftheconnectorplastic.Donotuse
dielectricgreaseontheconnectororbatterycontacts.
7.Alignthepositiveconnectors(markedwitha“+”)andpush
togetheruntiltheylock.
8.Turnthechargeron(Figure7).The“ON”LEDindicatorwill
illuminate.
g025755
Figure7
1.Pressthepowerswitchtoturniton.
9.WatchtheLCDmessagedisplayforthe“BatteryAccepted”
message(Figure8).
g017049
Figure8
5

10.ContinuetowatchtheLCDmessagedisplayforthe“State
3,CHARGING”message(Figure9).The“Charging”LED
willilluminate.
Note:Youcanleavethebatterypacktocompleteitscharge
atthistime.
g017046
Figure9
•XX.XV=Batteryvoltage
•XX.X%=StateofCharge(SOC)
•X.XA=ChargingAmperage
11.IfanyothermessageisdisplayedasshowninFigure10,
Figure11,andFigure12thereislikelyafault.The“Ready”
LEDstatuslightwillash.
•Gobacktostep4.
•Inspecttheconnectorpinsfordebris,corrosion,and
properposition(ie.bentorpushedoutofposition).
•Attemptthechargeprocessagain.
Ifthefaultisregisteredagain,thencontactanAuthorized
ServiceDistributorforfurtherassistance.
g017047
Figure10
g017046
Figure11
g017045
Figure12
WARNING
Ifthereareworkerspresentwhileabatterypackis
charging,designateapersontosupervisethearea
andensurecompliancewithallsafetyinstructions
containedinthismanual.Thatpersonshall:
•Bealerttopeoplethatcomeintotheareaandthe
equipmenttheyareusing.
•Stopanyunsafeactivitiesandpreventanyunsafe
conditions.
•Donotallowactivitynearthechargerorbattery
packthatmightresultineitherbeingbumpedor
knockedover.
•Donotallowtheoperationofanyequipmentthat
mightproduceasparkorameorthatcould
dischargewaterorotherliquidsonoraroundthe
batterypackorcharger.
MonitoringtheCharging
Process
TheLCDstatusdisplaywilldisplaymessagesduringthecourse
ofcharging.Mostareroutine.
Note:Ifthereisafault,the“Ready”LEDstatuslightwillashand
oneofthemessagesinFigure10,Figure11,andFigure12willbe
displayed.ContactanAuthorizedServiceDealer.
CompletionoftheCharging
Process
WhenChargingiscomplete,oneoftwomessageswillbe
displayed.Themachineisreadyforuseineithercase.
Message“State4,STANDBY”indicatesthebatteryisfullycharged
andthechargerwentintoastandbyphaseasshowninFigure13.
Figure13
Message“State4,CellBalance/PackOKtouse”indicatesthat
thebatteryisperformingacellbalanceprocesstoensurethecells
maximizetheircapacityandattainmaximumlifefromthebattery
pack.TheStateofCharge(SOC)maybebetween98-100%.
Note::Ifthebatteryisleftonthechargerformorethan24hours:
Thestatedisplayedwillchangeto“HIBERNATE”,indicatingthecharger
hasenteredalowpowerstate.
Thebatteryisstillreadytobeputintofullservicewhentakenoffthe
charger.
RefertothetractionunitOperator’sManualfordetailedinstructionson
chargingduringextendedlengthofstorage(greaterthan10days).
6

DisconnectingtheCharger
1.NotethepercentSOC(stateofcharge)onthechargerLCD
statusdisplay.
2.Turnoffthecharger.
3.DisconnectthechargerT-handleconnectorfromthemain
batterypowersupplyconnectorafxedtothebatterytray.
Important:Donotpullonthecables
4.PlacethechargerT-handleandcordinastorageposition
thatwillavoiddamage.
5.EnsuretheeFlexT-handleandbatterypackconnectorsare
clean.
6.ConnecttheeFlexT-handletothebatterypackconnector
(Figure14)
G017237
12
Figure14
1.T-handleconnector2.Mainpowersupply
connectoronthebattery
platform
7.TurnoneFlexmachinepower(SeetheOperator’sManual)
andverifybatterychargedisplayedontheInfoCenter
matchesthatasstatedonthechargerLCDdisplaypriorto
poweringthechargerdown.
Note:Ifthepowerofthechargerisnotcycledoffprior
toattemptingtochargethebattery,itwillnotrecognize
thatabatteryhasbeenre-connectedandchargingwillnot
commence.
Maintenance
Important:Allelectricalrepairsshouldbeperformedbyan
AuthorizedServiceDistributoronly.
Theoperatorcanperformverylittlemaintenanceotherthan
protectingthechargerfromdamageandweather.
MaintainingtheCords
•Cleanthecordswithaslightlydampclothaftereachuse.
•Coilthecordswhennotinuse.
•Periodicallyexaminethecordsfordamage,andreplacethem
whennecessarywithT oro-approvedparts.
ReplacingtheFuse
Ifthechargerstopsworking,checkthefuselocatedunderthe
cordreceptacle(Figure1).Ifthefuseisblown,replaceitwiththe
sameratedfusethatyouremoved.Ensurethatyouinsertthefuse
intheorientationappropriateforyourvoltage.
CleaningtheCase
Cleanthecasewithaslightlydampclothaftereachuse.
Service
Thischargerisasolidstatedeviceandshouldnotrequireservice
undernormaloperatingconditionsanduseaccordingtothese
instructions.Shoulditneedservice,bringthechargertoan
AuthorizedToroServiceDistributor.Repairbyservicecentersnot
operatedbyT oromayresultindamagetoconnectedequipment
andisnotcoveredunderthewarranty.
Storage
1.CompletetheprocedureforDisconnectingtheCharger
(page7).
2.Disconnectthepowersupplycordfromthechargerandcoil
itsecurely.
3.Examinethepowersupplycordthoroughlyforsignsofwear
ordamage.Replaceitifitiswornordamaged.
4.Examinethechargerthoroughlyforworn,loose,ordamaged
parts.Torepairorreplaceparts,contactanAuthorizedParts
Dealerforassistance.
5.Storethechargerwiththepowersupplycordinaclean,
dryplacewhereitwillnotbebumpedordamagedandnot
exposedtocausticfumes.
7

TheToroTotalCoverageGuarantee
ALimitedWarranty
ConditionsandProductsCovered
TheT oroCompanyanditsafliate,ToroWarrantyCompany,pursuant
toanagreementbetweenthem,jointlywarrantyourT oroCommercial
product(“Product”)tobefreefromdefectsinmaterialsorworkmanship
fortwoyearsor1500operationalhours*,whicheveroccursrst.This
warrantyisapplicabletoallproductswiththeexceptionofAerators
(refertoseparatewarrantystatementsfortheseproducts).Wherea
warrantableconditionexists,wewillrepairtheProductatnocosttoyou
includingdiagnostics,labor,parts,andtransportation.Thiswarranty
beginsonthedatetheProductisdeliveredtotheoriginalretailpurchaser.
*Productequippedwithanhourmeter.
InstructionsforObtainingWarrantyService
YouareresponsiblefornotifyingtheCommercialProductsDistributoror
AuthorizedCommercialProductsDealerfromwhomyoupurchasedthe
Productassoonasyoubelieveawarrantableconditionexists.Ifyouneed
helplocatingaCommercialProductsDistributororAuthorizedDealer,or
ifyouhavequestionsregardingyourwarrantyrightsorresponsibilities,
youmaycontactusat:
ToroCommercialProductsServiceDepartment
ToroWarrantyCompany
8111LyndaleAvenueSouth
Bloomington,MN55420-1196
952–888–8801or800–952–2740
E-mail:[email protected]
OwnerResponsibilities
AstheProductowner,youareresponsibleforrequiredmaintenance
andadjustmentsstatedinyourOperator'sManual.Failuretoperform
requiredmaintenanceandadjustmentscanbegroundsfordisallowinga
warrantyclaim.
ItemsandConditionsNotCovered
Notallproductfailuresormalfunctionsthatoccurduringthewarranty
periodaredefectsinmaterialsorworkmanship.Thiswarrantydoesnot
coverthefollowing:
•Productfailureswhichresultfromtheuseofnon-T ororeplacement
parts,orfrominstallationanduseofadd-on,ormodiednon-Toro
brandedaccessoriesandproducts.Aseparatewarrantymaybe
providedbythemanufactureroftheseitems.
•Productfailureswhichresultfromfailuretoperformrecommended
maintenanceand/oradjustments.Failuretoproperlymaintainyour
ToroproductpertheRecommendedMaintenancelistedinthe
Operator’sManualcanresultinclaimsforwarrantybeingdenied.
•ProductfailureswhichresultfromoperatingtheProductinan
abusive,negligent,orrecklessmanner.
•Partssubjecttoconsumptionthroughuseunlessfoundtobe
defective.Examplesofpartswhichareconsumed,orusedup,
duringnormalProductoperationinclude,butarenotlimitedto,brake
padsandlinings,clutchlinings,blades,reels,rollersandbearings
(sealedorgreasable),bedknives,sparkplugs,castorwheelsand
bearings,tires,lters,belts,andcertainsprayercomponentssuchas
diaphragms,nozzles,andcheckvalves,etc.
•Failurescausedbyoutsideinuence.Conditionsconsideredtobe
outsideinuenceinclude,butarenotlimitedto,weather,storage
practices,contamination,useofunapprovedfuels,coolants,
lubricants,additives,fertilizers,water,orchemicals,etc.
•Failureorperformanceissuesduetotheuseoffuels(e.g.gasoline,
diesel,orbiodiesel)thatdonotconformtotheirrespectiveindustry
standards.
•Normalnoise,vibration,wearandtear,anddeterioration.
•Normal“wearandtear”includes,butisnotlimitedto,damageto
seatsduetowearorabrasion,wornpaintedsurfaces,scratched
decalsorwindows,etc.
Parts
Partsscheduledforreplacementasrequiredmaintenancearewarranted
fortheperiodoftimeuptothescheduledreplacementtimeforthatpart.
Partsreplacedunderthiswarrantyarecoveredforthedurationofthe
originalproductwarrantyandbecomethepropertyofT oro.Torowill
makethenaldecisionwhethertorepairanyexistingpartorassemblyor
replaceit.T oromayuseremanufacturedpartsforwarrantyrepairs.
DeepCycleandLithium-IonBatteryWarranty:
DeepcycleandLithium-Ionbatterieshaveaspeciedtotalnumberof
kilowatt-hourstheycandeliverduringtheirlifetime.Operating,recharging,
andmaintenancetechniquescanextendorreducetotalbatterylife.Asthe
batteriesinthisproductareconsumed,theamountofusefulworkbetween
chargingintervalswillslowlydecreaseuntilthebatteryiscompletelyworn
out.Replacementofwornoutbatteries,duetonormalconsumption,
istheresponsibilityoftheproductowner.Batteryreplacementmaybe
requiredduringthenormalproductwarrantyperiodatowner’sexpense.
Note:(Lithium-Ionbatteryonly):ALithium-Ionbatteryhasapartonly
proratedwarrantybeginningyear3throughyear5basedonthetime
inserviceandkilowatthoursused.RefertotheOperator'sManualfor
additionalinformation.
MaintenanceisatOwner’sExpense
Enginetune-up,lubrication,cleaningandpolishing,replacementoflters,
coolant,andcompletingrecommendedmaintenancearesomeofthe
normalservicesT oroproductsrequirethatareattheowner’sexpense.
GeneralConditions
RepairbyanAuthorizedT oroDistributororDealerisyoursoleremedy
underthiswarranty.
NeitherTheToroCompanynorToroWarrantyCompanyisliablefor
indirect,incidentalorconsequentialdamagesinconnectionwiththe
useoftheToroProductscoveredbythiswarranty,includingany
costorexpenseofprovidingsubstituteequipmentorserviceduring
reasonableperiodsofmalfunctionornon-usependingcompletion
ofrepairsunderthiswarranty.ExceptfortheEmissionswarranty
referencedbelow,ifapplicable,thereisnootherexpresswarranty.
Allimpliedwarrantiesofmerchantabilityandtnessforuseare
limitedtothedurationofthisexpresswarranty.
Somestatesdonotallowexclusionsofincidentalorconsequential
damages,orlimitationsonhowlonganimpliedwarrantylasts,sothe
aboveexclusionsandlimitationsmaynotapplytoyou.Thiswarranty
givesyouspeciclegalrights,andyoumayalsohaveotherrightswhich
varyfromstatetostate.
Noteregardingenginewarranty:
TheEmissionsControlSystemonyourProductmaybecoveredby
aseparatewarrantymeetingrequirementsestablishedbytheU.S.
EnvironmentalProtectionAgency(EPA)and/ortheCaliforniaAir
ResourcesBoard(CARB).Thehourlimitationssetforthabovedonot
applytotheEmissionsControlSystemWarranty.RefertotheEngine
EmissionControlWarrantyStatementsuppliedwithyourproductor
containedintheenginemanufacturer’sdocumentationfordetails
CountriesOtherthantheUnitedStatesorCanada
CustomerswhohavepurchasedToroproductsexportedfromtheUnitedStatesorCanadashouldcontacttheirT oroDistributor(Dealer)toobtain
guaranteepoliciesforyourcountry,province,orstate.IfforanyreasonyouaredissatisedwithyourDistributor'sserviceorhavedifcultyobtaining
guaranteeinformation,contacttheT oroimporter.374-0253RevB
