Toro Flex-Force Power System 81101 User manual

FormNo.3455-415RevA
Flex-ForcePowerSystem™
60VMAXBatteryCharger
ModelNo.81101—SerialNo.323000001andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3455-415*

Introduction
Thisbatterychargerisintendedtobeusedbyresidentialhomeowners.
ThischargerisdesignedtochargeonlyToro60Vlithium-ionbatterypacks.
Itisnotdesignedtochargeanyotherbatteries.Usingthisproductfor
purposesotherthanitsintendedusecouldprovedangeroustoyouand
bystanders.
Readthisinformationcarefullytolearnhowtooperateandmaintain
yourproductproperlyandtoavoidinjuryandproductdamage.Youare
responsibleforoperatingtheproductproperlyandsafely.
Visitwww.Toro.comformoreinformation,includingsafetytips,training
materials,accessoryinformation,helpndingadealer,ortoregisteryour
product.
Wheneveryouneedservice,genuineT oroparts,oradditionalinformation,
contactanAuthorizedServiceDealerorT oroCustomerServiceandhave
themodelandserialnumbersofyourproductready.Figure1identies
thelocationofthemodelandserialnumbersontheproduct.Writethe
numbersinthespaceprovided.
Important:Withyourmobiledevice,youcanscantheQRcodeon
theserialnumberdecal(ifequipped)toaccesswarranty,parts,and
otherproductinformation.
g400718
Figure1
1.Modelandserialnumberlocation.
©2022—TheToro®
Company
8111LyndaleAvenue
South
Bloomington,MN
55420
Registerat
www.Toro.com.
OriginalInstructions
(EN)
PrintedinChina
AllRightsReserved*3455-415*

ModelNo.
SerialNo.
Safety-AlertSymbol
Thesafety-alertsymbol(Figure2)showninthismanualandonthe
machineidentiesimportantsafetymessagesthatyoumustfollowto
preventaccidents.
g000502
Figure2
Safety-alertsymbol
Thesafety-alertsymbolappearsaboveinformationthatalertsyouto
unsafeactionsorsituationsandisfollowedbythewordDANGER,
WARNING,orCAUTION.
DANGERindicatesanimminentlyhazardoussituationwhich,ifnot
avoided,willresultindeathorseriousinjury.
WARNINGindicatesapotentiallyhazardoussituationwhich,ifnot
avoided,couldresultindeathorseriousinjury.
CAUTIONindicatesapotentiallyhazardoussituationwhich,ifnotavoided,
mayresultinminorormoderateinjury.
Thismanualusestwootherwordstohighlightinformation.Importantcalls
attentiontospecialmechanicalinformationandNoteemphasizesgeneral
informationworthyofspecialattention.
3

Safety
IMPORTANTSAFETYINSTRUCTIONS
1.SAVETHESEINSTRUCTIONS—Thismanualcontainsimportant
safetyandoperatinginstructionsforT oro60Vlithium-ionbattery
packsandToro60Vlithium-ionbatterychargers.
2.Beforeusingthebatterycharger,readalltheinstructionsand
cautionarymarkingsonthebatterycharger,batterypack,and
productusingthebatterypack.
3.CAUTION—Toreduceriskofinjury,chargeToro60Vlithium-ion
batterypackswithT oro60Vlithium-ionbatterychargersonly.Other
brandsofbatterypacksmayburst,causingpersonalinjuryand
damage.
4.WARNING—Pluggingthebatterychargerintoanoutletthatisnot
220to240Vcancauseareorelectricshock.Donotplugthe
batterychargerintoanoutletotherthan220to240V.Foradifferent
styleofconnection,useanattachmentplugadapteroftheproper
congurationforthepoweroutletifneeded.
I.Training
1.Donotallowchildrenoruntrainedpeopletooperateorservicethis
device.Allowonlypeoplewhoareresponsible,trained,familiarwith
theinstructions,andphysicallycapabletooperateorservicethe
device.
2.Donotallowchildrentouseorplaywiththebatterypackorbattery
charger;localregulationsmayrestricttheageoftheoperator.
II.Preparation
1.Useappliancesonlywithspecicallydesignatedbatterypacks.
Usingothertypesofbatterypacksmaycreateariskofinjuryand/or
re.
2.Donotuseadamagedormodiedbatterypackorbatterycharger.
Itmayexhibitunpredictablebehavior,resultinginre,explosion,
orriskofinjury.
3.Ifthesupplycordtothebatterychargerisdamaged,contactan
AuthorizedServiceDealertoreplaceit.
III.Operation
1.Chargethebatterypackwithonlythebatterychargerspeciedby
Toro.Achargersuitablefor1typeofbatterypackmaycreatearisk
ofrewhenusedwithanotherbatterypack.
4

2.Chargethebatterypackinawell-ventilatedareaonly.
3.Followallcharginginstructionsanddonotchargethebatterypack
outsideofthetemperaturerangespeciedintheinstructions.
Otherwise,youmaydamagethebatterypackandincreasetherisk
ofre.
4.Underabusiveconditions,thebatterypackmayejectliquid;avoid
contact.Ifyouaccidentlycomeintocontactwiththeliquid,ushwith
water.Iftheliquidcontactsyoureyes,seekmedicalhelp.Liquid
ejectedfromthebatterypackmaycauseirritationorburns.
5.Donotexposeabatterypackortooltoreorexcessivetemperature.
Exposuretoreortemperatureabove130°C(265°F)maycause
explosion.
6.CAUTION—Amistreatedbatterypackmaypresentariskofre,
explosion,orchemicalburn.
•Donotdisassemblethebatterypack.
•ReplacethebatterypackwithagenuineTorobatterypackonly;
usinganothertypeofbatterypackmaycauseareorriskof
injury.
•Keepbatterypacksoutofthereachofchildrenandintheoriginal
packaginguntilyouarereadytousethem.
IV.MaintenanceandStorage
1.Donotallowchildrentocleanormaintainthebatterycharger.
2.Whenthebatterypackisnotinuse,keepitawayfrommetalobjects
suchaspaperclips,coins,keys,nails,andscrewsthatcanmakea
connectionfrom1terminaltoanother.Shortingthebatteryterminals
maycauseburnsorare.
3.Donotattempttorepairthebatterypackorbatterycharger.Have
anAuthorizedServiceDealerperformserviceonthebatterypack
orbatterychargerusingidenticalreplacementpartstoensurethat
theproductissafelymaintained.
4.Checkwithlocalcodesforpossiblespecialbatterydisposal
instructions.
SAVETHESEINSTRUCTIONS
5

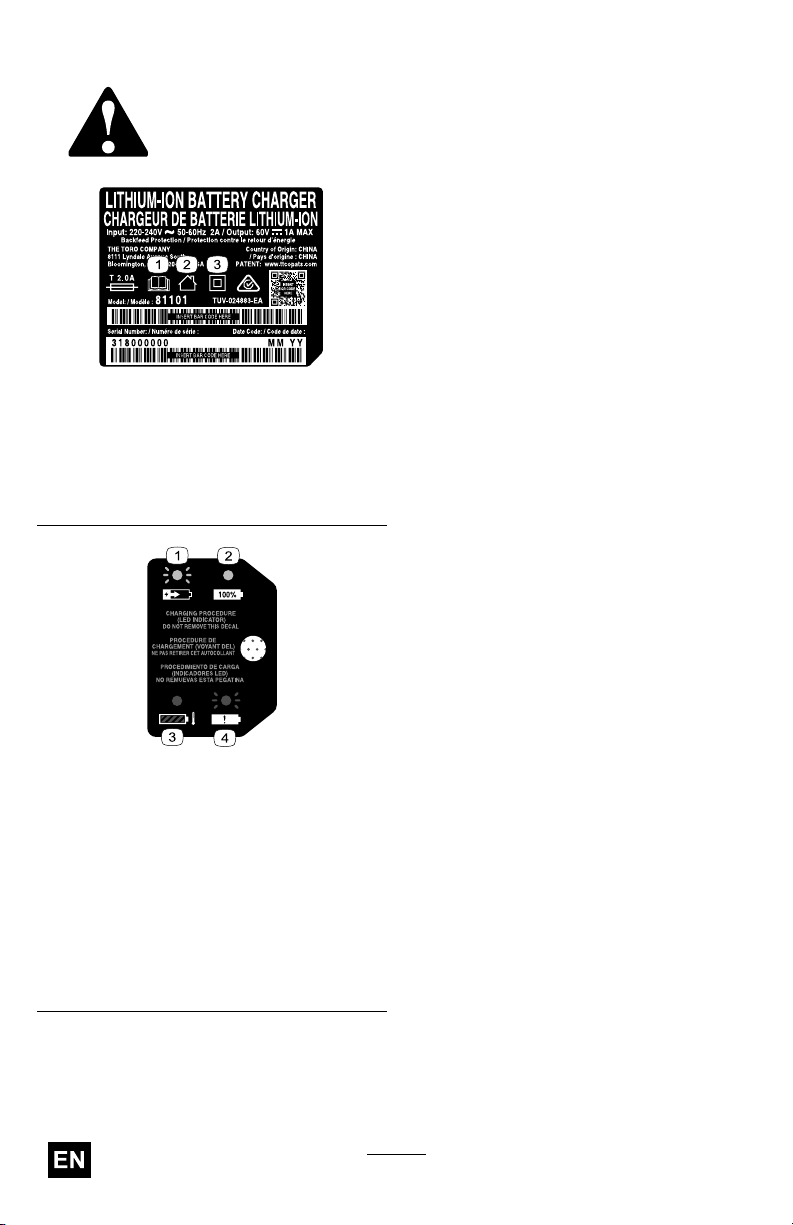

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletothe
operatorandarelocatednearanyareaofpotential
danger.Replaceanydecalthatisdamagedormissing.
decal144-6024
144-6024
1.Readthe
Operator’s
Manual.
3.Double
insulated
2.Forindooruse
decal144-3094
144-3094
1.Thebattery
packis
charging.
3.Thebattery
packisover
orunderthe
appropriate
temperature
range.
2.Thebattery
packisfully
charged.
4.Batterypack
chargingfault
6

ProductOverview
Specications
BatteryCharger
Model81101
Type60VMAXLithium-IonBatteryCharger
Input220to240VAC50-60HzMax2.0A
Output60VMAXDC1.0A
BatteryPack
Model818208182581850818608187568810
2.0Ah2.5Ah4.0Ah6.0Ah7.5Ah10.0Ah Battery
pack
capacity108Wh135Wh216Wh324Wh405Wh540Wh
Batterymanufacturerrating=60Vmaximumand54Vnominal.Actualvoltagevaries
withload.
AppropriateTemperatureRanges
Chargebatterypackat5°C(41°F)to40°C(104°F)*
Usebatterypackat-30°C(-22°F)to49°C(120°F)
Storebatterypack/chargerat5°C(41°F)to40°C(104°F)*
*Chargingtimewillincreaseifyoudonotchargethebatterywithinthis
range.Storethetool,batterypack,andbatterychargerinanenclosed
clean,dryarea.
Storethemachine,batterypack,andbatterychargerinanenclosed
clean,dryarea.
7

Operation
ChargingtheBatteryPack
Important:Chargethebatterypackonlyintemperaturesthatare
withintheappropriaterange;refertoSpecications(page7).
Note:Atanytime,pressthebattery-charge-indicatorbuttononthe
batterypacktodisplaythecurrentcharge(LEDindicators).
1.Ensurethattheventsonthebatteryareclearofanydustanddebris.

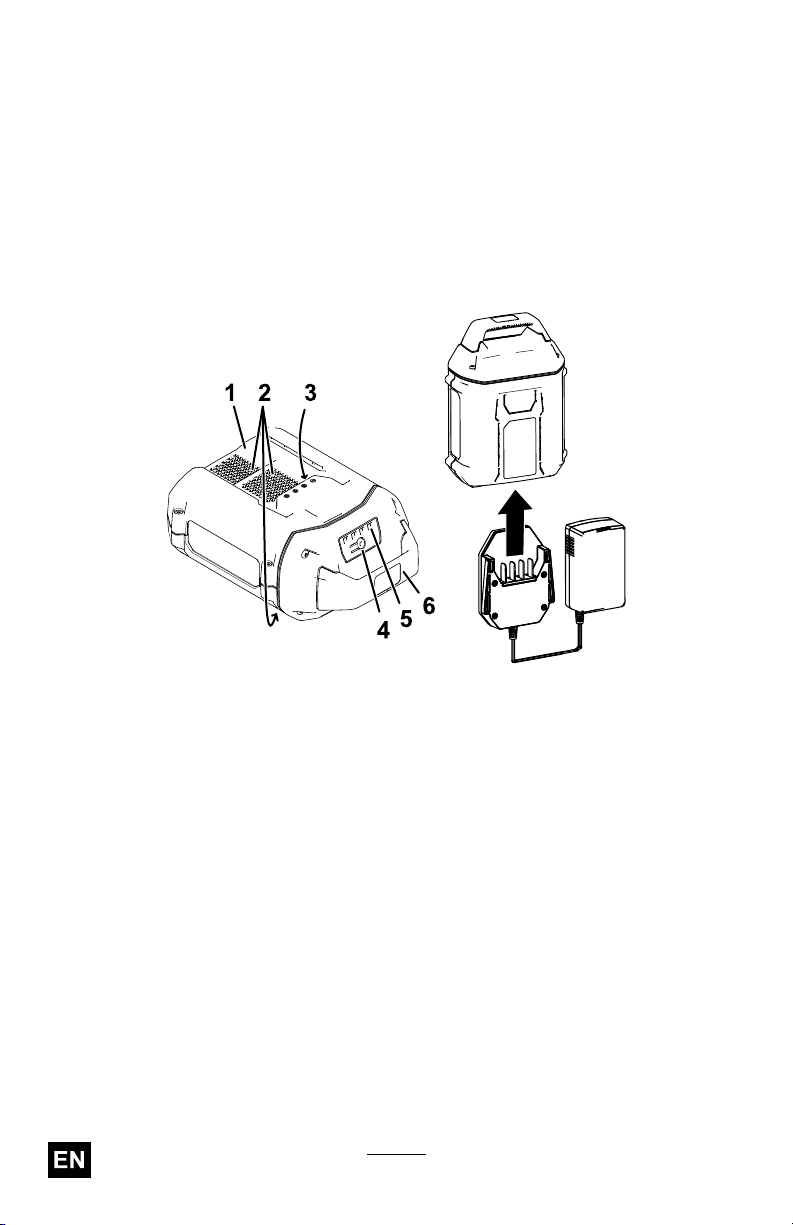

g347460
Figure3
1.Batterypackcavity4.Battery-charge-indicatorbutton
2.Batterypackventingareas5.LEDindicators(currentcharge)
3.Batterypackterminals6.Handle
2.Lineupthecavityinthebatterypack(Figure3)withthetongueon
thecharger.
3.Slidethechargerintothebatterypackuntilitisfullyseated(Figure3).
4.Toremovethebatterypack,slidethechargerbackwardoutofthe
batterypack.
8

5.RefertothefollowingtabletointerprettheLEDindicatorlighton
thebatterycharger.
Indicator
light
Indicates
OffNobatterypackinserted
Green
blinking
Batterypackischarging
GreenBatterypackischarged
RedBatterypackand/orbatterychargerisoverorundertheappropriate
temperaturerange
RedblinkingBatterypackchargingfault*
*RefertoTroubleshooting(page11)formoreinformation.
Important:Thebatterycanbeleftonthechargerforshortperiods
betweenuses.
Ifthebatterywillnotbeusedforlongerperiods,removethebattery
fromthecharger;refertoStorage(page10).
9

Maintenance
Maintenanceandservicingarenotrequiredundernormalconditions.
Whenyoucleanthesurfaceoftheequipment,wipeitonlywithadrycloth.
Donotdisassembletheequipment;ifitisdamaged,contactyour
AuthorizedServiceDealer.
Storage
Important:Storethechargeronlyintemperaturesthatarewithin
theappropriaterange;refertoSpecications(page7).
Important:Ifyouarestoringthechargerfortheoff-season,ensure
thatitisunpluggedandthattherearenobatteriesinstalled.
•Disconnecttheproductfromthepowersupply(i.e.,removethebattery
pack)andcheckfordamageafteruse.
•Donotstorethechargerwiththebatterypackinstalled.
•Cleanallforeignmaterialfromtheproduct.
•Donotstoreanymachinewiththebatterypackinstalled.
•Whennotinuse,storethetool,batterypack,andbatterychargerout
ofthereachofchildren.
•Keepthetool,batterypack,andbatterychargerawayfromcorrosive
agents,suchasgardenchemicalsandde-icingsalts.
•T oreducetheriskofseriouspersonalinjury,donotstorethebattery
packoutsideorinvehicles.
•Storethetool,batterypack,andbatterychargerinanenclosedclean,
dryarea.
10

Troubleshooting
Performonlythestepsdescribedintheseinstructions.Allfurther
inspection,maintenance,andrepairworkmustbeperformedbyan
authorizedservicecenterorasimilarlyqualiedspecialistifyoucannot
solvetheproblemyourself.
ProblemPossibleCauseCorrectiveAction
1.Thebatterycharger
isoverorunder
theappropriate
temperaturerange.
1.Unplugthebattery
chargerandmoveitto
aplacewhereitisdry
andthetemperature
isbetween5°C(41°F)
and40°C(104°F).
Thebatterychargerisnot
working.
2.Theoutletthatthe
batterychargeris
pluggedintodoesnot
havepower.
2.Contactyourlicensed
electriciantorepairthe
outlet.
1.Thereisanerrorin
thecommunication
betweenthebattery
packandthecharger.
1.Removethebattery
packfromthebattery
charger,unplugthe
batterychargerfrom
theoutlet,andwait
10seconds.Plugthe
batterychargerintothe
outletagainandplace
thebatterypackonthe
batterycharger.Ifthe
LEDindicatorlighton
thebatterychargeris
stillblinkingred,repeat
thisprocedureagain.
IftheLEDindicator
lightonthebattery
chargerisstillblinking
redafter2attempts,
properlydisposeofthe
batterypackatabattery
recyclingfacility.
TheLEDindicatorlight
onthebatterychargeris
blinkingred.
2.Thebatterypackis
weak.
2.Properlydisposeofthe
batterypackatabattery
recyclingfacility.
11

EEA/UKPrivacyNotice
Toro’sUseofYourPersonalInformation
TheToroCompany(“Toro”)respectsyourprivacy.Whenyoupurchaseourproducts,wemaycollect
certainpersonalinformationaboutyou,eitherdirectlyfromyouorthroughyourlocalT orocompanyor
dealer.Torousesthisinformationtofullcontractualobligations-suchastoregisteryourwarranty,
processyourwarrantyclaimortocontactyouintheeventofaproductrecall-andforlegitimate
businesspurposes-suchastogaugecustomersatisfaction,improveourproductsorprovideyouwith
productinformationwhichmaybeofinterest.Toromayshareyourinformationwithoursubsidiaries,
afliates,dealersorotherbusinesspartnersinconnectiontheseactivities.Wemayalsodisclose
personalinformationwhenrequiredbylaworinconnectionwiththesale,purchaseormergerofa
business.Wewillneversellyourpersonalinformationtoanyothercompanyformarketingpurposes.
RetentionofyourPersonalInformation
Torowillkeepyourpersonalinformationaslongasitisrelevantfortheabovepurposesandin
accordancewithlegalrequirements.Formoreinformationaboutapplicableretentionperiodsplease
contact[email protected].
Toro’sCommitmenttoSecurity
YourpersonalinformationmaybeprocessedintheUSoranothercountrywhichmayhavelessstrict
dataprotectionlawsthanyourcountryofresidence.Wheneverwetransferyourinformationoutsideof
yourcountryofresidence,wewilltakelegallyrequiredstepstoensurethatappropriatesafeguardsare
inplacetoprotectyourinformationandtomakesureitistreatedsecurely.
AccessandCorrection
Youmayhavetherighttocorrectorreviewyourpersonaldata,orobjecttoorrestricttheprocessing
ofyourdata.Todoso,pleasecontactusbyemailat[email protected].Ifyouhaveconcernsabout
thewayinwhichTorohashandledyourinformation,weencourageyoutoraisethisdirectlywithus.
PleasenotethatEuropeanresidentshavetherighttocomplaintoyourDataProtectionAuthority.
374-0282RevC
