Toro TS120 User manual

TS120 Pop-up Impact Sprinkler
Operating Manual

ii
Table of Contents
1. General 1
2. Safety 1
2.1. Use of symbols in these
operating instructions 1
2.2 Proper use 2
2.3 Clearly improper use 2
2.4 Safety information 2
2.5 Dangers of failing to observe
safety instructions 2
3. Description 3
3.1 Views TS120 Impact Sprinkler 3
3.2 Views TS120 Impact Sprinkler
with VIH and TurfCup 4
3.3 Special tools 5
4. Technical data 6
5. Assembly, set-up and installation 6
5.1 Hazard warnings 6
5.2 Installation instructions 6
5.3 TS120 Impact Sprinkler
installation diagram 7
5.5 Wiring 8
6. Start-Up and Operation 10
6.1 Potential danger 10
6.2 Start-Up 11
6.3 Arc Setting 12
7. Shut-Down and preparing
for winter 13
8 Maintenance and repair work 14
8.1 Maintenance 14
8.2 Changing the nozzles 14
8.3 Toosl for Changing
the Nozzles
15
8.4 Removing the Valve Insert 15
8.5 Removal / installation of
the Control Unit 17
9. Troubleshooting 18

1
1. General
Use of this manual assumes that you are experienced in the eld of irrigation. We have therefore kept
these instructions brief and included only the information that it is imperative for you to have to use this
product.
Any warranty claims can be accepted only if the sprinkler is used in accordance with these operating
instructions and if any defect emerges within the warranty period.
We reserve the right to make changes in line with technological advances without prior notice.
2. Safety
ese operating instructions contain some fundamental instructions that must be followed when
installing, operating, servicing and maintaining the sprinkler. It is therefore imperative that these
instructions are read by the installation contractor(s) and the relevant specialized sta / operators prior
to installation and startup.
Attention must be paid not just to the general safety information set out in this ‘Safety’ section, but also
to the special safety instructions included in the other sections.
2.1. Use of symbols in these operating instructions
Where failure to follow safety information can place individuals at risk, such information is specically
marked in these operating instructions with the following symbols:
!
General warning symbol (hazard)
Warning of potential hand injuries
Warning of potential automatic start-up
Where failure to follow this safety information can damage the sprinkler and/or impair its function, you
will see the word: WARNING!

2
2.2 Proper use
e sprinkler is used for the even distribution of water onto lawns, green spaces and sports elds laid
with natural or synthetic turf. Source water should be pre-ltered and free of any coarse or brous
contamination. e water and ambient temperatures must be within the limits specied in the technical
data (see Section 4).
2.3 Clearly improper use
• Operation of the pop-up sprinkler by unauthorized personnel.
• Operation of the sprinkler before the arc has been properly set, or when the arc has been altered
without authorization (e.g., as a result of vandalism). is can result in the water being directed away
from the target irrigation area.
2.4 Safety information
!
Read the operating instructions, especially the safety information, before starting any work
on or with the sprinkler.
e specic safety instructions appear at the start of each section.
2.5 Dangers of failing to observe safety instructions
Failure to observe safety instructions can result in serious injury and/or damage to the sprinkler and
surrounding environment. Failure to observe safety instructions can lead to the loss of warranty rights.

3
3. Description

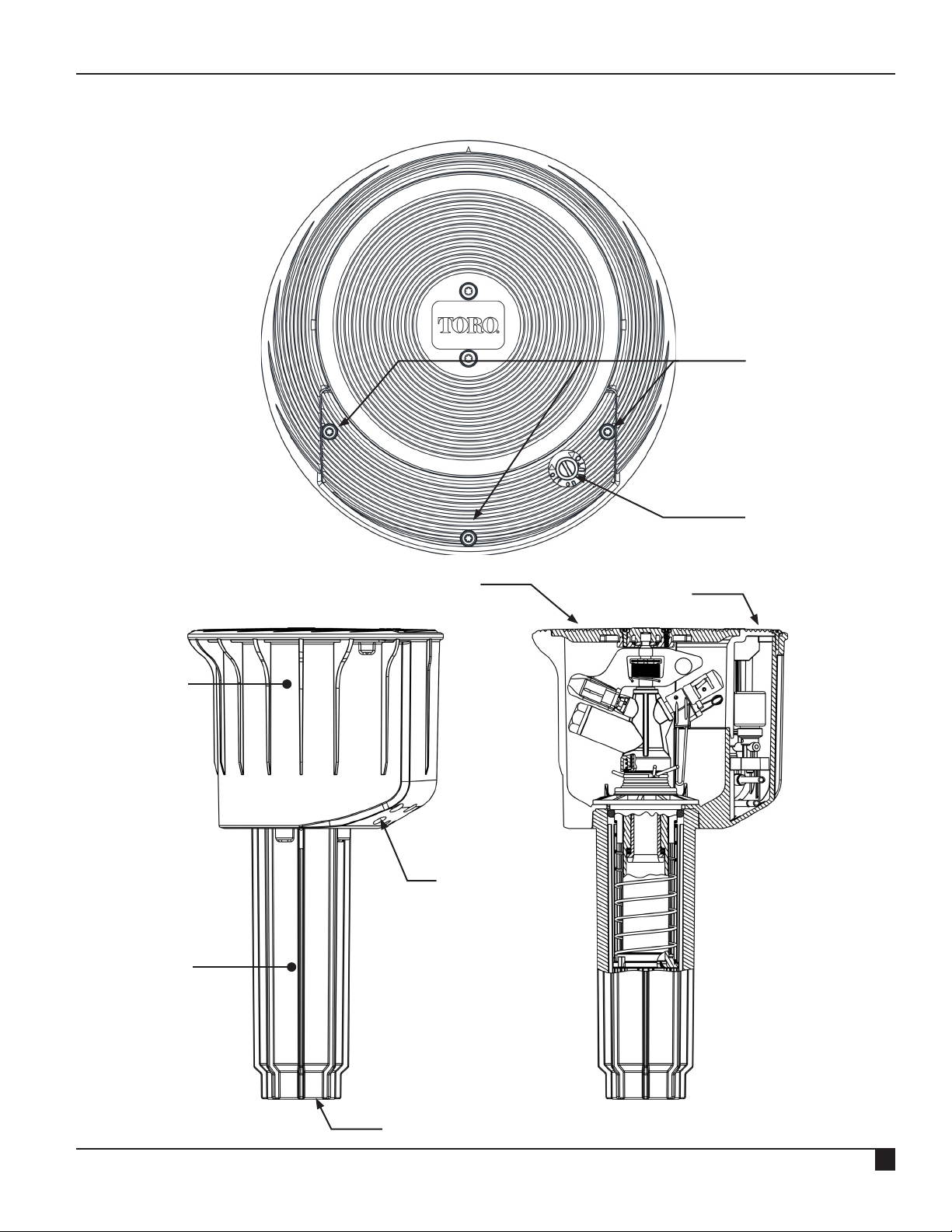

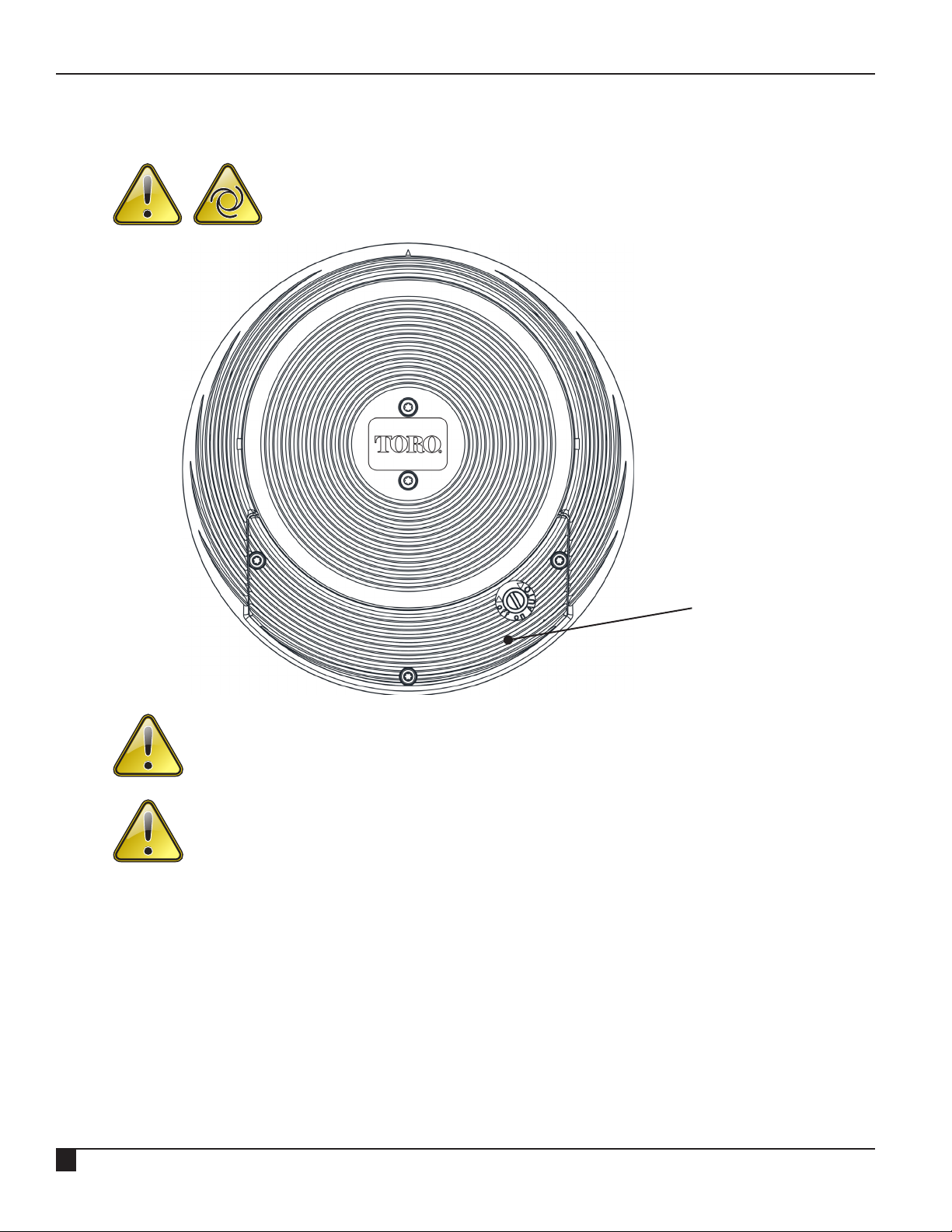

3.1 Views TS120 Impact Sprinkler
Securing screws
Cover Cover for
Control Module
compartment
Main water
connection (1½” NPT)
Manual ON/OFF/Auto
control module
Wire inlet
openings
Housing
Guide Housing

4
Securing screw
Securing screw
Cover for
Control Module
compartment
Manual ON/OFF/Auto
control module
4” TurfCup™ (for natural turf)
Cover for
Control Module
compartment
Housing
Guide Housing
Main water
connection (1½” NPT)
Wire inlet
openings

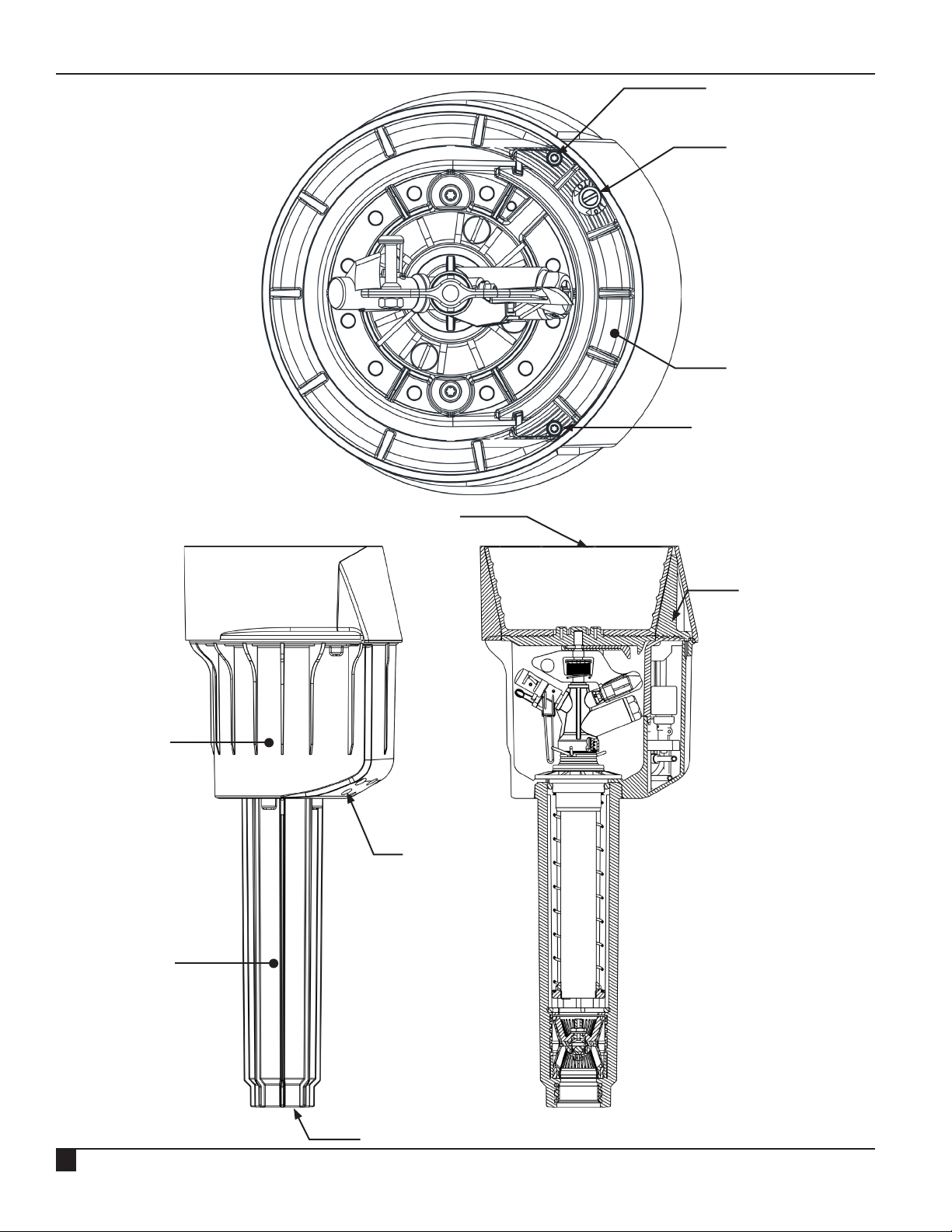

3.2 Views TS120 Impact Sprinkler
with VIH and TurfCup™

5
3.3 Special tools
Part Number Description Function Image
RT19789 TS120 Assembly Key Assembly and
disassembly of sprinkler
head
RT15745 TS120 10mm Socket Wrench Changing driving nozzle
RT17623 TS120 Flushing Tool Safely Flushing laterals
RT17839 Snap Ring Removal Hook Removing snap ring
RT17843 TS120 Valve Insert Tool Changing valve insert
RT17844 Snap Ring Pliers Installation of snap ring
ZB98291 TS120 Split-Blade
Screwdriver
Screw / unscrew ange
and retain the screws.
RT83226 TS121 Assembly Key Disassembly of sprinkler
head and pipe axle
ZB98289 TORX-key T20 For compartment lid
screws
ZB98297 TORX-key T25 For guide housing screws

6
4. Technical data
Recommended operating pressure 75 to 120 psi
Permitted operating pressure 45 to 145 psi
WARNING! Inlet pressure at the sprinkler must never exceed 145 psi.
Inlet thread: 1½” NPT
Liquids: Water only
Liquid temperature: 104° F max.
Ambient temperature: 140° F max.
For further data see separate data sheet.
5. Assembly, set-up and installation
5.1 Hazard warnings
!
If any debris get into the sprinkler, it is possible that the sprinkler could be damaged or
destroyed. Flush out the line thoroughly before connecting the sprinkler to the water supply.
!
Any unexpected incidents at start-up can lead to serious injury from the jet of
water. Make sure the installation has been completed before turning on the
water supply.
5.2 Installation instructions
• e inlet thread connection on the TS120 pop-up sprinkler is 1½" NPT.
• For the thread seal, use a sealing compound and/or material (e.g., Teon tape). Please be sure your
sealing compound of choice is compatible with all materials at the point of connection.
• e pop-up sprinkler should be installed in accordance with the TS120 sprinkler installation diagram
(see next page). In order to avoid any load pressure on the main line, use a recommended Toro
adjustable swing joint or other pressure compatible exible connection.
• Providing a drainage pit directly connected to the drainage, as shown in the installation diagram, is
strongly recommended.
• For screwing in the connection joint, the housing or housing edge of the pop-up sprinkler can be
rmly held or clamped.

7

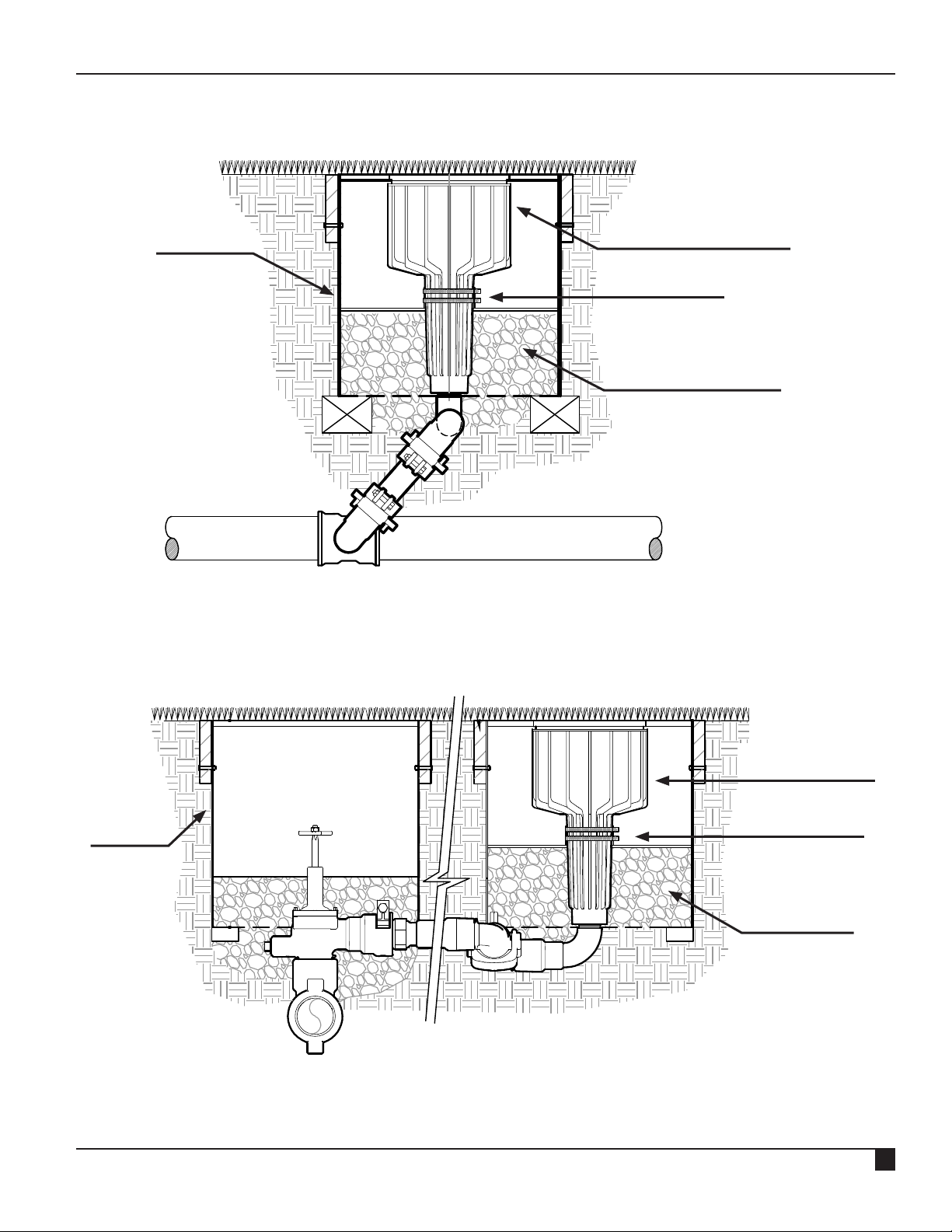

5.3 TS120 / TS121 Impact Sprinkler Installation Diagram
Installation with Tee Connection:
Toro TS120
or TS121
valve box
impact sprinkler
standard position
gravel packing
and drainage
Installation with Isolation Valve:
Toro solid
cover valve
box
impact sprinkler
standard position
gravel packing
and drainage
clamp
clamp

8
5.5 Wiring

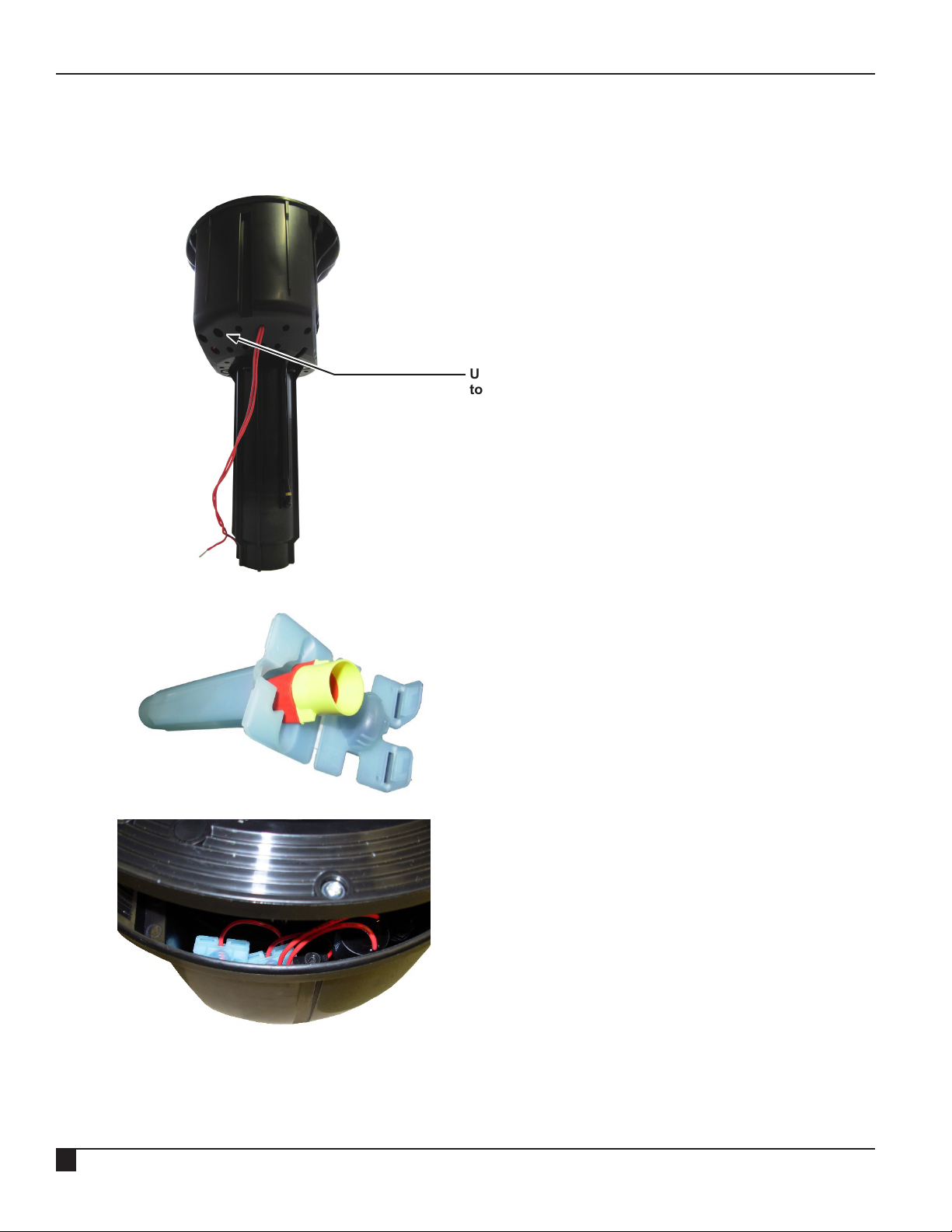

e laid 2-core wire is installed for the electrical connection of the TS120 Impact Sprinkler.
e wire is pulled through the right or left opening on the bottom of the housing into the
solenoid compartment.
Use a Direct Bury Splice Kits (Toro part number
DBRY-100) to connect the control wire to the
solenoid tted inside the sprinkler.
Open the cover of the control module
compartment and connect the solenoid wire.
Use a waterproof connector kit for the connection.
Return the wires into the solenoid compartment
and close the cover.
Use one of the drain holes
to pull the control wires
into the sprinkler.

9
In this installation, the electrical connection is
not exposed to the soil, but is protected inside the
sprinkler and readily top-accessible. is simplies
any search for faults and any maintenance work can
be carried out at any time without digging.

10
6. Start-Up and Operation
6.1 Potential danger
!
At start up, the impact sprinkler rises up out of the housing and builds up full
pressure within about 5 seconds. The jet of water emitted can cause injury. For
this reason, it is critical that all personnel and bystanders are clear of the
irrigation area and are not in the path of the sprinkler’s nozzle opening.
!
If the sprinkler is not installed ush to the ground, it may pose a trip hazard. Prior to startup,
and as a part of regular maintenance checks, ensure the sprinkler cover closes ush with
the sprinkler body.
!
The sprinkler must not be operated without rst closing the cover for the control
compartment. The control compartment cover is an integral component to the proper
operation and rotation of the sprinkler.
Cover for control
compartment

11
6.2 Start-Up Procedure
Be sure to follow the start-up procedure in order, a) to h).
Steps
a) Check electrical function:
Before any water supply to the sprinkler is opened, activate the solenoid by means of the controller.
An audible ‘clicking’ sound from the solenoid is indicative of its functioning properly.
(e click is produced by movement of the plunger.)
b) Ensure the manual control switch (located along the top cover of the rotor) is set to AUTO.
is setting ensures that the sprinkler will retract after the irrigation cycle.
c) Slowly open supply of water to the valve until operating pressure is built up.
It is possible that the sprinkler will briey open, but should then automatically close after at most
30 seconds.
d) Once the water supply has been opened and the operating pressure has been reached,
check sprinkler and connection for leaks.
e) Conrm the sprinkler solenoid is operating properly by toggling the manual control switch between
AUTO and OFF. In between toggles is the ON position--the sprinkler should rise and begin rotating.
!
Do not stand in front of the nozzle opening!
f) Check that the manual control switch is set to AUTO and deactivate solenoid (see point 6.2b).
Sprinkler will stop water ow within 30 seconds.
h) Check once again that it works correctly when activated electrically from the controller.
For Winterization process, see Section 7.

12
6.3 Arc Setting
• With this impact sprinkler the arc setting is innitely adjustable between 30° and 330°
and capable of a full circle 360°.
• You can adjust the area to be watered by pulling or pressing on the relevant end of the top
or bottom spring stop.
Setting the Arc Angle
WARNING! Innitely variable setting is possible by pulling (not pressing) on the relevant end of
the top or bottom spring stop.
Spring stop
Apply pressure here
Spring stop

13
7. Shut-Down and Preparing for winter
• For winter shut-down, turn o the water supply and electricity supply of the pump.
• During times of possible frost, ensure there is no standing water in the sprinkler.
• e TS120 Impact Sprinkler has an automatic drainage system.
• e sprinkler has a discharge valve and will drain by gravity as long as water drains from the main
pipe. e sprinkler should empty itself.
• Any water that fails to drain from the sprinkler is inconsequential and will not aect the sprinkler in
the event it freezes.
WARNING!
Electrically activate the solenoid several times so that any residual water
is pushed out of the solenoid cavity.
During the winter we recommend activating the solenoid for approx. 1 minute
twice a week.
For Start-up, see section 6.2.

14
8 Maintenance and Repair Work
!
An unexpected jet of water can cause serious injury. Prior to any maintenance
or repair work ensure that the water supply is securely turned off.
8.1 Maintenance
• Clean out the inside of the sprinkler housing using an industrial wet/dry vacuum cleaner or similar
(as necessary).
• Cut sprinkler housing free of any overgrowing grass. It is recommended this is completed prior to
spring startup.
• Regularly check that the sprinkler is ush with the surface, especially in the case of natural grass.
8.2 Changing the Nozzles
It is recommended that the tools listed in Section 3.3 are used for changing the nozzles.
Use 10mm socket wrench (RT15745) for the driving nozzle and 1” (26mm) socket wrench
for the main nozzle.
8.3 Cleaning or Changing the Valve Insert
e sprinkler module needs to be taken out of the housing in order to carry out the repairs described
in section 8.4.

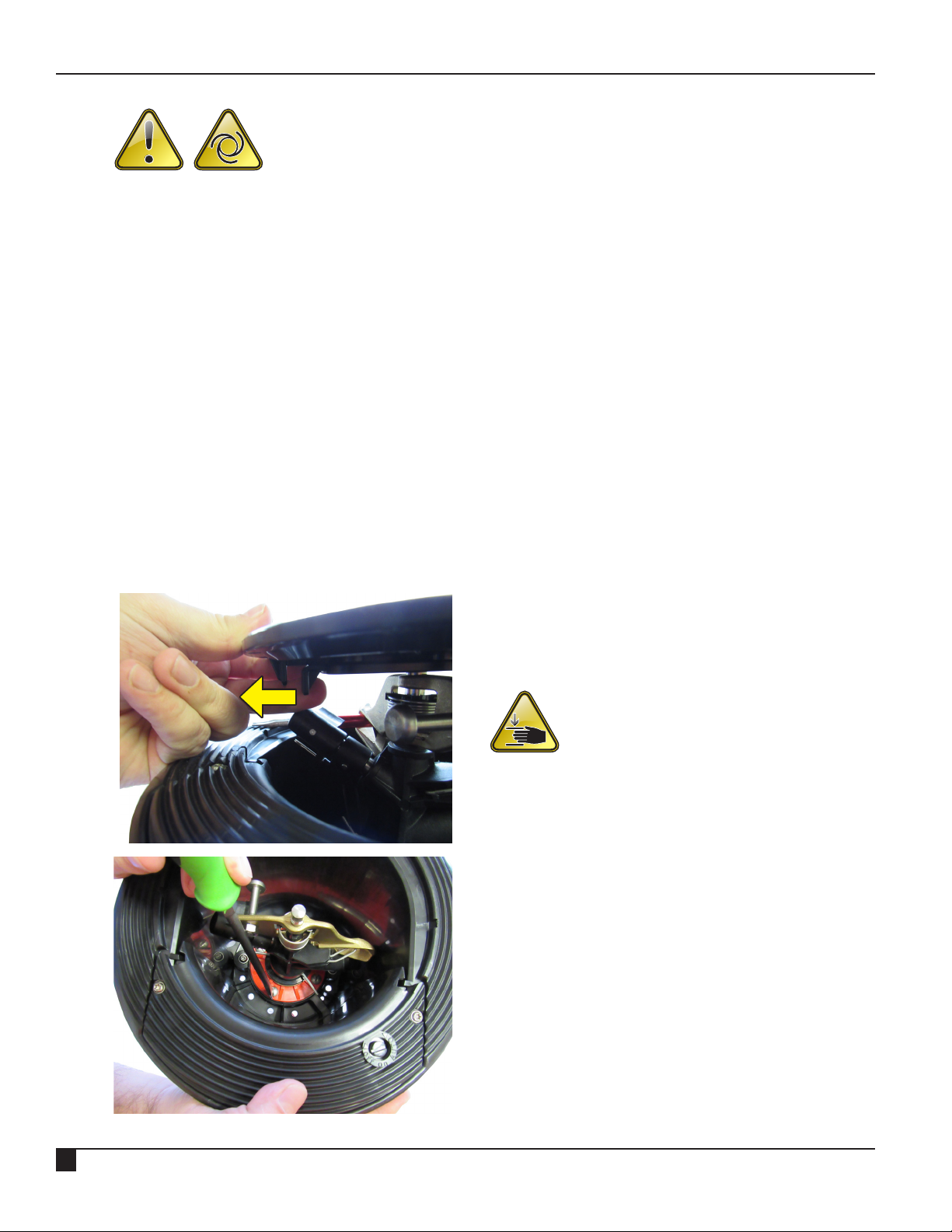

• Lift the cover and secure the sprinkler module
against snapping back (using a screwdriver or
other brace). Locate the cover clip (see photo)
and pull the clip to release. Remove cover.

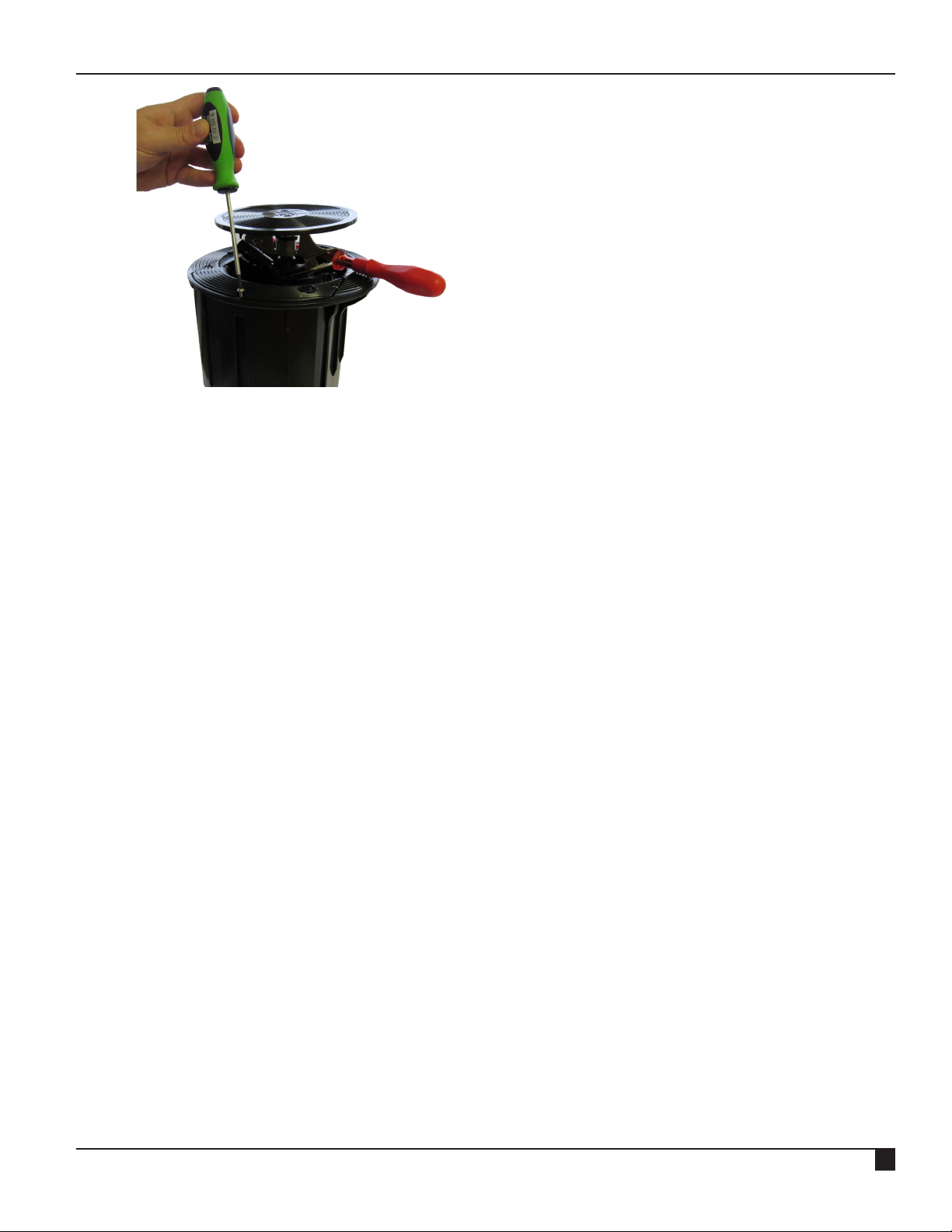

• Use a long shank screwdriver to unscrew
the four ange screws at the base of the riser
assembly. (Retain screws.)
Pull sprinkler module out of the housing.

15

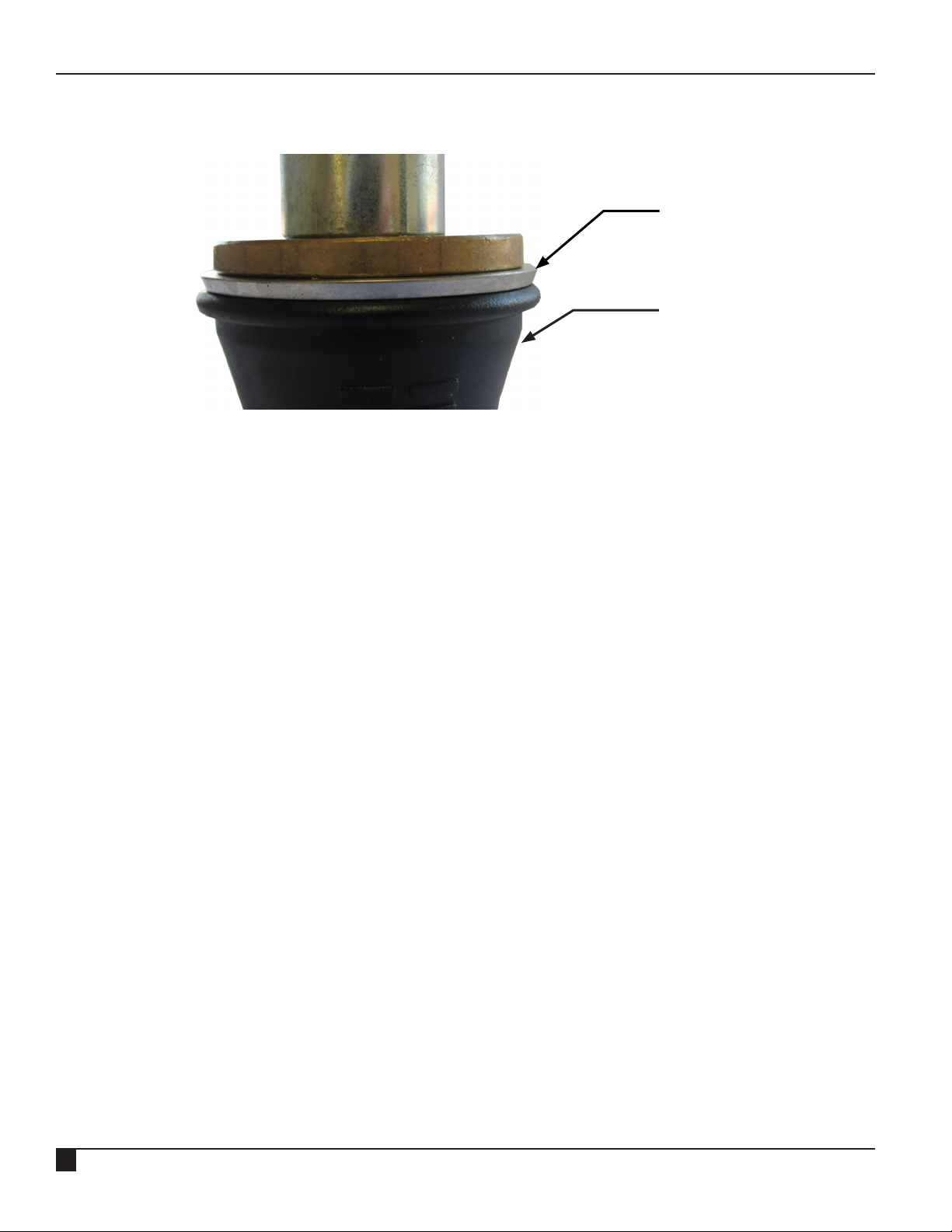

• Remove retaining ring in the housing bottom
using removal hook tool (RT17839).
• Engage hook into retaining ring tab and use
a gentle twisting action to compress ring and
remove. Retain ring for later.
8.4 Removing & Replacing the Valve Insert
1. Prior to removal, check housing for damage, debris, or dirt.
If any, clear it away.
2. Once the retaining ring is removed from the inlet housing (see 8.3),
thread the valve insert tool onto the top of the valve.
rust tool upwards.
(A few gentle taps may be necessary to dislodge the valve assembly.)
3. oroughly clean the valve insert before replacing,
making sure to remove rocks and debris that may be caught
in the lter screen.
valve
insert tool
ring tab

16
4. To replace, screw the valve insert with the stainless steel disc onto the valve insertion tool.
e chamfered surface of the stainless steel disc must point to the valve insert (as in, the larger
surface facing up, the smaller surface down).
5. To make it easier, the valve insert can be slightly lubricated with standard household lubricating oil.
6. Insert the valve down into the guide housing until it stops. Apply gentle taps to reseat.
7. Using pliers RT17844, replace the retaining ring into the groove above the stainless steel disc.
Chamfer
valve insert

17
8.5 Removal / installation of the control unit
!
Ensure sprinkler is not under pressure.
Removing the control unit
• Lift the cover and secure the insert with a screw
driver against snapping back. Locate the cover
clip and pull clip to release. Remove cover.
• Unscrew all three locking screws (two screws for
the TurfCup version) and remove control unit
cover.
• Unclip control unit from protective casing and
lift up and out.
• To remove vent hose, push back mounting ring
and pull out hose.
• Clean, repair, or replace as needed.
Replacing the control unit
• A replacement control unit is supplied with plug-and-socket connections. Push hose into plug-in
sockets as far as it will go and ensure that the mounting ring springs back.
• Clip control unit into protective casing.
• Secure housing cover using all three screws (two screws for TurfCup version).
• Check sprinkler is working properly per Start-Up procedure (6.2).
Control unit

18
9. Troubleshooting
Observed Issue Cause Remedy
Sprinkler not rotating, or
rotating very slowly.
Sprinkler not rotating at all.
Sealing disc worn out. Change sealing disc.
Driving nozzle clogged. Unscrew driving nozzle and clean.
Minimum pressure of 45 psi not
reached.
Increase pressure.
Sprinkler has poor stream
strength.
Nozzle is blocked / clogged. Unscrew nozzle, remove and clean.
Arc increases during operation.
Spring stop is loose.
Spring force has slackened.
Spring stop has been
overextended.
Replace spring stop.
Valve opens/closes only with
manual opening, but not on any
electric signal.
Manual control switch is set to
OFF.
Turn manual control switch all the
way to the left to AUTO.
Plunger is lodged in the solenoid. Remove solenoid and clean plunger.
No / inadequate power supply Establish 24V AC power supply.
Defective solenoid Check solenoid resistance.
(It should be approx. 35 ohms.)
Replace if necessary.
Vent port for solenoid blocked. Clean vent port.
Control hose to the solenoid
clogged or bent / kinked.
Replace control hose.
Valve fails to open even with
manual opening.
Control water vent or relief vent
blocked.
Clean control water / relief vent.
Supply line under no / insucient
pressure
Establish pressure supply.
Valve fails to close.
Solenoid seat dirty Clean solenoid seat.
Bits of dirt between valve seat and
sealing plate
Clean valve seat and sealing plate.
Defective valve insert Remove valve. Replace or clean.
Valve insert lter dirty Clean valve insert lter.
Control hose defect Change control hose.
Output pressure at sprinkler
nozzle too low or radius
too short.
Nozzle clogged. Clean nozzle and ush sprinkler.
Valve insert is blocked. Clean valve insert (see Section 8.3).
We reserve the right to make changes in line with technological advances without prior notication.
