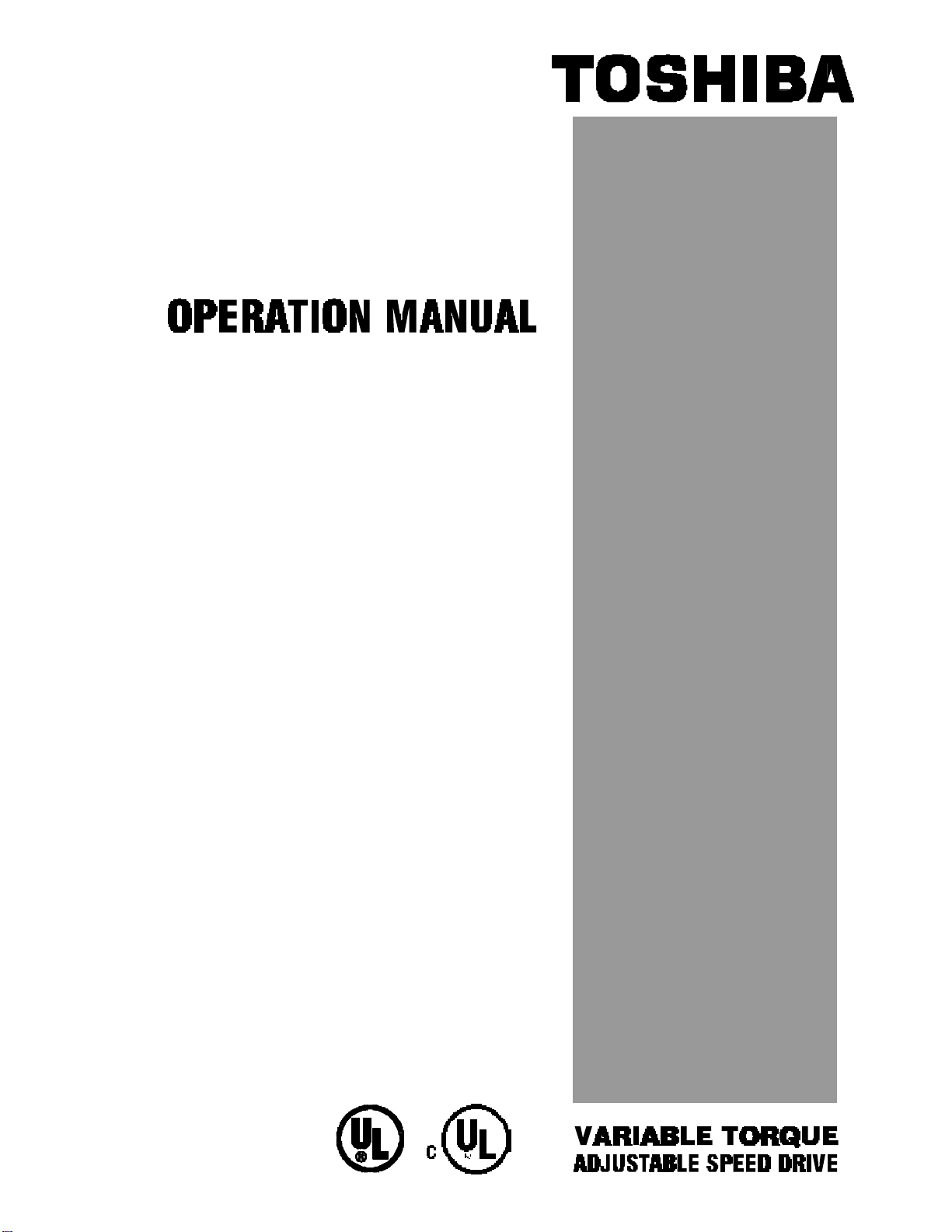

Toshiba Vfs5 series User manual

July, 1999

Part #49916-001

575 Volt Rating

ACADJUSTABLESPEEDDRIVE

TOSHIBA

The instructions contained in this manual are not intended to cover all of the details

or variations in equipment, nor to provide for all possible issues concerning the

installation, operation, or maintenance of this equipment. Should additional

information be desired or should particular problems arise which are not covered

sufficiently for the purchaser's purposes, the matter should be referred to the local

Toshiba sales office.

The contents of this instruction manual shall not become a part of or modify any

prior or existing agreement, commitment, or relationship. The sales contract

contains the entire obligation of Toshiba International Corporation's Adjustable

Speed Drive Division. The warranty contained in the contract between the parties

is the sole warranty of Toshiba International Corporation's Adjustable Speed Drive

Division and any statements contained herein do not create new warranties or

modify the existing warranty.

Toshiba International Corporation reserves the right, without prior notice, to update

information, make product changes, or to discontinue any product and/or service

identified in this publication.

Any electrical or mechanical modifications to this equipment,

without prior written consent of Toshiba International

Corporation, will void all warranties and may void UL/CUL listing.

Unauthorized modifications also can result in personal injury,

death, or destruction of the equipment.

IMPORTANTNOTICE

Please complete the Extended Warranty Card supplied with this drive and return it by

prepaid mail to Toshiba. This activates the extended warranty. If additional information

or technical assistance is required please contact your local distributor or call Toshiba's

ASD marketing department toll free at (800) 231-1412 or write to: Toshiba International

Corporation, 13131 W. Little York Road, Houston, TX 77041-9990.

Please complete the following information for your records and to remain within this equipment

manual:

Drive Model Number:

Drive Serial Number:

Date of Installation:

Inspected By:

Name of Application:

TOSHIBA

INTRODUCTION

Thank you for purchasing the 575 Volt VFS5 series adjustable speed drive. This adjustable frequency

solid-state digital AC drive features vector operation control mode, energy saving mode, built-in speed

control potentiometer and a four character 7-segment type LED display with five other discrete LED

indicators. This drive is designed for an external braking resistor and DC link reactor. These features,

combined with RS232 communication link, make it suitable for a wide variety of applications that require

unparalleled motor control and reliability.

It is the intent of this operation manual to provide a guide for safely installing, operating, and maintaining

the drive. This operation manual contains a section of general safety instructions and is marked

throughout with warning symbols. Read this operation manual thoroughly before installing and operating

this electrical equipment.

All safety warnings must be followed to ensure personal safety.

Follow all precautions to attain proper equipment performance and longevity.

We hope that you find this operation manual informative and easy to use. For assistance with your drive,

information on our free drive application school, or information on Toshiba's complete line of motors,

adjustable speed drives, switchgear, instrumentation, uninterruptible power supplies, PLCs,

and motor control products, please call toll free (800) 231-1412 or write to our plant at: Toshiba

International Corporation, 13131 W. Little York Road, Houston, TX 77041-9990.

Again, thank you for your purchase of this product.

TOSHIBA

GENERALSAFETYINSTRUCTIONS

Warnings in this manual appear in either of two ways:

1) Danger warnings - The danger warning symbol is an exclamation mark enclosed in a

triangle which precedes the 3/16" high letters spelling the word "DANGER". The

Danger warning symbol is used to indicate situations, locations, and conditions that

can cause serious injury or death:

2) Caution warnings - The caution warning symbol is an exclamation mark enclosed in a

triangle which precedes the 3/16" high letters spelling the word "CAUTION". The

Caution warning symbol is used to indicate situations and conditions that can cause

operator injury and/or equipment damage:

Other warning symbols may appear along with the Danger and Caution symbol and are used to specify

special hazards. These warnings describe particular areas where special care and/or procedures are

required in order to prevent serious injury and possible death:

1) Electrical warnings - The electrical warning symbol is a lighting bolt mark enclosed in

a triangle. The Electrical warning symbol is used to indicate high voltage locations and

conditions that may cause serious injury or death if the proper precautions are not

observed:

2) Explosion warnings - The explosion warning symbol is an explosion mark enclosed in

a triangle. The Explosion warning symbol is used to indicate locations and conditions

where molten, exploding parts may cause serious injury or death if the proper

precautions are not observed:

For the purpose of this manual and product labels, a Qualified Person is one who is familiar with the

installation, construction, operation and maintenance of the equipment and the hazards involved (see

1996 NEC (National Electric Code) Article 100 - Definitions).

This person must:

1) Carefully read the entire operation manual (see 1996 NEC Article 110-3 "Installation and

Use").

2) Be trained and authorized to safely energize, de-energize, clear faults, ground, lockout

and tag circuits and equipment in accordance with established safety practices.

3) Be trained in the proper care and use of protective equipment such as safety shoes,

rubber gloves, hard hats, safety glasses, face shields, flash clothing, etc. in

accordance with established safety practices.

4) Be trained in rendering first aid.

DANGER

CAUTION

TOSHIBA

CONTENTS

PAGE

Disclaimer........................................................................................................... 3

Introduction........................................................................................................ 4

General Safety Instructions ........................................................................... 5

Contents.............................................................................................................. 6 - 7

Inspection/Storage/Disposal

Inspection of the New Drive .............................................................................. 8

Storage ................................................................................................................. 8

Disposal................................................................................................................ 8

Inspection and Precautions

Installation Safety Precautions ......................................................................... 9

Operating Safety Precautions ........................................................................... 11

Confirmation of Wiring ....................................................................................... 12

Start-up and Test ................................................................................................ 12

Maintenance ........................................................................................................ 12

Operating Specifications

575 Volt NEMA Type 1 Chassis Ratings ........................................................ 13

Standard Specifications ..................................................................................... 14

Equipment Wiring

Selection of Main Circuit Wiring Equipment and

Standard Cable Sizes ........................................................................................ 16

Grounding ............................................................................................................ 17

Motor Selection ................................................................................................... 17

Standard Power Connection Diagrams........................................................... 18

Standard Power Terminal Functions ............................................................... 19

Typical Control Wiring Connection Diagrams ................................................ 20

Standard Control Terminal Connections and Functions .............................. 22

Operating Panel

Operating Panel Layout ..................................................................................... 24

Operating Panel Modes ..................................................................................... 25

Operating Panel Usage...................................................................................... 25

7-Segment Alphanumerics................................................................................ 26

Parameter Setting ............................................................................................... 27

Key Operations.................................................................................................... 28

TOSHIBA

CONTENTS(cont'd)

PAGE

Settings

Setting The Acceleration and Deceleration Time.......................................... 29

Increasing Torque ............................................................................................... 29

Setting The Environmental Functions ............................................................. 30

Setting The Starting and Stopping Methods .................................................. 32

Setting The Frequency Command Method .................................................... 32

Connecting and Calibrating Meters.................................................................. 33

Resetting to Default Values............................................................................... 34

Setting the Motor Protection Characteristics.................................................. 34

Setting The Extended Parameters................................................................... 35

Searching For Parameters Different From Default Values .......................... 35

Parameter List (Basic and Extended)

Basic Parameters (Group No. 00).................................................................... 36

Extended I/O Parameter (Group No. 01) ........................................................ 37

Extended Frequency Parameter (Group No. 02)........................................... 37

Extended Operating Mode Parameter (Group No. 03)................................. 38

Extended Torque Parameter (Group No. 04)................................................. 38

Extended Accel & Decel Time Parameter (Group No. 05) .......................... 38

Extended Protection Parameter (Group No. 06) ........................................... 39

Extended Panel Parameter (Group No. 07) ................................................... 39

Extended Communication Parameter (Group No. 08).................................. 39

Operations

Operation with Built-in Potentiometer and RUN /STOP Keys ..................... 40

Operation with Built-in Potentiometer and External Start Signal ................ 41

Setting Frequency Using External Signal ....................................................... 42

Setting Frequency Using Two External Signals............................................. 43

Selecting a Preset Speed Frequency and Using External Start Signals ... 44

Monitoring Operating Conditions...................................................................... 45

Protective Functions

Trips and Countermeasures ............................................................................. 46

Resetting Errors When Trip is Activated......................................................... 47

Dimensions and Weights

Dimensions for VFS5-5020UPH through VFS5-5040UPH.......................... 48

Dimensions for VFS5-5060UPH through VFS5-5120UPH.......................... 49

Dimensions for VFS5-5160UPH through VFS5-5270UPH.......................... 50

TablesInput Terminal Selection Table......................................................................... 51

Output Terminal Selection Table...................................................................... 52

Default Value Table ............................................................................................ 52

TOSHIBA

Inspection of the New Drive

Upon receipt, inspect the drive for shipping damage. After uncrating:

1) Check the unit for loose, broken, bent or otherwise damaged parts due to shipping.

2) Check to see that the rated capacity and the model number specified on the nameplate

conform to the order specifications.

Storage

1) Store in a well ventilated location and preferably in the original carton if the drive will

not be used immediately after purchase.

2) Avoid storage in locations with extreme temperatures, high humidity, dust, or metal

particles.

Disposal

Please contact your state environmental agency for details on disposal of electrical components

and packaging in your particular area. Never dispose of electrical components by incineration.

TOSHIBA

CAUTION

Installation Safety Precautions

1) Always ground the unit to prevent electrical shock and to help reduce

electrical noise. A separate ground cable should be run inside the conduit

with the input, output, and control power cables (See Grounding page 17).

THE METAL OF CONDUIT IS NOT AN ACCEPTABLE GROUND.

2) Only qualified personnel should install this equipment (see General Safety Instructions on

page 5).

3) Installation of drive systems should conform as a minimum, to the 1996 NEC National Electrical

Code Article 110 "Requirements For Electrical Installations", to all regulations of the Occupational

Safety and Health Administration, and to any other applicable national, regional or industry codes

and standards.

4) Install in a secure and upright position in a well ventilated location that is out of direct sunlight.

The ambient temperature should be between -10° C and 40° C.

5) Allow a clearance space of 4 inches (20 cm) for the top and bottom and 2 inches (5 cm) on both

sides. This space will insure adequate ventilation. Do not obstruct any of the ventilation openings.

6) Avoid installation in areas where vibration, heat, humidity, dust, fibers, steel particles, explosive

mists, gasses or sources of electrical noise are present.

7) Adequate working space and illumination must be provided for adjustment, inspection and

maintenance of the drive (see 1996 NEC Article 110-16).

8) A noncombustible insulating floor or mat should be provided in the area immediately surrounding

the electrical system where maintenance is required.

9) Use lockout/tagout procedures on branch circuit disconnect before drive installation.

10) Connect three phase power of the correct voltage to input terminals L1, L2, L3 (R, S, T) and connect

3- phase power from output terminals T1, T2, T3 (U, V, W) to a motor of the correct voltage and type

for the application. Size the branch circuit conductors in accordance with Selection of Main Circuit

Wiring Equipment and Standard Cable Sizes Page 16.

11) If conductors of a smaller than recommended size are used in parallel to share current then the

conductors should be kept together in sets i.e. U1, V1, W1 in one conduit and U2, V2, W2 in another

(see 1996 NEC Article 300-20 and Article 310-4). National and local electrical codes should be

checked for possible cable derating factors if more than three power conductors are run in the same

conduit (see 1996 NEC Article 310 adjustment factors on page 70-196).

12) Install a molded case circuit breaker (MCCB) between the power source and the drive. Size the

MCCB to clear the available fault current of the power source (see 1996 NEC Article 430 Article 102

through Article 111).

TOSHIBA

Installation Safety Precautions (cont'd)

13) Use separate metal conduits for routing the input power, output power, and control circuits.

14) If the factory provided door or NEMA 1 enclosure is removed from the drive, then, before operating,

it must be provided with an alternate enclosure of NEMA 1 minimum rating.

15) Do not connect control circuit terminal block return connections marked CC to inverter earth ground

terminals marked GND(E). See Standard Power Connection Diagrams on page 18 and Typical

Control Wire Connection Diagrams on page 20 for locations.

16) If a secondary Magnetic Contactor (MC) is used between the inverter output and the load, it should

be interlocked so the ST-CC terminals are disconnected before the output contactor is opened. If

the output contactor is used for bypass operation, it must also be interlocked so that commercial

power is never applied to the inverter output terminals (U,V,W).

17) Power factor improvement capacitors or surge absorbers must not be installed on the drive's output.

18) For those applications requiring extended ASD to motor cable lengths exceeding the chart

recommendation shown on page 17, a output voltage filter should be added.

CAUTION

TOSHIBA

Operating Safety Precautions

1) Do not touch any internal part with power applied to the drive;

first remove the power supply from the drive and wait until charge

LED (see page 24 for location) is no longer illuminated. Charged capacitors can present a

hazard even if source power is removed from the drive.

2) DO NOT OPERATE THIS UNIT WITH ITS CABINET DOOR OPEN.

3) Do not touch the heatsink while unit is in operation. Serious burns could result.

4) Only properly trained and qualified personnel should be allowed to service or have access to

the adjustments and operation of this equipment. They should be familiar with operating motor

drives and with the driven machinery. See page 5.

5) Follow all warnings and precautions and use care not to exceed equipment ratings.

6) Do not power up the drive before completely reviewing this manual.

7) The input voltage must be within +/-10% of the specified input voltage. Voltages outside of this

permissible tolerance range may cause internal protection devices to turn on or can cause damage

to the drive. Also, the input frequency should be within +/-2 Hz of the specified input frequency.

8) Do not use this drive with a motor whose rated input is greater than the rated drive output.

9) Do not apply commercial power to the drive output terminals T1 (U), T2 (V), or T3 (W) even if the

source power is off. Disconnect the drive from the motor before applying bypass voltage to the motor.

10) Interface problems can occur when this drive is used in conjunction with some types of process

controllers. Signal isolation may be required to prevent controller and/or drive malfunction

(contact Toshiba or the process controller manufacturer for additional information about compatibility

and signal isolation).

11) Do not open and then re-close a secondary magnetic contactor (MC) between the drive and the load

unless the drive is OFF (output frequency has dropped to zero) and the motor is not rotating. Abrupt

re-application of the load while drive is on or while motor is rotating can cause drive damage.

12) Use caution when setting output frequency. Overspeeding a motor can decrease its torque-

developing ability and can result in damage to the motor and/or driven equipment and can

result in serious personal injury.

13) Use caution when setting the acceleration and deceleration time. Unnecessarily short times can

cause tripping of the drive and mechanical stress to loads.

14) If the drive produces smoke, odor or abnormal noises, turn off input power immediately and request

service.

15) If the drive will be inactive for a long period of time, turn off the input power.

DANGER

CAUTION

TOSHIBA

Start-Up and Test

Prior to releasing an electrical drive system for regular operation after installation, the system should be

given a start-up test by qualified personnel. This assures correct operation of the equipment for reasons

of reliable and safe performance. It is important to make arrangements for such a check and that time is

allowed for it.

When power is applied for the first time, the drive automatically starts up in the frequency monitor

function of standard monitor mode with the 'default' parameters set as shown in the "FACTORY

SETTING" column of the parameter tables starting on page 36. If these settings are not optimal for

the application, program the desired settings before initiating a run. The drive can be operated with no

motor connected. Operation with no motor connected or use with a small trial motor is recommended

for initial adjustment or for learning to adjust and operate the drive.

Maintenance

1) Use power lockout/tagout procedures on the disconnecting means in accordance

with applicable electrical codes (see 1996 NEC Article 430-101) before performing any

drive maintenance.

2) Periodically check the operating drive for cleanliness.

3) Do not use liquid cleaning agents.

4) Keep the heatsink free of dust and debris.

5) Periodically check electrical connections for tightness (with power off,

locked out, and with charge LED extinguished (see page 24 for location)).

CAUTION

Confirmation of Wiring

Make the following final checks before applying power to the unit:

1) Confirm that source power is connected to terminals L1, L2, L3 (R, S, T).

Connection of incoming source power to any other terminals will damage the drive.

2) The 3-phase source power should be within the correct voltage and frequency tolerances.

3) The motor leads must be connected to terminals T1, T2, T3 (U, V, W).

4) Make sure there are no short circuits or inadvertent grounds and tighten any loose connector

terminal screws.

CAUTION

TOSHIBA

575 Volt NEMA Type 1 Chassis Standard Ratings

RATED MOTOR OUTPUT OUTPUT OVERLOAD MAIN CIRCUIT INPUT

KVA HP(KW) CURRENT VOLTAGE CURRENT INPUT POWER CONTROL

(AMPS) 3-PHASE POWER

5020 (1) 11/.75 2.1 575V 150% FOR 575V NO EXTERNAL

5030 (1) 22/1.5 33-PHASE 60 SEC. 50/60Hz CONTROL

5040 (1) 33/2.2 4

MAX VOLTAGE

100%

VOLTAGE +/- 10%

POWER SOURCE

5060 (1) 65/3.8 6.1 CONTINUOUS

FREQ. +/- 2Hz

REQUIRED

5120 (1) 12 10/7.5 12

5160 (1) 16 15/11 17

5220 (1) 22 20/15 22

5270 (1) 27 25/18.5 27

MODEL

NOTES

VFS5

(see below)

STANDARD RATINGS

NOTES:

1) NEMA Type1 UL/CUL listing

TOSHIBA

Major ControlSystem SinusoidalPWM control

Control Outputvoltage regulation Sameaspowerline.

Specifications Output frequency range 0.5 to 320 Hz (0.5 to 80Hz default setting)*. Maximum frequency

isadjustablebetween30and320Hz.

Frequencysetting 0.1Hz input from the operating panel, 0.2 Hz analog

resolution input (@ maximum frequency of 100 Hz).

Frequency accuracy Analogsetting: ±0.5% ofthe maximum outputfrequency or less

@25°C±10°C,

Digitalsetting:±0.01%ofthemaximumoutputfrequencyorless

@ -10°C to +50°C

Voltage/frequency ConstantV/f, variabletorquemode,sensorlessvectorcontrol

characteristics mode,automatictorqueboostmode,basefrequencyadjustment

(25 to 320Hz), and torque boost adjustment (0 to 30%).

Overloadcurrent rating 150%,60seconds

Frequencysettingsignal Built-in potentiometer on the front panel, external potentiometer

(1k ohm to 10k ohm variable resistor connectable), 0 to 10Vdc

(input impedance: VIA = 30.55k ohm, VIB=30k ohm),

4to 20mAdc(input impedance =400 ohm),and optional

characteristics(gain,bias)canbepresetby2-pointsetting

PI control Proportionalgain,integralgainadjustments.

Operation Start frequency Adjustablebetween0and10Hz

functions Frequencyjump Threepoints(bysettingjumpfrequenciesandbandwidths)

PWM carrier frequency Adjustable between 2.2 and 12kHz (default = 12kHz)

Accel/deceltime 0.1 to 3600 secs, accel/decel time 1 or 2 selectable, S1 and S2

accel/decelpatternselectable

Joggingrun JogrunfrompanelwithJOGmodeselection.Terminalblock

operationpossiblewithparametersettings(seepage37).

Preset speedoperation Setfrequency+15presetspeedspossiblewithopen/closed

combinations of SS1, SS2, SS3, SS4 and CC

Retryoperation Amaximumoftenautomaticretriesareselectable(seepage38)

Retry will occur immediately after a self evaluation of the main

circuit iscompleted.

Braking Externallyconnectedbrakingresistor(optional)

DCbraking Braking start frequency (0 to max frequency), braking level

(0to 100%), braking time (0 to 20 seconds).

Outputvoltage regulation Drivecan be programmed to set the maximum output voltage,

float with the input voltage, or set the maximum output voltage to

thevoltagesensedatpower-up.

Input terminalfunctions Forwardandreverseinputsignals,presetspeedselectinput

signals,resetinputsignals,andetc(seepage37).

Output terminalfunctions Low-speeddetectionoutputsignals,speedreachedoutput

signals, andetc.

Faultsignal 1c contact output (250 Vac, 30 Vdc - 2A resistive load,

250 Vac, 30 Vdc - 1.5A inductive load, cosØ =0.4

Output for frequency Analog output (1 mA dc full scale ammeter or 7.5 Vdc, 1mA

counterorammeter full scale DC ammeter or rectifying AC voltmeter, 225% current

max., 1mA DC, 7.5 Vdc full scale)(see page 33)

Standard Specifications

TOSHIBA

Display Keypad Interface 4-digit,7-segmentLEDsw/8discreteindicatorlamps.

Inverter/Motor Protectivefunctions Stall prevention, current limit, overcurrent, overvoltage, output

short-circuit, overvoltage limit, undervoltage, electronic thermal

overloadprotection,armatureovercurrentduringstarting,

overcurrentonload-sidewhenstarting-up,andemergency

stop(selection)

Protectionfrom Auto-restartandregenerationpowerride-throughcontrol

instantaneouspower

failure

Electronicthermal Standardmotorand constant torqueVF motor selectable;

characteristics overloadtripandoverloadstallselectable

Enclosure Type NEMA Type 1

Coolingmethod Forcedaircooling

Serviceenvironment Indoor. Altitude of < 1000m

Must not be exposed to direct sunlight, corrosive and/or explosive

gasesormists, fibersanddusts.

Ambienttemperature From -10°C to 40°C (14°F to 104°F).

Relativehumidity 93%maximum(non-condensating)

Vibration 5.9 m/s (0.6G) maximum (10 to 55Hz)

Climaticclass 3K3

Polutiondegree 2

IP rating 2X

Standard Specifications (cont'd)

Selection of Main Circuit Wiring Equipment and Standard Cable Sizes

3-coreshieldcable

(speedreference)

2-coreshieldcable

#20

*Moldedcase Ampacity

Drive circuitbreaker (FLA x 1.25)

(MCCB)

Model Amp Other

Number rating (A) signal

(A) circuits

S5-5020 15 3#14

S5-5030 15 4#14

S5-5040 15 5#14

S5-5060 15 8#14

S5-5120 30 15 #14

S5-5160 35 22 #12

S5-5220 50 28 #10

S5-5270 60 34 #10

See next page for notes.

#18

** Typical cable size (AWG)

TOSHIBA

*A customer supplied disconnect means must be provided in the motor branch circuit which

supplies power to the drive. It can be separate for use with customer supplied fuses or it can

be an integral part of a customer supplied 3-pole circuit breaker (see 1996 NEC Article 430-103

through 430-113). All drives in this series are rated for output short circuit fault currents of

200,000A. The selection of MCCB (molded case circuit breaker) for this table is in accordance

with 1996 NEC Article 430-51, 430-52, 430-152, and 240-6.

** Wire sizing is based upon NEC table 310-16 or CEC Table 2 using 75 deg C cable, an ambient

of 30 deg C, cable runs for less than 300 FT., and copper wiring for not more than three

conductors in raceway or cable or earth (directly buried). The customer should consult the NEC

or CEC wire Tables for his own particular application and wire sizing.

*** Use two parallel conductors instead of a single conductor (this will allow for the proper wire

bending radius within the cabinet). Use separate conduits for routing parallel conductors.

This prevents the need for conductor derating (see note 3 page 17).

Turn off power to the drive before making any wiring

changes to the analog output circuits.

CAUTION

Use separate conduits for routing incoming power, power

to motor, and control conductors. Use no more than three

power conductors and a ground conductor per conduit.

CAUTION

Mainpower

and

motorload

Frequencycommandinput,

frequencymeter,ammeter

Selection of Main Circuit Wiring Equipment and Standard Cable Sizes (cont'd)

Notes:

1.) Contacts used to connect drive terminals should be capable of switching low current

signals (i.e. 5 mA).

2.) The drive has internal motor overload protection which has been functionally certified by

Underwriters Laboratories Inc. and no additional external motor overload protection is required

when used to drive a single motor load (see 1996 NEC Article 430-32 and 430-39).

3.) When wiring with parallel conductors, the conductors should be kept together in phase sets to

avoid heating the surrounding metal by induction. Install U1, V1, W1 conductors in one conduit

and parallel conductors U2, V2, W2 in another conduit. The ground conductor must be run in the

same conduit. See 1996 NEC Article 300-20(a), 310-4, 310-5. Size the grounding conductor in

accordance with 1996 NEC Table 250-95.

4) Twisted pair wires should be used for external meters connected to AM and FM terminals.

5) For multiple motor applications, a thermal-magnetic circuit breaker must be installed between

the drive and each motor (even though the drive has has built-in overload protection). The thermal

circuit is for overload sensing and the magnetic coil is for abnormal conditions such as short circuits.

Select the MCCB (molded case circuit breaker) in accordance with 1996 NEC Article 430-51 through

430-53, 430-152, and 240-6.

TOSHIBA

Grounding

The drive must be grounded in accordance with Article 250 of the National Electrical Code or Section 10

of the Canadian Electrical Code, Part I and the grounding conductor should be sized in accordance with

1996 NEC Table 250-95 or CEC, Part I Table 16. See Installation Safety Precautions notes 7 and 14.

Motor Selection

1) Exceeding the peak voltage rating or the rise time allowable of the motor insulation system will

reduce the life expectancy. To insure good motor insulation life, consult with the motor supplier to

determine motor insulation ratings and allowable maximum output lead distance. Long lead lengths

between the motor and the drive may require filters to be added to the drive output.

2) Bearing Considerations:

Motors operating from adjustable speed drive power sources tend to operate at higher

temperatures which may increase the need for more frequent lubrication cycles.

CAUTION Conduit is not a suitable ground for the inverter.

AC Motor

Voltage PWM Carrier

Frequency NEMA MG-1-1998 Section IV

Part 31 Compliant Motors

Suggested Maximum Output Lead Distance

575 V < = 5 kHz

> 5 kHz

200 ft.

100 ft.

Forlead lengths that exceedsuggestedmaximumcontactyourlocaldistributororToshibafor

additional applicationassistance.

Toshiba EQP III, III-XS & EQP III-841 motors incorporate an insulation system that is in

compliance with NEMA MG-1-1998 Section IV Part 31.

TOSHIBA

Commercial

power supply Motor

MCCB

Shorting

bar

Braking resistor

(Optional)

DC link reactor

(Optional)

R/L1 S/L2 T/L3 G/E PO PA PB U/T1 G/EV/T2 W/T3

Commercial

power supply Motor

MCCB

Shorting

bar

Braking resistor

(Optional)

DC link reactor

(Optional)

VFS5-5020UPH through VFS5-5040UPH

L1 L2 L3 G/E PO PA PB U/T1 G/EV/T2 W/T3

Standard Power Connection Diagrams

VFS5-5060UPH through VFS5-5120UPH

TOSHIBA

VFS5-5160UPH through VFS5-5270UPH

DC link reactor

(Optional)

Shorting

bar

Commercial

power supply

MCCB

Motor

Braking resistor

(Optional)

PO R/L1 S/L2 T/L3 G/E U/T1 G/EV/T2 W/T3

PA PB PC

Standard Power Connection Diagrams (cont'd)

Standard Power Terminal Functions

Terminal

block

bus bar

Terminal Terminal functions Terminal

name location

L1, L2, L3 Line input supply terminals for models S5-5020 to S5-5270:

(R, S, T) Connect to 3ø, 50 or 60Hz, 200 to 545 to 605VAC.

Drives can be operated on single phase power when appropriately

derated; contact Toshiba distributor for information.

T1, T2, T3 Motor output terminals. Connect these terminals to a 3-phase

(U, V, W) induction motor of the proper voltage, current, and horsepower.

PA, PB Braking resistor output terminals. Connect to an external dynamic

braking resistor (DBR).

PA, PO DC link reactor output terminals. Connect to an external inductor.

G/E This is the earth ground terminal (ground incoming power and

(2-terminals) outgoing motor load).
