Toshiba TOSVERT VF-AS1 Series Parts list manual

E6581288①
TOSVERT VF-AS1
Option Function Manual
CCL001Z
*The data given in this manual are subject to change without notice.
NOTICE
1. Make sure that this instruction manual is delivered to the end user of the CC-
Link option for the VF-AS1.
2. Read this manual before installing or operating the CC-Link option for the VF-
AS1. And keep it in a safe place for reference.

E6581288①
− 1 −
Introduction
Thank you for purchasing a “CC-Link Option (CCL001Z)” for TOSVERT VF-AS1 inverter.
This option can connect with open field network CC-Link and data communications with the
CC-Link master through installing this option in the VF-AS1 and using it. Besides this
instruction manual, the "CC-Link option Instruction Manual" is required to develop software
communicating with VF-AS1. In such a case, please get in touch with our branch offices or
sales offices. ("CC-Link Option Instruction Manual": E6581286).
This manual is also aimed at the operator using "VF-AS1 CC-Link option", so please use it for
future maintenance and inspection.
・TOSVERT VF-AS1 Instruction Manual E6581301
・TOSVERT VF-AS1 CC-Link Option Instruction Manual E6581286
NOTICE
▼See the instruction manual of "TOSVERT VF-AS1 CC-Link Option
Instruction Manual" (E6581286) for cautions relating to the ambient
environment, installation and wiring.
▼Turn off the power supply when connecting or disconnecting a
communication cable.
▼When the control power is turn off by the instantaneous power failure,
communication will be unavailable for a while.
▼The Life of EEPROM is approximately ten thousand times.
Avoid writing a command more than ten thousand times to the same
parameter of the inverter.

E6581288①
− 2 −
− Table of contents −
1. Overview ･･･････････････････････････････････････････････････････････････････････････････ 3
2. Basic specifications ･･････････････････････････････････････････････････････････････････････ 3
3. Name of functions of main parts････････････････････････････････････････････････････････････ 4
3.1. Set the station No. and baud rate ･･････････････････････････････････････････････････････ 4
3.2. About indicator of LED････････････････････････････････････････････････････････････････4
4. Functions ･･･････････････････････････････････････････････････････････････････････････････ 6
4.1. Initial setting ････････････････････････････････････････････････････････････････････････ 6
4.2. Inverter parameter (relate to the CC-Link)･･････････････････････････････････････････････ 7
4.3. Basic functions ･･････････････････････････････････････････････････････････････････････ 8
4.3.1. Run and frequency operation command ･･･････････････････････････････････････････ 8
4.3.2. Monitor ･･･････････････････････････････････････････････････････････････････････ 8
4.3.3. Writing and reading the parameter････････････････････････････････････････････････ 8
4.4. Communication specification ･･････････････････････････････････････････････････････････ 9
4.4.1. Input/Output signal ････････････････････････････････････････････････････････････ 10
4.4.2. Remote Register Assignment ･･･････････････････････････････････････････････････ 13
4.4.3. Instruction Codes ･････････････････････････････････････････････････････････････ 15
4.4.4. The details of an error code･････････････････････････････････････････････････････ 16
4.4.5. Description of reply code ･･･････････････････････････････････････････････････････ 17
4.4.6. Description of monitor code･････････････････････････････････････････････････････ 18
4.4.7. Description of input terminal information ･･････････････････････････････････････････ 19
4.4.8. Description of output terminal information･････････････････････････････････････････ 19
5. Programming examples･･････････････････････････････････････････････････････････････････ 20
5.1. Example of the inverter status reading ･････････････････････････････････････････････････ 21
5.2. Example of the command mode setting ････････････････････････････････････････････････ 22
5.3. Example of the operation commands setting ････････････････････････････････････････････ 23
5.4. Example of frequency command setting････････････････････････････････････････････････ 23
5.5. Example of the output frequency monitoring ････････････････････････････････････････････ 24
5.6. Example of the parameter writing ･････････････････････････････････････････････････････ 24
5.7. Example of the parameter reading ････････････････････････････････････････････････････ 25
5.8. Example of the trip history reading ････････････････････････････････････････････････････ 26
5.9. Example of the inverter resetting at inverter error ････････････････････････････････････････ 27
6. Unusual diagnosis･･･････････････････････････････････････････････････････････････････････ 28
6.1. Option error ････････････････････････････････････････････････････････････････････････ 28
6.2. Disconnection error of network cable ･･････････････････････････････････････････････････ 28
6.3. How to check the error using the LEDs･････････････････････････････････････････････････ 29

E6581288①
− 3 −
1.Overview
This option allows the VF-AS1 inverter to be connected into a CC-Link network. CC-Link
supports a maximum of 42 nodes, allowing for the Master unit and this option is based on
CC-Link Ver.1.10.
The CCL001Z is able to operate RUN/STOP, monitor the status of the inverter, set the
inverter's parameter and etc. by the CC-Link master through installing the VF-AS1. And it
can use different applications.
2.Basic specifications
<Environmental specification>
Item Specification
Operating
environment
Indoors, an altitude of 3,000m or less, where the product will
not be exposed to direct sunli
g
ht, corrosive or explosive
gases, vapor, coarse particulates including dust, and where
there is no grinding fluid or grinding oil nearby.
Ambient temperature 0 to +60℃
Storage temperature -25 to +65℃
Related temperature 20 to 93% (no condensation and absence of vapor)
Vibration 5.9 m /s 2{0.6G} or less (10 – 55Hz)
<CC-Link communication specification>
Item Specification
Number of units
corrected
42 units max.
(
1 station occu
p
ied b
y
1 unit
)
. Ma
y
be used with
other equipment. (*)
Baud rate 156k, 625k, 2.5M, 5M, 10Mbps
Power supply 5V DC supplied from the inverter
Station type Remote device station
Number of stations
occupied One inverter occupies one station
Connect cable CC-Link dedicated cable,
CC-Link Ver1.10.compatiable CC-Link dedicated cable
Maximum
transmission distance 1200m (156kbps)
*Maximum number of units connected to one master station is 42 units (when only
inverters are connected).
*If any other units are included, the number of occupied stations depends on the unit and
therefore the following conditions must be satisfied:
1. {(1×a)＋(2×b)＋(3×c)＋(4×d)}≦64
a：Number of units occupying 1 station c：Number of units occupying 3 stations
b：Number of units occupying 2 stations d：Number of units occupying 4 stations
2. {(16×A)＋(54×B)＋(88×C)}≦2304
A：Number of remote I/O stations ≦64
B：Number of remote device stations ≦42
C：Number of local, standby master
and intelligent device stations ≦26

E6581288①
− 4 −
3.Name of functions of main parts
3.1. Set the station No. and baud rate
For the setting station number or communication speed to take effect, power needs to be
turned off and then turned back on.
x10 x1 BAUD RATE
1.Set the Station No.
Set the inverter station number before switching on the inverter and do not change the
setting while power is on.
The station number can be set between 1 and 64.
The switch x10 is set up the ten's place and x1 is set up the ones.
Set the arrow (↑) of the corresponding switch to the required numeral.
*The station number changed while powering on the inverter is not made valid.
*Set the station numbers consecutively in a connection sequence.
(The station numbers may be also set independently of the connection sequence.)
*Note that the same station number cannot be regarded.
(If the same station number is repeated, proper communication cannot be made.)
*Set each station number switch to the position of its numeral securely. If it set to any
position between numerals, normal data communication cannot be made.
2. Setting the communication speed
SW01234
Baud rate 156kbps 625bps 2.5Mbps 5Mbps 10Mbps
*It causes an error when the switches are not set correct position (ex. set position
between 0 and 1 switch label), or set over 5.
Set the communication baud rate switch same as the master unit.
3.2. About indicator of LED
The LED shows the present status of the network and error.
※Refer to this manual [6.3. How to check the error using the LEDs].
POWER Light on during power on.
L.RUN Light on during communication.
SD Light on during send the data of CC-Link.
RD Light on during receive the data of CC-Link.
C
C
I
L
i
n
kL.ERR Light on during communication error.

E6581288①
− 5 −

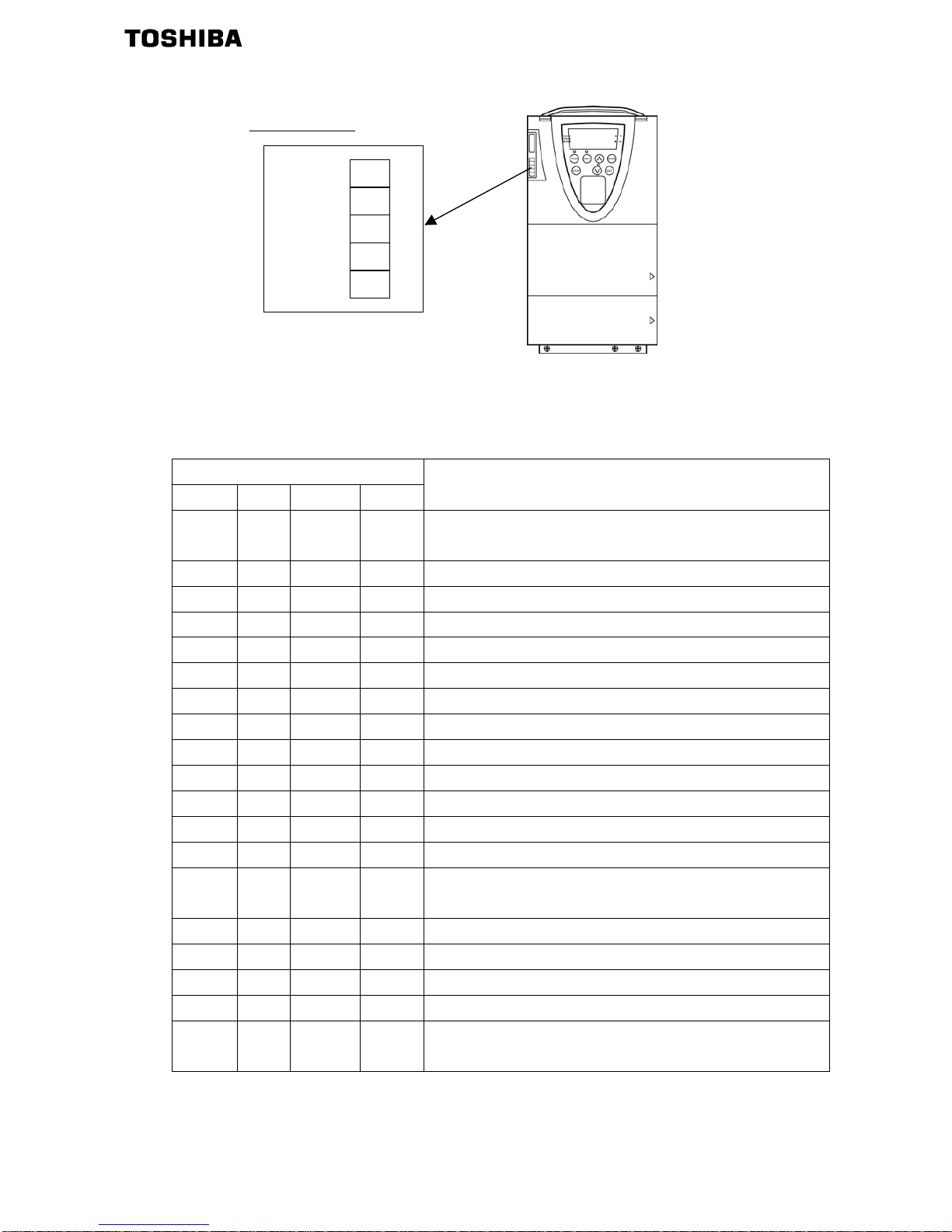

Behavior of LED
Status of LED
L.RUN SD RD L.ERR Cause
●◎◎ ◎
Normal communication is made but CRC error has occurred
due to noise.
●◎◎ ○Normal communication
●◎○ ◎Hardware fault
●◎○ ○Hardware fault
●○◎ ◎Cannot answer due to CRC error of receive data.
●○◎ ○Data sent to the host station does not reach destination.
●○○ ◎Hardware fault
●○○ ○Hardware fault
○◎◎ ◎Polling response is made but refresh receive is in CRC error.
○◎◎ ○Hardware fault
○◎○ ◎Hardware fault
○◎○ ○Hardware fault
○○◎ ◎Data sent to the host station is in CRC error.
○○◎ ○
There is no data sent to the host station, or data sent to the
host station cannot be received due to noise.
○○○ ◎Hardware fault
○○○ ○Cannot receive data due to break in the cable, etc.
○○◎or ○●Invalid baudrate or station number setting.
●◎◎ ◎Baud rate or station number is changed during operation.
○○○ ○
WDT error occurrence (hardware fault), power off or supply
failure.
●：On ○：Off ◎：Flicker
2.2
2.3
2.4
2.5
2.1
POWER
L.RUN
SD
RD
L.ERR
■Layout of LED

E6581288①
− 6 −
4.Functions
This option is a communication interface unit that allows the PLC program to operate,
monitor and set the parameter of the inverter as a remote station of CC-Link. It is able to
communicate with a maximum speed of 10Mbps not only transmitting bit data but also by
word data.
4.1. Initial setting
Set the following parameters of the inverter.
Name of
parameter functions Description Factory
setting
CC-Link
setting
cmod Command
mode selection
0: Terminal input enabled
1: Operation panel input enabled
(including LED/LCD option unit)
2: 2-wire RS485 communication input
3: 4-wire RS485 communication input
4: Communication option input
04
fmod
Frequency
setting mode
selection1
1: VI/II (voltage/current input)
2: RR/S4 (potentiometer/voltage input)
3: RX (voltage input)
4: Operation panel input enabled
(including LED/LCD option input)
5: 2-wire RS485 communication input
6: 4-wire RS485 communication input
7: Communication option input
8: Optional AI1 (differential current input)
9: Optional AI2 (voltage/current input)
10: Up/Down frequency
11: Optional RP pulse input
12: Optional high-speed pulse input
13: Optional binary/BCD input
27
f420
Torque
command
selection
1: VI/II (voltage/current input)
2: RR/S4 (potentiometer/voltage input)
3: RX (voltage input)
4: Operation panel input enabled
(including LED/LCD option input)
5: 2-wire RS485 communication input
6: 4-wire RS485 communication input
7: Communications option input enabled
8: Optional AI1 (differential current input)
3*
*Change the setting of F420 if necessary.

E6581288①
− 7 −
4.2. Inverter parameter (relate to the CC-Link)
Title Function Description
f 850 Disconnection detection
extended time
0.0to100.0 sec.
f 851 Inverter operation at
disconnection
0:Stop and Communication release (by cmod, fmod)
1:None (continued operation)
2:Deceleration stop
3:Coast stop
4:Network error(err8 trip)
5:Preset speed operation (by f852 setting)
f 852 Preset speed operation
selection
0:None
1to15:Preset speed operation (by parameter setting)
f 853 Communication option
station address monitor
(Read only)
Station No. 1to64(case by CC-Link option)
f 854 Communication option
speed switch monitor
(Read only)
0:156kbps
1:625kbps
2:2.5Mbps
3:5Mbps
4:10Mbps
f 899 Network option reset
setting
0:None
1:Reset option circuit board and inverter
■Version check of option card CPU
The version of the option with it has equipped can be checked by using the function of
f710tof718 (standard monitor display selection).
*For details, refer to Instruction Manual E6581301.
Title Function Setting Description
32 Add-on option 1 CPU version
(Under side option)
f710
f718
Standard display
monitor
33 Add-on option 2 CPU version
(Panel side)
For example, a panel display shown 1.02, when a CPU version is 1 (01H) and revision is 2
(02H).
〜

E6581288①
− 8 −
4.3. Basic functions
This clause shows the basic function of this CC-Link option using by CC-Link communication.
4.3.1. Run and frequency operation command
The PLC program can operate the inverter to run, stop, set the operation frequency and
change the parameters.
If the PLC control these operations, select the command mode and the frequency setting
mode. (Change the setting of the torque command selection if necessary.)
The parameter setting of the inverter
Command mode selection
cmod :4[Communication option input](Factory setting: 0)
Frequency setting mode selection
fmod :7[Communication option input](Factory setting: 2)
Torque command selection
f420 :7[Communication option input](Factory setting: 3)
*The frequency setting and command can be made CC-Link priority by RYnA and RYnB.
*"n" is depend on the station number.
4.3.2. Monitor
It is able to monitor the status of the inverter.
Set a monitor code to RWwn and turn RYnC on. The data is stored in the buffer memory of
the PLC.
*"n" is depend on the station number.
・Refer to "Section 4.4.6. Description of monitor code" about the monitor code and unit.
4.3.3. Writing and reading the parameter
The PLC can read, write the inverter parameters and reset the inverter.
Set the command code to RWw(n+2) (set the write data to RWw(n+3) if necessary) and
turn RYnF (instruction code execution request) on. The inverter performs processing
corresponding to the command code, return the response data, read out data and RXnF
(instruction code execution completion).
・Refer to "Section 4.4. Communication specification" about the command code, the unit
of the data, and the setting range.

E6581288①
− 9 −
4.4. Communication specification
This option occupies one station area of the buffer memory of the PLC.
There are remote I/O (RX, RY both 32 bits) and the remote register (RWw, RWr both 4
word) in the communication data for one station area.
List of remote I/O
Inverter (Slave) →PLC (Master) PLC (Master) →Inverter (Slave)
Device No. Signal Device No. Signal
RXn0 Forward running RYn0 Forward rotation command
RXn1 Reverse running RYn1 Reverse rotation command
RXn2 Output terminal 1 (OUT1) RYn2 Input terminal 5 (S1)
RXn3 Output terminal 2 (OUT2) RYn3 Input terminal 6 (S2)
RXn4 Output terminal 3 (FL) RYn4 Input terminal 7 (S3)
RXn5 Output terminal 4 (OUT3) RYn5 Input terminal 8 (S4)
RXn6 Output terminal 5 (OUT4) RYn6 Input terminal 9 (L1)
RXn7 Output terminal 6 (R1) RYn7 Input terminal 10 (L2)
RXn8 Output terminal 7 (OUT5) RYn8 Input terminal 11 (L3)
RXn9 Output terminal 8 (OUT6) RYn9 Intercept output to inverter
(Coast stop)
RXnA Output terminal 9 (R2) RYnA Frequency priority CC-Link
RXnB Reserved RYnB Command priority CC-Link
RXnC Monitoring RYnC Monitor command
RXnD Frequency setting completion (RAM) RYnD Frequency setting command (RAM)
RXnE Torque setting completion (RAM) RYnE Torque setting command (RAM)
RXnF Instruction code execution completion RYnF Instruction code execution request
RX(n+1)0 RY(n+1)0
RX(n+1)1 RY(n+1)1
RX(n+1)2 RY(n+1)2
RX(n+1)3 RY(n+1)3
RX(n+1)4 RY(n+1)4
RX(n+1)5 RY(n+1)5
RX(n+1)6 RY(n+1)6
RX(n+1)7
Reserved
RY(n+1)7
Reserved
RX(n+1)8 Reserved RY(n+1)8 Reserved
RX(n+1)9 Reserved RY(n+1)9 Reserved
RX(n+1)A Error status flag RY(n+1)A Error reset request flag
(A reset request is during switched ON)
RX(n+1)B Remote station ready RY(n+1)B Reserved
RX(n+1)C RY(n+1)C
RX(n+1)D RY(n+1)D
RX(n+1)E RY(n+1)E
RX(n+1)F
Reserved
RY(n+1)F
Reserved
"n" is depend on the station number.
The reserved input signal should be set OFF ("0").
RWr, RWw (Default value = 0)
RWr Inverter →PLC RWw PLC →Inverter
Address Contents Address Contents
RWr n First monitor value RWw n Monitor code (first and second)
RWr n+1 Second monitor value (output frequency) RWw n+1 Set frequency/ torque
RWr n+2 Reply code RWw n+2 Instruction code
RWr n+3 Read data RWw n+3 Write data
"n" is depend on the station number.

E6581288①
− 10 −
4.4.1. Input/Output signal
*The default value is 0(zero) of RY and RX.
(1) Output signal Master unit -> Inverter
The output signal from the master unit is shown. (The input signal to the inverter.)
Device No. Signal Description
RYn0 Forward run command OFF: Stop command ON: Forward run command
RYn1 Reverse run command OFF: Stop command ON: Reverse run command
RYn2 Input terminal selection5(S1) The function depends on input terminal selection 5(f115). *2
RYn3 Input terminal selection6(S2) The function depends on input terminal selection 6(f116). *2
RYn4 Input terminal selection7(S3) The function depends on input terminal selection 7(f117). *2
RYn5 Input terminal selection8(S4) The function depends on input terminal selection 8(f118). *2
RYn6 Input terminal selection9(L1) The function depends on input terminal selection 9(f119). *2
RYn7 Input terminal selection10(L2) The function depends on input terminal selection 10(f120). *2
RYn8 Input terminal selection11(L3) The function depends on input terminal selection 11(f121). *2
RYn9 Intercept output to inverter
(Coast stop)
Stop the output of the inverter when turned on this signal.
(Stop the output in the secondary circuit)
RYnA Frequency priority CC-Link Signals from the CC-Link are used to start and stop operation.
RYnB Command priority CC-Link Speed commands are entered from the CC-Link.
RYnC Monitor command
When the monitor command (RYnC) is switched on, the monitored
value is set to remote register RWrn and monitoring (RXnC)
switches on. While the monitor command (RYnC) is on, the
monitored value is always update.
RYnD Frequency setting command
(RAM)
When the frequency setting command (RYnD) is switched on, the
set frequency RWwn+1 is written to the inverter. On completion of
write, frequency setting completion (RXnD) switches on.
RYnE Torque setting command
(RAM)
When the torque setting command (RYnE) is switched on, the set
torque RWwn+1 is written to the inverter. On completion of write,
torque setting completion (RXnE) switches on.
RYnF Instruction code execution
request
When the instruction code execution request (RYnF) is switched
on, processing corresponding to the instruction code set to
RWwn+2 is executed. After completion of instruction code
execution, instruction code execution completion (RYnF) switches
on. When an instruction code execution error occurs, a value other
than 0 is set to the reply code (RWrn+2).
RY(n+1)0
:
RY(n+1)7
Reserved Reserved for the system. *3
RY(n+1)8 Reserved Reserved for the system. *3
RY(n+1)9 Reserved Reserved for the system. *3
RY(n+1)A Error reset request flag *2
If the error reset request flag (RY(n+1)A) is switched on only when
an inverter fault occurs, the inverter is reset and the error status flag
(RX(n+1)A) switches off. A reset request is during switched ON.
RY(n+1)B Reserved Reserved for the system. *3
RY(n+1)C
:
RY(n+1)F
Reserved Reserved for the system. *3
"n" is depend on the station number.
*1: When RYn0 and RYn1 are ON simultaneously the rotation is followed a parameter f105(default = stop).
*2: By the input terminal function selections(f115 to f121), change of the function of the input signal is possible.
(But there are functional restrictions. Refer to the following page.)
*3: The reserved input signal should be set OFF ("0").

E6581288①
− 11 −
■Input function selection from the CC-Link.
The function numbers selection of the RYn2 - RYn8 function valid from the command of the CC-Link are
following boldface numbers.
Positive
logic
Negative
logic Function Speed control
Tor
q
ue
control
PM
control V/f
01 No function is assigned ●/● ●/● ● ●
23 F: Forward run command *4 ●/● ●/● ● ●
45 R: Reverse run command *4 ●/● ●/● ● ●
6 7 ST: Standby *1, 3, 4 ●/● ●/● ● ●
89 RES: Reset *2, 4 ●/● ●/● ● ●
10 11 S1: Preset speed 1 ●/● − ● ●
12 13 S2: Preset speed 2 ●/● − ● ●
14 15 S3: Preset speed 3 ●/● − ● ●
16 17 S4: Preset speed 4 ●/● − ● ●
18 19 Jog run ●/● − ● ●
20 21 Emergency stop *2 ●/● ●/● ● ●
22 23 DC braking ●/● − ● ●
24 25 Acceleration/deceleration switching 1 ●/● − ● ●
26 27 Acceleration/deceleration switching 2 ●/● − ● ●
28 29 V/f switching signal 1 ●/● − ● ●
30 31 V/f switching signal 2 ●/● − ● ●
32 33 Torque limit switching 1 ●/● ●/● ● ●
34 35 Torque limit switching 2 ●/● ●/● ● ●
36 37 PID control OFF selection ●/● − ● ●
38 39 Pattern operation selection 1 ●/● − ● ●
40 41 Pattern operation selection 2 ●/● − ● ●
42 43 Pattern operation continuation signal ●/● − ● ●
44 45 Pattern operation trigger signal ●/● − ● ●
46 47 External thermal error ●/● − ● ●
48 49 Forced switching from communication to local ●/● − ● ●
50 51 Holdin
g
of HD o
p
eration
(
sto
p
the three-wire o
p
eration
)
●/● − ● ●
52 53 PID differentiation/integration reset ●/● − ● ●
54 55 PID forward/reverse switching ●/● − ● ●
56 57 Forced continuous operation ●/● − ● ●
58 59 Specified speed operation ●/● − ● ●
60 61 Acceleration/deceleration suspend signal ●/● − ● ●
62 63 Power failure synchronized signal ●/● − ● ●
64 65 My function RUN signal ●/● ●/● ● ●
66 67 Auto-tuning signal ●/● − ● ●
68 69 Speed gain switching ●/● − ● ●
70 71 Servo lock signal ●/● − ● ●
72 73 Simple positioning (positioning loop) ●/● − ● ●
74 75 Integrating wattmeter display clear ●/● − ● ●
76 77 Trace back trigger signal ●/● − ● ●
78 79 Light-load high-speed operation prohibitive signal ●/● − ● ●
86 87 Binary data write ●/● ●/● ● ●
88 89 Up/Down frequency (up) *1 ●/● − ● ●
90 91 Up/Down frequency (down) *1 ●/● − ● ●
92 93 Up/Down frequency (clear) ●/● − ● ●
98 99 Forward/reverse selection ●/● ●/● ● ●
100 101 Run/Stop command ●/● ●/● ● ●
102 103 Commercial power/INV switching ●/● − ● ●
104 105 Frequency reference priority switching *3, 4 ●/● − ● ●
106 107 VI/II terminal priority ●/● − ● ●
108 109 Command terminal board priority *4 ●/● ●/● ● ●
111 111 Parameter editing enabling ●/● ●/● ● ●
112 113 Control switching (torque /position) ●/● ●/● − −
122 123 Rapidest deceleration command ●/● − ● ●
124 125 Preliminary excitation ●/● ●/● ● ●
126 127 Braking request ●/● − ● ●
130 131 Brake answer back input ●/● − ● ●
134 135 Traverse permission signal ●/● − ● ●
*1: Valid any time
*2: Independent of cmod, and all command are valid.
*3: Meaning differ from CC-Link. (ST is free run, frequency reference priority switching. is frequency priority)
*4: This function is assigned by the output signal, the instruction code, etc. by fixation.

E6581288①
− 12 −
(2) Input signal Inverter -> Master unit
The following shows input signals to the master unit. (The output signals for the inverter.)
Device No. Signal name Description
RXn0 Forward running OFF: Other than forward running (during stop or reverse rotation)
ON : Forward running
RXn1 Reverse running OFF: Other than reverse running (during stop pr forward rotation)
ON : Reverse running
RXn2 Output terminal selection 1 (OUT1) The function depends on output terminal function selection 1 (f130).
RXn3 Output terminal selection 2 (OUT2) The function depends on output terminal function selection 2 (f131).
RXn4 Output terminal selection 3 (FL) The function depends on output terminal function selection 3 (f132).
RXn5 Output terminal selection 4 (OUT3) The function depends on output terminal function selection 4 (f133).
RXn6 Output terminal selection 5 (OUT4) The function depends on output terminal function selection 5 (f134).
RXn7 Output terminal selection 6 (R1) The function depends on output terminal function selection 6 (f135).
RXn8 Output terminal selection 7 (OUT5) The function depends on output terminal function selection 7 (f136).
RXn9 Output terminal selection 8 (OUT6) The function depends on output terminal function selection 8 (f137).
RXnA Output terminal selection 9 (R2) The function depends on output terminal function selection 9 (f138).
RXnB Reserved Reserved for the system.
RXnC Monitoring
Switched on when the monitored value is set to RWrn by the
monitor command (RYnC) switching on. Switched off when the
monitor command (RYnC) is switched off.
RXnD Frequency setting completion
(RAM)
Switched on when the set frequency is written to the inverter by the
frequency setting command (RYnD) switching on. Switched off
when the frequency setting command (RYnD) is switched off.
RXnE Torque setting completion
(RAM)
Switched on when the set torque is written to the inverter by the
torque setting command (RYnE) switching on. Switched off when
the torque setting command (RYnE) is switched off.
RXnF Instruction code execution
completion
Switched on on completion of the processing corresponding to the
instruction code (RWw+2) which is executed when the instruction
code execution request (RYnF) switches on. Switched off when the
instruction code execution completion (RXnF) is switched off.
RX(n+1)0
:
RX(n+1)7
Reserved Reserved for the system.
RX(n+1)8 Reserved Reserved for the system.
RX(n+1)9 Reserved Reserved for the system.
RX(n+1)A Error status flag
Switched on when occurred an inverter error or option error
(watchdog error, CPU error, ROM error, RAM error). It is not
switched on besides that.
RX(n+1)B Remote station ready
Switched on when the inverter goes into the ready status on
completion of initial setting after power-on or hardware reset.
(Used as an interlock for read/write from/to the master unit.)
Switched off when an inverter error occurs (protective function is
activated).
RX(n+1)C
:
RX(n+1)F
Reserved Reserved
"n" is depend on the station number.

E6581288①
− 13 −
4.4.2. Remote Register Assignment
Divide the monitor code (RWw n) into half and select the first monitor description (RWr n)
from the lower 8 bits and the second monitor description (RWr n) from the higher 8 bits.
(Example) When output voltage is selected for the first monitor and output torque is
selected for the second monitor. -> The monitor code is 0703H.
* The hexadecimal value attaches and expresses "H" to the end of a number.
(1) Remote register (Master -> inverter)
RWw signal
Address Signal name Description
RWw n Monitor code
Sets the monitor code to be referenced. By switching on the (RYnC) signal after
setting, the specified monitored data is set to (RWrn).
The first monitor (RWr n) : RWw n Setting of the lower 8 bits of monitor code.
The second monitor (RWr n+1) : RWw n Setting of the higher 8 bits of monitor
code.
Set frequency
Specifies the set frequency. After setting the register, a frequency is written after
turning on the RYnD. When the writing of the frequency is completed, RXnD turns
on, depending on the input command.
RWw (n+1)
Set torque
Specifies the set torque. After setting the register, a torque is written after turning
on the RYnE. When the writing of the torque is completed, RXnE turns on,
depending on the input command.
RWw (n+2) Command
code
Sets the command code for actions such as operation mode switching, parameter
read, write, error reference, error clear, etc. The command will be executed by
turning RYnF on after the register setting is completed. When the command
execution is completed, RXnF turns on.
RWw (n+3) Write data
Sets data specified by the above-mentioned command code (if necessary).
If no data needs to be written, the value shall be zero.
RYnF is turned on after setting the above-mentioned command code and this
register.
"n" is depend on the station number.
Address Remote
register Address Remote register Address Remote register Address Remote register
1E0H
No.1 1E1H
1E2H
1E3H
RWw0
RWw1
RWw2
RWw3
1E8H
No.3 1E9H
1EAH
1EBH
RWw8
RWw9
RWwA
RWwB
1F0H
No.5 1F1H
1F2H
1F3H
RWw10
RWw11
RWw12
RWw13
1E4H
No.2 1E5H
1E6H
1E7H
RWw4
RWw5
RWw6
RWw7
1ECH
No.4 1EDH
1EEH
1EFH
RWwC
RWwD
RWwE
RWwF
1F4H
No.6 1F5H
1F6H
1F7H
RWw14
RWw15
RWw16
RWw17
2DCH
No.64 2DDH
2DEH
2DFH
RWwFC
RWwFD
RWwFE
RWwFF

E6581288①
− 14 −
(2) Remote register (Inverter -> Master)
RWr signal
Address Signal name Description
RWr n First monitor When RYnC is on, the monitored value specified to the lower 8 bits of the
monitor code (RWwn) is set.
RWr(n+1) Second monitor
(output frequency)
When "0" is set to the higher 8 bits of the monitor code (RWwn), the current
output frequency is always set. When other than "0" is set to the higher 8 bits
of the monitor code (RWwn) and RYnC is on, the monitored value specified to
the higher 8 bits of the monitor code (RWwn) is set.
RWr(n+2) Response code
When turn on RYnF, the response code correspond to the instruction code of
RWw(n+2) is set. When turn on RYnD or RYnE, the response code
correspond to the instruction code of RWw(n+2) is set. The value "0" is set for
a normal reply and other than "0" is set for data fault, mode error, etc.
RWr(n+3) Read data For a normal reply, the reply data to the instruction specified by the instruction
code is set.
"n" is depend on the station number.
Address Remote
register Address Remote register Address Remote register Address Remote register
2E0H
No.1 2E1H
2E2H
2E3H
RWr0
RWr1
RWr2
RWr3
2E8H
No.3 2E9H
2EAH
2EBH
RWr8
RWr9
RWrA
RWrB
2F0H
No.5 2F1H
2F2H
2F3H
RWr10
RWr11
RWr12
RWr13
2E4H
No.2 2E5H
2E6H
2E7H
RWr4
RWr5
RWr6
RWr7
2ECH
No.4 2EDH
2EEH
2EFH
RWrC
RWrD
RWrE
RWrF
2F4H
No.6 2F5H
2F6H
2F7H
RWr14
RWr15
RWr16
RWr17
3DCH
No.64 3DDH
3DEH
3DFH
RWrFC
RWrFD
RWrFE
RWrFF

E6581288①
− 15 −
4.4.3. Instruction Codes
Code No. Item Description
1003H Command mode selection read
2003H Command mode selection write
0: Terminal input enabled
1: Operation panel input enabled
(including LED/LCD option input)
2: 2-wire RS485 communication input
3: 4-wire RS485 communication input
4: Communication option input
1004H Frequency setting mode
selection read
2004H Frequency setting mode
selection write
1: VI/II (voltage/current input)
2: RR/S4 (potentiometer/voltage input)
3: RX (voltage input)
4: Operation panel input enabled
(including LED/LCD option unit)
5: 2-wire RS485 communication input
6: 4-wire RS485 communication input
7: Communication input
8: Optional AI1 (differential current input)
9: Optional AI2 (voltage/current input)
10: UP/DOWN frequency
11: Optional RP pulse input
12: Optional high-speed pulse input
13: Optional binary/BCD input
0072H Special monitor 0000H to FFFFH : Monitor value selected after choosing
instruction code 00F3H.
0073H Read Special monitor code read Read the content that was monitored by special monitor.
00F3H Write Special monitor selection Select the monitor code of special monitor.
0074H Trip history No.1, No.2 read
0075H Trip history No.3, No.4 read Read the No.1 (latest) to No.4 (oldest) trip records. *1
006DH Frequency command value (RAM) read Read the frequency command value (RAM).
006EH Torque command value (RAM) read Read the torque command value (RAM).
00EDH Option frequency command value
(EEPROM&RAM) write *2
Write the option frequency command value (EEPROM
&RAM).
00EEH Option torque command value
(EEPROM&RAM) write *2 Write the option torque command value (EEPROM&RAM).
00F4H Trip history clear 9696H : Clear all trip history.
00FCH Parameter all clear
9696H : Clear all parameters. (Parameters other than
proofreading values are made into factory default
settings.)
00FDH Inverter reset 9696H : Reset the inverter.
1000H to
1999H
(1000H to
1F99H)
Read parameters (RAM)
To read parameters F000 to F984, add the triple figures
that follow Fxxx to 1000H. (Ex: F984 -> 984 + 1000 = 1984)
No error occurs when you select 1A00 to 1F99. Because
these parameters are for maintenance.
2000H to
2999H Write parameters (EEPROM&RAM) *2 To write parameters F000 to F984, add the triple figures that follow Fxxx to 2000H.
*1 : The details of an error code are indicated to the following page.
*2 : The Life of EEPROM is approximately ten thousand times.

E6581288①
− 16 −
4.4.4. The details of an error code
The following data are stored as trip history data when the inverter trip occurred.
Error code
Decimal
No.
Hexadecimal
No. Description Trip display
0 00H No error 
1 01H Overcurrent during acceleration 
2 02H Overcurrent during deceleration 
3 03H Overcurrent during fixed speed operation 
4 04H Dynamic braking element overcurrent 
5 05H U-phase arm overcurrent 
6 06H V-phase arm overcurrent 
7 07H W-phase arm overcurrent 
8 08H Input phase failure 
9 09H Output phase failure 
10 0AH Overvoltage during acceleration 
11 0BH Overvoltage during deceleration 
12 0CH Overvoltage during fixed speed operation 
13 0DH Inverter overload 
14 0EH Motor overload 
15 0FH Dynamic braking resister overload 
16 10H Overheating 
17 11H Emergency stop 
18 12H EEPROM fault (writing error) 
19 13H Initial read error (parameter initialization) 
20 14H Initial read error (parameter initialization) 
21 15H Inverter RAM fault 
22 16H Inverter ROM fault 
23 17H CPU fault 
24 18H Communication error interruption 
25 19H Gate array fault 
26 1AH Output current detector error 
27 1BH Communication error (f851 set to 4.) 
29 1DH Low current operation 
30 1EH Undervoltage (main circuit power supply) 
32 20H Overtorque 
33 21H 
34 22H Ground fault 
36 24H Dynamic braking abnormal element
(200V-55kW or larger, 400V-90kW or larger)

(It continues to the next.)

E6581288①
− 17 −
(Continuation)
Error code
Decimal
No.
Hexadecimal
No.
Description Trip display
37 25H Overcurrent flowing in element during
acceleration (Overheat) 
38 26H Overcurrent flowing in element during
deceleration (Overheat) 
39 27H Overcurrent flowing in element during fixed speed
(Overheat) 
40 28H Tuning error except etn 1to 3
41 29H Inverter type error 
42 2AH Analog input terminal overvoltage 
43 2BH Abnormal brake sequence 
44 2CH Disconnection of encoder 
45 2DH Speed error (Over speed) 
46 2EH Thermal trip stop command from external device 
47 2FH Step-out (for PM motors only) 
50 32H Analog input disconnection 
51 33H Abnormal CPU2 communication 
52 34H V/f control error 
53 35H CPU1 fault 
54 36H Abnormal logic input voltage 
55 37H Add-on option 1 error 
56 38H Add-on option 2 error 
57 39H Stop position retaining error 
58 3AH CPU2 fault 
84 54H  tuning error 
85 55H  tuning error 
86 56H ,, to  setting error 
4.4.5. Description of reply code
When executing the frequency setting (RYnD) and torque setting (RYnE) or instruction
code execution (RYnF), check the reply code (RWr (n+2)) in the remote register after
execution.
Reply code
Data
(Hexadecimal No.) Item Description
0000H Normal (No error) Normal completion of instruction code execution.
0001H Write mode error Parameter write was attempted during operation
other than a stop.
0002H Parameter selection error Unregistered code number was set.
0003H Setting range error Set data is outside the setting data range.

E6581288①
− 18 −
4.4.6. Description of monitor code
Divide the monitor code (RWw n) into half and select the first monitor data (RWr n) from
the lower 8 bits and the second monitor data (RWr n) from the higher 8 bits.
(Example) When output voltage is selected for the first monitor and output torque is
selected for the second monitor. -> The monitor code is 0703H.
RWw n Monitor code
the higher 8 bits the lower 8 bits
Second monitor description First monitor description
Monitor code (When an invalid monitor code is set up, monitor value fixes to 0.)
Code Number Second Monitor Description
(the higher 8 bits)
First Monitor Description
(the lower 8 bits) Unit
00H Output frequency None monitor (Monitor value is 0) 0.01Hz
01H Output frequency Output frequency 0.01Hz
02H *1 Output current Output current 0.01A
03H Output voltage Output voltage 0.1V
04H None monitor (Monitor value is 0) None monitor (Monitor value is 0) −
05H Frequency command value Frequency command value 0.01Hz
06H None monitor (Monitor value is 0) None monitor (Monitor value is 0) −
07H Output torque Output torque 0.1%
08H DC voltage DC voltage 0.1V
09H PBR load factor PBR load factor 0.1%
0AH Motor overload factor (OL2 data) Motor overload factor (OL2 data) 0.1%
0BH, 0CH None monitor (Monitor value is 0) None monitor (Monitor value is 0) −
0DH Input power Input power 0.01kW
0EH Output power Output power 0.01kW
0FH Input terminal information Input terminal information −
10H Output terminal information Output terminal information −
11H Output current (% monitor) Output current (% monitor) 0.1%
12H Exciting current Exciting current 0.01A
13H None monitor (Monitor value is 0) None monitor (Monitor value is 0) −
14H Cumulative operation time Cumulative operation time 1h
15H, 16H None monitor (Monitor value is 0) None monitor (Monitor value is 0) −
17H Accumulation power supply ON time Accumulation power supply ON time 1h
18H Motor overload factor Motor overload factor 0.1%
19H Integral input power Integral input power 1kWh
1AH Integral output power Integral output power 1kWh
1BH RR/S4 input RR/S4 input −
1CH VI/II input VI/II input −
1DH RX input RX input −
1EH, 1FH None monitor (Monitor value is 0) None monitor (Monitor value is 0) −
20H Torque command Torque command 0.1%
21H Torque current Torque current 0.1%
22H, 23H None monitor (Monitor value is 0) None monitor (Monitor value is 0) −
24H PID feedback value PID feedback value 0.01Hz
25H to 2FH None monitor (Monitor value is 0) None monitor (Monitor value is 0) −
*1: The monitor code "02H" will be overflow when its value more than 327.67A. If that monitor overflowed, use
the monitor code "11H".
