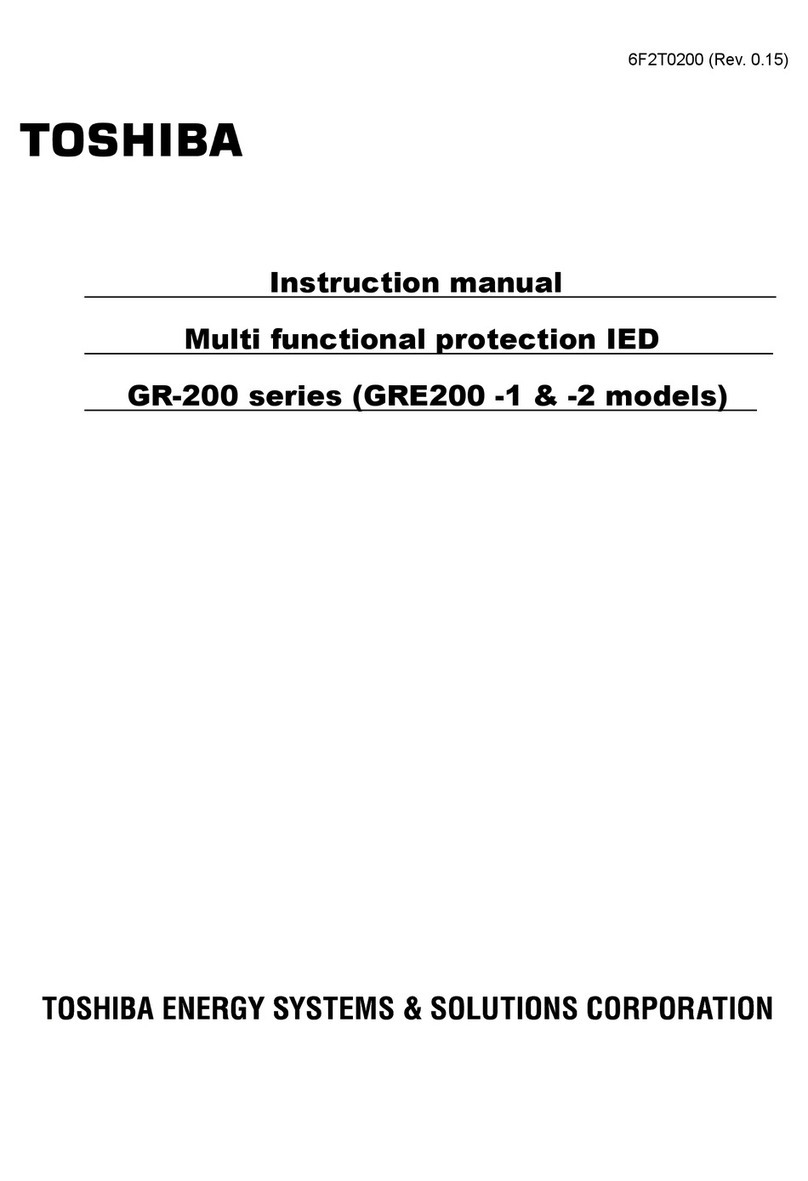

Toshiba GR 200 Series User manual

Toshiba

Toshiba GR 200 Series User manual

Popular Protection Device manuals by other brands

Merlin Gerin Sepam series 20 Quick start quide

Merlin Gerin

Merlin Gerin Sepam series 20 Quick start quide

OUTSTEEL VENITIAN installation instructions

OUTSTEEL

OUTSTEEL VENITIAN installation instructions

Kemo Electronic M148-24 instructions

Kemo Electronic

Kemo Electronic M148-24 instructions

Endress+Hauser HAW569 quick start guide

Endress+Hauser

Endress+Hauser HAW569 quick start guide

SK ClickClick user manual

SK

SK ClickClick user manual

Ultrasonic SonicPRO installation manual

Ultrasonic

Ultrasonic SonicPRO installation manual

nxt BIA-nXt-DPC 1-22 Installation and operation manual

nxt

nxt BIA-nXt-DPC 1-22 Installation and operation manual

TFortis SG-Switch operating manual

TFortis

TFortis SG-Switch operating manual

BERNINI DESIGN Be172 instruction manual

BERNINI DESIGN

BERNINI DESIGN Be172 instruction manual

Rayleigh Instruments RI-ENERGYSET-3P-ESS-50-100 manual

Rayleigh Instruments

Rayleigh Instruments RI-ENERGYSET-3P-ESS-50-100 manual

E.K.T. ke-DP01 quick start guide

E.K.T.

E.K.T. ke-DP01 quick start guide

Sola HD STV100K Series instruction manual

Sola HD

Sola HD STV100K Series instruction manual

socomec COUNTIS AMd operating instructions

socomec

socomec COUNTIS AMd operating instructions

Siemens SIPROTEC 7SD80 manual

Siemens

Siemens SIPROTEC 7SD80 manual

cias MICRO-RAY installation manual

cias

cias MICRO-RAY installation manual

Sungrow PVS-16MH user manual

Sungrow

Sungrow PVS-16MH user manual

Reer 32010 instruction manual

Reer

Reer 32010 instruction manual

STI STI-7560AC Mounting instructions

STI

STI STI-7560AC Mounting instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

6F2S0758
INSTRUCTION MANUAL
DIRECTIONAL OVERCURRENT PROTECTION RELAY
GRD140
©TOSHIBA Corporation 2004
All Rights Reserved.
( Ver.0.7)
⎯1⎯
6F2S0758
Safety Precautions
Before using this product, please read this chapter carefully.
This chapter describes the safety precautions recommended when using the GRD140. Before
installing and using the equipment, this chapter must be thoroughly read and understood.
Explanation of symbols used
Signal words such as DANGER, WARNING, and two kinds of CAUTION, will be followed by
important safety information that must be carefully reviewed.
Indicates an imminently hazardous situation which will result in death or
serious injury if you do not follow the instructions.
Indicates a potentially hazardous situation which could result in death or
serious injury if you do not follow the instructions.
CAUTION Indicates a potentially hazardous situation which if not avoided, may result in
minor injury or moderate injury.
CAUTION Indicates a potentially hazardous situation which if not avoided, may result in
property damage.
DANGE
R
WARNING
⎯2⎯
6F2S0758
•Current transformer circuit
Never allow the current transformer (CT) secondary circuit connected to this equipment to be
opened while the primary system is live. Opening the CT circuit will produce a dangerously high
voltage.
•Exposed terminals
Do not touch the terminals of this equipment while the power is on, as the high voltage generated
is dangerous.
•Residual voltage
Hazardous voltage can be present in the DC circuit just after switching off the DC power supply. It
takes approximately 30 seconds for the voltage to discharge.
•Fiber optic
When connecting this equipment via an optical fiber, do not look directly at the optical signal.
CAUTION
•Earth
The earthing terminal of the equipment must be securely earthed.
CAUTION
•Operating environment
The equipment must only used within the range of ambient temperature, humidity and dust
detailed in the specification and in an environment free of abnormal vibration.
•Ratings
Before applying AC voltage and current or the DC power supply to the equipment, check that they
conform to the equipment ratings.
•Printed circuit board
Do not attach and remove printed circuit boards when the DC power to the equipment is on, as this
may cause the equipment to malfunction.
•External circuit
When connecting the output contacts of the equipment to an external circuit, carefully check the
supply voltage used in order to prevent the connected circuit from overheating.
•Connection cable
Carefully handle the connection cable without applying excessive force.
DANGE
R
WARNING
⎯3⎯
6F2S0758
•Modification
Do not modify this equipment, as this may cause the equipment to malfunction.
•Disposal
When disposing of this equipment, do so in a safe manner according to local regulations.
环保使用期限标识是根据《电子信息产品污染控制管理办法》以及《电子信息产品污染控制标识要求》
(SJ/T11364-2006)、《电子信息产品环保使用期限通则》制定的,适用于中国境内销售的电子信息产品的标识。
只要按照安全及使用说明内容在正常使用电子信息产品情况下,从生产日期算起,在此期限内产品中含有的有毒
有害物质不致发生外泄或突变,不致对环境造成严重污染或对其人身、财产造成严重损害。
产品正常使用后,要废弃在环保使用年限内或者刚到年限的产品,请根据国家标准采取适当的方法进行处置。
另外,此期限不同于质量/功能的保证期限。
The Mark and Information are applicable for People's Republic of China only.
⎯4⎯
6F2S0758
Contents
Safety Precautions 1
1. Introduction 8
2. Application Notes 10
2.1 Overcurrent and Undercurrent Protection 10
2.1.1 Non-directional Overcurrent Protection 10
2.1.2 Directional Overcurrent Protection 17
2.1.3 Scheme Logic 21
2.1.4 Phase Undercurrent Protection 44
2.1.5 Thermal Overload Protection 46
2.1.6 Broken Conductor Protection 49
2.1.7 Breaker Failure Protection 52
2.1.8 Cold Load Protection 55
2.1.9 CT Requirements 58
2.2 Overvoltage and Undervoltage Protection 60
2.2.1 Phase Overvoltage Protection 60
2.2.2 Phase Undervoltage Protection 63
2.2.3 Zero Phase Sequence Overvoltage Protection 66
2.2.4 Negative Phase Sequence Overvoltage Protection 69
2.3 Frequency Protection 71
2.4 Trip and Alarm Signal Output 73
2.5 Autoreclose 75
2.5.1 Scheme Logic 75
2.5.2 Sequence Coordination 76
2.5.3 Setting 77
3. Technical Description 80
3.1 Hardware Description 80
3.1.1 Outline of Hardware Modules 80
3.2 Input and Output Signals 84
3.2.1 AC Input Signals 84
3.2.2 Binary Input, Output Signals 84
3.2.3 Binary Output Signals 88
3.3 Automatic Supervision 89
3.3.1 Basic Concept of Supervision 89
3.3.2 Relay Monitoring 89
3.3.3 CT Failure Supervision 90
3.3.4 VT Failure Supervision 91
3.3.5 Trip Circuit Supervision 92
3.3.6 Circuit Breaker Monitoring 93
3.3.7 Failure Alarms 94
3.3.8 Trip Blocking 95
3.3.9 Setting 96
⎯5⎯
6F2S0758
3.4 Recording Function 97
3.4.1 Fault Recording 97
3.4.2 Event Recording 98
3.4.3 Disturbance Recording 99
3.5 Metering Function 101
3.6 Fault locator 103
3.6.1 Application 103
3.6.2 Distance to Fault Calculation 103
3.6.3 Starting Calculation 104
3.6.4 Displaying Location 104
3.6.5 Setting 105
4. User Interface 106
4.1 Outline of User Interface 106
4.1.1 Front Panel 106
4.1.2 Communication Ports 108
4.2 Operation of the User Interface 109
4.2.1 LCD and LED Displays 109
4.2.2 Relay Menu 112
4.2.3 Displaying Records 115
4.2.4 Displaying the Status 120
4.2.5 Viewing the Settings 126
4.2.6 Changing the Settings 127
4.2.7 Testing 170
4.3 Personal Computer Interface 173
4.4 Relay Setting and Monitoring System 173
4.5 IEC 60870-5-103 Interface 174
4.6 Clock Function 174
5. Installation 175
5.1 Receipt of Relays 175
5.2 Relay Mounting 175
5.3 Electrostatic Discharge 175
5.4 Handling Precautions 175
5.5 External Connections 176
6. Commissioning and Maintenance 177
6.1 Outline of Commissioning Tests 177
6.2 Cautions 178
6.2.1 Safety Precautions 178
6.2.2 Cautions on Tests 178
6.3 Preparations 179
6.4 Hardware Tests 180
6.4.1 User Interfaces 180
6.4.2 Binary Input Circuit 180
6.4.3 Binary Output Circuit 181
6.4.4 AC Input Circuits 182
⎯6⎯
6F2S0758
6.5 Function Test 184
6.5.1 Measuring Element 184
6.5.2 Protection Scheme 195
6.5.3 Metering and Recording 195
6.6 Conjunctive Tests 196
6.6.1 On Load Test 196
6.6.2 Tripping and Reclosing Circuit Test 197
6.7 Maintenance 199
6.7.1 Regular Testing 199
6.7.2 Failure Tracing and Repair 199
6.7.3 Replacing Failed Relay Unit 200
6.7.4 Resumption of Service 201
6.7.5 Storage 201
7. Putting Relay into Service 202
⎯7⎯
6F2S0758
Appendix A Programmable Reset Characteristics and Implementation of Thermal
Model to IEC60255-8 203
Appendix B Directional Earth Fault Protection and Power System Earthing 207
Appendix C Signal List 213
Appendix D Event Record Items 221
Appendix E Details of Relay Menu and LCD & Button Operation 225
Appendix F Case Outline 241
Appendix G Typical External Connection 243
Appendix H Relay Setting Sheet 249
Appendix I Commissioning Test Sheet (sample) 263
Appendix J Return Repair Form 267
Appendix K Technical Data 271
Appendix L Symbols Used in Scheme Logic 279
Appendix M IEC60870-5-103: Interoperability 283
Appendix N Inverse Time Characteristics 291
Appendix O Ordering 297
The data given in this manual are subject to change without notice. (Ver.0.7)
⎯8⎯
6F2S0758
1. Introduction
GRD140 series relays provide four stage non-directional and directional overcurrent protection
for distribution networks, and back-up protection for transmission and distribution networks.
The GRD140 series has three models and provides the following protection schemes in all models.
•Directional overcurrent protection and directional zero phase sequence overcurrent
protection for earth fault with definite time or inverse time characteristics
•Instantaneous directional overcurrent protection and instantaneous directional zero phase
sequence overcurrent protection for earth fault
Model 110 provides directional earth fault protection and directional sensitive earth fault
protection.
Model 400 provides three-phase directional phase fault protection and directional earth fault
protection.
Model 420 provides three-phase directional phase fault protection, and directional earth and
sensitive earth fault protection.
All models include multiple, high accuracy, overcurrent protection elements (for phase and/or
earth fault) with inverse time and definite time delay functions. All phase, earth and sensitive earth
fault overcurrent elements can be independently subject to directional control.
In addition, GRD140 provides multi-shot, three phase auto-reclose, with independent sequences
for phase fault, and earth fault and sensitive earth fault. Auto-reclosing can also be triggered by
external protection devices.
Other protection functions are available according to model type, including thermal protection to
IEC60255-8, negative sequence overcurrent protection, under/overvoltage and
under/overfrequency protections. See Table 1.1.1 for details of the protection functions available
in each model.
All models provide continuous monitoring of internal circuits and of software. External circuits
are also monitored, by trip circuit supervision, CT and VT supervision, and CB condition
monitoring features.
A user-friendly HMI is provided through a backlit LCD, programmable LEDs, keypad and
menu-based operating system. PC access is also provided, either for local connection via a
front-mounted RS232 port, or for remote connection via a rear-mounted RS485 or fibre optic port.
The communication system allows the user to read and modify the relay settings, and to access
data gathered by the relay’s metering and recording functions.
Data available either via the relay HMI or communications ports includes the following functions.
The GRD140 series provides the following functions for all models.
•Metering
•Fault recording
•Event recording
•Disturbance recording (available via communications ports)
Table 1.1.1 shows the members of the GRD140 series and identifies the functions to be provided
by each member.
⎯9⎯
6F2S0758
Table 1.1.1 Series Members and Functions
GRD140 -
Model Number
110 400 420
Directional Phase Fault O/C OC1 – OC4 (67/50P, 67/51P) 99
Directional Earth Fault O/C EF1 – EF4 (67/50N, 67/51N) 999
Directional Sensitive Earth Fault SEF1 – SEF4(67/50N, 67/51N) 99
Phase Undercurrent UC1, UC2 (37P) 99
Thermal Overload THM (49) 99
Directional Negative Phase Sequence Overcurrent NOC1, NOC2 (67/46) 99
Phase Overvoltage OV1, OV2 (59) 99
Phase Undervoltage UV1, UV2 (27) 99
Zero Phase Sequence Overvoltage ZOV1, ZOV2 (59N) 999
Negative Phase Sequence Overvoltage NOV1, NOV2 (47) 99
Under/Overfrequency FRQ1 – FRQ4 (81U/81O) 99
Broken Conductor BCD 99
Circuit Breaker Fail CBF (50BF) 99
Cold Load Protection 99
Auto-reclose (79) 999
Fault Locator 99
CT Supervision 99
VT Supervision 99
Trip circuit supervision 999
Self supervision 999
CB State Monitoring 999
Trip Counter Alarm 999
∑IyAlarm 99
CB Operate Time Alarm 999
Four settings groups 999
Metering 999
Fault records 999
Event records 999
Disturbance records 999
IEC60870-5-103 Communication 999
Available functions above are depends on the scheme switch [APPL] setting in models 400 and
420.
CAUTION:
Do not change the APPL setting under service condition of the relay.
