Toshiba 1400SE Series User manual

TOSHIBA
UNINTERRUPTIBLE POWER SYSTEM
SINGLE PHASE - .6/.8/1.0/1.2/1.5/2.0/2.4 kVA
SINGLE PHASE - .6/.8/1.0/1.5 kVA PLUS
March,2003
Part#44470-004
including
MANUFACTURED IN THE U.S.A.
OPERATION MANUAL
and

TOSHIBA

TOSHIBA
The instructions contained in this manual are not intended to cover all of the details
or variations in equipment, nor to provide for every possible contingency
to be met in connection with installation, operation, or maintenance. Should further
information be desired or should particular problems arise which are not covered
sufficiently for the purchaser's purposes, the matter should be referred to the local
Toshiba sales office.
The contents of this instruction manual shall not become a part of or modify any
prior or existing agreement, commitment, or relationship. The sales contract
contains the entire obligation of Toshiba International Corporation's UPS Division.
The warranty contained in the contract between the parties is the sole warranty of
Toshiba International Corporation's UPS Division and any statements contained
herein do not create new warranties or modify the existing warranty.
Any electrical or mechanical modifications to this equipment,
without prior written consent of Toshiba International
Corporation, will void all warranties and may void UL listing
and/or CSA certification. Unauthorized modifications also
can result in personal injury, death, or destruction of the
equipment.
i
NOTE
If additional information or technical assistance is required call Toshiba's marketing
department toll free at [phone] or write to: Toshiba International Corporation,
13131 W. Little York Road, Houston, TX 77041-9990.
Please complete the following information for your records and to remain within this
equipmentmanual:
ModelNumber:
SerialNumber:
Date of Installation:
Inspected By:
UNINTERRUPTIBLE POWER SUPPLY

TOSHIBA
CONTENTS
SECTION PAGE
Disclaimer .................................................................................................. i
Contents .................................................................................................. ii-iii
Introduction ............................................................................................... iv
General Safety Instructions ..................................................................... v
Important Safety Instructions ............................................................... vi-vii
1.0 Product Description ................................................................................ 1-1
1.1 Theory of Operation ........................................................................1-1
1.2 Application and Use ........................................................................1-1
1.3 Power Backup................................................................................. 1-1
1.4 Power Conditioning......................................................................... 1-1
2.0 Inspection/Storage/Disposal ..................................................................2-1
2.1 Inspection of the new UPS equipment............................................2-1
2.2 Storage of UPS equipment .............................................................2-1
2.3 Disposal ..................................................................................2-1
3.0 Precautions ..................................................................................3-1
3.1 Installation Precautions (General) ..................................................3-1
3.2 Installation Precautions (Rack mounted) ........................................3-1
3.3 Prestart Precautions ....................................................................... 3-2
3.4 Operating Precautions ....................................................................3-2
4.0 Specifications ..................................................................................4-1
4.1 Standard Series Specifications .......................................................4-1
4.2 Plus Series Specifications (w/output isolation transformer) ............4-4
4.3 Standard Series Specifications (Rack mounted) ............................ 4-6
5.0 Operating the UPS ..................................................................................5-1
5.1 Operation Modes ............................................................................5-1
5.1.1 AC Input Mode (normal operation) ........................................5-1
5.1.2 Battery Backup Mode ............................................................5-2
5.1.3 Circuit Bypass Mode ..............................................................5-3
5.2 System Protection Features ...........................................................5-4
ii

TOSHIBA
CONTENTS (Cont'd)
SECTION PAGE
5.0 Operating the UPS (cont'd) .....................................................................5-1
5.3 Operation Monitoring ......................................................................5-5
5.3.1 Visual Indicator Functions ......................................................5-5
5.3.2 Audible Alarm Functions ........................................................5-5
5.3.3 Visual and Audible Indicator Function Chart ..........................5-5
5.4 Front Panel Layout .........................................................................5-6
5.5 UPS Run Mode Display ..................................................................5-6
5.6 Battery Recharging .........................................................................5-7
5.7 Battery Backup Time ......................................................................5-8
5.8 Battery Low Voltage Tolerances .....................................................5-8
5.9 Battery Check Function ..................................................................5-8
5.10 System Reset .................................................................................5-8
6.0 UPS Control Interface .............................................................................6-1
6.1 Remote Contact and IBM AS/400 ...................................................6-1
6.2 RS-232C Communication Interface ................................................6-2
6.2.1 UPS Shutdown (via RS-232C) ...............................................6-2
7.0 Troubleshooting Procedures..................................................................7-1
7.1 Non-Fatal Fault Mode .....................................................................7-1
7.2 Fatal Fault Mode .............................................................................7-2
8.0 Preventive Maintenance/Parts Replacement ........................................8-1
8.1 Preventive Maintenance .................................................................8-1
8.2 Parts Replacement .........................................................................8-1
8.3 Input/Output Fuse Rating Chart ......................................................8-1
9.0 External Dimensions/Shipping Weights/Panel Layout ........................9-1
9.1 External Dimensions for 600 through 1200 VA Model ....................9-1
9.2 External Dimensions for 1500 through 2400 VA Model ..................9-2
9.3 External Dimensions for 1500 through 2000 VA Model
(Rack Mounted) .............................................................................9-3
9.4 Remote Run/Stop ...........................................................................9-4
9.5 Panel Layout ..................................................................................9-5
9.6 Panel Layout (Rack Mounted) ........................................................9-5
9.7 Shipping Weights ............................................................................9-5
iii

TOSHIBA
iv
INTRODUCTION
Thank you for purchasing the 1400SE/1400SE Plus Series UPS. This Series features the very
latest state of the art microprocessor technology and also uses IGBT transistors for fast, high
power and low noise PWM (pulse width modulation) switching. Also, the Plus Series features a
low impedence output transformer to provide isolation even during bypass operation.
It is the intent of this manual to provide a guide for safely installing, operating, and maintaining
the UPS. This operation manual contains a section of general safety instructions and is marked
throughout with warning symbols. Read this operation manual thoroughly before installation
and operation of this electrical equipment.
All safety warnings must be followed to ensure personal safety.
Follow all precautions to attain proper equipment performance and longevity.
General safety instructions are found on page v and important safety
instructions are found on pages vi and vii. Read and save these instructions
for future reference.
The manual is divided into major sections of interest. Section 1 contains the product description
with the theory of operation and applications. All of the initial inspection, storage, installation,
operating, and prestart precautions can be found in Sections 2 and 3.
Section 4 contains the equipment standard specifications.
Section 5 outlines the operating modes, protective features, battery recharging, battery low
voltage tolerances, alarm and panel indicator functions.
Section 6 shows the control interface pin configurations.
Sections 7 and 8 are devoted to troubleshooting procedures, preventative maintenance
techniques and periodic parts replacement. A fuse rating chart is also shown.
Section 9 shows front, rear, and side panel layout views with dimensional data. Labels,
connector and switch placement, and shipping weights are also shown.
We hope that you find this operation manual informative and easy to use. If additional information
or technical assistance is needed, please call toll free [phone] or write to: Toshiba
International Corporation, 13131 W. Little York Road, Houston, TX 77041-9990.
Again, thank you for the purchase of this product.
TOSHIBA INTERNATIONAL CORPORATION
© Copyright1994

TOSHIBA
v
GENERAL SAFETY INSTRUCTIONS
Warnings in this manual appear in any of four ways:
1) Danger - The danger symbol is a lightning bolt mark enclosed in a triangle which precedes
the 3/16" high letters spelling the word "DANGER". The danger symbol is used to indicate
imminently hazardous situations, locations, and conditions which, if not avoided, WILL
result in death, serious injury, and/or severe property damage.
2) Warning - The warning symbol is an exclamation mark enclosed in a triangle which
precedes the 3/16" high letters spelling the word "WARNING". The warning symbol is
used to indicate potentially hazardous situations and conditions which, if not avoided
COULD result in serious injury or death. Severe property damage COULD also occur.
3) Caution - The caution symbol is an exclamation mark enclosed in a triangle which
precedes the 3/16" high letters spelling the word "CAUTION". The caution symbol is used
to indicate potentially hazardous situations and conditions which, if not avoided may result
in injury. Equipment damage may also occur.
4) Attention warnings - The attention warning symbol is an exclamation mark enclosed in a
triangle which precedes the 3/16" high letters spelling the word "ATTENTION". The
Attention warning symbol is used to indicate situations and conditions that can cause
operator injury and/or equipment damage:
Other warning symbols may appear along with the Danger and Caution symbol and are used to specify
special hazards. These warnings describe particular areas where special care and/or procedures are
required in order to prevent serious injury and possible death:
1) Electrical warnings - The electrical warning symbol is a lighting bolt mark enclosed in
a triangle. The Electrical warning symbol is used to indicate high voltage locations and
conditions that may cause serious injury or death if the proper precautions are not
observed:
2) Explosion warnings - The explosion warning symbol is an explosion mark enclosed in
a triangle. The Explosion warning symbol is used to indicate locations and conditions
where molten, exploding parts may cause serious injury or death if the proper
precautions are not observed:
DANGER
WARNING
CAUTION
ATTENTION

TOSHIBA
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
CAUTION
CAUTION
SAVE THESE INSTRUCTIONS- This manual contains important instructions
that should be followed during the installation and maintenance of the UPS and it's batteries. Use for
models UC1A1A006C6TB, UC1A1A006C6B, UC1A1A008C6TB, UC1AIA008C6B, UC1A1A010C6B,
UC1A1A010C6TB, UC1A1A012C6B, UC1A1A015C6B, UC1A1A015C6TB, UC1A1A020C6B,
UC1A1A024C6B, UC1A1A015C6RKB, UC1A1A015C6RKPB, and UC1A1A020C6RKB
- The maximum ambient temperature in which this UPS unit should be operated or stored is
104 deg F (40 deg C).
- The nominal battery voltage range is indicated in Section 5.6 on page 5-7.
- Servicing of the batteries should only be performed by a qualified Toshiba Representative who is
knowledgeable of batteries and the required precautions. Keep unauthorized personnel away from
batteries.
- When replacing batteries, use the same number and type of one of the following sealed, lead-acid
batteries (do not mix types of batteries):
Model Capacity Manufacturer Type Quantity
600 VA Panasonic LCV 12V7.2PI 3
Yuasa NP7 - 12FR 3
800 VA Panasonic LCV 12V7.2PI 4
Yuasa NP7 - 12FR 4
1000 VA Panasonic LCV 12V7.2PI 4
Yuasa NP7 - 12FR 4
1200 VA Panasonic LC 12V7.2PI 5
Yuasa NP7 - 12FR 5
1500 VA and Panasonic LCV 12V7.2PI 6
UC1A1A020C6RKB Yuasa NP7 - 12FR 6
2000 and 2400 VA Panasonic LCV 12V7.2PI 8
(except UC1A1A020C6RKB) Yuasa NP7 - 12FR 8
Misuse of this equipment could result in human injury and equipment
damage. In no event will Toshiba Corporation be responsible or liable for
either indirect or consequential damage or injury that may result from the use of this equipment.
Do not dispose of the batteries in a fire. The batteries may explode.
Do not open or mutilate the batteries. Released electrolyte is harmful
to the eyes and skin and could also be toxic.
This unit contains sealed lead acid batteries. Lack of preventative
maintenancecould resultinbatteries exploding andemitting gasses and/or
flame. Annual preventative maintenance must be performed by an authorized, trained technician.
Failure to replace a battery before it becomes exhausted may cause the
case to crack, possibly releasing electrolytes from inside the battery, and
resulting in secondary faults such as odor, smoke, and fire.
WARNING
WARNING
vi

TOSHIBA
DANGER
IMPORTANT SAFETY INSTRUCTIONS
Installation and servicing of batteries should be performed by personnel
knowledgeable of batteries and the required precautions. Keep
unauthorized personnel away from the batteries.
Proper maintenance to the battery system of this unit must be done by a
qualified service technician, this is essential to the safety and reliability of
your UPS system. Refer to service manual.
A battery can present a risk of electrical shock and high short
circuit current. The following precautions should be observed when
working with batteries:
1) Verify that the UPS is off and that the power cord is disconnected from the power source.
2) Remove watches, rings or other metal objects.
3) Use tools with insulated handles to prevent inadvertent shorts.
4) Wear rubber gloves and boots.
5) Do not lay tools or metal parts on top of batteries.
6) Determine if the battery is inadvertently grounded. If inadvertently grounded, remove
source of ground. Contact with any part of a grounded battery can result in
electrical shock. The likelihood of such shock will be reduced if such grounds are
removed during installation and maintenance.
7) Verify circuit polarities prior to making connections.
8) Disconnect charging source and load prior to connecting or disconnecting terminals.
9) VRLA batteries contain an explosive mixture of hydrogen gas. Do not smoke, cause a flame
or spark in the immediate area of the batteries. This includes static electricity from the body.
10) Do not attempt to open the batteries in order to add water or sample the specific gravity of the
electrolyte. The batteries are valve regulated lead acid type and such servicing is not
possible without damaging the battery.
11) Use proper lifting means when moving batteries and wear all appropriate safety clothing and
equipment.
12) Do not dispose of lead acid batteries except through channels in accordance with local, state
and federal regulations.
WARNING
vii
WARNING

TOSHIBA
viii
© Copyright1994
Model Capacity Manufacturer Type Quantity
600 VA Panasonic LCV 12V7.2PI 3
Yuasa NP7 - 12FR 3
800 VA Panasonic LCV 12V7.2PI 4
Yuasa NP7 - 12FR 4
1000 VA Panasonic LCV 12V7.2PI 4
Yuasa NP7 - 12FR 4
1200 VA Panasonic LCV 12V7.2PI 5
Yuasa NP7 - 12FR 5
1500 VA and Panasonic LCV 12V7.2PI 6
UC1A1A020C6RKB Yuasa NP7 - 12FR 6
2000 and 2400 VA Panasonic LCV 12V7.2PI 8
(except UC1A1A020C6RKB) Yuasa NP7 - 12FR 8
INSTRUCTIONS IMPORTANTES CONCERNANT
LA SÉCURITÉ
Cette notice contient des
instructionsimportantesconcernant
la sécurité.
Une battery peut présenter un risque de choc électrique, de brûlure par
transfert d' énergie.
Pour le remplacement, utiliser le même nombre de batteries du modéle
suivant.
CONSERVER CES INSTRUCTIONS
ATTENTION
ATTENTION
L' élimination des batteries est règlementèe. Consulter les codes locaux
à cet effet.
ATTENTION

TOSHIBA
1.0 Product Description
1.1 Theory of Operation
An uninterruptible power supply is a system that is installed between the commercial
power and the load equipment. It is used during short-term blackouts or brownouts. The
UPS provides steady ac output power during these commercial power interruptions.
This power is provided for a long enough time so that the load can be shutdown in an
orderly fashion. This prevents loss of data and possible damage to both hardware and
software.
During normal operation the UPS uses commercial ac power. In addition, it also takes
in all of the high voltage spikes and transients caused by switching and faults, and all
of the common mode and normal mode noise which is associated with commercial ac
power. The UPS converts it all to flat dc power. From this dc power, the UPS charges
its batteries and generates its own extremely high quality ac waveform output. The
result of this process is maximum power conditioning.
If the ac power supplied to the UPS drops below a specified voltage level, the unit's
batteries automatically begin supplying power instead of receiving it. This insures that
the loads connected to the UPS continue to receive power with no interruption. When
ac input power becomes available again, operation returns to normal. The unit's
batteries begin to recharge so they will be ready for the next power interruption.
1.2 Application and Use
Toshiba's 1400SE and 1400SE Plus Series of on-line uninterruptible power supply (UPS)
systems provide continuous computer-grade ac power in a compact, high performance,
and energy efficient unit. The UPS unit assures safe and reliable operation of critical
office equipment. This can range from word processors and personal computers to
mini-computers and local area networks. All units feature an audible alarm which sounds
if the battery voltage drops below standard during use. This is an additional aid to help
in retaining the valuable office data banks. All units allow for computer interfacing and
an external battery pack option (see specifications).
1.3 Power Backup
When an electrical power failure occurs, the UPS unit's internal maintenance-free
batteries automatically supply back-up power to the load without interruption. For
example, when used to support a computer, the UPS back-up assures enough
additional time to complete the activity and store data. This allows an orderly shutdown
after a power failure has occurred.
1.4 Power Conditioning
When commercial power is present, the UPS supplies conditioned power to the load
while maintaining its batteries in a charged condition. The UPS protects against the
normal everyday problems associated with heavy use of raw commercial ac power,
including power sags, surges, signal interference, and spikes. This protection keeps
power-line problems from reaching the loads where they can cause equipment to
operate erratically, hard-disk crashes, or cause damage to hardware and software.
1 - 1

TOSHIBA
2.0 Inspection/Storage/Disposal
2.1 Inspection of the new UPS equipment
Upon receipt of the UPS, a careful inspection for shipping damage should be made.
After Uncrating:
1) Check the unit for loose, broken, bent or otherwise damaged parts. If damage
has occurred during shipment, keep all original crating and packing materials
for return to shipping agent. Warranty will not apply to units which are damaged
duringshipment.
2) Check to see that the rated capacity and the model number specified on the
nameplate conform to the order specifications.
2.2 Storage of UPS equipment.
If the UPS equipment is to be subject to long or short term storage the following
guidelines should be used.
Avoid:
1) Storage in sites subject to extreme changes in temperature or high humidity.
2) Storage in sites subject to exposure of high levels of dust or metal particles
3) Storage on inclined floor surfaces or in sites subject to excessive vibration.
Before storing:
1) Charge the units batteries.
2) Place the STOP/RUN switch in the STOP position.
Storing:
1) Store within a temperature range of -20°to 40°C (-4°to 104°F).
2) For best results, store the UPS in the original shipping container and place on a
wood or metal pallet.
3) The optimum storage temperature is 21°C (70°F). Higher ambient
temperatures cause UPS batteries to need recharging more frequently.
After storing:
1) If stored in an ambient temperature under 20°C (68°F); recharge the batteries
every 9 months.
2) If stored in an ambient temperature of 20°to 30°C (68°to 86°F); recharge the
batteries every 6 months.
3) If stored in an ambient temperature of 30°to 40°C (86°to 104°F); recharge the
batteries every 3 months.
2.3 Disposal
Please contact your state environmental agency for details on disposal of electrical
components and packaging in your particular area.
It is illegal to dump lead-acid batteries in landfills or to dispose of them improperly.
Please help our Earth by contacting the environmental protection agencies in your area,
the battery manufacturer, or call Toshiba toll-free at [phone] for more information
aboutrecycling.
2 - 1

TOSHIBA
3 - 1
3.0 Precautions
3.1 Installation Precautions (General)
1) Install the unit in a well ventilated location; allow at least 10 cm (4 inches) on
all sides for air ventilation and for maintenance.
2) Install the unit in a stable, level, and upright position which is free of vibration.
3) Install the unit where the ambient temperature is within the correct operating
range (see Specifications Section 4.0).
4) Do not install the UPS in areas that are subject to high humidity.
5) Do not allow direct sunlight to shine on the unit.
6) Do not install the UPS in areas which are subject to contamination such as
high levels of airborne dust, metal particles, or inflammable gas.
7) Avoid installation near sources of electrical noise and always make sure that
the unit ground is intact to prevent electrical shock and to help reduce
electrical noise.
8) Do not install where water or any foreign object may get inside the UPS.
9) This UPS generates and can radiate radio-frequency energy during operation.
Although RFI noise filters are installed inside the unit there is no guarantee
that the UPS will not influence some sensitive devices which are operating
close by. If such interference is experienced, the UPS should be installed farther
away from the effected equipment and/or powered from a different source than
that of the affected equipment.

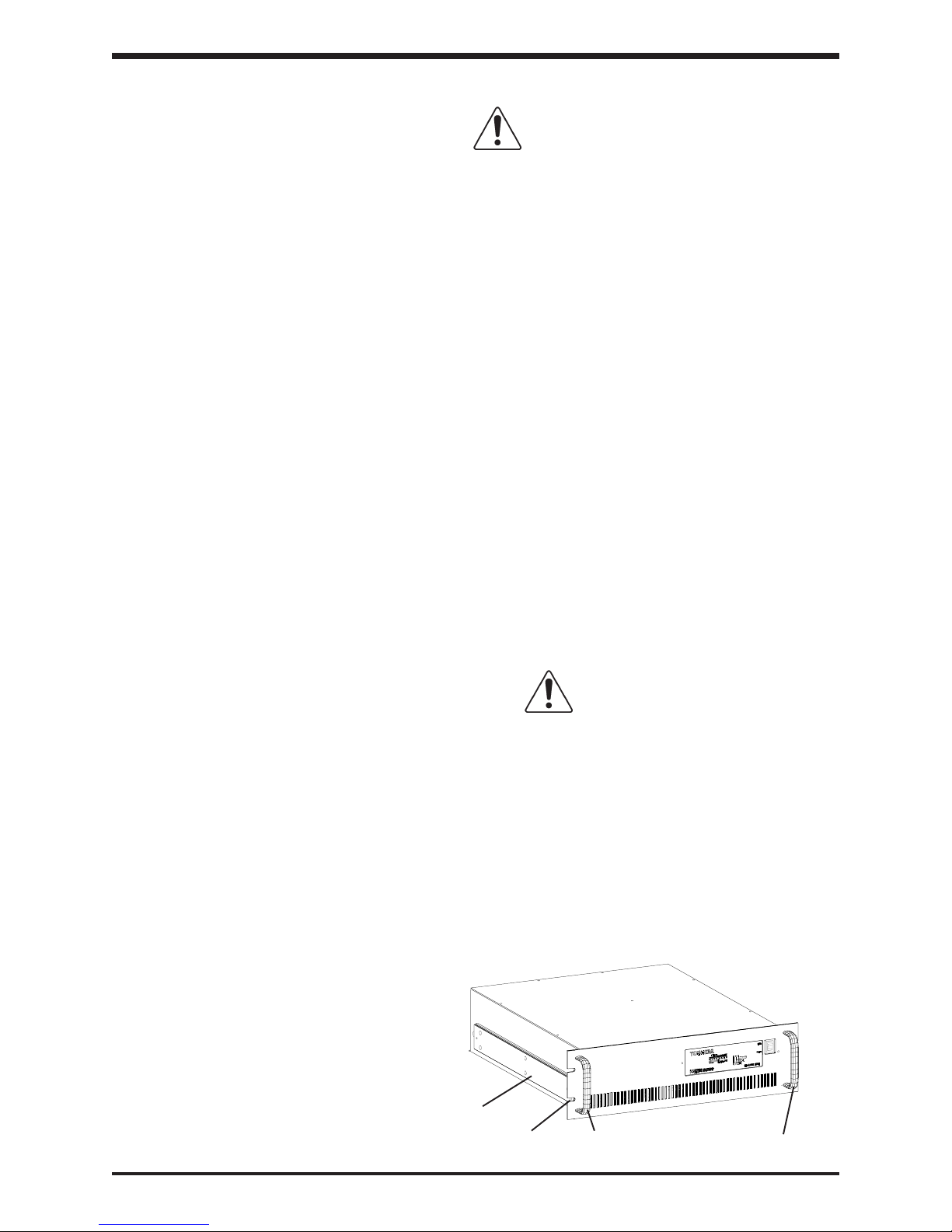

3.2 Installation Precautions (Rack mounted)
1) Install the UPS in a conventional rack-style structure. If attaching Jonathan
QD 145 slides, optional pre-tapped aluminum slide bars are available. The
optional aluminum slide bars may be attached to the sides of the unit as shown
(see detail below). The rack must be bolted to the floor, secured permanently to
a wall, or otherwise secured to prevent toppling.
2) Allow at least 4 inches of open space in the front of the unit for proper ventilation.
3) Allow at least 30 inches of open space at the rear of the unit for operation of
disconnect devices.
4) Use an appropriate mechanical lifting device when moving this unit into or out
of the rack structure.
CAUTION
CAUTION
Optional aluminum slide bars
(pre-tapped to accept a Jonathan
QD145 slide) Use both handles when lifting
entire weight of the unit
Front panel cutout

TOSHIBA
3 - 2
CAUTION
CAUTION
3.0 Precautions
3.3 Prestart Precautions
1) Before connecting the UPS to a power source; move the operation switch
(STOP/RUN), on the front panel (See sections 9.1 through 9.3), to the
STOP position.
3.4 Operating Precautions
1) The UPS should not be powered up until the entire operation manual has
been reviewed.
2) The input power source voltage and frequency must be within the specified
ranges (See Specification sections 4.1 through 4.3). Voltages and frequencies
outside of the permissible tolerance ranges may cause internal protection
devices to activate.
3) The UPS should not be used with a load whose rated input is greater than the
rated UPS output.
4) Do not use the UPS to provide power to motors that require high starting current
or a long starting time such as vacuum cleaners and machine tools (oversizing
for lock rotor current required).
5) Do not insert metal objects or combustible materials in the unit's ventilation slots.
6) Do not place, hang, or paste any objects on the top or on the exterior surfaces
of the UPS.
7) Always use caution when connecting or disconnecting load equipment.
The UPS may be supplying power to the output load receptacles
through the bypass circuit. This can occur when the STOP/RUN
switch is in the STOP position and the unit is connected to a source of
supply power (see Circuit-bypass Mode section 5.1.3).

TOSHIBA
MODEL NUMBER UC1A1A006C6B UC1A1A008C6B UC1A1A010C6B
CAPACITY 600 VA (0.42 kW) 800 VA (0.56 kW) 1000 VA (0.7 kW)
Input Input voltage Single phase, 120 Vac, +10% to -30% (*)
Input frequency 45 to 65 Hz
Input capacity 600 VA 800 VA 1000 VA
Input power factor Approximate unity (0.98 to 1.0)
Battery Battery rated voltage 36 Vdc 48 Vdc 48 Vdc
Battery backup time when fully charged 10 min. at full load (**) 10 min. at full load (**) 10 min. at full load (**)
with 0.7 power factor at 77°F (25°C) 30 min. at half load (**) 30 min. at half load (**) 30 min. at half load (**)
Recharge time Maximum 24 hrs to 100% (90% recharge after 8 hrs) (***)
Type of batteries Sealed lead-acid
Output Output voltage Single-phase, 120 volts
Output voltage regulation Within +/- 3%, steady state
Output frequency 50/60 Hz +/- 0.5% in free-running mode (line sync range +/- 1Hz)
Output voltage waveform Computer-grade sine wave with less than 3.0% total harmonic
distortion with linear load
Rated load power factor 0.7 lagging (0.6 to 1.0)
Voltage transient characteristic +/- 5% under 100% load step change
Rated output current (rms) 5.0A 6.7A 8.3A
Maximum output current (peak) 15.0A 20.0A 25.0A
Inverter overload capacity 150% for 60 seconds
Crest factor 3.0
Environment Operating temperature 32 to 104°F (0 to 40°C), optimal at 77°F (25°C)
Storage temperature -4 to 104°F (-20 to 40°C)
Operating humidity 30 to 90%, no condensation
Altitude(****) Less than 3000 ft (1000 m) above sea level
External dimensions 7.06W x 20.44D x 14.63H in (179W x 519D x 371H mm)
Net weight 60 lb (27.2 kg) 66 lb (29.9 kg) 70 lb (31.8 kg)
Acoustical noise 45 dB at max. output, measured 3.3 ft (1 m) from front panel
Efficiency (ac-dc-ac) 85% 85% 87%
Switches Bypass switch Automatic bypass is provided when the run switch is in the off
position, if a fault occurs, or if an overload occurs (transfer time is
approximately 4 mS)
Interfaces IBM (TM) AS/400 Pins 5 through 9
LAN Manager Pins 2 and 3 DB9 male connector
Fault detect and input power loss Pins 1 and 4
RS232 ASCII Pins 1 through 8 DB9 female connector (Pin 9 not used)
Options Software for unattended
computer shutdown Contact Toshiba for details on this option
External battery pack Contact Toshiba for details on this option
(*) Output capacity reduced when input voltage is between -15% and -30% of nominal.
(**) Battery backup time may vary depending on the operating conditions including ambient temperature at the
installation site.
(***) An initial charge time of 24 hrs. is necessary to obtain proper battery performance level before unit is used
for battery backup.
(****) At 6000 ft (2000 m) above sea level, output capacity should be derated by 3%.
4 - 1
4.1 Standard Series Specifications
4.0 Specifications

TOSHIBA
MODEL NUMBER UC1A1A012C6B UC1A1A015C6B UC1A1A020C6B
CAPACITY 1200 VA (0.84 kW) 1500 VA (1.05 kW) 2000 VA (1.4 kW)
Input Input voltage Single phase, 120 Vac, +10% to -30% (*)
Input frequency 45 to 65 Hz
Input capacity 1200 VA 1500 VA 1920 VA
Input power factor Approximate unity (0.98 to 1.0)
Battery Battery rated voltage 48 Vdc 72 Vdc 96 Vdc
Battery backup time when fully charged 10 min. at full load (**) 10 min. at full load (**) 10 min. at full load (**)
with 0.7 power factor at77°F (25°C) 30 min. at half load (**) 30 min. at half load (**) 30 min. at half load (**)
Recharge time Maximum 24 hrs to 100% (90% recharge after 8 hrs) (***)
Type of batteries Sealed lead-acid
Output Output voltage Single-phase, 120 volts
Output voltage regulation Within +/- 3%, steady state
Output frequency 50/60 Hz +/- 0.5% in free-running mode (line sync range +/- 1Hz)
Output voltage waveform Computer-grade sine wave with less than 3.0% total harmonic
distortion with linear load
Rated load power factor 0.7 lagging (0.6 to 1.0)
Voltage transient characteristic +/- 5% under 100% load step change
Rated output current (rms) 10.0A 12.5A 16.7A
Maximum output current (peak) 30.0A 37.5A 50.0A
Inverter overload capacity 150% for 60 seconds
Crest factor 3.0
Environment Operating temperature 32 to 104°F (0 to 40°C), optimal at 77°F (25°C)
Storage temperature -4 to 104°F (-20 to 40°C)
Operating humidity 30 to 90%, no condensation
Altitude(****) Less than 3000 ft (1000 m) above sea level
External dimensions (1.2 KVA) 7.06W x 20.44D x 14.63H in (179W x 519D x 371H mm)
External dimensions (1.5 - 2 KVA) 7.06W x 23.16D x 14.63H in (179W x 588D x 371H mm)
Net weight 76 lb (34.5 kg) 96 lb (43.6 kg) 106 lb (48.2 kg)
Acoustical noise 45 dB at max. output, measured 3.3 ft (1 m) from front panel
Efficiency (ac-dc-ac) 87% 87% 87%
Switches Bypass switch Automatic bypass is provided when the run switch is in the off
position, if a fault occurs, or if an overload occurs (transfer time is
approximately 4 mS)
Interfaces IBM (TM) AS/400 Pins 5 through 9
LAN Manager Pins 2 and 3 DB9 male connector
Fault detect and input power loss Pins 1 and 4
RS232 ASCII Pins 1 through 8 DB9 female connector (Pin 9 not used)
Options Software for unattended
computer shutdown Contact Toshiba for details on this option
External battery pack Contact Toshiba for details on this option
(*) Output capacity reduced when input voltage is between -15% and -30% of nominal.
(**) Battery backup time may vary depending on the operating conditions including ambient temperature at the
installation site.
(***) An initial charge time of 24 hrs. is necessary to obtain proper battery performance level before unit is used
for battery backup.
(****) At 6000 ft (2000 m) above sea level, output capacity should be derated by 3%.
4 - 2
4.1 Standard Series Specifications (Cont'd)
4.0 Specifications

TOSHIBA
MODEL NUMBER UC1A1A024C6B
CAPACITY 2400 VA (1.68 kW)
Input Input voltage Single phase, 120 Vac, +10% to -30% (*)
Input frequency 45 to 65 Hz
Input capacity 2400 VA
Input power factor Approximate unity (0.98 to 1.0)
Battery Battery rated voltage 96 Vdc
Battery backup time when fully charged 7 min. at full load (**)
with 0.7 power factor at77°F (25°C) 21 min. at half load (**)
Recharge time Maximum 24 hrs to 100% (90% recharge after 8 hrs) (***)
Type of batteries Sealed lead-acid
Output Output voltage Single-phase, 120 volts
Output voltage regulation Within +/- 3%, steady state
Output frequency 50/60 Hz +/- 0.5% in free-running mode (line sync range +/- 1Hz)
Output voltage waveform Computer-grade sine wave with less than 3.0% total harmonic
distortion with linear load
Rated load power factor 0.7 lagging (0.6 to 1.0)
Voltage transient characteristic +/- 5% under 100% load step change
Rated output current (rms) 20.0A
Maximum output current (peak) 60.0A
Inverter overload capacity 150% for 60 seconds
Crest factor 3.0
Environment Operating temperature 32 to 104°F (0 to 40°C), optimal at 77°F (25°C)
Storage temperature -4 to 104°F (-20 to 40°C)
Operating humidity 30 to 90%, no condensation
Altitude(****) Less than 3000 ft (1000 m) above sea level
External dimensions 7.06W x 23.16D x 14.63H in (179W x 588D x 371H mm)
Net weight 106 lb (48.2 kg)
Acoustical noise 45 dB at max. output, measured 3.3 ft (1 m) from front panel
Efficiency (ac-dc-ac) 87%
Switches Bypass switch Automatic bypass is provided when the run switch is in the off
position, if a fault occurs, or if an overload occurs (transfer time is
approximately 4 mS)
Interfaces IBM (TM) AS/400 Pins 5 through 9
LAN Manager Pins 2 and 3 DB9 male connector
Fault detect and input power loss Pins 1 and 4
RS232 ASCII Pins 1 through 8 DB9 female connector (Pin 9 not used)
Options Software for unattended
computer shutdown Contact Toshiba for details on this option
External battery pack Contact Toshiba for details on this option
(*) Output capacity reduced when input voltage is between -15% and -30% of nominal.
(**) Battery backup time may vary depending on the operating conditions including ambient temperature at the
installation site.
(***) An initial charge time of 24 hrs. is necessary to obtain proper battery performance level before unit is used
for battery backup.
(****) At 6000 ft (2000 m) above sea level, output capacity should be derated by 3%.
4 - 3
4.1 Standard Series Specifications (Cont'd)
4.0 Specifications

TOSHIBA
MODEL NUMBER UC1A1A006C6TB UC1A1A008C6TB UC1A1A010C6TB
CAPACITY 600 VA (0.42 kW) 800 VA (0.56 kW) 1000 VA (0.7 kW)
Input Input voltage Single phase, 120 Vac, +10% to -30% (*)
Input frequency 45 to 65 Hz
Input capacity 600 VA 800 VA 1000 VA
Input power factor Approximate unity (0.98 to 1.0)
Battery Battery rated voltage 36 Vdc 48 Vdc 48 Vdc
Battery backup time when fully charged 10 min. at full load (**) 10 min. at full load (**) 10 min. at full load (**)
with 0.7 power factor at 77°F (25°C) 30 min. at half load (**) 30 min. at half load (**) 30 min. at half load (**)
Recharge time Maximum 24 hrs to 100% (90% recharge after 8 hrs) (***)
Type of batteries Sealed lead-acid
Output Output voltage Single-phase, 120 volts
Output voltage regulation Within +/- 3%, steady state
Output frequency(*****) 50/60 Hz +/- 0.5% in free-running mode (line sync range +/- 1Hz)
Output voltage waveform Computer-grade sine wave with less than 3.0% total harmonic
distortion with linear load
Common mode Less than 0.5V peak
Normal mode Less than 10V peak
Rated load power factor 0.7 lagging (0.6 to 1.0)
Voltage transient characteristic +/- 5% under 100% load step change
Rated output current (rms) 5.0A 6.7A 8.3A
Maximum output current (peak) 15.0A 20.0A 25.0A
Inverter overload capacity 150% for 60 seconds
Crest factor 3.0
Environment Operating temperature 32 to 104°F (0 to 40°C), optimal at 77°F (25°C)
Storage temperature -4 to 104°F (-20 to 40°C)
Operating humidity 30 to 90%, no condensation
Altitude(****) Less than 3000 ft (1000 m) above sea level
External dimensions 7.06W x 20.44D x 14.63H in (179W x 519D x 371H mm)
Net weight 80 lb (36.4 kg) 85 lb (38.6 kg) 92 lb (41.8 kg)
Acoustical noise 45 dB at max. output, measured 3.3 ft (1 m) from front panel
Efficiency (ac-dc-ac) 83% 83% 85%
Switches Bypass switch Automatic bypass is provided when the run switch is in the off
position, if a fault occurs, or if an overload occurs (transfer time is
approximately 4 mS)
Interfaces IBM (TM) AS/400 Pins 5 through 9
LAN Manager Pins 2 and 3 DB9 male connector
Fault detect and input power loss Pins 1 and 4
RS232 ASCII Pins 1 through 8 DB9 female connector (Pin 9 not used)
Options Software for unattended
computer shutdown Contact Toshiba for details on this option
External battery pack Contact Toshiba for details on this option
(*) Output capacity reduced when input voltage is between -15% and -30% of nominal.
(**) Battery backup time may vary depending on the operating conditions including ambient temperature at the
installation site.
(***) An initial charge time of 24 hrs. is necessary to obtain proper battery performance level before unit is used
for battery backup.
(****) At 6000 ft (2000 m) above sea level, output capacity should be derated by 3%.
(*****) Output voltage and capacity derated for 50 Hz output (model # UC1A1A010C6TB only).
4 - 4
4.2 Plus Series Specifications (w/output isolation transformer)
4.0 Specifications

TOSHIBA
MODEL NUMBER UC1A1A015C6TB
CAPACITY 1500 VA (1.05 kW)
Input Input voltage Single phase, 120 Vac, +10% to -30% (*)
Input frequency 45 to 65 Hz
Input capacity 1500 VA
Input power factor Approximate unity (0.98 to 1.0)
Battery Battery rated voltage 72 Vdc
Battery backup time when fully charged 10 mins. at full load (**)
with 0.7 power factor at 77°F (25°C) 30 mins. at half load (**)
Recharge time Maximum 24 hrs to 100% (90% recharge after 8 hrs) (***)
Type of batteries Sealed lead-acid
Output Output voltage Single-phase, 120 volts
Output voltage regulation Within than +/- 3%, steady state
Output frequency***** 50/60 Hz +/- 0.5% in free-running mode (line sync range +/- 1Hz)
Output voltage waveform Computer-grade sine wave with less than 3.0% total harmonic
distortion with linear load
Common mode Less than 0.5V peak
Normal mode Less than 10V peak
Rated load power factor 0.7 lagging (0.6 to 1.0)
Voltage transient characteristic +/- 5% under 100% load step change
Rated output current (rms) 12.5A
Maximum output current (peak) 37.5A
Inverter overload capacity 150% for 60 seconds
Crest factor 3.0
Environment Operating temperature 32 to 104°F (0 to 40°C), optimal at 77°F (25°C)
Storage temperature -4 to 104°F (-20 to 40°C)
Operating humidity 30 to 90%, no condensation
Altitude(****) Less than 3000 ft (1000 m) above sea level
External dimensions 7.06W x 23.16D x 14.63H in (179W x 588D x 371H mm)
Net weight 117 lb (53.2 kg)
Acoustical noise 45 dB at max. output, measured 3.3 ft (1 m) from front panel
Efficiency (ac-dc-ac) 85%
Switches Bypass switch Automatic bypass is provided when the run switch is in the off
position, if a fault occurs, or if an overload occurs (transfer time is
approximately 4 mS)
Interface IBM (TM) AS/400 Pins 5 through 9
LAN Manager Pins 2 and 3 DB9 male connector
Fault detect and input power loss Pins 1 and 4
RS232 ASCII Pins 1 through 8 DB9 female connector (Pin 9 not used)
Options Software for unattended
computer shutdown Contact Toshiba for details on this option
External battery pack Contact Toshiba for details on this option
(*) Output capacity reduced when input voltage is between -15% and -30% of nominal.
(**) Battery backup time may vary depending on the operating conditions including ambient temperature at the
installation site.
(***) An initial charge time of 24 hrs. is necessary to obtain proper battery performance level before unit is used
for battery backup.
(****) At 6000 ft (2000 m) above sea level, output capacity should be derated by 3%.
(*****) Output voltage and capacity derated for 50 Hz output.
4 - 5
4.2 Plus Series Specifications (w/output isolation transformer) (Cont'd)
4.0 Specifications

TOSHIBA
MODEL NUMBER UC1A1A015C6RKB UC1A1A020C6RKB
CAPACITY 1500 VA (1.05 kW) 2000 VA (1.4 kW)
Input Input voltage Single phase, 120 Vac, +10% to -30% (*)
Input frequency 45 to 65 Hz
Input capacity 1500 VA 1920 VA
Input power factor Approximate unity (0.98 to 1.0)
Battery Battery rated voltage 72 Vdc 72 Vdc
Battery backup time when fully charged 10 mins. at full load (**) 7 mins. at full load (**)
with 0.7 power factor at 77°F (25°C) 30 mins. at half load (**) 21 mins. at half load (**)
Recharge time Maximum 24 hrs to 100% (90% recharge after 8 hrs) (***)
Type of batteries Sealed lead-acid
Output Output voltage Single-phase, 120 volts
Output voltage regulation Within than +/- 3%, steady state
Output frequency 50/60 Hz +/- 0.5% in free-running mode (line sync range +/- 1Hz)
Output voltage waveform Computer-grade sine wave with less than 3.0% total harmonic
distortion with linear load
Rated load power factor 0.7 lagging (0.6 to 1.0)
Voltage transient characteristic +/- 5% under 100% load step change
Rated output current (rms) 12.5A 16.7A
Maximum output current (peak) 37.5A 50.0A
Inverter overload capacity 150% for 60 seconds
Crest factor 3.0
Environment Operating temperature 32 to 104°F (0 to 40°C), optimal at 77°F (25°C)
Storage temperature -4 to 104°F (-20 to 40°C)
Operating humidity 30 to 90%, no condensation
Altitude(****) Less than 3000 ft (1000 m) above sea level
Overall dimensions 19W x 20D x 5.25H in (482W x 508D x 133H mm)
Net weight 81 lb (36.8 kg) 81 lb (36.8 kg)
Acoustical noise 45 dB at max. output, measured 3.3 ft (1 m) from front panel
Efficiency (ac-dc-ac) 87% 87%
Switches Bypass switch Automatic bypass is provided when the run switch is in the off
position, if a fault occurs, or if an overload occurs (transfer time is
approximately 4 mS)
Interface IBM (TM) AS/400 Pins 5 through 9
LAN Manager Pins 2 and 3 DB9 male connector
Fault detect and input power loss Pins 1 and 4
RS232 ASCII Pins 1 through 8 DB9 female connector (Pin 9 not used)
Options Software for unattended
computer shutdown Contact Toshiba for details on this option
External battery pack Contact Toshiba for details on this option
(*) Output capacity reduced when input voltage is between -15% and -30% of nominal.
(**) Battery backup time may vary depending on the operating conditions including ambient temperature at the
installation site.
(***) An initial charge time of 24 hrs. is necessary to obtain proper battery performance level before unit is used
for battery backup.
(****) At 6000 ft (2000 m) above sea level, output capacity should be derated by 3%.
4 - 6
4.3 Standard Series Specifications (Rack mounted)
4.0 Specifications
