TOTALINE TotalTouch P286-1600 User manual

FCC Statement THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
REPLACEMENT COMPONENTS DIVISION©CARRIER CORPORATION
www.totaltouch.info
Technical Support: 1-866-90TOUCH (1-866-908-6824)
Physical Dimensions
Case: 5.75” x 4.75” x 1.25”
(145mm x 120mm x 30mm)
Display: 3.625” x 2.125”
(95mm x 55mm)
HVAC Control Card
Case:4.50” x 3.45” x 0.825”
(114 mm x 87 mm x 21mm)
Electrical Rating
24 volt AC/DC
Class 2 maximum 4 amps
Temperature Accuracy
+/-1°F degree
Power failure protection safeguards
clock and memory.
Made in China / Printed in China
US PatentS 7,050,026 | 7,028,912 | 6,902,117 | 6,786,421 Other Patents Pending
www.totaltouch.info
Technical Support 1-866-90TOUCH (1-866-908-6824)
INSTRUCTION MANUAL
P286-1600 2 Heating and 1 Cooling
2 Wire Touch Screen Thermostat with HVAC Control Card

P286-1600 Loaded with features, your TotalTouch™ thermostat provides
comfort, ease of use in a package that works for you.
P286-1600 - all in an easy to use and install
application that works in a variety of instal-
lations where no common wire is avaliable.
True touch screen technology offers
responsive action, clear and easy to read
LCD display that works in all lighting
conditions. All with proven reliability backed
by the world’s largest manufacturer of air
conditioning and heating equipment.
Complete Com
f
ort
3

TABLE OF CONTENTS
Glossary of Terms ...................................................................................................6
Installing your Thermostat .......................................................................................8
Wiring Table and Diagrams .............................................................................9 – 16
Welcome to the Home Page.................................................................................17
Control Page – Temperature Operation Mode & Temperature Setpoints .......18 – 20
Fan Operation Mode.............................................................................................21
Menu Page ..........................................................................................................22
Date and Time Settings ........................................................................................23
Program Settings ..................................................................................................24
Energy Watch .......................................................................................................25
Screen Options.....................................................................................................26
Vacation Mode......................................................................................................27
Filter Monitor.........................................................................................................28
Advanced Features ...............................................................................................29
Advanced Features – Entry Page..................................................................30 – 31
Configuring your Equipment..................................................................................32
Setting the Differential ...........................................................................................33
Timer Feature........................................................................................................34
Heat Pump ...........................................................................................................35
Temperature Calibration ................................................................................36 – 37
Simple Thermostat Mode......................................................................................38
Troubleshooting ....................................................................................................39
Warranty ..............................................................................................................40
5

Anticipator control – Anticipator control
is used to turn off the heating equipment
before the room temperature actually
reaches the cut-out point.
Cut-in Point – The air temperature at the
thermostat at which it initiates action of
heating/cooling equipment.
Cut-out Point – The air temperature at the
thermostat at which it terminates action of
heating/cooling equipment.
Cycle rate – Cycle rate is the frequency that
heating or cooling equipment is turned on
during a certain period of time. Cycle rate
is often given in units of cycles per hour (CPH).
Differential – Differential is defined as
the difference between the cut-in and
cut-out points as measured at the
thermostat under specified operating
conditions. For example, if the thermostat
turns the heating equipment on at 70
degrees F and turns the heating equipment
off at 74 degrees F, then the differential is
4 degrees F.
Programmable thermostat – A thermostat
with the capability of automatically adjusting
temperature set point to pre-selected
settings at pre-selected times.
Setback – The automatic alteration of the
thermostat control point(s) by means other
than manually changing the temperature set
point.
Set point – The desired temperature
setting on an electromechanical or
electronic thermostat.
GLOSSARY OF TERMS SELECT A LOCATION
Install your TotalTouch™ thermostat approximately 5 feet (1.5 meters) above the floor in
an area with good air circulation.
Avoid the following locations:
• Hot or cold air from ducts
• Radiant heat for appliances or sun such as a skylight
• Unheated areas or uncooled areas:
for example an outside wall behind the thermostat.
6 7

WIRING TABLE
TERMINAL EQUIPMENT
GFan
Y Compressor
OBW OB Valve or Second Stage Furnace
W Furnace
T1 Connection to the Thermostat
T2 Connection to the Thermostat
R1 Power
R Power for W only
C Power
MOUNTING TOTALTOUCH™ TO THE WALL
1. Make sure to turn off the power supply located at the electrical service panel.
All heating and cooling units should be OFF.
2. Remove the cover plate by pulling up the cover from the left or right side only.
3. Align the thermostat unit to the wall.
4. Mark the two locations for drilling the 3/16” holes required for the plastic screw anchors.
5. Remove the thermostat and drill the two 3/16” holes in these locations.
6. Insert the plastic gyproc screw anchors and tighten them securely.
7. Make the appropriate wire connections based on the specifications of the
household HVAC unit(s). Please refer to Wiring Table to determine the appropriate
wire connections.
8. Securely mount the thermostat unit to the wall with the two supplied screws.
9. Fit the cover plate back by clipping one side first (left or right) and than push down
on the opposite side.
10. Turn on the electricity at the electrical service panel.
8 9
HVAC CONTROL CARD

INSTALLING THE HVAC CONTROL CARD
11
INSTALLING THE HVAC CONTROL CARD
>P286-1600 2 Heating and 1 Cooling for 2 Wire Installation with HVAC
Control Card
•WIRING THE HVAC CONTROL CARD AT THE EQUIPMENT -
CHOOSE YOUR INSTALLATION:
10
ONE AIR CONDITIONER
FANFURNACE AC
.......... ..........
RC
ONE AIR CONDITIONER & ONE HEAT
FAN A C
.......... ..........
RC

INSTALLING THE HVAC CONTROL CARD
13
INSTALLING THE HVAC CONTROL CARD
12
FAN
FURNACE
AC
FURNACE
2ND STAGE
.......... ..........
RC
ONE AIR CONDITIONER & TWO HEAT
FAN
STAGE 1
FURNACE
AC
STAGE 2
FURNACE
.......... ..........
RC
ONE AIR CONDITIONER & TWO STAGE FURNACE
FAN
COMPRESSOR
OBW
.......... ..........
RC
ONE HEAT PUMP
FAN
FURNACE COMPRESSOR
OBW
.......... ..........
RC
ONE HEAT PUMP & ONE HEAT

THERMOSTAT AND HVAC CONTROL CARD
15
INSTALLING THE HVAC CONTROL CARD
14
FANSPECIAL
FURNACE
.......... ..........
REMOVE
JUMPER
CR
INDEPENDENT
24VAC SUPPLY
FURNACE WITH INDEPENDENT 24VAC SOURCE •Then Connect the T1 and T2 to the thermostat
You can connect without worry of polarity
......................................... .........................................

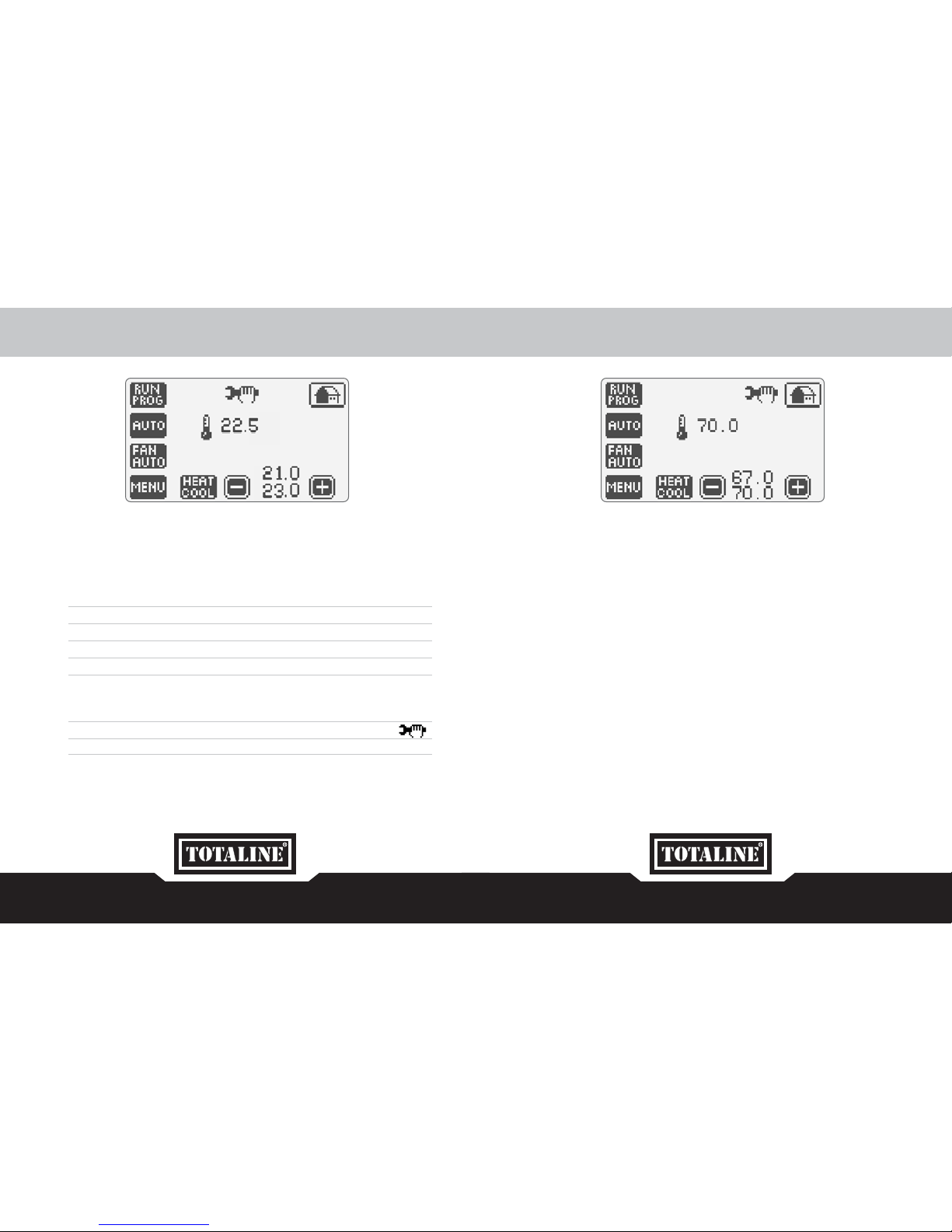

HOME PAGE
>To return to the Home Page, simply touch icon at any time!
1 Current Room Temperature
2 ºF/ºC Indicator
3 Thermostat Control Mode: Run Program or Hold Temperature
4 Temperature Control Mode: Auto, Heat and Cool
5 Fan Operation Mode: Fan Automatic, Fan Intermittent, Fan Off
6 Fan Operation Indicator
7 Heat Setpoint and Cool Setpoint
8 Date Stamp (Month/Day/Year)
9 Time: Choose between 12 hour or 24 hour clock
>Now that you know the basics let’s review the Control
Page - and begin to learn about all the unique features!
17
DIAGNOSTICS
>The P286-1600 was developed with diagnostic tools on board to ensure
an easy installation, and to save on steps between the HVAC equipment
and the thermostat.
• Upon connection if the COMM Indicator Light is steadily lit, it signifies a
positive connection.
• If the COMM Indicator Light is pulsing (flash, flash, flash, flash and continuously
on), it signifies that the two wires are open and that the thermostat does not
have power.
Solution: Check wire.
• If the COMM Indicator Light is pulsing (steady flash on, flash off) it signifies
that the two wires are shorted and there is no signal.
Solution: Check wire and use voltmeter to check the voltage.
• If the COMM Indicator Light is pulsing fast (flash on, flash off) it signifies that
the data from the thermostat is invalid. This rarely will occur, and only if the 2
wire connection is extremely long and noisy.
• If any of the above does occur, all relays will be turned off one by one for
automatic protection.
16

THERMOSTAT OPERATION MODE
• Your TotalTouch™ thermostat can run in Program Mode or can hold a fixed
temperature.
•RUN PROGRAM: Your custom program settings will be initiated - 4 events per
day including the fan mode
•HOLD TEMPERATURE: Allows you to raise or lower the temperature setpoint
by touching the heat/cool - to lower + to raise
19
CONTROL PAGE
>The TotalTouch™ Control Page provides you with an easy and intuitive
screen to set your thermostat- all functions are available at the touch of
a finger! To access the Control Page, simply touch the Home Page
Screen… anywhere!
1 Current Room Temperature
2 Thermostat Control Mode: Run Program or Hold Temperature
3 Temperature Control Mode: Auto, Heat, Cool and Off
4 Fan Operation Mode; Fan Automatic, Fan Intermittent, Fan Off
5 Menu Page – Access all program features with this button
6 Temperature Control Mode: Heat and Cool temperature set points allows you to
change, raise or lower set point as desired. In “Auto” mode touch the Heat/Cool
button (Heat or Cool will flash once selected), then raise or lower set points as desired.
7 Displays Installer Message: review important information
8 Returns to the Home Page
18

FAN OPERATION MODE
• There are three modes of fan operation: Fan Auto, Fan On, Fan Off. When
the fan is running, the animated fan icon will appear on the Home Page.
•FAN AUTO: The fan will run on only when there is a demand for heating or
cooling.
•FAN ON: The fan runs continuously
•FAN INTERMITTENT: The fan will run 10 minutes per 1/2 hour providing a
convenient way to improve air quality and save energy.
21
CONTROL PAGE – TEMPERATURE SETPOINTS
•AUTO, HEAT, COOL AND OFF
Based on your HVAC equipment you can quickly and easily select the mode
of operation - Automatic • Heat • Cool • Off
• Auto – choose your heat and cool temperature setpoints – the temperature
will automatically adjust according to the requirement
• Heat – choose your Heat setpoint
• Cool – choose your Cool setpoint
• OFF - no heating or cooling
•PROGRAM TEMPERATURE SETPOINTS:
• Choose Heat: Heat will appear with a temperature range, select your temperature
• Choose Cool: Cool will appear with a temperature range, select your temperature
• Choose AUTO: A combined heat/cool button will appear – when heat flash-
es – choose your temperature setpoint, touch the button to toggle to cool,
then set your temperature setpoint.
20

MENU PAGE - DATE AND TIME SETTINGS
•Select the 12 or 24 hour clock display.
•Set the time of day by choosing hour and minute buttons.
•Set the Month, Day and Year by choosing the buttons.
23
MENU PAGE
>To access the Menu Page, simply touch Menu from the Control Page.
Remember it is as easy as a touch of the button.
• Set-up of your TotalTouch™ Thermostat is effortless with intuitive menu driven
programming - on our patented touchscreen.
• Enter Date and Time Settings: Program 7 days with 4 events per day to
improve efficiency and reduce energy costs
•Energy Watch: display kWh consumption as well as the dollar cost of the
HVAC System - configure this feature in Advanced Settings
•Clean the Screen without worry
• Access the Set Screen menu
•Advanced Settings for configuration of equipment
•Vacation Mode
• View Filter Monitor
• Activate the Humidify/De-humidify Function
22

ENERGY WATCH
•ENERGY WATCH: This unique and patented feature
provides a display of system energy consumption and
the cost of running your HVAC system. This feature
must be activated in the ADVANCED SETTINGS of
the Thermostat - page 38.
25
MENU PAGE - PROGRAM SETTINGS
•PROGRAM SETTINGS: This feature easily and quickly programs your
thermostat to fit your needs and lifestyle. Remember by programming the
thermostat you can increase energy efficiency and reduce energy.
• 7 Day Programmable with 4 events per day including Fan Mode
• Select the Day of the Week
• Select the Event number: for example 1
• Select the Start Time: for example 7:00 AM
• Choose desired temperature setpoint – by raising or lowering the heat/cool button
• Choose the next event: for example 2 and repeat the steps
Once you have set all the events for one day you may
copy the same settings to other days of the week. First
ensure that your program settings are correct. Then
select the next day of the week that you would like to
have the same program setting. TotalTouch™ will then
prompt you to copy the settings. Remember that you
must choose RUN Program from the control page to
activate this feature.
24

VACATION MODE
•VACATION SETTINGS: Allows you to set the temperature to a fixed setpoint during
the time you are on vacation, providing energy savings and comfort for your return
home. IMPORTANT: Heat or Cool must be selected from the Control Page before
entering the Vacation Settings page. To begin select Vacation Mode ON:
• Select the Start Date
• Select the End Date
• Adjust the Heat or Cool temperature setpoint: the Vacation mode begins at 10
PM on the day of your departure and ends at Midnight on the day of your arrival.
• When the Vacation mode is active the suitcase icon will appear on the HOME
PAGE. Upon your return from vacation, a message Vacation Mode Ended will
be displayed on the screen. Simply touch the
screen to acknowledge the message, and your
TotalTouch™ thermostat will automatically
revert to the Program Settings if you are in Run
Program Mode or your can choose to Hold
Temperature to raise or lower the setpoint.
27
SCREEN OPTIONS
•CLEAN SCREEN: This function allows you to safely wipe and clean the screen with
a dampened cloth with out accidentally changing any of the settings; it places the
TotalTouch™ screen in a sleep mode for 15 seconds.
•SET SCREEN: Your TotalTouch™ thermostat has a number of options to ensure clear
viewing throughout the day and night, firstly;
• Backlight: choose between Auto or ON
• Reverse: Choose between a dark background (ON) or light background (OFF)
• Night Reverse: Another patented feature – ON: at 9PM the screen automat-
ically reverses the background for comfortable viewing at night – at 6:00AM
it returns to the Normal Mode for clear daytime viewing. OFF: screen back-
ground determined by “Reverse” function setting.
• Contrast: Provides a range from 1 – 10 to lighten or darken the screen best
suit your surroundings – we advise the setting of 7.
26

MENU PAGE - ADVANCED SETTINGS
>IMPORTANT INSTALLER SET-UP
This TotalTouch™ thermostat works with many different HVAC systems –
Gas, Oil, Electric Heat Pump, 2 Stage Heat Pump, 2 Stage Furnace and
Compressors. You must enter this menu to configure the thermostat with
HVAC operating equipment, and to fully customize the thermostat.
ADVANCED SETTINGS: To begin, hold your finger for 5 seconds on the
Advanced Settings Button – you will hear a beep telling you that you are in the
process of entering this feature.
A warning message will appear:
CAUTION: INCORRECT CONFIGURATION
CAN DAMAGE YOUR SYSTEM, CONTINUE?
YES NO
ACCEPT – YES
29
MENU PAGE
•FILTER MONITOR: Displays filter usage in days and resets filter timer – when acti-
vated the FILTER MONITOR icon will appear on your HOME PAGE – this feature must
be activated in ADVANCED SETTINGS.
28

ADVANCED SETTINGS – WELCOME
4 º
F: Choose between display units of Fahrenheit or Celsius for thermostat temperature
5 SECURITY: The security settings allow you to protect your TotalTouch™
thermostat from unauthorized use, and provides 2 levels of security. On your
HOME PAGE once this feature is activated you will see a small lock icon.
• Turn Security On or Off – the Factory Setting PIN is 1111
• As a first time user you will be prompted to enter the Factory Setting PIN 1111
• Enter your new PIN and then Re-enter your new PIN once more.
• There are two modes of password protection: Full Lock Function does not allow
any changes unless the user enters the PIN. Partial Lock Function allows you to
change only the temperature setpoint without entering a PIN.
6 INSTALLER MESSAGE: (up to 42 characters) to appear at programmable
intervals. Enter your message on the screen using the
keyboard – for example service reminders or emergency
contact information. Type your message in using the
keyboard, upon completion choose OK. Set the
number of months after which you with the message
to appear. Touch the home or menu icon to exit.
31
ADVANCED SETTINGS – WELCOME
1 HOME BUTTON: Returns you to the Home Page at anytime- remember you will
have to re-enter through the ADVANCED SETTINGS button.
2DAYLIGHT TIME : Choose Daylight Time On or Off dependent on your Time Zone.
2 FILTER: A Helpful reminder to change or clean your air filter. The Filter Monitor
function indicates how many days of "fan run time" the air filter has been used. Reset
it each time after changing your air filter.
3 ENERGY WATCH: By entering the HVAC system con-
sumption parameters rounded off to kW, you will have
a real time total of kilowatts and cost of consumption.
To review touch the Energy Watch button on the Menu
Page. EXAMPLE: Fan 1kW, Heat Pump 1kW/ton,
Furnace 5-30 kW, 7-9¢/kW
• This feature will run consecutively for 255 days. If
you do not enter your information what will appear on
the display is the total time the Compressor and the
Furnace have been operating.
30

ADVANCED SETTINGS – SETTING THE DIFFERENTIAL
>THE P286-1600 ALLOWS YOU TO CONTROL UP TO 2 STAGES OF
HEATING AND 1 STAGE OF COOLING, DEPENDENT ON THE TYPE OF
SYSTEM YOU HAVE CONFIGURED.
1 1ST STAGE DIFFERENTIAL: Set temperature difference between temperature set point
and actual temperature reading before 1st stage heating or cooling is initiated.
2 2ND STAGE DIFFERENTIAL: Set temperature difference between 1st stage initiation
and 2nd stage heating or cooling initiation.
3 OBW ENERGIZED: Reverses the Heat Pump OBW Valve contact to HEAT or COOL
(manufacturer dependent).
33
ADVANCED SETTINGS – CONFIGURING YOUR EQUIPMENT
>IMPORTANT: BY INADVERTENTLY MODIFYING COMPRESSOR AND
FURNACE SETTINGS, YOU MAY SERIOUSLY DEGRADE SYSTEM
PERFORMANCE.
>CHOOSE SYSTEM HEATING AND/OR COOLING EQUIPMENT –
REMEMBER ALL YOU NEED TO DO IS TOUCH THE BUTTON WITH
YOUR FINGER.
1 Choose Heat Pump, 2 Stage Heat Pump, Air Conditioning, No Compressor –
please review the wiring table and diagram for wiring instructions.
2 Choose Furnace Off (No Furnace), Electric Furnace, Emergency Electrical Furnace
(additional electric furnace which will come on in emergency mode in conjunction
with electric furnace), Gas Furnace, Oil Furnace, and 2 Stage Gas Furnace; please
review the wiring table and diagram for wiring instructions.
3CYCLE RATE: Set the minimum difference between Auto Mode, Heat and Cool
temperature set points.
4AUTO CHANGE: Set Maximum compressor cycles per hour.
32

ADVANCED SETTINGS – HEAT PUMP
• HP “ON” when Furnace On: Heat Pump and Furnace can operate together when
2nd stage furnace is required. HP “OFF” when Furnace On: turns off the Heat Pump
when the furnace is On (required on some gas or oil furnaces).
35
ADVANCED SETTINGS – TIMER FEATURE
• Specify the number of minutes for which Stage 1 will function until Stage 2 is acti-
vated to help raise (or cool) temperature (if the temperature set point is not reached).
This unique function avoids excess compressor wear in the case where the neces-
sary temperature set point is not met through setting of the Staging Differentials. Set
to “00” to disable.
34

>TEMPERATURE CALIBRATION TABLE
• Firstly, determine with a calibrated thermometer the temperature difference –
then use the following table to adjust your thermostat.
Thermostat Fahrenheit Celsius
Calibration Number Change Change
+3.0 +6F +3.0C
+2.5 +5F +2.5C
+2.0 +4F +2.0C
+1.5 +3F +1.5C
+1.0 +2F +1.0C
+0.5 +1F + .5C
Factory Setting 00 No Correction Required
-0.5 -1F -.5C
-1.0 -2F -1C
-1.5 -3F -1.5C
-2.0 -4 F -2.0C
-2.5 -5F -2.5C
-3.0 -6F -3.0C
ADVANCED SETTINGS – CALIBRATION
37
>CALIBRATION OF TEMPERATURE
Your TotalTouch™ Thermostat is rated for an accuracy of +/-1 degree with
temperature
• If you have determined due to drafts, sunlight or other environmental factors that
your thermostat needs calibration, follow this easy guide. Common causes of off-
set are lack of air circulation in the vicinity of your TotalTouch™ unit or skylights.
ADVANCED SETTINGS – CALIBRATION
36

TROUBLESHOOTING
•Touch screen buttons do not function properly. Remove cover, press the reset but-
ton located in the bottom left corner then accurately touch 3 target centers on the
screen when prompted.
•Air Conditioning does not turn on even when room temperature is higher then the
temperature set point set point (Humidity models only). DHCONTROLCOMP is turned
ON and dehumidify set point has been reached. This will cause air conditioning to
turn off. Lower Setpoint – Page 26, Dh CONTROLCOMP – Page 45.
•Air conditioning turns on in HEAT mode and heating turns on in COOL mode. Reverse
the OBW valve (see “Advanced Settings” Page 42).
•PARTIAL LOCK and FULL LOCK do not function. You must not touch the screen
for 1 minute for TotalTouch™ to automatically lock.
•I forgot my PIN and cannot unlock the thermostat. Remove the cover plate, press
the reset button located in the bottom right corner, as soon as the message “touch
to reset password” appears touch the screen, your PIN will be erased and the ther-
mostat will unlock.
39
SIMPLE THERMOSTAT MODE
>TOTALTOUCH™ CAN ALSO FUNCTION AS A NON-PROGRAMMABLE
THERMOSTAT AFTER IT HAS BEEN CONFIGURED.
• To enable “Simple Mode”, press the reset button (take off the thermostat face-
plate and press the reset button located in the bottom right-hand corner). The
message “Touch for simple thermostat” will appear. Touch the screen, and
TotalTouch™ becomes a simplified non-programmable thermostat.
• Please note that when changing to Simple Mode, you will not lose any of the
settings you have previously entered in the “Programmable Mode”.
• To revert back to the Programmable TotalTouch™ Thermostat, simply press
the reset button and touch the screen when the message “Touch for
Programmable Thermostat” appears.
Simple Mode has the following basic features:
Temperature Control Modes:
Fan Operation Modes:
38
