Town & Country Fireplaces TC42 User manual

050207-40 TC42.CE 5056.426.C
IMPORTANT:
THESE INSTRUCTIONS ARE TO REMAIN
WITH THE HOMEOWNER
WARNING: If the information in this manual
is not followed exactly, a re or explosion
may result causing property damage,
personal injury or loss of life.
-- Do not store or use gasoline or other
ammable vapors and liquids in the vicinity
of this or any other appliance.
-- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbour’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
-- Installation and service must be
performed by a qualied installer, service
agency or the gas supplier.
FOR YOUR SAFETY
MODEL TC42
SERIES C
MODULAR DIRECT VENT
FIREPLACE
This appliance may be installed in an after-
market permanentlylocated,manufactured
home (USA only) or mobile home, where
not prohibited by local codes.
This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases, unless a certied kit is
used.
TC42
INSTALLATION
AND OPERATING
INSTRUCTIONS

page 2 TC42.CE 050207-40
Contents
CAUTION...............................................................................................................3
SAFETY ................................................................................................................3
MASSACHUSETTS RULES AND REGULATIONS ..............................................4
MANTEL CLEARANCES......................................................................................5

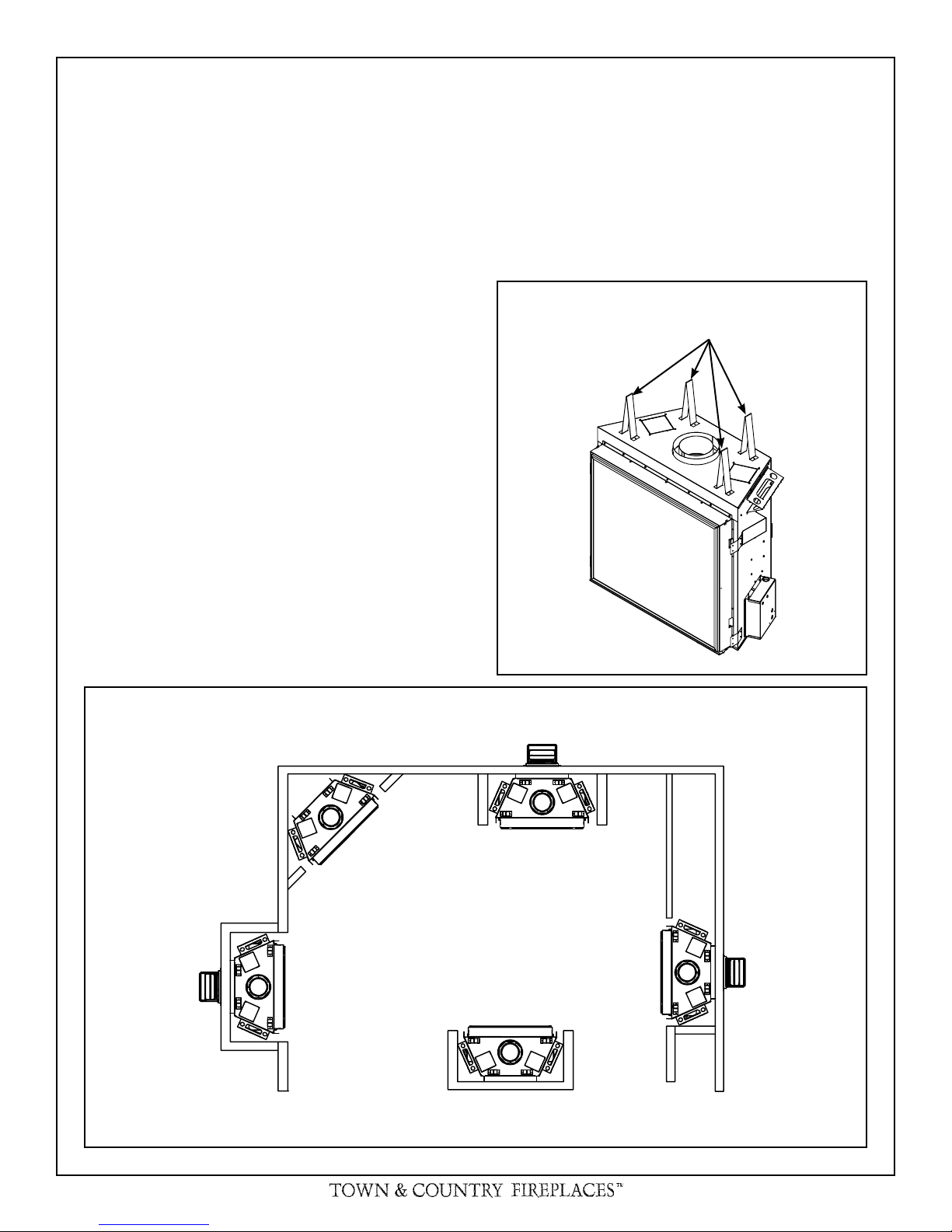

LOCATING THE FIREPLACE ............................................................................... 6
INSTALLATION REQUIREMENTS .......................................................................6
TOP STANDOFFS.................................................................................................6
FRAMING AND FINISHING .................................................................................. 7

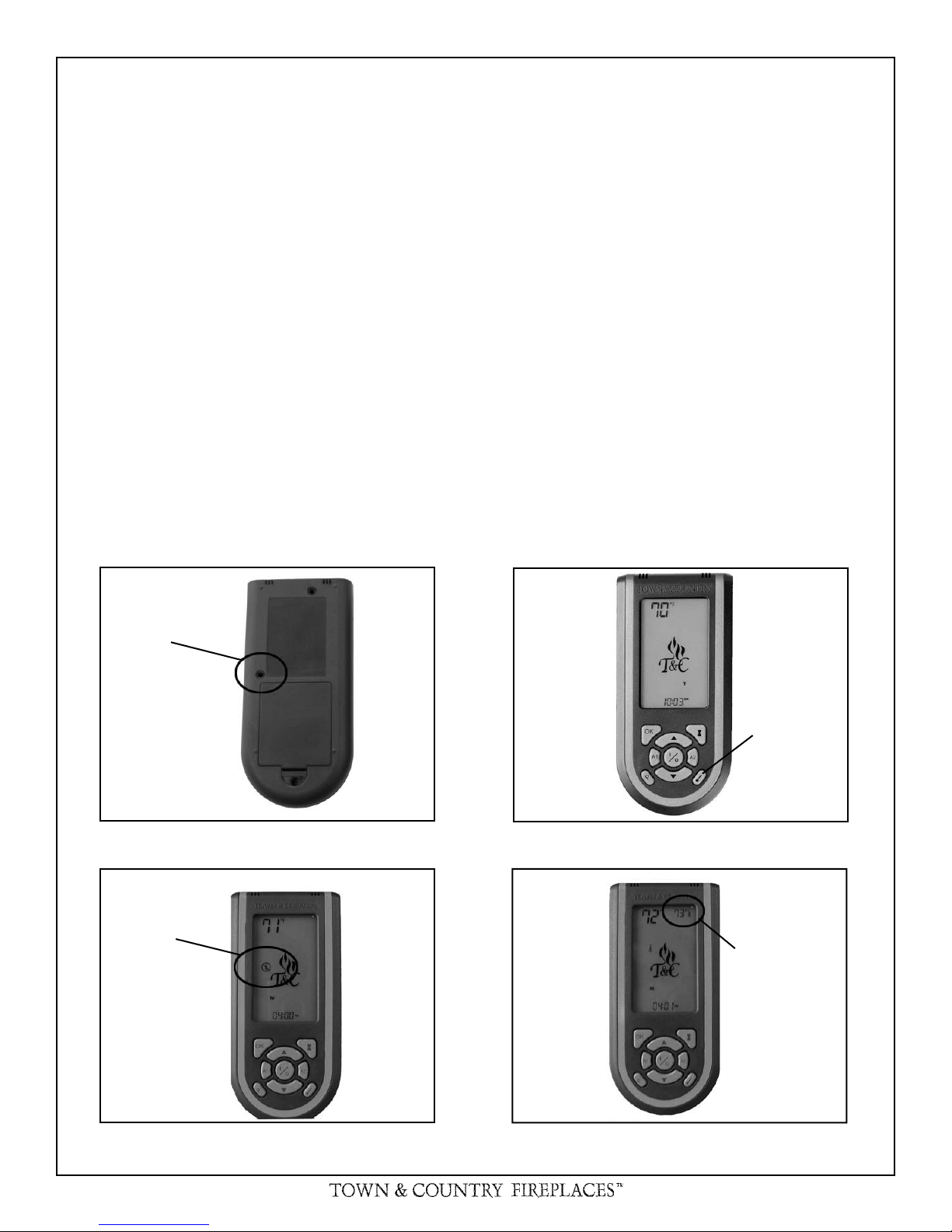

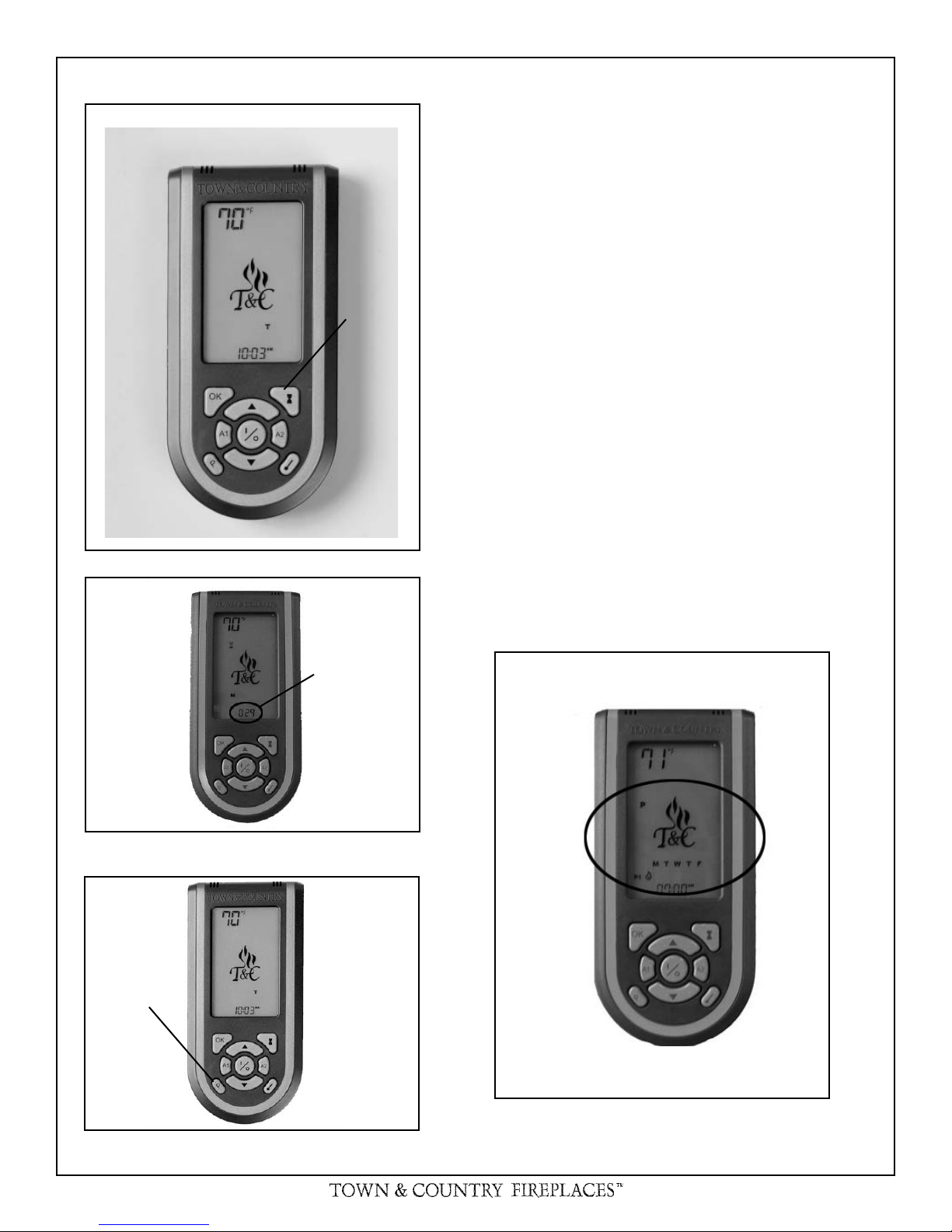

MAESTRO CONTROL SYSTEM...........................................................................9
CONVERSION LP............................................................................................... 11
HEARTH EXTENSION........................................................................................ 18
VENTING............................................................................................................. 18
WALL TERMINATION VENTING ........................................................................ 18
ROOF TERMINATION VENTING ........................................................................ 23
VENT TERMINAL CLEARANCE ........................................................................25
VENT PIPE SEALANT........................................................................................ 26
VENT RESTRICTOR ADJUSTMENT..................................................................27
MANUFACTURED (MOBILE) HOME .................................................................27
GAS SUPPLY ...................................................................................................... 28
WINDOW FRAME REMOVAL............................................................................. 28
BRICK PANELS INSTALLATION .......................................................................29
LIGHTING INSTRUCTIONS ............................................................................... 30
FIRST FIRE .........................................................................................................30
MAINTENANCE ..................................................................................................31
APPENDIX A.......................................................................................................31
REPLACEMENT PARTS ..............................................................................32
REPLACEMENT PARTS - MAESTRO CONCEALED VALVE .....................33
POWER VENT WIRING DIAGRAM .............................................................. 34
ROOF TERMINATION KIT............................................................................35
WALL TERMINATION KIT............................................................................ 35
WALL SHIELD/CEILING FIRESTOP THIMBLE........................................... 35
VENT PIPE DIMENSIONS............................................................................ 36
VENT OFFSET CHART................................................................................37
SAFETY LABEL LOCATION........................................................................ 39

050207-40 TC42.CE page 3
53 7/8
38 1/8
11 11/16
47 5/16
43 1/2
49 3/4
29 7/16
26 7/8
42 3/16
14 1/4
26 7/8
CENTER OF FLUE OUTLET TOP
STANDOFFS
43 1/2
47 5/16
12 5/8
CAUTION
FOR YOUR SAFETY - Do not install or operate your Town
and Country replace without rst reading and understanding
this manual. Any installation or operational deviation from the
following instructions voids theTown and Country FireplacesTM
Warranty and may prove hazardous.
This appliance and its individual shutoff valve must be discon-
nected from gas supply piping system during any pressure
testing of that system at test pressures in excess of 1/2 psig
(3.5 kPa).
This appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Note: When lit for the rst time, the appliance will emit a slight
odour for a couple of hours. This is due to the curing of paints,
sealants and lubricants used in the manufacturing process.This
condition is temporary. Open doors and windows to ventilate
area. Smoke and fumes caused by the curing process may
cause discomfort to some individuals.
Do not use the replace if any part has been under water.
Immediately call a qualied service technician to inspect the
replace and to replace any part of the control system and
any gas control which has been under water.
SAFETY
Due to high temperatures, this gas appliance should
be located out of traffic and away from furniture and
draperies.
Children and adults should be alerted to the hazards of
high surface temperatures and should stay away to avoid
burns or clothing ignition.
Young children should be carefully supervised when they
are in the same room as the appliance.
Clothing or other ammable material should not be placed
on or near the appliance.
Any grill, panel or door removed for servicing the unit
must be replaced prior to operating. Failure to do so may
create a hazardous condition.
Installation and repair should be done by a qualied service
person. The appliance should be inspected before use
and at least annually by a professional service person.
More frequent cleaning may be required due to excessive
lint from carpeting, bedding material, etc. It is imperative
that control compartments, burners and circulating air
passageways of the appliance be kept clean.
It is our policy that no responsibility is assumed by the
Company or by any of its employees or representatives
for any damages caused by an inoperable, inadequate,
or unsafe condition which is the result, either directly
or indirectly, of any improper operation or installation
procedures.

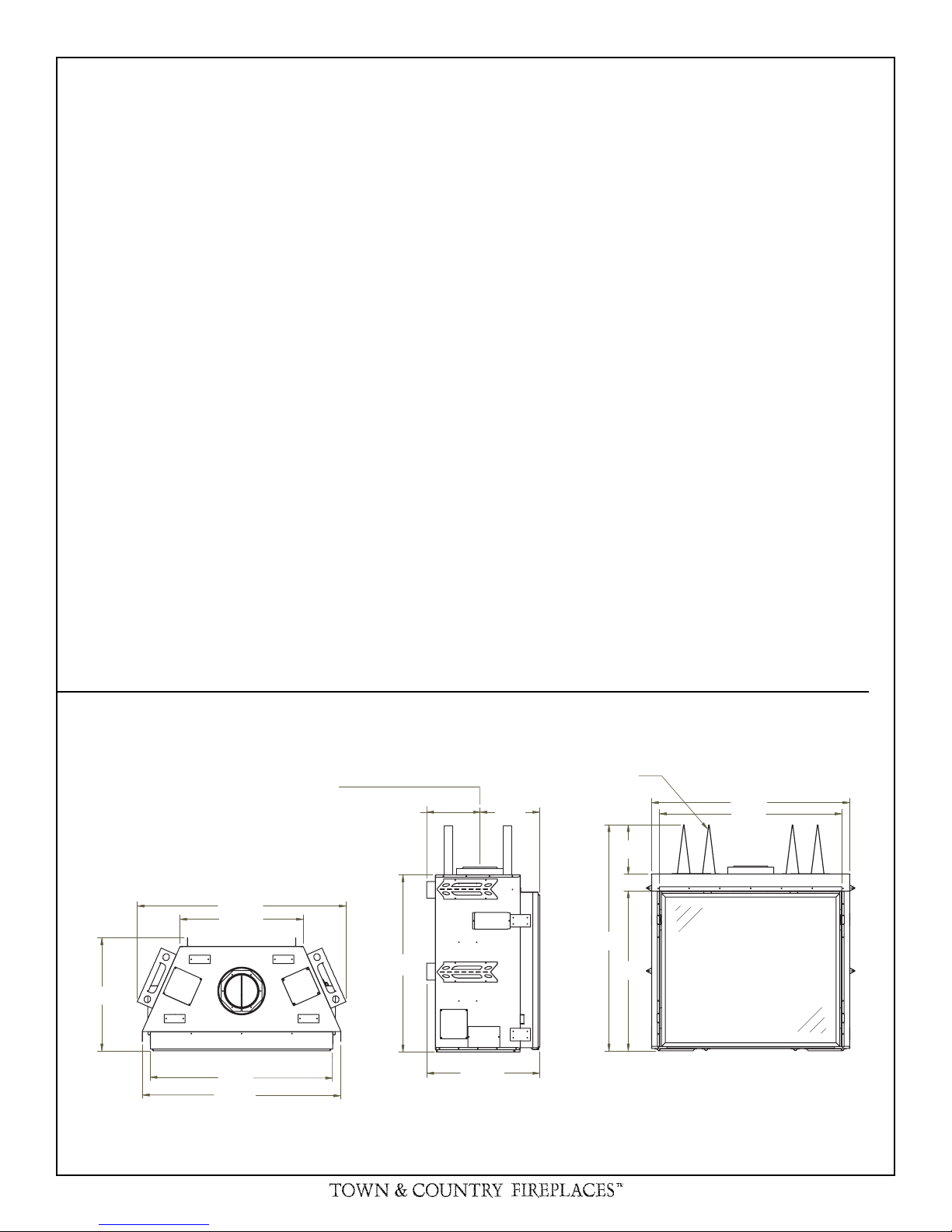

Fig # 1
FIREPLACE DIMENSIONS

page 4 TC42.CE 050207-40
Important Note for the Commonwealth of Massachusetts:
From Massachusetts Rules and Regulations 248 CMR 5.08:
(a) For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination
is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following
requirements shall be satisfied.
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas
fuelled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery
back-up is installed on the floor level where the gas equipment is to be installed, in addition, the installing plumber or gasfitter shall observe
that a battery operated or hard-wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building
or structure served by the side wall horizontal vented gas fuelled equipment. It shall be the responsibility of the property owner to secure
the services of qualified licensed professionals for the installation of hard-wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fuelled equipment is installed in a crawl space or an attic, the hard-wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall have
a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery
operated carbon monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above
provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed as IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fuelled heating appli-
ance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fuelled equipment shall not approve the
installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provi-
sions of 248 CMR 5.089(2)(a) 1 through 4.
(b) EXEMPTIONS. The following equipment is exempt from 248 CMR 5.089(2)(a) 1 through 4.
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as
adopted by the Board; and
2. Product Approved side wall horizontal vented gas fuelled equipment installed in a room or structure separate from the dwelling,
building or structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of
Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the
equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer
of a Product Approved side wall horizontally vented gas fuelled equipment does not provide the parts for venting the fuel gases, but identi-
fies “special venting systems”, the following requirements shall be satisfied by the manufacturer.
1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions;
and
2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts
list and detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fuelled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the
completion of the installation.

050207-40 TC42.CE page 5
D
E
F
C
B
A
A 9" D 12"
B 6" E 6 3/4"
C 3" F 1 1/2"
**
2
4"
*
38 1/8"
4"
Minimum Clearances to Combustibles:
Side standoffs.......................0 in. (0 mm)
Back standoffs ......................0 in. (0 mm)
Top standoffs ........................0 in. (0 mm)
Bottom of appliance..............0 in. (0 mm)
Adjacent sidewall..................4 in. (102 mm)
Ceiling to appliance ............24 in. (610 mm)
Mantel to appliance ..........See Fig. #2
Maximum
mantel extension ..........See Fig. #2
Mantel support......................4 in. (102 mm)
Vertical vent pipe ............1-3/4 in. (45 mm)
Horizontal vent pipe
Top.............................1-3/4 in. (45 mm)
Sides .........................1-3/4 in. (45 mm)
Bottom .......................1-3/4 in. (45 mm)
Fig. # 3
CEILING
ADJACENT
WALL OR
MANTEL
SUPPORT
MANTEL
UNIT MAY BE RECESSED UP TO
6" WITH NON-COMBUSTIBLE
MASONRY TYPE MATERIAL
COMBUSTIBLEFRAMING
AND FINISHWALLABOVE
STANDOFFS
MAY USE COMBUSTIBLE
FACING MATERIAL IN
THIS AREA
NONCOMBUSTIBLE
FINISH MATERIAL
STANDOFFS
STEEL FRAMING
FIREPLACE FRONT
TOP OF SHEET METAL
MANTEL CLEARANCE CHART
REF. MANTEL
DEPTH
REF.
MANTEL
CLEARANCE
Fig. # 2
NON-COMBUSTIBLE
ZONE. DO NOT INSTALL
ANY COMBUSTIBLE
MATERIAL,ELECTRICAL
WIRING OR GAS
PLUMBING IN THIS
AREA.

page 6 TC42.CE 050207-40
INSTALLATION REQUIREMENTS
The Town & Country Fireplace installation and venting
must conform to the current CAN/CGA-B149 installation
code (in Canada) or the current National Fuel Gas Code,
ANSI Z223.1 (in the USA), and approved per local codes.
Only qualied (licensed or trained) personnel should
install this product.
In the state of Massachusetts, only a licensed Plumber
and Gas Fitter may install this product.
Fig. # 4
Fig. # 5 Examples of Common Locations
TOP STANDOFFS
The top standoffs are shipped loose inside the replace and
must be installed on top of the replace as shown in
Fig. #4.
Assembly:
1) Remove the standoffs from inside the replace. (See
window frame removal section on pg. 28)
2) Position the standoffs in place and secure with screws
provided.
SEE FIG #9 FOR
DIMENSIONS
TOP STANDOFFS
LOCATING THE FIREPLACE
In planning the installation for the replace, it is necessary to
determine where the unit is to be installed, location of vent
system and where gas supply piping may be plumbed.Various
installations are possible, such as, into an existing wall, a
corner, a built-in wall or a wall projection (see Fig. #5). Due
to high temperatures, do not locate this replace in areas of
high traffic or near furniture or draperies.
The minimum clearances from the replace to combustible
surfaces must be adhered to and are shown on Fig. #2
and 3.

050207-40 TC42.CE page 7
STEEL STUD FRAMING KIT
DIMENSIONS
(TC42.FRKITB)
FRAMING AND FINISHING
Note: The replace must be in place and venting installed
before framing in or building an enclosure around the
unit.
The Town & Country Fireplace must be framed in as described
below or totally enclosed with non-combustible material, such
as facing brick.
Determine the total thickness of facing material to be used.
A thickness of 3/4" will allow the nishing surface to be ush
with the front of the unit. If preferred, additional masonry type
non-combustible material can be installed above and to the
sides up to 6 inches proud of the appliance. The nishing
material must not interfere with glass frame access.
A Steel Stud Framing Kit is supplied with the replace and
must be used unless the replace is totally enclosed with
non-combustible material. Assemble the framing kit as per
its instructions. Attach the steel frame to the replace once
the replace is in its nal position. Secure the steel frame to
the framing brackets on each side of the unit. Ensure that
the studs are set back far enough to allow for thickness of
nishing surface.
The sides, back and top of the replace can be framed in
up to the steel studs and the replace standoffs using con-
ventional lumber. Consult local building codes for specic
requirements.
Due to high temperatures, concrete board is supplied with
the replace and must be used to sheet in the front of the
replace, extending 12" above and 5" to the side of the fram-
ing edge bars. See Fig. #7. Standard sheetrock (drywall) may
be used beyond this.
Chase Insulation: When installing this replace against a
non-insulated exterior wall or chase, it is recommended that the
outer walls be insulated to same degree as other exterior walls.
Do not place replace directly against the insulation. Cover the
insulation and plastic vapour barrier with a solid surface, such
as drywall (sheetrock). Consult local codes. Do not insulate
or use plastic vapour barrier within the framing kit.
Fig. # 6
ALL OTHER FRAMING CAN BE
DONE WITH CONVENTIONAL
LUMBER
NON-COMBUSTIBLE
ZONE. DO NOT INSTALL
ANY COMBUSTIBLE
MATERIAL, ELECTRICAL
WIRING, INSULATION,
PLASTIC VAPOUR
BARRIER OR GAS
PLUMBING WITHIN THE
STEEL STUD FRAMING

page 8 TC42.CE 050207-40
NON-COMBUSTIBLE RECESSED
INSTALLATION DETAIL
Fig. # 9 MINIMUM COMBUSTIBLES FRAMING DIMENSIONS
6
1
3/
4
"
21 5/16"
61 3/4"
30 1/8"
3/4"
54"
87 5/16"
26 1/8"
54"
12 5/8"
3/4"
54"
54"
54"
WARNING: Fireplace should be in its nal location before framing.
6"
CONCRETE
BOARD
STEEL
STUDS
NON-COMBUSTIBLE
MASONRY TYPE
MATERIAL
Fig. # 8
Including Sheetrock
Concrete board (or other non-combustible
material) must extend 12" above and 5" to the
sides of the framing edges.
CONCRETE
BOARD
CONCRETE BOARD
DETAIL
Fig. # 7

050207-40 TC42.CE page 9
MAESTRO CONTROL SYSTEM
The gas control system is located on the right hand side of
the firebox behind an access panel and the decorative brick
panel. The fireplace is operated via a wall switch that can be
located up to 25 ft away from the fireplace and also by a hand
held remote control unit.
Installation
1) Locate the fireplace in the desired location.
2) Remove access panel from right hand side of the firebox
(Fig. #10)
3) Connect a 110v AC electrical supply to the outlet installed
inside the control box (Fig. #11)
4) Connect the gas supply to the valve (Fig. #12)
5) Plug the A/C adaptor into the outlet (Fig. #13)
6) Attach the electrical box for the supplied wall control to the
framing in the desired location (up to 25ft away).
7) Route the control cable as required to the wall control
electrical box.
8) Attach the control cable to the wall control. (Fig. #14)
9) Insert the 4 supplied “AA” batteries into the battery pack
and connect to wall control. (Fig. #15)
10) Fasten the wall switch to the electrical box.
11) Fasten the faceplate to switch
12) Turn on the gas supply and check that all connections are
tight and leak free.
Fig. # 10
Fig. # 11
Fig. # 12
Fig. # 13
Fig. # 14
ACCESS PANEL
OUTLET
AC ADAPTER
AC ADAPTER

page 10 TC42.CE 050207-40
Fig. # 19
Burner installation
1) Remove the burner from the packaging and install as per
its installation instructions.
2) Connect the flex hoses from the pilot and the main burner
supply to the bulkhead fittings on the firebox. (Fig. #16)
3) Connect the electrical connections from the pilot assem-
bly to the connections in the rebox side. Ensure that the
orange wire from the spark electrode is connected to the
rear of the two connectors in the bulkhead. (Fig. #17)
Note: If you need to test the supply pressure, turn off the
gas supply before removing the blanking plug from the
supply pressure test port.
Fig. # 15
Fig. # 16
Fig. # 17
Fig. # 18
4) Remove the pressure test point pipe plug from the manifold
test port. The plug is located between the right side lintel
and firebox side. (Fig. #18)
5) Thread the extension piece into the open test port. (Fig.
#19)
6) Attach a pressure gauge onto the hose barb on the now
installed extension piece.

050207-40 TC42.CE page 11

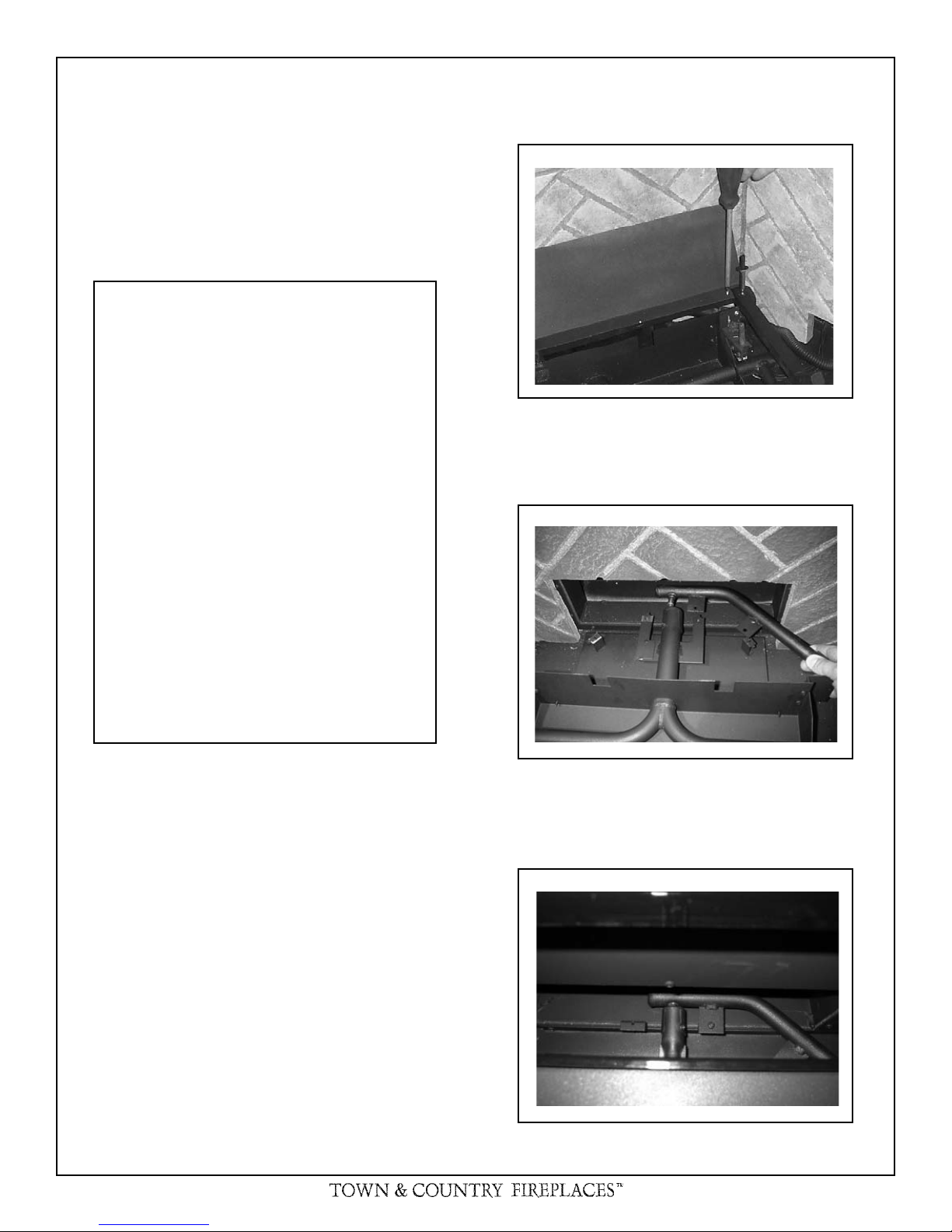

7) On the country home burner remove the two screws secur-
ing the air deflector to the grate. (Fig. #20)
8) Remove the manifold assembly from the burner, country
home and chalet burners. (Fig. #21)
The burner tube will have to be removed to expose the
orifice on the black diamond burner. (Fig. #22)
9) With a ½” wrench remove the natural gas orifice (#25) and
replace with propane orifice (#3/32")
10) With a 7/16” wrench loosen the pilot head on the pilot
assembly (Fig. #23)
Fig. # 20
Fig. # 22
Fig. # 21
If this fireplace is to be used on natural gas go
to step 17.
CONVERSION LP
If the unit is to be used on propane convert as
follows using the components supplied with
this fireplace:
Warning:
This conversion kit shall be
installed by a qualied service
agency in accordance with the
manufacturer's instructions and all
applicable codes and requirements
of the authority having jurisdiction.
If the information in these
instructions is not followed exactly,
a re, explosion or production of
carbon monoxide may result
causing property damage, personal
injury or loss of life. The qualied
service agency is responsible for
the proper installation of this kit.
The installation is not proper and
complete until the operation of the
converted appliance is checked
Caution: The gas supply and
electrical power shall be shut off
before proceeding with the
conversion.
COUNTRY HOME BURNER
COUNTRY HOME & CHALET BURNER
BLACK DIAMOND BURNER

page 12 TC42.CE 050207-40
11) Slide the pilot adjustment band over and ensure that the
hole in the orifice band is showing. (Fig. #25 shows NG
position, Fig. #26 shows LP position)
12) Remove the minimum rate screw located in the valve.
(Fig. #27)
13) Replace the minimum rate screw with the one provided
in the propane conversion kit supplied with this fireplace.
Ensure that the screw is fully installed. (Fig. #28)
Fig. # 23
Fig. # 24
Fig. # 27
Fig. # 25
Fig. # 28
Fig. # 26
Fig. # 29 NG LP
Minimum
rate screw
Minimum
rate screw
14) Pull off the rubber cap from the top of the pressure regula-
tor. (Fig. #29) The pressure regulator adjustment tube is
now accessible.
15) Press down on the center tube and rotate 90°. The center
tube should stay down. (Fig. #30). Replace the rubber
cap.

050207-40 TC42.CE page 13
16) Sign and date the conversion label supplied and stick it
to valve body.
17) Loosely attach the access panel to the side of the fire-
box with a few screws. (Fig. #31)
18) Turn on gas and electrical supplies.
19) Press the center button on the wall control (Fig. #32). The
igniter will start to spark. After a short delay the pilot will
light, followed by the main burner.
20) Press the up button on the wall control and hold it for 5
seconds or until a clicking sound is heard from the gas
control. Release the button, check manifold pressure and
ensure that it’s correct. (Fig. #33)
Fig. # 31
Fig. # 32
21) Press the center button of the wall control. The fireplace
will shut off.
22) Install the remaining screws in the access panel and
tighten.
23) Remove the pressure gauge and the extension piece and
thread the pressure test pipe plug into the pressure test
port. Thread sealant is required on the threads.
24) Turn the fireplace on and verify that the connections are
tight.
25) Continue installation of the burner as per the burner kit
instructions.
Standing Pilot Function
(only for use where permitted)
The control system on this fireplace is shipped as a non-stand-
ing pilot fireplace. If required the system can be converted to
a standing pilot by depressing a recessed button located on
the lower right hand side of the wall control. (Fig. #33) This
should be depressed with a paperclip, pencil or other thin
object. Once activated the pilot will run continuously. Please
check with your local inspector to ensure that this is permit-
ted in your area.
Control System – Remote Control Initial Setup
This fireplace is supplied with a wall control and hand held
remote control. Please note only genuine Town & Country
Fireplace wall controls and hand held remote controls
can be used on this fireplace.
1) Initial set up of the hand held remote is required. A “learn”
button is located on the lower left hand side of the wall
switch. This should be depressed with a paperclip, pencil
or other thin object. (Fig. #34)
2) Once this has been pressed, press the center button on
the hand held remote. (Fig. #35) The fireplace will then
turn on.
3) Turn off the fireplace by pressing the center button again.
The handset is now synchronized with the fireplace.
Fig.# 30

page 14 TC42.CE 050207-40
Fig. # 33 Fig. # 35
Fig. # 34 Fig. # 36
STANDING PILOT
BUTTON
LEARN BUTTON
ON/OFF BUTTON
HOLD
A2
FLASHES
DAY
HOUR:
MIN
HOLD
A1

050207-40 TC42.CE page 15
Initial Settings
(time and temperature)
1) Press and hold the A1 and A2 buttons at the same time
until the temperature symbol flashes. (Fig. #36)
2) Use the up and down arrows to set preferred temperature
units. (°F or °C)
3) Press OK and the “hour” value will start to flash.
4) Use the up and down arrows to set the “hour” value.
5) Press OK and the “minute” value will flash.
6) Use the up and down arrows to set the “minute” value.
7) Press OK and the “day” value will flash.
8) Use the up and down arrows to set the “day” value.
9) Press ok to end the initial set up.
Childproof Lock
An additional feature of this remote control is the childproof
lock. To activate this system press and hold the timer and
thermostat buttons for approx. 5 seconds until the “lock”
symbol appears on the remote display. (Fig. #37) The remote
control hand set buttons are now locked and the lock symbol
will reappear every time a button is pressed on the remote
control until the timer and thermostat buttons are pressed
and held again.
Note: The fireplace can still be operated normally using the
wall control even with the remote control buttons locked.
Control System - Operation
Each Town and Country Maestro Control system comes
equipped with a manual mode on the wall control and hand
held remote, and three programmable modes accessible with
the hand remote.
Manual Mode
(on remote and wall control)
Basic operation of the fireplace can be performed with the
wall control or remote hand set. (ON/OFF, as well as flame
modulation UP/ DOWN).
The center button on the remote control can be used to turn
the fireplace ON and OFF. With the fireplace off, press the
center button to turn it on. (The “MAN” and flame icons will be
displayed on the screen) A second push will turn it off. (The
“MAN” and flame icons will disappear from the screen)
When the fireplace is on, the up and down buttons located
above and below the center button are used to modulate the
flame height. (Fig. #38)
Countdown Timer Mode
(Operates the fireplace for a preset length of time)
1) Press the timer button and the time will flash on the lower
center of the display. (Fig. #39)
2) When display is flashing, use the up and down arrows to set
the length of time you would like the fireplace to run. (The
range is 10 minutes minimum to 180 minutes maximum).
(Fig. #41)
3) Press the OK button and the timer is set and the control
is in countdown timer mode.
4) To exit the timer mode press the Program, Manual or
Thermostat buttons. Please note that the first press of the
Manual button will turn the fireplace off.
Program Mode
(to preset up to two on and off periods per day)
The program mode has two settings for weekdays and two for
weekends. The hand held remote comes with the following
pre programmed settings:
Fig. # 37
Fig. # 38
HOLD
HOLD
FLAME
DOWN
FLAME
UP
ON/
OFF

page 16 TC42.CE 050207-40
Weekday Program
(Monday through Friday)
Program one (P1) turns ON at 7:00am and turns OFF at
8:00am
Program two (P2) turns ON at 5:00pm and turns OFF at
7:00pm
Weekend Program
(Saturday and Sunday)
Program one (P1) turns ON at 9:00am and turns OFF at
10:00am
Program two (P2) turns ON at 6:00pm and turns OFF at
9:00pm
Activate the programs by pressing the program button on the
lower left hand side of the remote hand set. (Fig. #41)
To customize these setting:
1) Hold the program button down until the display flashes.
(P1, weekday ON time - [Fig. #42])
2) Use the up and down buttons to change the time to the
desired ON time.
3) By pressing the OK button, the P1 weekday OFF time will
flash.
4) Use the up and down buttons to set the desired OFF
time.
5) Press the OK button and the P2 weekday ON time will
flash.
Fig. # 39
Fig. # 40
Fig. # 41
Fig. # 42
TIMER
TIMER RUN
DURATION
PROGRAM

050207-40 TC42.CE page 17
6) Repeat the process to set the P2 weekday, P1 weekend
and P2 weekend programs.
7) When the P2 OFF time is set and the OK button is pressed
the display will stop flashing and the remote will be in
program mode.
The program settings are now stored in the remote handset
and will not change unless the above process is repeated or
the batteries are removed from the handset.
To switch out of program mode, simply press one of the
manual, timer or thermostat mode buttons. Please note that
if the manual button is pressed it will turn the fireplace off.
Thermostatic Mode (Only for use where permitted)
(Operates the fireplace within a set temperature range)
The fireplace is shipped with thermostatic mode function
deactivated. If this function is permitted for use in your area
it can be activated by depressing the recessed button on
the underside of the hand held remote. (Fig. #43) Once
activated, the thermostat symbol (Fig. #44) will be displayed
when the thermostat button is pressed
Fig. # 43
Fig. # 44
Fig. # 45
Fig. # 46
THERMOSTATIC
MODE BUTTON
DEACTIVATED
THERMOSTAT
SYMBOL
THERMOSTAT
BUTTON
TEMPERATURE
SETTING
To activate a set point temperature:
1) Press the thermostat button on the lower right hand side
of the hand held remote to activate the thermostat mode.
(Fig. #45) The temperature and thermostat symbols will
appear.
2) Press and hold the thermostat button for 5 seconds. The
temperature icon on the display will flash. (Fig. #46)
3) While the temperature icon is flashing use the up and down
arrows to set the temperature to the desired setting.
4) Once the desired setting is reached, press the OK button.
If the OK button is not pressed the icon will continue to
flash for 5 seconds and then set itself to the temperature
displayed.
5) The fireplace is now in thermostatic mode. To exit the
thermostatic mode press the program, manual or timer
buttons. Please note that the first press of the manual
button will turn the fireplace off.

page 18 TC42.CE 050207-40
WALL TERMINATION VENTING
Exterior wall opening:
Determine the exact position of the replace so that the vent
pipe is centred (if possible) between two building framing
members. Consult your local building codes prior to proceed-
ing. The vent kit will accommodate up to a maximum wall
thickness of 12 inches.
1) Having determined the position of the replace, cut and
frame a 14-1/2 inches opening centred at a minimum
height of 74-1/4 inches above the oor. The opening may
be round or square. Height of the opening will vary with
each installation.As the horizontal vent run increases, so
does the minimum vertical rise (see Fig. #52).
IMPORTANT: When locating the opening, it should be
noted that vent terminal clearances must be maintained.
See "Vent Terminal Clearances" section for proper
clearances.
A minimum 2 foot length of pipe is required for any wall ter-
mination. With this minimal vertical rise in combination with a
90° elbow, a maximum horizontal run of 18 inches is permitted
(see Fig. #52 and 53). For longer horizontal runs greater than
18 inches, increase vertical rise appropriately. The rise and
run must be constrained to the boundaries of the chart shown
in g. #52. The horizontal run of vent should have a 1/4" rise
for every 1 ft. of run towards the termination.
HEARTH EXTENSION
While a hearth extension is not required
for this replace, one is recommended for
aesthetic reasons. The hearth extension
should be noncombustible and must not
be any more than 1" above the bottom of
the replace. If thicker, replace must be
raised up accordingly.
Caution: Hearth extensions thicker than
1" will interfere with the window frame.
1
/
4"
1"
MAX
WINDOW
FRAME
HEARTH
EXTENSION
WINDOW
TRACK
SUB-
FLOOR
Fig. # 47
VENTING
Before installing venting for this unit, the installer should read
these instructions to insure that the proper vent conguration
has been selected.
Use only Town and Country Termination kits #:
TCVT.WTA - Wall Termination Kit
TCVT.RTA - Roof Termination Kit
Vent system components approved for use with the Town and
Country Fireplace are shown in Fig. #49.
Various combinations of vertical and horizontal runs may
be used. Refer to Fig. #52 and 53 for details. For optimum
performance and ame appearance, keep the vent length
to a minimum and limit the number of elbows. Connections
between each vent system component must be tightly joined,
secured with sheet metal screws and sealed.A horizontal run
of vent should have a 1/4" rise for every 1 ft. of run towards
the termination.
CAUTION: UNDER NO CONDITION SHOULD COMBUSTI-
BLE MATERIAL BE CLOSER THAN 1 3/4 INCHES FROM
THE SIDES AND BOTTOM AND 1 3/4 INCHES FROM
THE TOP OF A HORIZONTAL SECTIONS OF THE VENT
PIPE AND 1 3/4 INCHES FROM A VERTICAL SECTION
OF PIPE.

050207-40 TC42.CE page 19
Vent System Town &
Components Country
12" Pipe Length ........................... TCVT.811X12
18" Pipe Length ........................... TCVT.811X18
24" Pipe Length ........................... TCVT.811X24
48" Pipe Length ........................... TCVT.811X48
12" Adjustable Pipe Extension..... TCVT.811X12ADJ
45° Elbow .................................... TCVT.811XLB45
90° Elbow .................................... TCVT.811XLB90
Wall/Offset Support ..................... TCVT.811XOS
Wall Termination Kit ..................... TCVT.WTA
Roof Termination Kit .................... TCVT.RTA
Wall Shield/Ceiling Firestop......... TCVT.THIMA
Roof Flashing, Adjustable ............ TCVT.811FLADJ
Roof Flashing, Flat ...................... TCVT.811FLFLT
Roof Flashing, Steep ................... TCVT.811FLSTP
or any that ts 11" pipe
Fig. # 49
WALL THIMBLE AND VENT
MUST NOT PROTRUDE
BEYOND SIDING
Fig. # 48
Fig. # 50
TRIM TO LENGTH
Wall thimble:
Where a vent pipe passes through a combustible wall, a wall
thimble/shield must be used to retain insulation and maintain
proper clearances. The wall thimble may be cut to length for
various wall thicknesses up to 12" thick.
Measure the wall thickness including the siding. Trim the
shield to match the wall thickness. Position the wall thimble
from inside through the 14-1/2" opening. Properly trimmed,
the thimble should be ush with the outer wall surface.

page 20 TC42.CE 050207-40
Fig. # 51
14 1/2" FRAMED
OPENING
* Minimum height from the oor to center of
the opening with a maximum horizontal run of
18" using TC vent. The height will need to be
increased with a longer horizontal run.
Vent pipe:
Install vent pipe through the wall thimble and attach to ue
outlet collar on top of the replace. Secure all joints with
screws and seal with approved "High Temp." self-adhesive
aluminum tape provided.
The replace position may need to be adjusted to ensure
that the vent pipe does not protrudes beyond the outer
wall or be recessed any more than 12 inches.
Wall vent terminal:
1) Engage the 8" vent collar with the vent pipe and slide
terminal into place. Attach the terminal to the outside
wall. The vent terminal must not be recessed into the
exterior wall or siding.
2) Caulk in place to prevent any moisture entering the
building.
NOTE: MINIMUM CLEARANCESTOTHEVENTTERMINAL
MUST BE MAINTAINED (see Fig. #52).
HORIZONTAL
TERMINAL
TCVT.9360
WALL SHIELD
THIMBLE TCVT.
THIMA
ELBOW
TCVT.811XLB90
12" VENT PIPE
TCVT.811X12
24" VENT PIPE
TCVT.811X24
*74 1/4"
