Toyota RAV4 2009 User manual

2009 Navigation System Quick Reference Guide
412722M1.indd 1412722M1.indd 1 7/23/08 4:46:24 PM7/23/08 4:46:24 PM

1
TABLE OF CONTENTS
LIMITATIONS OF THIS QUICK REFERENCE GUIDE 1
BASIC OPERATION 2
DESTINATION INPUT 3
By Address 3
DESTINATION INPUT - POINTS OF INTEREST (POI) 5
Points of Interest by Name 5
Points of Interest by Category 6
DESTINATION INPUT - TELEPHONE NUMBER 7
Business or Registered Memory Points 7
REGISTER HOME 8
ADDITIONAL NAVIGATION FEATURES 10
Search Area 10
Route Preferences 10
3 Routes 10
Screen Preferences 10
Beep Setting 11
Volume Setting 11
Keyboard Setting 11
Screen Transition 11
Freeway Exit Info Mode 11
Estimated Distance and Time 12
Operation of Your Vehicle Emergency Screen 12

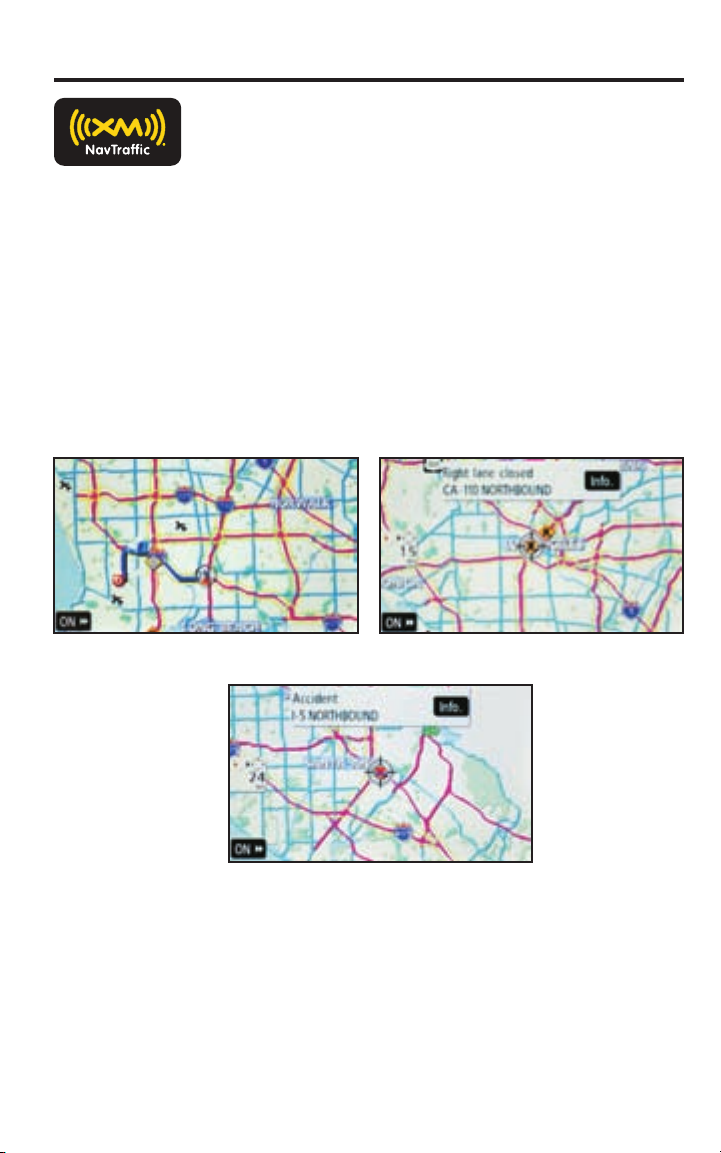

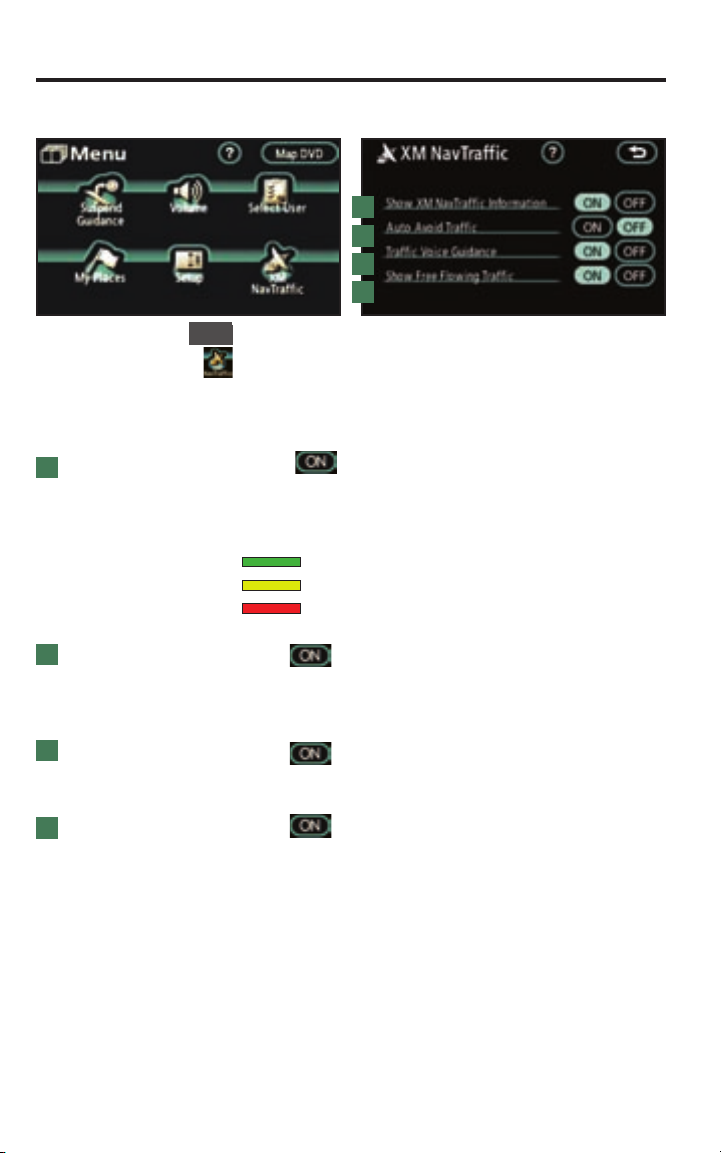

XM NAVTRAFFIC®13
This Quick Reference Guide is designed to provide information
on the basic operation and key features of the navigation
system. The Quick Reference Guide is not intended as a
substitute for the Navigation Owner’s Manual. We strongly
encourage you to review the Navigation Owner’s Manual so
you will have a better understanding of the navigation system
capabilities and limitations.
LIMITATIONS OF THIS QUICK REFERENCE GUIDE
412722M1.indd Sec1:1412722M1.indd Sec1:1 7/23/08 4:46:24 PM7/23/08 4:46:24 PM

2

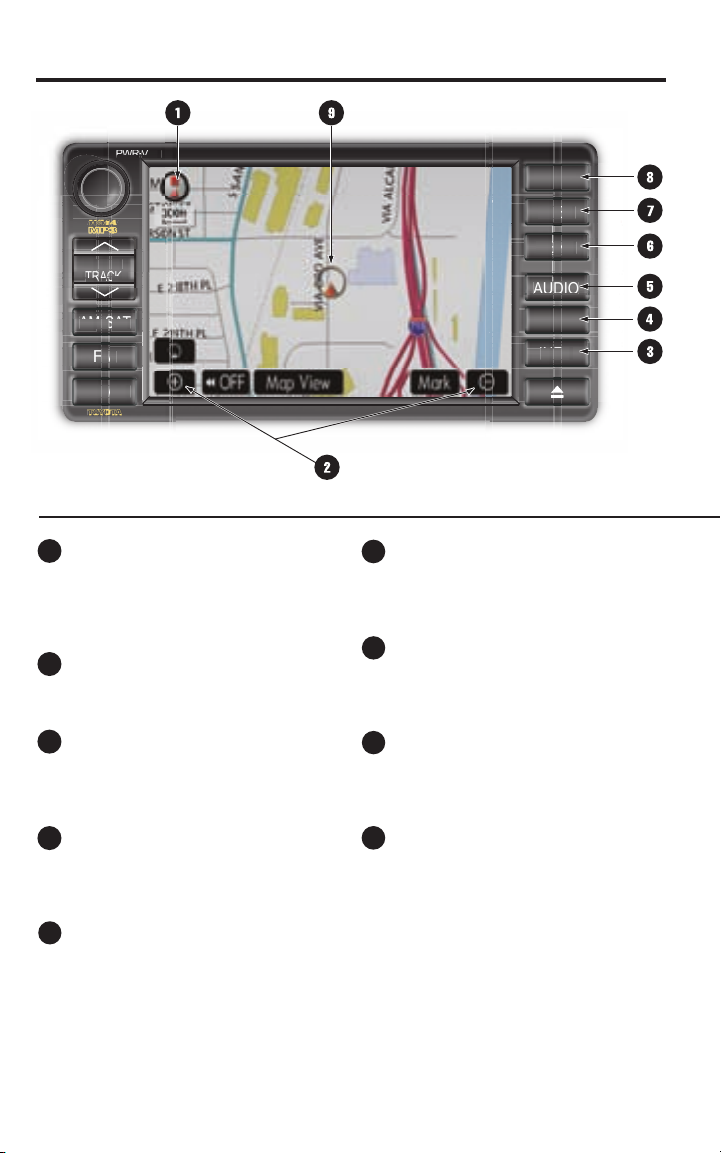

BASIC OPERATION
NORTH UP OR COMPASS MODE
Icon
Touch to change the map display
between North-up or Head-up
perspectives.
ZOOM IN/ZOOM OUT Icons
Touch to magnify or reduce the
map scale.
INFO Button
Access Maintenance, Telephone,
Calendar, Language and Screen
Settings.
DISPLAY/TILT Button
Adjust the contrast, brightness or
turn off the screen. Change the angle
of the screen for best viewing.
AUDIO Button
Set the radio station presets, adjust
the balance and tone controls.
MENU Button
Access Voice Guidance Volume,
Select User, My Places, Setup and
Suspend Guidance.
DESTINATION Button
Input the destination by one of
several methods and initiate route
guidance.
MAP/VOICE Button
Repeat the last voice guidance
prompt or cancel the map scrolling
feature.
CURRENT VEHICLE POSITION
Mark
Indicates the current position of the
vehicle and its directional heading.
£
Ó
Î
{
x
È
Ç
n

AM•SAT
DISC•AUX
INFO
AUDIO
MENU
DEST
TUNE SEEK
FM
TRACK
PWR
•
VOL
WMA
TOYOTA
S
AT
S
AT
AM
AM
S
S
M
•
•S
S
S
M
S
A
UX
A
DI
SC
C
•
A
NU
N
ME
E
EN
M
M
F
FM
A
W
WM
MA
OT
OT
A
A
O
O
TOY
TOY
YO
YO
O
O
E
E
K
E
CK
CK
CK
C
C
C
T
U
N
N
TR
TR
TR
TR
R
R
R
R
W
WM
MA
E
S
S
RA
A
C
RA
AC
A
AC
C
RA
RA
A
AC
A
AC
PWR
PWR
•
VOL
VO
ST
S
D
E
ES
MAP
VOICE
DI
O
DI
O
DI
O
O
F
F
D
D
D
AU
AU
AU
IN
IN
F
F
D
D
D
DISP
TILT
412722M1.indd Sec1:2412722M1.indd Sec1:2 7/23/08 4:46:24 PM7/23/08 4:46:24 PM

3
DESTINATION INPUT
BY ADDRESS
Press the
DEST
panel button
followed by and move to
step 3. To change Region, touch
and move to step 2.
Input the house number using the
number keys.
Touch and input the
street name using the letter keys.
Touch to see all of the
available options.
Use or to scroll up or
down one page if necessary.
Touch the desired street and go
to step 8. If the street you are
looking for is not listed, touch
and go to step 6.
Touch to type in the city
name or select from a previously
registered city. If the city is not
available try the next largest city
in the vicinity.
Select the appropriate Region,
then touch to confirm the
selection.
step 1step 2
step 3step 4
step 5step 6
Quick Tip - Enter the street name without
prefi
xes such as North or the letter N. The
system will display all of the options available.
412722M1.indd Sec1:3412722M1.indd Sec1:3 7/23/08 4:46:40 PM7/23/08 4:46:40 PM

4
DESTINATION INPUT
BY ADDRESS
If necessary, use the arrow
keys to adjust the position
on the map to put you closer
to your destination. Touch
to confirm the
position.
Select the desired Route
Preference by touching .
Select the desired Route
Preference(s) for the trip. When
the yellow bar appears, the route
has been selected. Touch
to confirm your selection.
Use or to scroll up or
down one page if necessary.
Touch the desired city. Then touch
the desired street.
Touch .
step 7step 8
step 9step 10
step 11
412722M1.indd Sec1:4412722M1.indd Sec1:4 7/23/08 4:46:40 PM7/23/08 4:46:40 PM

5
DESTINATION INPUT - POINTS OF INTEREST (POI)
POINTS OF INTEREST BY NAME
Quick Tip - Touching the button next to
the POI name will display the address and
telephone number.
Press the
DEST
panel button
followed by to access points
of interest by name.
Touch .
Input the POI name using the letter
keys and then touch .
Use or to scroll up or
down one page if necessary.
Touch the desired selection.
See page 10 to select the desired
Route Preference and then touch
.
step1step 2
step 3step 4
step 5Touch . step 6
Quick Tip - If the POI isn’t listed in the database
verify the spelling and Region for accuracy.
412722M1.indd Sec1:5412722M1.indd Sec1:5 7/23/08 4:46:41 PM7/23/08 4:46:41 PM

6
DESTINATION INPUT - POINTS OF INTEREST (POI)
POINTS OF INTEREST BY CATEGORY
Press the
DEST
panel button
followed by to access the
points of interest by category.
Touch .
Touch to search for points
of interest in the vicinity.
Touch the desired category icon.
Touch the desired sub-category
icon followed by and then
touch to see the points
of interest in the vicinity.
step 1step 2
step 3step 4
step 5Use or to scroll up or
down one page if necessary.
Touch the point of interest
followed by and then
.
step 6
412722M1.indd Sec1:6412722M1.indd Sec1:6 7/23/08 4:46:41 PM7/23/08 4:46:41 PM

7

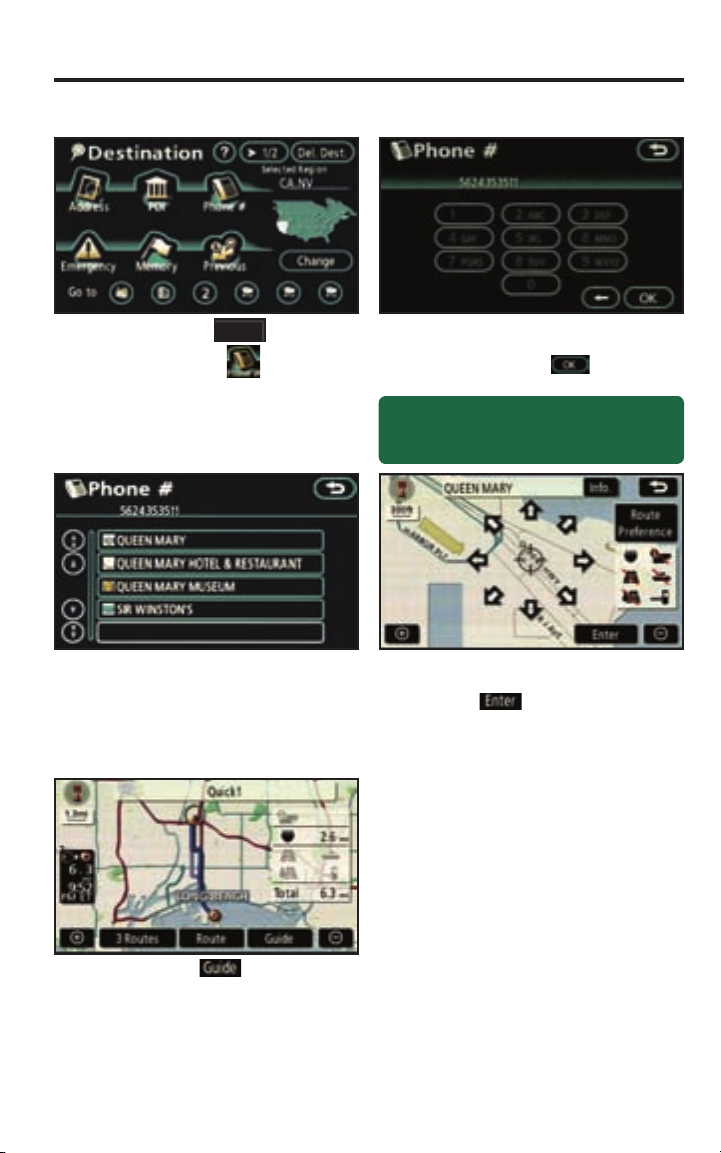

DESTINATION INPUT - TELEPHONE NUMBER
BUSINESS OR REGISTERED MEMORY POINTS
Press the
DEST
panel button
followed by .
Input the area code and telephone
number using the number keys
followed by . It is not
necessary to dial “1.”
Select the business or assigned
memory point from the screen.
See page 10 to select the desired
Route Preference and then touch
.
Touch .
step 1step 2
step 3step 4
step 5
Quick Tip - Personal telephone numbers cannot
be used for Destination input unless previously
added as a Memory Point.
412722M1.indd Sec1:7412722M1.indd Sec1:7 7/23/08 4:46:42 PM7/23/08 4:46:42 PM

8

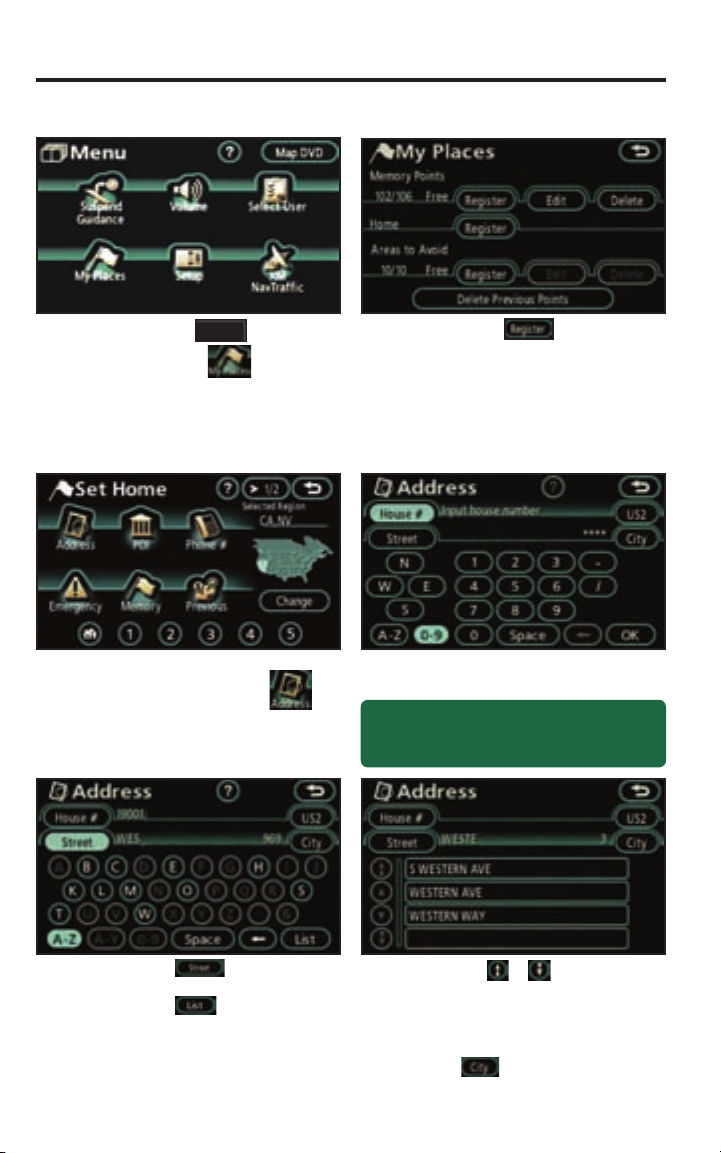

REGISTER HOME
Press the
MENU
panel button
followed by to register
your home.
Touch to input your
home address.
Make sure that you are in the
desired Region. Touch to
begin address input.
Input the house number using the
number keys.
Touch and input the
street name using the letter keys.
Touch to see all of the
available options.
step 1step 2
step 3step 4
step 5
Tip - For security reasons, use a point close
to your home instead of your actual home
address.
Use or to scroll up or
down one page if necessary.
Touch the desired street and go
to step 8. If the street you are
looking for is not listed, touch
and go to step 6.
step 6
412722M1.indd Sec1:8412722M1.indd Sec1:8 7/23/08 4:46:42 PM7/23/08 4:46:42 PM

9

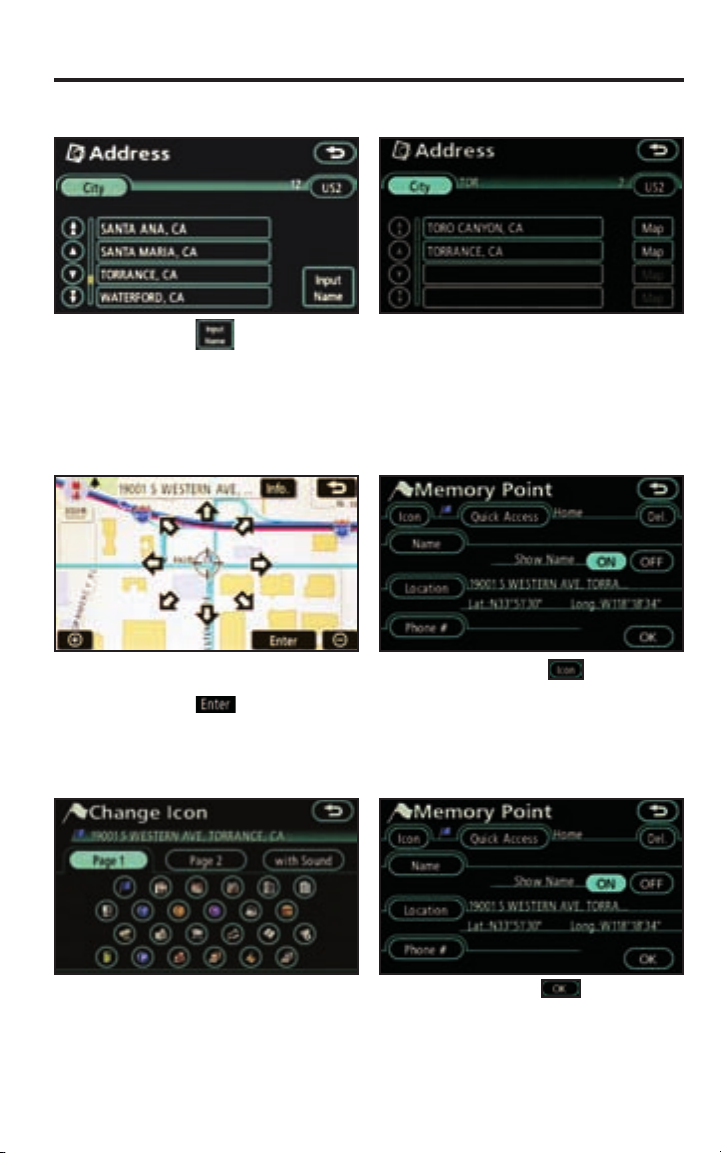

REGISTER HOME
Touch the desired city. Select the
desired street.
Touch the desired icon for
your home.
Touch at the bottom of
the screen.
step 8
step 9
step 11 step 12
Touch to type in the city
name or select from a previously
registered city. If the city is not
available try the next largest city
in the vicinity.
step 7
If necessary use the arrow keys
to adjust the position on the map.
Touch to confirm the
position.
Touch at the top left
of the screen to change the
home icon.
step 10
412722M1.indd Sec1:9412722M1.indd Sec1:9 7/23/08 4:46:43 PM7/23/08 4:46:43 PM

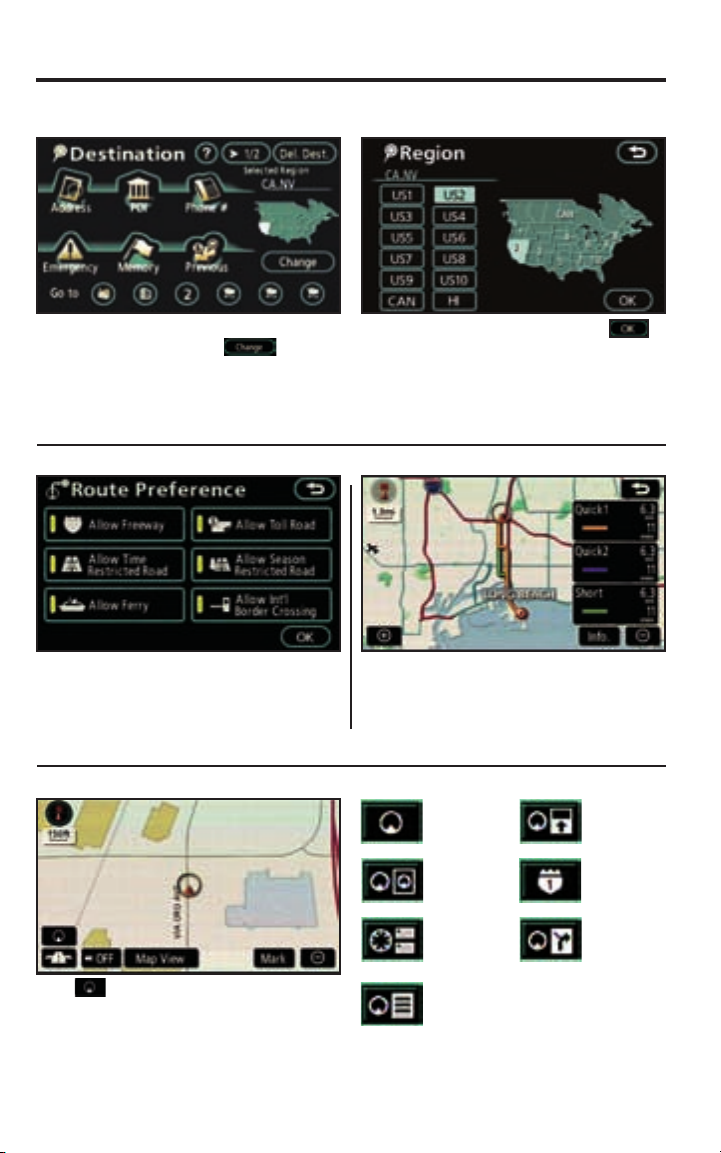

10
ADDITIONAL NAVIGATION FEATURES
Once the address has been inputted, select
the desired route preference(s) for the trip. For
example, if Allow Toll Road is not selected, the
system will route over non-toll roads which may
take longer to reach the destination.
SEARCH AREA
ROUTE PREFERENCES
Prior to inputting the desired address select the
appropriate Region by pressing . If the
incorrect Region is chosen, the system will either
find an address that closely matches in that area or
will indicate that the address cannot be found.
Select the appropriate Region, then touch to
confirm the selection.
Touch to select from seven different screen
viewing options. Three screen preferences
are available when the map is visible and four
additional are available during route guidance only.
Please refer to the list of screen preferences.
3 ROUTES
SCREEN PREFERENCES
One of the three routes may be chosen for the trip.
Quick 1 offers the shortest route by time; quick 2
is the second fastest route; short is the most direct
route based upon driven mileage. The system does
not account for traffic signals or traffic flow.
Single Map
Dual Map
Compass
* Turn List
* Arrow
* Freeway
Information
* Intersection
Guidance
* Selections available
when in guidance
mode.
412722M1.indd Sec1:10412722M1.indd Sec1:10 7/23/08 4:46:43 PM7/23/08 4:46:43 PM

11

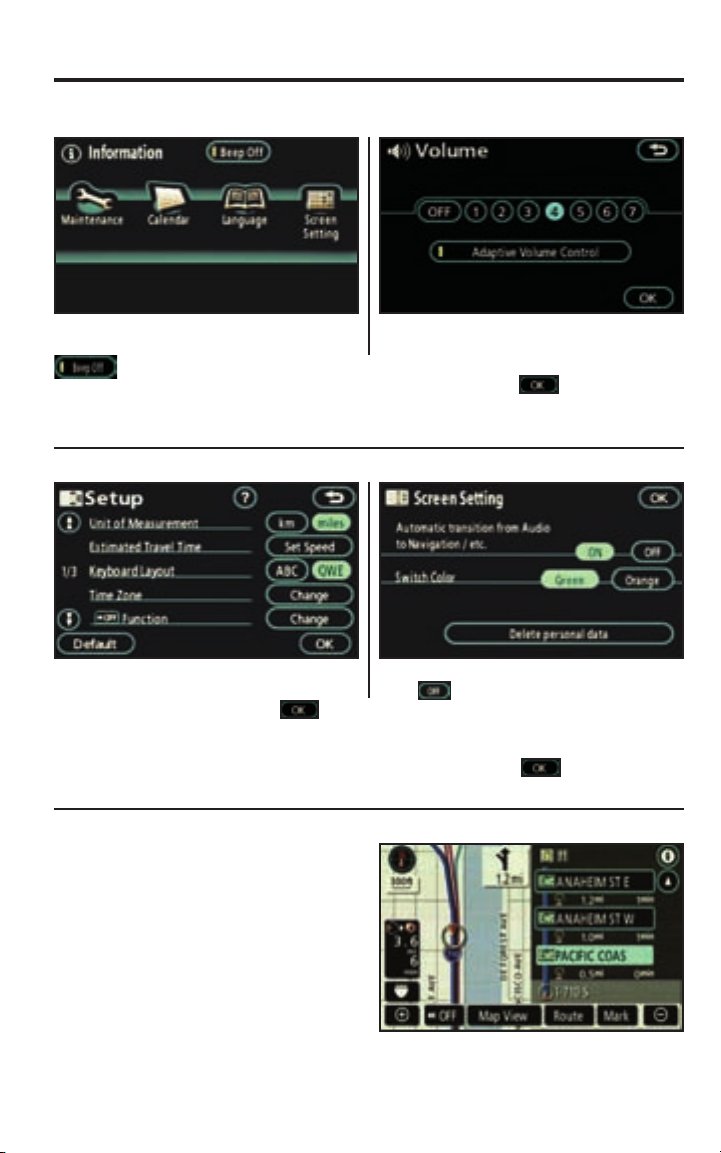

ADDITIONAL NAVIGATION FEATURES
KEYBOARD SETTING
PRESS MENU > SETUP
Set the layout of the keyboard as alphabetical
or standard QWERTY keyboard. Touch to
confirm your selection.
PRESS MENU > VOLUME
The Volume feature allows for the adjustment of
the voice guidance commands. Touch the desired
volume level and touch to confirm your
selection.
BEEP SETTING VOLUME SETTING
SCREEN TRANSITION
PRESS INFO > SCREEN SETTING
Touch to prevent the system from reverting
to the map display. Once the screen transition is
switched off, the audio or climate control screen
(if equipped) will remain without reverting to
the map display. Touch to confirm your
selection.
PRESS INFO > BEEP OFF
Switch off the confirmation tone by touching
at the top of the screen. When the
yellow bar appears this feature has been disabled.
FREEWAY EXIT INFO MODE*
During Route Guidance on a Freeway or Toll Road,
a variety of points of interest such as Gas Stations,
Restaurants or Hotels can be viewed during your
trip.
To access this feature, select Freeway Exit Info
Mode from the Screen Preferences. Upcoming
freeway exits will be listed by the number or name
along with the POIs in the vicinity of the exit ramp.
Select the desired exit from the list to see the POIs
at that particular exit.
* This feature is only available while in Route Guidance and travelling on a freeway or Toll Road.
412722M1.indd Sec1:11412722M1.indd Sec1:11 7/23/08 4:46:44 PM7/23/08 4:46:44 PM

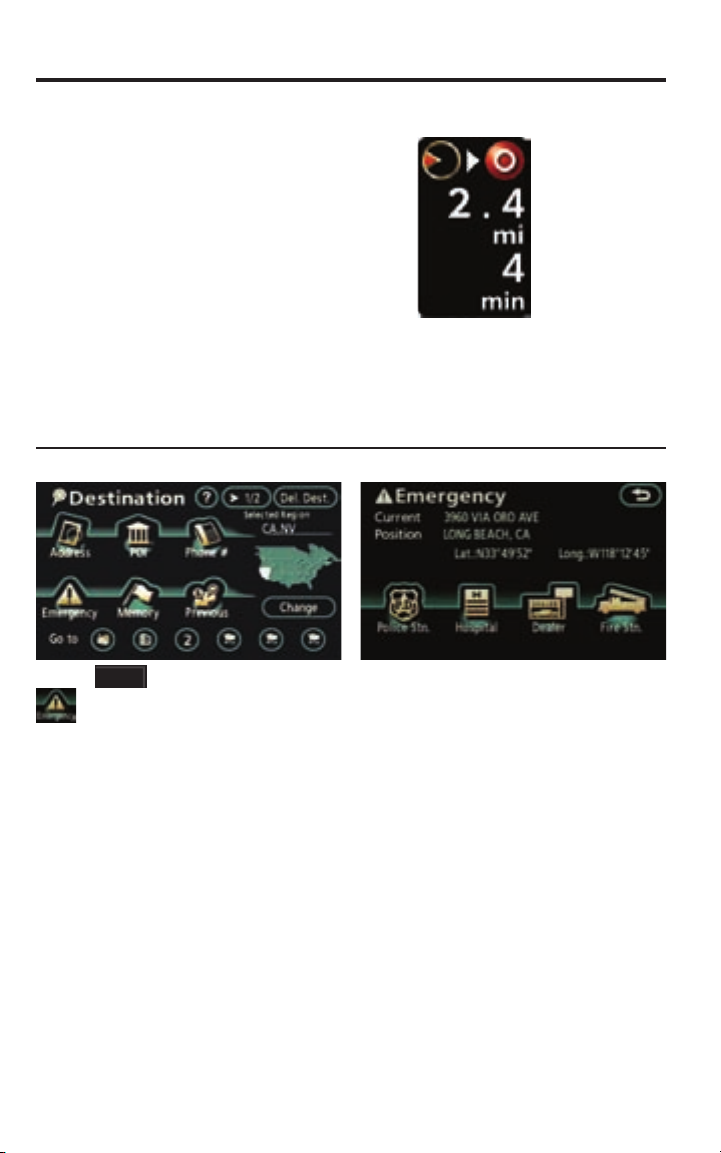

12
ADDITIONAL NAVIGATION FEATURES
OPERATION OF YOUR VEHICLE EMERGENCY SCREEN:
Once selected, the system will provide a list of
locations sorted by distance. If the vehicle is in
motion, the system will route you to the nearest
location automatically.
Press the
DEST
panel button followed by
to access four emergency destinations:
• Police Stn. • Hospital • Dealer • Fire Stn. Touch
the desired destination.
ESTIMATED DISTANCE AND TIME†
The navigation system will provide an estimate
of the distance and time to the destination
based upon the suggested route during
guidance. The system automatically calculates
the remaining miles until you arrive at the
destination. Based upon the distance traveled,
the system will also provide an estimated time
until arriving at your destination.
The system can be customized to match
your driving habits. To adjust the speed for
residential, main streets or freeways please
refer to the Navigation Owner’s Manual for a
complete description of this feature.
†The system does not account for traffic
signals or traffic flow.
412722M1.indd Sec1:12412722M1.indd Sec1:12 7/23/08 4:46:45 PM7/23/08 4:46:45 PM

13
XM NAVTRAFFIC®
Route guidance with flow information and
traffic events.
Accidents and disabled vehicles.
Traffic events - road construction.
XM NavTraffic®integrates with your navigation system to display traffic information.
Traffic events and flow data are updated 12 times each hour from a variety of
sources. XM NavTraffic®service is available in 80 major metropolitan across the
continental US with more to come.
New RAV 4 owners with factory-installed navigation receive a 90-day complimentary
trial subscription from XM*.
Traffic information provided by XM NavTraffic®:
http://www.xmradio.com/navtraffic/index.xmc
* An XM Data Receiver must be purchased to enable XM NavTraffic®. See your Toyota dealer for details.
412722M1.indd Sec1:13412722M1.indd Sec1:13 7/23/08 4:46:45 PM7/23/08 4:46:45 PM

14
Press the
MENU
panel button
followed by .
step 1Select preferences. step 2
XM NAVTRAFFIC®PREFERENCES
Show XM
NavTraffic
Information:
Auto Avoid Traffic:
Traffic Voice
Guidance:
Show Free
Flowing Traffic:
1
4
3
2
1
4
3
2
Touch to overlay traffic event and flow indicators
on the map. Traffic flow is displayed by color lines right
along the side of the freeways:
Free flow traffic
Light traffic jam
Heavy traffic jam
Touch to have the system automatically select
another route when moderate or heavy traffic is detected
during route guidance.
Touch to receive voice notification of traffic events
within 20 miles of the suggested route.
Touch to show traffic flow information. Traffic
flow is displayed with color lines alongside freeways or
highways with road sensors.
412722M1.indd Sec1:14412722M1.indd Sec1:14 7/23/08 4:46:46 PM7/23/08 4:46:46 PM

MN 00505-NAV09-RAV
Printed in the USA 07/08
412722M1.indd Sec1:15412722M1.indd Sec1:15 7/23/08 4:46:46 PM7/23/08 4:46:46 PM
